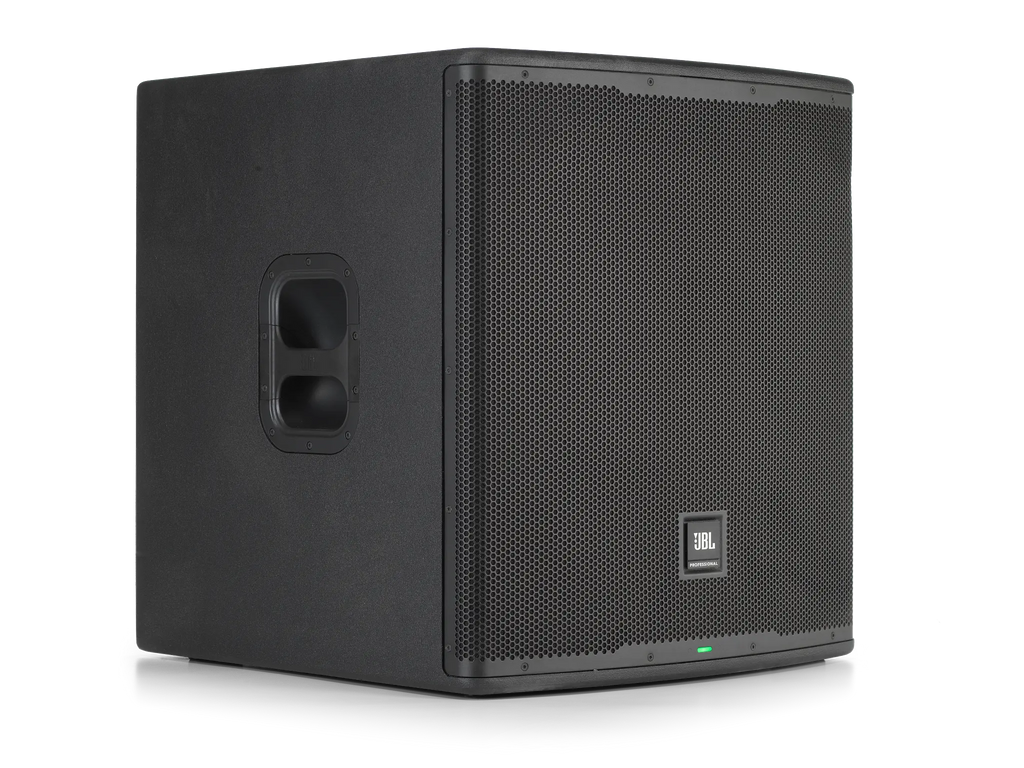

| System Type |
18 in powered subwoofer |

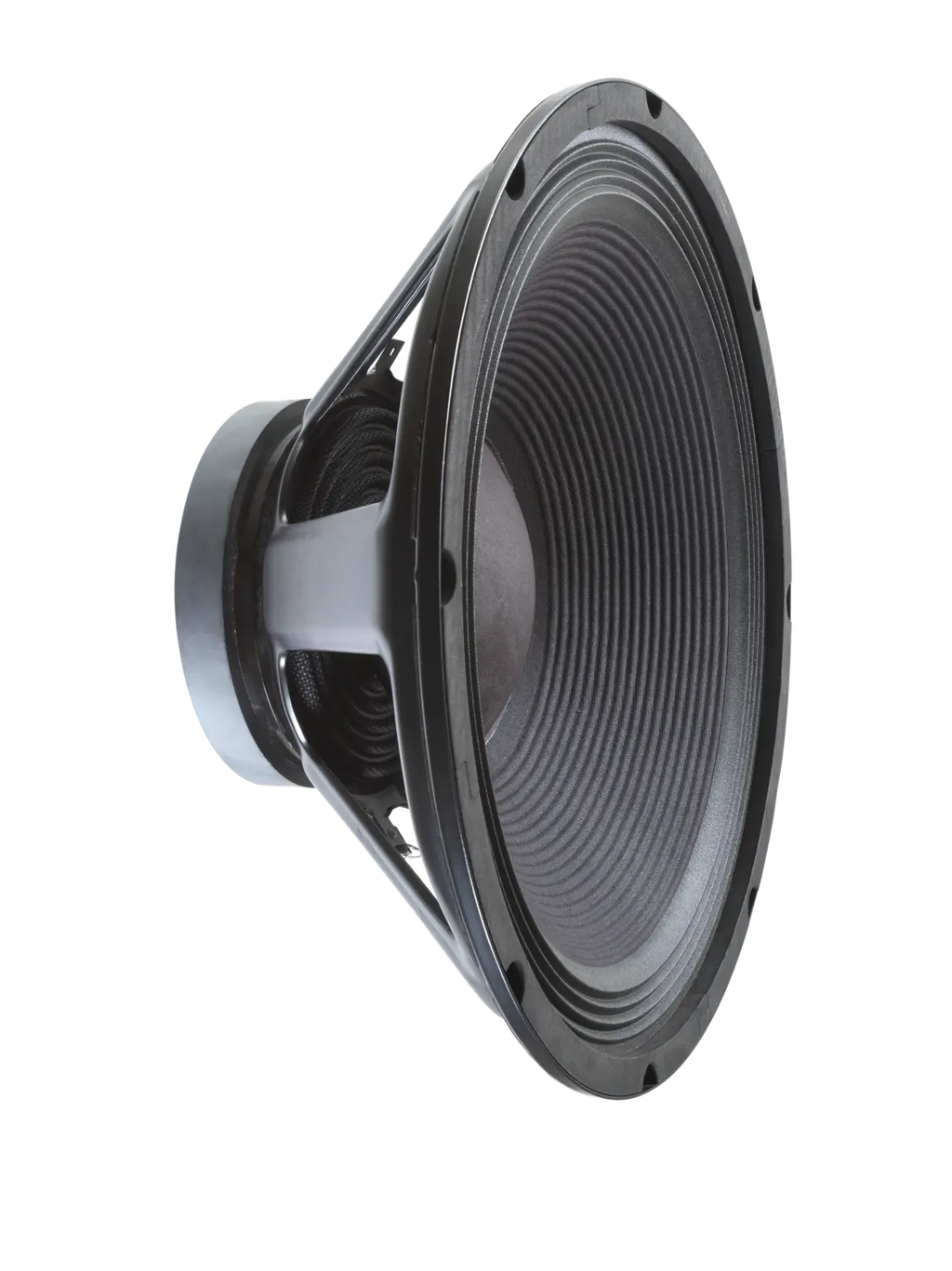

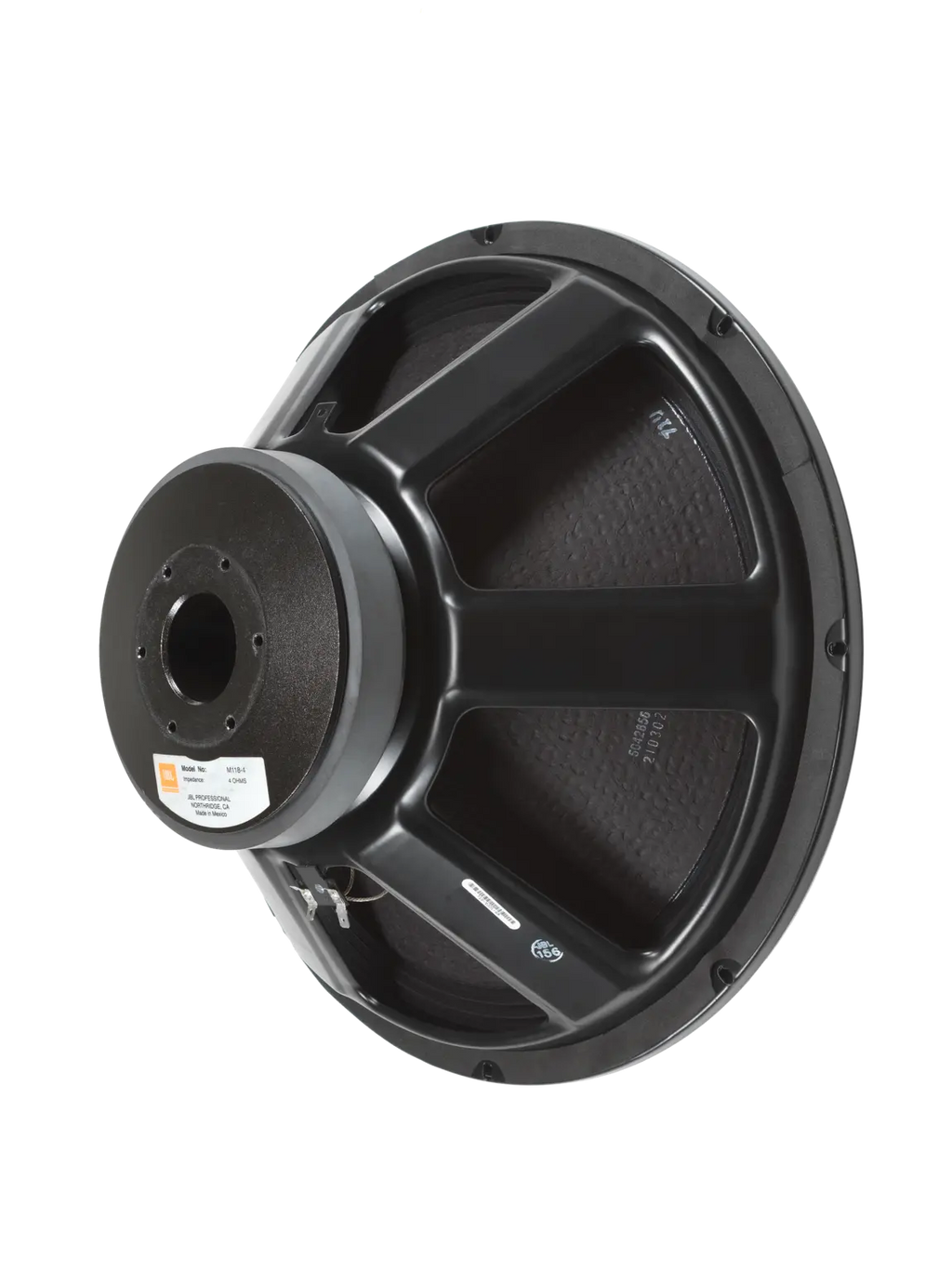

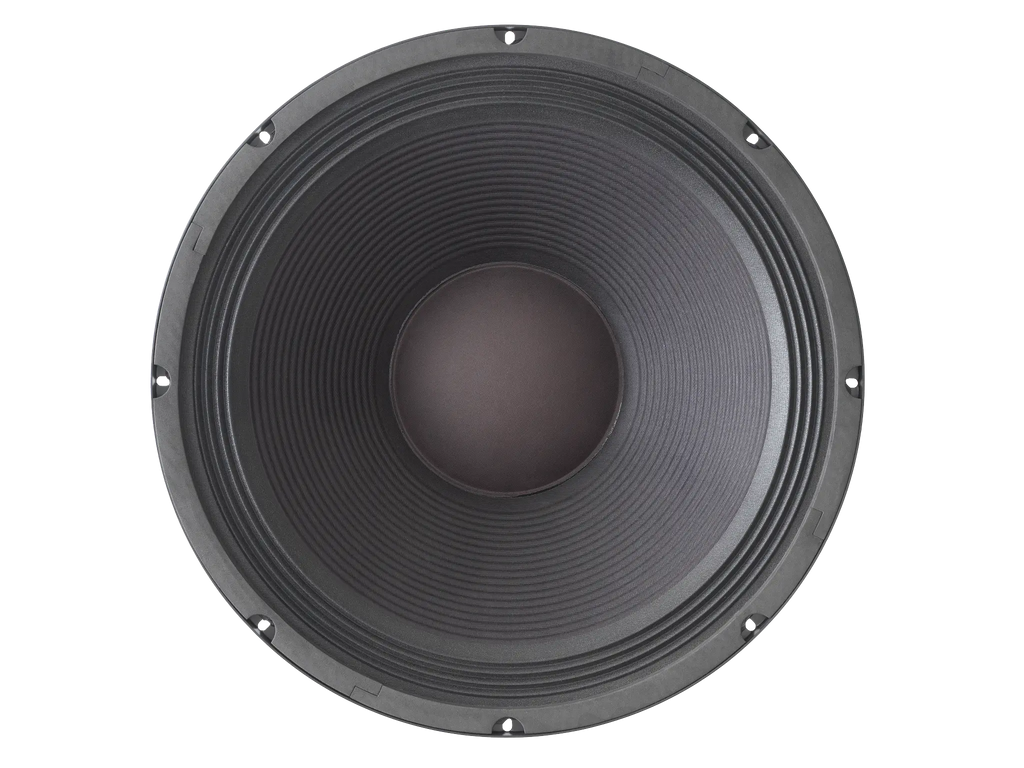

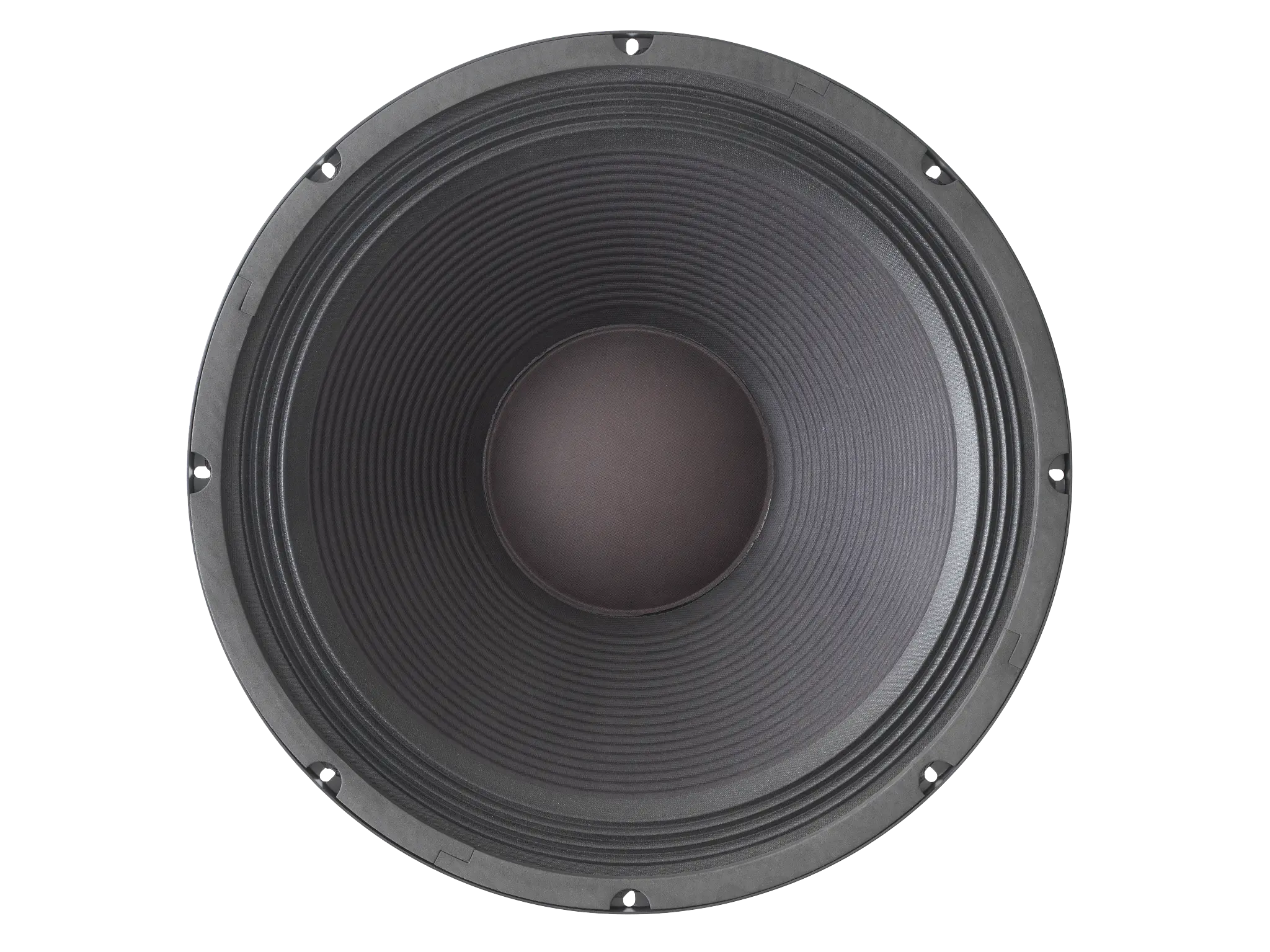

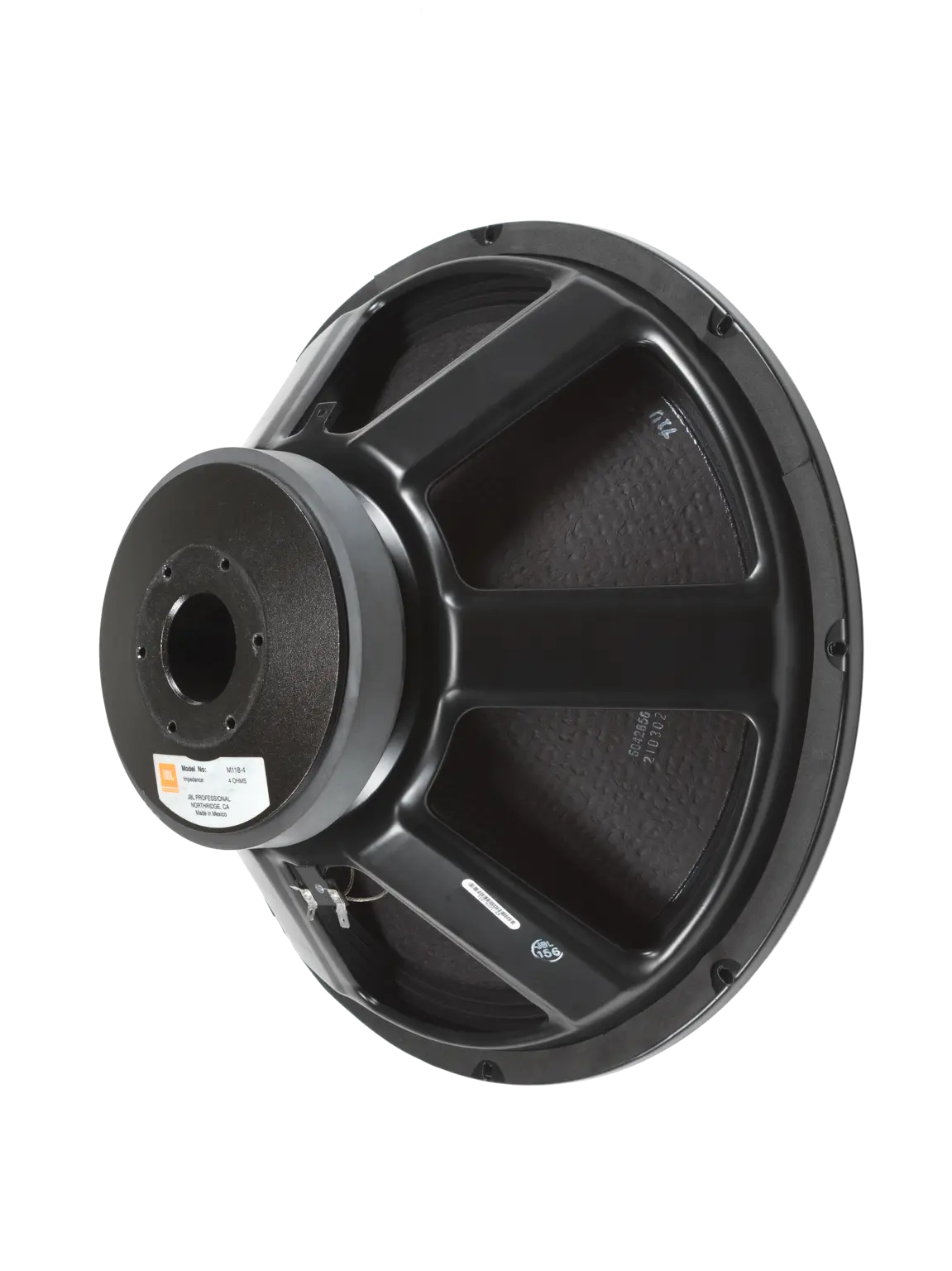

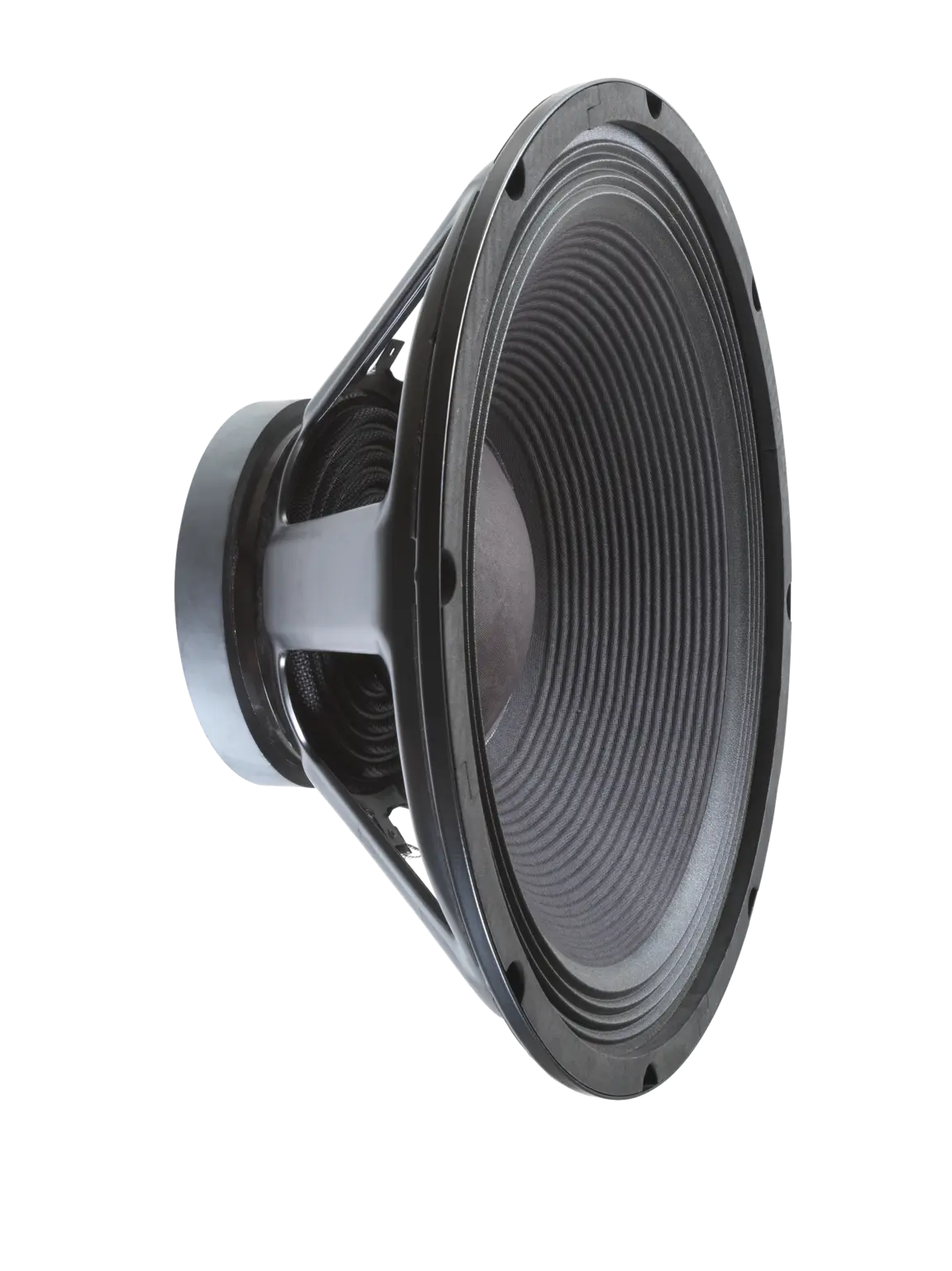

| Woofer Model |
718G |
| Woofer Size |
18" |
| Woofer Magnet |
Ferrite |
| Woofer Voice Coil |
3" |
| Transducer Impedance |
4 ohm rated |
| Max SPL |
131 dB @ 1m/2Pi |
| Frequency Range (-10dB) |
31 Hz – 150 Hz |
| Frequency Range (-3dB) |
40 Hz – 120 Hz |
| Horizontal Dispersion |
Omni |
| Vertical Dispersion |
Omni |
| Crossover Frequency |
80, 100, 120 Hz selectable |
| Power Rating |
1500 W peak / 750 W RMS |
| AC Power Input |
100V–120V or 220V–240V |
| Cooling |
Passive |
| LED Indicators |
1 Power LED, 1 System Limit, 1 Front LED |
| Input Impedance |
50k/100k unbalanced/balanced |
| Input Gain |
-∞ to +36 dB |

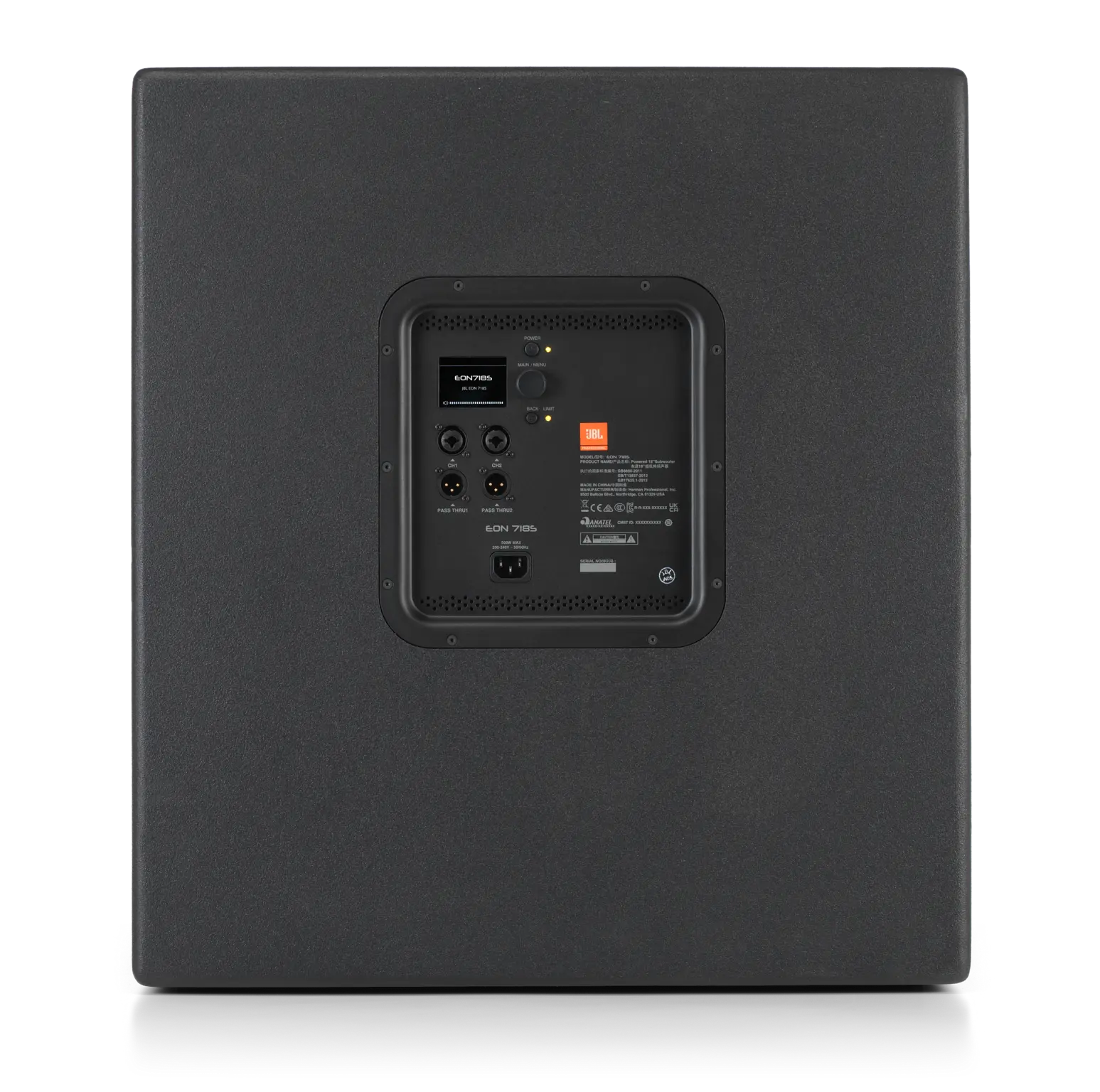

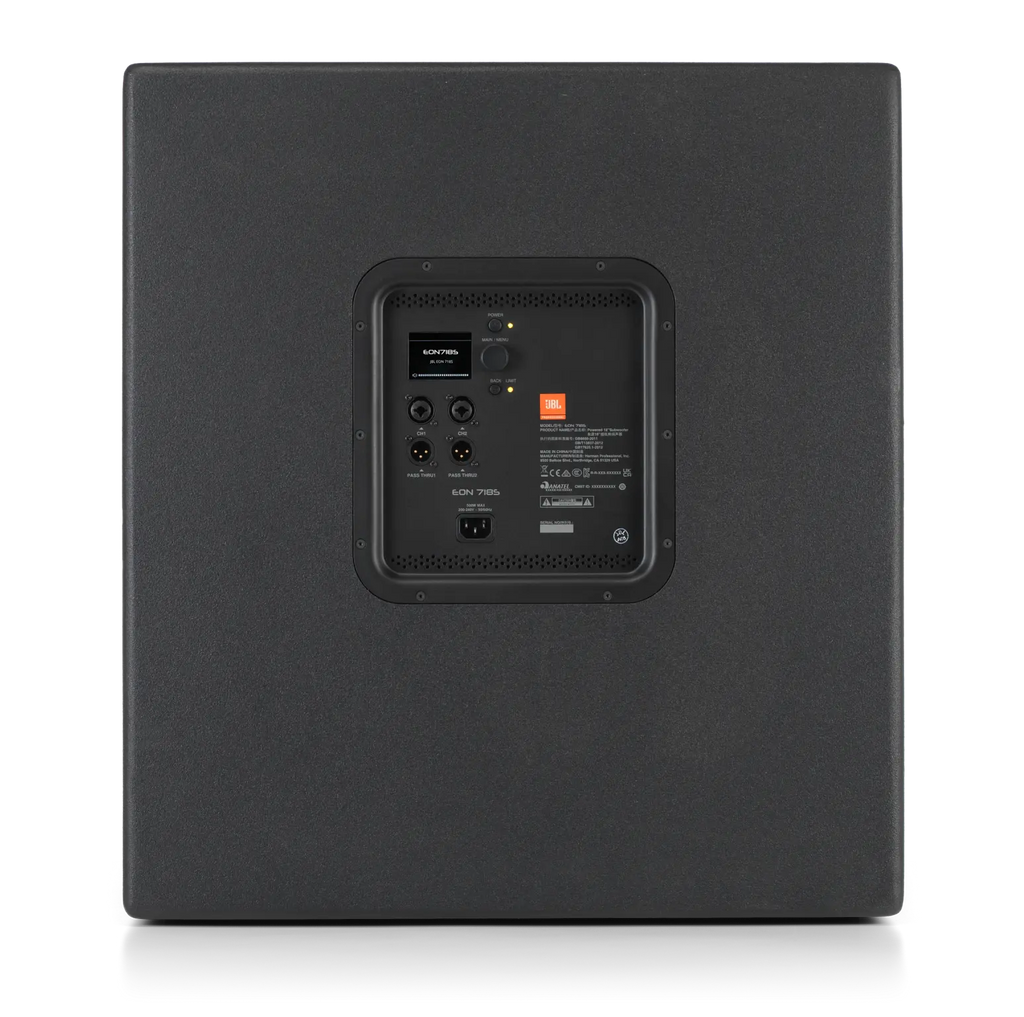

| I/O |
2 XLR combo
2 XLR M thru |

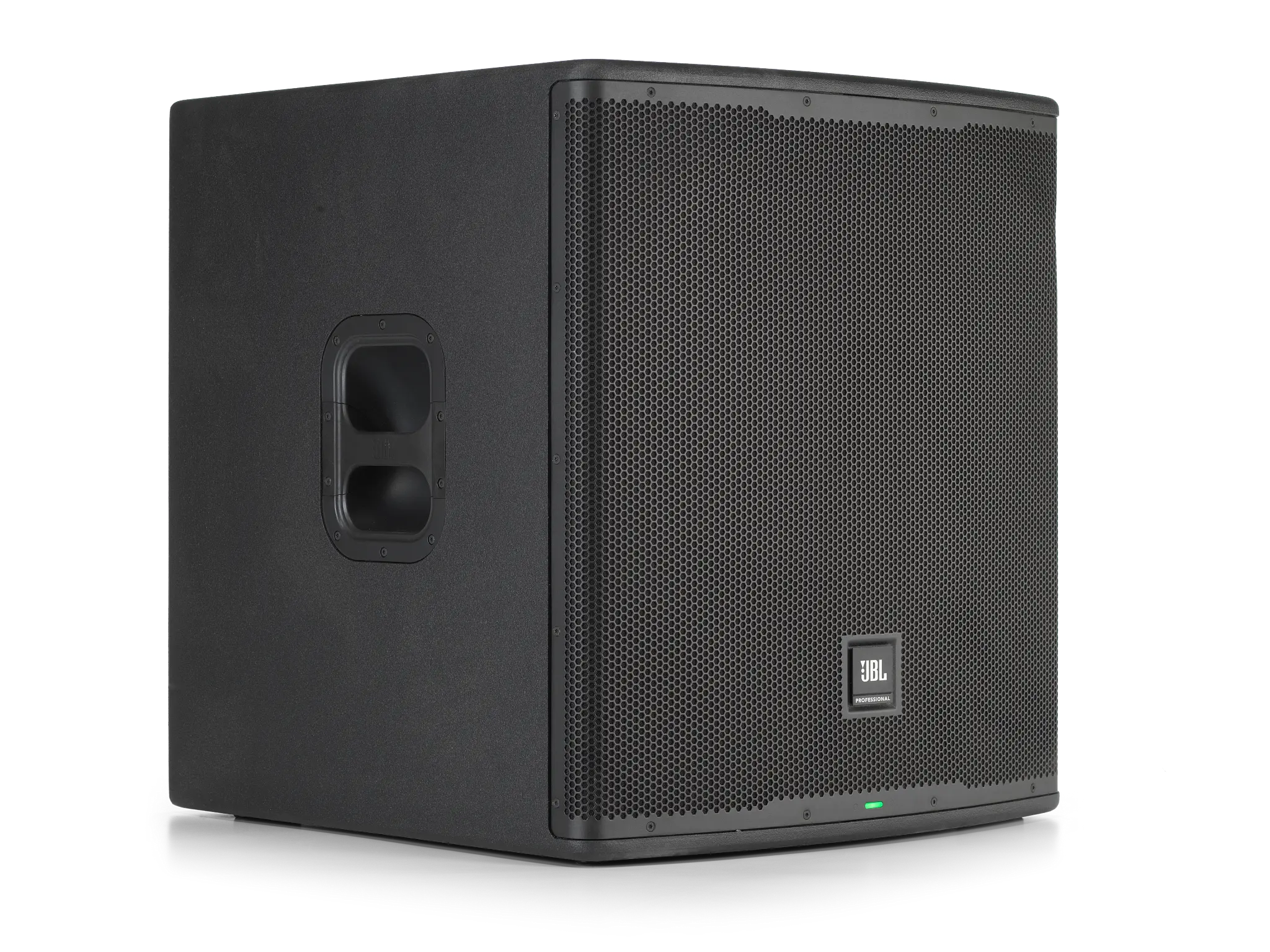

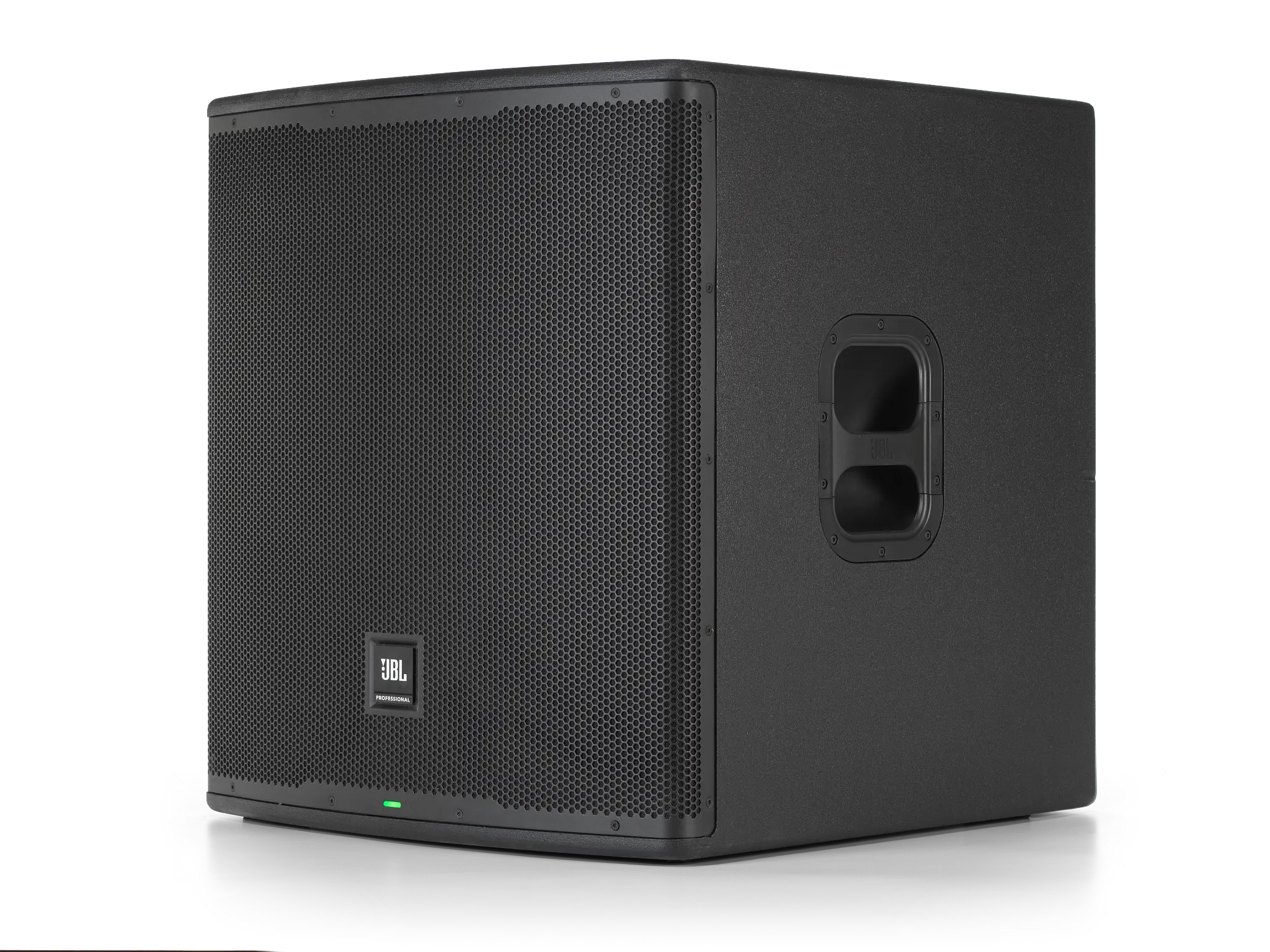

| Cabinet |
18 mm Duraflex-coated birch plywood |

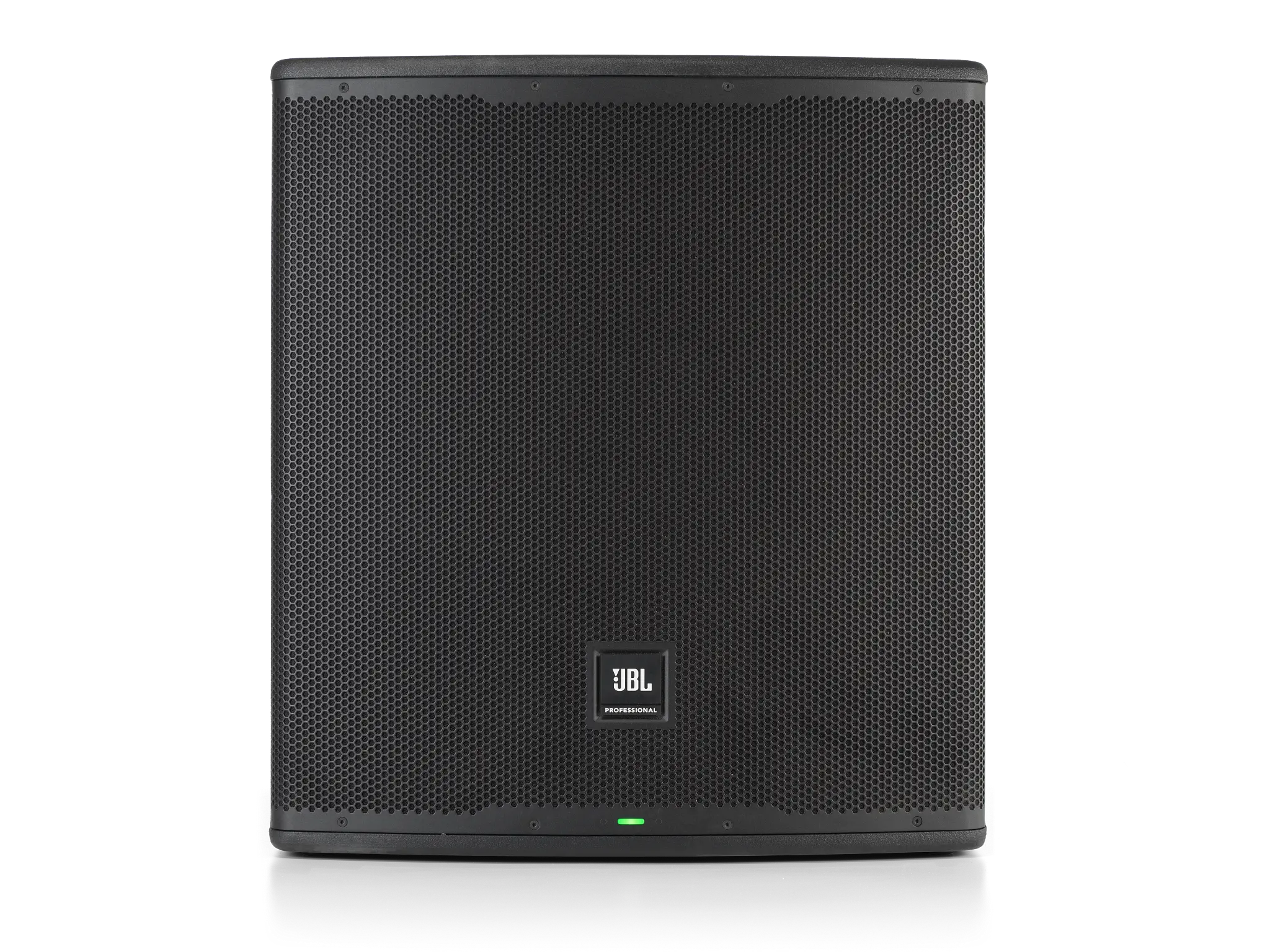

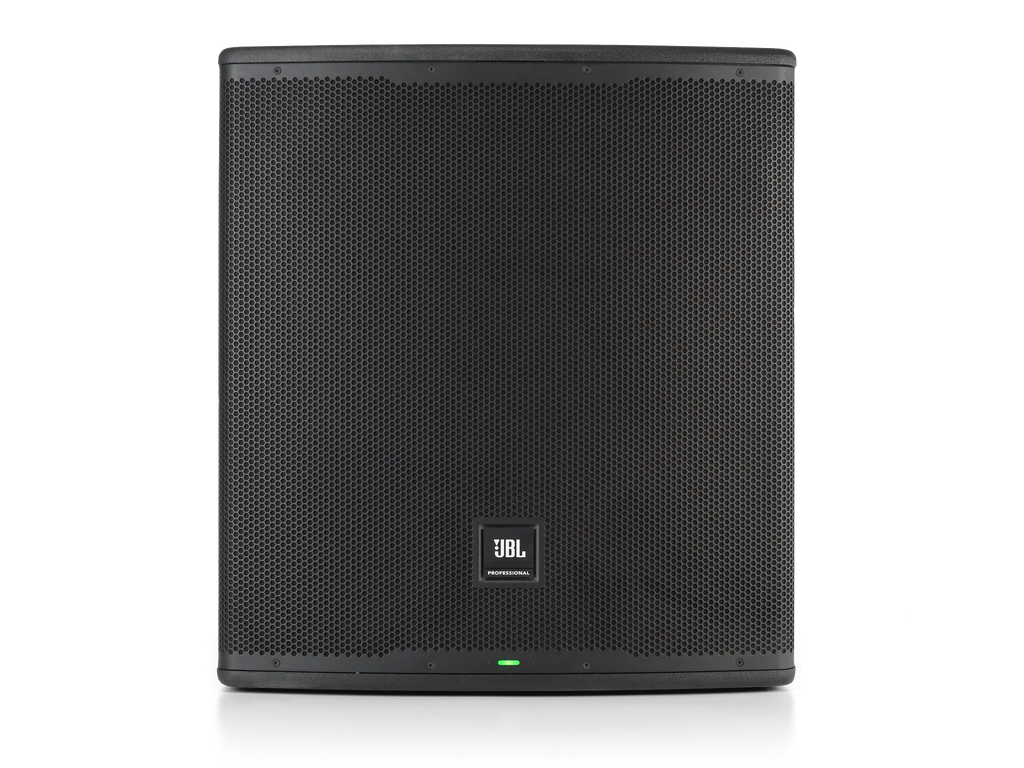

| Grille |
16GA perforated steel with acoustically transparent black cloth backing |
| Suspension / Mounting |
1 M20 threaded polecup |
| Handles |
2 |
| Net Weight |
35.5 kg (78.26 lb) |
| Gross Weight |
42.5 kg (93.70 lb) |
| Product Dimensions (H x W x L) |
674 x 609 x 637 mm (26.54 x 23.98 x 25.08 in) |
| Shipping Dimensions (H x W x L) |
722 x 743 x 713 mm (28.43 x 29.25 x 28.07 in) |
