| System Type |
12 in powered loudspeaker |
| Woofer Model |
712G |
| Woofer Size |
12" |
| Woofer Magnet |
Ferrite |
| Woofer Voice Coil |
2" |
| Tweeter Model |
2414H compression driver |
| Tweeter Size |
1" |
| Tweeter Magnet |
Neodymium |
| Transducer Impedance |
LF 4 ohm rated, HF 8 ohm rated |
| Max SPL |
127 dB @ 1m/4Pi |
| Frequency Range (-10dB) |
50 Hz – 20 kHz |
| Frequency Range (-3dB) |
60 Hz – 20 kHz |
| Horizontal Dispersion |
100° |
| Vertical Dispersion |
60° |
| Power Rating |
1300 W peak / 650 W RMS |
| AC Power Input |
100V–120V or 220V–240V |
| Cooling |
Passive |
| LED Indicators |
1 Power LED, 1 Limit LED, 1 Front LED, 2 Signal/SSM LEDs |
| Input Impedance |
50k/100k unbalanced/balanced |
| Input Gain |
-∞ to +36 dB |
| Crossover Frequency |
2 kHz |

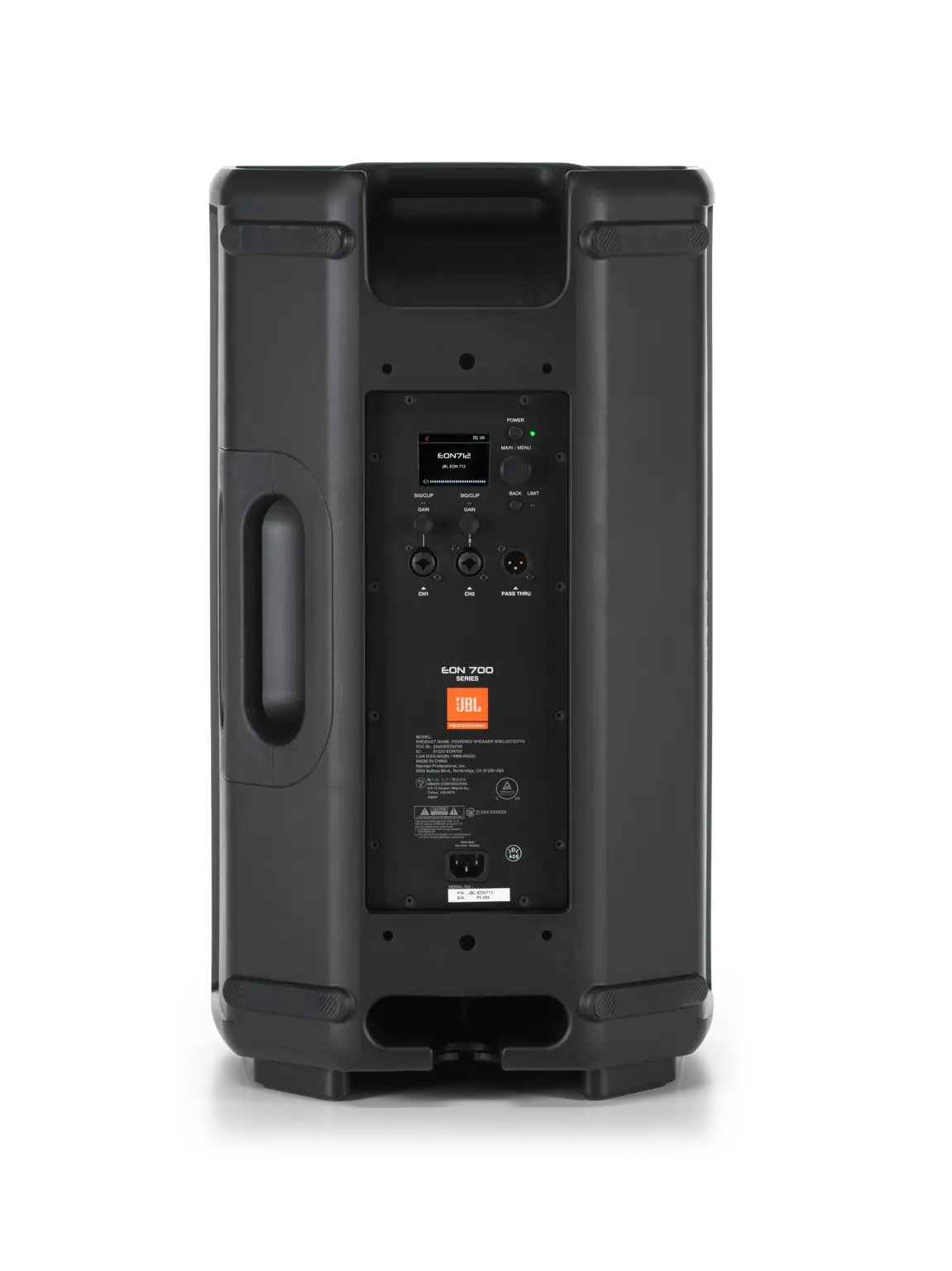

| I/O |
2 XLR combo jacks / BT
1 XLR M thru |
| Cabinet |
PP + 10% talc |
| Grille |
16GA perforated steel with acoustically transparent black cloth backing |

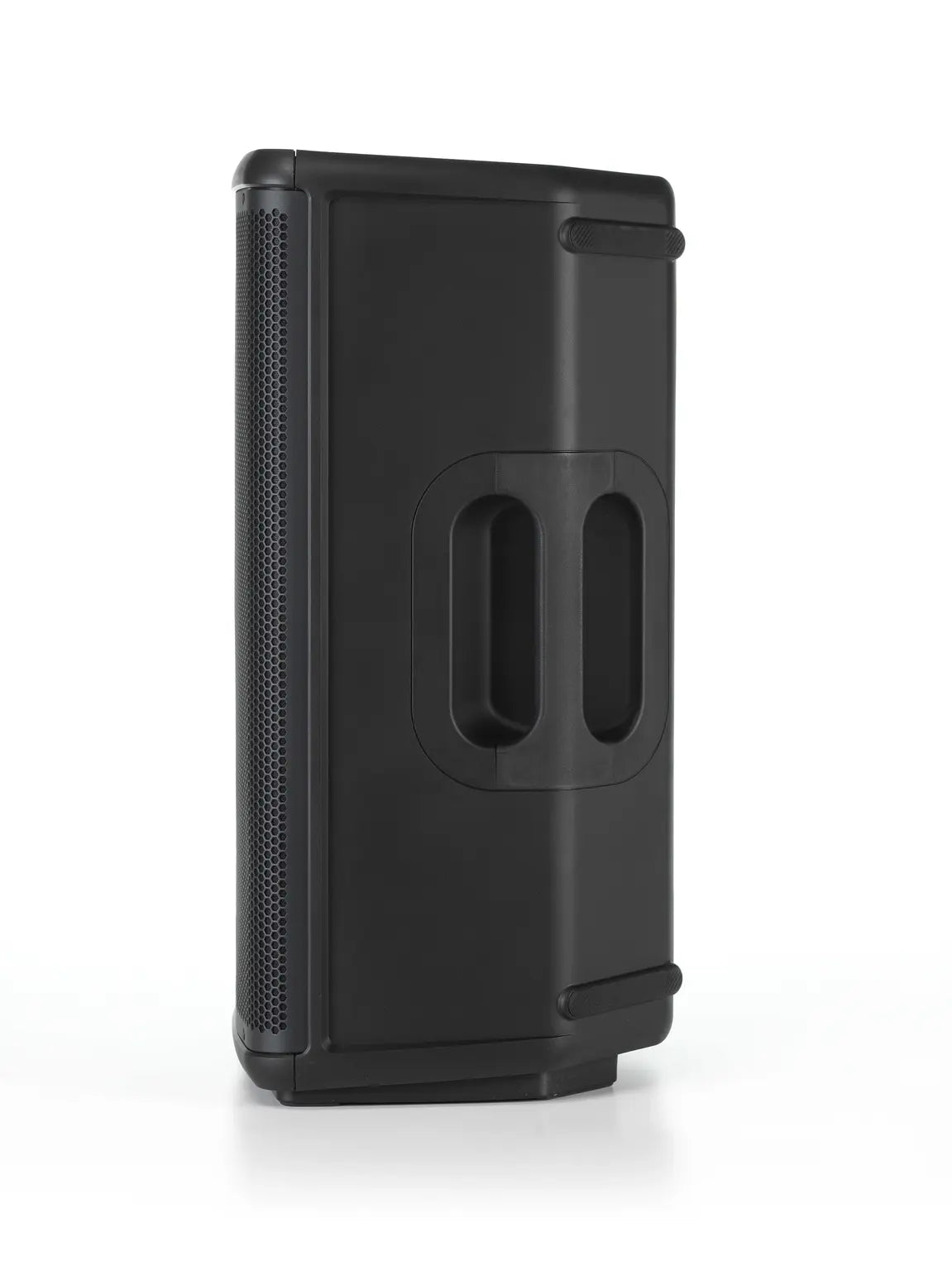

| Suspension / Mounting |

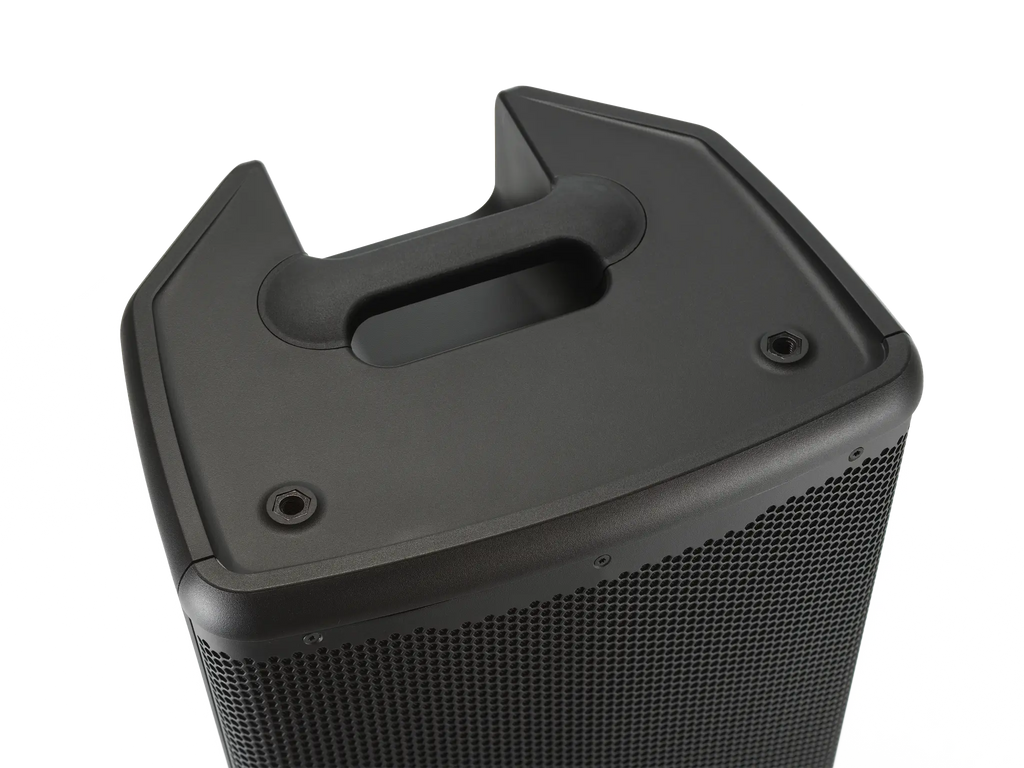

4 M10 suspension points, 36 mm pole socket, universal yoke bracket holes |

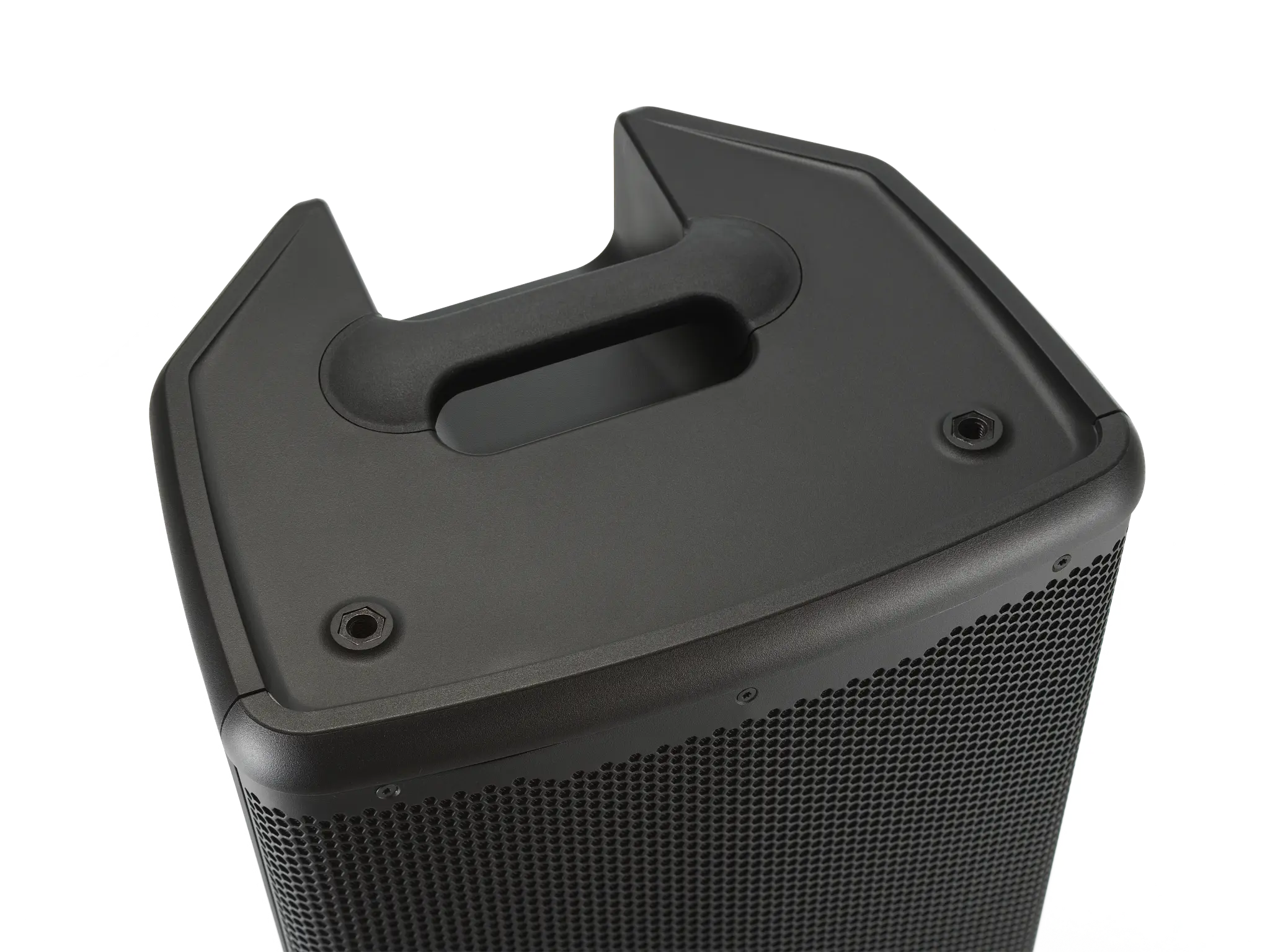

| Handles |
2, cable channel on bottom |
| Net Weight |
14.6 kg (32.19 lb) |
| Gross Weight |
18.4 kg (40.57 lb) |
| Product Dimensions (H x W x L) |
670 x 381 x 328 mm (26.38 x 15.0 x 12.91 in) |
| Shipping Dimensions (H x W x L) |
684 x 490 x 430 mm (26.93 x 19.29 x 16.93 in) |
