Name: JBL CWT128 Dual 8-inch 2-Way Loudspeaker System with CWT Technology
Brand: JBL
SKU: JBL CWT128
Price: 20498.37 SAR
Availability: InStock

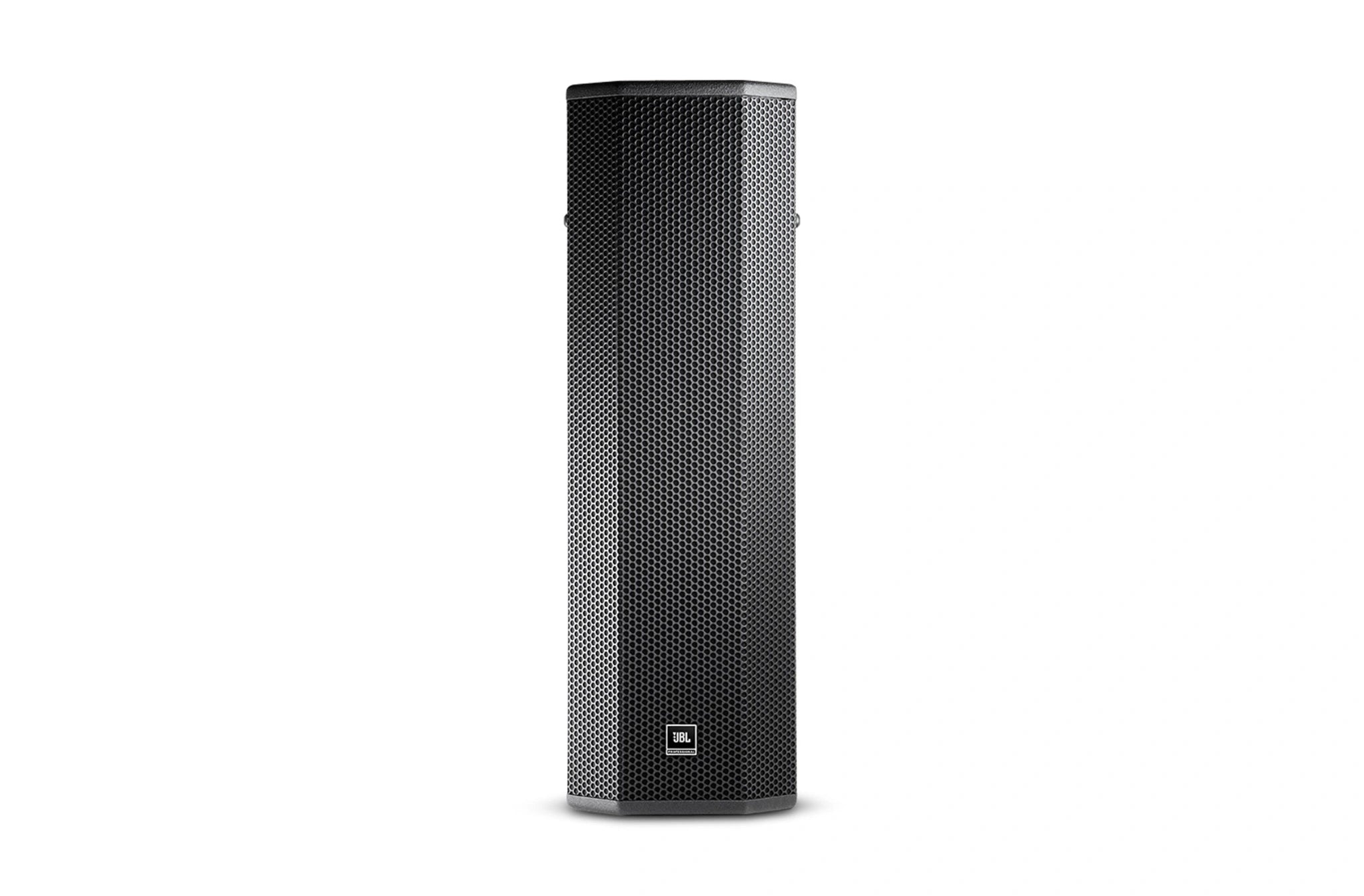

JBL CWT128 Dual 8-inch 2-Way Loudspeaker System front grille and dual driver layout

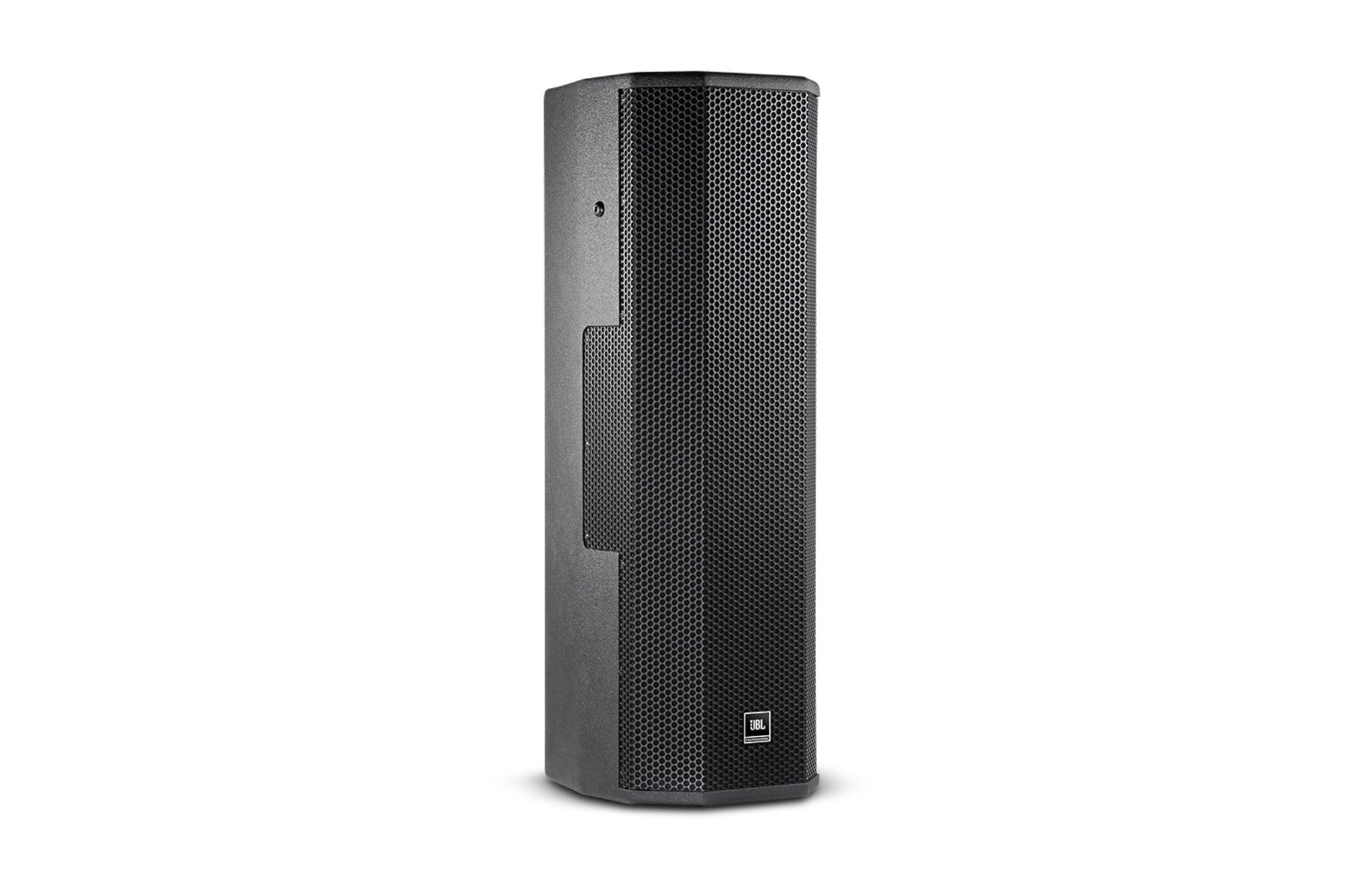

Front-facing JBL CWT128 Dual 8-inch 2-Way Loudspeaker System showing dual 8-inch LF drivers

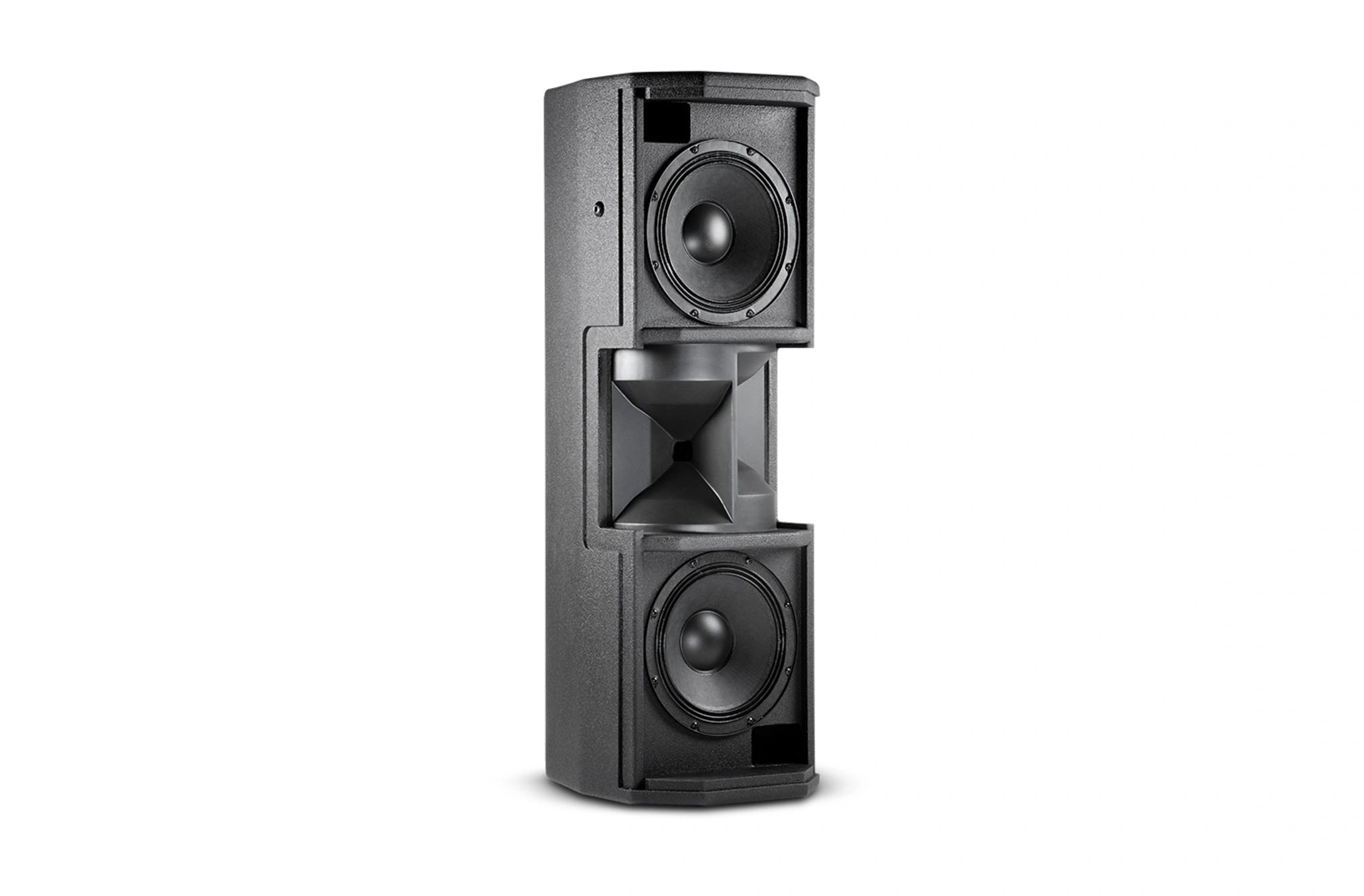

Overhead view of JBL CWT128 Dual 8-inch 2-Way Loudspeaker System enclosure design

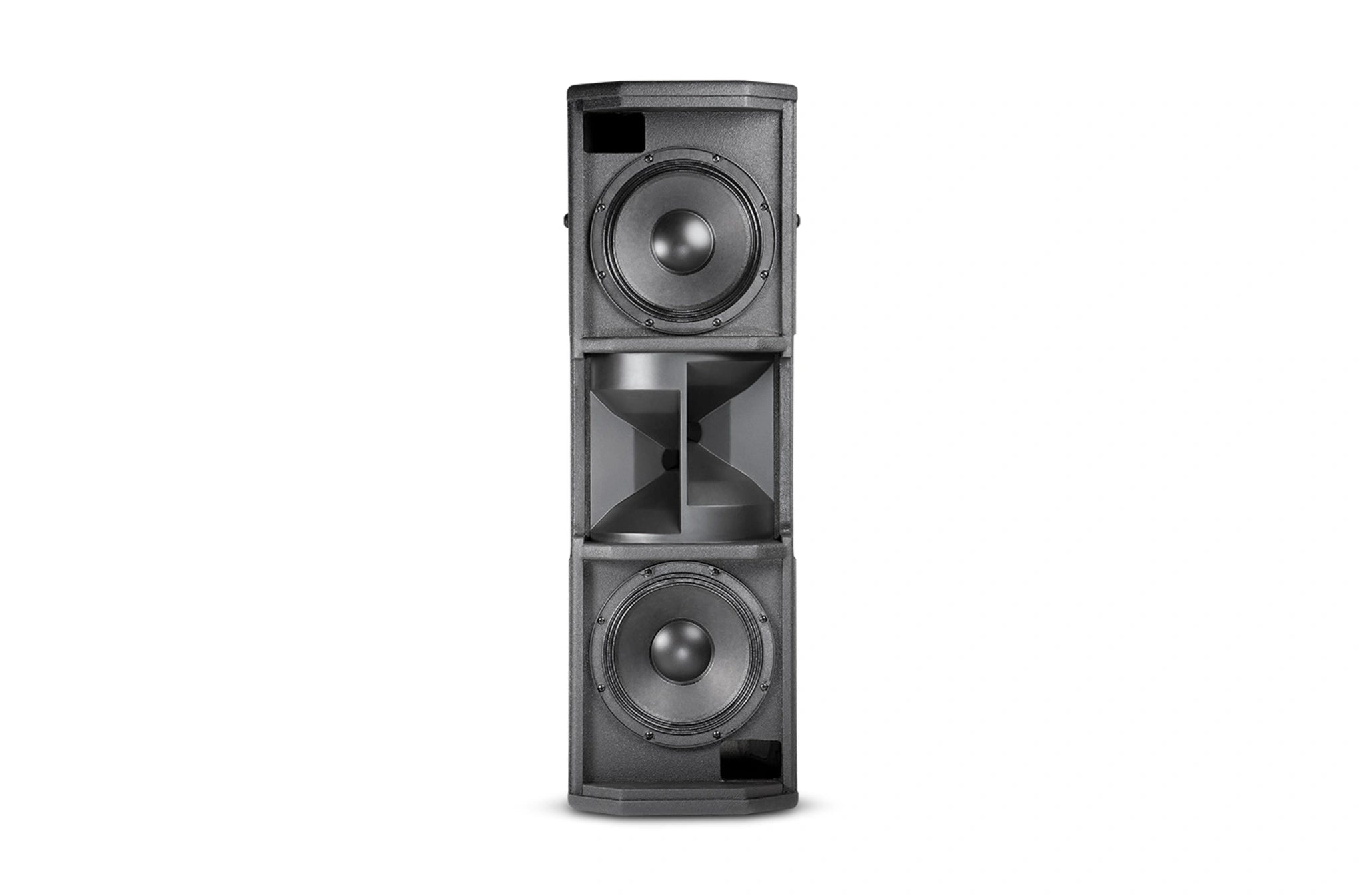

JBL CWT128 Dual 8-inch 2-Way Loudspeaker System grille close-up detail

JBL CWT128 Dual 8-inch 2-Way Loudspeaker System featuring CWT Crossfired Waveguide Technology

The JBL CWT128 Dual 8-inch 2-Way Loudspeaker System Crossfired Waveguide Technology CWT128 is a compact full-range 2-way system designed to provide extremely wide-angle coverage with maximum bandwidth and SPL in a single system package. The unique wide coverage pattern horn is designed to provide seamless coverage to 160-degrees horizontally. CWT128’s small footprint makes the system ideal for nearly all architecturally sensitive environments, taking up about a third of the footprint of two speakers splayed side by side.

JBL CWT128 Dual 8-inch 2-Way Loudspeaker System Features

Seamless horizontal coverage across a full 160°
Compact size and small footprint make it ideal for architecturally sensitive environments
Dual 205 mm (8 in) LF transducers
Extremely wide-coverage 160° x 60° waveguide
Dual 25 mm (1") exit, 38 mm (1.5") diaphragm compression driver
Easy to install with 4 M10 attachment points built in across the top and sides
4 M8 points on the back panel accept OmniMount® wall mounting brackets
WRC and WRX weather resistant versions are available upon request
CWT128 is available in white - WH

Specification	Details
System Format	Extremely wide-angle coverage dual 8" 2-way loudspeaker system
Frequency Range (-10dB)	71 Hz – 20 kHz
Frequency Response (±3 dB)	96 Hz – 19 kHz
Coverage Pattern	160° x 60°
Maximum SPL (1m)	129 dB
System Nominal Impedance	8 ohms
Long-Term System Power Rating	450 W (1800 W peak)
System Power Rating	850 W / 1700 W / 3400 W continuous/program/peak
Crossover	1.5 kHz
Crossover Modes	Passive
LF Driver	2 x JBL 228J, 205 mm (8 in) SFG™ driver with 64 mm (2.5 in) edge wound voice coil
Nominal LF Driver Impedance	8 ohms
HF Driver	2 x 2408H-1, 25 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil
High-Frequency Waveguide	Crossfired waveguide
System Sensitivity (1W @ 1m)	94 dB SPL
Transformer Taps	70V: 110 W, 55 W, 28 W 100V: 110 W, 55 W
Finish	Black DuraFlex™ finish. White (-WH) available upon request.
Enclosure	12 mm and 15 mm exterior-grade multi-ply hardwood plywood
Suspension Attachment	4 x M10 (one top, one bottom, plus one on each side panel); 4 x M8 rear for MultiMount® MM-120-BT
Environmental	Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX.
Dimensions (W x H x D)	811.28 x 259.59 x 300.74 mm (31.94 x 10.22 x 11.84 in)
Net Weight (each)	18.6 kg (40.9 lb)

JBL CWT128 Dual 8-inch 2-Way Loudspeaker System with CWT Technology

Description

JBL CWT128 Dual 8-inch 2-Way Loudspeaker System featuring CWT Crossfired Waveguide Technology

JBL CWT128 Dual 8-inch 2-Way Loudspeaker System with CWT Technology
