JBL Control HST Wide-Coverage Speaker Features

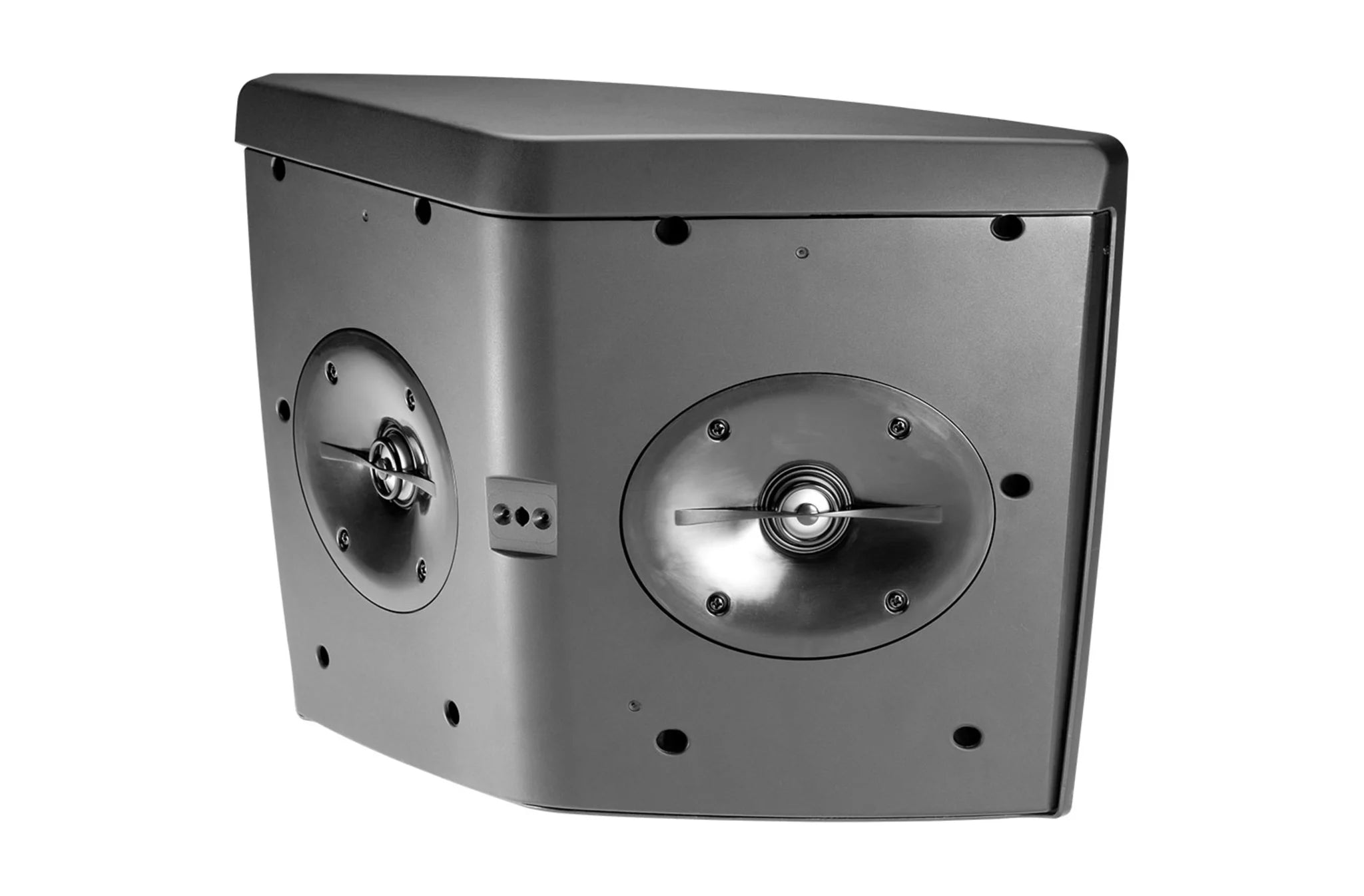

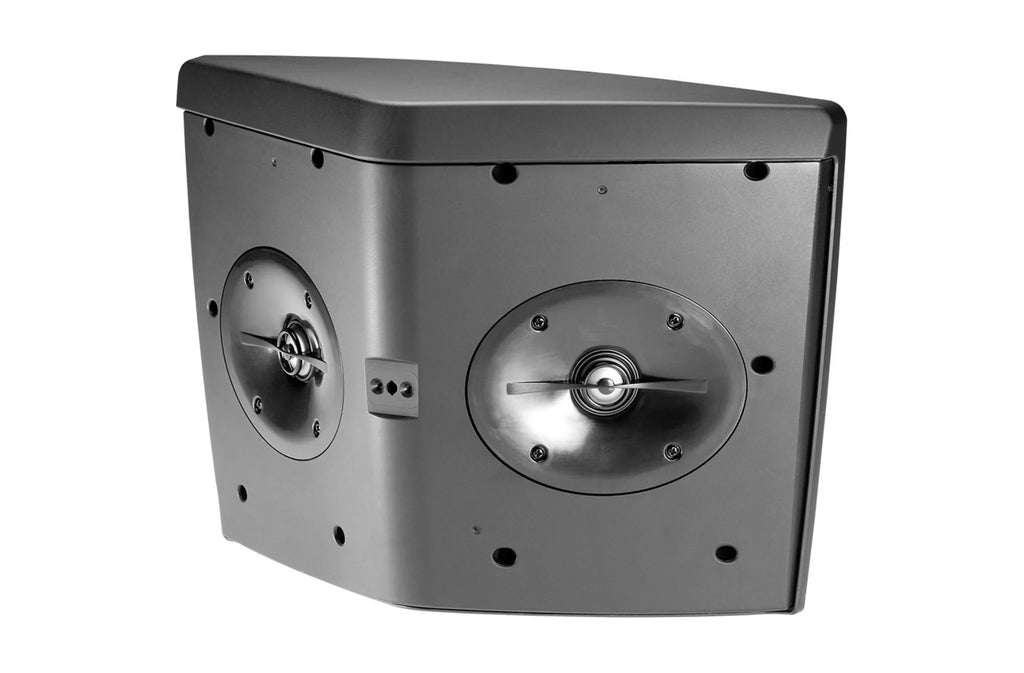

SPLAYED TWEETERS
The JBL Control HST Wide-Coverage Speaker dual tweeters feature aluminum diaphragms with a CMMD treat, polyurethane surround, a neodymium magnet, and fluid-cooling for high output, low distortion
and humidity resistance.

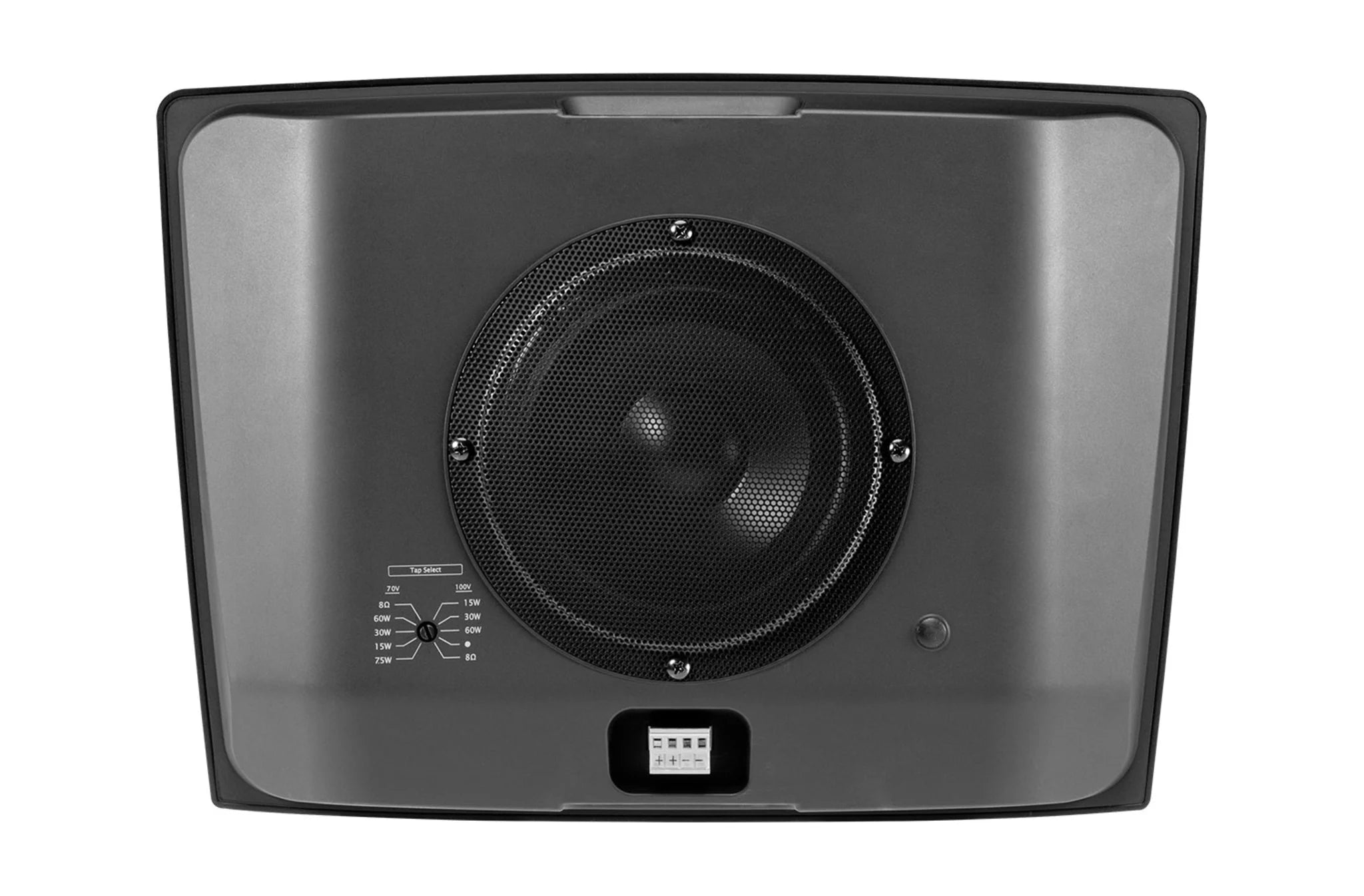

WALL FACING WOOFER
The well-damped woofer incorporates a CMMD ceramic metal matrix diaphragm for a very high stiffness-to-weight ratio, high output, resistance to humidity
and long-term durability.
CONTROLLED SOUND
Engineered noise cancelling allows Control HST to provide a flatter resulting frequency response along with a more consistent sound character throughout the room.
JBL Control HST Wide-Coverage Speaker Specifications
| Specification |
Details |
| Frequency Range (-10dB) |
50 Hz – 20 kHz |
| Frequency Response (±3dB) |
68 Hz – 18 kHz |
| Coverage Angle |
180° H x 160° V |
| Directivity Factor (Q) |
5.4 (1 kHz – 16 kHz) |
| Directivity Index (DI) |
7.2 dB (1 kHz – 16 kHz) |
| System Power Rating (IEC) |
100 W (400 W peak), 2 hrs
75 W (300 W peak), 100 hrs |
| Sensitivity |
88 dB (avg 80 Hz – 20 kHz) |
| Maximum SPL (1m) |
Direct 8Ω: 108 dB (peaks of 114 dB)
60W tap: 97 dB @ 60W |
| Crossover Network |
1.6 kHz, 3rd order (18 dB/oct) high-pass to HF, 2nd order low-pass to LF |
| Impedance |
8 ohms |

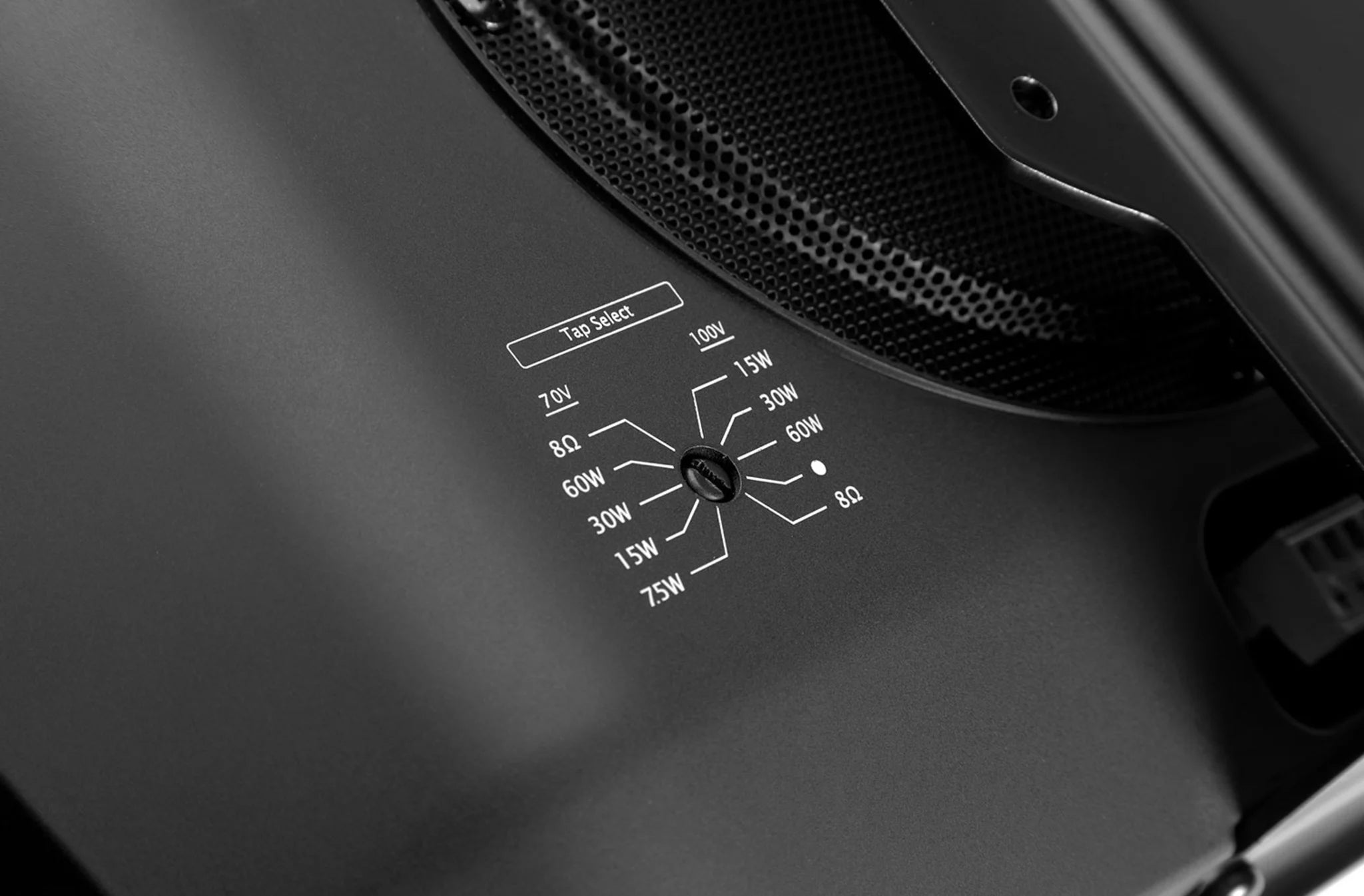

| Transformer Taps |
70V: 60 W, 30 W, 15 W, 7.5 W
100V: 60 W, 30 W, 15 W |
| Drivers |
LF: CMMD™ ceramic metal matrix diaphragm cone, 25 mm (1 in) voice coil
HF: Two splayed tweeters with CMMD-treated aluminum diaphragms, polyurethane surround, polyimide bobbin, neodymium magnet, and fluid-cooling |
| Enclosure |
Fiberglass-reinforced ABS |
| Attachment |
Four M6 points for included U-bracket. Additional M6 insert point provided for secondary safety attachment cable. U-bracket must be utilized. Must be mounted on wall surface — do not mount on pole. |
| Grille |
Aluminum grille, painted to match cabinet color |
| Input Connectors |
Removable locking Euro-block 4-pin connector with screw-down terminals for bare wire. Two pins for input and two pins for parallel loop-thru. Max wire 12 AWG (2.5 mm²). |
| Outdoor Capability |
IP54 per IEC529. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray. |
| Dimensions (H x W x D) |
362 x 256 x 184 mm (14.25 x 10.1 x 7.2 in), cabinet 208 mm (8.2 in) depth with included bracket |
| Colors |
Available in black (RAL9004) and white (-WH, RAL9016) |
| Net Weight (each) |
3.6 kg (8.0 lb), 4.3 kg (9.5 lb) with U-bracket |
| Included Accessories |
U-bracket, matches loudspeaker color (black or white), zinc-rich extra-thick powder coated steel |
| Mounting Hardware |
Included wall-mount bracket |
