| Frequency Range (-10dB) |
32 Hz – 200 Hz |
| Frequency Response (±3dB) |
50 Hz – 150 Hz |
| Power Capacity |
300 W continuous program power (2 hrs)
150 W continuous pink noise (2 hrs)
200 W continuous program power (100 hrs)
100 W continuous pink noise (100 hrs) |
| Sensitivity |
95 dB (near corner), 89 dB (center of wall) |
| Maximum SPL (1m) |
115 dB average, 121 dB peak (near corner)
109 dB average, 115 dB peak (center of wall) |
| Impedance |
8 ohms (in bypass/thru mode) |
| Transformer Taps |
80 W, 40 W, 20 W (& 10 W @ 70V), 8 ohm bypass/thru |

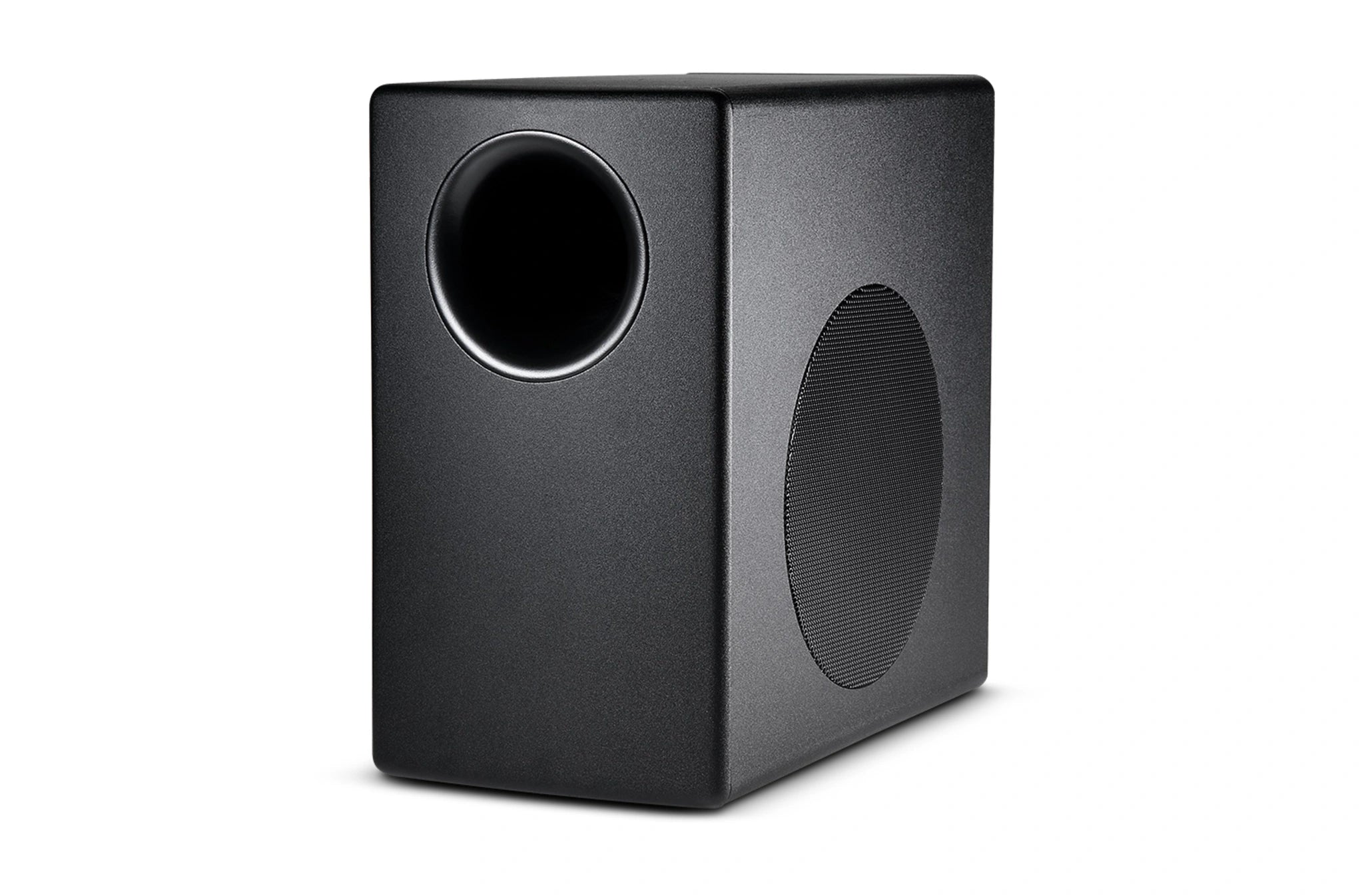

| Drivers |
200 mm (8 in) with polypropylene cone, butyl rubber surround, 38 mm (1.5 in) 4-layer copper-clad coil, vented aluminum former |
| Input Connectors |
Six removable locking 2-pin connectors with screw-down terminals. Max wire 12 AWG (2.5 mm²). |
| Enclosure |
Top, bottom, front & bottom: structural plywood. Port & terminal panels: MDF. Grille: painted zinc-plated metal. |
| Coverage Angle |
Omnidirectional |
| Dimensions (H x W x D) |
Cabinet: 356 x 391 x 203 mm (14.0 x 15.4 x 8.0 in)
Wall bracket: 15 mm (0.6 in) deep |
| Mounting Hardware |
2.3 mm (0.9 in) thick zinc-plated and painted cold-rolled steel |
| Net Weight (each) |
9.0 kg (20 lb) |
| Shipping Weight |
10.2 kg (23 lb) |
| Included Accessories |
Wall bracket (both speaker and wall parts) with 4 pcs M6 screws to attach to speaker, terminal cover, 6 pcs 2-pin locking connectors, M6 screw for safety lanyard attachment |
| Grille |
Zinc-plated steel |
