Name: JBL Control 414CT Micro Plus 4" Two-Way High-Output Ceiling Loudspeaker with Low-Profile Enclosure
Brand: JBL
Price: 1053.29 SAR
Availability: InStock

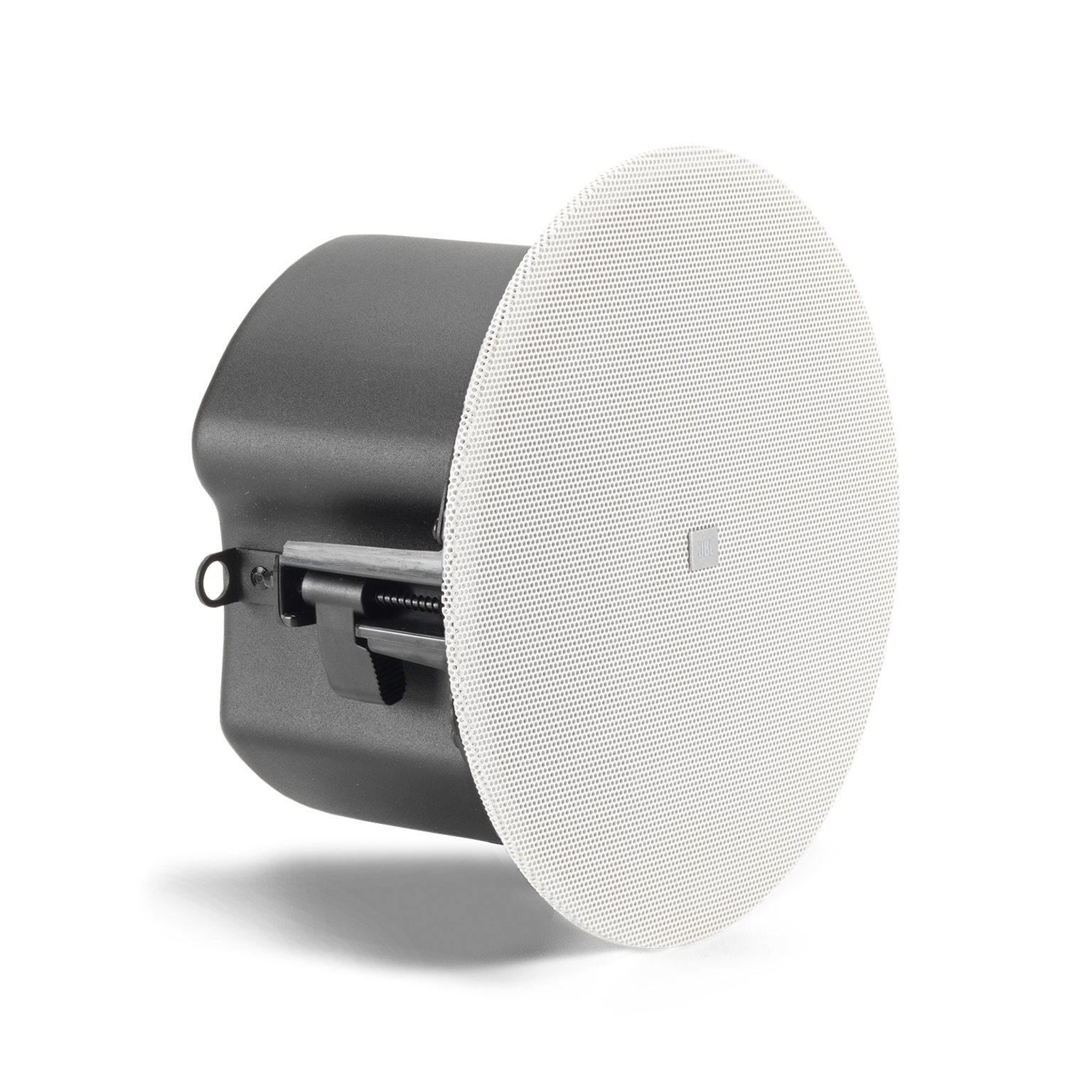

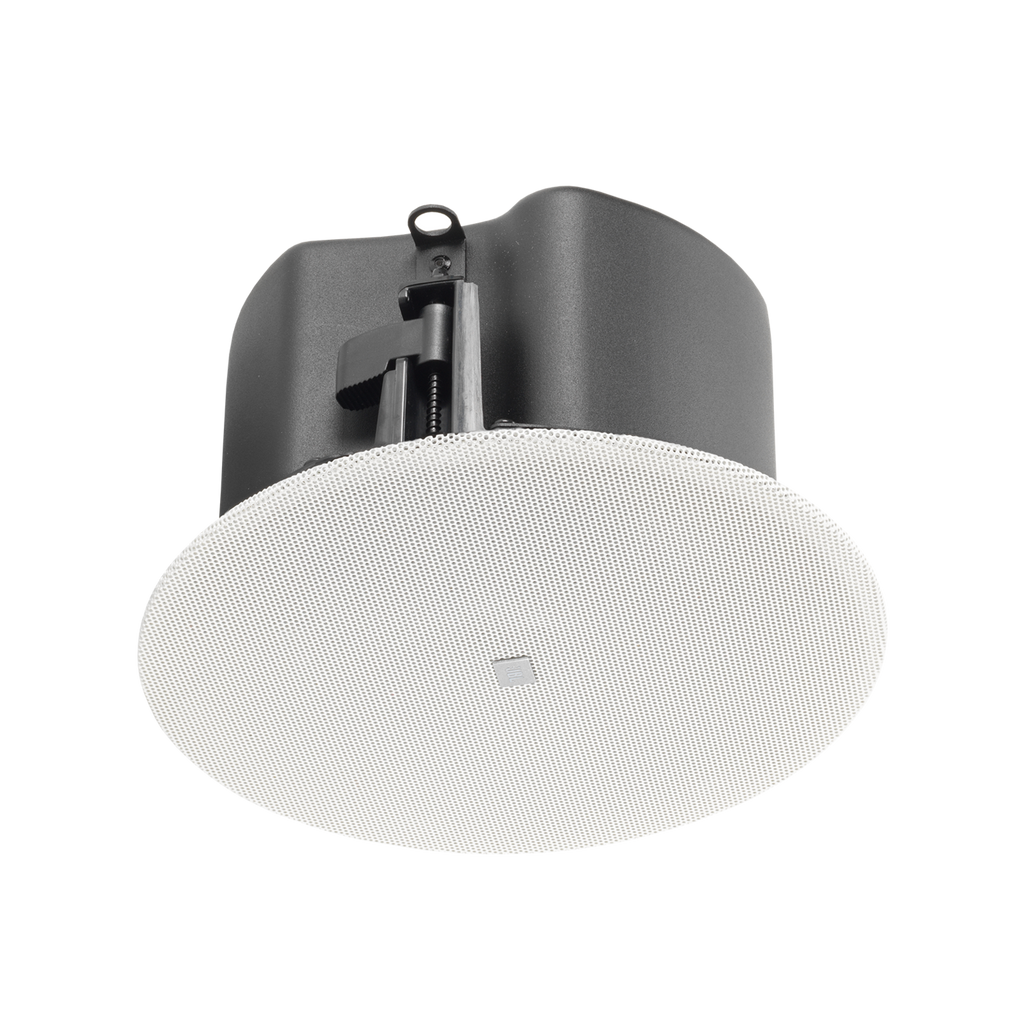

JBL Control 414CT Micro Plus 4" Two-Way High-Output Ceiling Loudspeaker front view with round grille

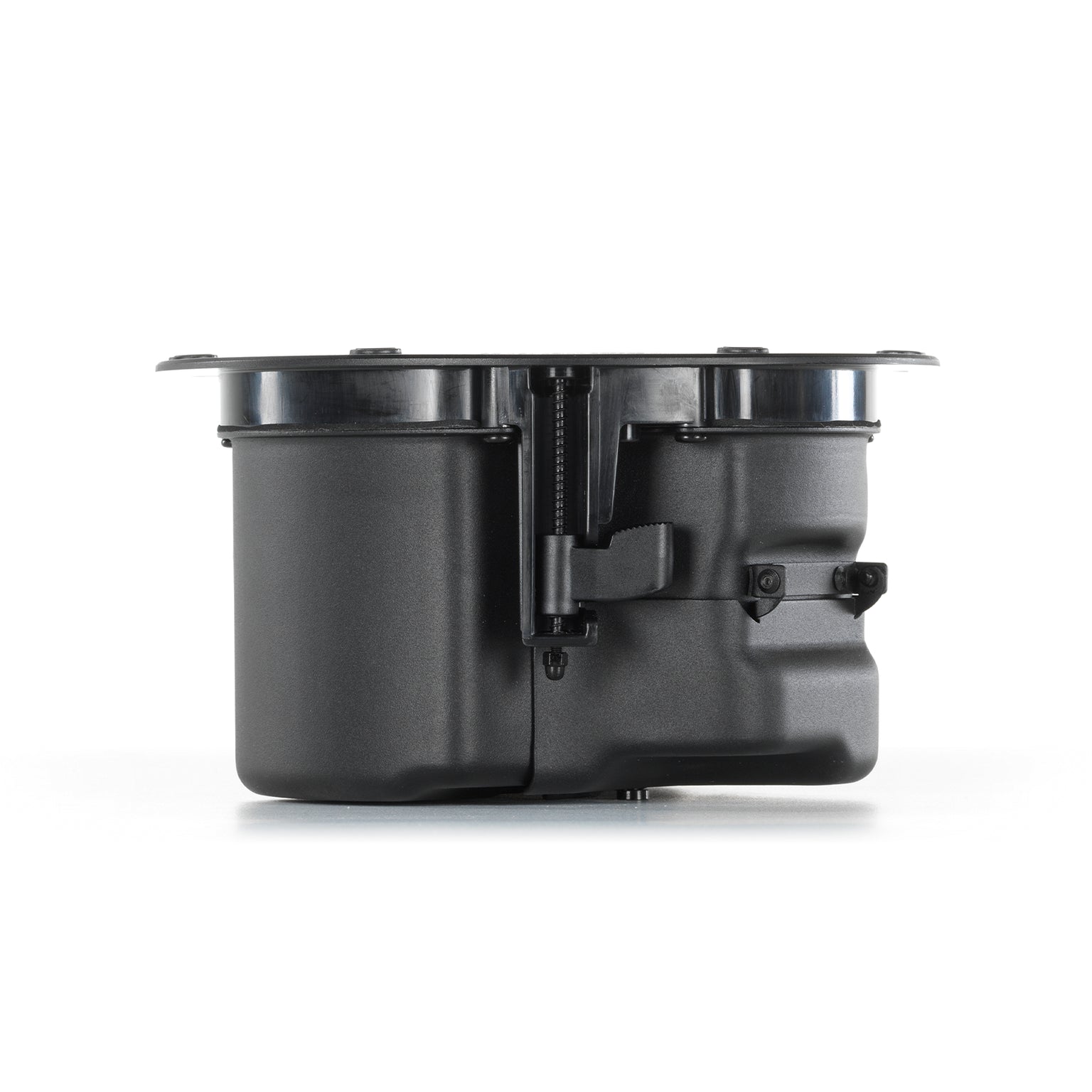

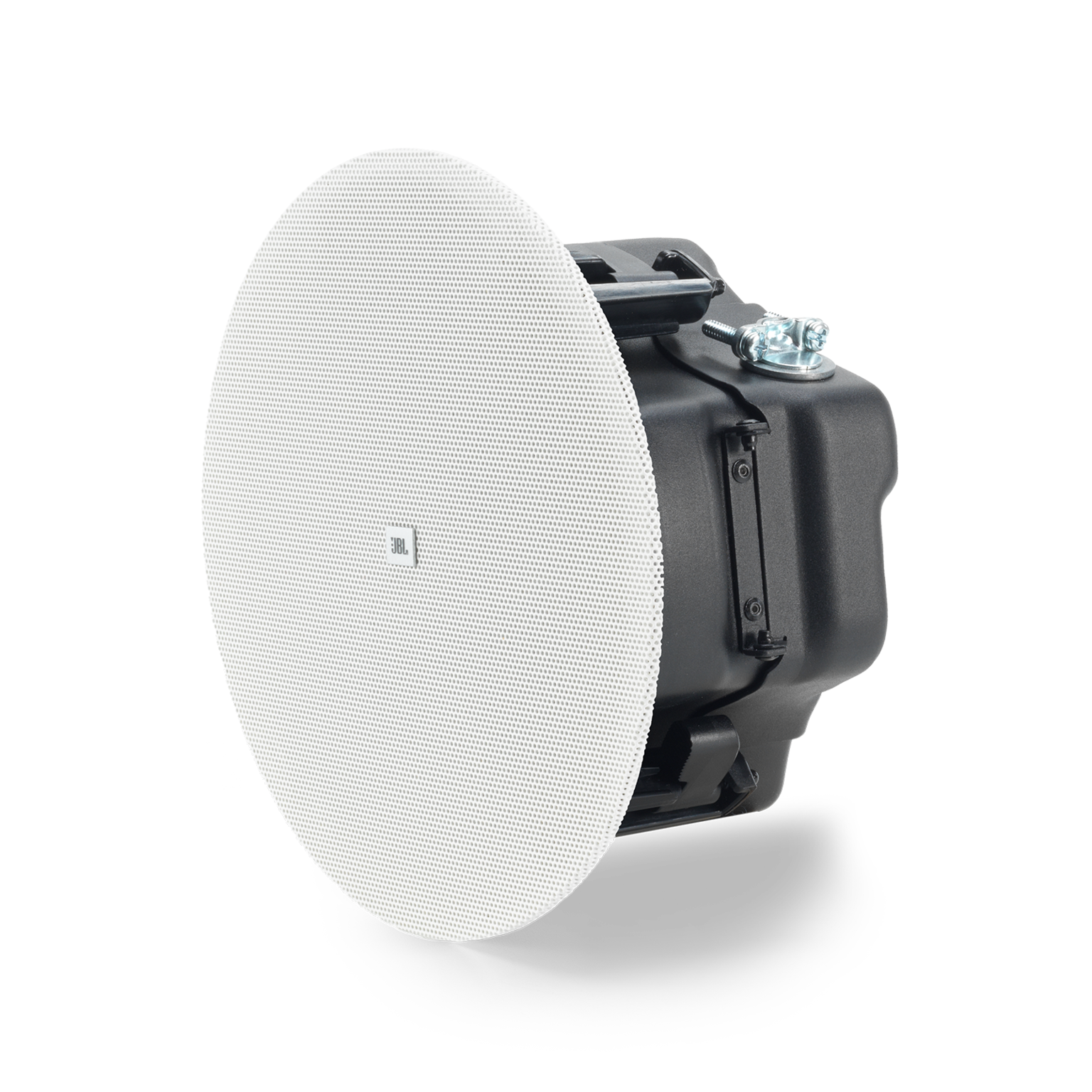

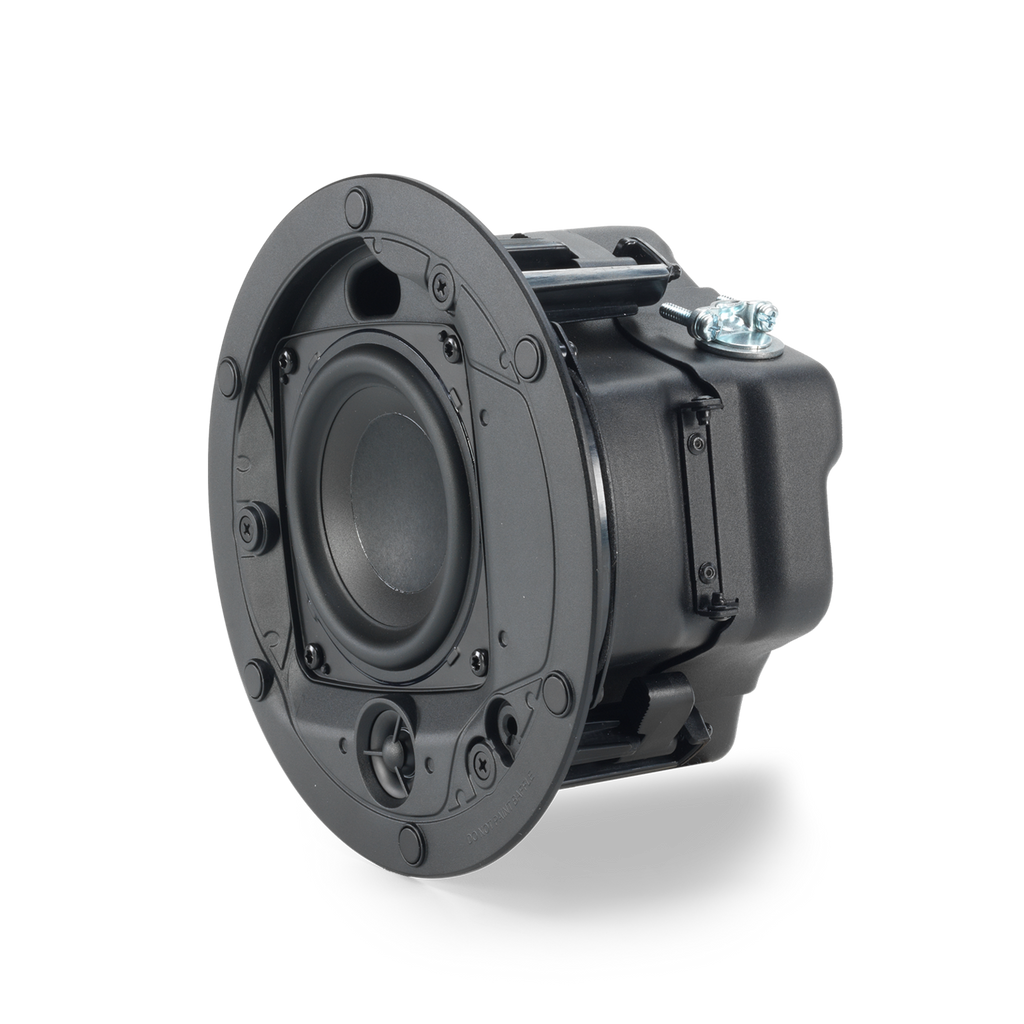

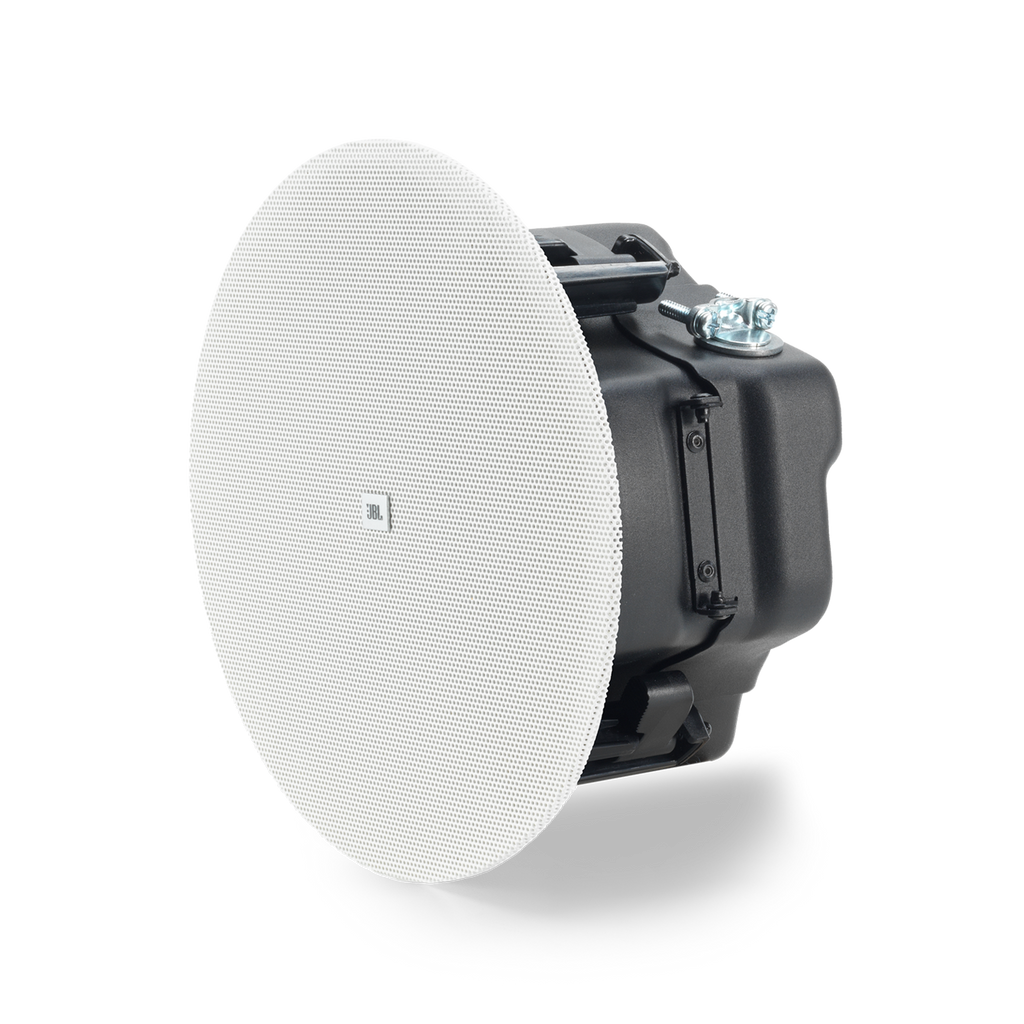

JBL Control 414CT Micro Plus 4" Two-Way High-Output Ceiling Loudspeaker side angle showing shallow mounting depth

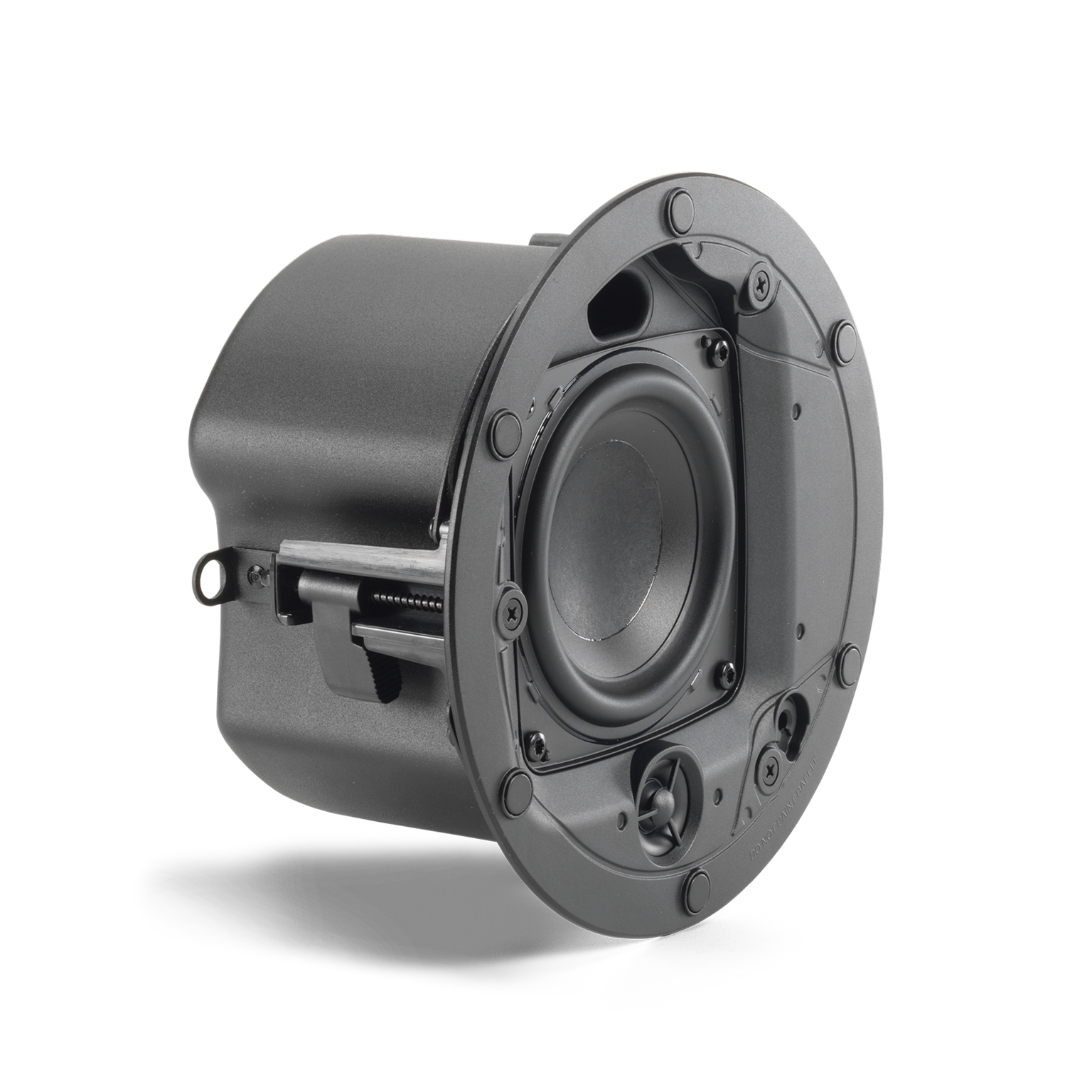

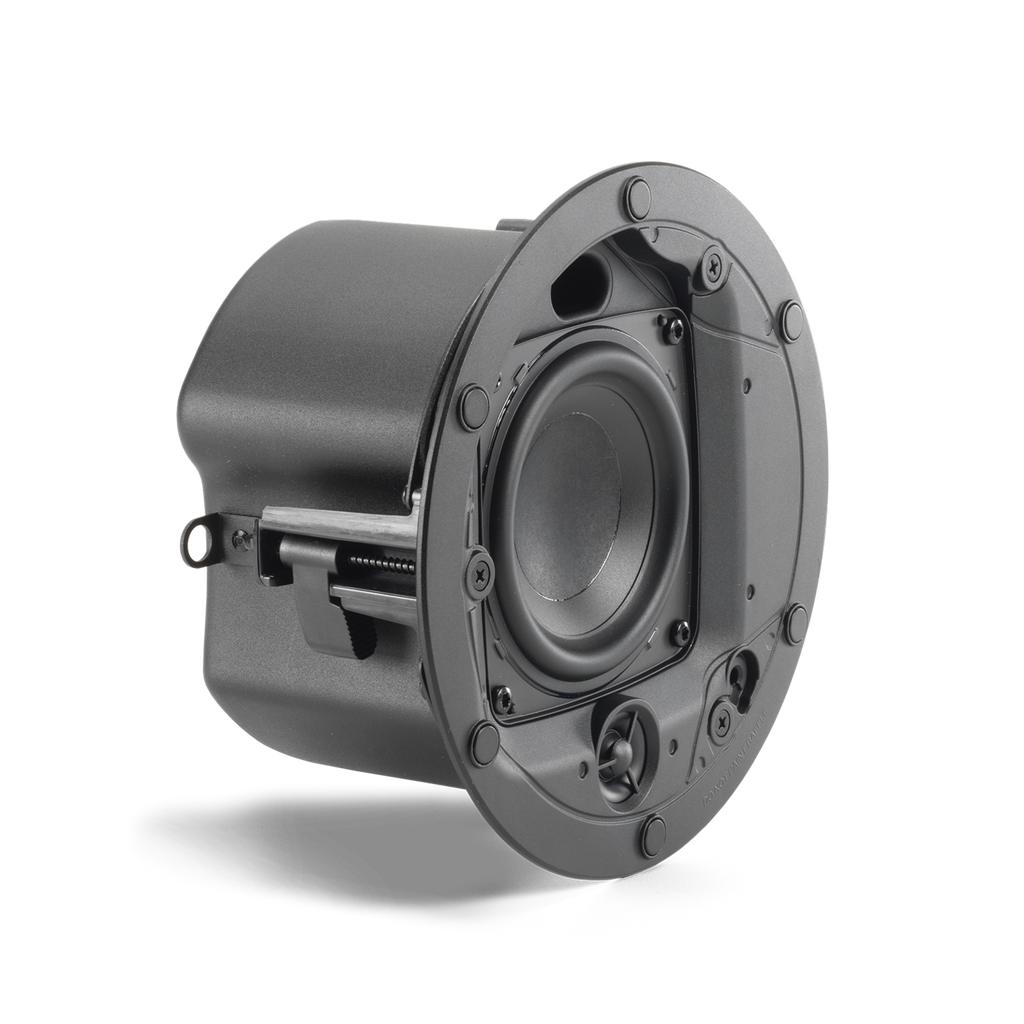

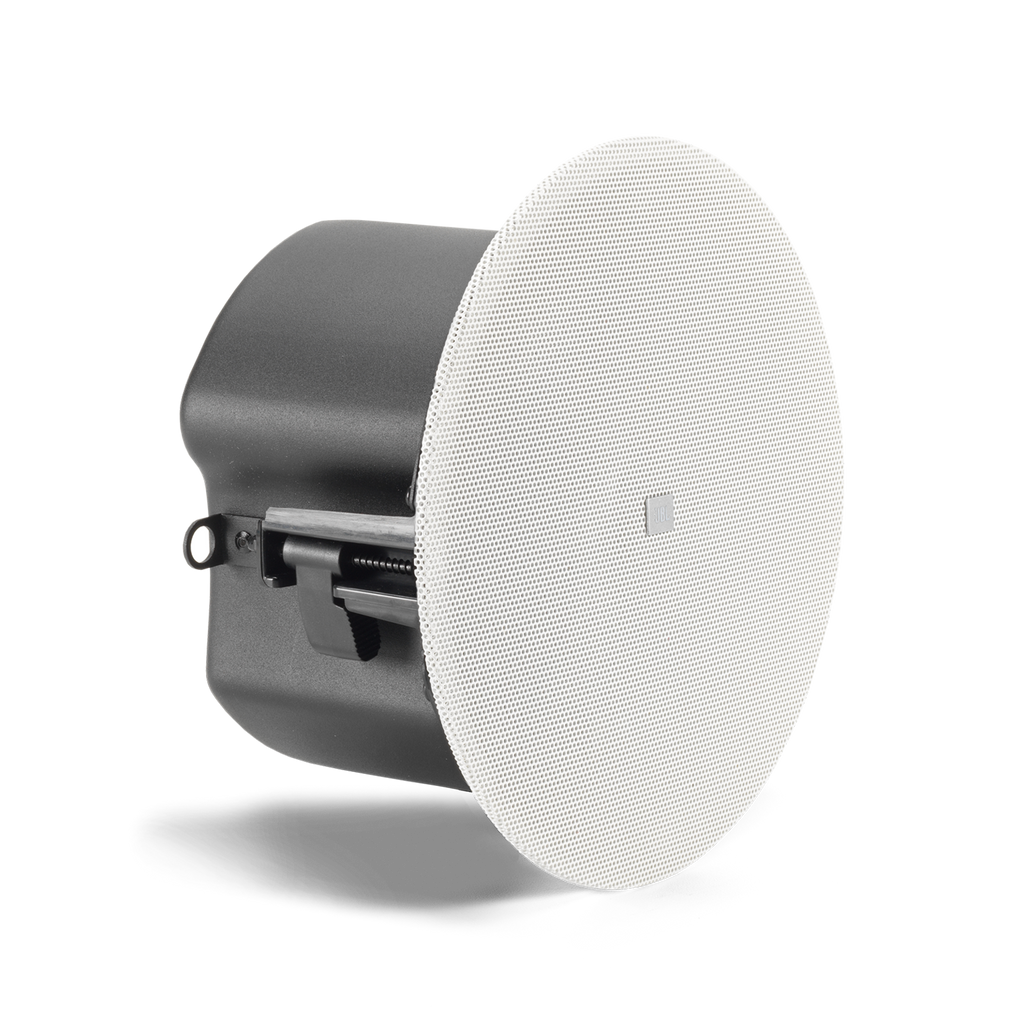

Side view of JBL Control 414CT Micro Plus 4" Two-Way High-Output Ceiling Loudspeaker bracket clearance

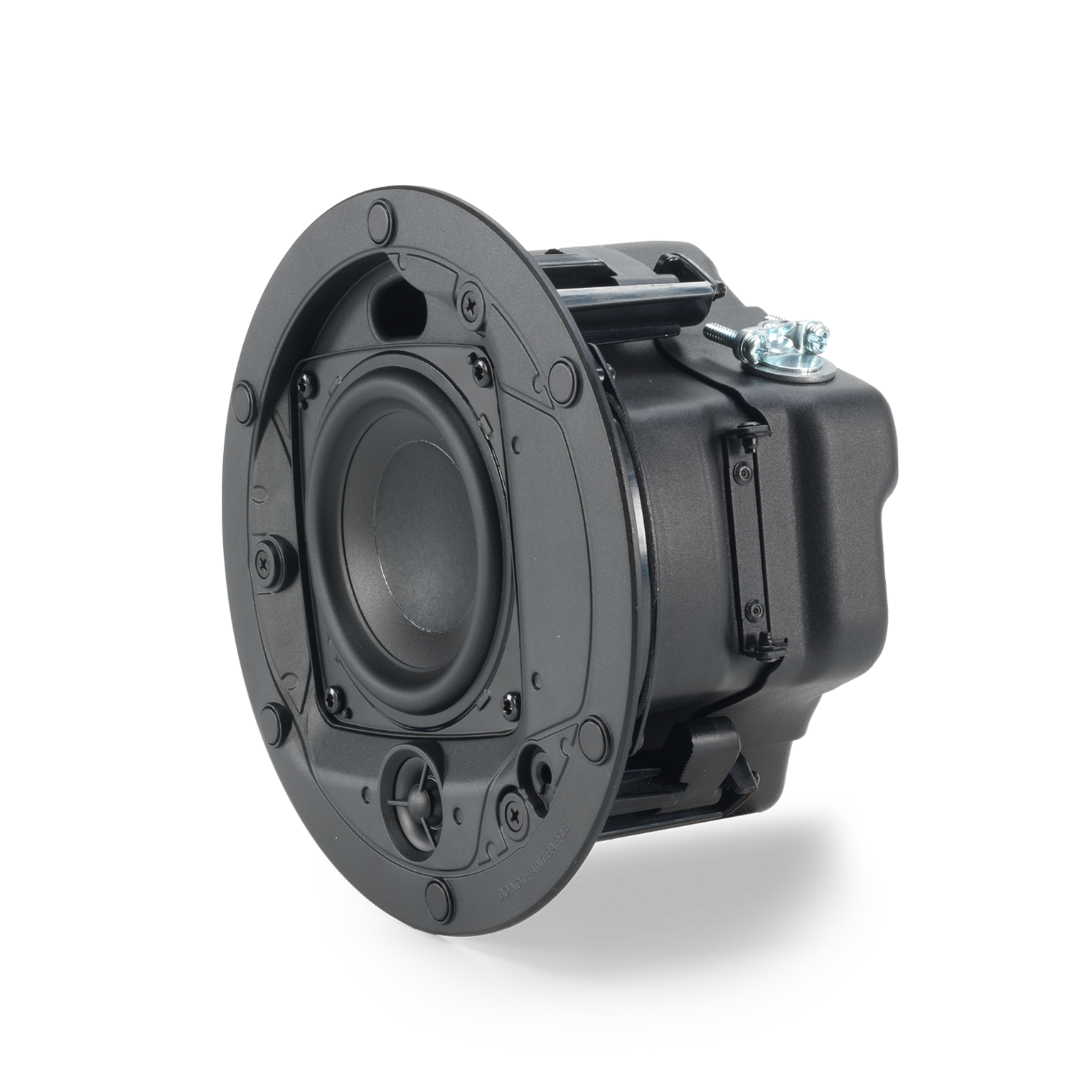

JBL Control 414CT Micro Plus 4" Two-Way High-Output Ceiling Loudspeaker installed in shallow ceiling void

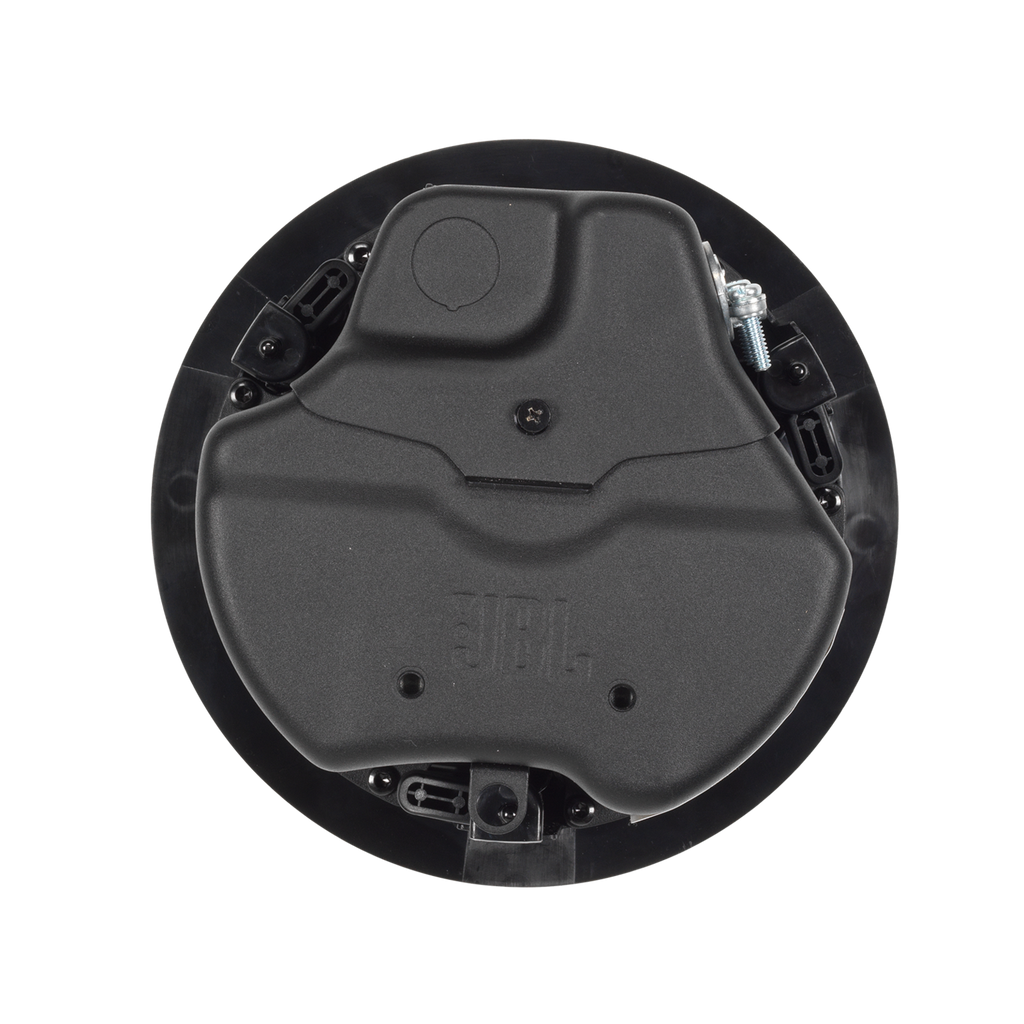

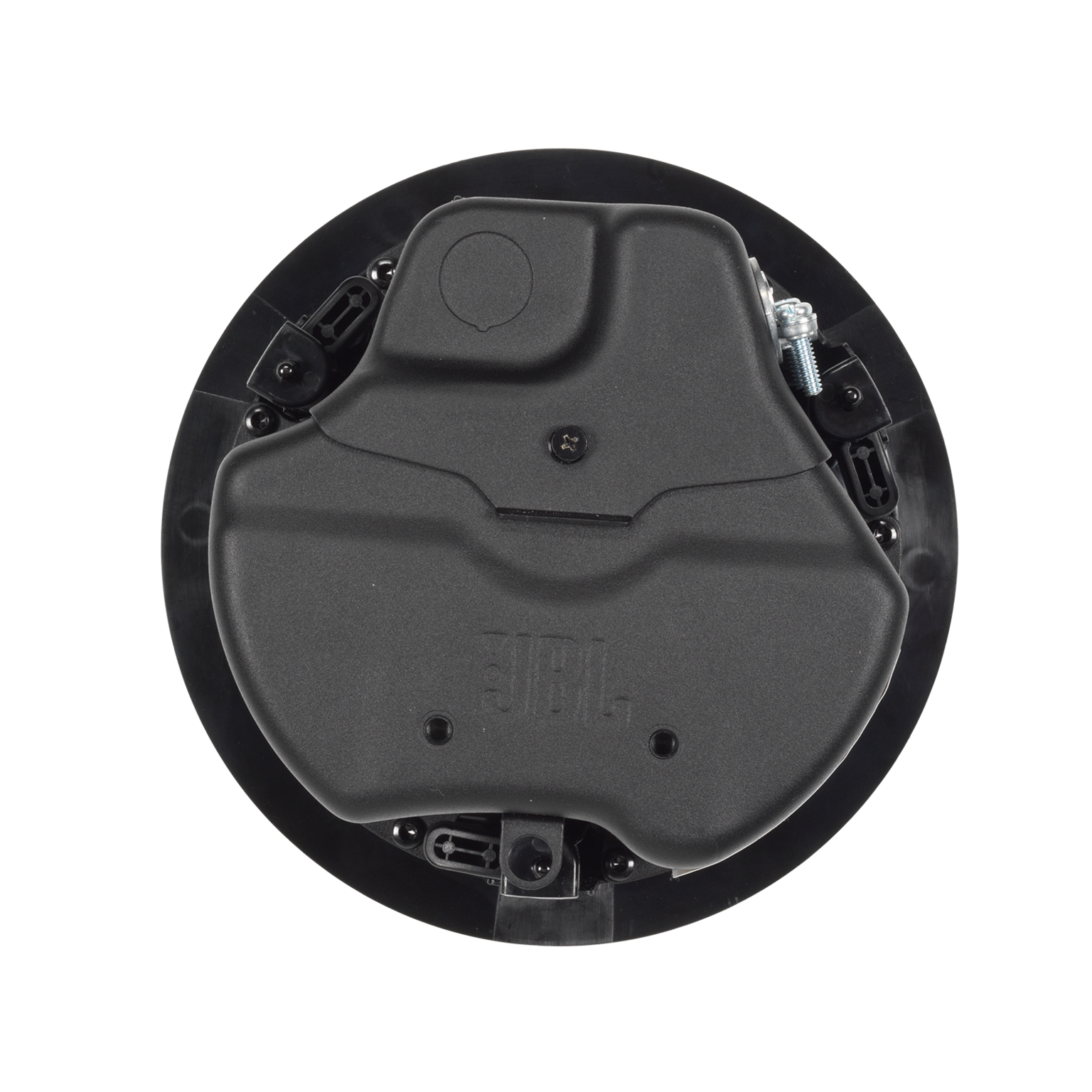

JBL Control 414CT Micro Plus 4" Two-Way High-Output Ceiling Loudspeaker back panel showing transformer tap settings

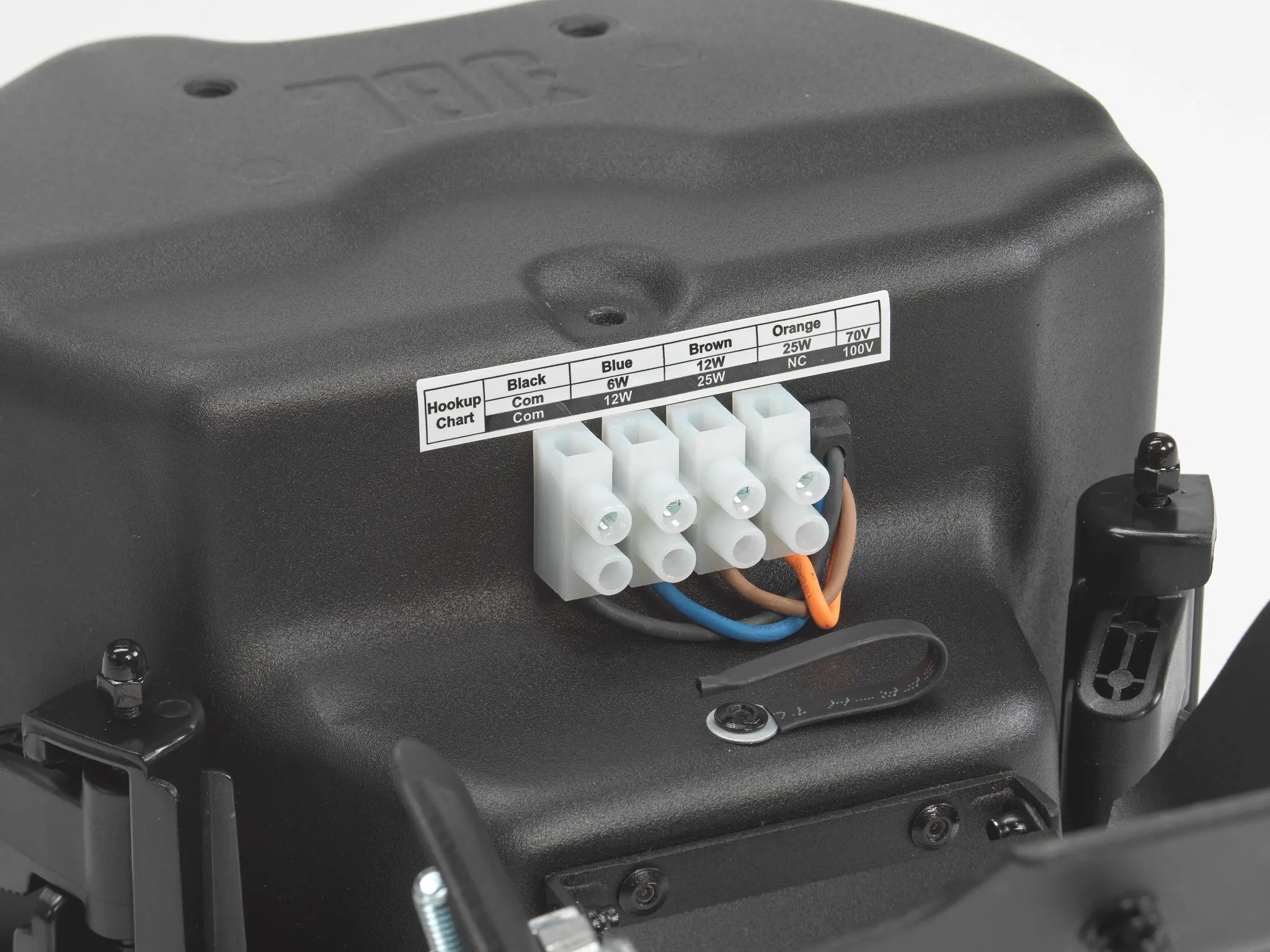

Close-up of JBL Control 414CT Micro Plus 4" Two-Way High-Output Ceiling Loudspeaker transformer tap selection

Features

100 mm (4 in) woofer and 12mm (0.5 in) PEI dome tweeter
Shallow 105 mm (4.13 in) depth
Integrated enclosure that is ideal for installation in most ceiling plenum spaces
Built-in 70V/100V multi-tap transformer
Full-face, easily paintable magnetic grilles
Top and side cable entry options
Robust and adaptable dogears for wide range of ceiling thicknesses
IP32 rated

Specification	Details
Frequency Range (-10dB)	69 Hz – 25 kHz
Power Capacity	25 W (100 W peak) cont. pink noise power (100 hrs)
Sensitivity (1m/1W)	85 dB
Coverage Angle	160° conical
Maximum SPL (1m)	99 dB continuous pink noise (105 dB peak)
Nominal Impedance	N/A (70V/100V transformer-tap only)
Transformer Taps	70V: 25 W, 12 W, 6 W 100V: 25 W, 12 W
Drivers	LF: 103 mm (4 in) with PP cone and paper cup, SBR surround HF: 13 mm (0.5 in) PEI dome
Ceiling Cutout Size	168 mm (6.6 in)
Dimensions	114 mm (4.6 in) H x 203 mm (8.1 in) dia. 105 mm (4.2 in) from bottom of ceiling tile to top of backcan
Safety Agency Rating	Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered transformer.
Environmental	IP rating: IP32 per EN/IEC 60529 Operating temperature: 0°C to 45°C
Color	Stock grille is white (RAL9003), paintable
Net Weight (each)	2.12 kg (4.67 lb)
Shipping Weight (pair)	8.6 kg (18.96 lb)
Optional Accessories	JBL-MTC-414BG black (RAL9004) round grille JBL-MTC-414SG white (RAL9003) square grille JBL-MTC-414WG weather grille JBL-MTC-424NC new construction bracket JBL-MTC-424MR mud-ring construction bracket JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
SKU Number	JBL-C414MPT
