| Frequency Range (-10dB) |
69 Hz – 25 kHz |
| Power Capacity |
22.5 W (90 W peak) cont. pink noise (2 hrs)
15 W (60 W peak) cont. pink noise (100 hrs) |
| Sensitivity (1m/1W) |
86 dB |
| Coverage Angle |
160° conical |
| Maximum SPL (1m) |
98 dB continuous pink noise (104 dB peak) |
| Nominal Impedance |
8 ohms |

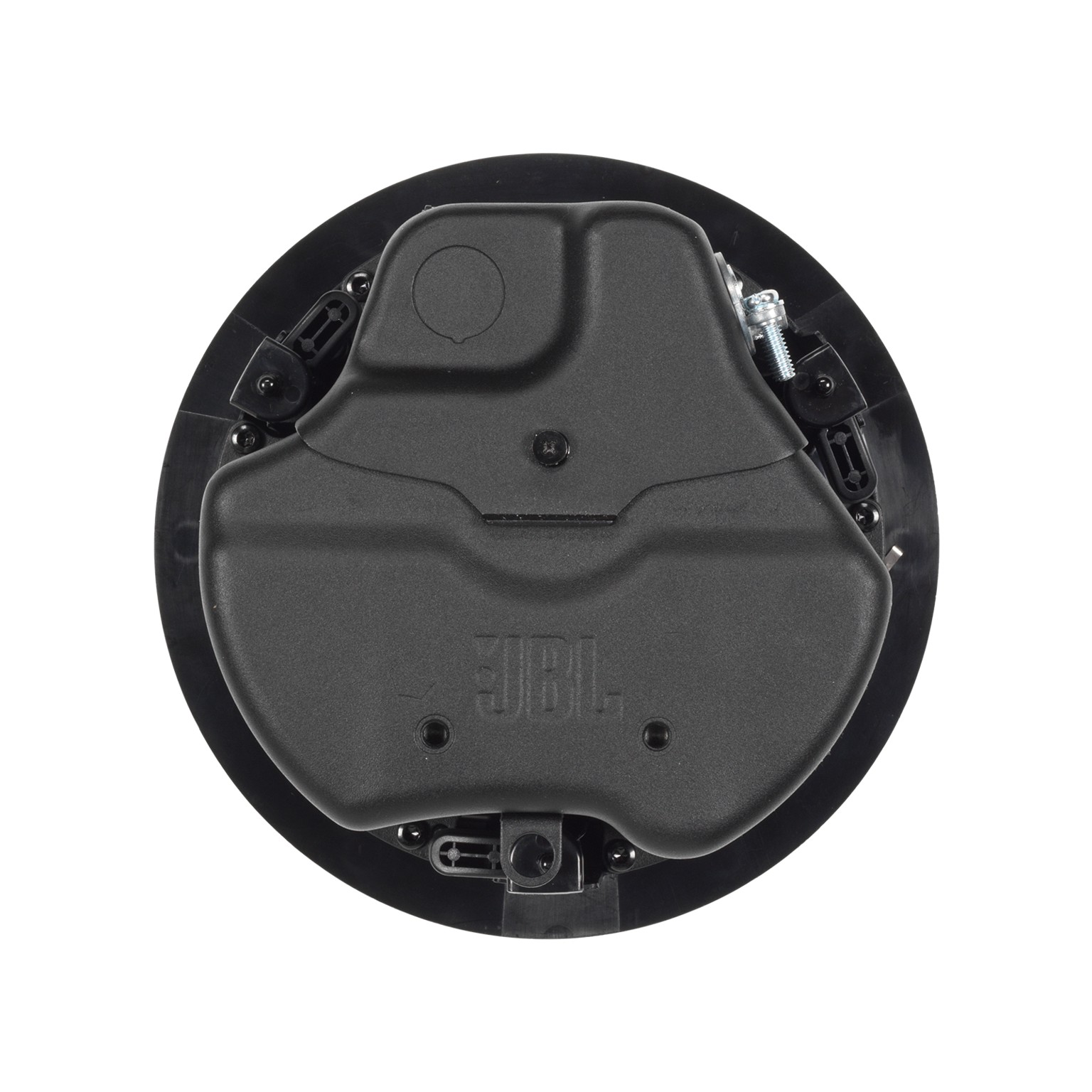

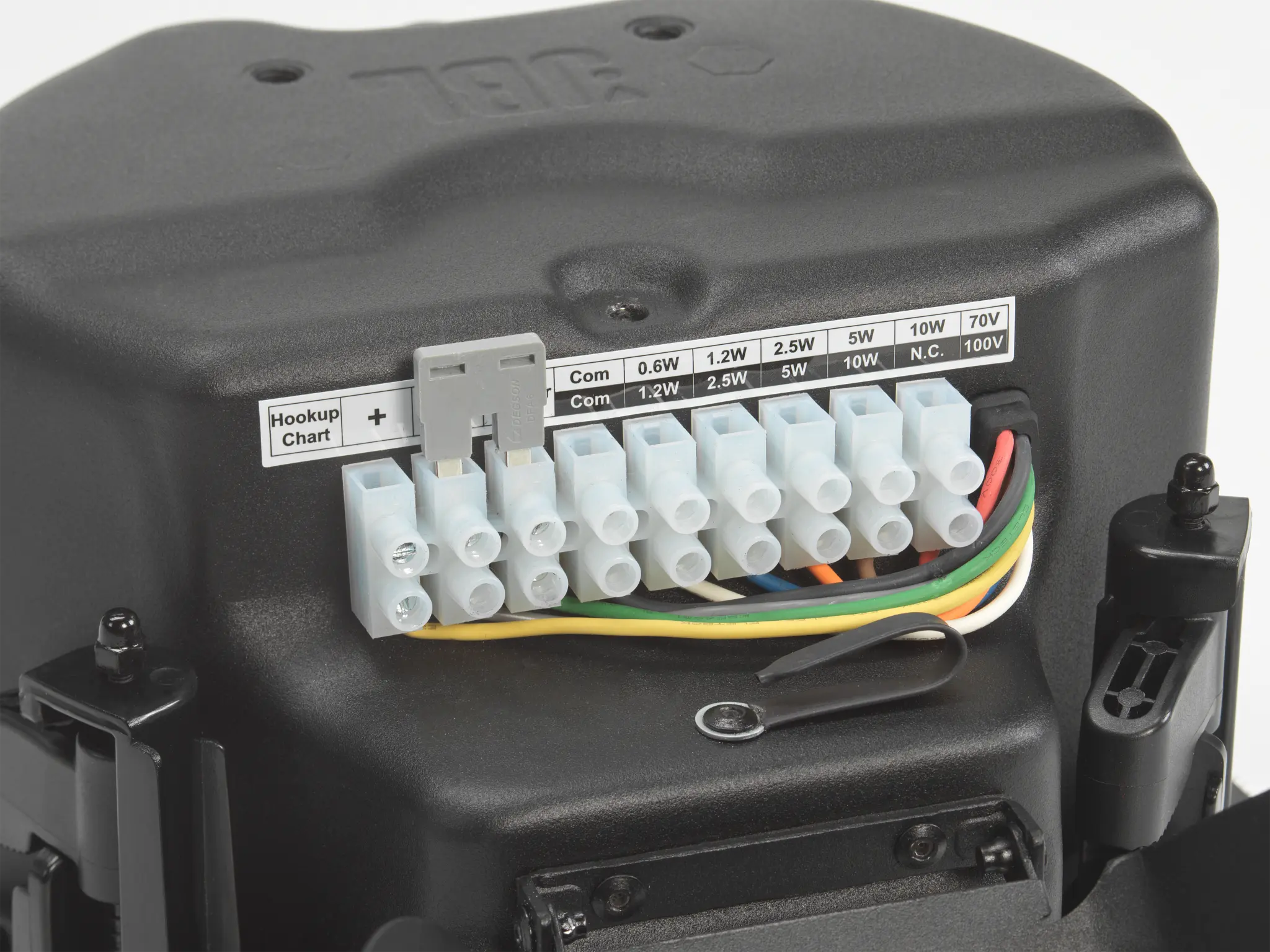

| Transformer Taps |
70V: 10 W, 5 W, 2.5 W, 1.2 W, 0.6 W
100V: 10 W, 5 W, 2.5 W, 1.2 W |

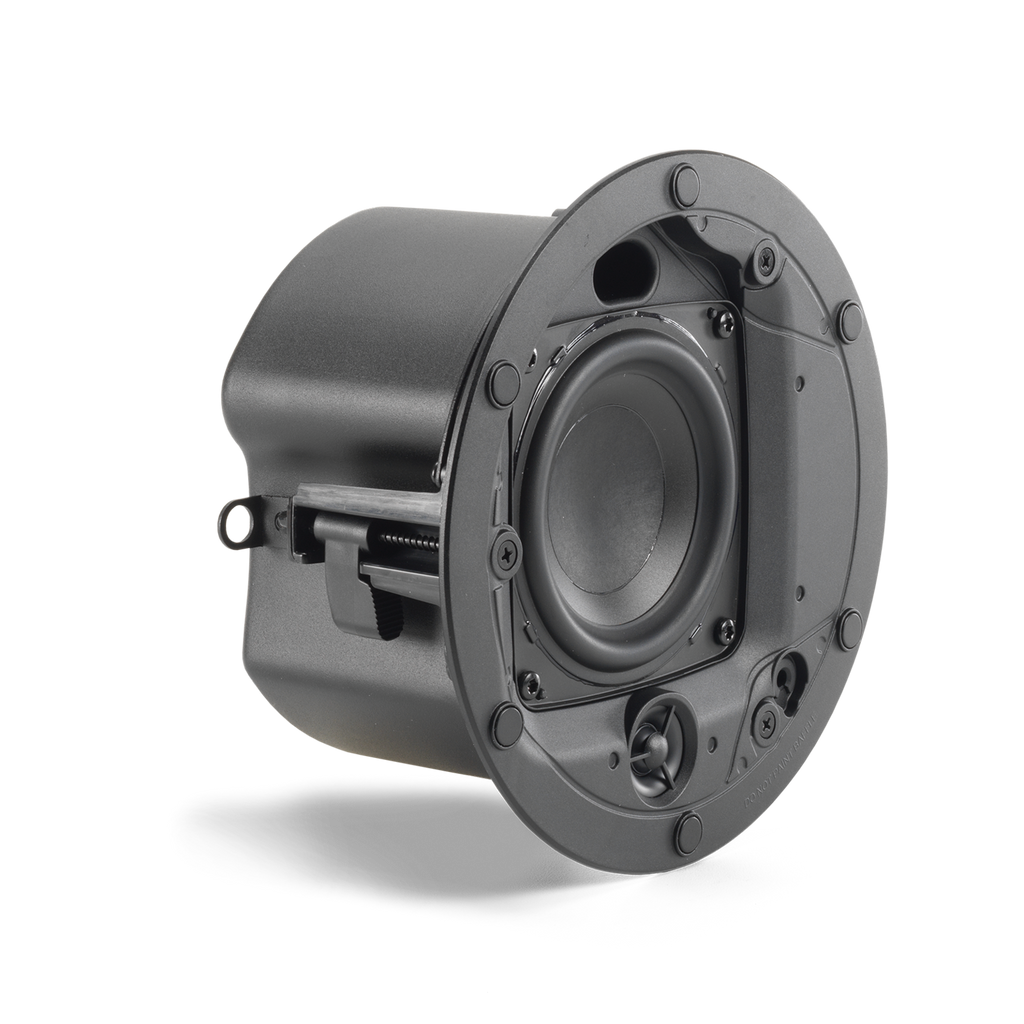

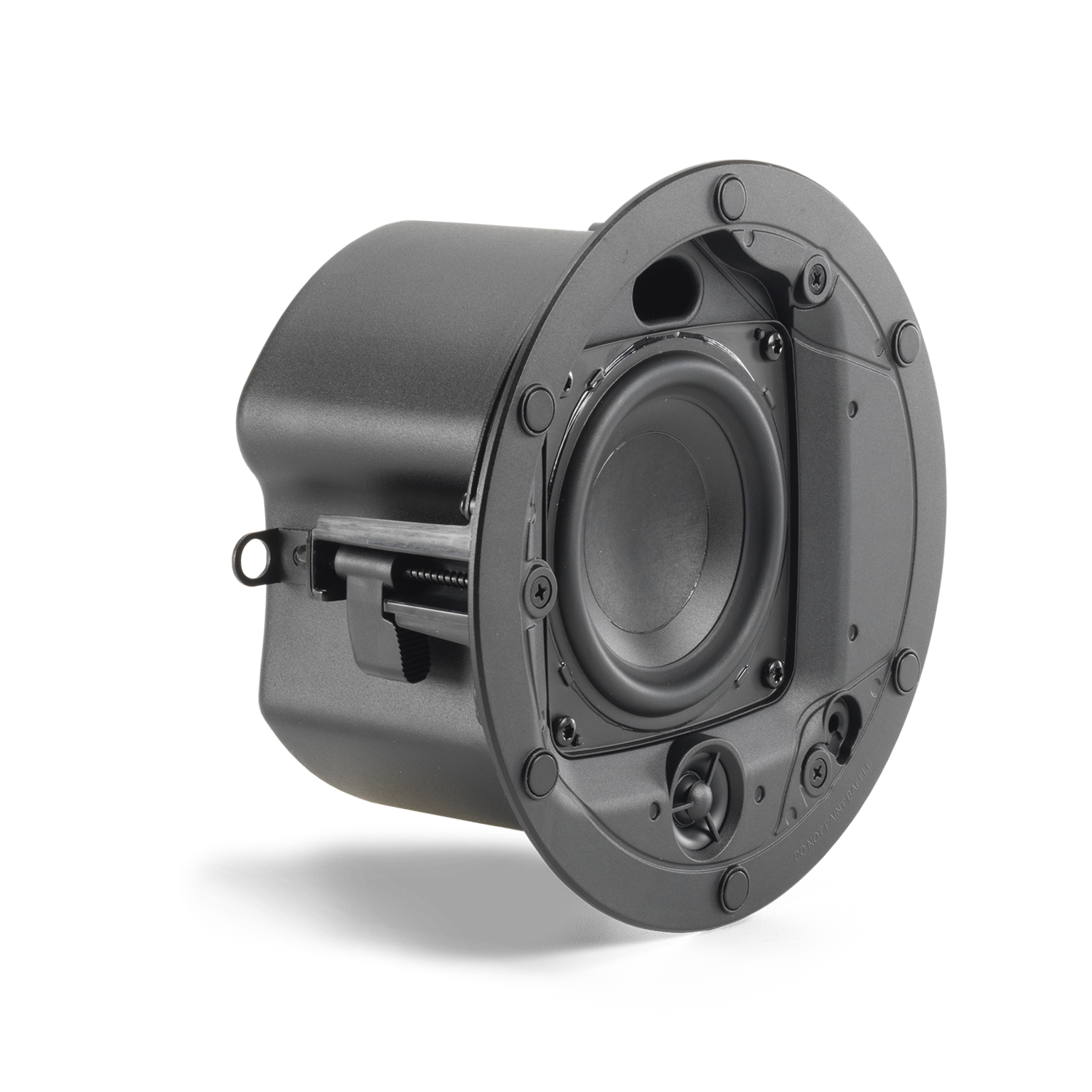

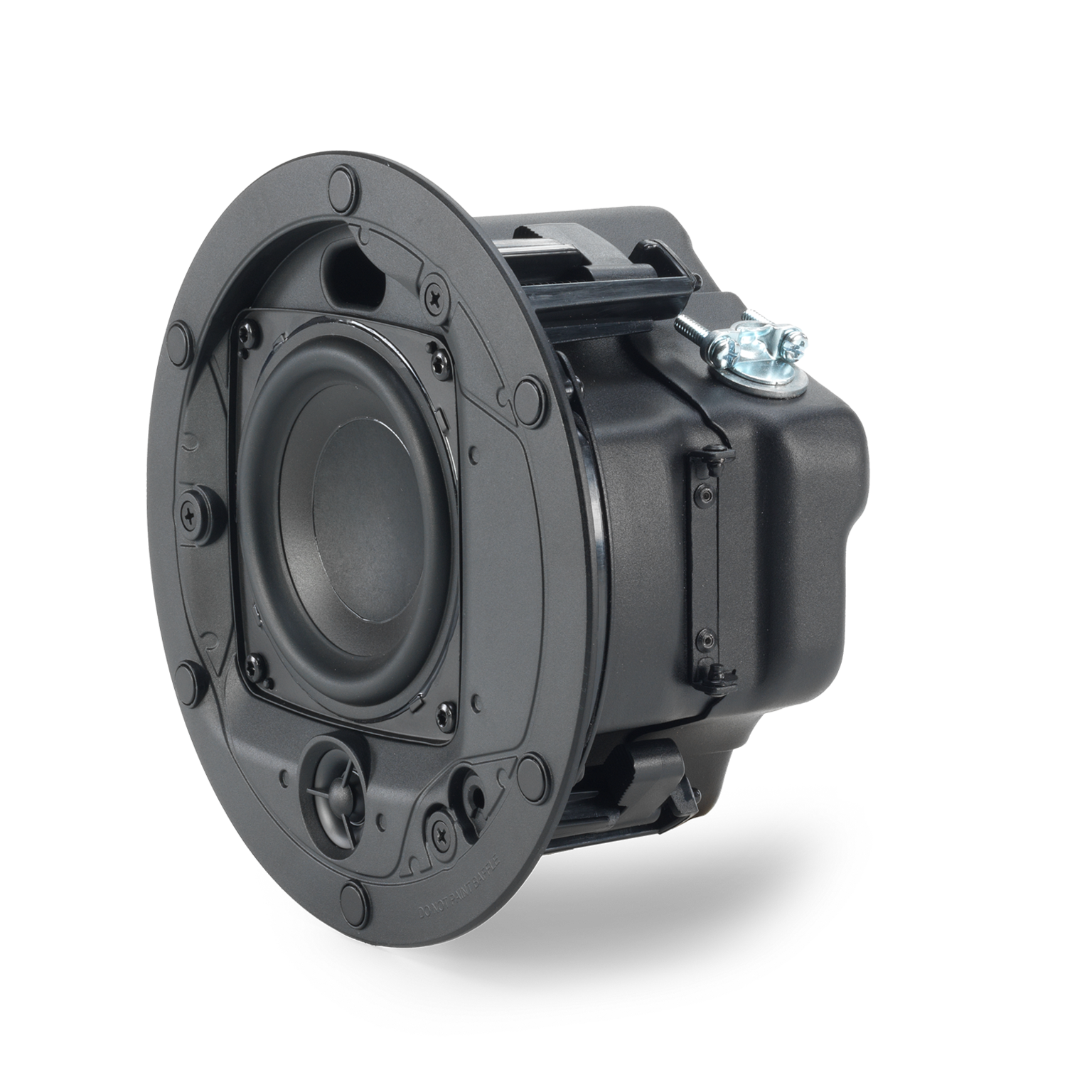

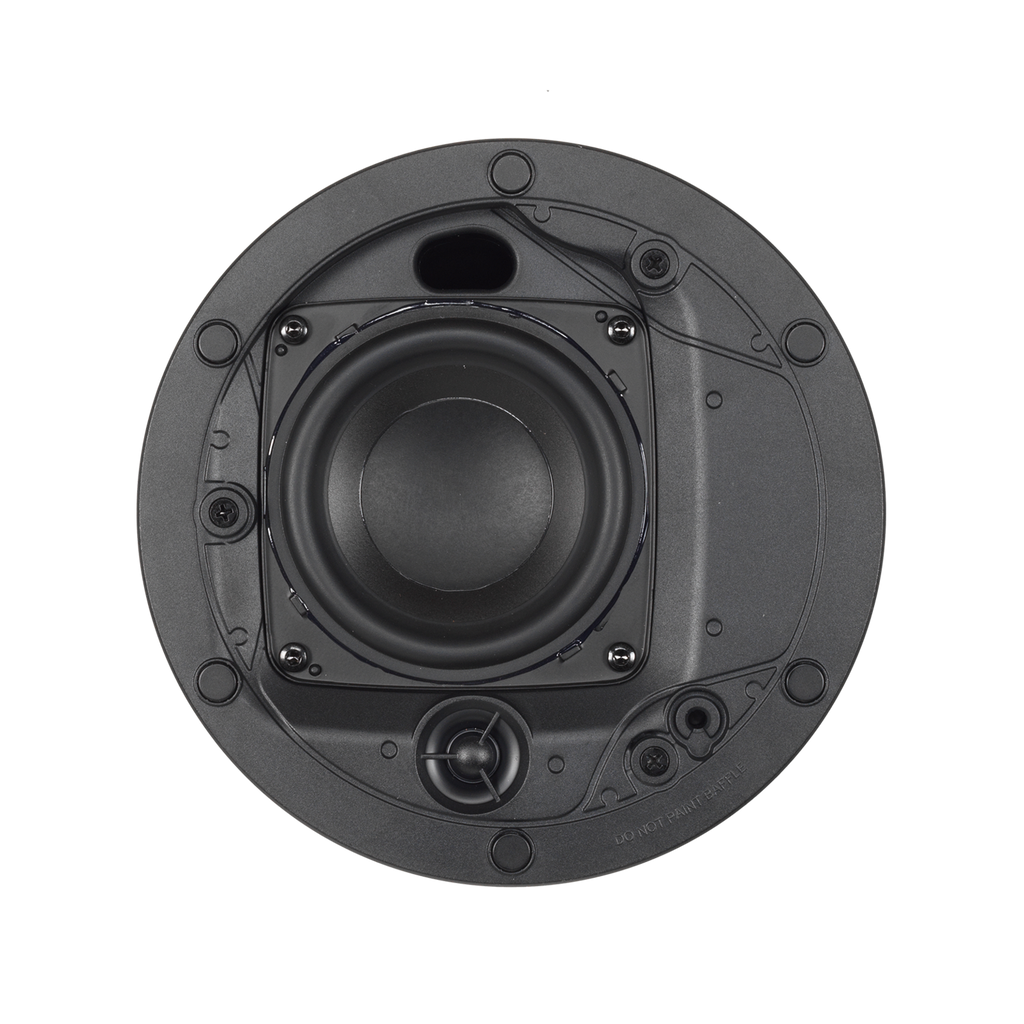

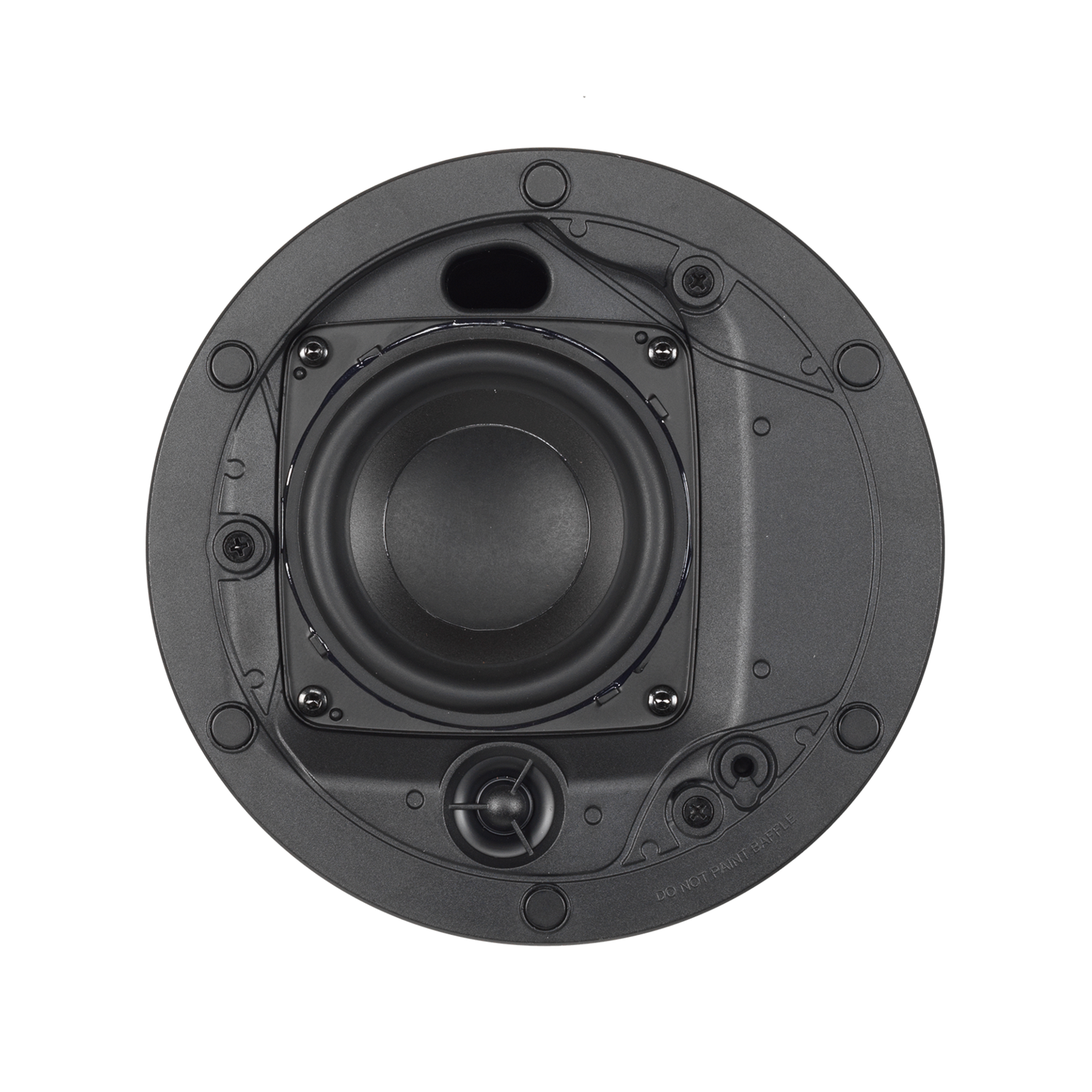

| Drivers |
LF: 103 mm (4 in) with PP cone and paper cup, SBR surround
HF: 13 mm (0.5 in) PEI dome |
| Ceiling Cutout Size |
168 mm (6.6 in) |

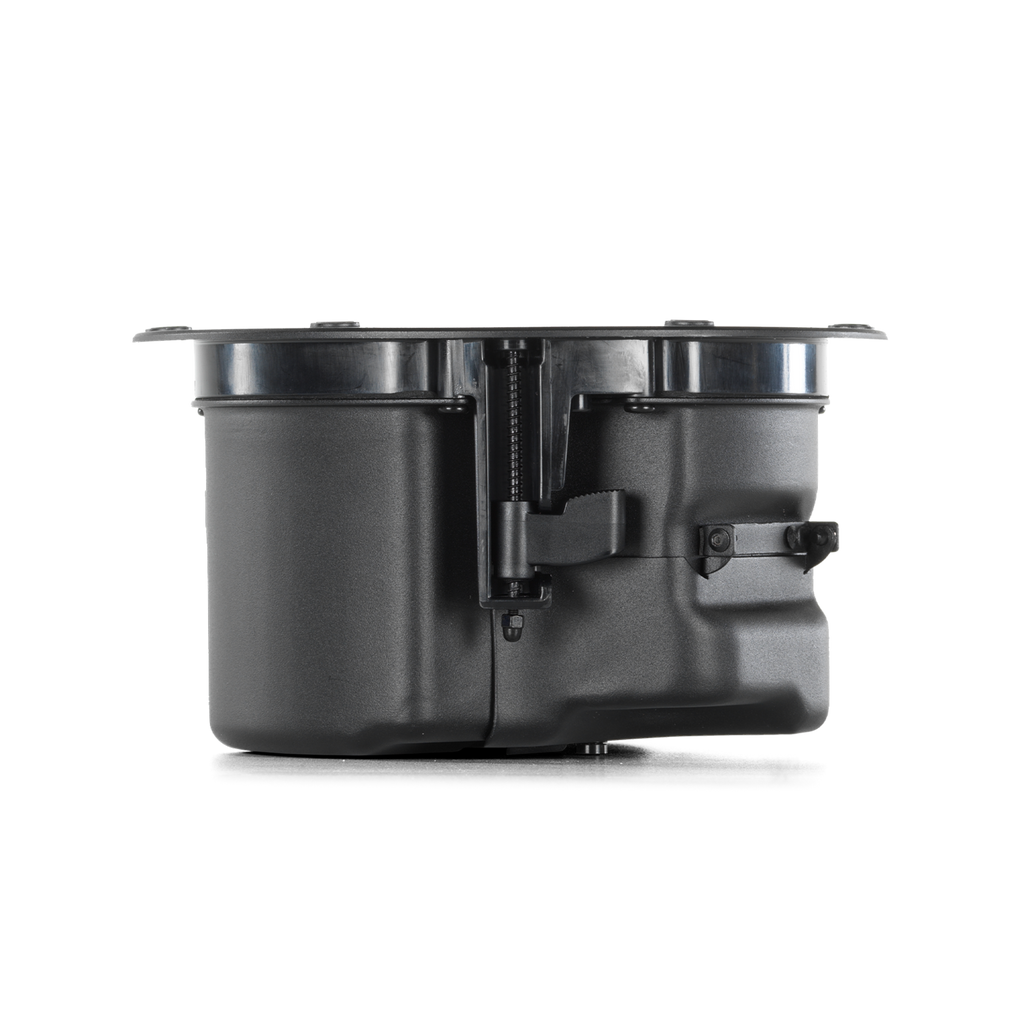

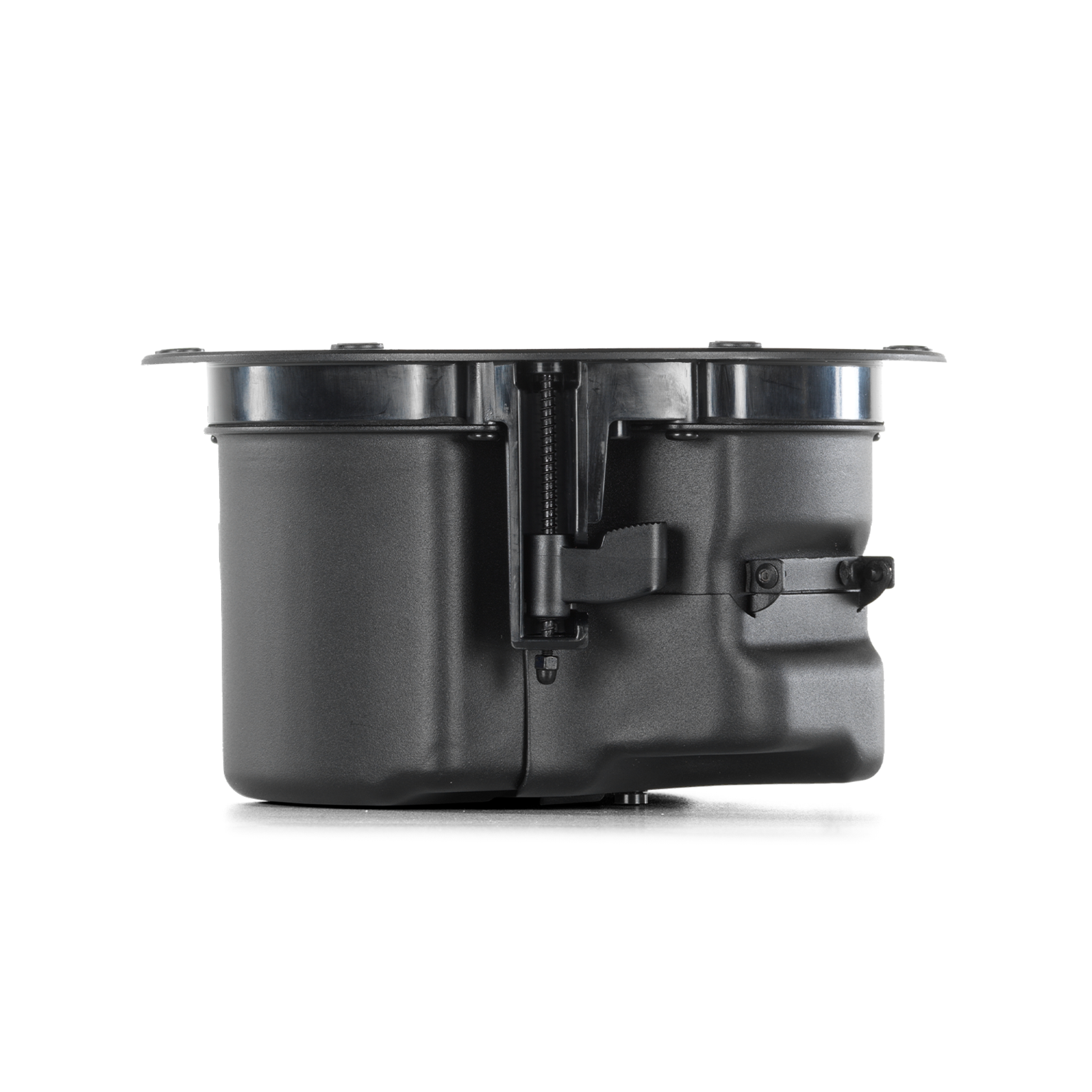

| Dimensions |
114 mm (4.6 in) H x 203 mm (8.1 in) dia.
105 mm (4.2 in) from bottom of ceiling tile to top of backcan |
| Safety Agency Rating |
Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered transformer. |
| Environmental |
IP rating: IP32 per EN/IEC 60529
Operating temperature: 0°C to 45°C |

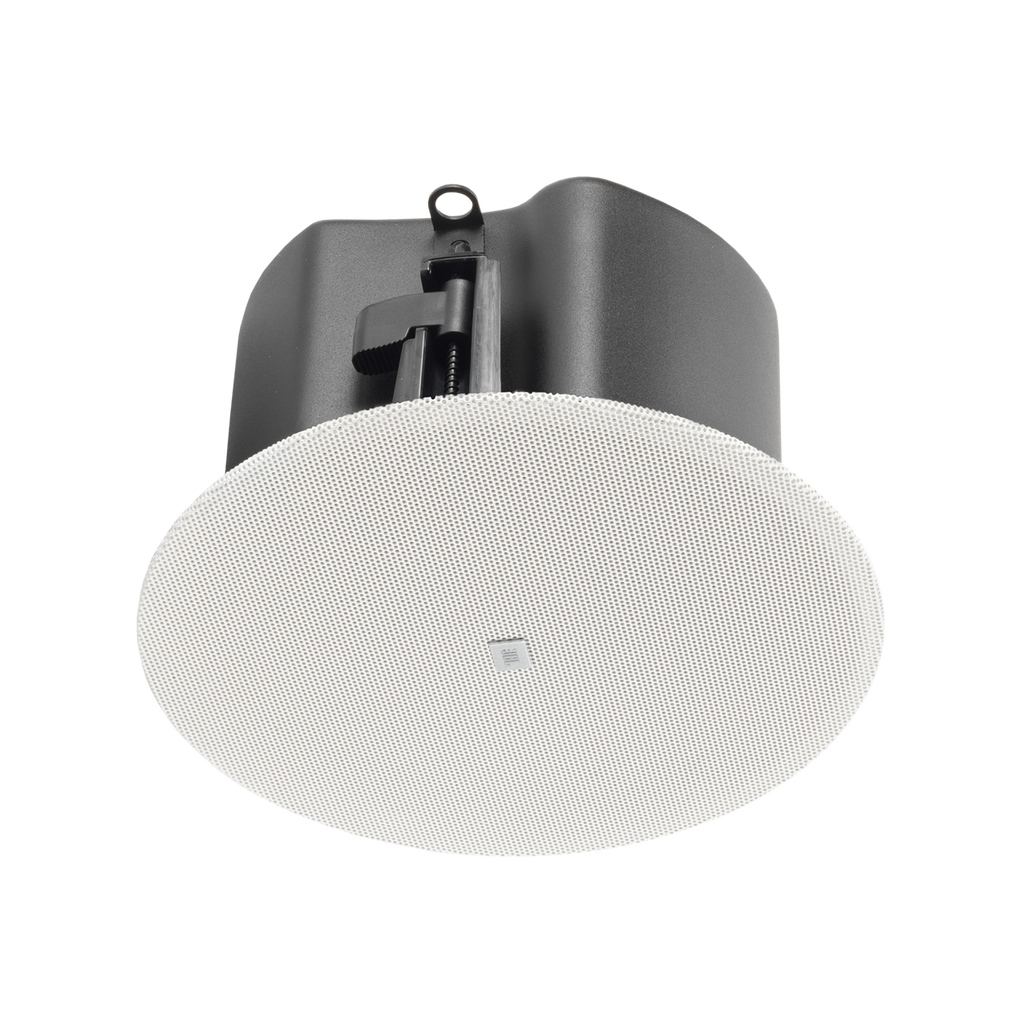

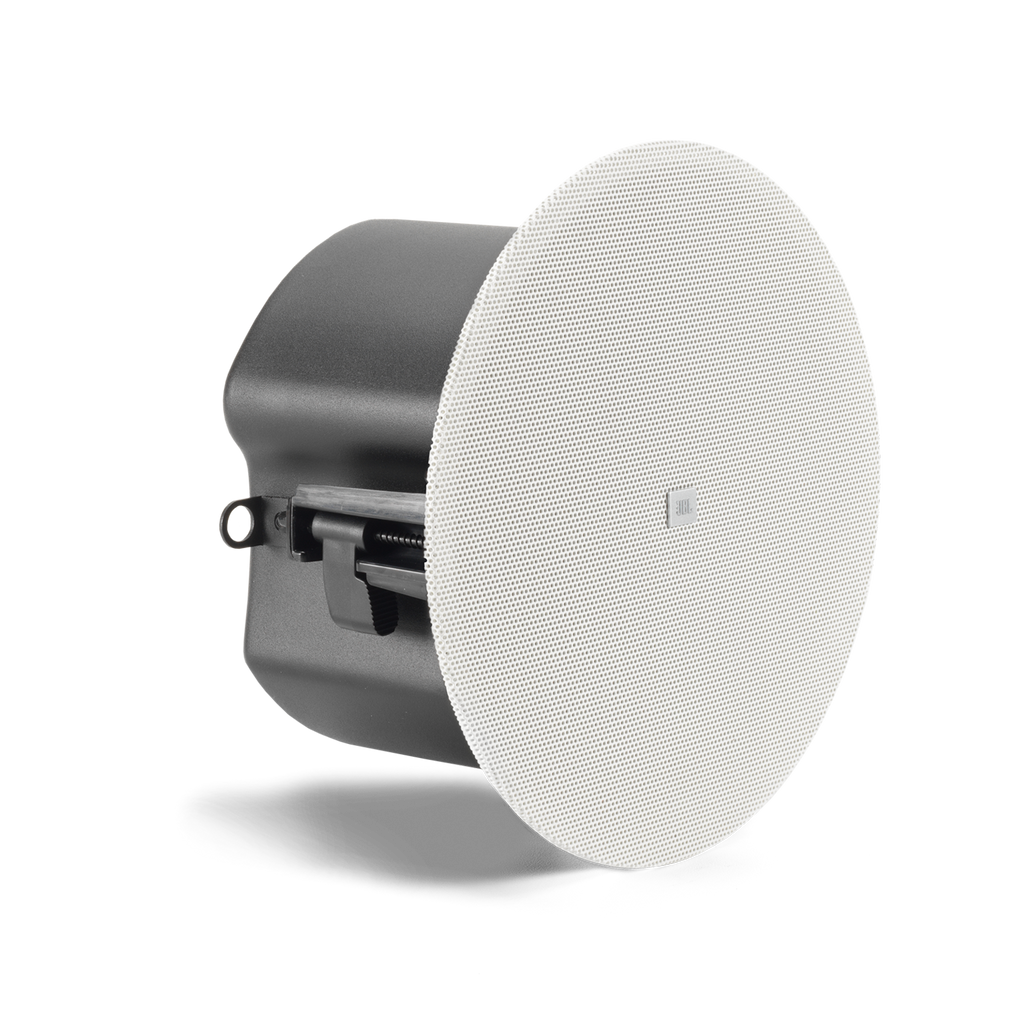

| Color |
Stock grille is white (RAL9003), paintable |
| Net Weight (each) |
2.11 kg (4.65 lb) |
| Shipping Weight (pair) |
8.58 kg (18.92 lb) |
| Optional Accessories |
JBL-MTC-414BG black (RAL9004) round grille
JBL-MTC-414SG white (RAL9003) square grille
JBL-MTC-414WG weather grille
JBL-MTC-424NC new construction bracket
JBL-MTC-424MR mud-ring construction bracket
JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles |
| SKU Number |
JBL-C414MC/T |
