| Frequency Range (-10dB) |
68 Hz – 17 kHz |
| Power Capacity |
30 W (120 W peak) cont. pink noise (2 hrs)
20 W (80 W peak) cont. pink noise (100 hrs) |
| Sensitivity (1m/1W) |
84 dB |
| Coverage Angle |
160° conical |
| Maximum SPL (1m) |
99 dB continuous pink noise (105 dB peak) |
| Nominal Impedance |
8 ohms |

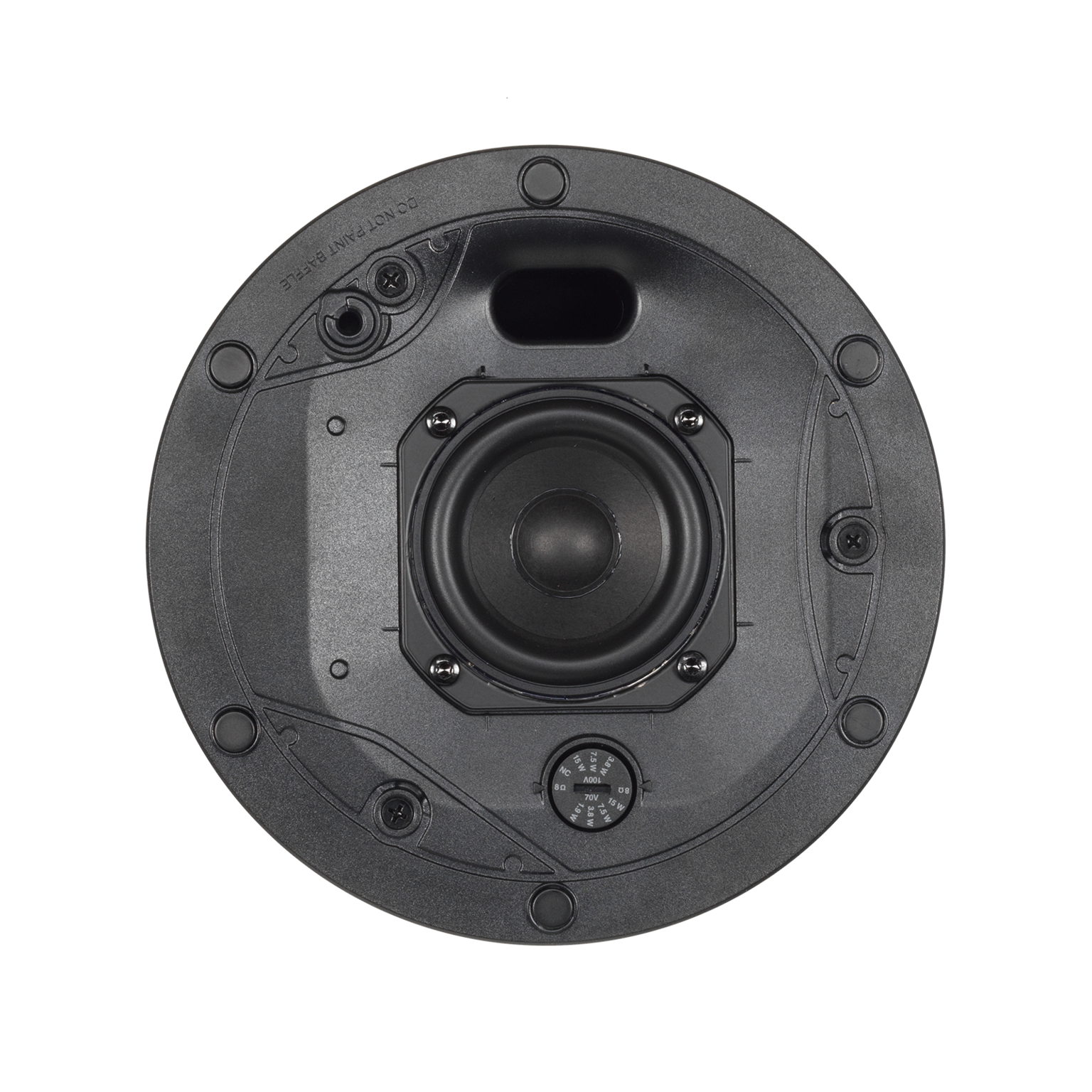

| Transformer Taps |
70V: 15 W, 7.5 W, 3.8 W, 1.9 W
100V: 15 W, 7.5 W, 3.8 W |
| Drivers |

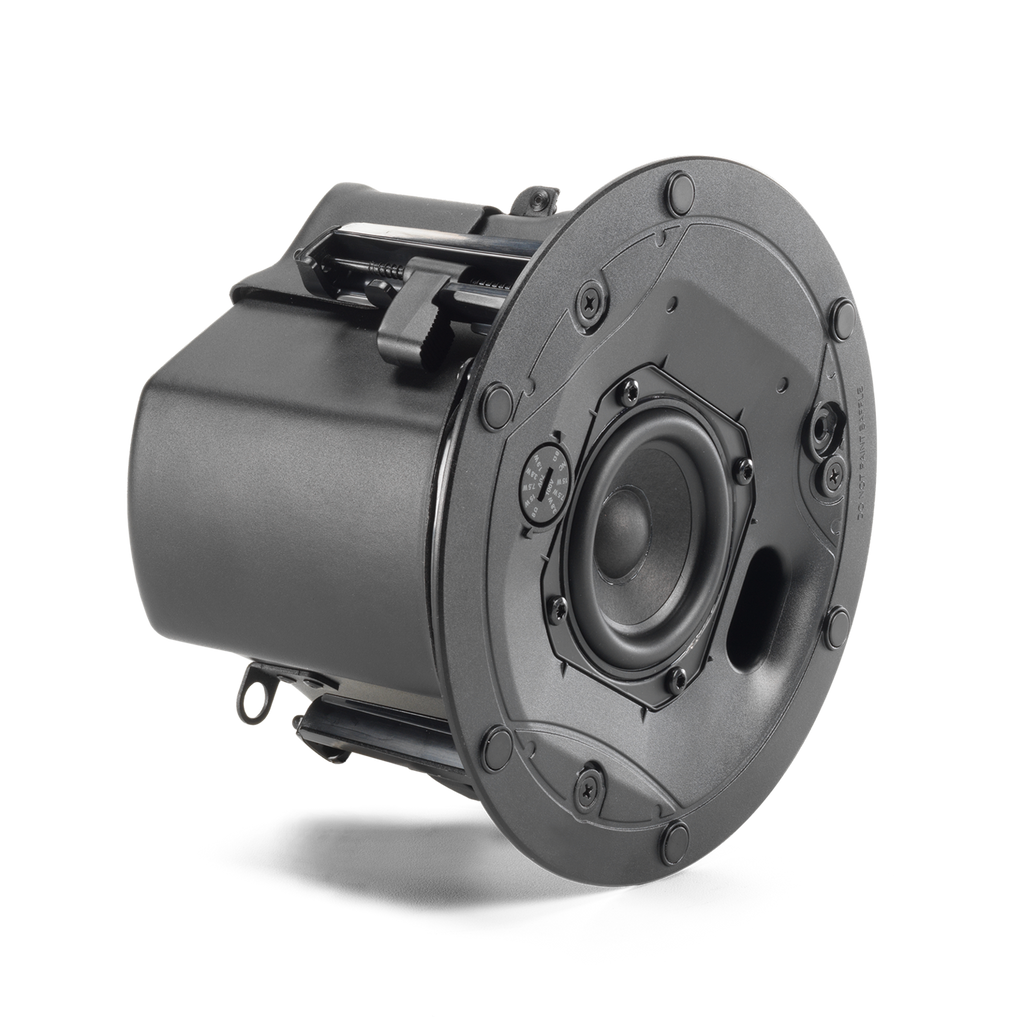

76 mm (3 in) full-range driver with paper cone and SBR surround |
| Ceiling Cutout Size |
168 mm (6.6 in) |
| Dimensions |
143 mm (5.7 in) H x 203 mm (8.1 in) dia.
134 mm (5.4 in) from bottom of ceiling tile to top of backcan |
| Safety Agency Rating |
Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered transformer. |
| Environmental |
IP rating: IP33 per EN/IEC 60529
Operating temperature: 0°C to 45°C |
| Color |

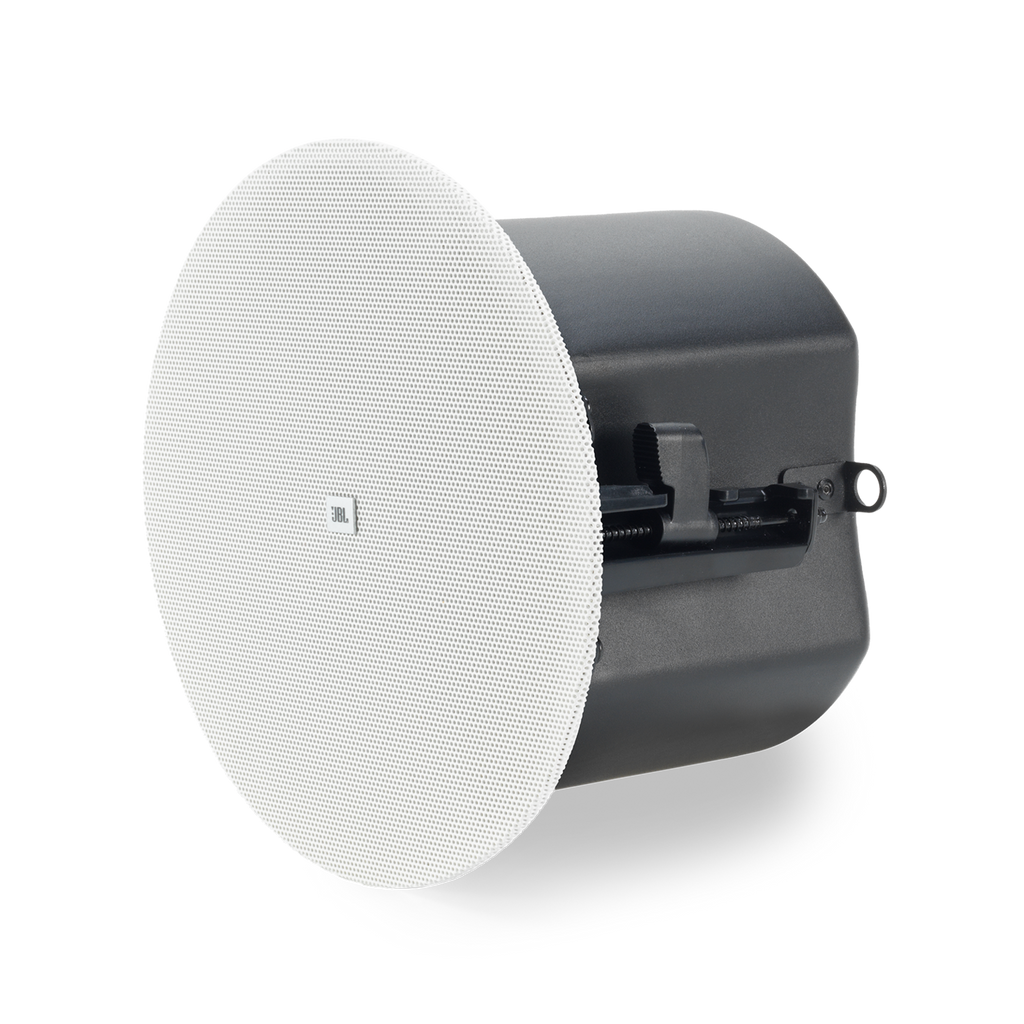

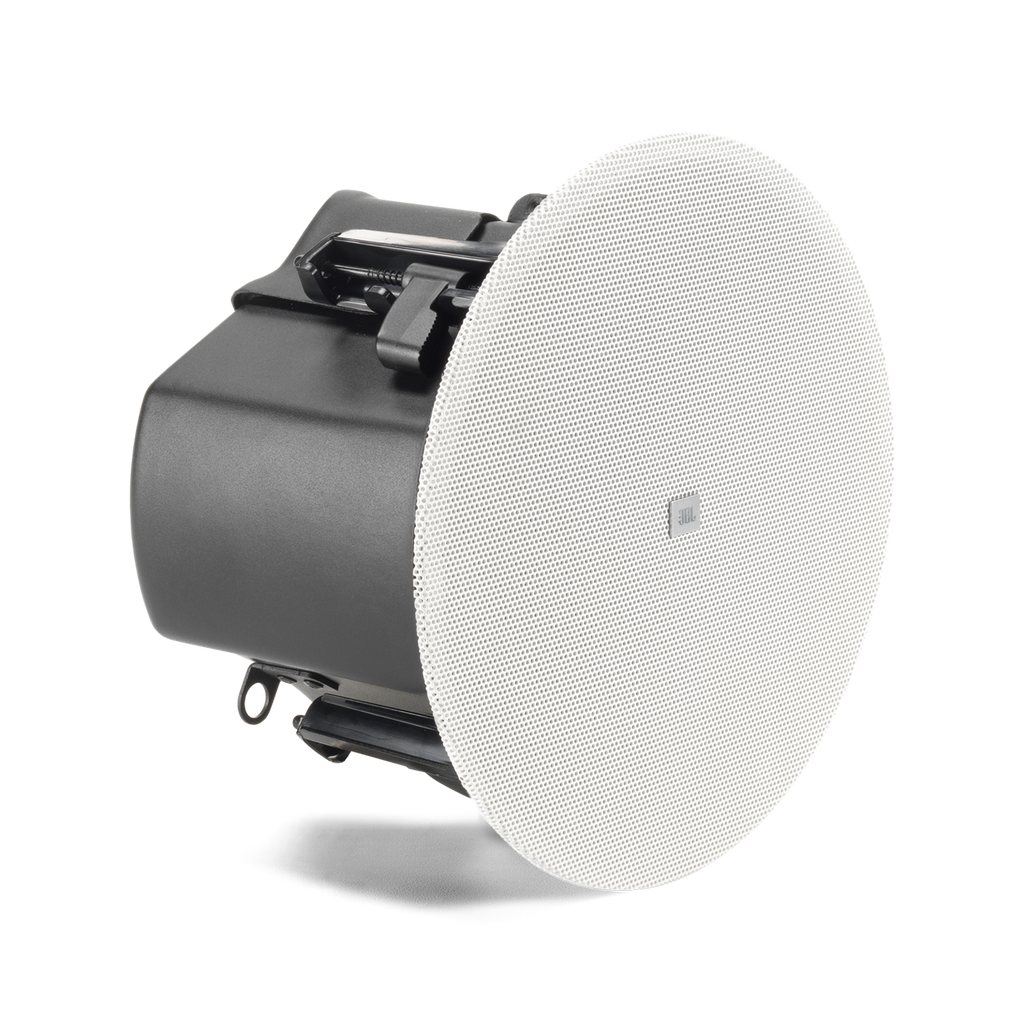

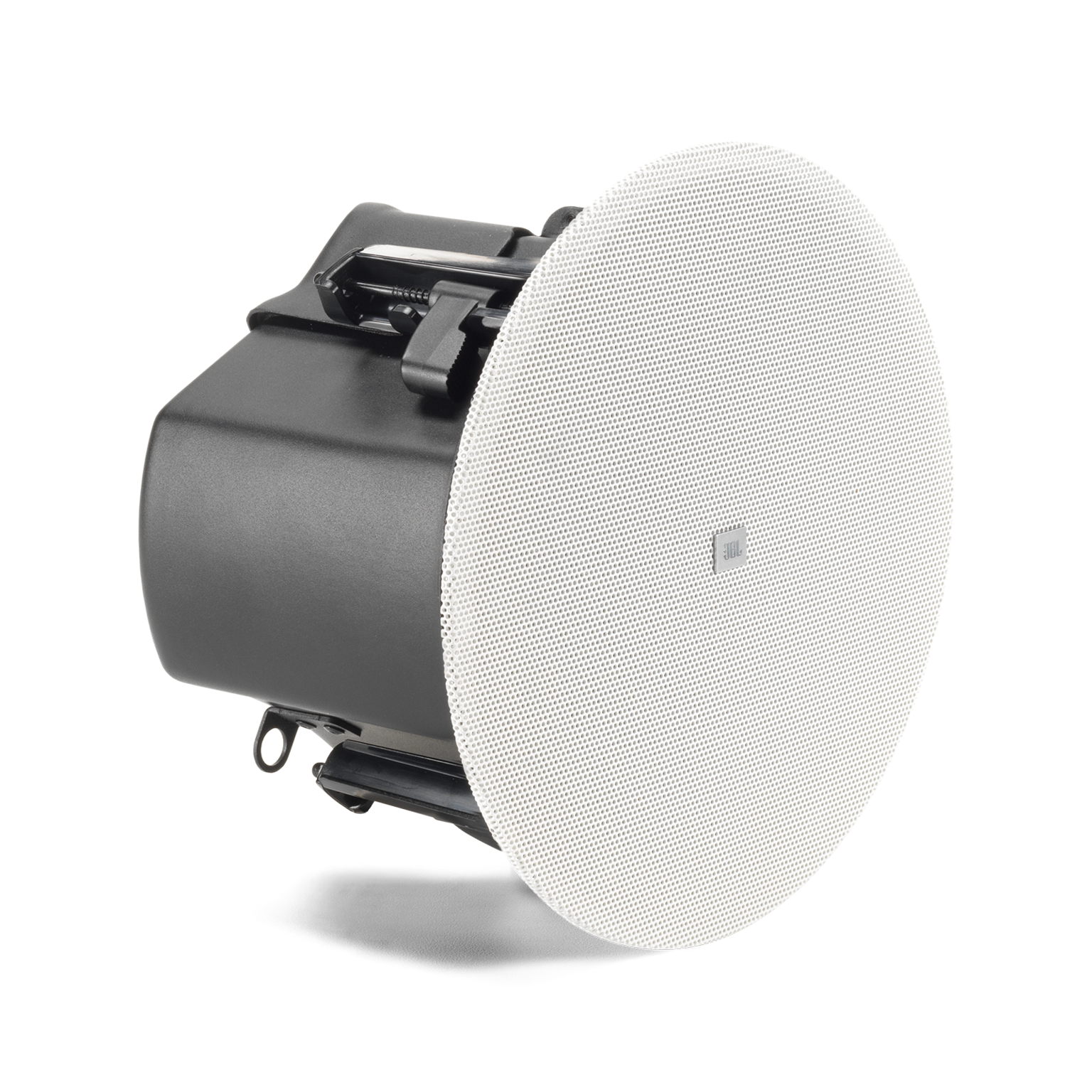

Stock grille is white (RAL9003), paintable |
| Net Weight (each) |
1.75 kg (3.86 lb) |
| Shipping Weight (pair) |
7.92 kg (17.46 lb) |
| Optional Accessories |
JBL-MTC-414BG black (RAL9004) round grille
JBL-MTC-414SG white (RAL9003) square grille
JBL-MTC-414WG white (RAL9003) weather grille
JBL-MTC-424NC new construction bracket
JBL-MTC-424MR mud-ring construction bracket
JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles |
| SKU Number |
JBL-C412C/T |
