Name: JBL Control 40CS T In Ceiling Subwoofer for Powerful Bass
Brand: JBL
SKU: JBL Control 40CS
Price: 3513.59 SAR
Availability: InStock

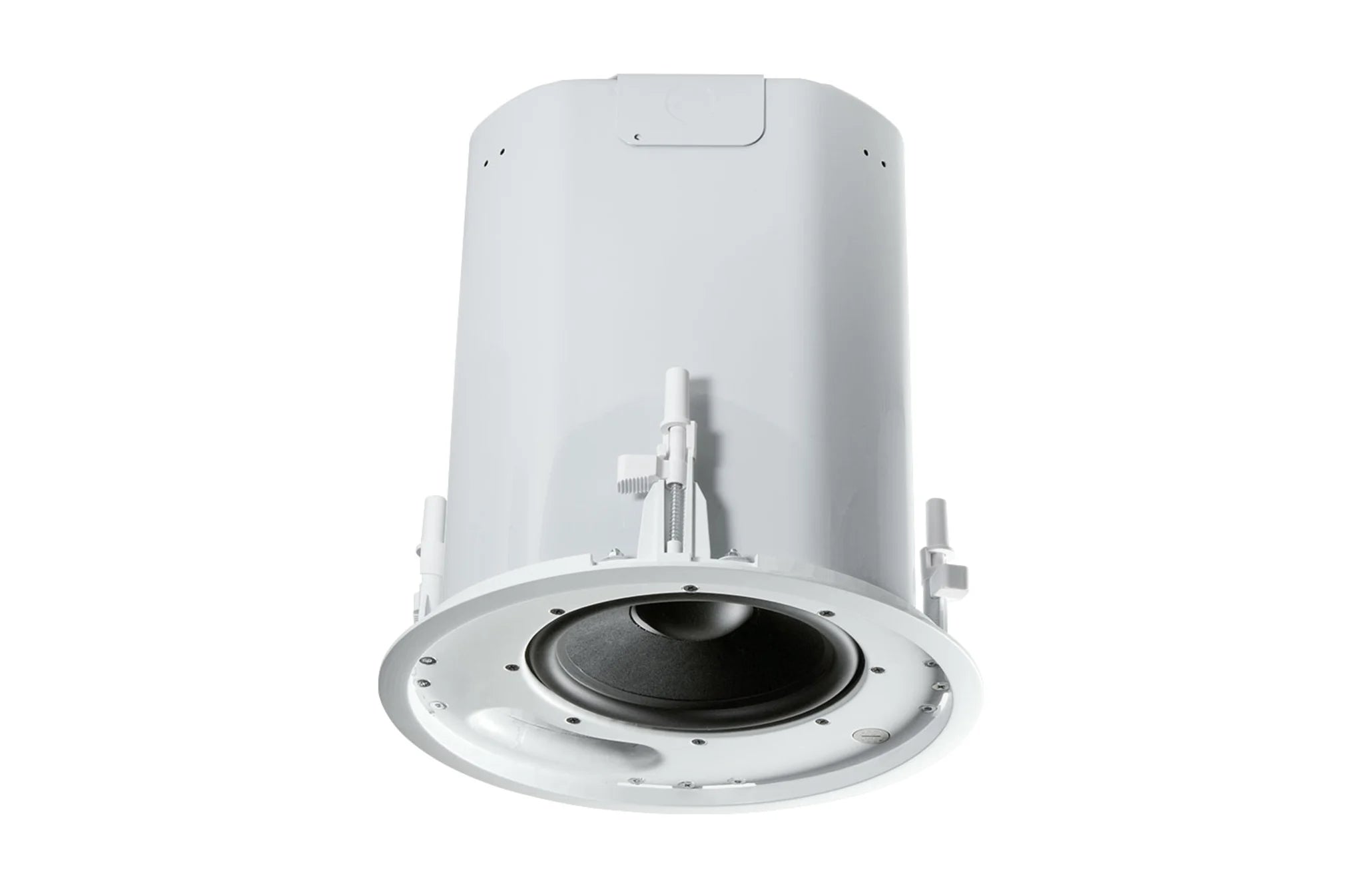

JBL Control 40CS T In Ceiling Subwoofer front view with grille

JBL Control 40CS T In Ceiling Subwoofer delivers extended low frequency performance and powerful bass for professional commercial audio systems. Its 200 mm 8 inch subwoofer provides strong bass reproduction with a frequency range from 32 Hz to 300 Hz.

Features

Extended Bass Response with Maximum Impact
Passive Crossover Network for Easy to Install Subwoofer-Satellite Systems
Switchable 70V/100V or Low-Z
Elegant design fits any décor

JBL Control 40CS T In Ceiling Subwoofer supports switchable 70V 100V or low impedance operation for flexible system design. Its passive crossover network supports easy integration with Control 42C satellite speakers, making it suitable for distributed audio installations.

Specifications

Specification	Details
Frequency Range	32 Hz – 300 Hz
Power Rating	IEC system long-term ratings (low-Z direct): 200 W continuous program power 100 W continuous pink noise (400 W peak), 100 hrs
Sensitivity	95 dB (near corner), 89 dB (center of ceiling)
Coverage Angle	Omnidirectional
Transformer Taps	80 W, 40 W, 20 W (& 10 W @ 70V), plus transformer bypass
Impedance	8 ohms (in bypass mode)
Drivers	200 mm (8 in) subwoofer
Termination	Screw-down removable locking clip-in connector
Satellite Outputs	Connectors for 2 or 4 Control 42C satellite speakers
Input Connectors	6 removable locking 2-pin connectors with screw-down terminals
Dimensions (Diameter x Depth)	332 mm diameter x 338 mm depth (13.1 in x 13.3 in)
Maximum SPL (1m)	109 dB (low-impedance, 115 dB peak, center of ceiling) 115 dB (low-impedance, 121 dB peak, near corner) 108 dB (70V/100V, center of ceiling) 114 dB (70V/100V, near corner)
Color	White
Safety Agency	Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan	Formed steel (included, "blind-mount")
Baffle/Rim	ABS baffle with UL94-V0 and UL94-5VB flame class fire rating
Ceiling Cutout Size	307 mm diameter (12.1 in) (cardboard cutout template included)
Included Accessories	C-rings, tile rails, paint shield, cutout template, grille
Optional Accessories	MTC-19NC new construction bracket MTC-19MR mud ring construction bracket
Plenum Usage	Yes, backcan included

JBL Control 40CS T In Ceiling Subwoofer for Powerful Bass

Description

JBL Control 40CS T In Ceiling Subwoofer delivers extended low frequency performance and powerful bass for professional commercial audio systems. Its 200 mm 8 inch subwoofer provides strong bass reproduction with a frequency range from 32 Hz to 300 Hz.
