- Extended bandwidth, extremely smooth frequency response.
- 110° x 85° HF coverage, rotatable horn.
- 110 W transformer for 70 V or 100 V lines, with 8 ohm thru.
- SonicGuard™ overload protection.
- 200 mm (8 in) Kevlar cone woofer,
25 mm (1 in) titanium diaphragm compression driver. - Includes InvisiBall™ mounting hardware, plus ten 6 mm attachment points for suspension and
optional U-bracket. - Sealed input panel cover and screwdown input terminals.
Description

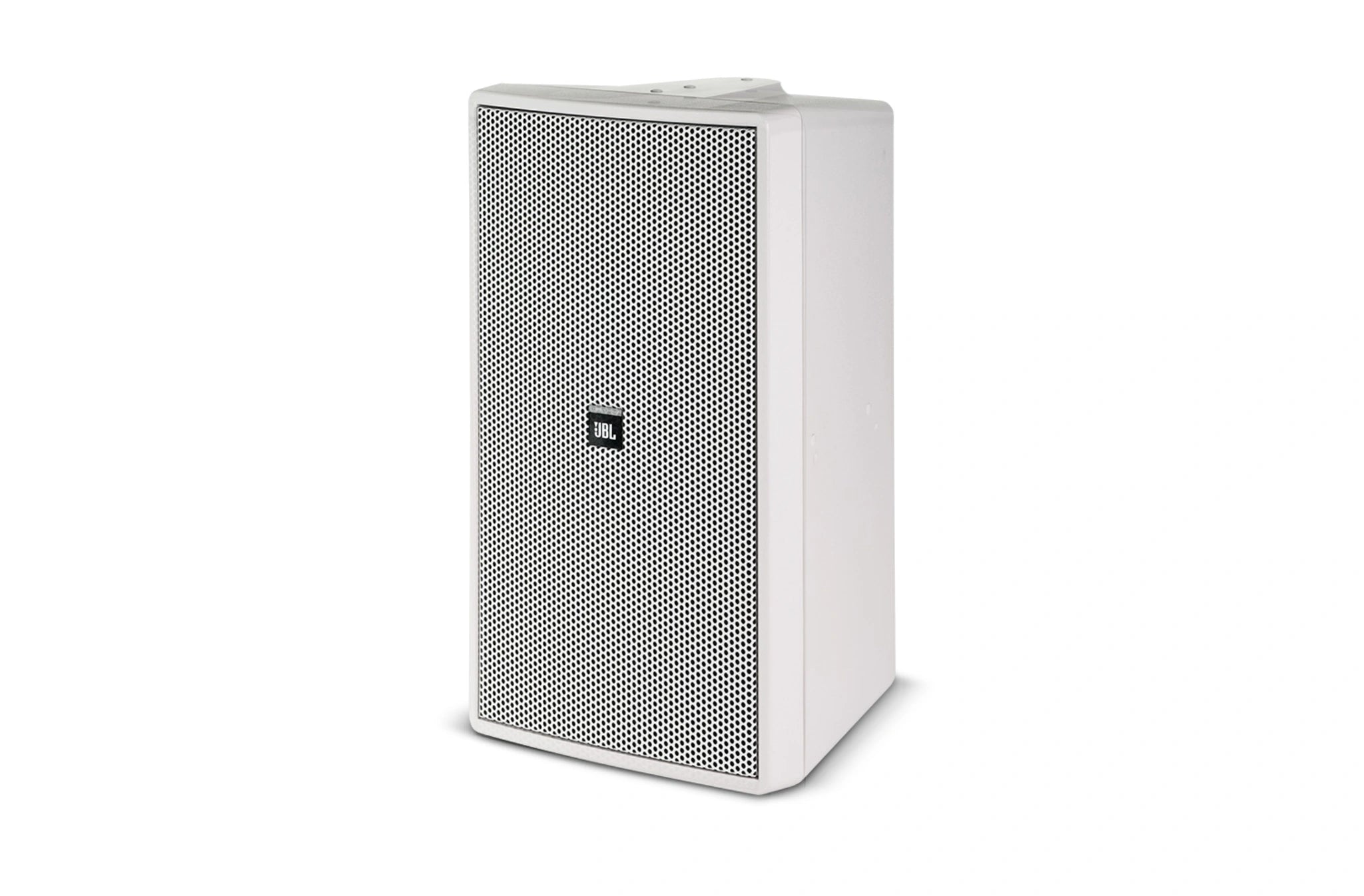

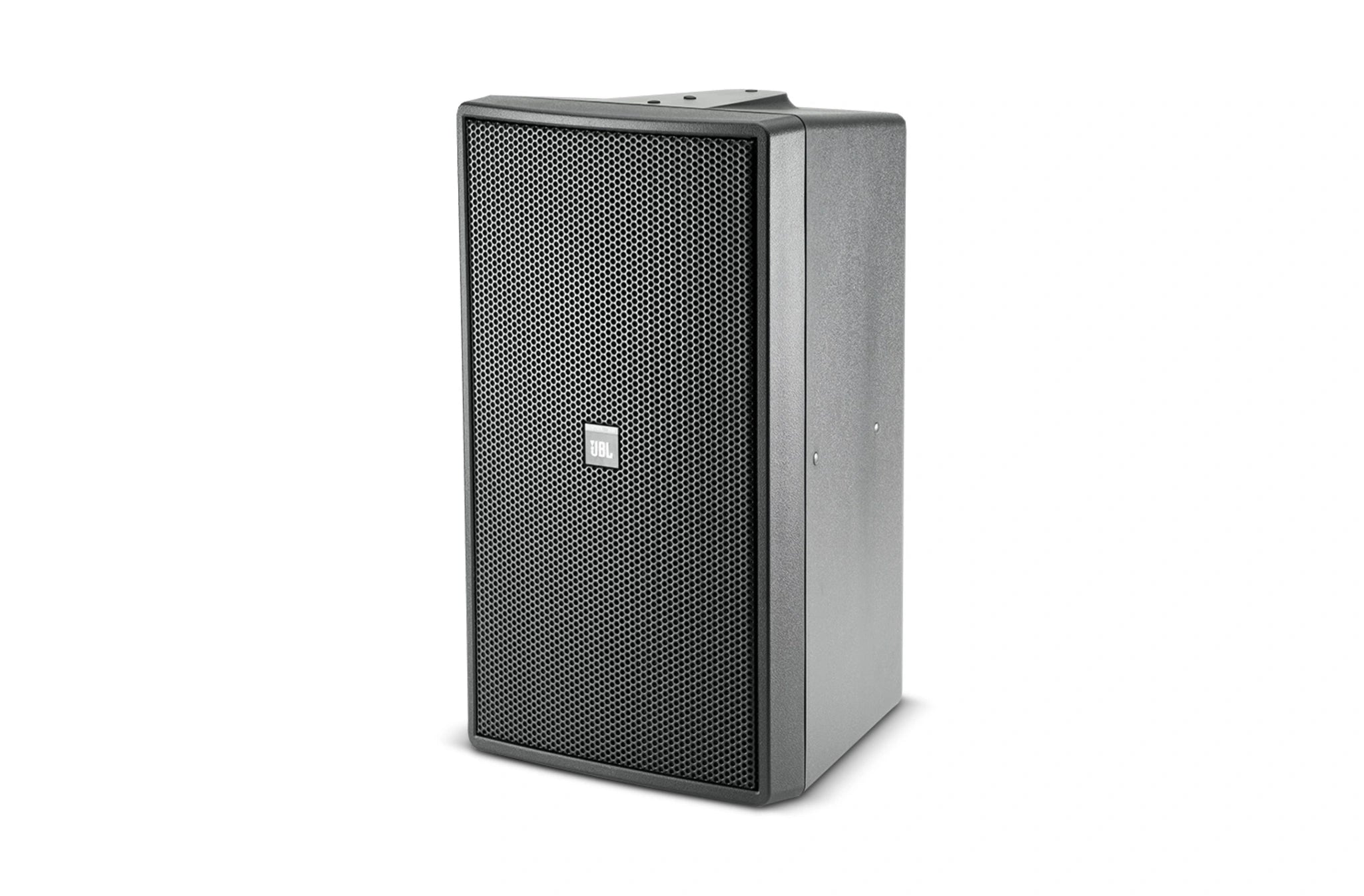

JBL Control 29AV 1 Premium Indoor Outdoor Monitor Speaker is a high-performance two-way loudspeaker engineered for premium indoor and outdoor commercial audio applications. Designed to deliver exceptional music clarity and speech intelligibility, the JBL Control 29AV 1 Premium Indoor Outdoor Monitor Speaker is ideal for restaurants, hotels, retail stores, schools, houses of worship, sports facilities, theme parks, and other public venues. Its weather-resistant enclosure, durable construction, and professional components ensure reliable performance in demanding environments.
The JBL Control 29AV 1 Premium Indoor Outdoor Monitor Speaker features an 8-inch Kevlar cone woofer and a 1-inch titanium diaphragm compression driver for powerful low frequencies, detailed highs, and smooth frequency response from 37 Hz to 18 kHz. The rotatable 110° × 85° high-frequency horn provides wide, consistent coverage, making it suitable for both background and foreground sound reinforcement. With a built-in 110 W transformer supporting both 70 V and 100 V distributed audio systems, plus an 8-ohm bypass option, the speaker offers flexible installation for a wide range of commercial sound systems.
Built for long-term reliability, the JBL Control 29AV 1 Premium Indoor Outdoor Monitor Speaker includes SonicGuard overload protection, an IPX4-rated weather-resistant enclosure, sealed input connections, and JBL's InvisiBall mounting system for easy installation and precise aiming. Optional U-bracket and ceiling mounting accessories provide additional installation flexibility. Whether used indoors or outdoors, the JBL Control 29AV 1 Premium Indoor Outdoor Monitor Speaker delivers premium JBL sound quality, outstanding durability, and dependable performance for professional audio installations.
Features
| Specification | Details |
|---|---|
| Frequency Range (-10dB) | 37 Hz – 18 kHz |
| Power Capacity | 300 W continuous program power; 150 W continuous pink noise |
| Transformer Taps | 70V: 110 W, 55 W, 28 W, 14 W 100V: 110 W, 55 W, 28 W Thru position: 8 ohms nominal |
| Frequency Response (±3dB) | 45 Hz – 18 kHz |
| Maximum SPL (1m) | Short-term: 120 dB Long-term: 114 dB |
| Nominal Sensitivity | 90 dB (2.83V / 1m) |
| Coverage Angle | 110° H x 85° V, rotatable |
| Directivity Factor (Q) | 7.2 dB, averaged 500 Hz to 16 kHz |
| Directivity Index (DI) | 8.6 dB, averaged 500 Hz to 16 kHz |
| Impedance | 8 ohms |
| Minimum Impedance | 6.3 ohms @ 230 Hz |
| Crossover Network | 3rd order high-pass, 2nd order low-pass with impedance compensation, 2.5 kHz crossover frequency |
| Drivers | LF: 200 mm (8 in) kevlar cone with pure butyl rubber surround, 50 mm (2 in) voice coil on fiberglass former HF: 25 mm (1 in) compression driver, pure titanium diaphragm with patented JBL diamond surround |
| Enclosure | High impact polystyrene |
| Grille | Thermoset composite coated steel, WeatherMax multi-layer foam |
| Overload Protection | Full-range power limiting to protect network and transducers. Serviceable internal fuse to protect during exceptional overload conditions. |
| Outdoor Capability | IEC 529 IP-X4 rating. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray. |
| Input Connectors | Screw-down terminal strip, zinc plated copper base, nickel plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open lug (#6, #8, or #10 lug), plus bare wire (up to 12 AWG/2.5 mm²). |
| Safety Agency | Transformer is listed per UL1876 |
| Colors | Black or white (-WH) |
| Dimensions (H x W x D) | 520 x 306 x 277 mm (20.5 x 12.0 x 10.9 in) |
| Net Weight (each) | 12.2 kg (26.8 lb) |
| Shipping Weight (each) | 14.0 kg (30.8 lb) |
| Included Accessories | 1 pc MTC-PC2 input panel cover, InvisiBall mounting base, 6 mm x 260 mm InvisiBall hex wrench |
| Optional Accessories | MTC-29CM to install speaker down from the ceiling MTC-29UB U-bracket |
| Mounting Hardware | InvisiBall™ aimable wall-mounting system included. Optional U-bracket. |
