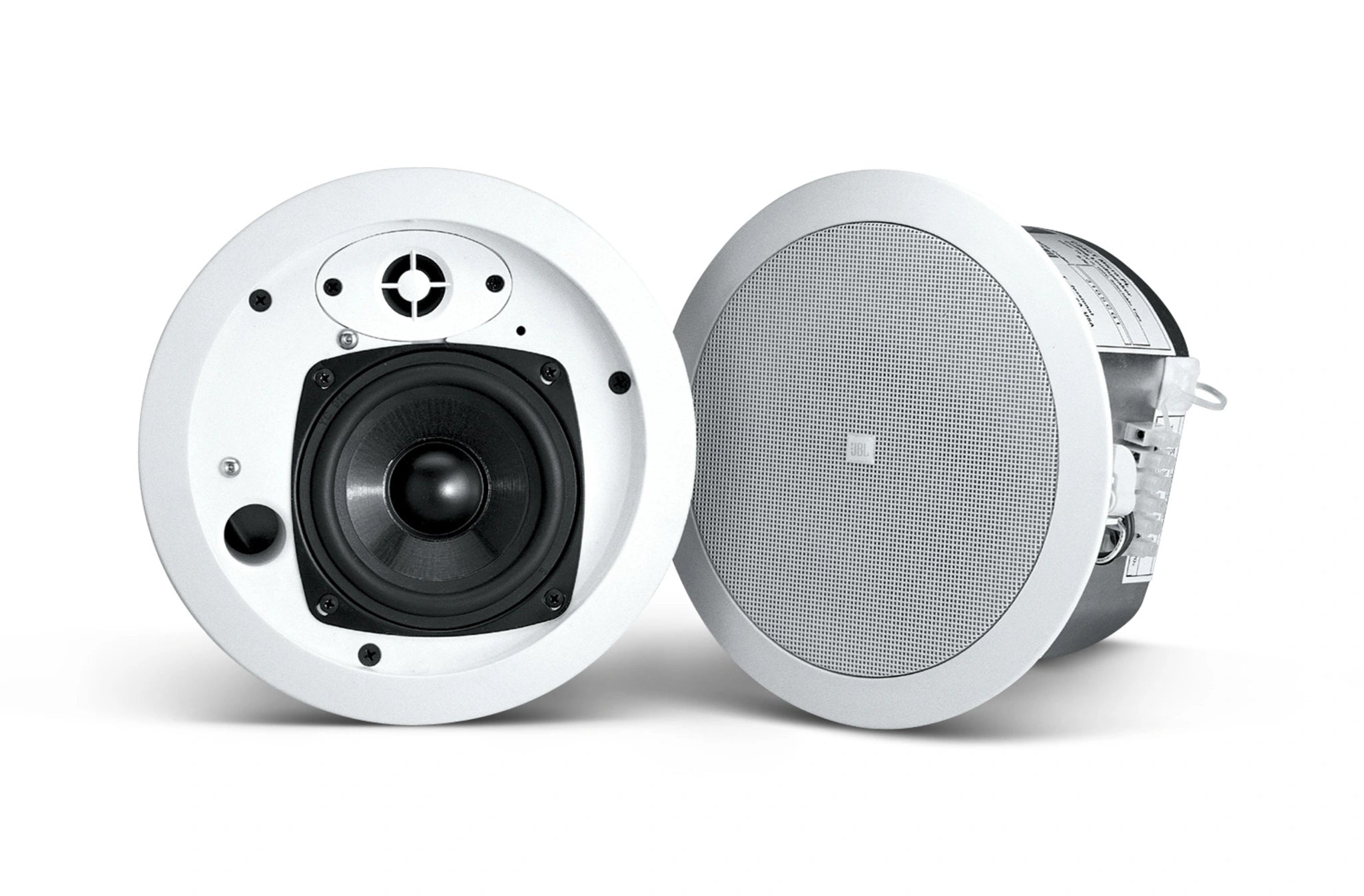

Name: JBL Control 24CT Micro Plus Background Music Ceiling Loudspeaker
Brand: JBL
Price: 1201.57 SAR
Availability: InStock

150° conical coverage.
Smooth frequency response.
Advanced crossover network provides very even coverage throughout listening area.
Components:
115 mm (4.5 in) woofer, injection molded graphite cone with butyl rubber surround.
12 mm (.5 in) polycarbonate tweeter for extended response.
Includes 25 W multi-tap transformer for 70 V/100 V systems.
Shallow 105 mm (4.1 inch) depth from back of baffle.
Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.

Specification	Details
Frequency Range	80 Hz – 25 kHz
Power Capacity	30 W continuous program power; 15 W continuous pink noise
Transformer Taps	70V: 25 W, 12 W, 6 W taps 100V: 25 W, 12 W taps
Nominal Sensitivity	85 dB SPL @ 1 m (3.3 ft)
Coverage Angle	150° conical
Crossover Frequency	3.5 kHz, 3rd order low-pass plus 3rd order high-pass with conjugate
Maximum SPL (1m)	99 dB @ 1 m (3.3 ft), 25 W tap
Low Frequency Driver	115 mm (4.5 in) IMG (injection molded graphite), 24 mm (1 in) voice coil
High Frequency Driver	12 mm (0.5 in) polycarbonate
