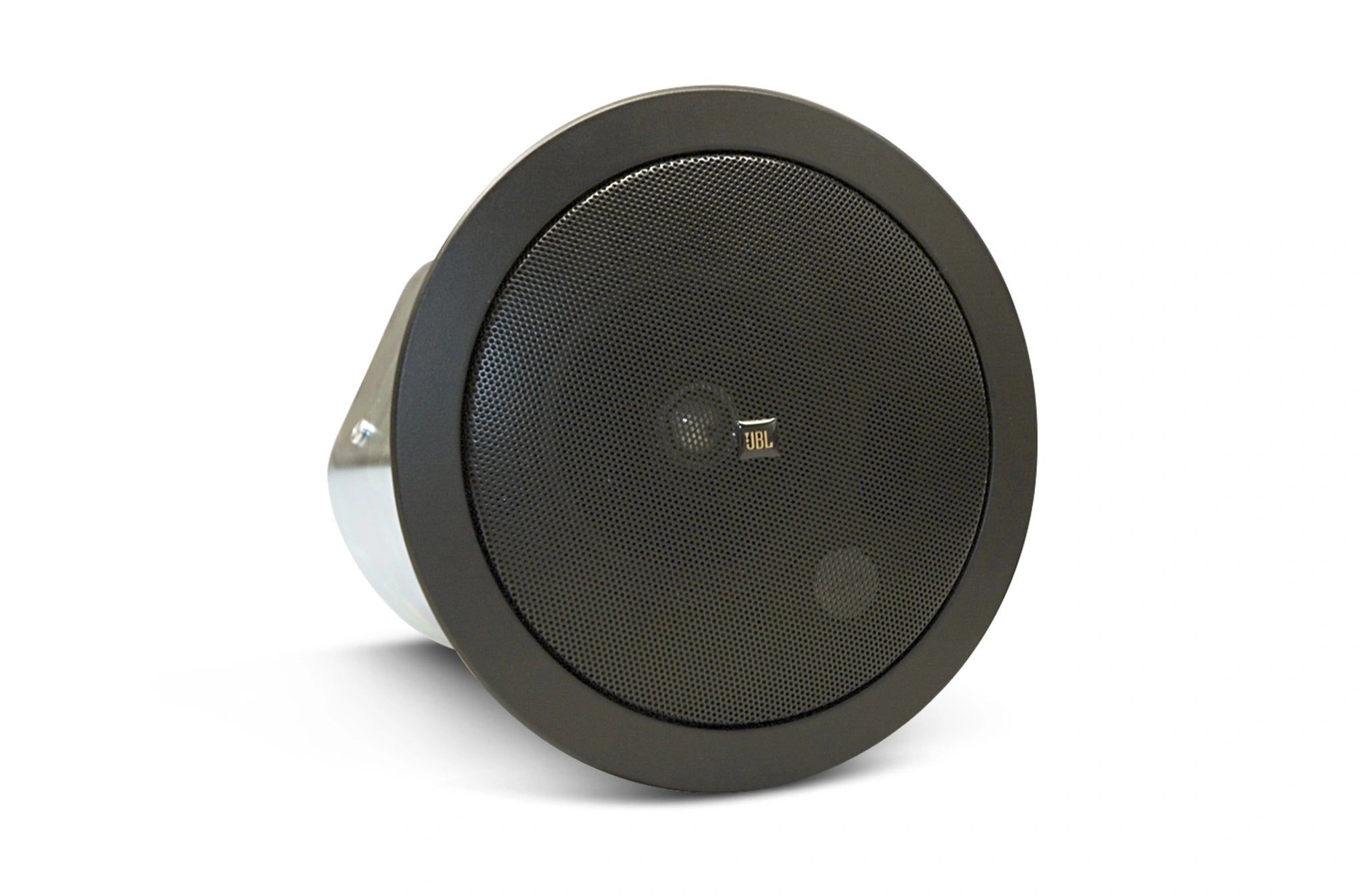

Name: JBL Control 24CT-BK Background/Foreground Ceiling Speaker in Black
Brand: JBL
Price: 1289.04 SAR
Availability: InStock

Coaxially mounted 100 mm (4 in) woofer with butyl rubber surround and 19 mm (¾ in) titanium coated diffraction-loaded tweeter
High power, wide frequency response and low distortion for high sound level capability
Wide coverage allows fewer speakers, reducing the cost of the installed sound system without
sacrificing performance
Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking
Black baffle and grille works well in black and dark ceiling

Specification	Details
Frequency Range	80 Hz – 20 kHz
Power Rating	See transformer taps
Transformer Taps	70V: 30 W, 15 W, 7.5 W (& 3.7 W @ 70V)
Coverage Angle	130° conical
Directivity Factor (Q)	2.4 dB averaged 500 Hz to 4 kHz
Directivity Index (DI)	3.8 dB averaged 500 Hz to 4 kHz
Maximum SPL (1m)	102 dB (top 70V/100V tap)
Nominal Impedance	16 ohms (min Z 16.1 ohms @ 320 Hz)
Sensitivity	86 dB (100 Hz – 10 kHz)
Input Connectors	Removable 4-pin locking connector with screw-down terminals
Drivers	LF Driver: 100 mm (4.0 in) HF Driver: 19 mm (0.75 in)
Color	Black
Safety Agency	Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan	Formed steel (included, "blind-mount")
Baffle/Rim	Medium impact polystyrene, fire rated UL94V-0
Ceiling Cutout Size	168 mm (6.6 in) diameter (cardboard cutout template included)
Included Accessories	C-shaped support backing plate, 2 tile support rails (fits both 2x4 ft or 600x1200 mm tiles), cutout template, paint shield, removable locking wiring connector
Plenum Usage	Yes, backcan included
