Name: JBL Control 24C Ceiling Loudspeaker for Background Music
Brand: JBL
SKU: JBL Control 24C
Price: 1228.74 SAR
Availability: InStock

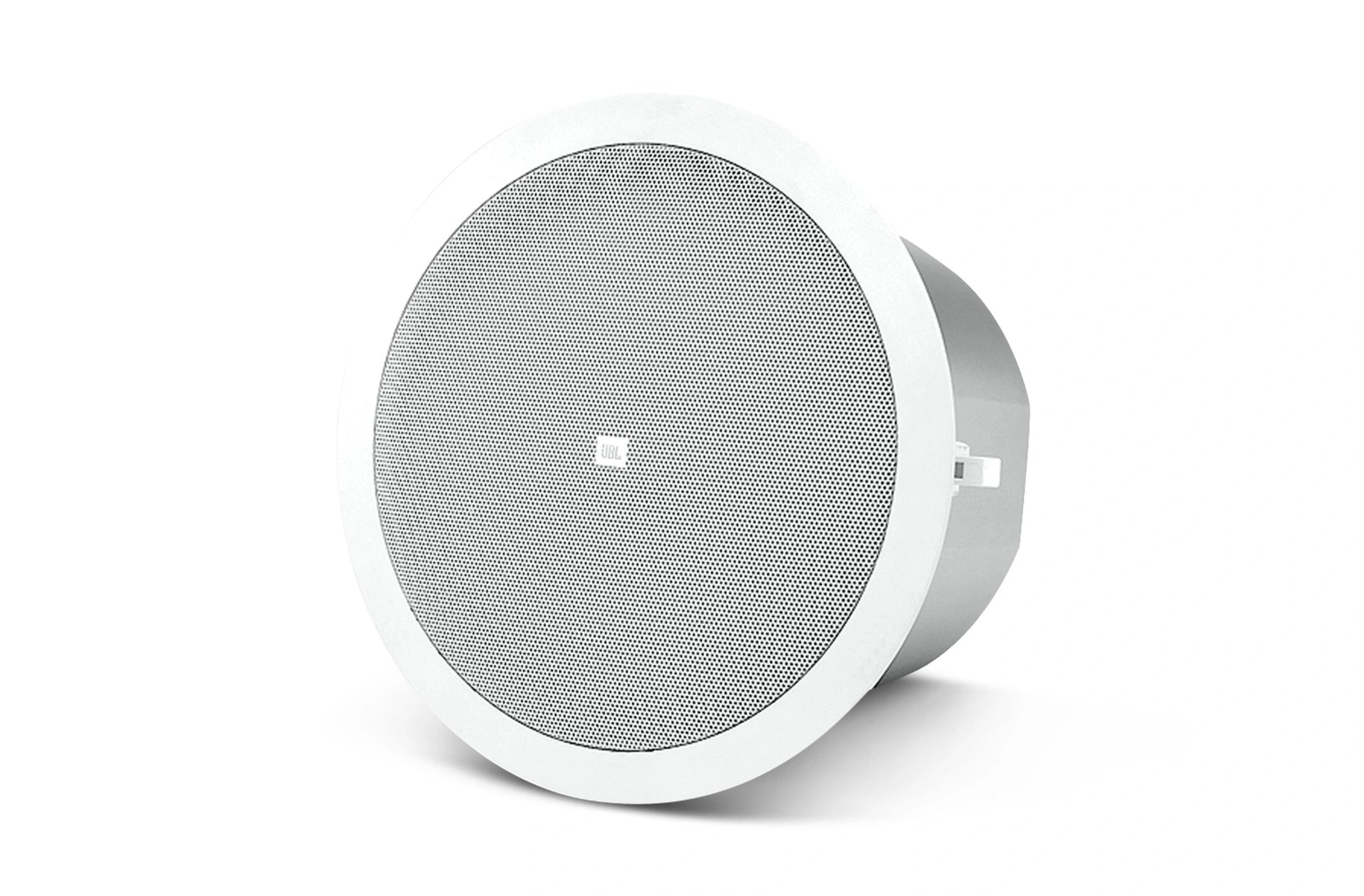

Front-facing JJBL Control 24C Ceiling Loudspeaker showing LF cone and HF driver

JBL Control 24C Ceiling Loudspeaker is a compact coaxial ceiling speaker designed for clear background and foreground music in professional commercial audio installations. It combines a 100 mm woofer with a 19 mm titanium coated tweeter to deliver wide coverage, reliable performance and low distortion.

Features

Coaxially mounted 100 mm (4 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated diffraction-loaded tweeter.
High power, wide frequency response and low distortion for high sound level capability.
Wide coverage allows fewer speakers, reducing the cost of the installed sound system without
sacrificing performance.
JBL’s exclusive SonicGuard™ overload protection allows higher operational levels and improved
system reliability.
Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.

JBL Control 24C Ceiling Loudspeaker provides an 80 Hz to 20 kHz frequency range with wide 130 degree conical coverage. SonicGuard overload protection improves system reliability, while the integrated backcan, grille and tile rails support fast and convenient ceiling installation.

Specifications

Specification	Details
Frequency Range	80 Hz – 20 kHz
Power Rating	IEC system long-term ratings (low-Z direct): 80 W continuous program power 40 W continuous pink noise (160 W peak), 100 hrs
Sensitivity	86 dB SPL @ 1 m (3.3 ft)
Coverage Angle	130° conical
Directivity Factor (Q)	2.4 dB averaged 500 Hz to 4 kHz
Directivity Index (DI)	3.8 dB averaged 500 Hz to 4 kHz
Maximum SPL (1m)	102 dB (low-impedance, 108 dB peak)
Impedance	16 ohms
Input Connectors	Removable 4-pin locking connector with screw-down terminals
Drivers	LF Driver: 100 mm (4.0 in) HF Driver: 19 mm (0.75 in)
Color	White
Safety Agency	Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan	Formed steel (included, "blind-mount")
Baffle/Rim	Medium impact polystyrene, fire rated UL94V-0
Ceiling Cutout Size	168 mm (6.6 in) diameter (cardboard cutout template included)
Included Accessories	C-shaped support backing plate, 2 tile support rails (fits both 2x4 ft or 600x1200 mm tiles), cutout template, paint shield, removable locking wiring connector
Plenum Usage	Yes, backcan included
