| Frequency Range (-10dB) |
43 Hz – 19 kHz |
| Power Rating |
See transformer taps |
| Transformer Taps |
68 W, 34 W, 17 W (& 8.5 W @ 70V) |
| Sensitivity |
90 dB (1 kHz – 16 kHz) |
| Coverage Angle |
120° conical, constant directivity |
| Frequency Response (-3dB) |
75 Hz – 17 kHz |
| Maximum SPL (1m) |
108 dB (top 70V/100V tap) |

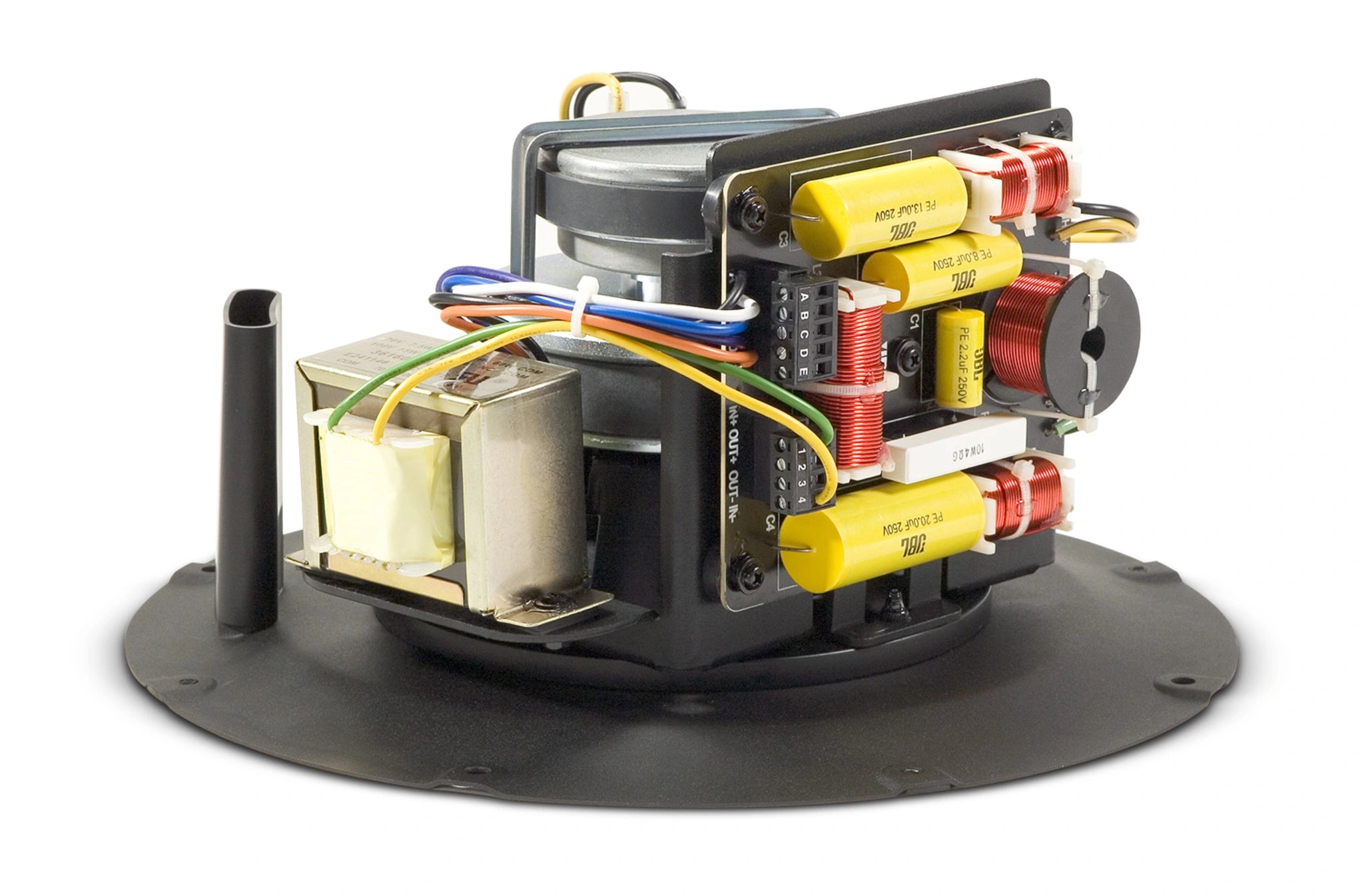

| Drivers |
LF Driver: 165 mm (6.5 in)
HF Driver: compression driver, 25 mm (1 in) coil |
| Input Connectors |

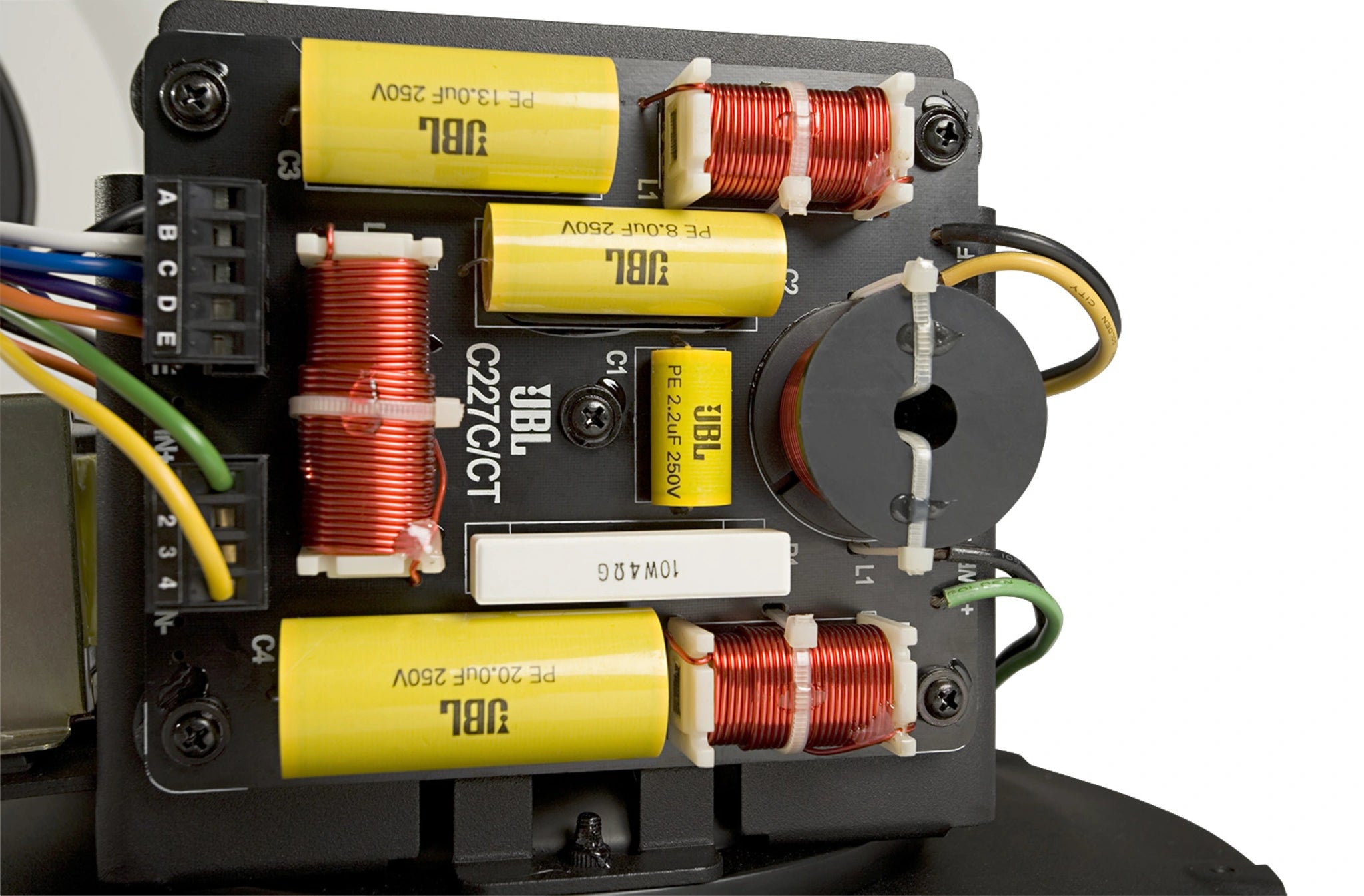

Screw locking barrier strip for bare wire |
| Color |
White |
| Safety Agency |
Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70 when installed with UL listed backcan such as JBL MTC-200BB6 or MTC-300BB8. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Backcan |
Formed steel (wood-lined; accessory) |
| Baffle/Rim |
Metal, round, driver pre-mounted to baffle, ported |
| Dimensions (H x Dia) |
Ø 305 mm (12 in) round baffle x depth from back of baffle of 147 mm (5.8 in) |
| Net Weight (each) |
5.2 kg (11.5 lb) |
| Shipping Weight (pair) |
6.6 kg (14.5 lb) |
| Ceiling Cutout Size |
310 mm (12.2 in) diameter (for MTC-200BB6 backcan) |
| Included Accessories |
Ported baffle pre-attached, transformer |
| Optional Accessories |
MTC-200BB6 back can (0.7 cu ft)
MTC-RG6/8 grille
MTC-TB6/8 tile bridge
Also compatible with MTC-300BB8 backcan (1.0 cu ft) |
| Plenum Usage |
Yes, with accessory backcan |
