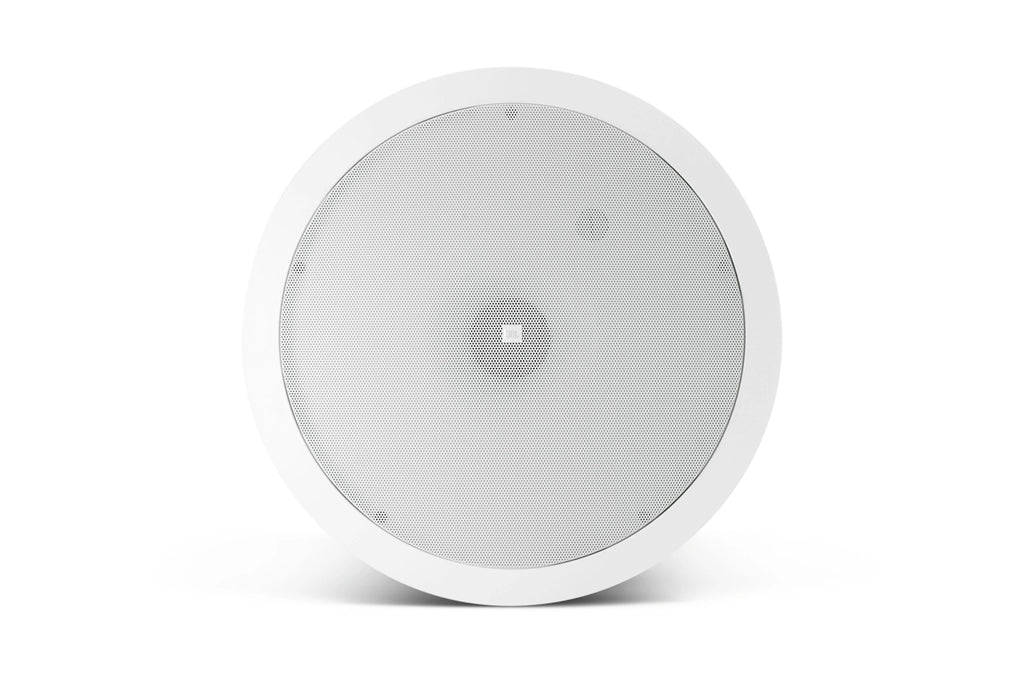

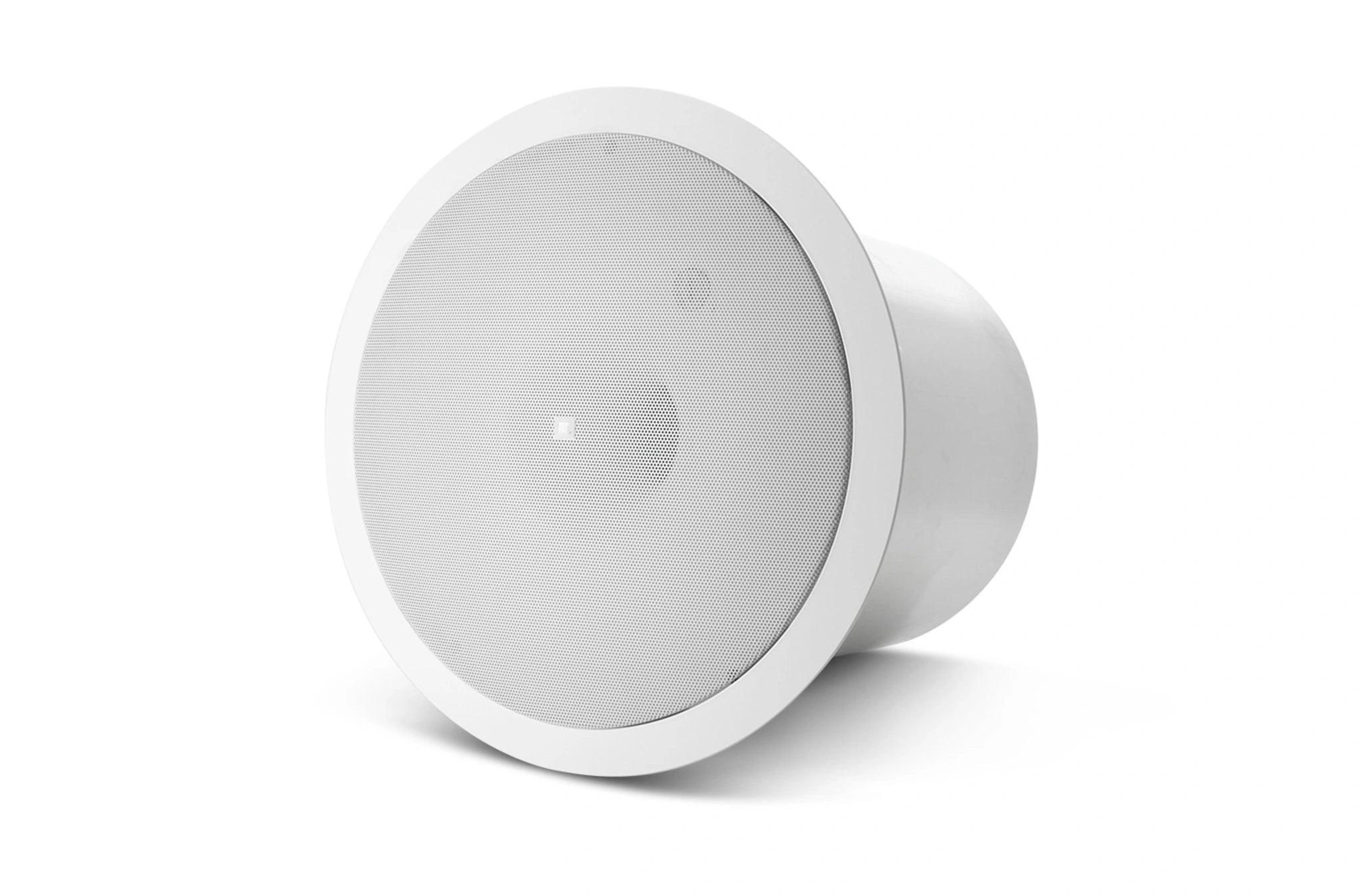

The Control 19CST uses advanced proprietary technologies to produce powerful bass from a low profile in-ceiling design.
- Unique Nested Chamber™ design and Linear
- Component: Long excursion 200 mm (8 in) driver.
- Packaged with grille, backcan and tile rails for fast
- Simple installation and wire connection method.
Specifications
| Specification |
Details |
| Frequency Range |
42 Hz – 200 Hz |
| Power Rating |
See transformer taps |
| Transformer Taps |
75 W, 30 W, 15 W (& 7.5 W @ 70V) |
| Coverage Angle |
180° conical |
| Maximum SPL (1m) |
108 dB (70V/100V, center of ceiling)
114 dB (70V/100V, near corner) |
| Nominal Impedance |
8 ohms |
| Drivers |
200 mm (8.0 in) subwoofer |
| Enclosure Material |
Backcan: Formed steel
Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0 |
| Input Connectors |

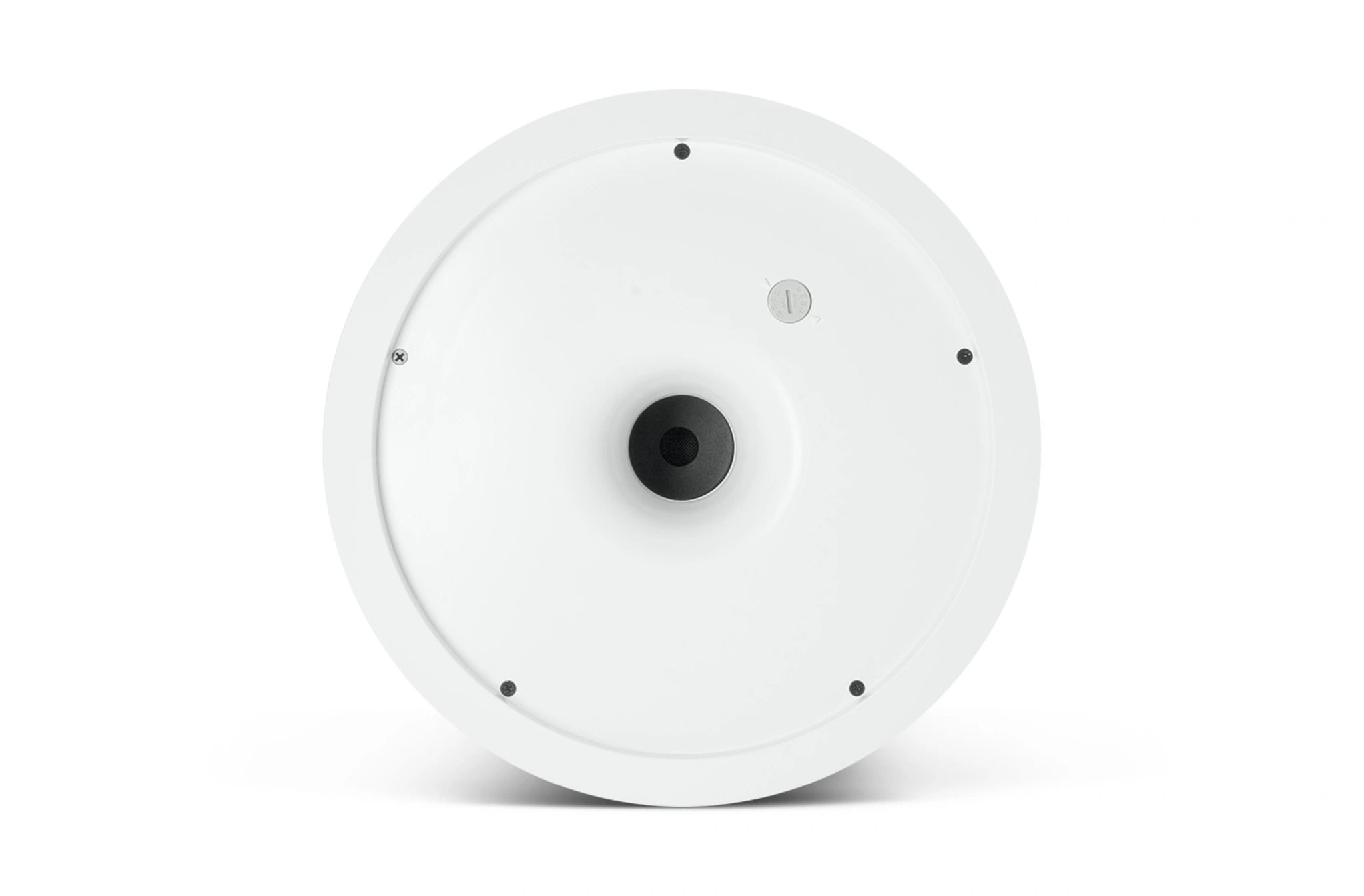

Removable locking connector with screw-down terminals |
| Safety Agency |
Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Outside Dimensions (H x Dia) |
345 x 345 mm (13.6 x 13.6 in)
318 mm (12.5 in) front of ceiling tile to back of backcan |
| Ceiling Cutout Size |
305 mm (12.0 in) diameter (cardboard cutout template included) |
| Net Weight (each) |
6.3 kg (14 lb) |
| Shipping Weight (pair) |
14.3 kg (32 lb) |
| Included Accessories |
C-shaped support backing plate, 2 tile support rails (fits both 2x4 ft or 600x1200 mm tiles), cutout template, paint shield, removable locking wiring connector |
| Sensitivity |
95 dB SPL in ceiling near corner, 89 dB in center of ceiling |
| Color |
White |
| Backcan |
Formed steel (included, "blind-mount") |
| Baffle/Rim |
Medium impact polystyrene, fire rated UL94V-0 |
| Plenum Usage |
Yes, backcan included |
