| Frequency Range (-10dB) |
38 Hz – 20 kHz |
| Power Rating |
200 W peak
100 W continuous program power
50 W continuous pink noise |
| Transformer Taps |
70V: 30 W, 15 W, 7.5 W, 3.7 W taps |
| Sensitivity |
88 dB SPL |
| Coverage Angle |
180° H x 160° V |
| Impedance |
8 ohms |

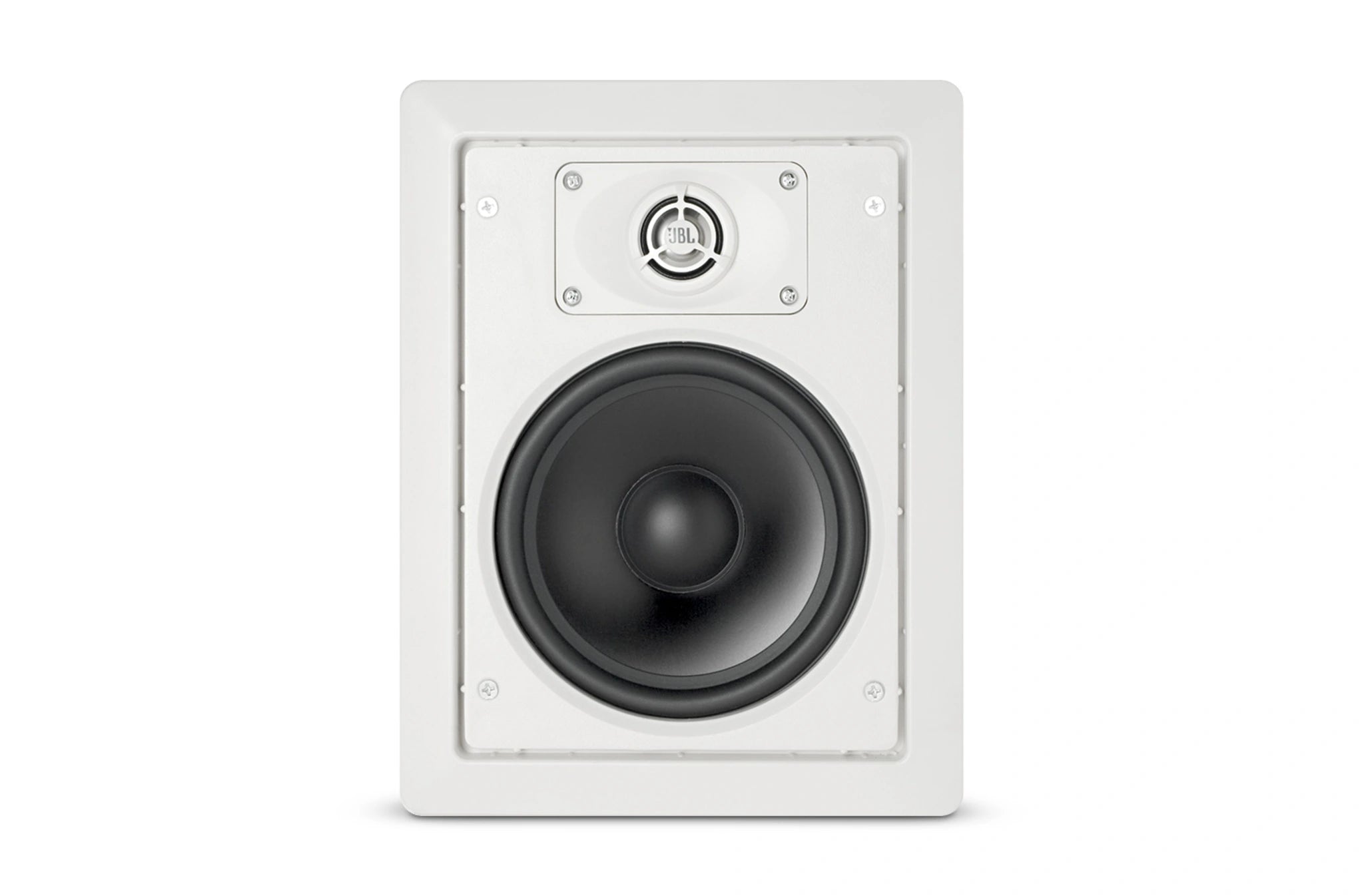

| Drivers |
LF: 165 mm (6.5 in) polymer-coated aluminum cone
HF: 25 mm (1 in) pure-titanium dome with cloth suspension on low-diffraction swivel-mount with -10° aimability |
| Input Connectors |
Screw-down Euroblock-type connector. Max wire size 14 AWG (1.5 mm²). |
| Crossover Network |
3rd order (18 dB/oct) low-pass to the woofer and 3rd order (18 dB/oct) high-pass to the tweeter |
| Optimum Air Cavity Behind Speaker |
20 to 40 liters (0.7 to 1.4 cu ft) |

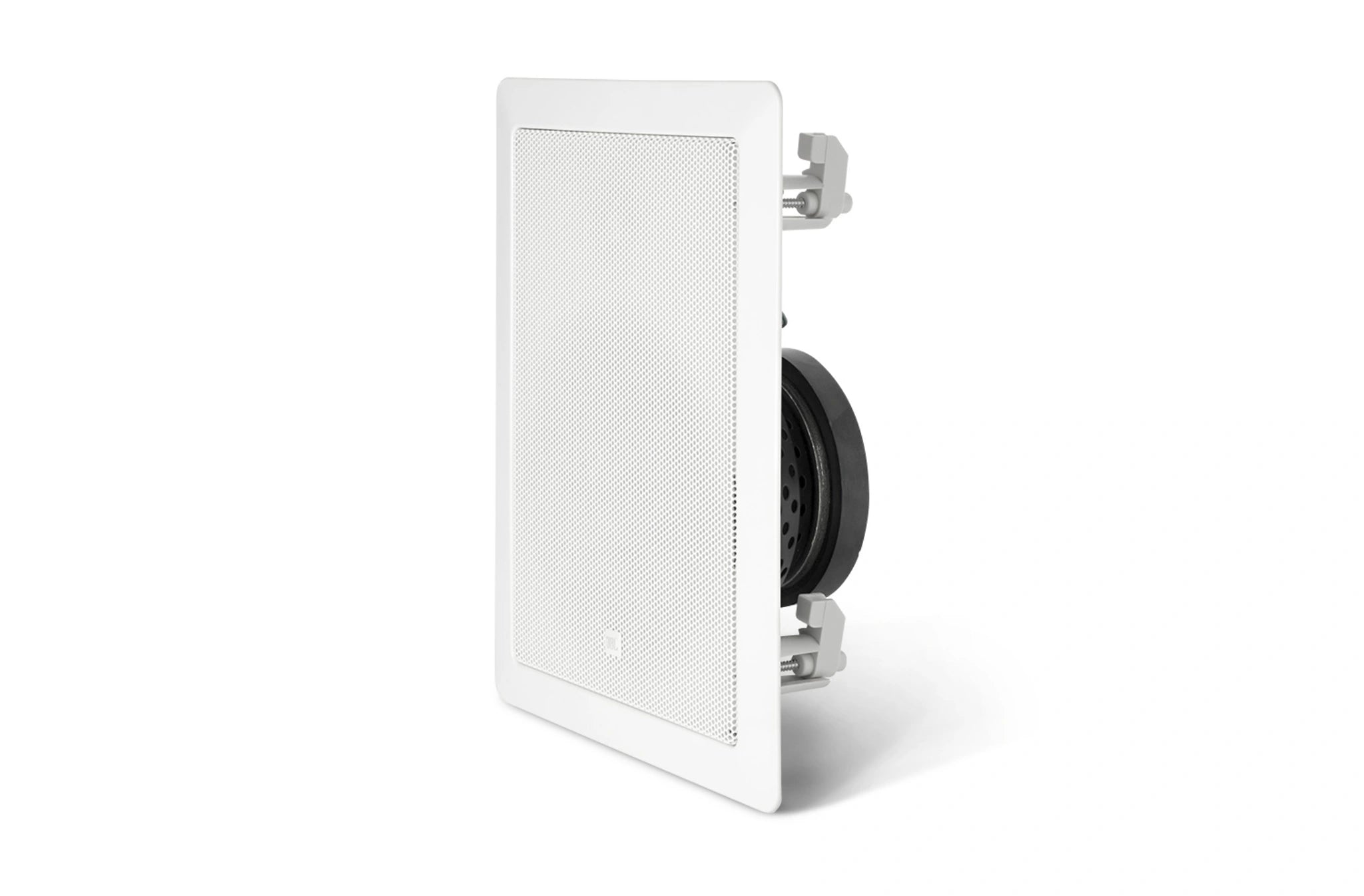

| Outside Dimensions (H x W x D) |
280 x 215 x 105 mm (11 x 8.5 x 4.1 in), 99 mm (3.8 in) front of wall to back of speaker |
| Maximum Wall Thickness |
32 mm (1.25 in) |
| Cutout Size (H x W) |
246 x 181 mm (9.7 x 7.2 in) |
| Net Weight (each) |
2.7 kg (5.9 lb) |
| Shipping Weight (each) |
6.2 kg (13.5 lb) |
| Included Accessories |
Cutout template & paint shield |
| Optional Accessories |
WB6 rough-in frame for new construction installation to wall studs |
