| Drivers (Combined Array) |
Eight (8) 130 mm (5 in) LF drivers
Sixteen (16) 25 mm (1 in) HF drivers |
| Frequency Range (-10dB) |
45 Hz – 20 kHz |
| Coverage Angle |
Vertical: Switchable — Narrow Mode: 25° (±10°), Broad Mode: 45° (±10°)
Horizontal: 150° (±20°) |
| Sensitivity |
Narrow: (speech mode) 98 dB @ 2.83V, 95 dB @ 2.0V (150 Hz–8 kHz) / (music mode) 94 dB @ 2.83V, 91 dB @ 2.0V (80 Hz–18 kHz)
Broad: (speech mode) 97 dB @ 2.83V, 94 dB @ 2.0V (100 Hz–8 kHz) / (music mode) 93 dB @ 2.83V, 90 dB @ 2.0V (70 Hz–18 kHz) |
| Impedance |
4 ohms; min impedance 2.7 ohms @ 63 Hz, 3.1 ohms @ 185 Hz |
| Power Capacity |
1000 W (4000 W peak), 2 hrs
700 W (2800 W peak), 100 hrs |
| Maximum SPL (1m) |
Narrow: (speech mode) 125 dB cont avg (131 dB peak) / (music mode) 121 dB cont avg (127 dB peak)
Broad: (speech mode) 124 dB cont avg (130 dB peak) / (music mode) 120 dB cont avg (126 dB peak) |
| Low Frequency Drivers |
8 pcs, 130 mm (5 in), dual magnet neodymium, 38 mm (1.5 in) voice coil, damped blended textile surround, coated diaphragm for moisture/UV/salt resistance, shielded |
| High Frequency Drivers |
16 pcs, 25 mm (1 in), dual magnet neodymium, encased magnet and coated diaphragm for moisture/UV/salt resistance, shielded |
| Enclosure |
Fiberglass-reinforced ABS cabinet, painted aluminum grille |
| Outdoor Capability |
IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture, and 200-hr ASTM G85 acid-air/salt-spray resistant. |
| Color |
Black or white (-WH) |
| Insert Points |
20 insert points total; 8 utilized for coupler plate, M6 (16 mm deep) on back panel |
| Mounting |
Coupler plate joins the CBT 70J-1 and 70JE-1 end-to-end. Threaded points on coupler plate accept OmniMount™ 60.0 Series and 120.0 Series compatible wall-mount brackets, plus points for the swivel (pan)/tilt wall bracket included with CBT 70J-1. Twelve (12) additional M6 mounting points accept forged shoulder steel eyebolts or swivel clips for suspension. |
| Dimensions (H x W x D) |
1388 x 170 x 237 mm (54.8 x 6.7 x 9.3 in) |
| Net Weight |
20.4 kg (45 lb) |
| Included Accessories |
Coupler plate (included with 70JE-1); swivel (pan)/tilt wall bracket (included with 70J-1) |
| Optional Accessories |
MTC-PC2 terminal panel cover
MTC-CBT-SMB1 stand-mount bracket for use with 35 mm heavy duty speaker stand (must be heavy-duty stand for stability with this array)
MTC-CBT-FM2 flush-mount low-profile wall-mount bracket |

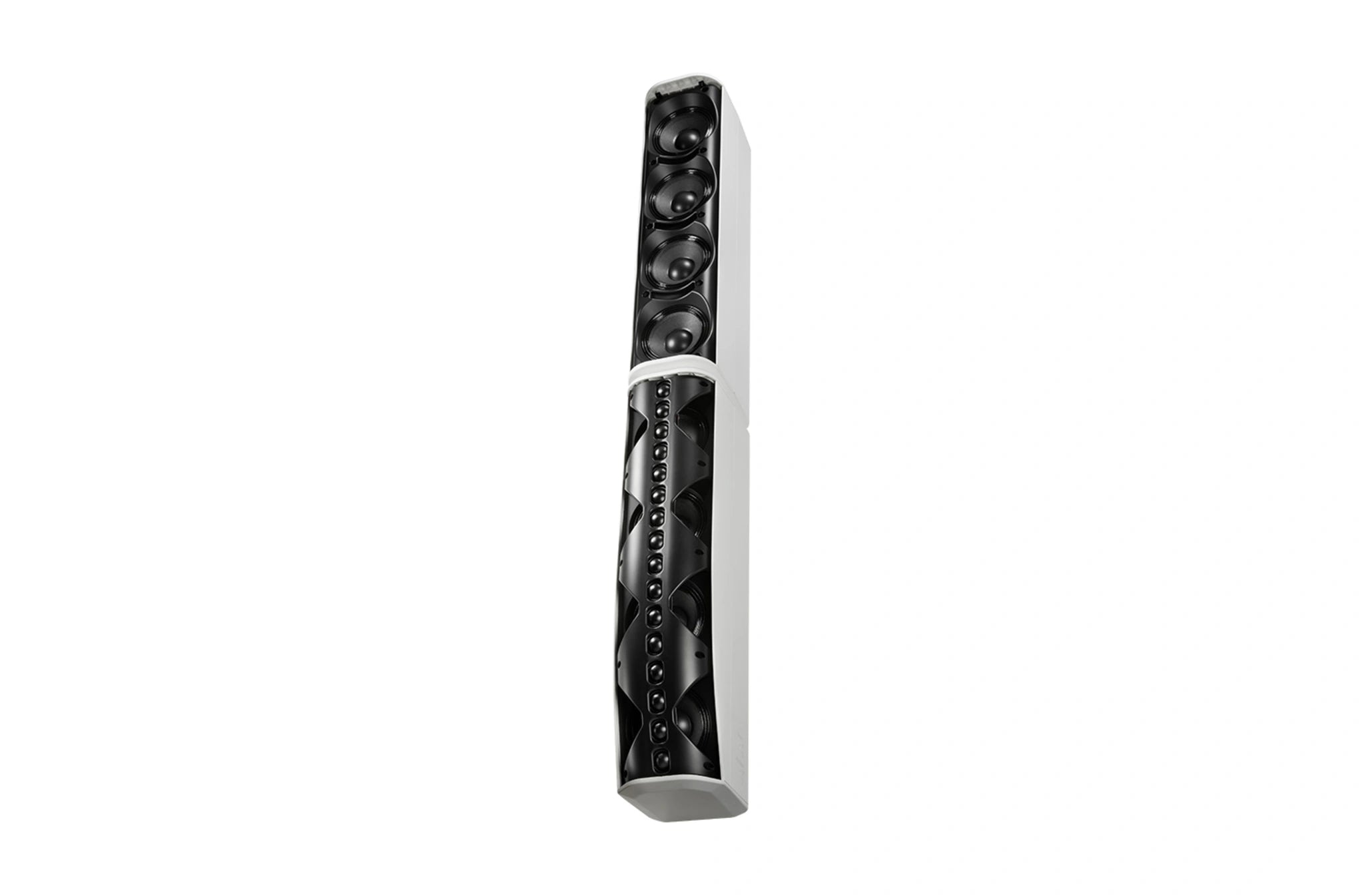

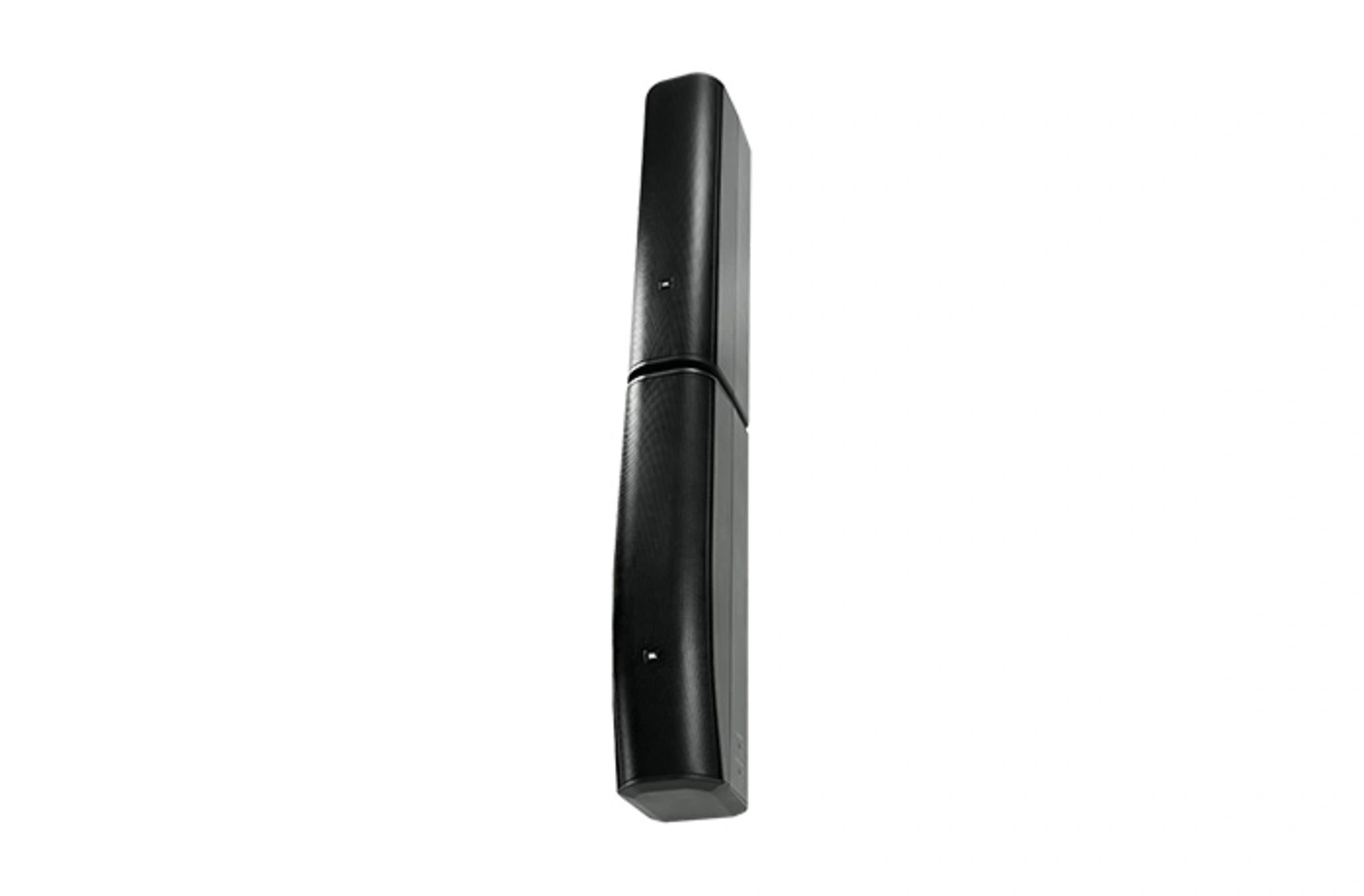

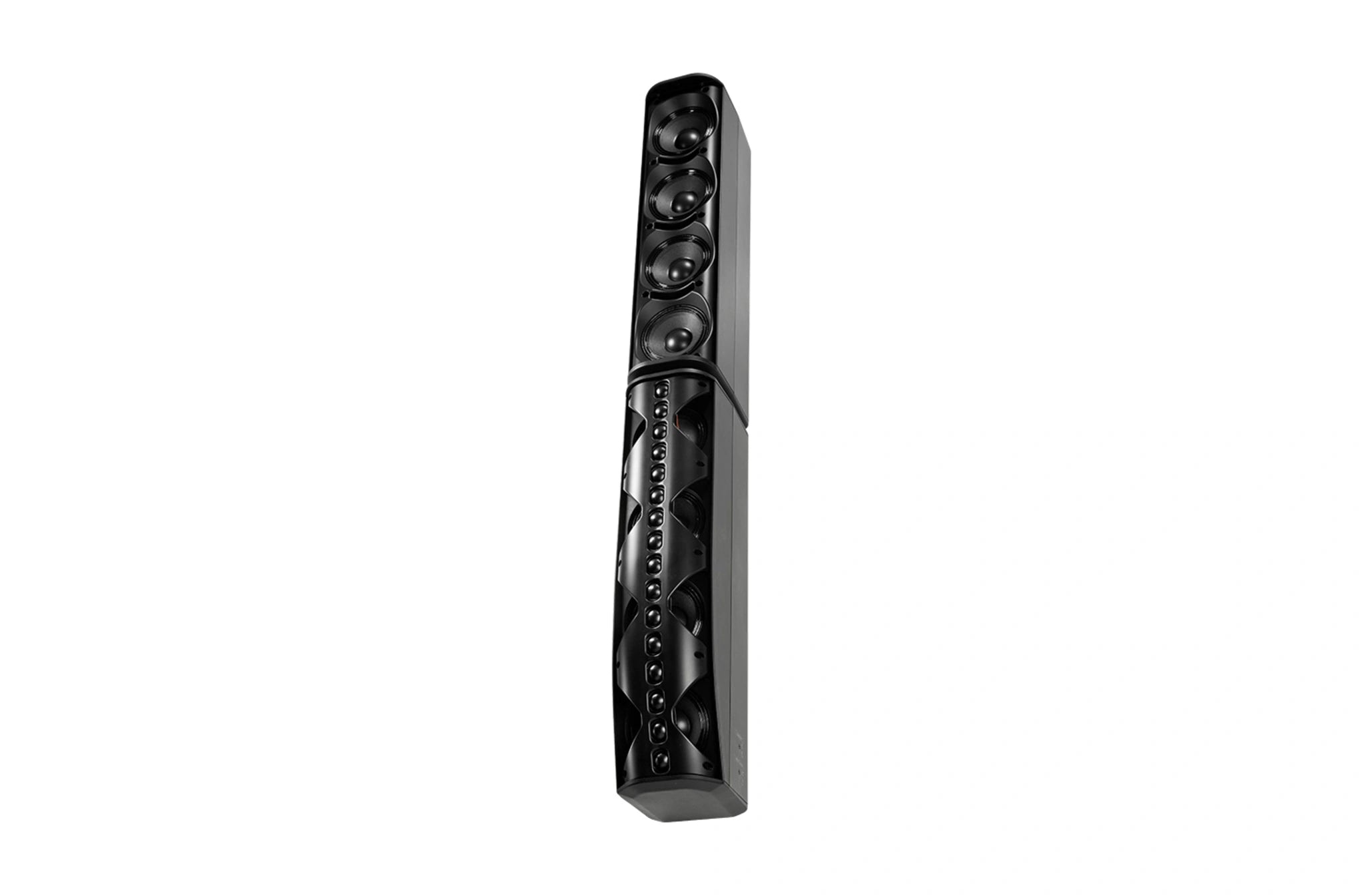

| CBT 70JE-1 Extension Module (Standalone Specs) |
| Components |
Four (4) 130 mm (5 in) LF drivers |
| Frequency Range (-10dB) |
45 Hz – 700 Hz |
| Sensitivity (2.83V @ 1m) |
90 dB full space, 96 dB half-space (65 Hz – 300 Hz) |
| Nominal Impedance |
8 ohms |
| Power Capacity |
500 W (2000 W peak), 2 hrs
350 W (1400 W peak), 100 hrs |
| Max SPL |
117 dB |
| Net Weight |
8.2 kg (18 lb) |
