| Drivers |

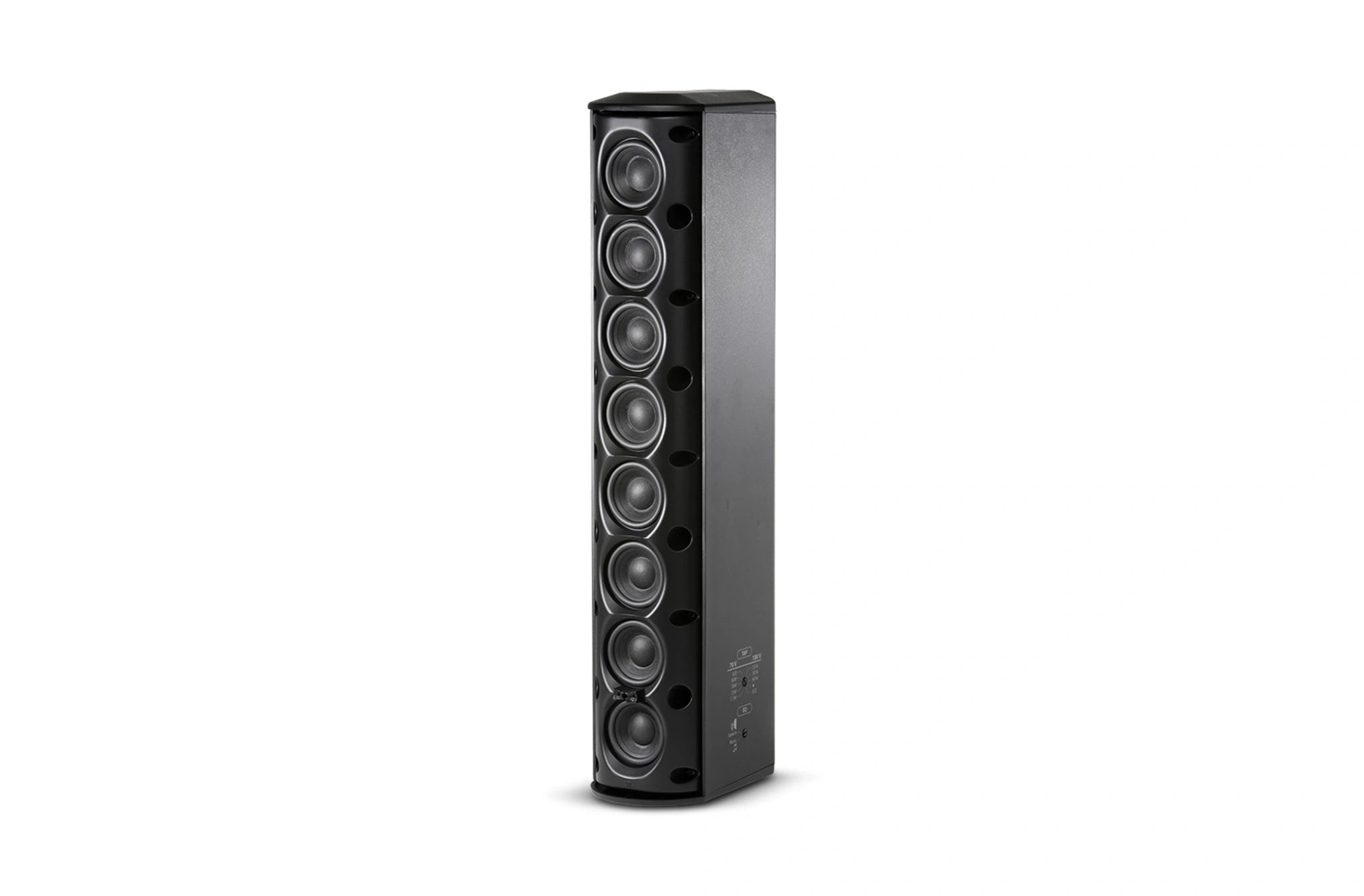

Eight 50 mm (2 in) full-range |
| Frequency Range (-10dB) |
120 Hz – 20 kHz |
| Coverage Pattern |
Vertical: 20° (1.5 kHz – 16 kHz, ±10°)
Horizontal: 150° (avg, 1 kHz – 4 kHz, ±20°) |
| Coverage Angle (by Frequency) |
| Frequency (kHz) |
Horizontal Coverage° |
Vertical Coverage° |
| 0.5 kHz |
360° |
100° |
| 1 kHz |
247° |
55° |
| 2 kHz |
194° |
32° |
| 4 kHz |
135° |
18° |
|
| Sensitivity (1W/1m, free field) |
(Speech mode) 93 dB (2 kHz – 14 kHz)
(Music mode) 89 dB (300 Hz – 18 kHz) |
| Sensitivity (1W @ 4m) |
(Speech mode) 78.8 dB SPL (100 Hz – 10 kHz)
(Music mode) 76.5 dB SPL (100 Hz – 10 kHz) |
| Nominal Impedance |
8Ω (in bypass mode)
7.5W@70V; 15W@100V Tap = 667Ω
15W@70V; 30W@100V Tap = 333Ω
30W@70V; 60W@100V Tap = 167Ω
60W@70V; N/C@100V Tap = 83Ω |
| Power Rating |
150 W (600 W peak), 2 hrs
100 W (400 W peak), 100 hrs |
| Maximum SPL |
Speech: 115 dB cont avg (121 dB peak @ 1m); 103 dB cont avg (109 dB peak @ 4m)
Music: 111 dB cont avg (117 dB peak @ 1m); 99 dB cont avg (105 dB peak @ 4m) |
| EN54 Max SPL (@ 4m) |
Speech: 96 dB, Music: 93 dB |

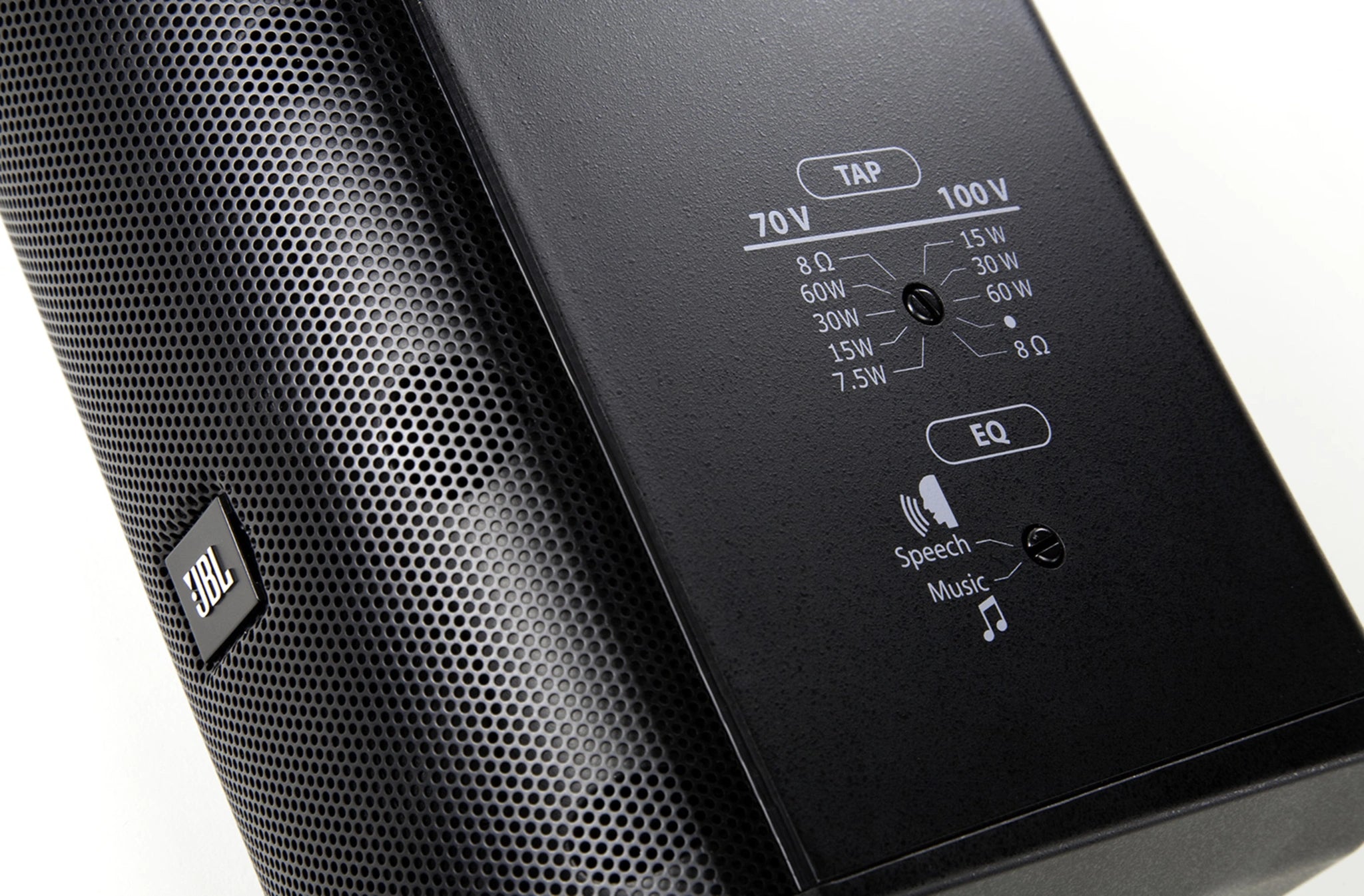

| Transformer Taps |
60 W, 30 W, 15 W (7.5 W at 70V only), and 8Ω thru, via switch |
| Enclosure |
Fiberglass reinforced ABS cabinet, painted aluminum grille |
| Outdoor Capability |
IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture, and 200-hr ASTM G85 acid-air/salt-spray resistant. |
| Color |
Black or white (-WH) |
| Insert Points |
Ten M6 insert points on back panel |
| Mounting |
Included swivel (pan)/tilt wall bracket provides continuously variable ±80° left-right swivel aiming (at no up/down tilt), continuously adjustable ±15° tilt, plus 5° fixed increment points. Ten threaded mounting points on back panel conform to industry-standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can also be used for suspension. |
| Safety Agency Rating |
EN54-24:2008 certified, when installed with MTC-PC2 terminal panel cover. In accordance with the requirements of IEC60849/EN60849. |
| Dimensions (H x W x D) |
528 x 99 x 153 mm (20.8 x 3.9 x 6.0 in) |
| Net Weight |
4.1 kg (9.0 lb) |
| Included Accessories |
Swivel (pan)/tilt wall bracket, MTC-PC2 terminal panel cover |
| Optional Accessories |
MTC-CBT-FM1 flush-mount low-profile wall-mount bracket
MTC-CBT-SMB1 stand-mount bracket for use with 35 mm speaker stand |
