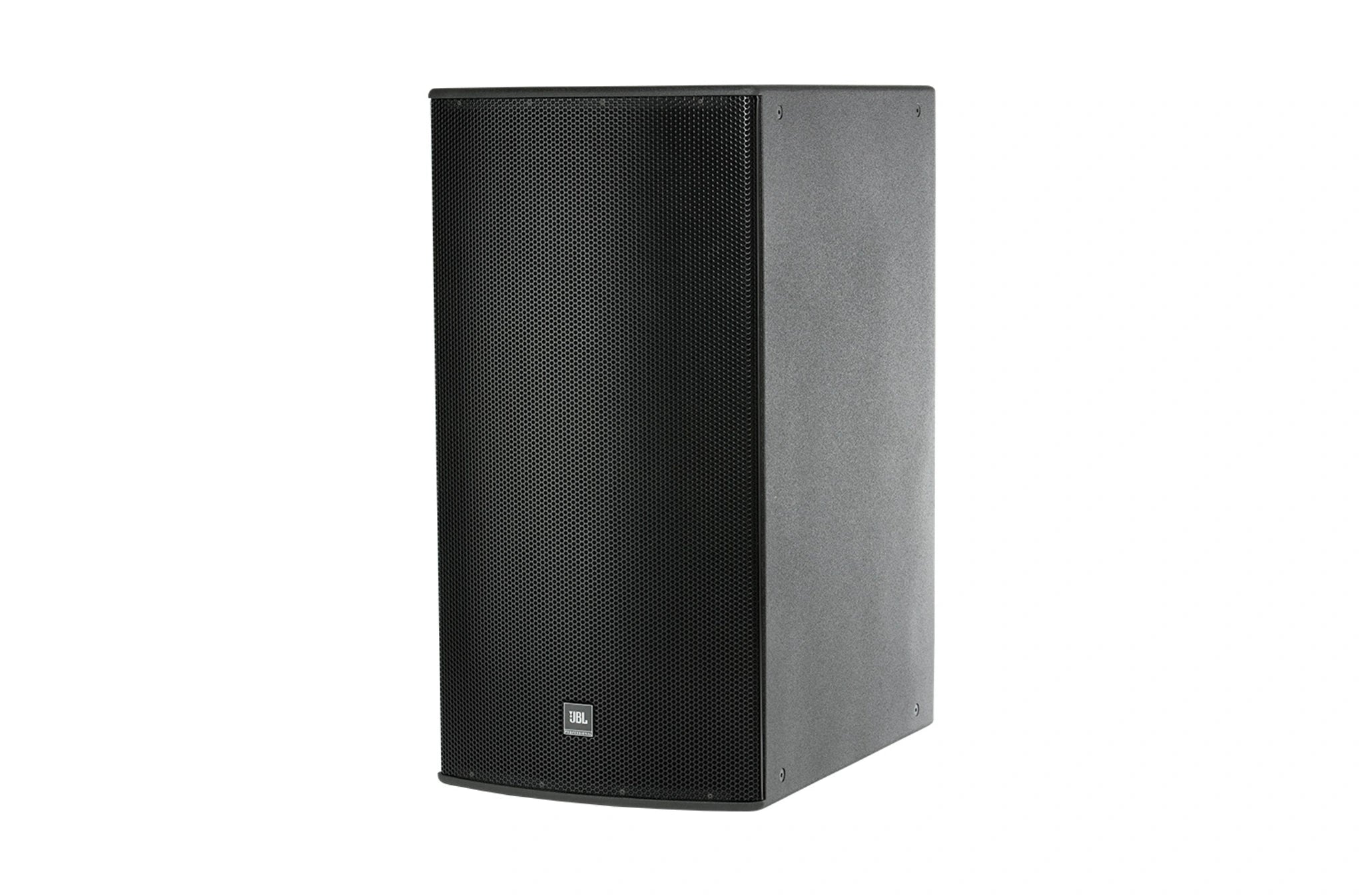

JBL ASB7128 High Power Dual 18 inch Subwoofer front view showing dual 18-inch VGC drivers

JBL ASB7128 High Power Dual 18 inch Subwoofer grille close-up detailClose-up of JBL ASB7128 High Power Dual 18-inch Subwoofer perforated steel grille and foam backing

Ultra Long Excursion JBL ASB7128 High Power Dual 18 inch Subwoofer

The JBL ASB7128 High Power Dual 18 inch Subwoofer is a high power, lightweight front-loaded vented subwoofer enclosure housing two of JBL's exclusive 2269H Ultra Long Excursion 18" Differential Drive® woofers. This woofer features neodymium magnet, dual voice coils and dual gaps, JBL’s exclusive Vented Gap Cooling™ and ultra robust composite cone for high excursion and extra long life. Woofer is capable of a peak-to-peak maximum excursion of 89 mm (3.5").

JBL ASB7128 High Power Dual 18 inch Subwoofer Features

2 x 2269H 18" Differential Drive® dual voice coil dual gap, neodymium magnet transducers
4000 watts continuous pink noise,
16000 watts peak power handling capacity
Ultra Long Excursion
Large vent area for high output with low distortion
Parallel/Discrete switchable input mode
FIR Tuning Set Matches Phase Profile to Full-Range Models
For ground-stacked or suspended applications in stand-alone arrays or in combination with other
AE Series products

Specification	Details
Frequency Range (-10dB)	20 Hz – 1 kHz
Frequency Response (±3 dB)	25 Hz – 1 kHz
Transducer Power Rating (AES)	4000 W (16000 W peak), 2 hrs
Input Modes	Drivers Parallel / Drivers Discrete
System Power Rating	2400 W (9600 W peak), 100 hrs
Maximum SPL (1m)	25 Hz – 200 Hz: 135 dB-SPL cont avg (141 dB peak)
System Sensitivity	25 Hz – 200 Hz: 99 dB-SPL, 1W (2.0V) @ 1m
Nominal Impedance	4 ohms in parallel-drive mode / 2 x 8 ohms in discrete-drive mode
LF Driver	2 x 2269H, 460 mm (18 in) dia., 100 mm (4 in) Dual Coil Dual Gap neodymium Differential Drive® VGC™ drivers
Enclosure	Rectangular cabinet, 16 mm (5/8 in) exterior-grade 11-ply birch plywood
Suspension Attachment	16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware
Finish	Black DuraFlex™ finish. White available upon request.
Grille	Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing
Input Connector	NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Environmental	Mil-Std 810; IP-x3 per IEC529
Dimensions (H x W x D, vertical orientation)	1092 x 560 x 815 mm (43.0 x 22.0 x 32.1 in)
Net Weight (each)	71.9 kg (158.5 lb)
Optional Accessories	M10 x 35 mm forged shoulder eyebolts with washers
Nominal LF Driver Impedance	4 ohms in parallel-drive mode / 2 x 8 ohms in discrete-drive mode
