Name: JBL ASB7118 High Power 18 inch Subwoofer
Brand: JBL
SKU: JBL ASB7118
Price: 27323.08 SAR
Availability: InStock

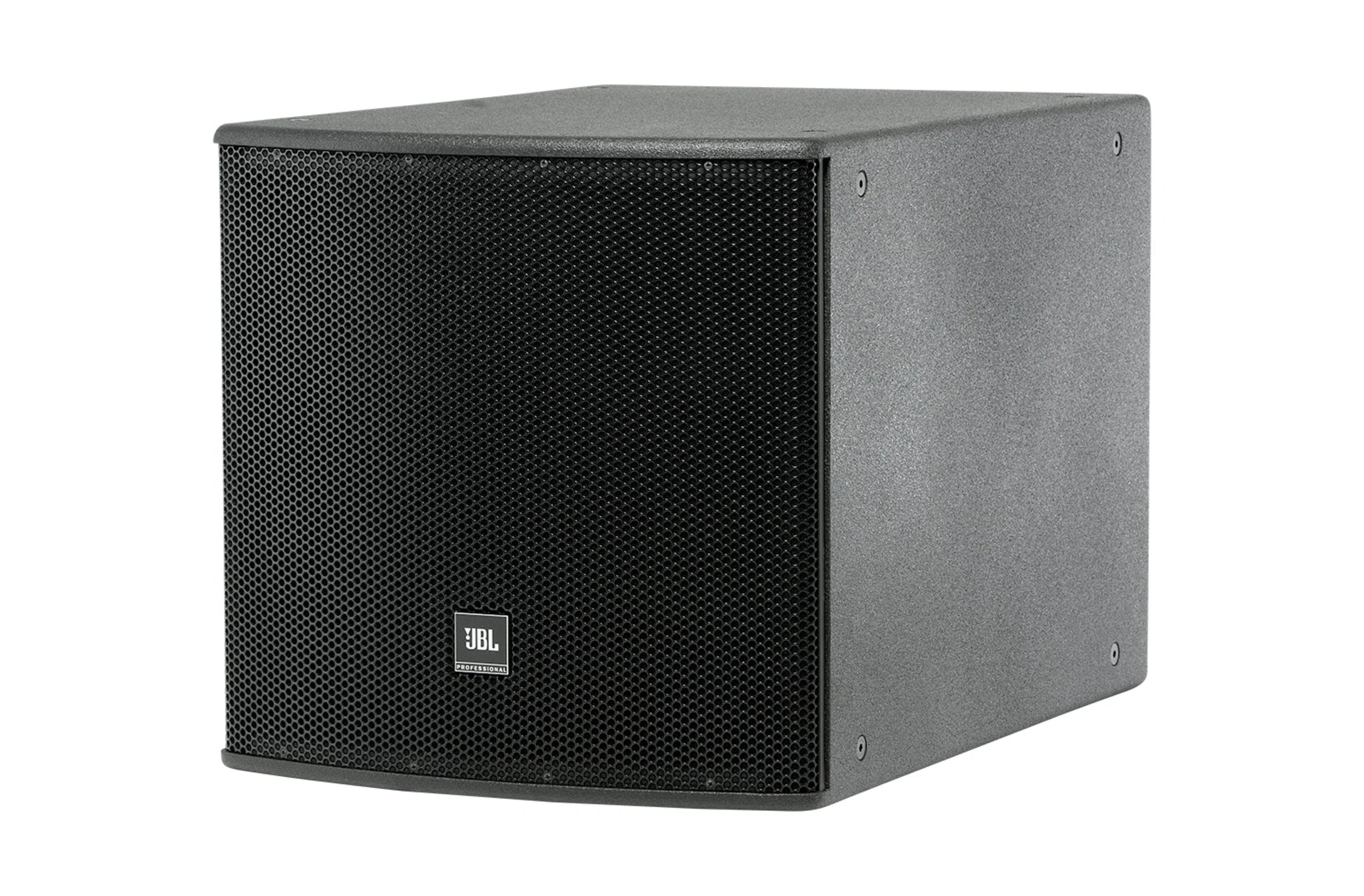

JBL ASB7118 High Power 18 inch Subwoofer front view showing 18-inch VGC driver

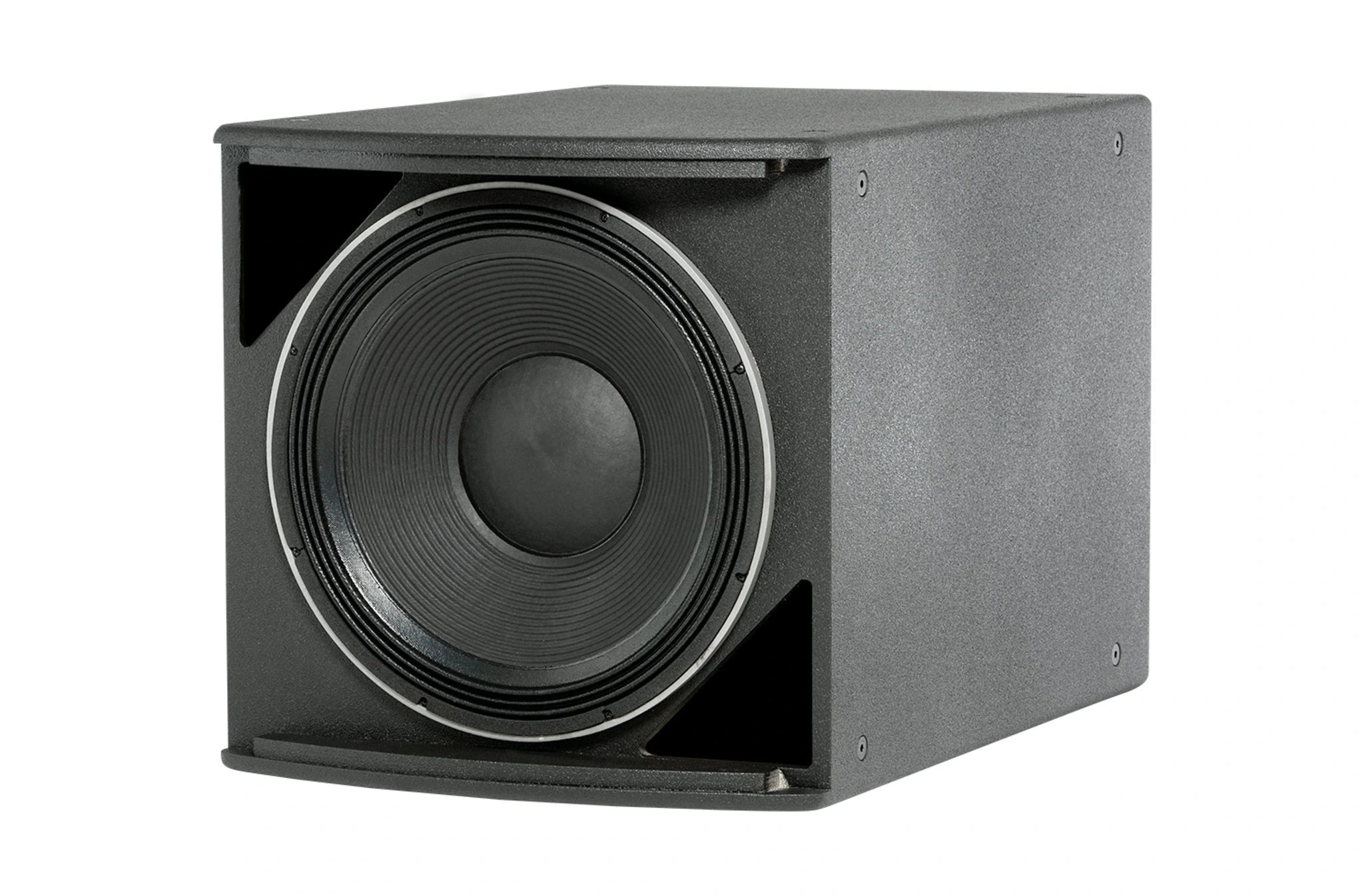

JBL ASB7118 High Power 18 inch Subwoofer grille close-up detailClose-up of JBL ASB7118 High Power 18-inch Subwoofer perforated steel grille and foam backing

Ultra Long Excursion High Power JBL ASB7118 High Power 18 inch Subwoofer

The ASB7118 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL’s exclusive 2269H Ultra Long Excursion 18" Differential Drive® woofer. This woofer features neodymium magnet, dual voice coils and dual gaps, JBL’s exclusive Vented Gap Cooling™ and ultra robust composite cone for high excursion and extra long life. Woofer is capable of a peak-to-peak maximum excursion of 89 mm (3.5").

JBL ASB7118 High Power 18 inch Subwoofer Features

2269H 18" Differential Drive® dual voice coil dual gap, neodymium magnet transducer
2000 watts continuous pink noise,
8000 watts peak power handling capacity
Ultra Long Excursion
Large vent area for high output with low distortion
FIR Tuning Set Matches Phase Profile to Full-Range Models
For ground-stacked or suspended applications in stand-alone arrays or in combination with other
AE Series products

Specification	Details
Frequency Range (-10dB)	22 Hz – 1 kHz
Frequency Response (±3 dB)	34 Hz – 1 kHz
Transducer Power Rating (AES)	2000 W (8000 W peak), 2 hrs
System Power Rating	1200 W (4800 W peak), 100 hrs
Maximum SPL (1m)	25 Hz – 200 Hz: 129 dB-SPL cont avg (135 dB peak)
System Sensitivity	25 Hz – 200 Hz: 96 dB-SPL, 1W (2.83V) @ 1m
Nominal Impedance	8 ohms
LF Driver	1 x 2269H, 460 mm (18 in) dia., 100 mm (4 in) Dual Coil Dual Gap neodymium Differential Drive® VGC™ driver
Enclosure	Rectangular cabinet, 16 mm (5/8 in) exterior-grade 11-ply birch plywood
Suspension Attachment	16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware
Finish	Black DuraFlex™ finish. White available upon request.
Grille	Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing
Input Connector	Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
Environmental	Mil-Std 810; IP-x3 per IEC529
Dimensions (H x W x D, vertical orientation)	546 x 560 x 815 mm (21.5 x 22.0 x 32.1 in)
Net Weight (each)	42.9 kg (94.5 lb)
Optional Accessories	M10 x 35 mm forged shoulder eyebolts with washers
Nominal LF Driver Impedance	8 ohms
