Name: JBL ASB6125 Dual 15 inch Subwoofer
Brand: JBL
SKU: JBL ASB6125
Price: 22265.21 SAR
Availability: InStock

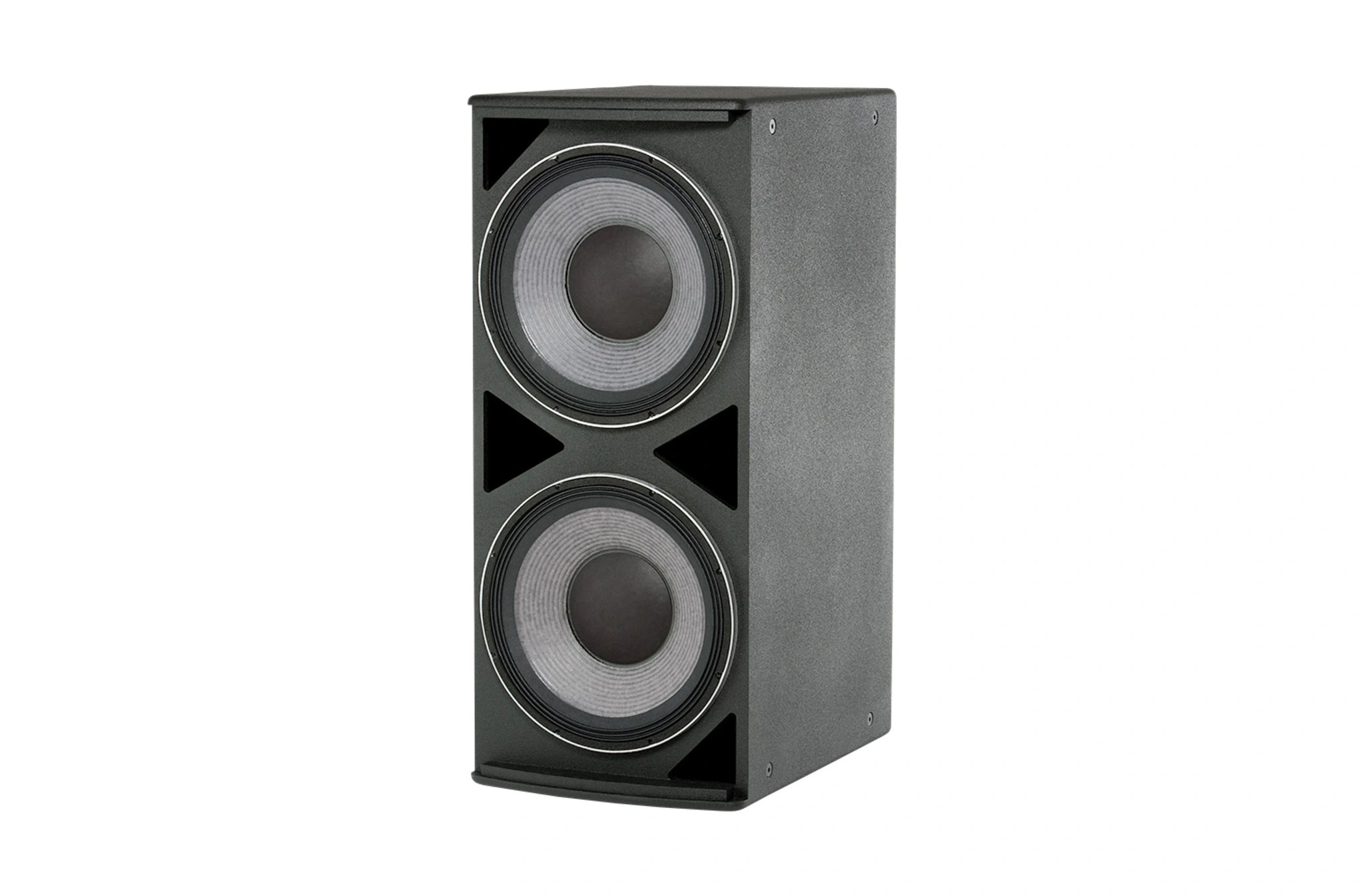

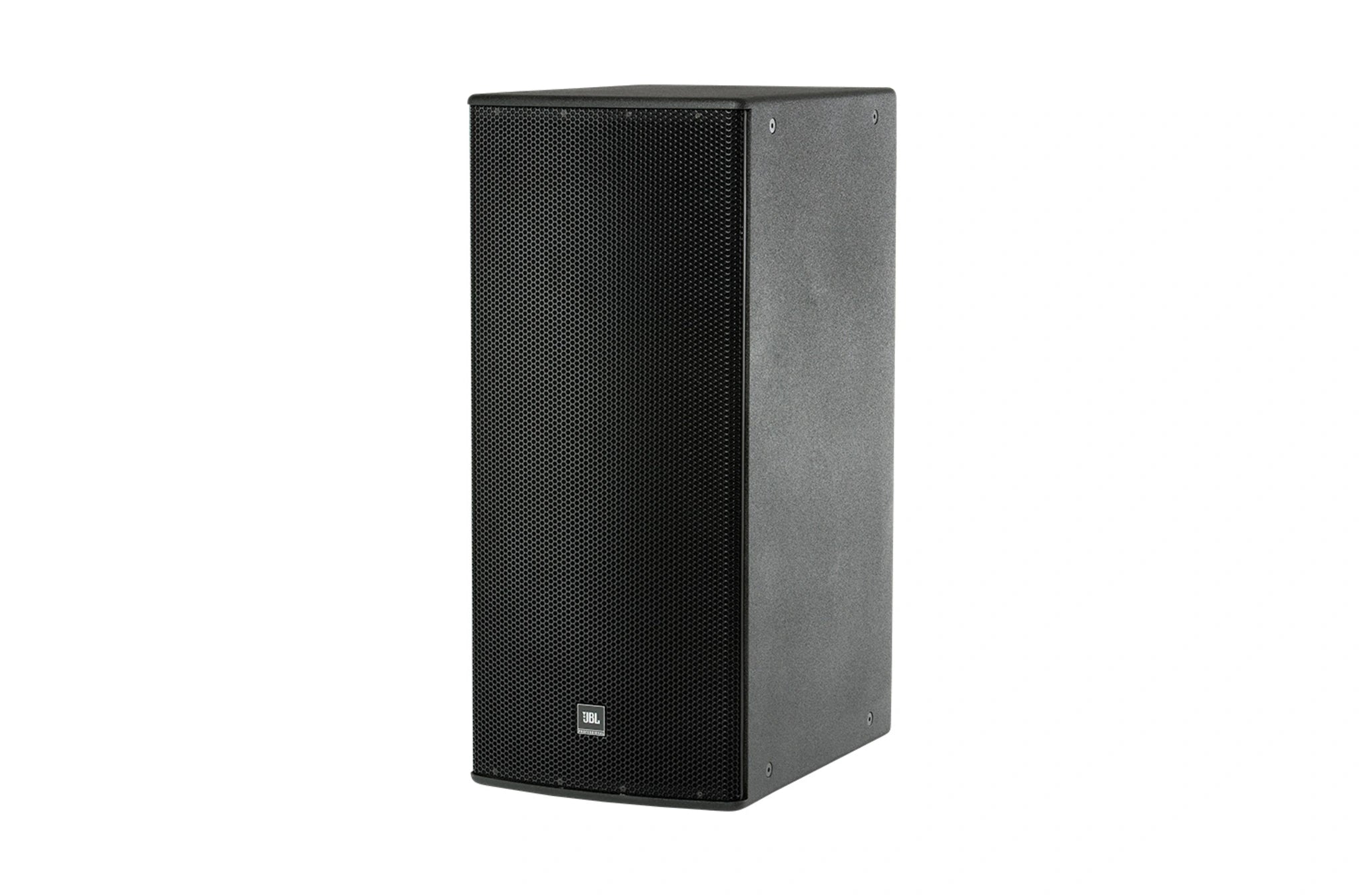

JBL ASB6125 Dual 15 inch Subwoofer front grille and driver layoutFront-facing JBL ASB6125 Dual 15-inch Subwoofer cabinet

JBL ASB6125 Dual 15 inch Subwoofer back panel showing NL4 Speakon and barrier strip terminals

High Power JBL ASB6125 Dual 15 inch Subwoofer

The JBL ASB6125 Dual 15 inch Subwoofer is a high power, lightweight front-loaded vented subwoofer enclosure housing two JBL 2265H-1 Differential Drive® dual voice coil dual gap 15" woofers. These woofers feature neodymium magnets and ultra robust cones for extra long life.

JBL ASB6125 Dual 15 inch Subwoofer Features

2 x 2265H-1 15" Differential Drive® dual voice coil dual gap, neodymium magnet transducers
1600 watts continuous pink noise, 6400 watts peak power handling capacity
Parallel/Discrete switchable input mode
Large vent area for high output with low distortion
FIR Tuning Set Matches Phase Profile to Full-Range Models
For ground-stacked or suspended applications in stand-alone arrays or in combination with other
AE Series products

Specification	Details
Frequency Range (-10dB)	32 Hz – 1 kHz
Frequency Response (±3 dB)	38 Hz – 1 kHz
Transducer Power Rating (AES)	1600 W (6400 W peak), 2 hrs
Input Modes	Drivers Parallel / Drivers Discrete
System Power Rating	1350 W (5400 W peak), 100 hrs
Maximum SPL (1m)	35 Hz – 400 Hz: 132 dB-SPL cont avg (138 dB peak)
System Sensitivity	35 Hz – 400 Hz: 100 dB-SPL, 1W (2.0V) @ 1m
Nominal Impedance	4 ohms in parallel-drive mode / 2 x 8 ohms in discrete-drive mode
LF Driver	2 x 2265H-1, 380 mm (15 in) dia., 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive® drivers
Enclosure	Rectangular cabinet, 16 mm (5/8 in) exterior-grade 11-ply birch plywood
Suspension Attachment	16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware
Finish	Black DuraFlex™ finish. White available upon request.
Grille	Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing
Input Connector	NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Environmental	Mil-Std 810; IP-x3 per IEC529
Dimensions (H x W x D, vertical orientation)	965 x 419 x 597 mm (38.0 x 16.5 x 23.5 in)
Net Weight (each)	36.7 kg (81.0 lb)
Optional Accessories	M10 x 35 mm forged shoulder eyebolts with washers
Nominal LF Driver Impedance	4 ohms in parallel-drive mode / 2 x 8 ohms in discrete-drive mode
