Name: JBL ASB6118 18-inch Subwoofer
Brand: JBL
Price: 18269.39 SAR
Availability: InStock

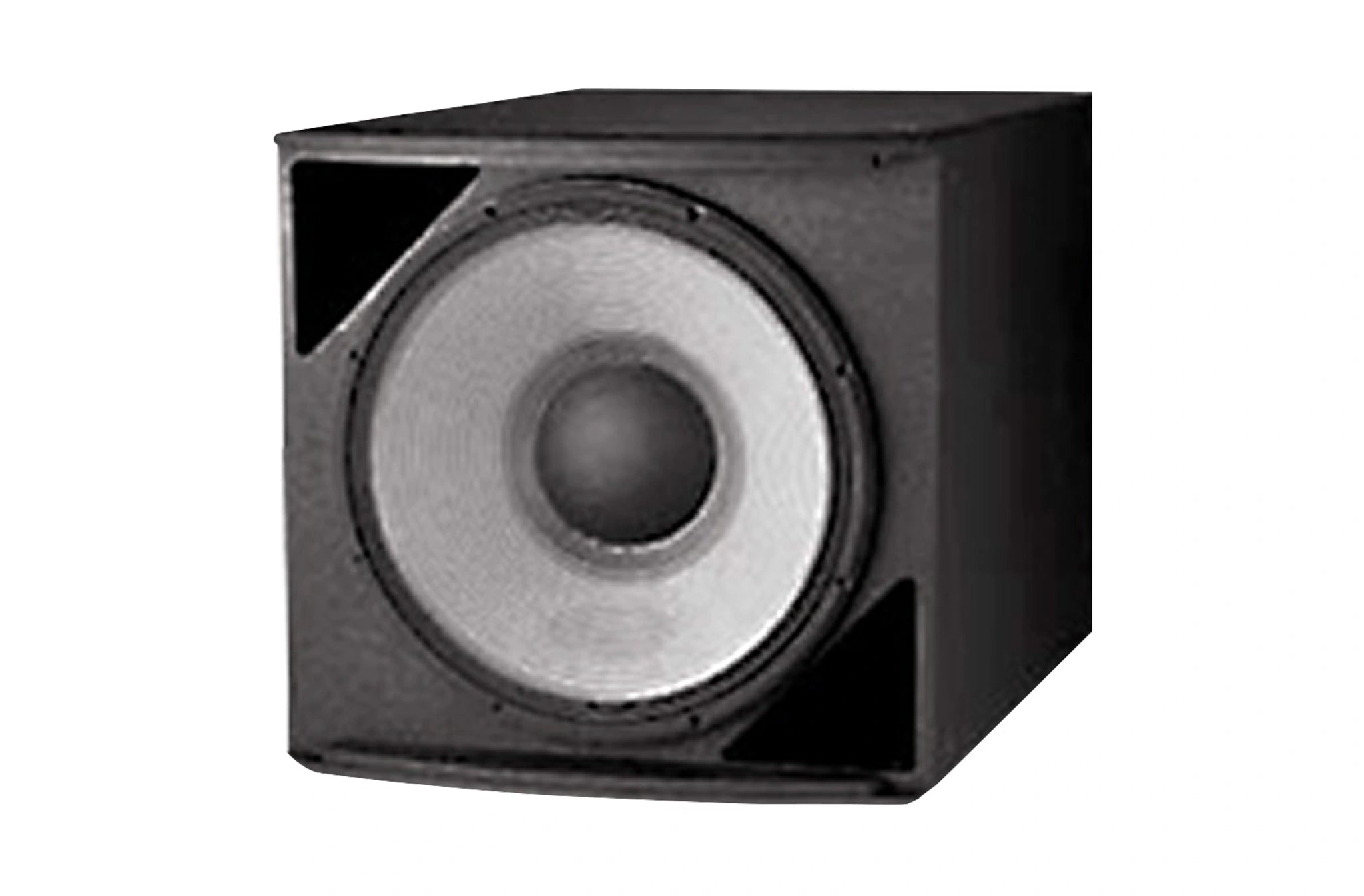

JBL ASB6118 18-inch Subwoofer front view showing 18-inch driver

High Power 18-inch Subwoofer

ASB6118 is a high power subwoofer system comprised of one 460 mm (18 in) SVG Super Vented Gap low frequency driver in a vented, front-loaded configuration for extended bandwidth.

Features

Large vent area for high output.
FIR Tuning Set Matches Phase Profile to Full-Range Models
For fixed installation applications such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance-clubs/discotheques, sports facilities and themed entertainment venues.

Specification	Details
Frequency Range (-10dB)	28 Hz – 1 kHz
Frequency Response (±3 dB)	35 Hz – 1 kHz
Transducer Power Rating (AES)	1200 W (4800 W peak), 2 hrs
System Power Rating	800 W (3200 W peak), 100 hrs
Maximum SPL (1m)	30 Hz – 100 Hz: 129 dB-SPL cont avg (135 dB peak) 100 Hz – 500 Hz: 129 dB-SPL cont avg (135 dB peak)
System Sensitivity (1W @ 1m)	30 Hz – 100 Hz: 98 dB 100 Hz – 500 Hz: 98 dB
Nominal Impedance	8 ohms
LF Driver	1 x JBL 2242H 460 mm (18 in) SVG™ driver with 100 mm (4 in) voice coil
Nominal LF Driver Impedance	8 ohms
Enclosure	Rectangular cabinet, 16 mm (5/8 in) exterior-grade 11-ply Finnish birch plywood
Suspension Attachment	12 points (3 top, 3 bottom, 3 each side, 2 rear), M10 threaded hardware
Environmental	Mil-Std 810; IP-x3 per IEC529
Net Weight (each)	98 lbs (44.5 kg)
