Name: JBL ASB6112 Compact 12-inch Subwoofer
Brand: JBL
Price: 12527.54 SAR
Availability: InStock

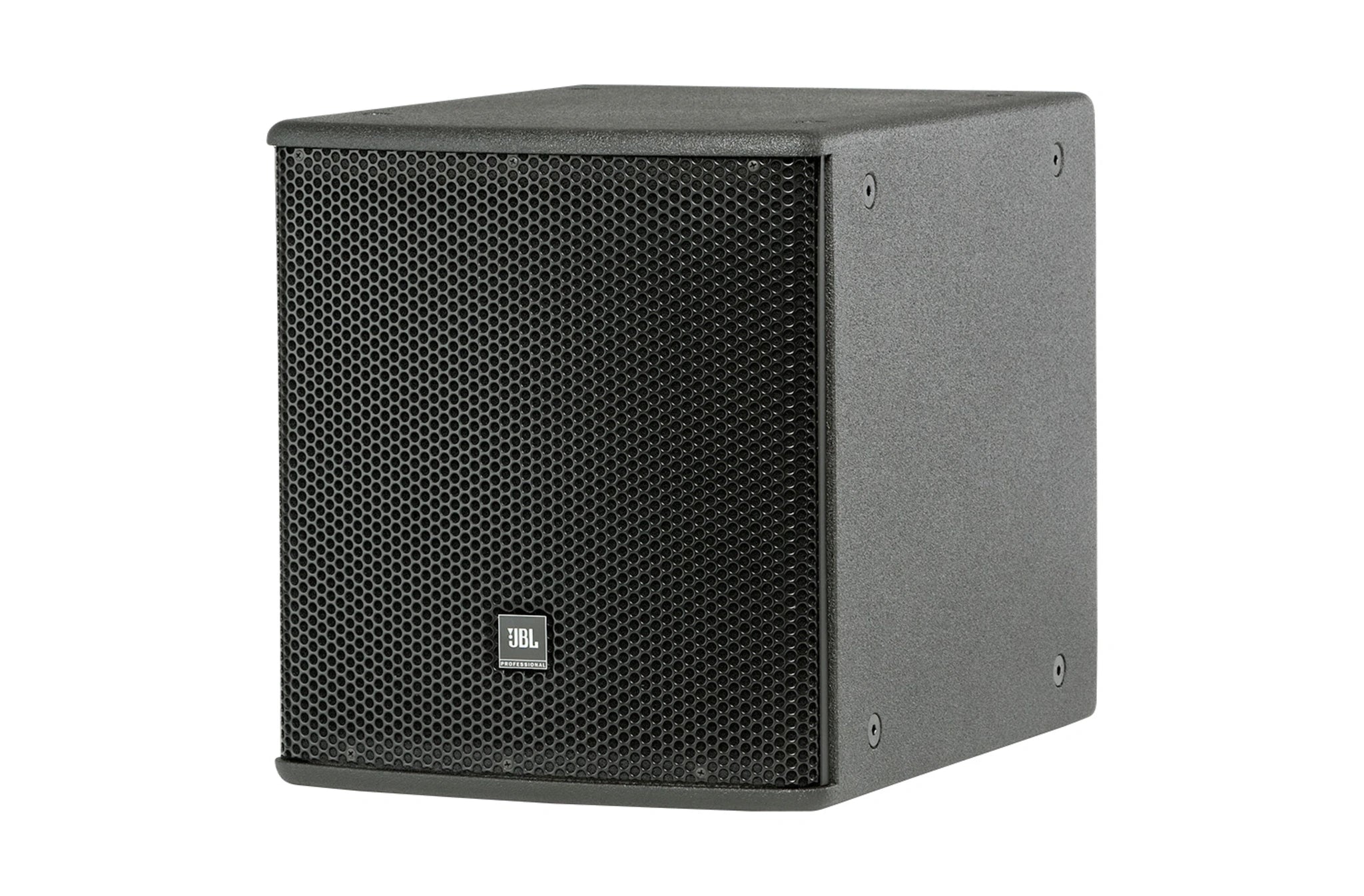

JBL ASB6112 Compact 12-inch Subwoofer front view showing 12-inch driver

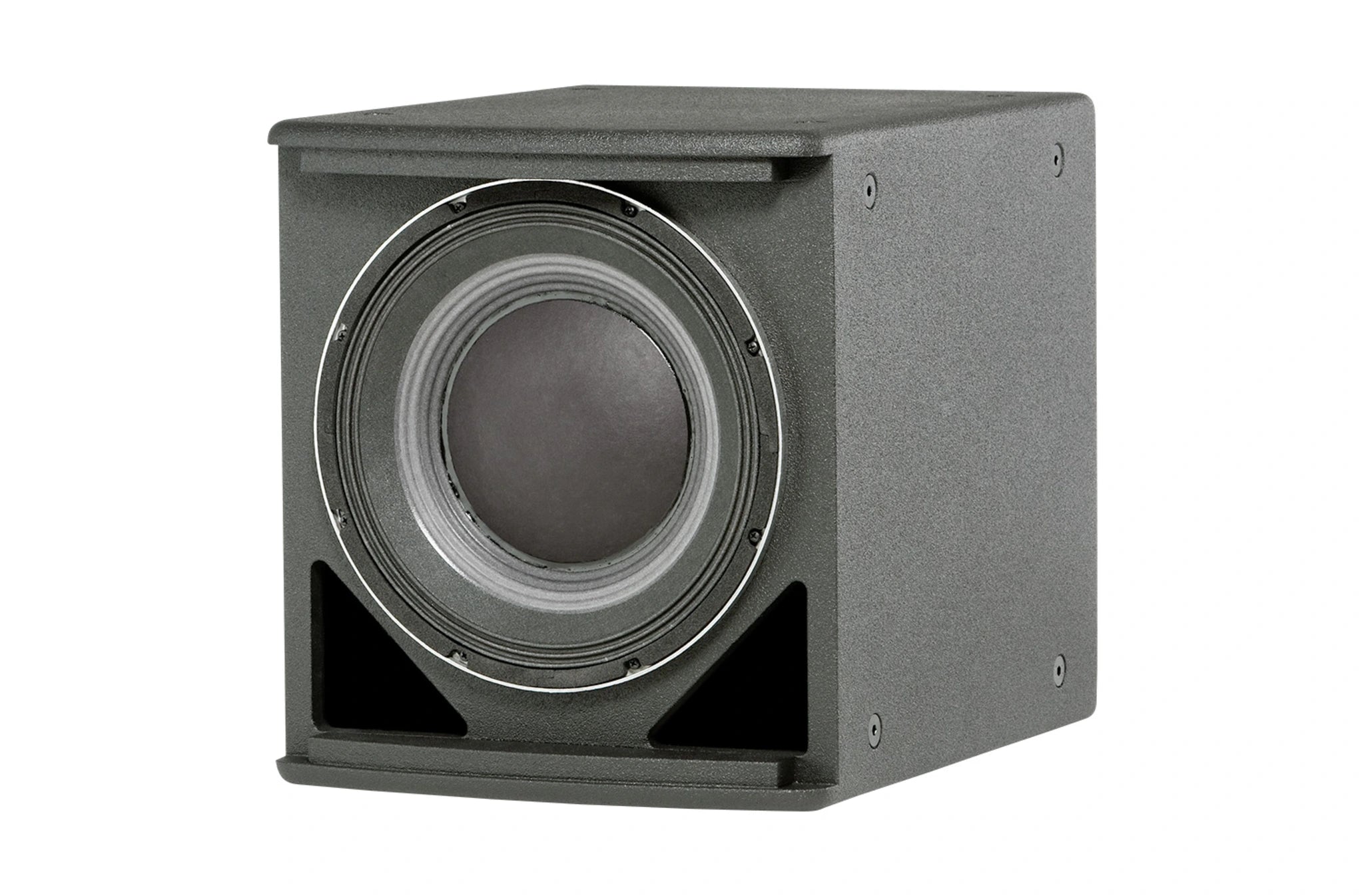

JBL ASB6112 Compact 12-inch Subwoofer side angle showing rectangular cabinet
Side view of JBL ASB6112 Compact 12-inch Subwoofer suspension points

Compact High Power 12-inch Subwoofer

The ASB6112 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL’s 2263H Differential Drive® dual coil dual gap 12" woofer. This woofer features neodymium magnet and ultra robust cone for extra long life.

Features

2263H 12" Differential Drive® dual voice coil dual gap, neodymium magnet transducer
1000 watts continuous pink noise,
4000 watts peak power handling capacity
Large vent area for high output with low distortion
FIR Tuning Set Matches Phase Profile to Full-Range Models
For ground-stacked or suspended applications in stand-alone arrays or in combination with other
AE Series products

Specification	Details
Frequency Range (-10dB)	35 Hz – 1 kHz
Frequency Response (±3 dB)	43 Hz – 1 kHz
Transducer Power Rating (AES)	1000 W (4000 W peak), 2 hrs
System Power Rating	700 W (2800 W peak), 100 hrs
Maximum SPL (1m)	40 Hz – 300 Hz: 126 dB-SPL cont avg (132 dB peak)
System Sensitivity	40 Hz – 300 Hz: 96 dB-SPL, 1W (2.83V) @ 1m
Nominal Impedance	8 ohms
LF Driver	1 x 2263H, 305 mm (12 in) dia., 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive® driver
Enclosure	Rectangular cabinet, 16 mm (5/8 in) exterior-grade 11-ply birch plywood
Suspension Attachment	16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware
Finish	Black DuraFlex™ finish. White available upon request.
Grille	Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing
Input Connector	NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Environmental	Mil-Std 810; IP-x3 per IEC529
Dimensions (H x W x D, vertical orientation)	406 x 369 x 483 mm (16.0 x 14.5 x 19.0 in)
Net Weight (each)	16.3 kg (36.0 lb)
Optional Accessories	M10 x 35 mm forged shoulder eyebolts with washers
Nominal LF Driver Impedance	8 ohms
