Name: JBL AM731595 15 inch 3 Way Loudspeaker with 90 x 50 Horn
Brand: JBL
SKU: JBL AM7315/95
Price: 32866.90 SAR
Availability: InStock

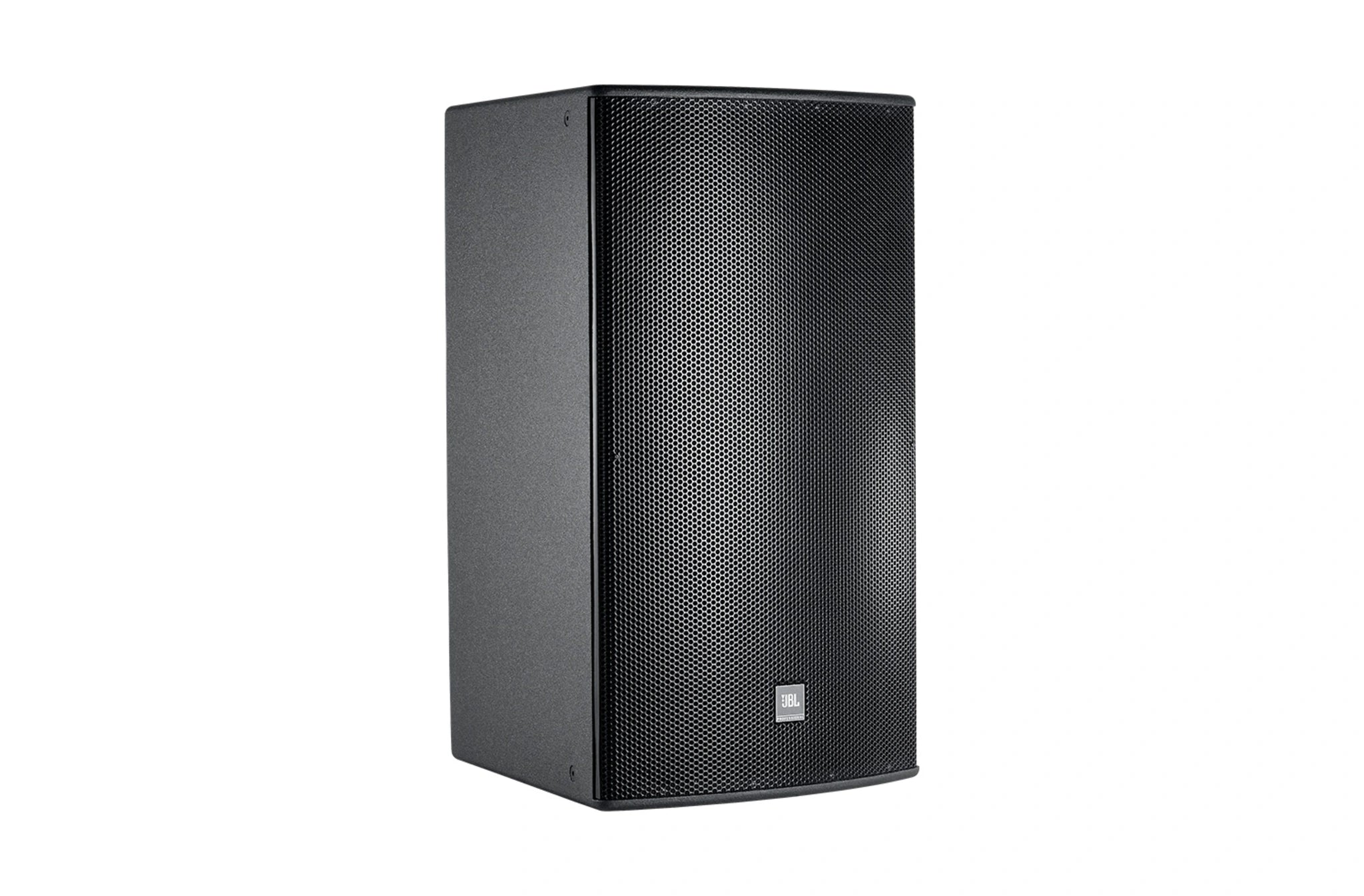

JBL AM731595 15 inch 3 Way Loudspeaker front view with 90° x 50° horn

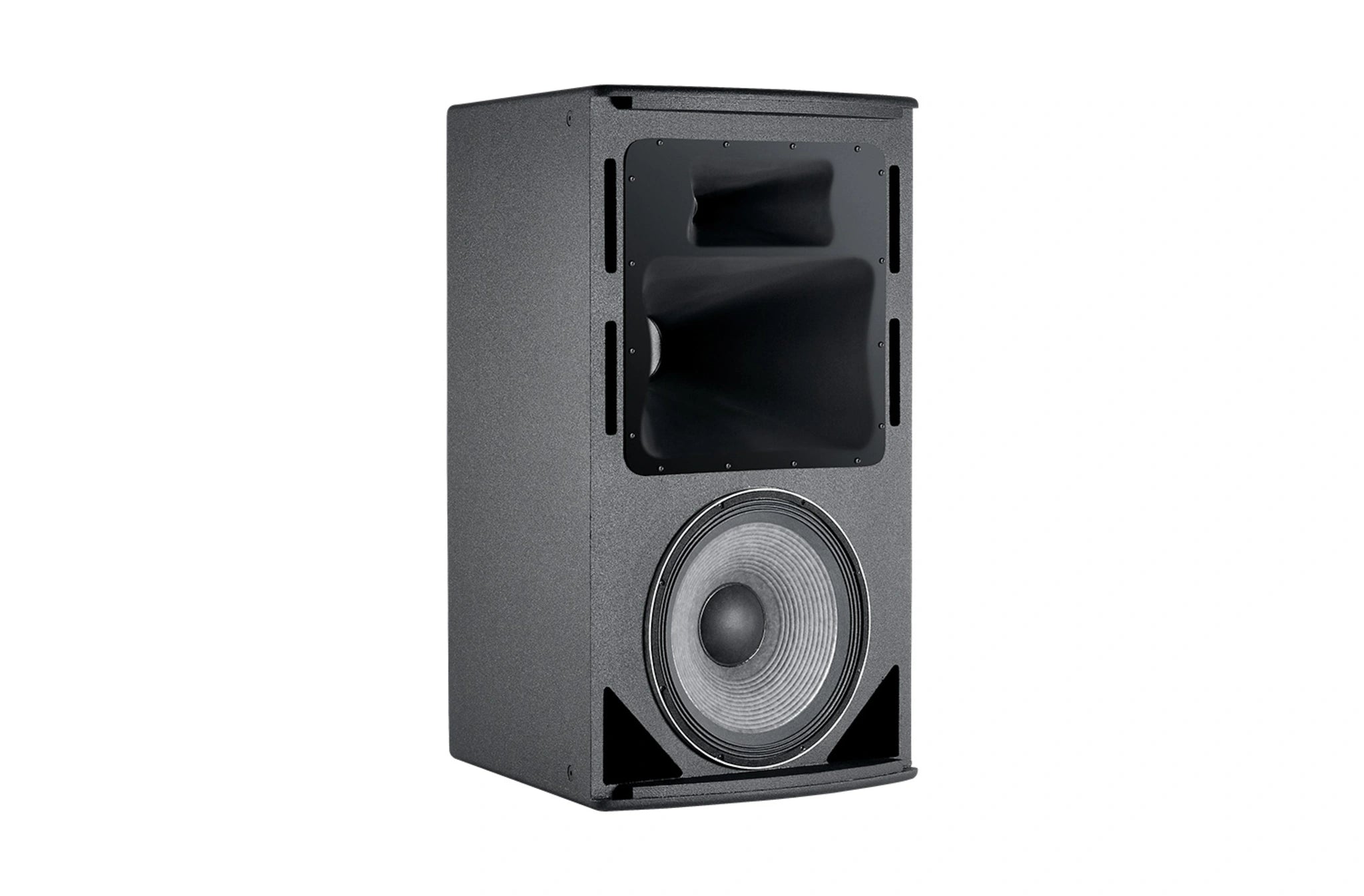

JBL AM731595 15 inch 3 Way Loudspeaker side angle showing trapezoidal enclosure

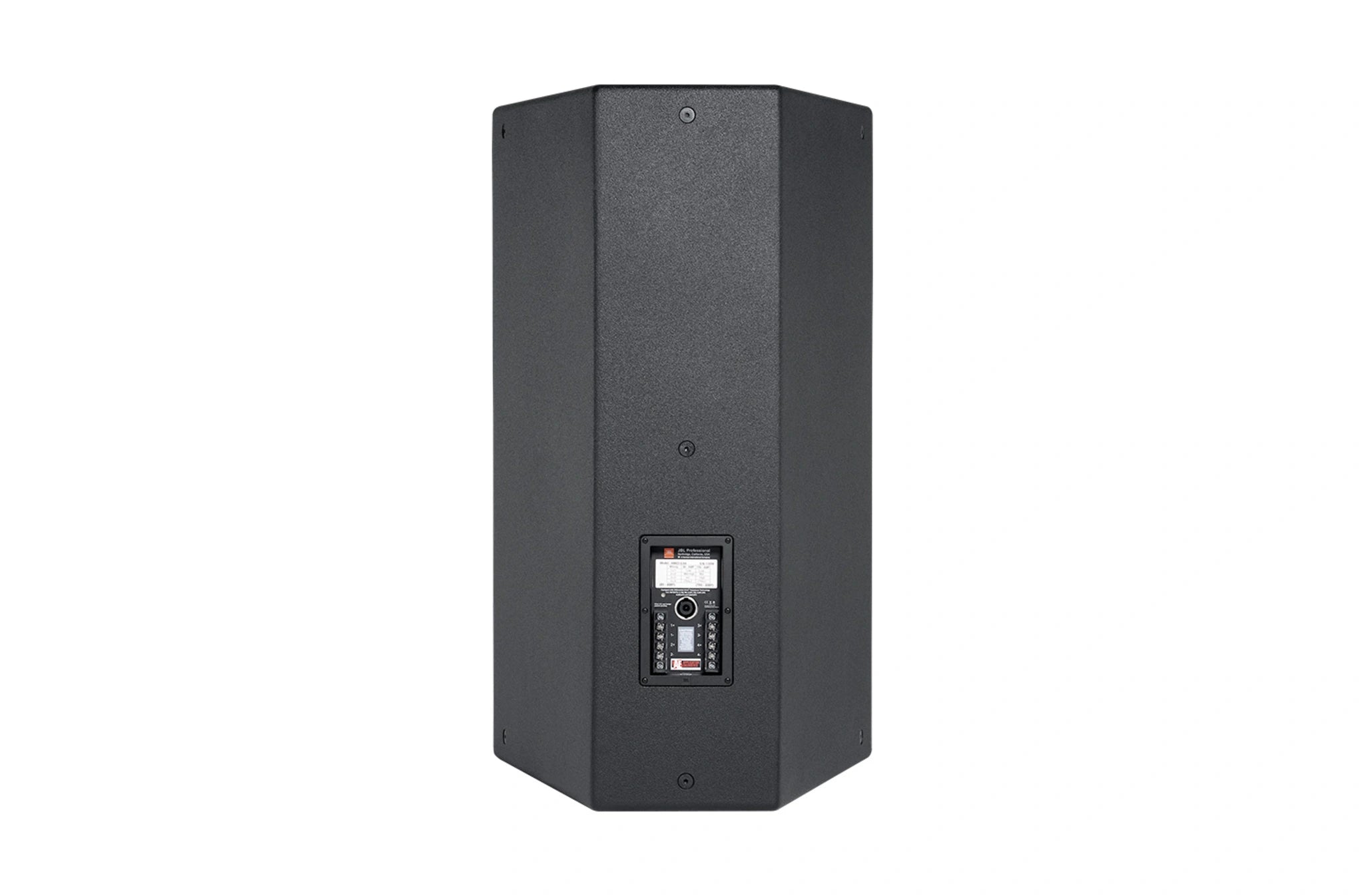

JBL AM731595 15 inch 3 Way Loudspeaker Back view

High Power 15-inch 3-Way Loudspeaker with 90° x 50° Rotatable Horn

JBL AM731595 15 inch 3 Way Loudspeaker is a high power professional 3 way full range speaker designed for fixed installation, live sound reinforcement, auditoriums, theatres, houses of worship, and commercial audio systems.

The JBL AM731595 15 inch 3 Way Loudspeaker features a Differential Drive low frequency driver, CMCD cone midrange compression driver, and high frequency compression driver for exceptional clarity.

Designed for professional audio installations, the JBL AM731595 15 inch 3 Way Loudspeaker provides consistent coverage with its rotatable 90 x 50 horn and PT waveguide technology.

Whether used in auditoriums, conference halls, churches, or performance venues, the JBL AM731595 15 inch 3 Way Loudspeaker delivers powerful output, excellent speech intelligibility, and reliable long term performance.

Features

2265H Differential Drive® Low-Frequency Driver
CMCD™ Cone Midrange Compression Driver provides low midrange distortion, increased sensitivity, extended bandwidth and improved phase coherency.
2432H High-Frequency Compression Driver
PT™ Progressive Transition Waveguide for excellent pattern control with low distortion.
Bi-Amp/Tri-Amp Switchable.

Specification	Details
Frequency Range (-10dB)	38 Hz – 20 kHz
Frequency Response (±3 dB)	45 Hz – 18 kHz
Coverage Pattern	60° x 40°, rotatable waveguide
Directivity Index (DI)	13 dB
Crossover Modes	Tri-amp/Bi-amp switchable
Crossover Frequencies	300 Hz and 2.3 kHz
Transducer Power Rating (AES)	LF: 1000 W (4000 W peak), 2 hrs / 750 W (3000 W peak), 100 hrs MF: 350 W (1400 W peak), 2 hrs HF: 100 W (400 W peak), 2 hrs
System Power Rating	LF: 600 W (2400 W peak), 100 hrs MF/HF: 200 W (800 W peak), 100 hrs
Maximum SPL (1m)	LF: 127 dB-SPL cont avg (133 dB peak) Tri-amp mode: MF: 133 dB-SPL cont avg (139 dB peak) / HF: 135 dB-SPL cont avg (141 dB peak) Bi-amp mode: MF/HF: 133 dB-SPL cont avg (139 dB peak)
System Sensitivity of Passive Sections (1W @ 1m)	MF/HF Section in Bi-amp mode: 108 dB SPL
Nominal Impedance	8 ohms
LF Driver	1 x JBL 2265H 380 mm (15 in) Differential Drive® driver with 75 mm (3 in) voice coil
Sensitivity (1W @ 1m) — Low Frequency	97 dB SPL
MF Driver	JBL CMCD-82H Cone Midrange Compression Driver with integral 200 mm (8 in) diameter Differential Drive® dual voice coil internal driver
Sensitivity (1W @ 1m) — Midrange	108 dB SPL
HF Driver	JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
Sensitivity (1W @ 1m) — High Frequency	115 dB SPL
Enclosure	Trapezoidal with 15° side angles, 16 mm (5/8 in) exterior-grade 11-ply Finnish birch plywood
Suspension Attachment	13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware
Finish	Black DuraFlex™ finish. White available upon request.
Grille	Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing
Input Connector	NL8 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop through.
Environmental	Mil-Std 810; IP-x3 per IEC529
Dimensions (H x W x D, vertical orientation)	967 x 561 x 657 mm (38.1 x 22.1 x 25.9 in)
Net Weight (each)	45.8 kg (101 lb)
Optional Accessories	M10 x 35 mm forged shoulder eyebolts with washers. Optional planar array frame kit. See AE Series Bracket Guide.
Nominal LF Driver Impedance	8 ohms
Nominal MF Driver Impedance	8 ohms
Nominal HF Driver Impedance	8 ohms
