Name: JBL AM7215 26 15 inch 2 Way Loudspeaker with 120 x 60 Horn
Brand: JBL
SKU: JBL AM7215/26
Price: 23129.23 SAR
Availability: InStock

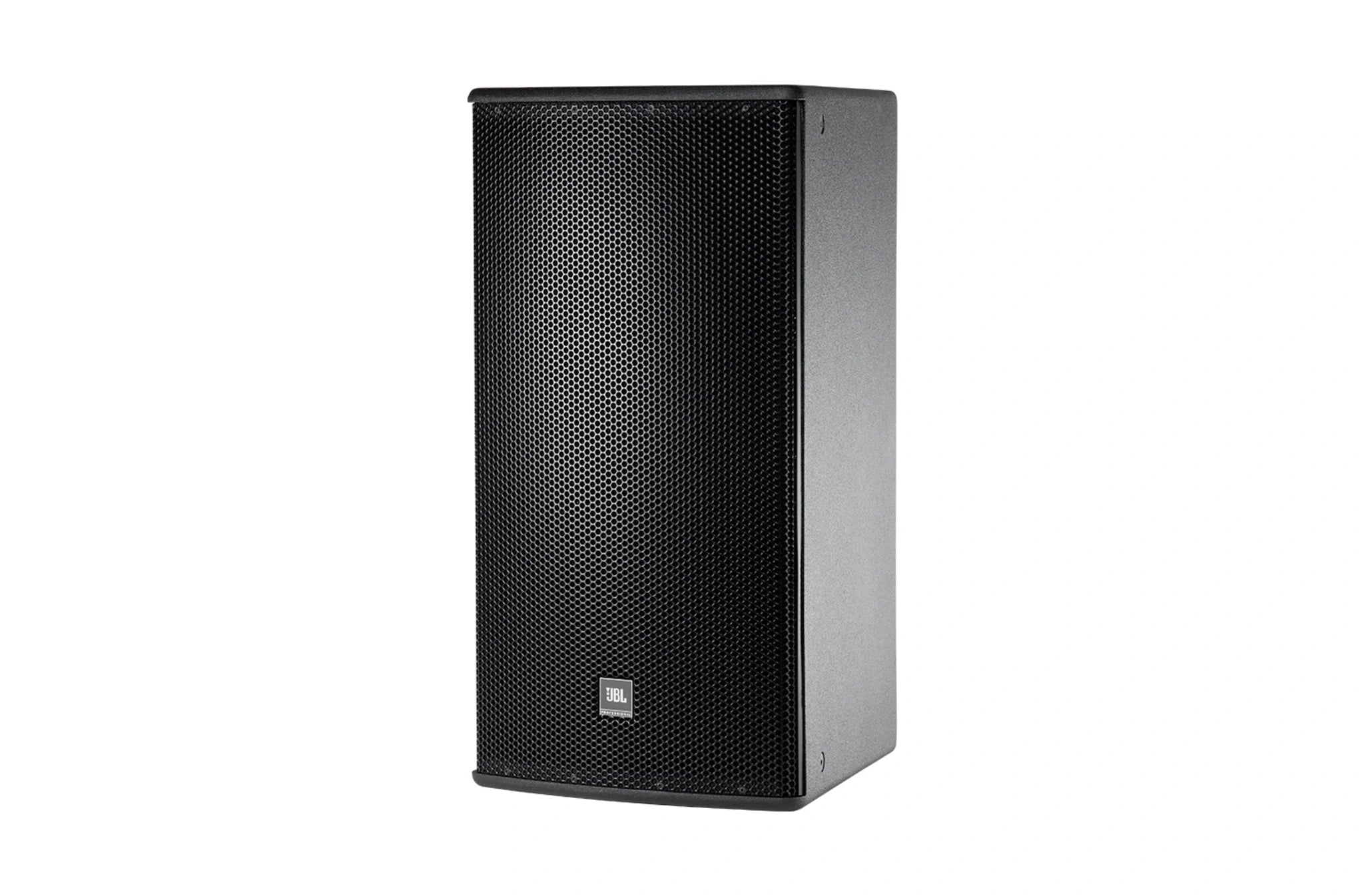

Front-facing JBL AM7215 26 15 inch 2 Way Loudspeaker with 120 x 60 Horn showing 15-inch LF driver

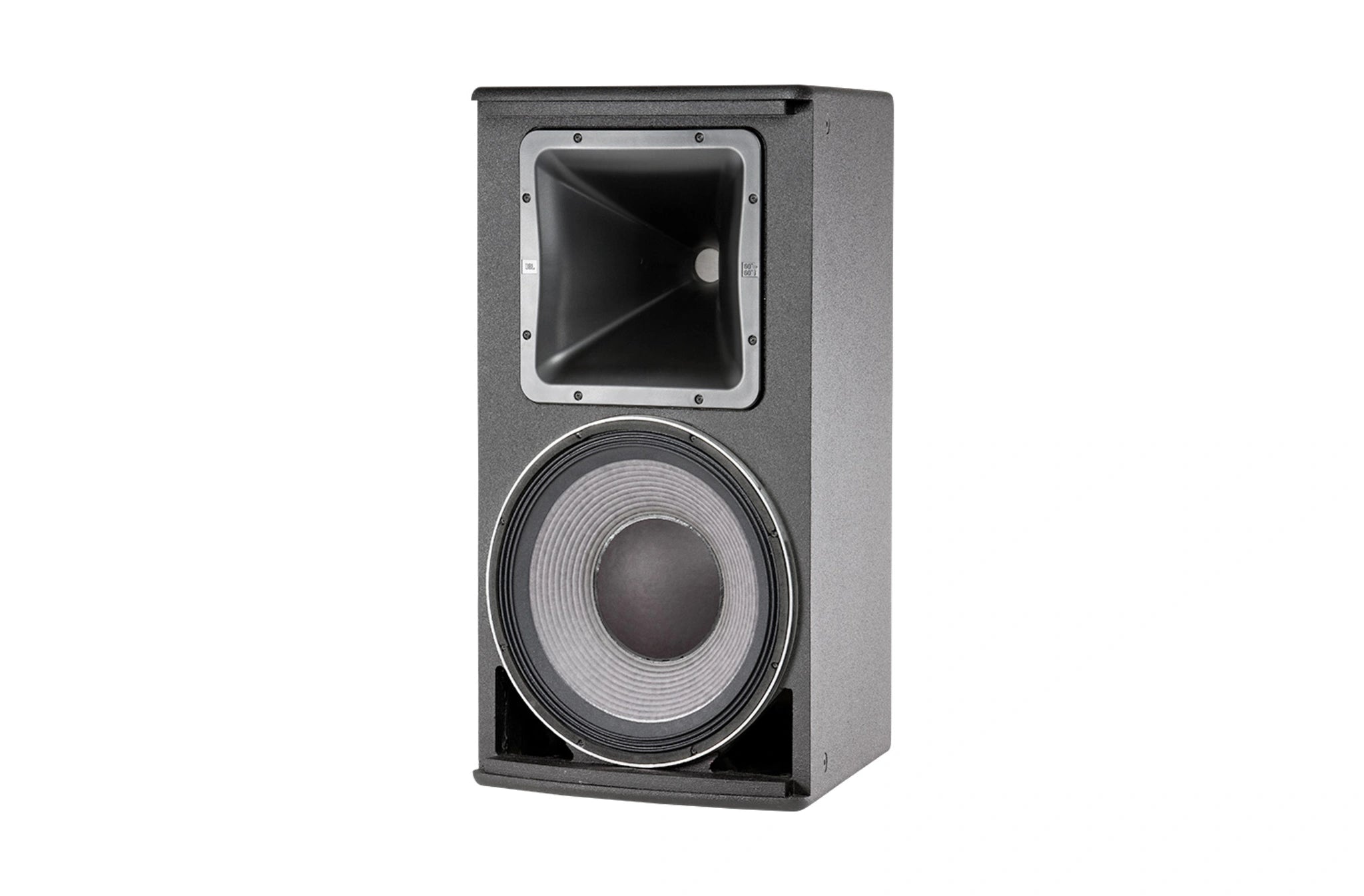

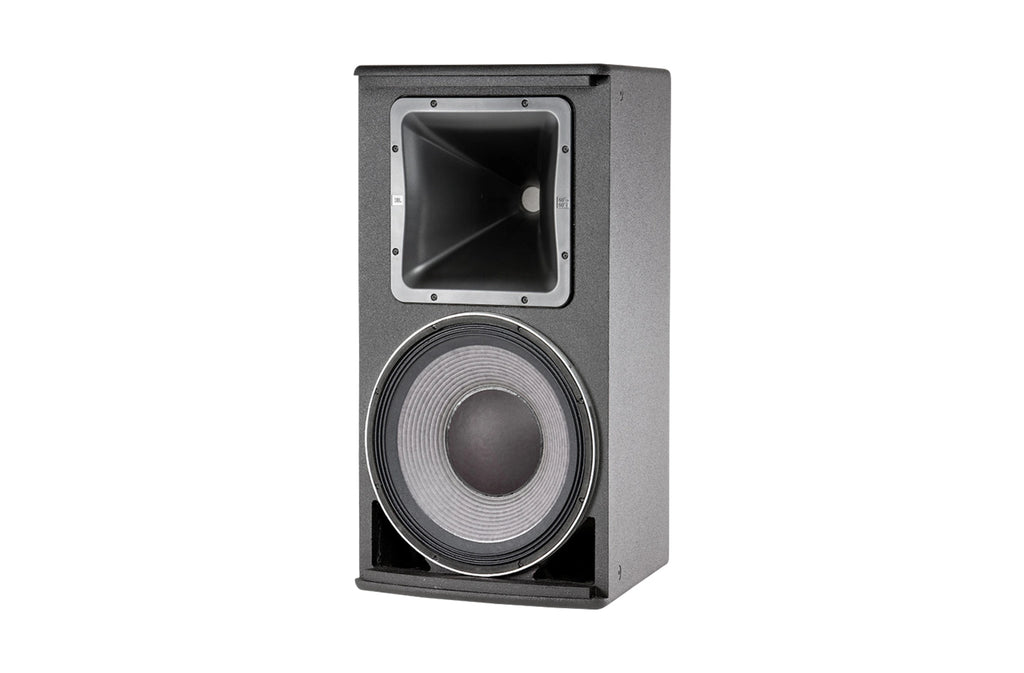

JBL AM7215 26 15 inch 2 Way Loudspeaker with 120 x 60 Horn side angle showing trapezoidal enclosure

JBL AM7215 26 15 inch 2 Way Loudspeaker with 120 x 60 Horn

JBL AM7215 26 15 inch 2 Way Loudspeaker with 120 x 60 Horn is a high-power professional loudspeaker designed for installed sound systems, auditoriums, theatres, houses of worship, stadiums, and live audio applications. JBL AM7215 26 15 inch 2 Way Loudspeaker with 120 x 60 Horn features a 15-inch JBL 2265H Differential Drive low-frequency driver, a JBL 2432H high-frequency compression driver, and a rotatable Progressive Transition waveguide that delivers consistent 120° x 60° coverage with excellent sound quality.

Features

120° x 60° Coverage
2265H Differential Drive® Low- Frequency Driver
2432H High-Frequency Compression Driver
Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
Rotatable waveguide for vertical or horizontal orientation
Bi-Amp/Passive Switchable
Bi-amp and Passive Mode FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
Available in Black, White and WRC/WRX finishes

Specification	Details
Frequency Range (-10dB)	34 Hz – 20 kHz
Frequency Response (±3 dB)	40 Hz – 18 kHz
Coverage	/64: 60° x 40° /66: 60° x 60° /95: 90° x 50° /26: 120° x 60°
LF Driver	1 x JBL 2265H 380 mm (15 in) Differential Drive® driver with 75 mm (3 in) dual voice coil
HF Driver	JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
System Type	15" Two-Way, High Power, Full-Range
Dimensions (H x W x D)	781 x 420 x 503 mm (30.8 x 16.5 x 19.8 in)
Net Weight (each)	27.2 kg (60 lb)
Crossover Modes	Bi-amp/Passive switchable
Passive Crossover Frequency	1.8 kHz
Transducer Power Rating (AES)	LF: 1000 W (4000 W peak), 2 hrs / 750 W (3000 W peak), 100 hrs HF: 100 W (400 W peak), 2 hrs
System Power Rating (IEC)	Passive mode: 600 W (2400 W peak), 100 hrs
Maximum SPL (1m)	Bi-amp mode: LF: 128 dB-SPL cont avg (134 dB peak) / HF: 135 dB-SPL cont avg (141 dB peak) Passive mode: 124 dB-SPL cont avg (130 dB peak)
System Sensitivity (1W @ 1m)	Passive mode: 96 dB SPL
Nominal Impedance	8 ohms
Nominal LF Driver Impedance	8 ohms
Nominal HF Driver Impedance	8 ohms
Enclosure	Trapezoidal with 15° side angles, 16 mm (5/8 in) exterior-grade 11-ply Finnish birch plywood
Suspension Attachment	15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
Environmental	Mil-Std 810; IP-x3 per IEC529
