Name: JBL AM7212/00 12-inch 2-Way Loudspeaker with 100° x 100° Horn
Brand: JBL
Price: 22031.28 SAR
Availability: InStock

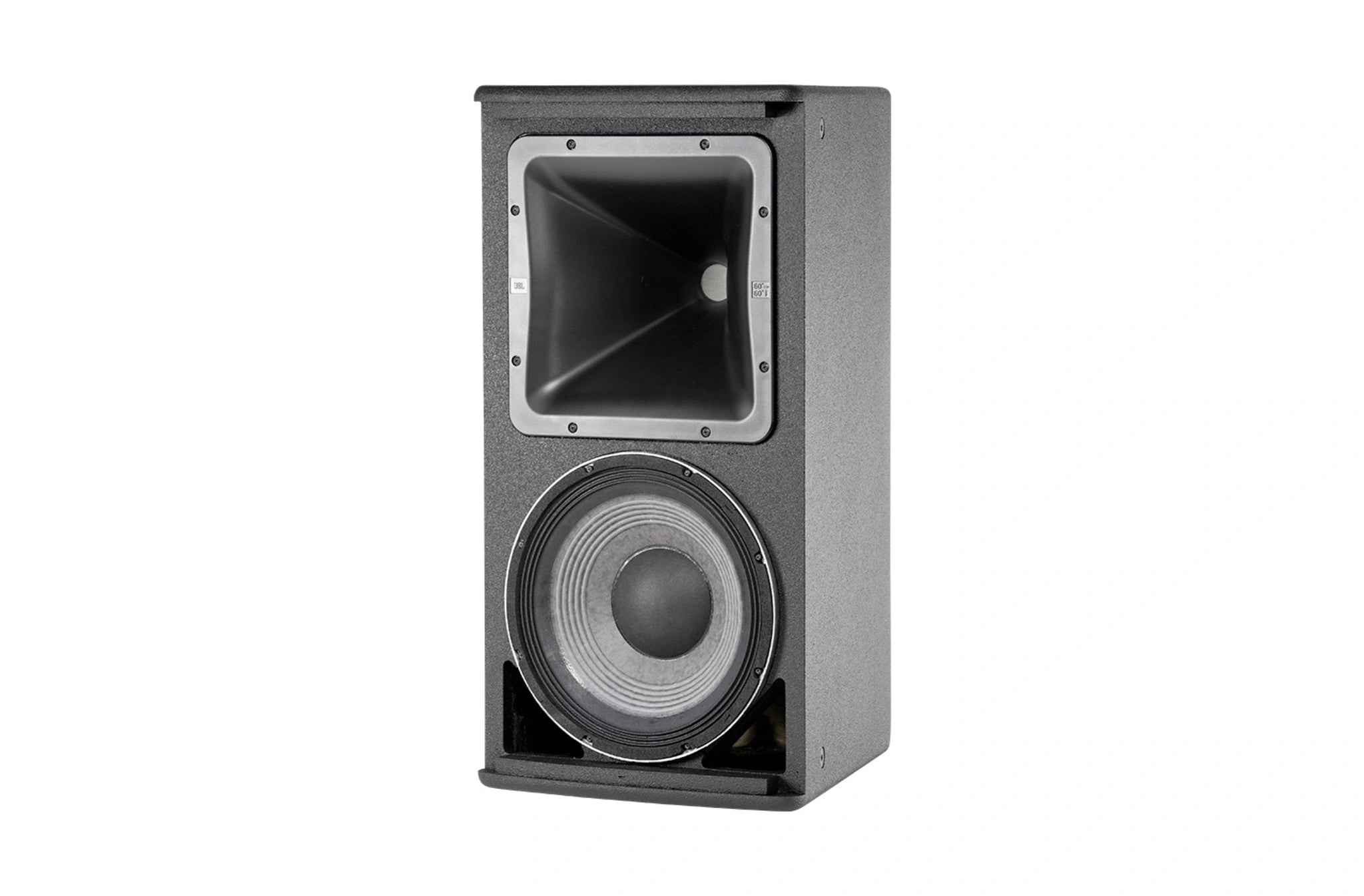

JBL AM7212/00 12-inch 2-Way Loudspeaker with 100° x 100° Horn – front view showing woofer and horn assembly

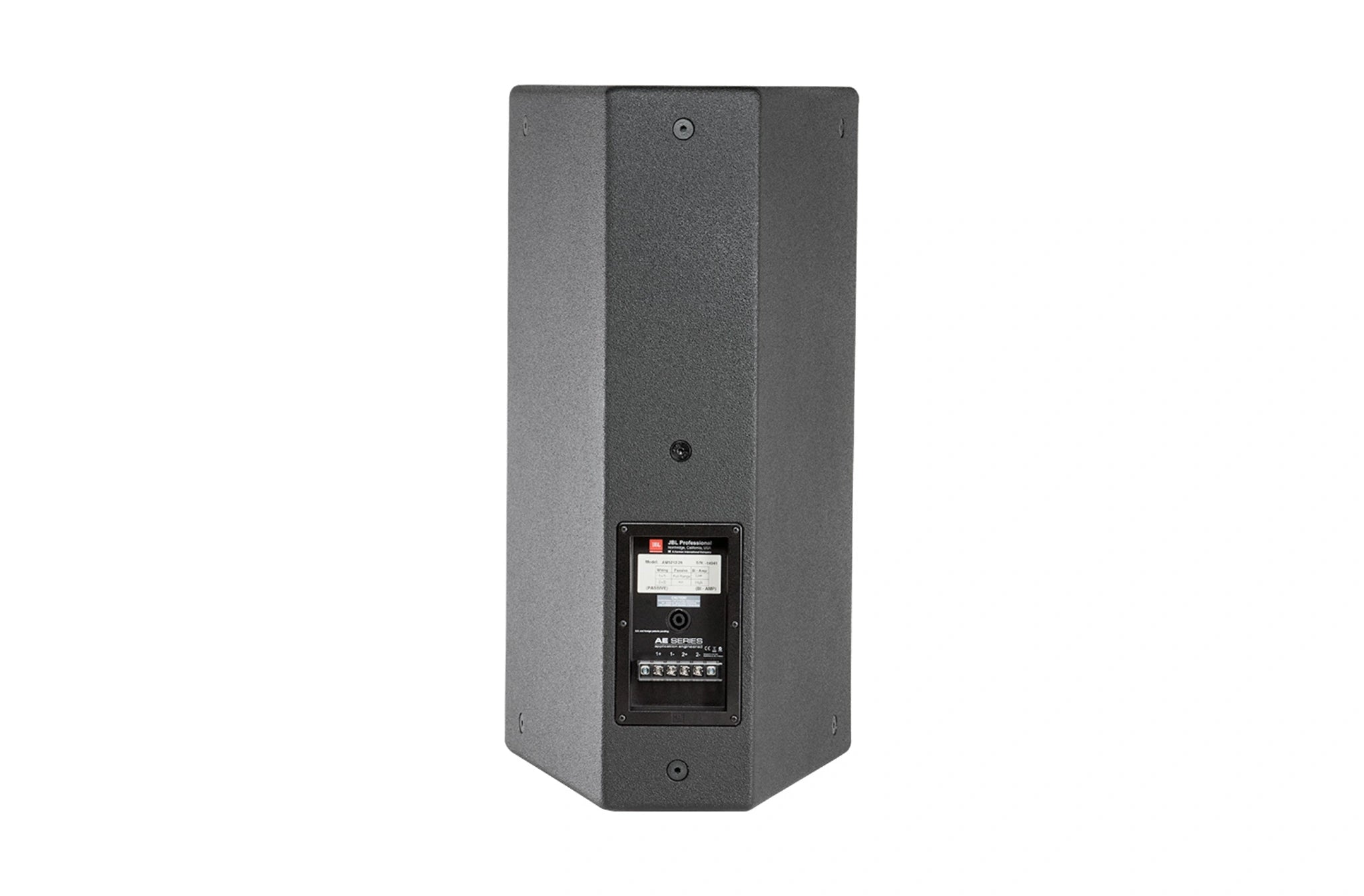

JBL AM7212/00 12-inch 2-Way Loudspeaker with 100° x 100° Horn – Back view

High Power 12-inch 2-Way Loudspeaker with 100° x 100° Rotatable Horn

The AM7212/64 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low frequency driver and 2432H high-frequency 38mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

Features

100° x 100° Coverage
2262H Differential Drive® Low- Frequency Driver
2432H High-Frequency Compression Driver
Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
Rotatable waveguide for vertical or horizontal orientation
Bi-Amp/Passive Switchable
Bi-amp and Passive Mode FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
Available in Black, White and WRC/WRX finishes

JBL AM5215/95 15-inch 2-Way Loudspeaker with 90° x 50° Horn – Specifications
Frequency Range (-10dB)	36 Hz – 20 kHz
Frequency Response (±3 dB)	42 Hz – 20 kHz
Coverage	/64: 60° x 40° \| /66: 60° x 60° \| /95: 90° x 50° \| /00: 100° x 100° \| /26: 120° x 60°
System Type	12" Two-Way, High Power, Full-Range
LF Driver	1 x JBL 2262H, 300 mm (12 in) Differential Drive® driver with 75 mm (3 in) dual voice coil
Nominal LF Driver Impedance	8 ohms
HF Driver	JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
Nominal HF Driver Impedance	8 ohms
Nominal Impedance	8 ohms
Crossover Modes	Bi-amp / Passive switchable
Passive Crossover Frequency	1.8 kHz
Transducer Power Rating (AES)	LF: 1000 W (4000 W peak), 2 hrs / 700 W (2800 W peak), 100 hrs HF: 100 W (400 W peak), 2 hrs
System Power Rating	Passive mode: 600 W (2400 W peak), 100 hrs (IEC rated)
Maximum SPL (1m)	Bi-amp mode: LF: 126 dB-SPL cont. avg (132 dB peak), HF: 131 dB-SPL cont. avg (137 dB peak) Passive mode: 123 dB-SPL cont. avg (129 dB peak)
System Sensitivity (1W @ 1m)	Passive mode: 95 dB SPL
Enclosure	Trapezoidal with 15-degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
Suspension Attachment	15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
Dimensions (H x W x D)	711 x 369 x 458 mm (28 x 14.5 x 18 in)
Net Weight (each)	23.1 kg (51 lb)
Environmental	Mil-Std 810; IP-x3 per IEC529
