Name: JBL AC118S 18-inch Subwoofer
Brand: JBL
Price: 8475.47 SAR
Availability: InStock

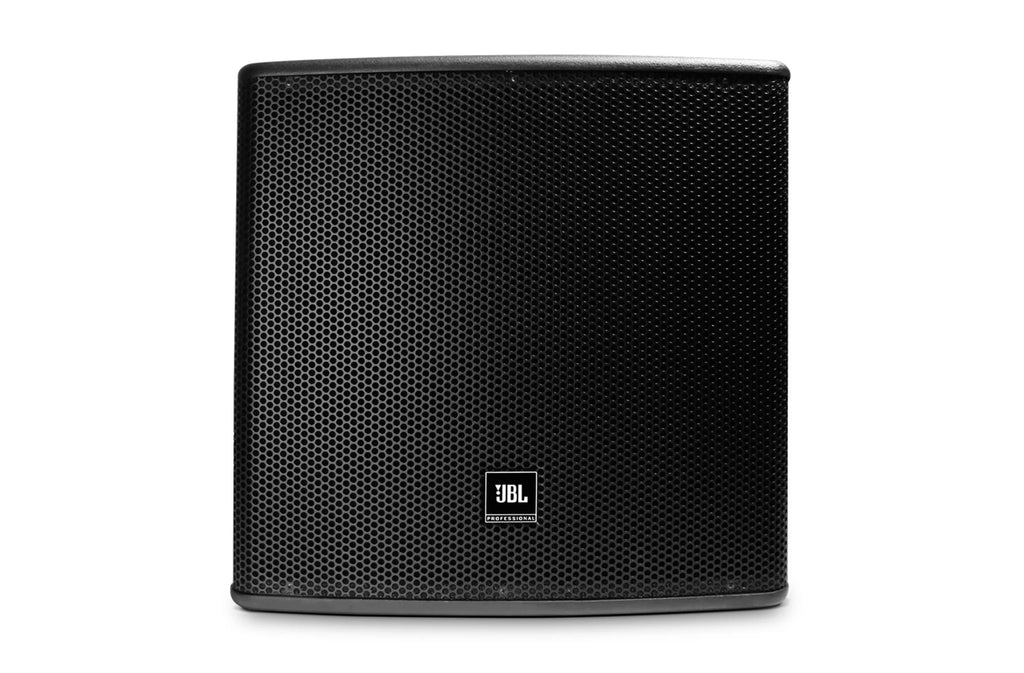

JBL AC118S 18-inch Subwoofer - front view

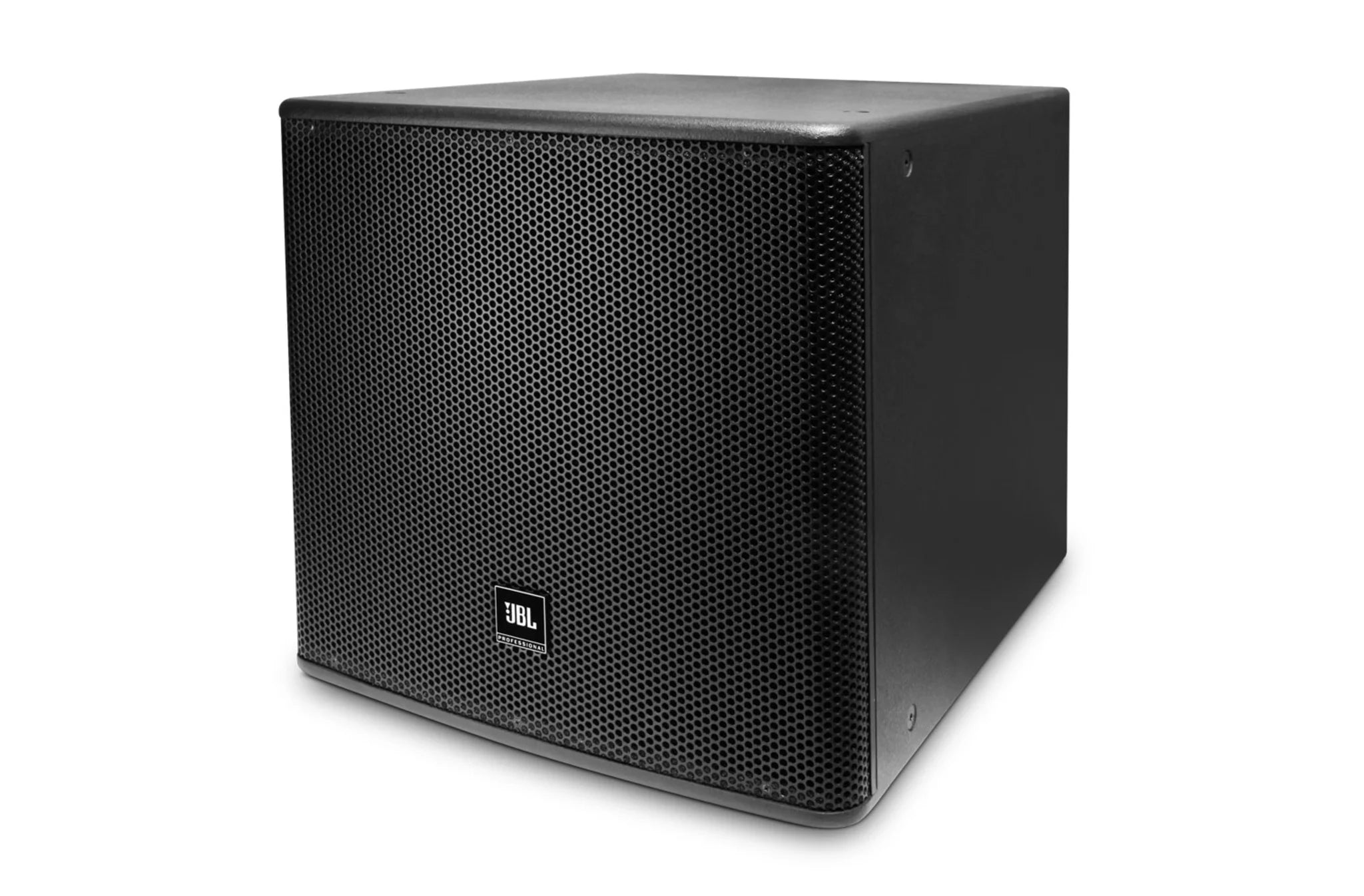

JBL AC118S 18-inch Subwoofer - Left side view showing enclosure

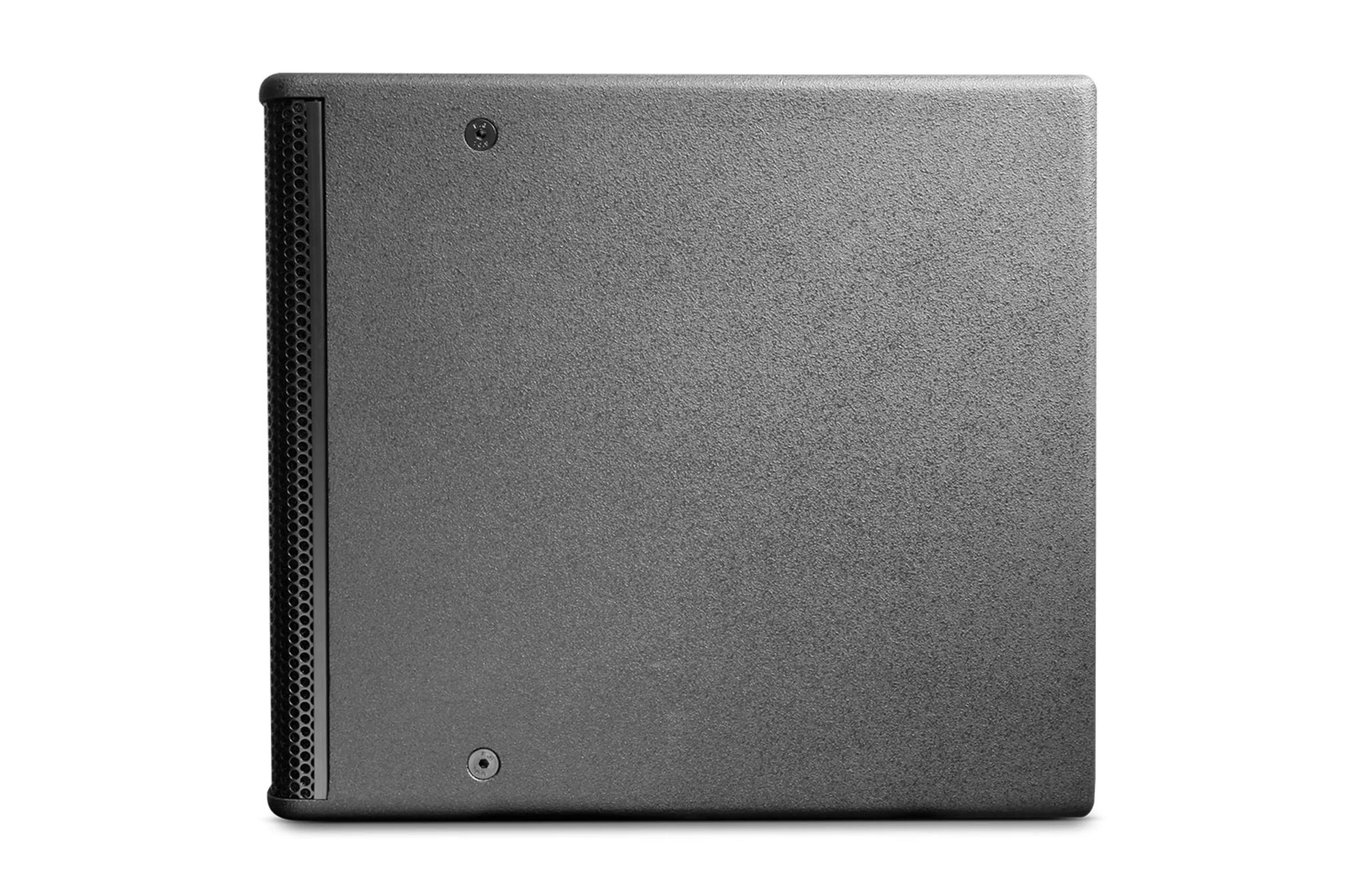

JBL AC118S 18-inch Subwoofer - side view showing enclosure

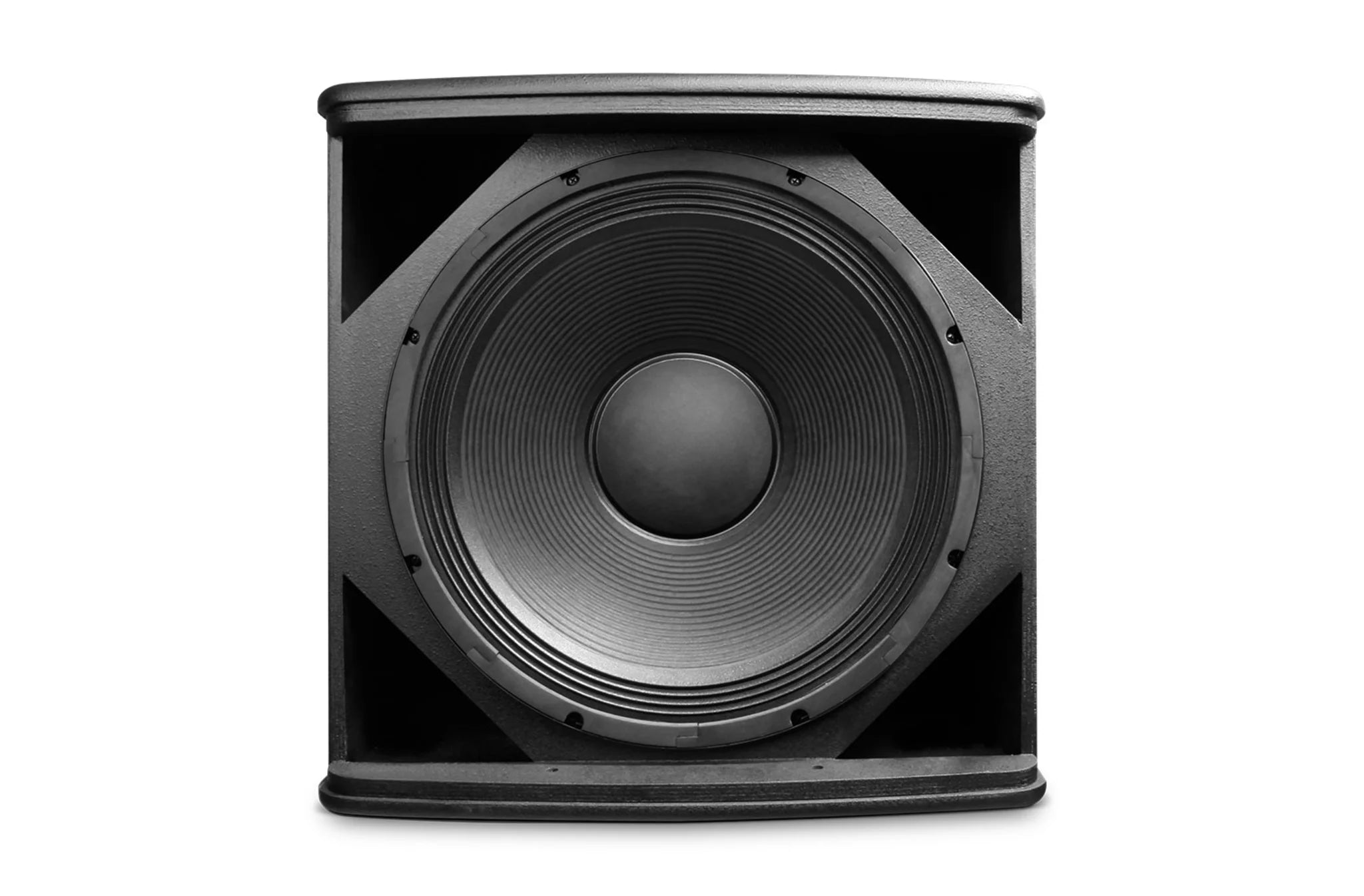

JBL AC118S 18-inch Subwoofer - 18-inch woofer driver detail

18-inch Subwoofer

AC118S is a high power subwoofer system comprised of one 459 mm (18 in) low frequency driver in a vented, front-loaded configuration for extended bandwidth. The rectangular cabinet is fitted with M10 threaded suspension points for ultimate flexibility.

As a part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications, AC118S provides a natural low-frequency sound quality.

Features

High power and long excursion driver for lower frequency reproduction.
High sensitivity with lower power compression
Large port for high output and low-frequency reinforcement
Multiple Attachment Points for Ultimate Flexibility
Robust 18 mm multiply hardwood with textured black finish

Specifications
Frequency Range (-10dB)	32 Hz - 250 Hz
Frequency Response (±3 dB)	40 Hz - 250 Hz
System Sensitivity (1w @ 1m)	95 dB
Nominal Impedance	8 ohms
Maximum SPL (1m)	122 dB (128 dB peak)
System Power Rating	600W (2400W peak), 2 hrs (AES rated) 450 W/900 W/1800 W (Continuous/Program/Peak) (IEC rated)
LF Driver	1x 18″ woofer (P/N: 5021800), 457.2 mm (18 in) driver with 75 mm (3 in) voice-coil
Input Connector	Dual Neutrik NL4MP connectors plus covered barrier strip terminals
Enclosure	18 mm multi-ply hardwood plywood
Grille	Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
Finish	Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
Suspension Attachment	12 x M10 threaded suspension points
Dimensions (H x W x D)	548 mm x 561 mm x 720 mm 21.5 in x 22.0 in x 28.3 in
Net Weight (each)	32.3 kg (71.2 lbs)
Nominal LF Driver Impedance	8 ohms
