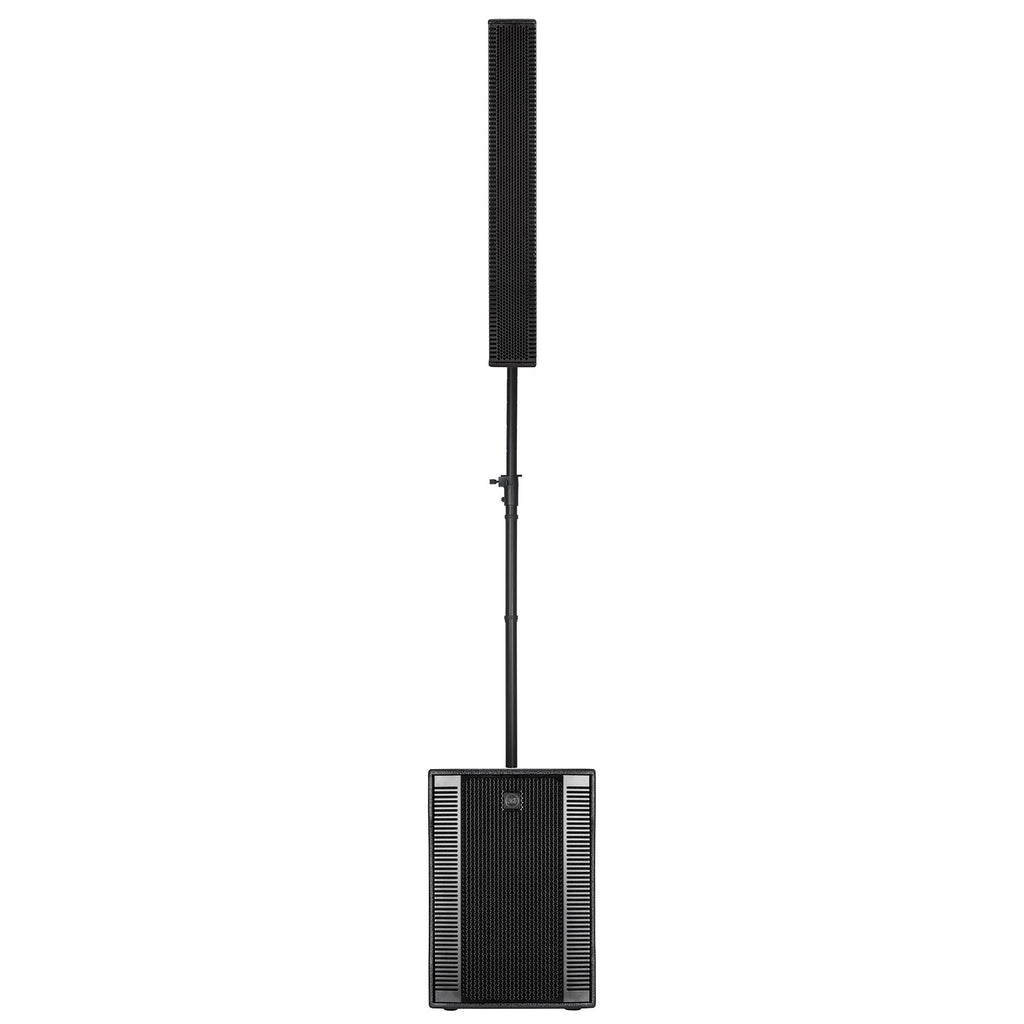

RCF EVOX 12 active two-way array front view showing column speaker and base module

RCF EVOX 12 left side view showing cabinet depth and pole socket

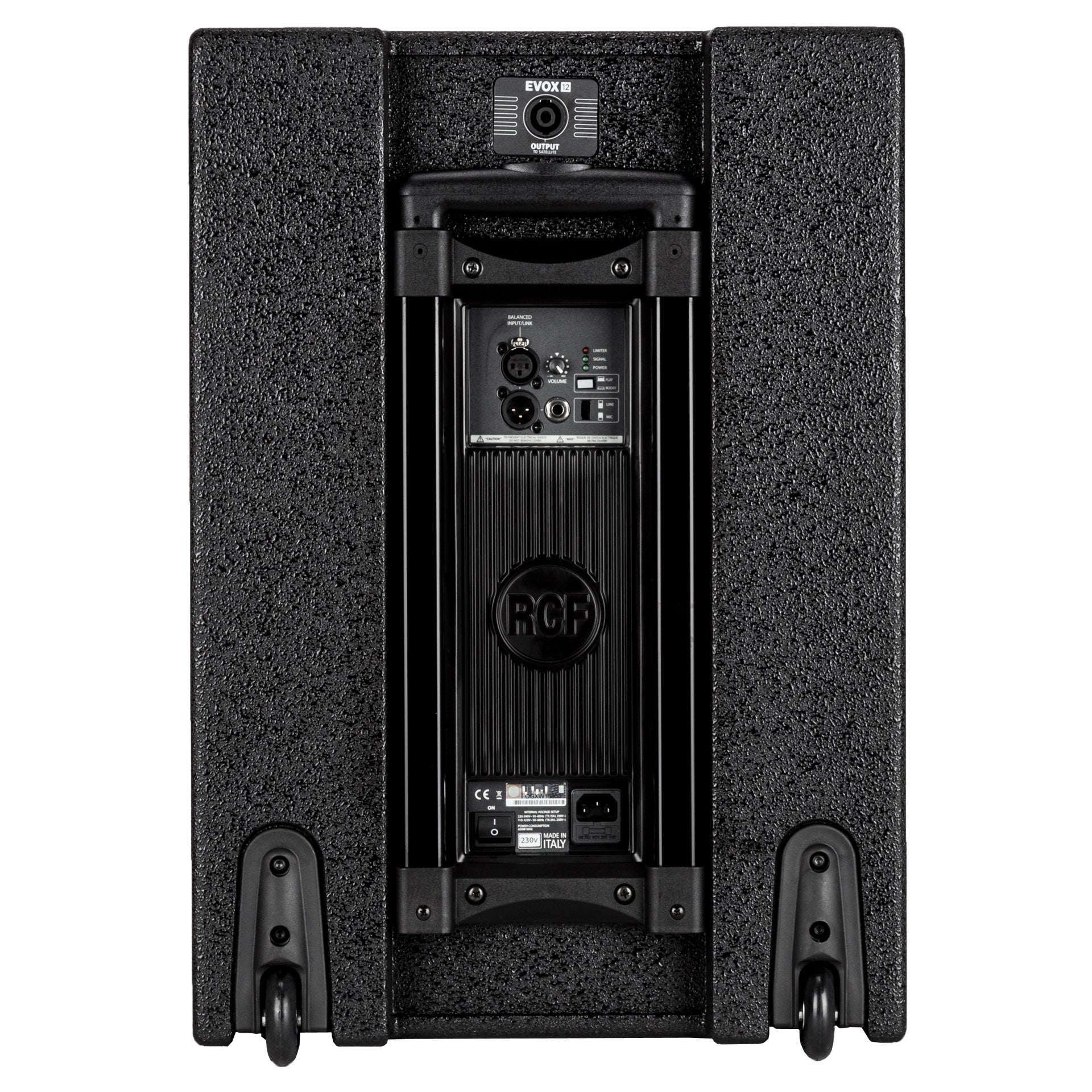

RCF EVOX 12 back view highlighting power section and connections

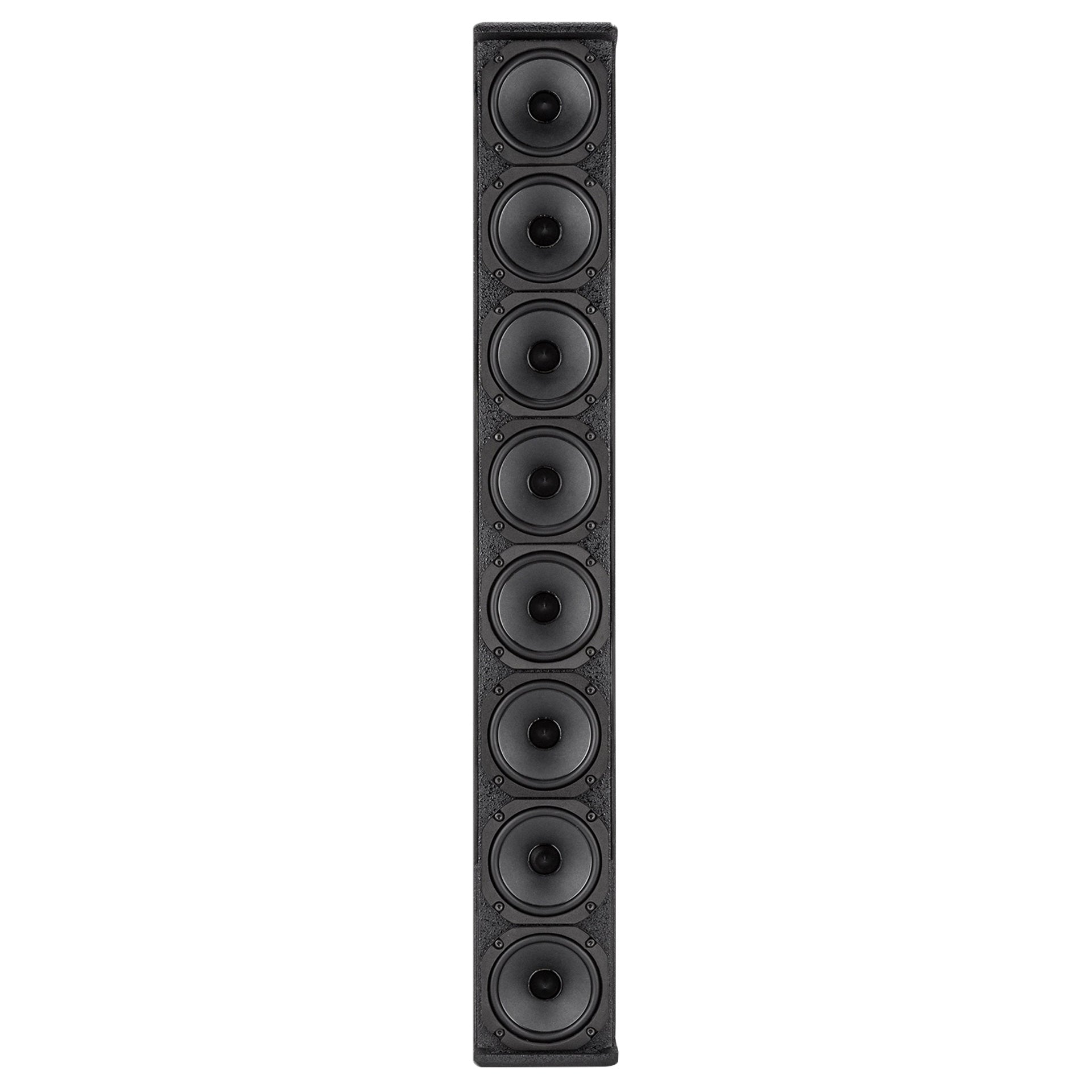

RCF EVOX 12 column array front panel view showing grille and woofer base

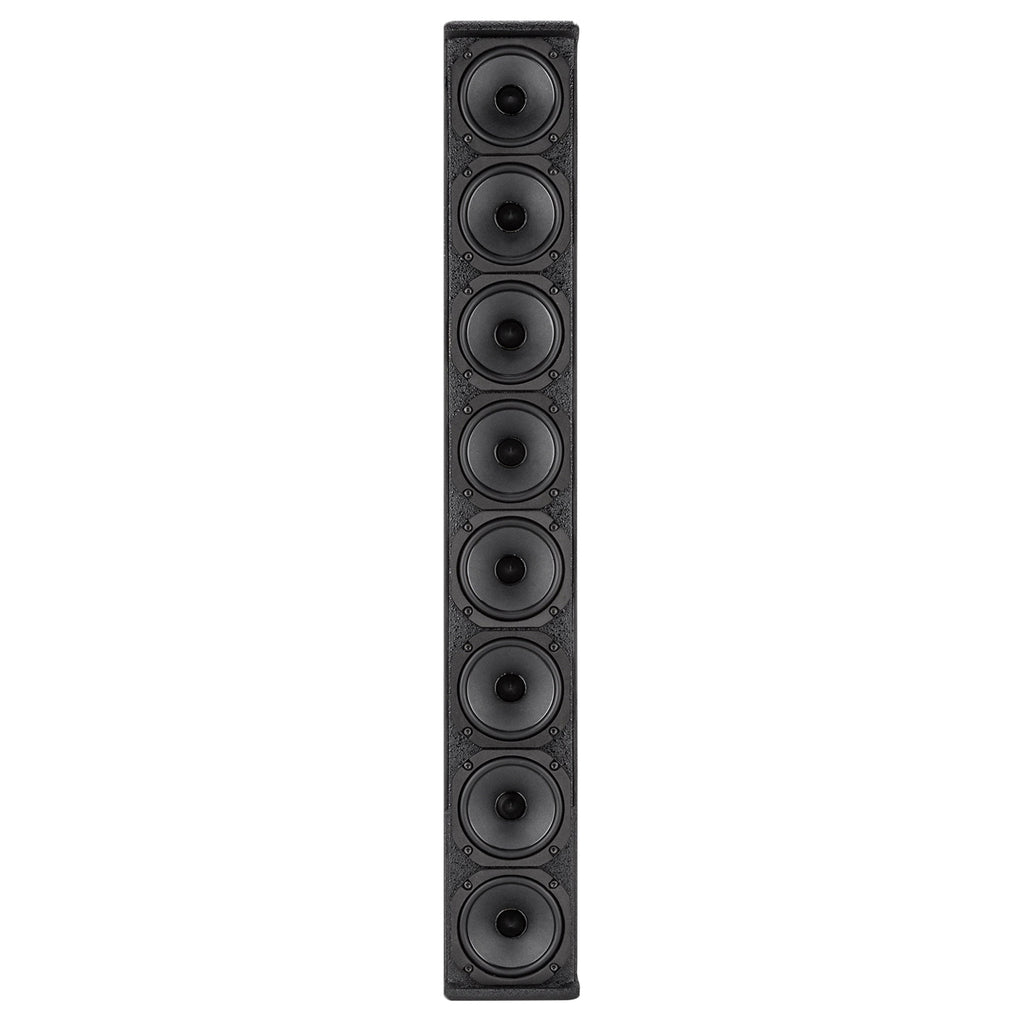

RCF EVOX 12 front facing view highlighting 8x4 inch fullrange transducers

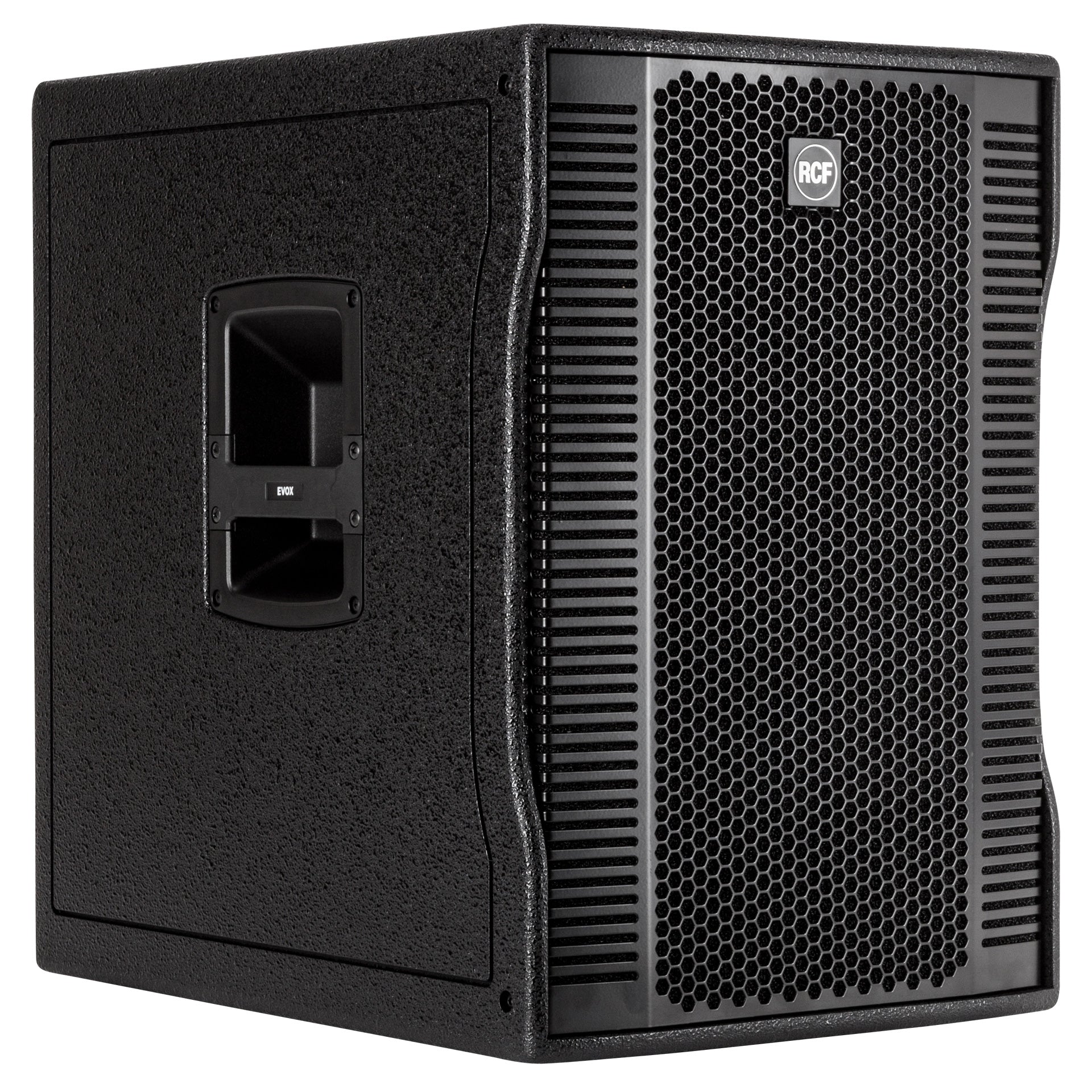

RCF EVOX 12 right side view showing column array height and depth

RCF EVOX 12 back view highlighting power section and connections

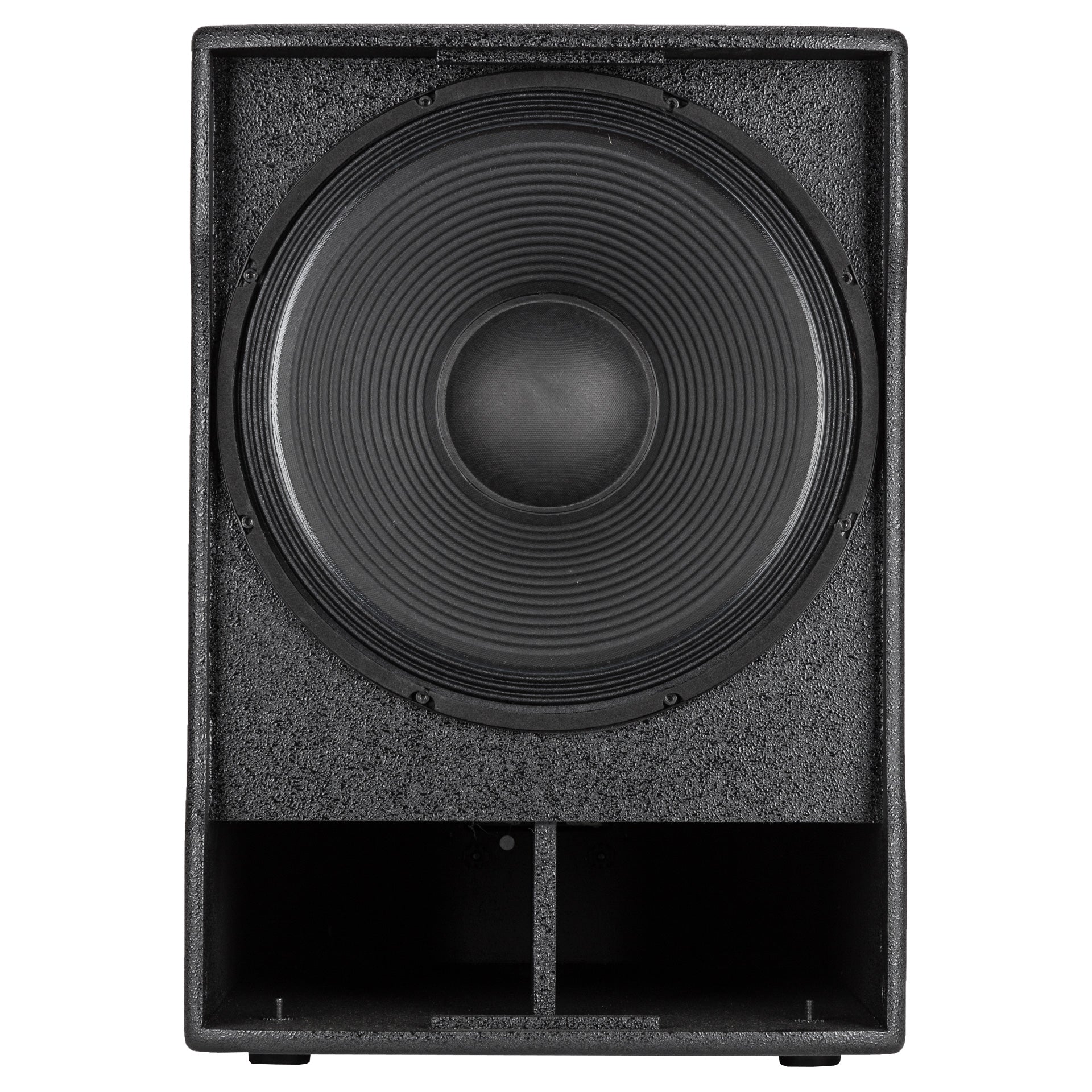

Front view of RCF EVOX 12 portable PA system with black cabinet finish

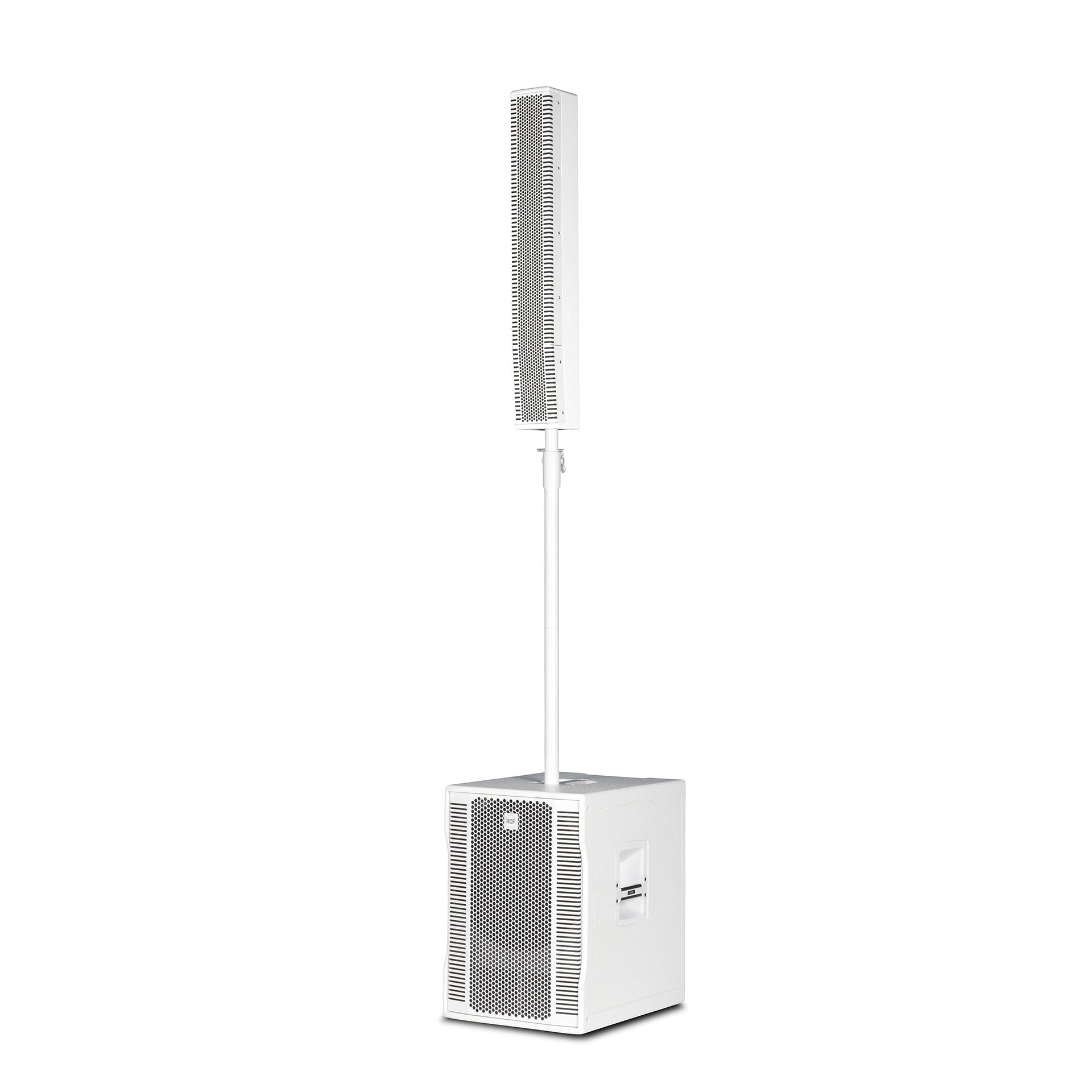

RCF EVOX 12 active two-way array front view showing column speaker and base module -White

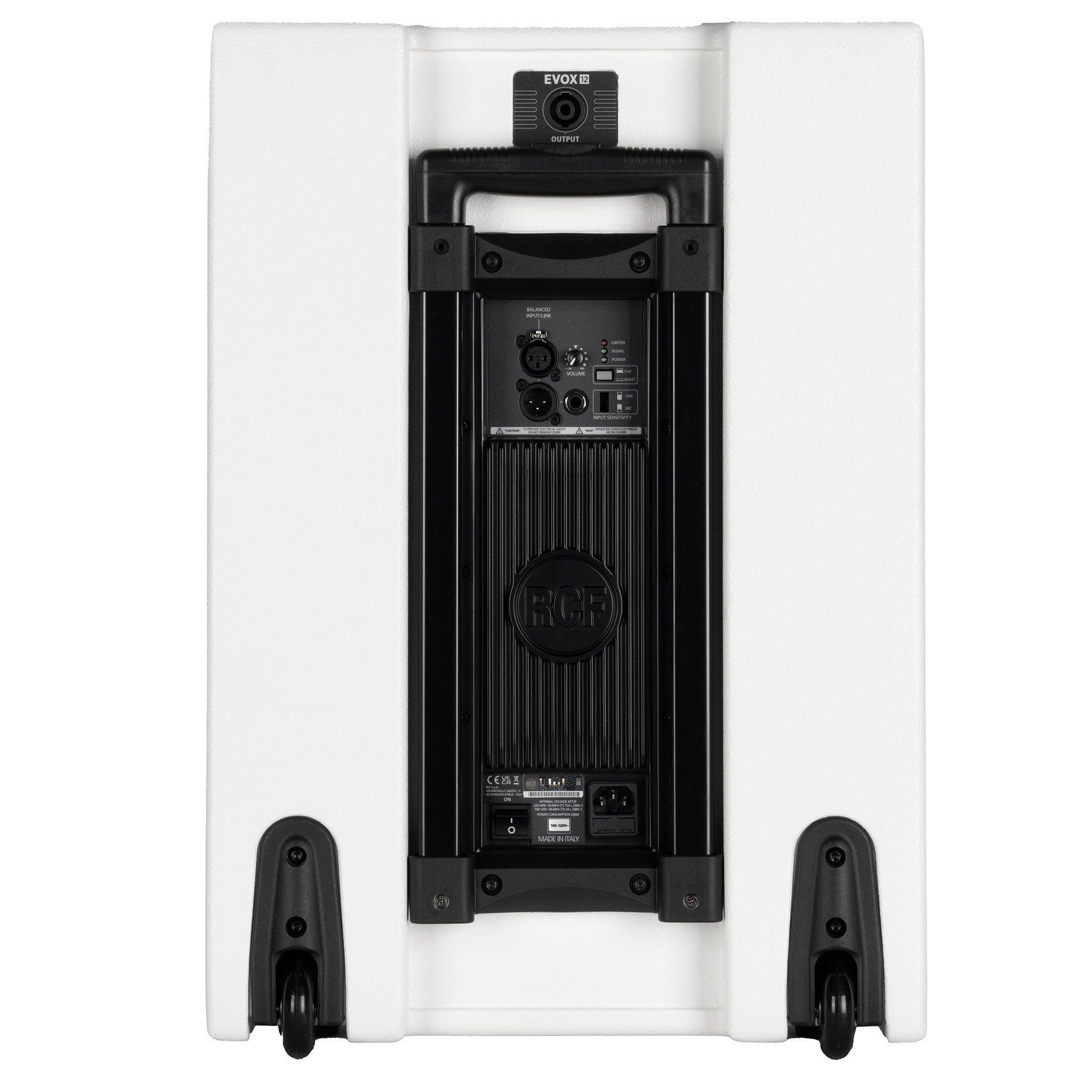

RCF EVOX 12 back view highlighting power section and connections-White

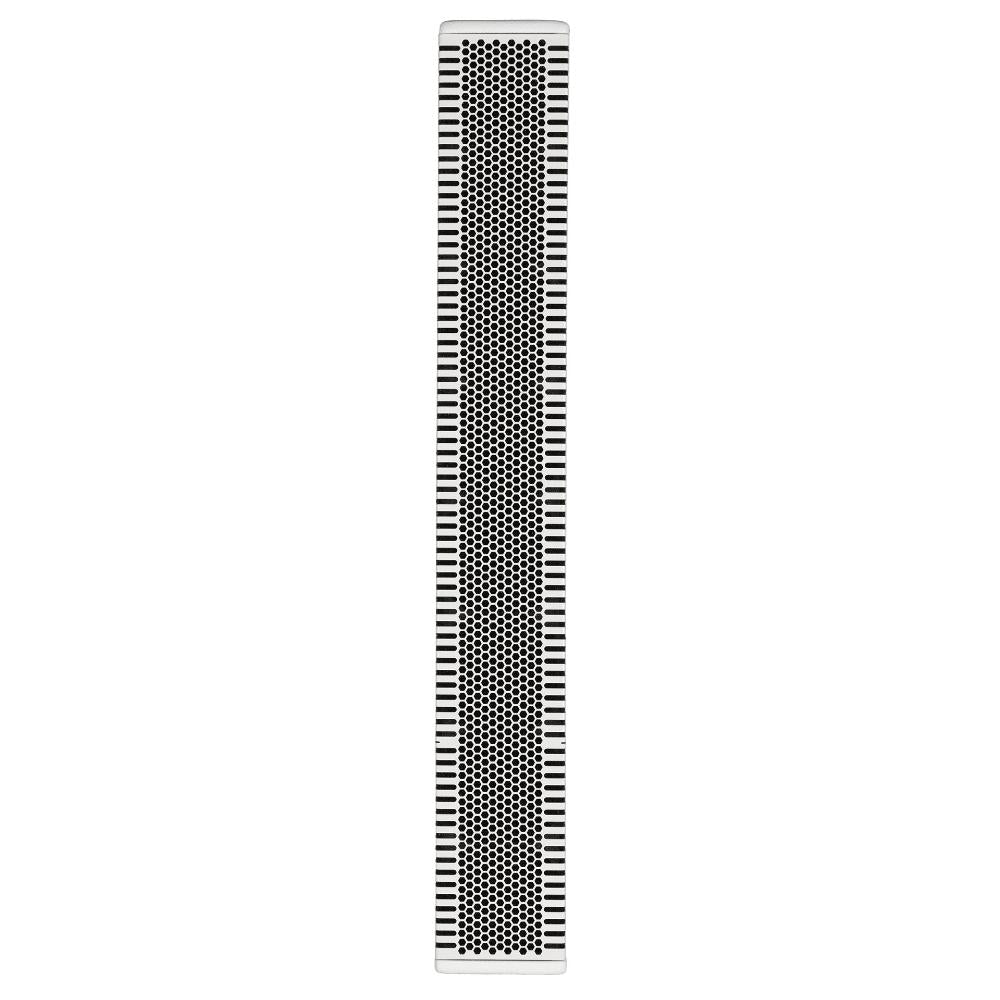

RCF EVOX 12 front facing view highlighting 8x4 inch fullrange transducers-White

RCF EVOX 12 rear panel detail showing volume and EQ controls-White

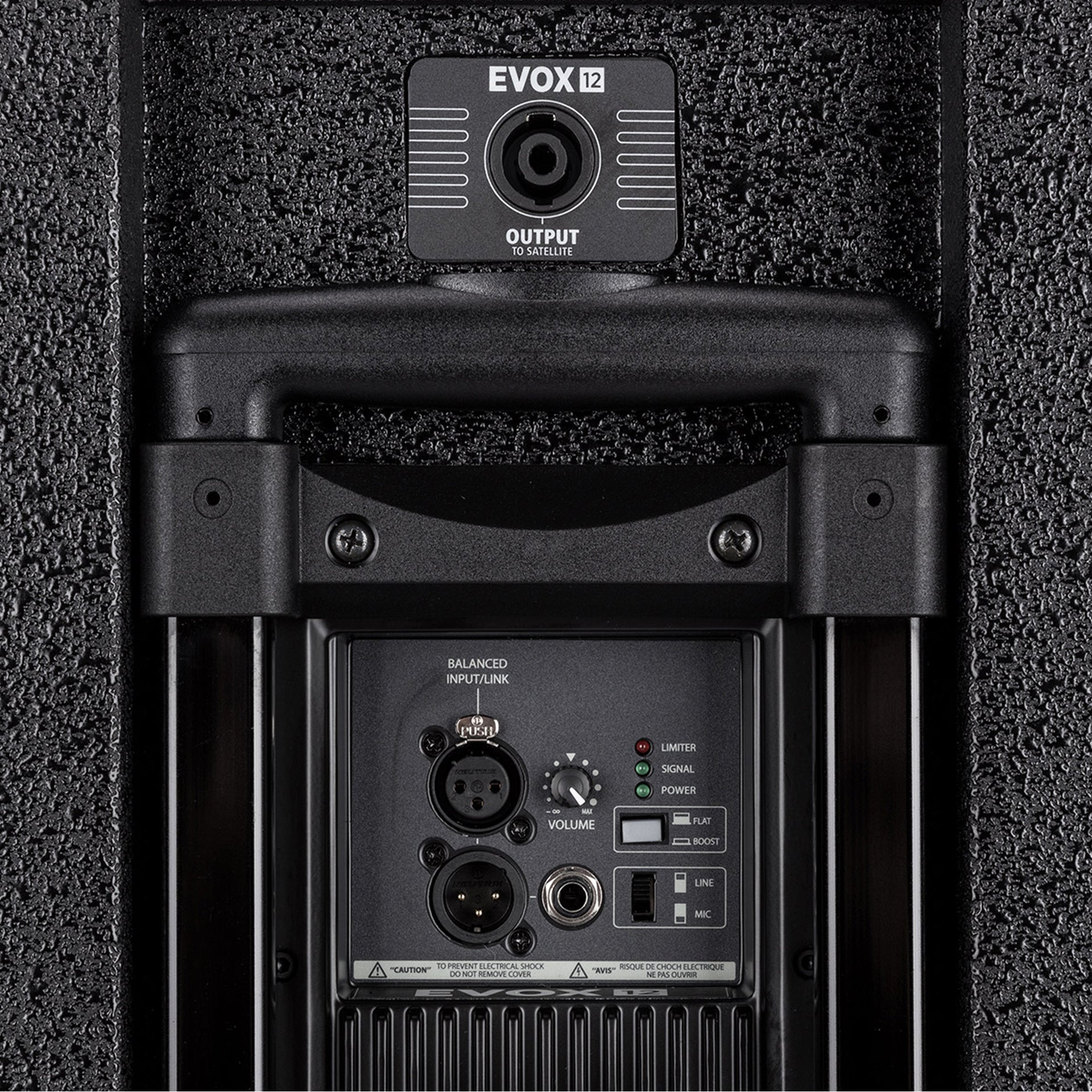

RCF EVOX 12 control panel detail showing volume and EQ knobs

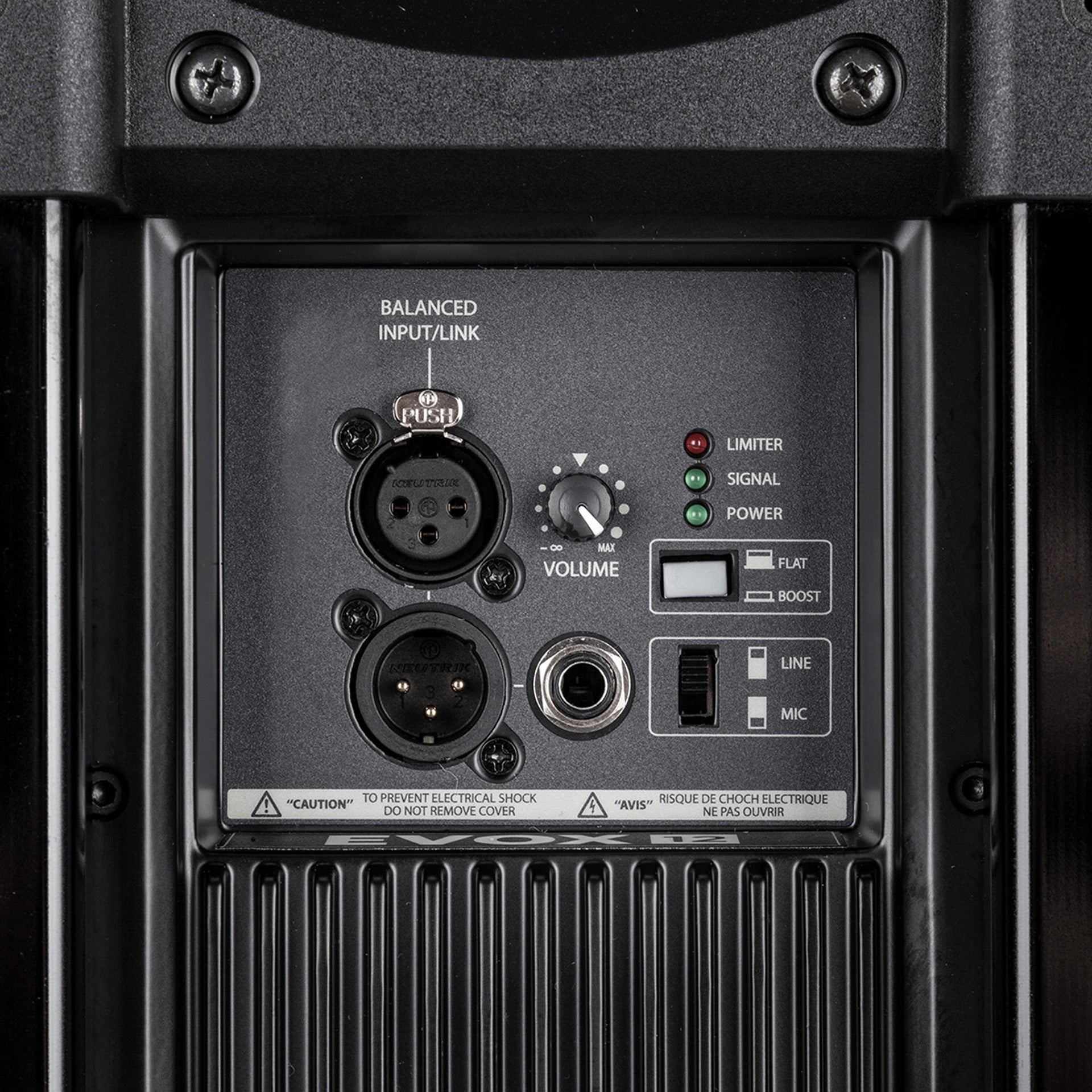

RCF EVOX 12 connector panel detail showing XLR Jack input and output

RCF EVOX 12 bottom view showing woofer base module and pole mount

RCF EVOX 12 cabinet material detail showing Baltic birch plywood construction

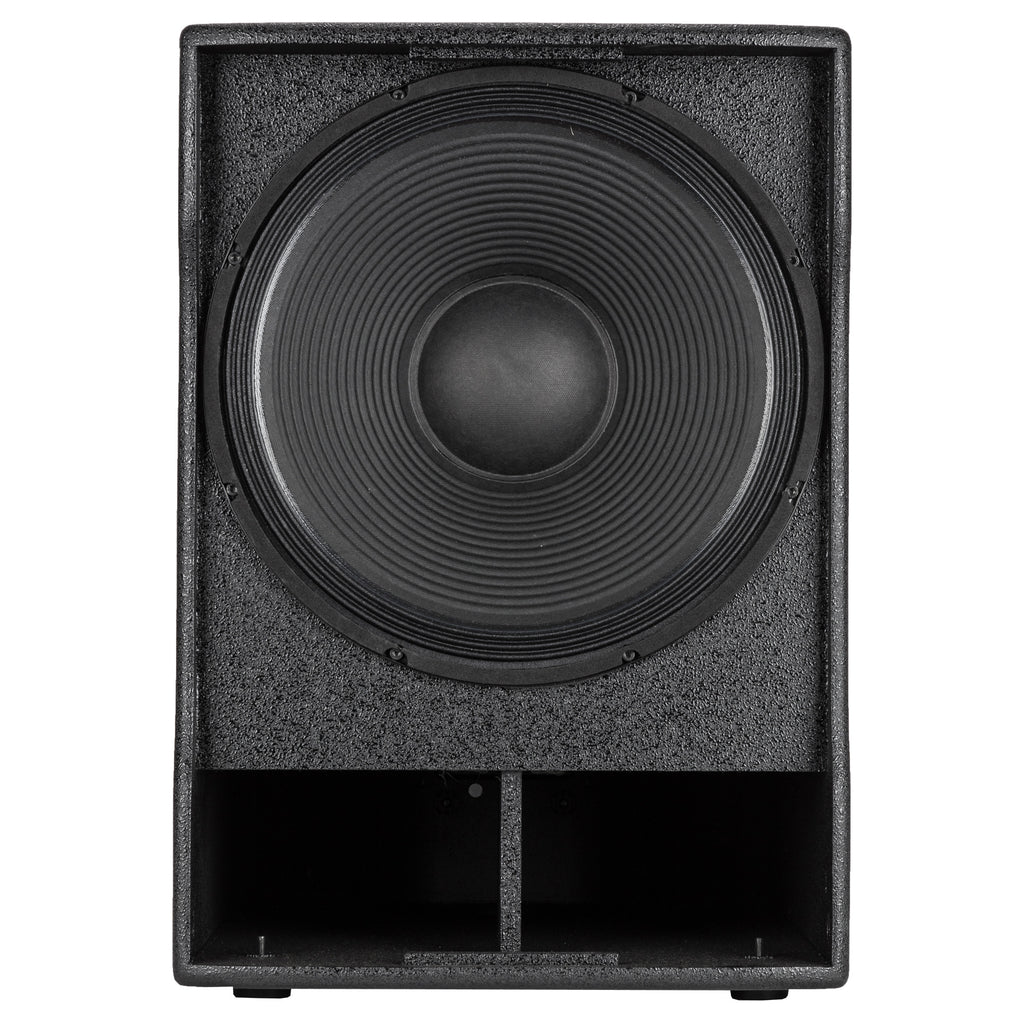

Bottom view of RCF EVOX 12 base cabinet with 15 inch woofer housing

RCF EVOX 12 active two-way array front view showing column speaker and base module

RCF EVOX 12 left side view showing cabinet depth and pole socket

RCF EVOX 12 back view highlighting power section and connections

RCF EVOX 12 column array front panel view showing grille and woofer base

RCF EVOX 12 front facing view highlighting 8x4 inch fullrange transducers

RCF EVOX 12 right side view showing column array height and depth

RCF EVOX 12 back view highlighting power section and connections

Front view of RCF EVOX 12 portable PA system with black cabinet finish

RCF EVOX 12 active two-way array front view showing column speaker and base module -White

RCF EVOX 12 back view highlighting power section and connections-White

RCF EVOX 12 front facing view highlighting 8x4 inch fullrange transducers-White

RCF EVOX 12 rear panel detail showing volume and EQ controls-White

RCF EVOX 12 control panel detail showing volume and EQ knobs

RCF EVOX 12 connector panel detail showing XLR Jack input and output

RCF EVOX 12 bottom view showing woofer base module and pole mount

RCF EVOX 12 cabinet material detail showing Baltic birch plywood construction

Bottom view of RCF EVOX 12 base cabinet with 15 inch woofer housing

Features

1400 Watt
130 dB max SPL
40 Hz 20 kHz frequency response
15" Woofer
8 x 4" neodymium full-range woofer
90° x 30° slightly tilted pattern control
Innovative DSP processing
Pole mountable, easy set-up and transportation

Specifications

Acoustical Specifications
Frequency Response	40 Hz - 20000 Hz
Max SPL @ 1m	130 dB
Horizontal Coverage Angle	90°
Vertical Coverage Angle	30°
Transducers	Fullrange 8 x 4.0'', 1.0'' v.c
Woofer	15'', 3.0'' v.c
Input/Output Section
Input Signal	Bal/Unbal
Input Connectors	XLR, Jack
Output Connectors	XLR
Input Sensitivity	-2 dBu/+4 dBu
Processor Section
Crossover Frequencies	180 Hz
Protections	Thermal, RMS
Limiter	Soft Limiter
Controls	Volume, EQ
Power Section
Total Power	1400 W Peak, 700 W RMS
High Frequencies	400 W Peak, 200 W RMS
Low Frequencies	1000 W Peak, 500 W RMS
Cooling	Convection
Connections	VDE
Standard Compliance
Safety Agency	CE Compliant
Physical Specifications
Cabinet/Case Material	Baltic Birch Plywood
Color	Black, White - RAL 9003
Size / Weight
Height	2200 mm / 86.61 inches
Width	410 mm / 16.14 inches
Depth	560 mm / 22.05 inches
Weight	36.4 kg / 80.25 lbs
Shipping Information
Package Height	636 mm / 25.04 inches
Package Width	459 mm / 18.07 inches
Package Depth	613 mm / 24.13 inches
Package Weight	1.45 kg / 3.2 lbs
