Description
This Audio Extender can transmit digital optical and analog audio signals concurrently up to a distance of 300m/990ft (48kHz), 150m/495ft (96kHz) or 100m/330ft (192kHz) over a single CAT5E/6 cable. The digital optical audio is directly passed from transmitter to receiver. The analog audio output on receiver is selectable from the digital optical or the analog audio signal from transmitter. The extender supports bidirectional POC function.
This is a fantastic plug and play solution for sending optical fiber and analog audio from an HDTV back to an amplifier, AVR or multi-room audio system which requires an analog stereo audio input signal.
Features
☆ Extend optical fiber and analog audio signals up to a distance of 300m/990ft (48kHz), 150m/495ft (96kHz) or 100m/330ft (192kHz) over a single CAT cable
☆ Audio formats support: LPCM, DTS, Dolby Digital and Dolby Digital Plus
☆ Support audio sample rates: 32kHz, 44.1kHz, 48kHz, 96kHz, 176.4kHz and 192kHz up to 24-bit resolution
☆ Built-in DAC (Digital to Analog Converter) — the analog audio output port can output PCM 2.0 digital audio or analog audio through the audio selection switch
☆ Support bidirectional POC function
☆ Plug-and-play
☆ Small compact size
☆ Ultra-low jitter and high-fidelity design
Package Contents
① 1× Audio Extender (Transmitter)
② 1× Audio Extender (Receiver)
③ 1× USB Cable (USB-A to Micro-USB port)
④ 1× User Manual
Specifications
| Technical | |
| Bitrate over Distance | 192kHz — 100m / 330ft | 96kHz — 150m / 495ft | 48kHz — 300m / 990ft |
| Supported Audio Formats |
Optical: All audio formats including LPCM 2.0, LPCM 5.1, Dolby Digital 2/5.1CH Analog: PCM 2.0 |
| Sample Rates | 32kHz, 44.1kHz, 48kHz, 96kHz, 176.4kHz and 192kHz up to 24-bit resolution |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
| Connection – Transmitter | |
| Input |
1× SPDIF IN [Optical Audio Jack] 1× L/R IN [RCA Stereo Audio Jack] 1× Micro-USB |
| Output | 1× CAT OUT [RJ45] |
| Connection – Receiver | |
| Input |
1× CAT IN [RJ45] 1× Micro-USB |
| Output |
1× SPDIF OUT [Optical Audio Jack] 1× L/R OUT [RCA Stereo Audio Jack] |
| Power | |
| Power Supply | DC 5V/1A |
| Power Consumption (Max) | 1.5W |
| Mechanical | |
| Dimensions | 90mm (W) × 72mm (H) × 20mm (D) |
| Weight | 174g (Transmitter / Receiver) |
| Housing | Metal Enclosure – Black |
| Environmental | |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20%~90% RH (non-condensing) |
Operation Controls and Functions

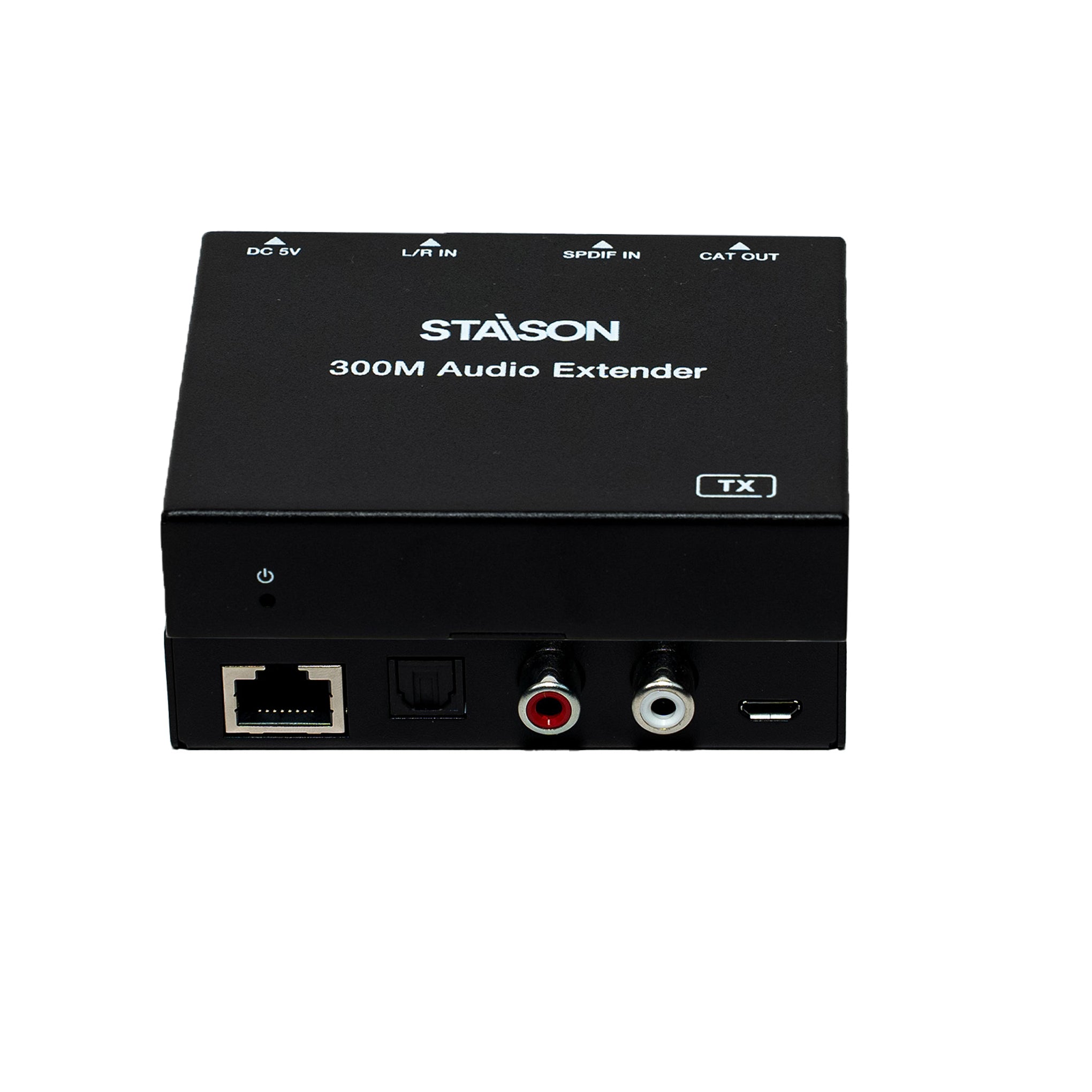

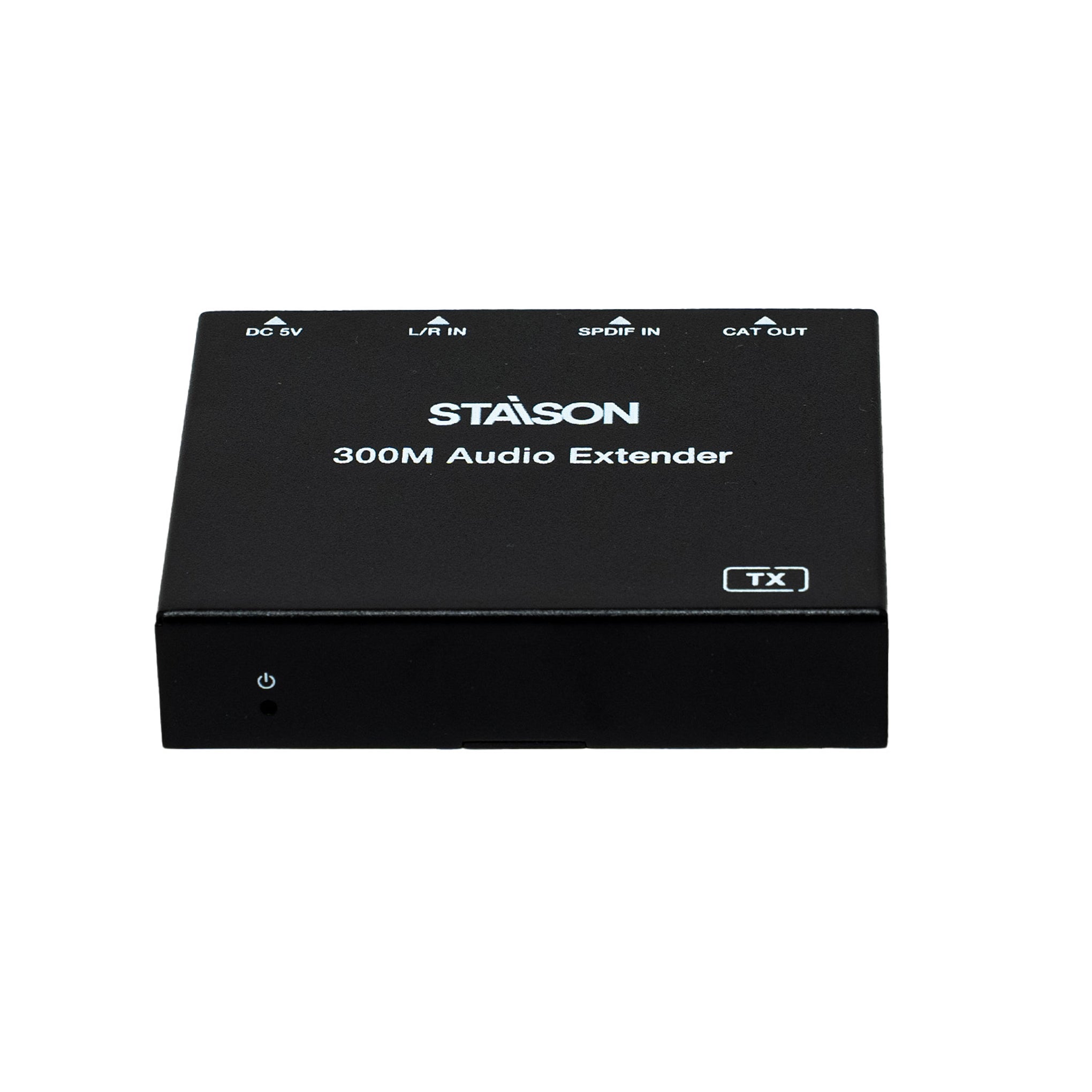

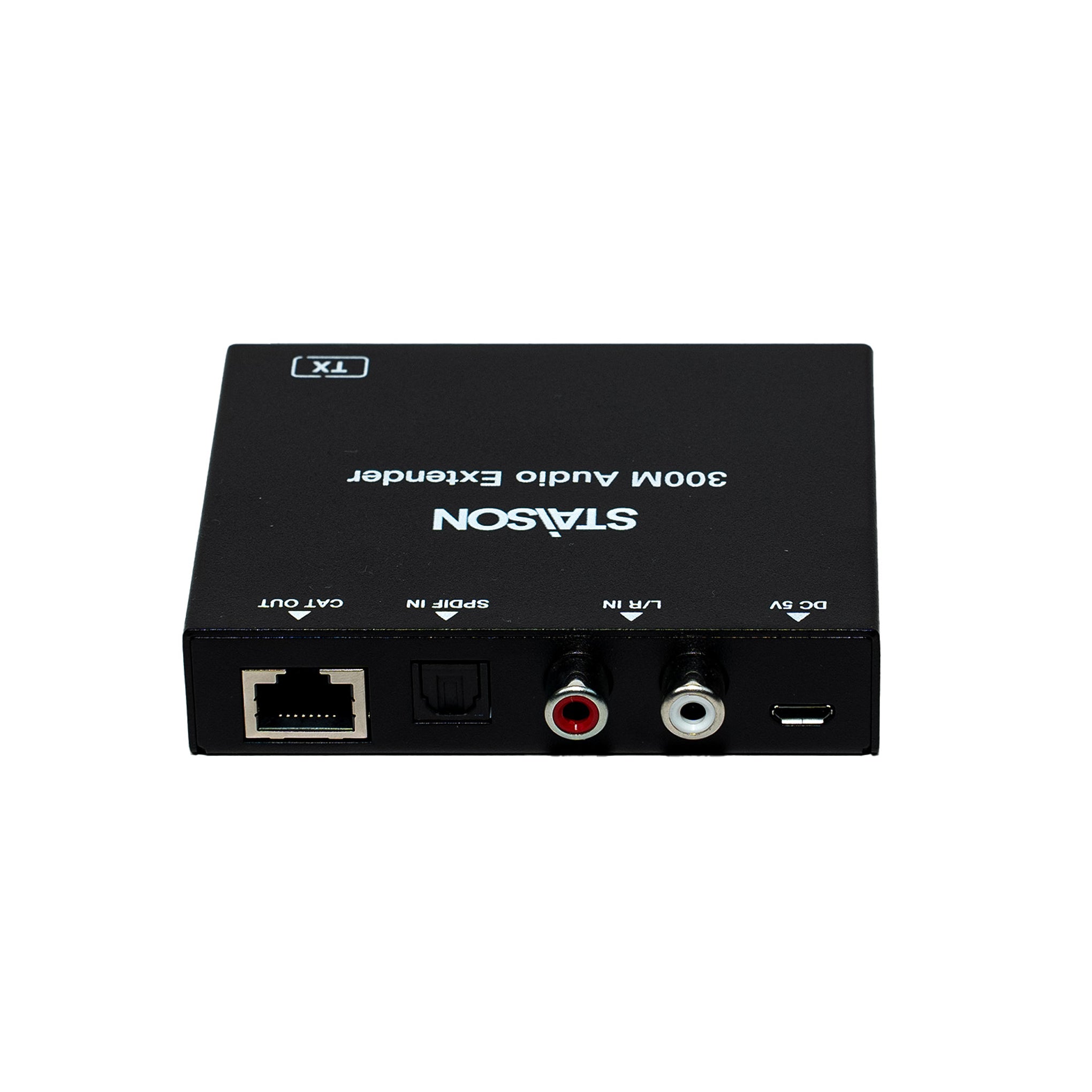

Transmitter
| No. | Name | Function Description |
|---|---|---|
| 1 | Power LED | When the transmitter is powered on, the power LED will be on. |
| 2 | CAT OUT | Connect to the CAT IN port of the receiver with CAT5E/6 cable. |
| 3 | SPDIF IN | Optical fiber audio input port, connected to an optical digital audio source device with Optical Toslink cable. |
| 4 | L/R IN | Analog audio input port, connected to an analog audio source device with RCA cable. |
| 5 | DC 5V | Micro USB power input port. |

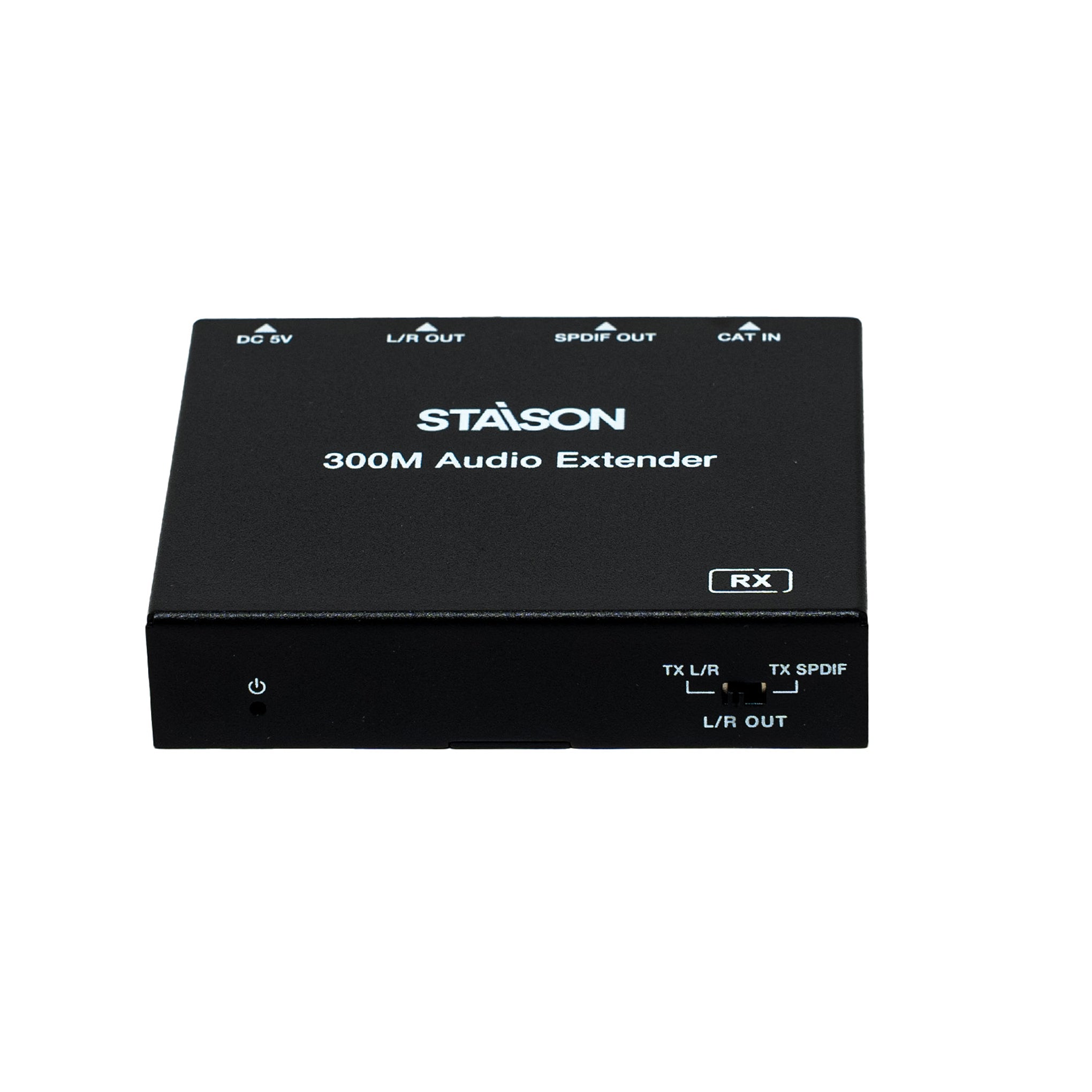

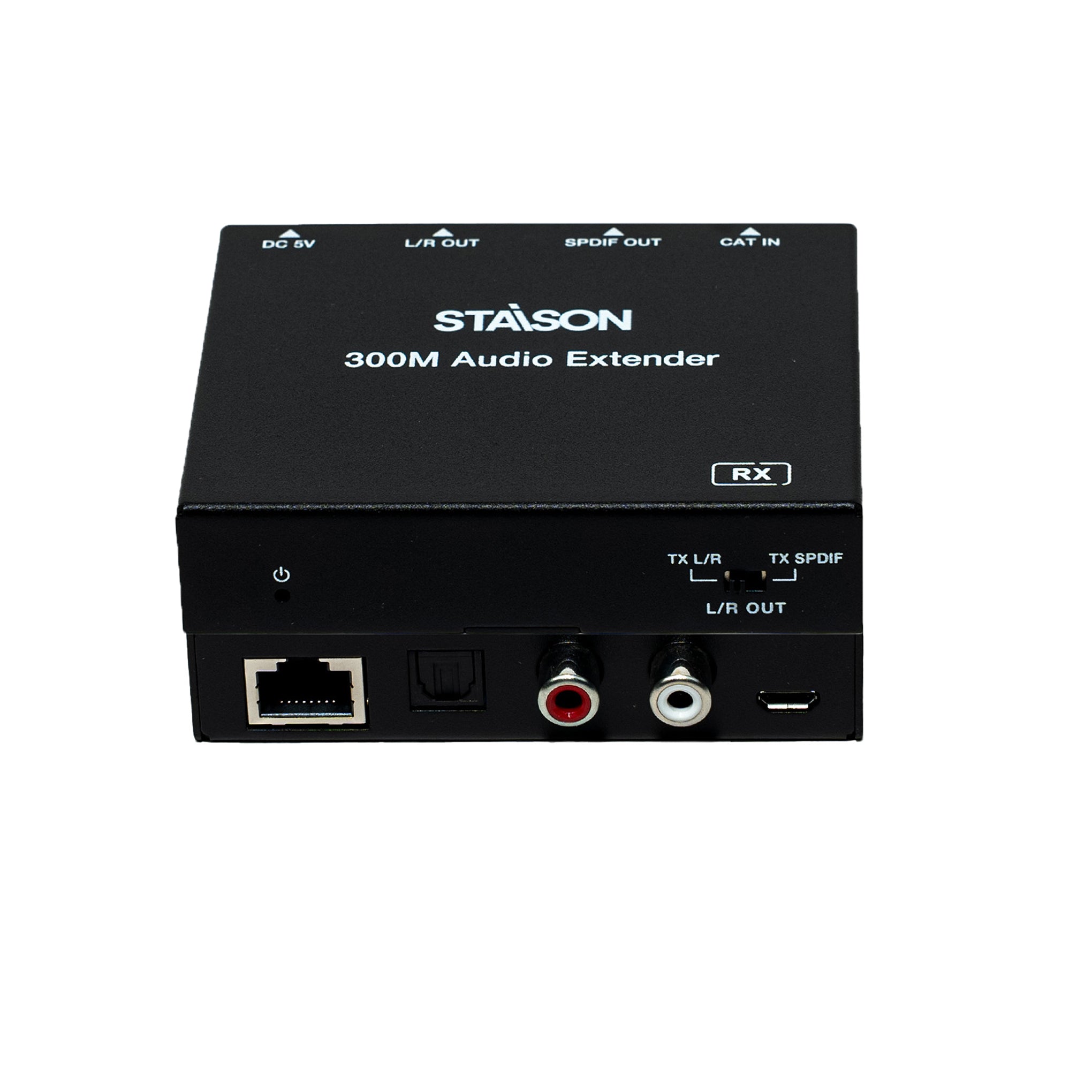

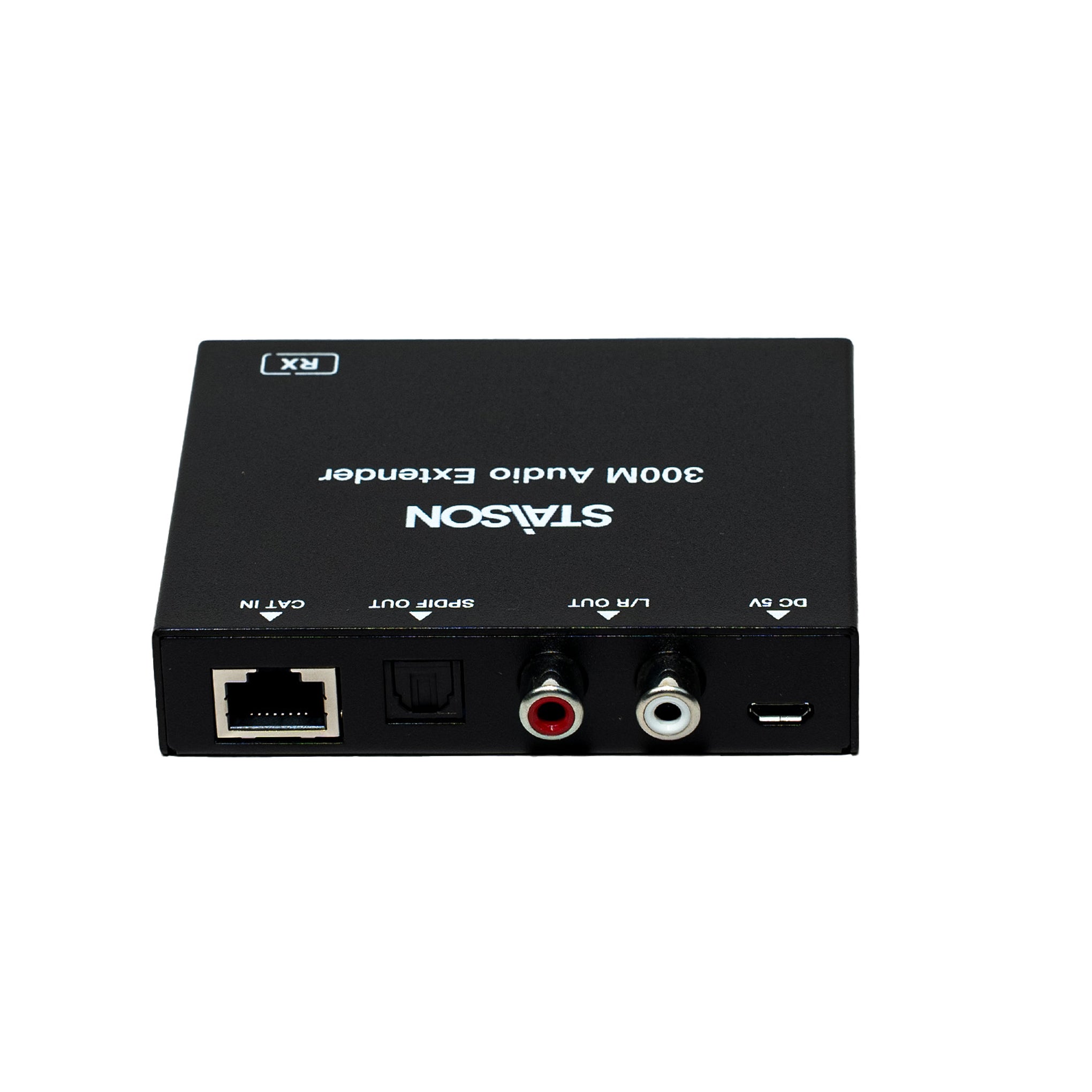

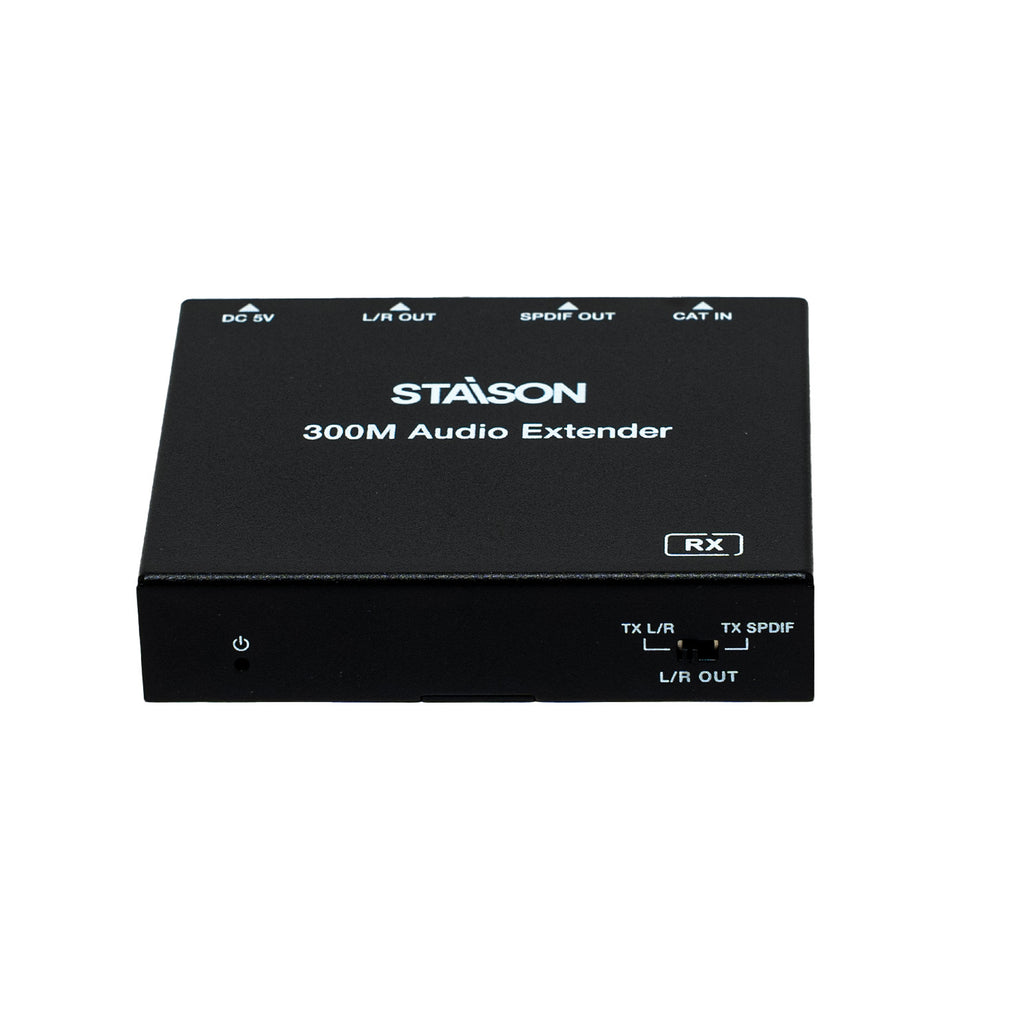

Receiver
| No. | Name | Function Description |
|---|---|---|
| 1 | Power LED | When the receiver is powered on, the power LED will be on. |
| 2 | L/R OUT Audio Selection Switch | Use this switch to select audio source for the L/R OUT port. TX L/R: The L/R OUT port outputs the analog audio from the L/R IN port of the transmitter. TX SPDIF: The L/R OUT port outputs the digital audio from the SPDIF IN port of the transmitter. |
| 3 | CAT IN | Connect to the CAT OUT port of the transmitter with CAT5E/6 cable. |
| 4 | SPDIF OUT | Optical fiber audio output port, connected to amplifier or speaker with Optical Toslink cable. |
| 5 | L/R OUT | Analog audio output port, connected to amplifier or speaker with RCA cable. |
| 6 | DC 5V | Micro USB power input port. |
