Description
Amazing Sound, Connect Everything.
- ESS9023 Sabre DAC Hi-res music.
- 6 Wireless Streaming Supported: WiFi, AirPlay, Spotify Connect, Bluetooth 5.0 aptX HD, DLNA, UPnP.

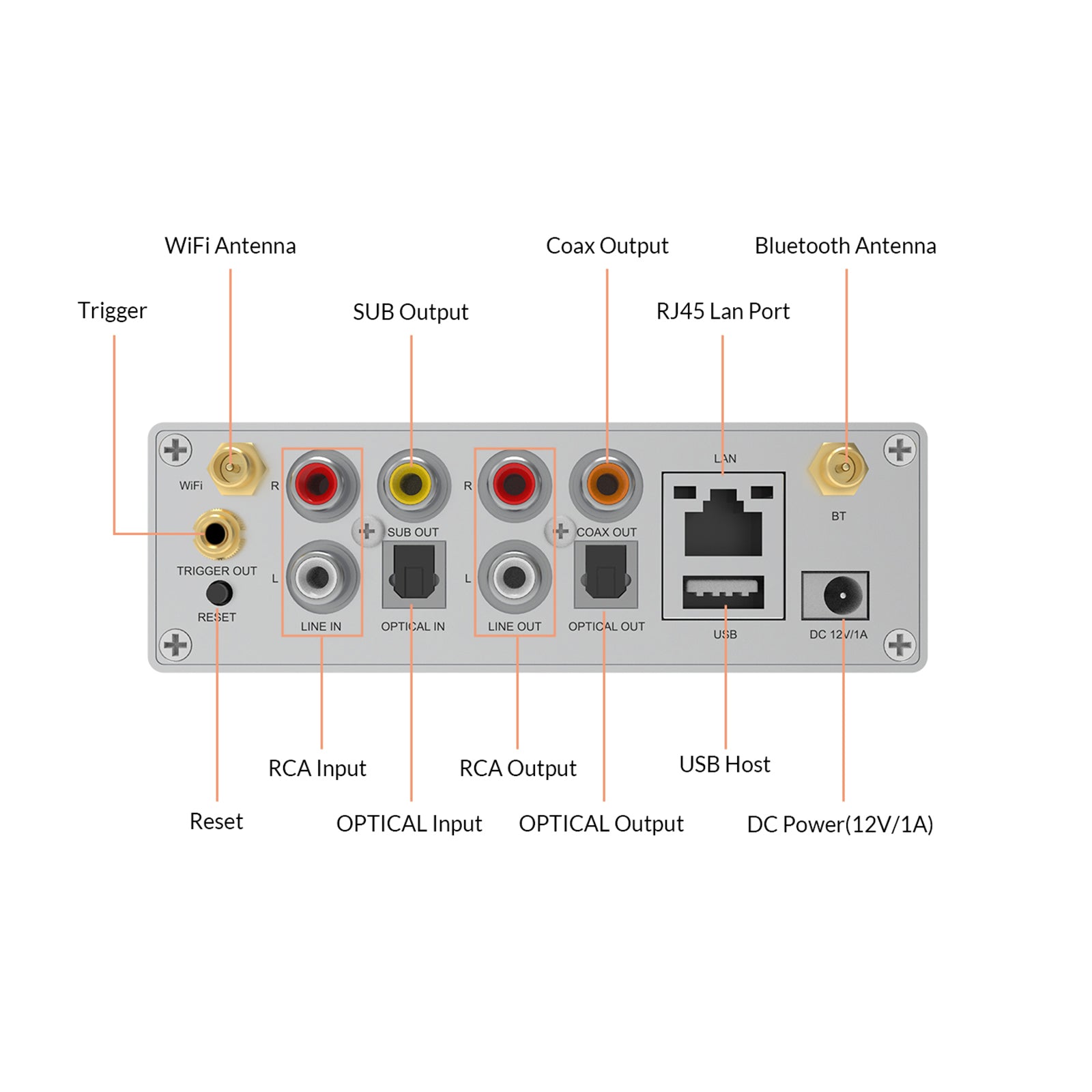

- 3 Audio Input+ 5 Audio Output : includes optical input/output and sub out.
- 15+ Music Services Supported: Spotify, Apple music, Amazon Music, Tidal, Internet radio, NAS and more.
- Multiroom Streaming Supported
Elevate Your Whole House Audio Experience

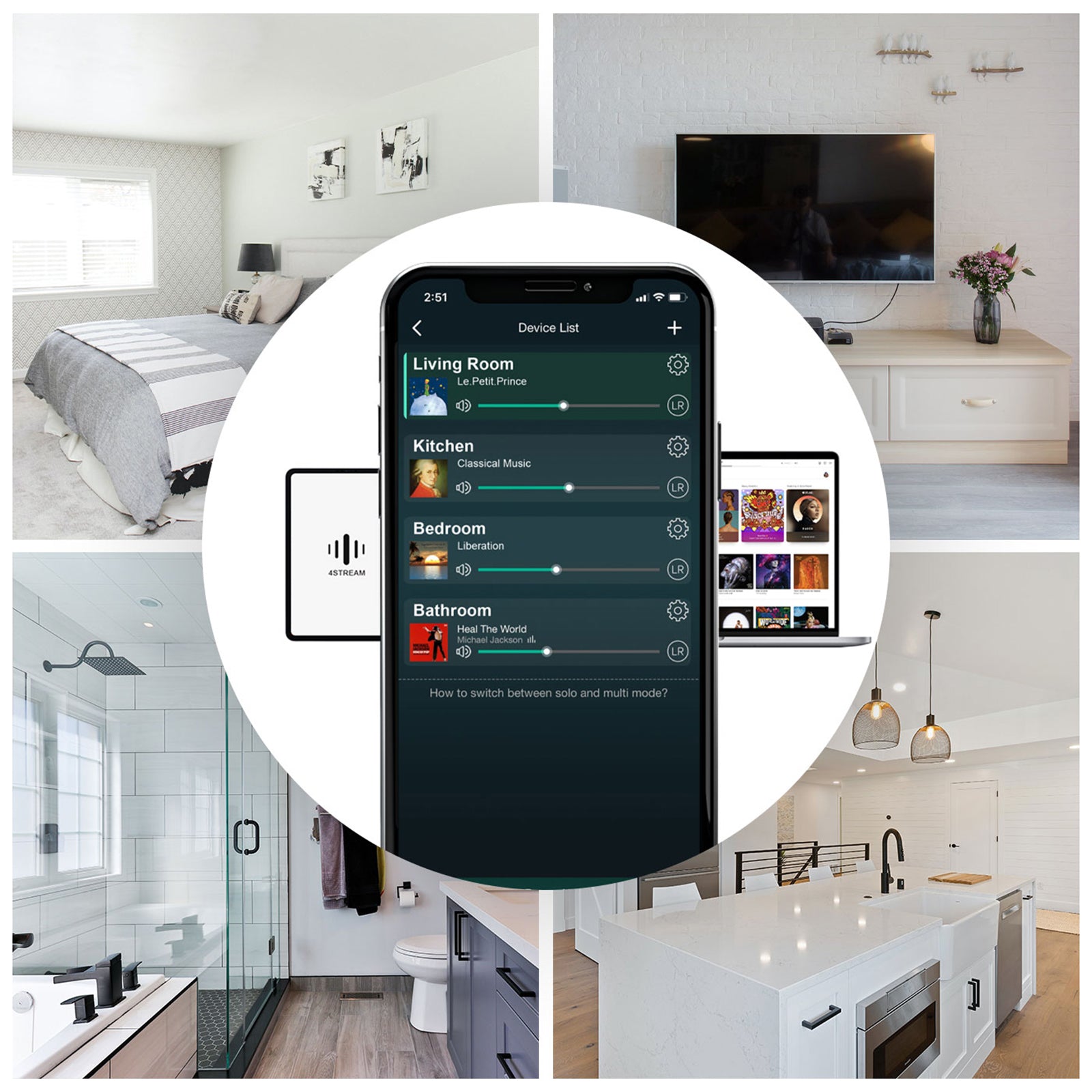

Convenient, smart, effortlessly control your audio systems and enjoy high quality audio in any rooms by Arylic wireless streaming system.
Streaming Directly From Your Smart Devices
12 Ports
For Whole House Audio
Connect your all audio equipments at once. From powered speakers, to audio amplifier, TV, vinyl, subwoofer, AV receiver and CD players, then use 4STREAM app to manage whole house audio system conveniently.
Enjoy HD Stereo Sound

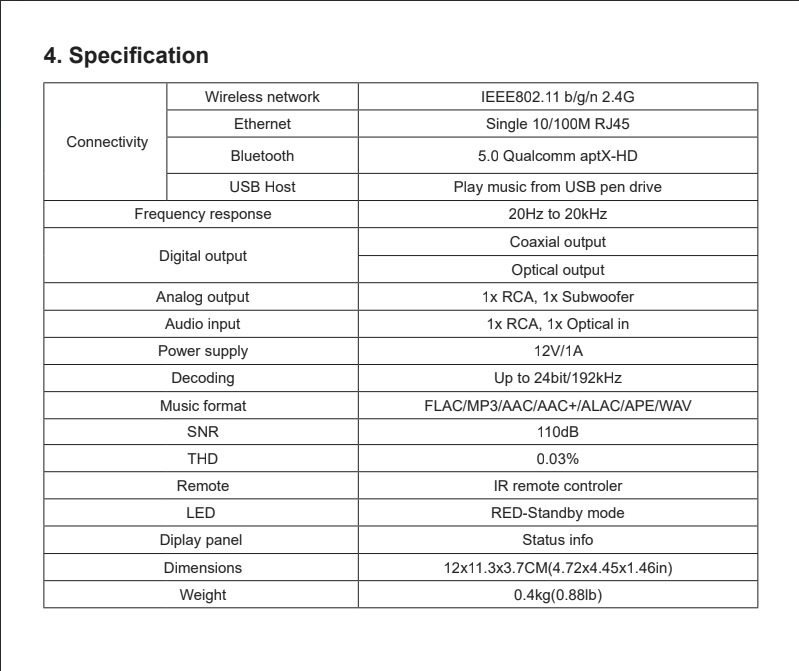

| Specifications | |
|---|---|
| Firmware | |
| Newest Firmware Version | 4.6.415145.35 |
| Connectivity | |
| WiFi | IEEE 802.11 b/g/n 2.4G |
| Bluetooth | 5.0 - aptX/aptX HD/SBC/AAC Range: 15M Mode: BT Receiver |
| Ethernet | Single 10/100M RJ45 |
| Streaming Protocols | |
| Supported Protocols | AirPlay, DLNA, UPnP, Spotify Connect, Qplay |
| Power Specifications | |
| Power Input | 12V / 1A DC Input |
| Audio Inputs | |
| Analog Input | RCA Input x1 |
| Digital Input | Optical Input x1 (TOSLINK) |
| Audio Outputs | |
| Analog Output | RCA Output x1 |
| Subwoofer Output | Dedicated Subwoofer Output x1 |
| Digital Output - Optical | Optical Output x1 (TOSLINK) |
| Digital Output - Coaxial | Coaxial Output x1 (S/PDIF) |
| Audio Format Support | |
| Music Format | FLAC/MP3/AAC/AAC+/ALAC/APE/WAV |
| Sample Rate - Decoding | Up to 24bit/192kHz |
| Sample Rate - Output | 44.1kHz/16bits (CD Quality) |
| Audio Specifications | |
| Frequency Response | 20Hz - 20kHz |
| THD+N | 0.03% |
| SNR (Signal-to-Noise Ratio) | 110dB - Exceptional Audio Quality |
| Storage & USB | |
| USB Host | 2.0 - USB pen drive/stick (1000 songs limited) |
| Local Storage Options | Mobile device memory NAS (Network Attached Storage) USB pen drive/Stick |
| Physical Specifications | |
| Dimensions | 120 x 113 x 37mm (4.72 x 4.45 x 1.46 inches) |
| Weight | 0.4kg (0.88 lbs) - Compact Design |
| Working Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
