RCF SUB 9019-AS HIGH POWER 19" ACTIVE SUBWOOFER

Features

• 138 dB Max SPL
• 4000W Class-D Amplification

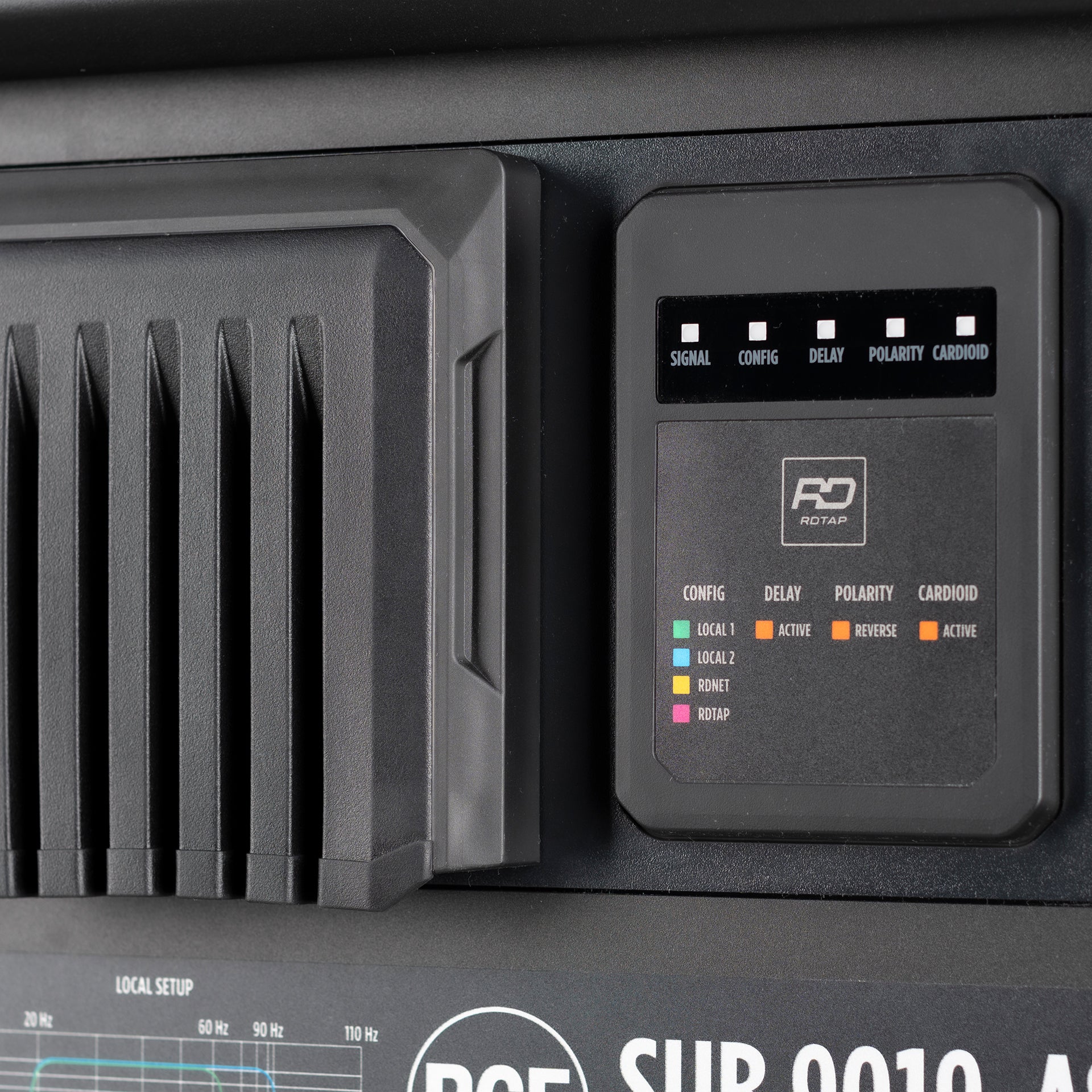

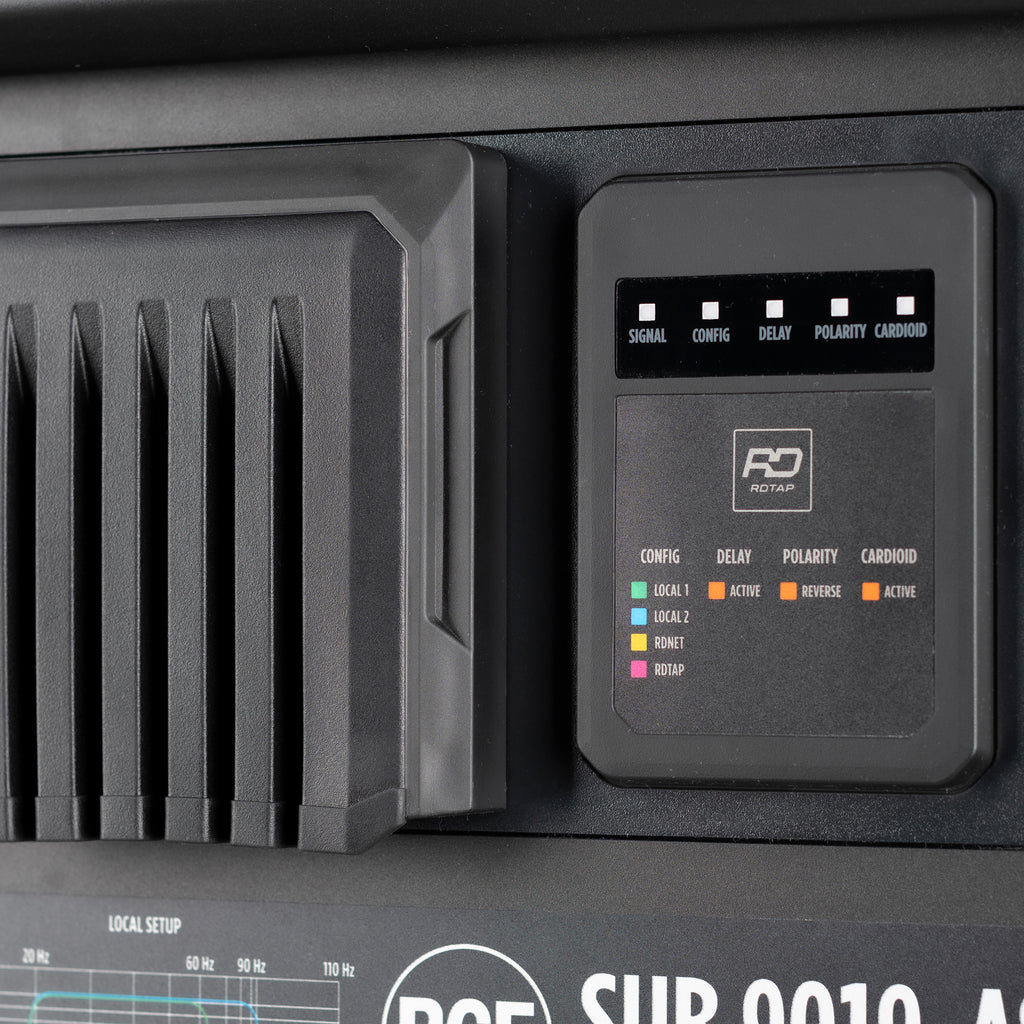

• RDTap Contactless Configuration
• I/O Panel Rain Cover Included
• RDNet Networked Control
• BMC, EQ, DLY, Cardioid
• ACE Crossover Presets for RCF Speakers
• 19" High-Excursion Precision Transducer
• Detachable Front Cart (sold separately)
• powerCON TRUE1 TOP AC Connector

Specifications

Acoustical Specifications
Frequency Response	30 Hz - 200 Hz
Max SPL @ 1m	138 dB

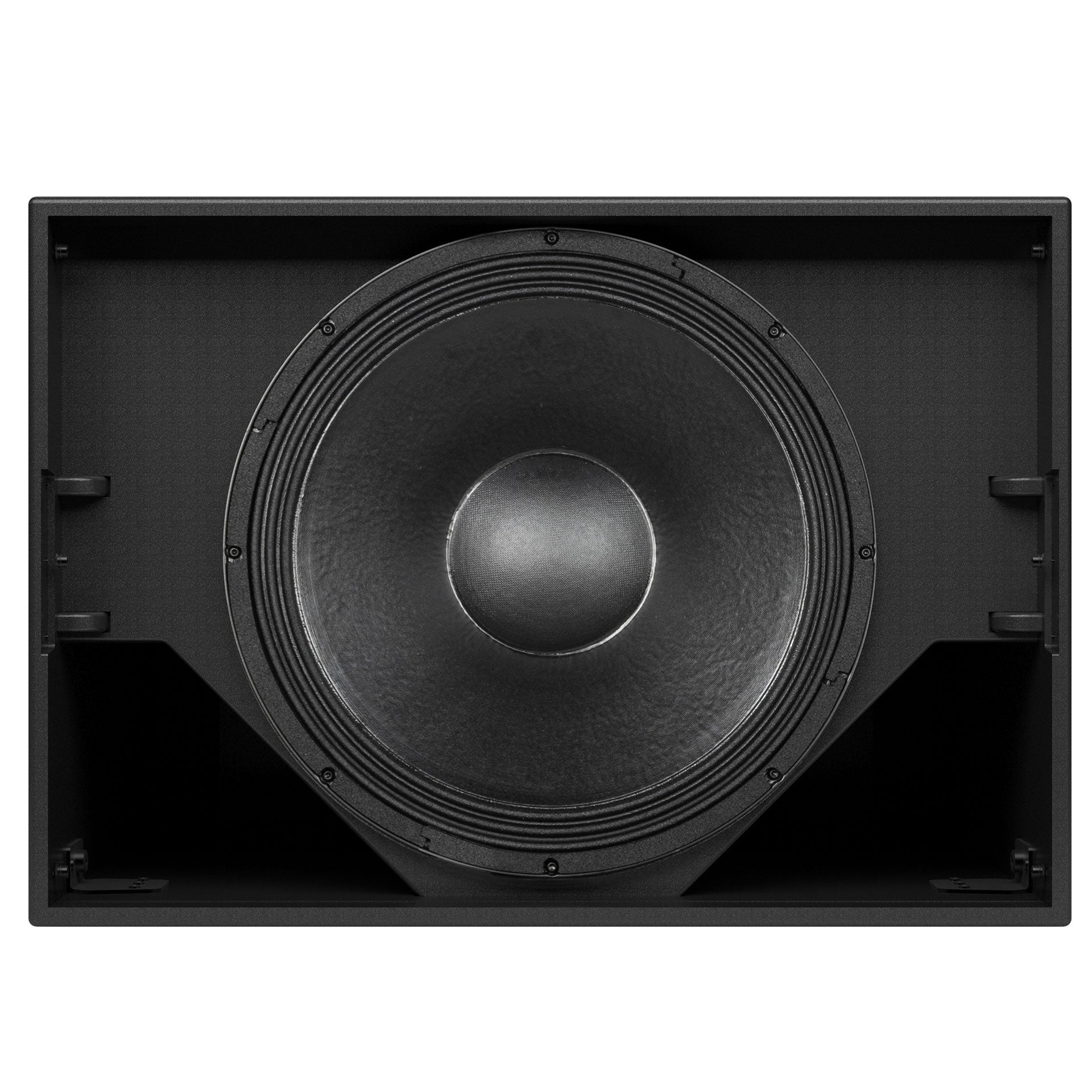

Woofer	1 x 19" neo, 4.0" v.c

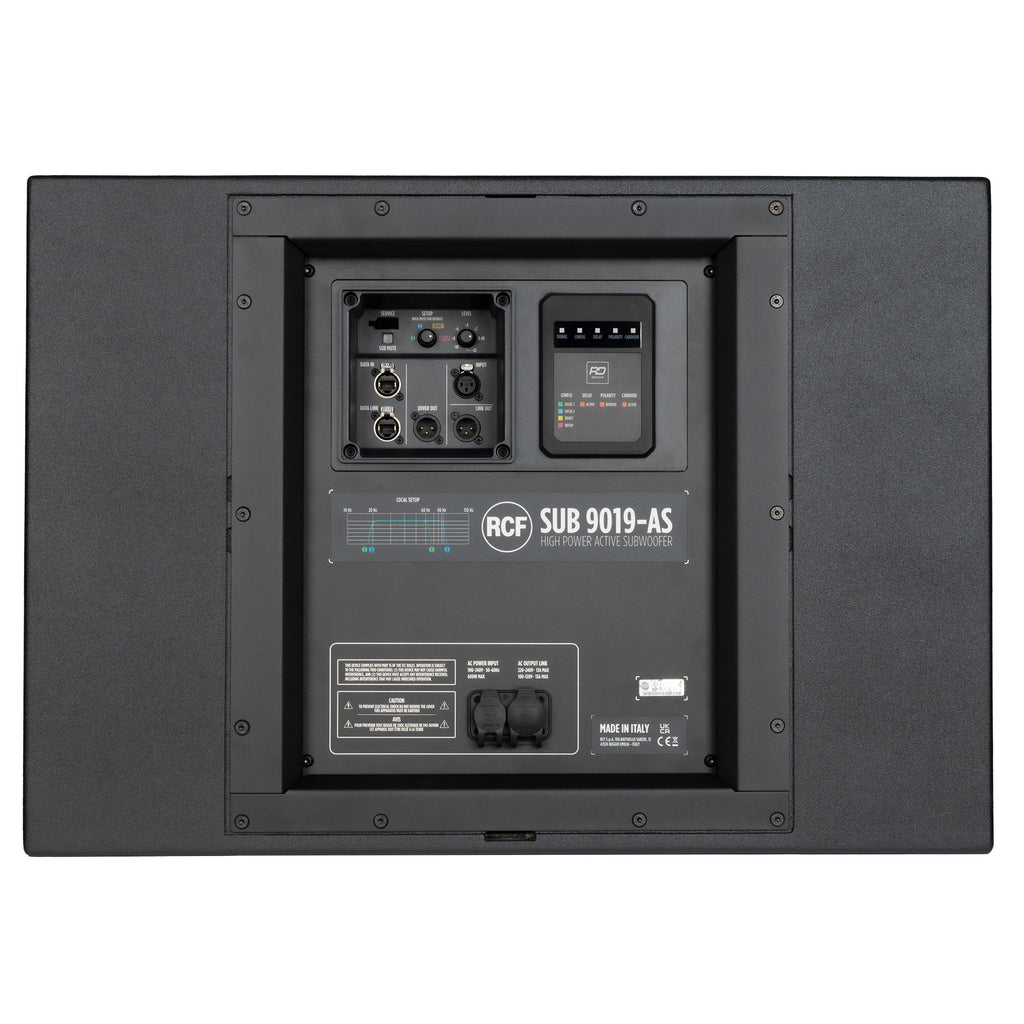

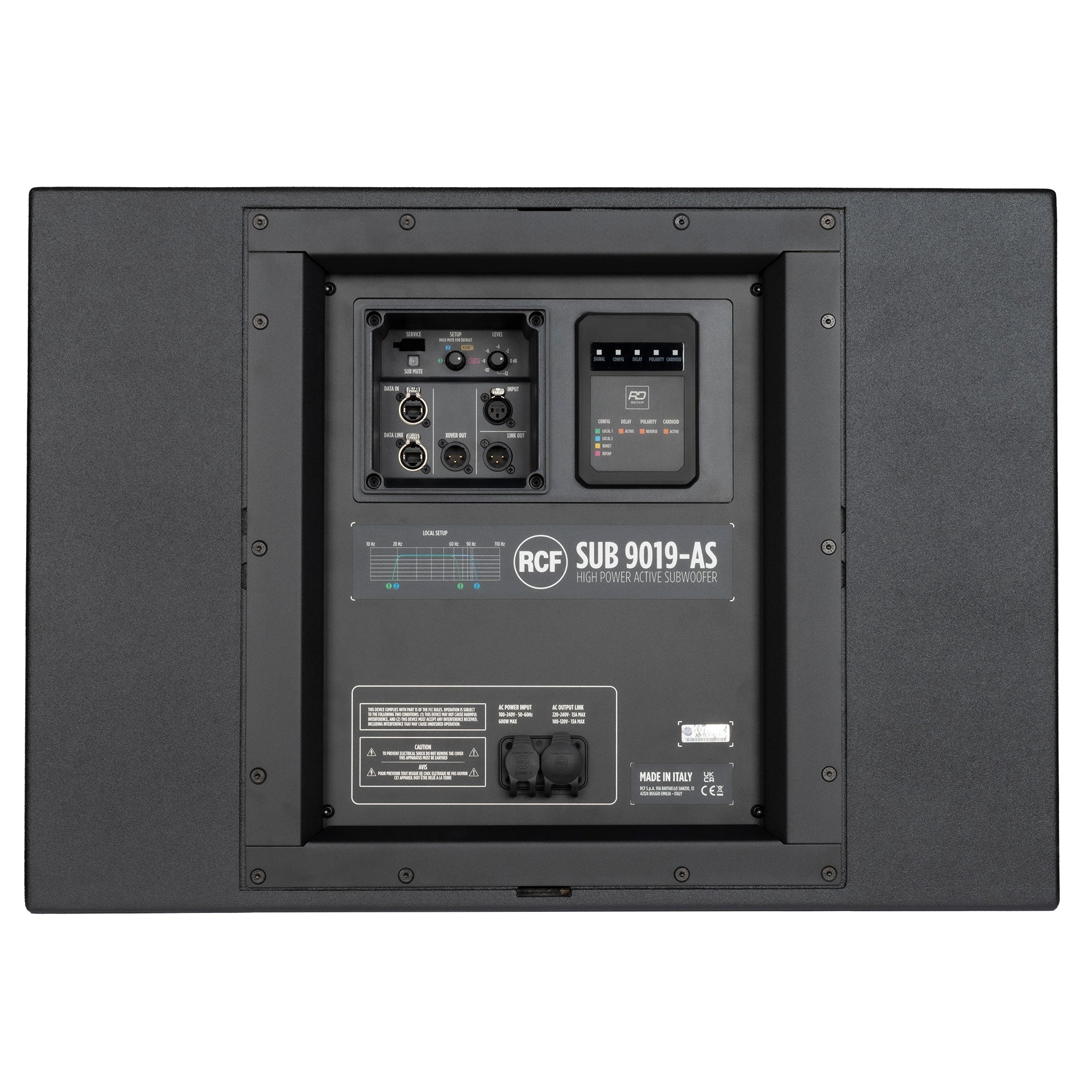

Input/Output Section
Input Signal	Bal/Unbal
Input Connectors	XLR, RDNet EtherCon
Output Connectors	XLR, RDNet EtherCon
Input Sensitivity	-2 dBu / +4 dBu
Processor Section
Protections	Thermal, Limiter, Soft Limiter
Controls	MUTE, VOL, PRESETS, RDTAP
RDNet	Onboard
Power Section
Total Power	4000 W Peak
Cooling	Convection/Forced
Connections	PowerCon TRUE1 TOP IN/OUT
Standard Compliance
Safety Agency	CE Compliant
Physical Specifications
Cabinet/Case Material	Plywood
Hardware	2 x M20 pole mount accessories

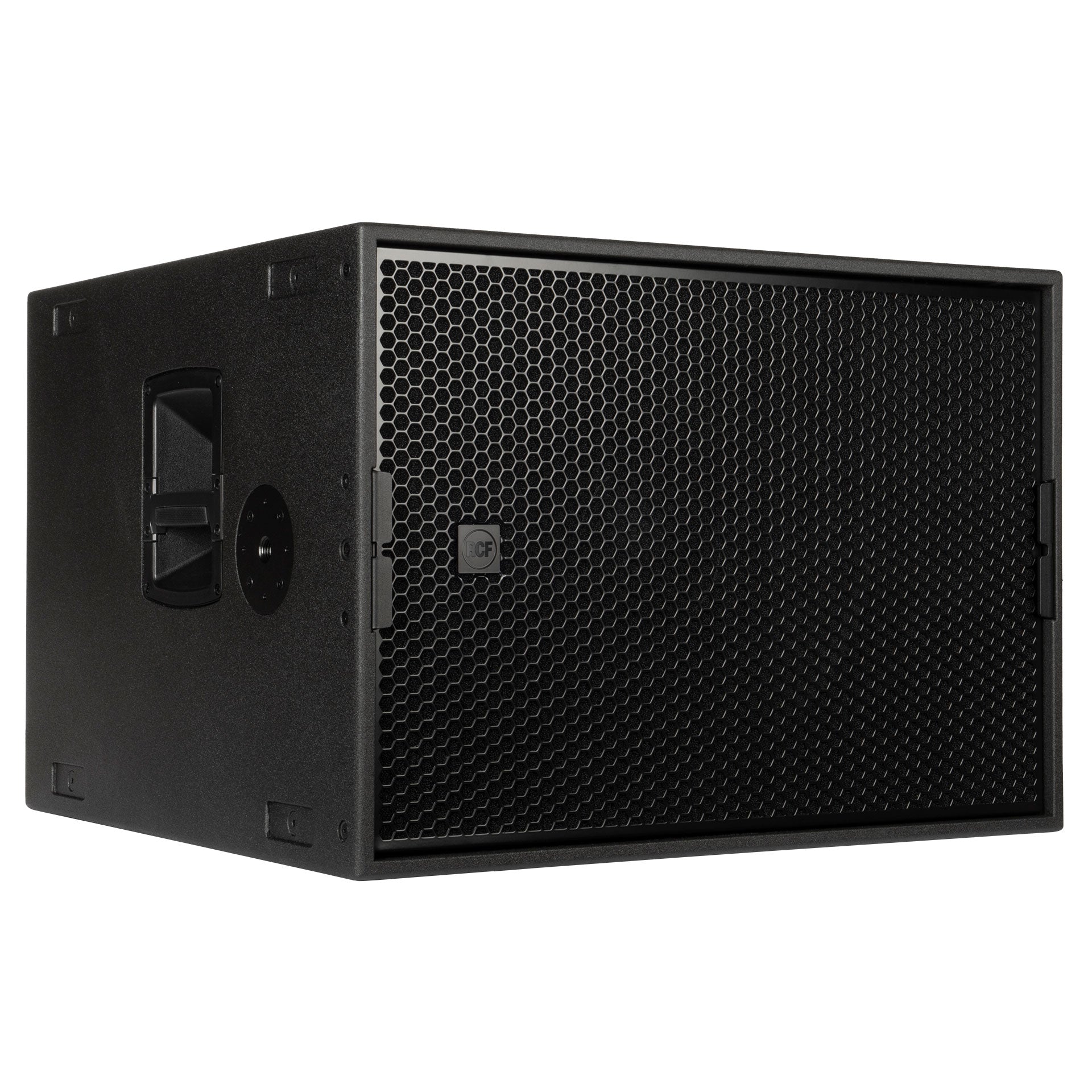

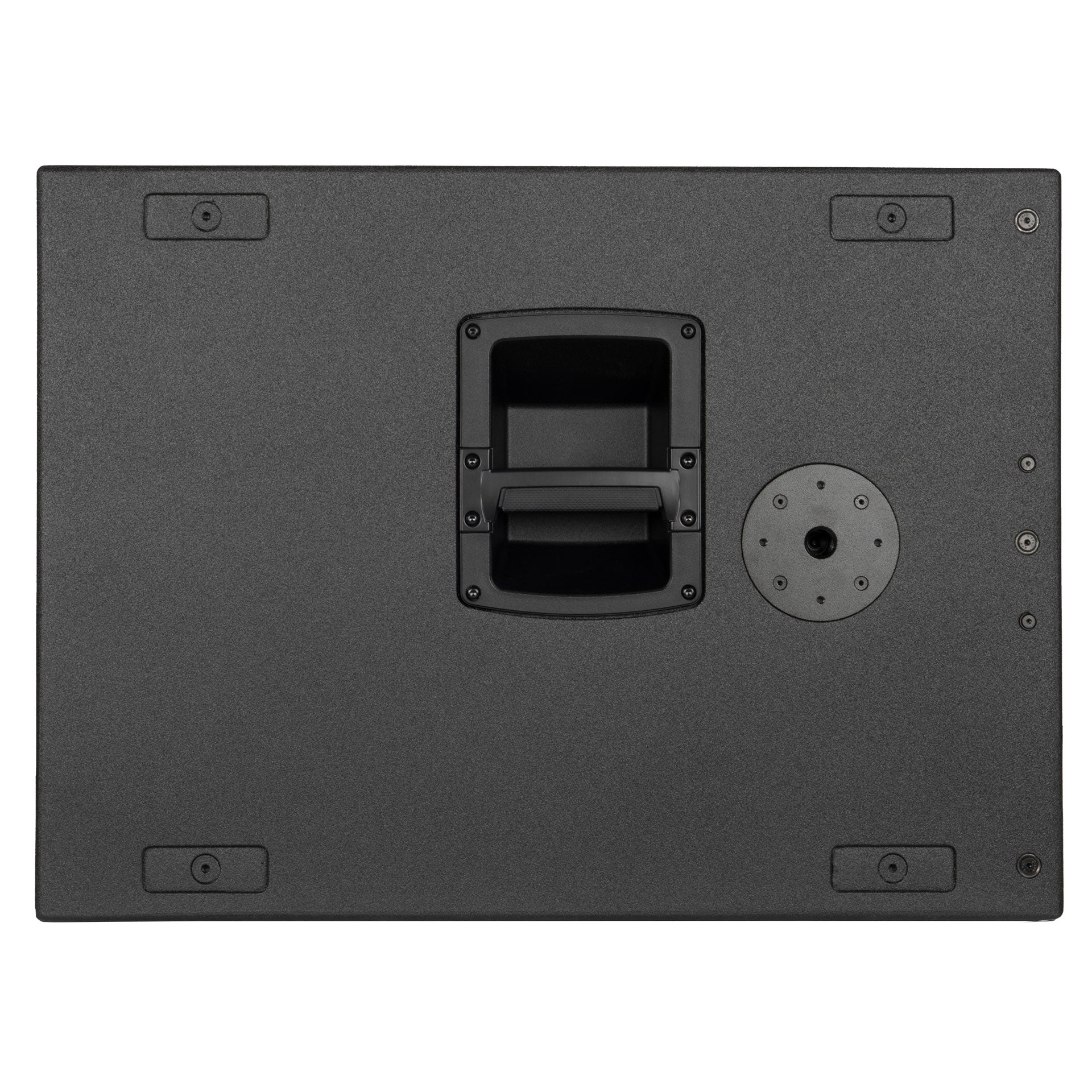

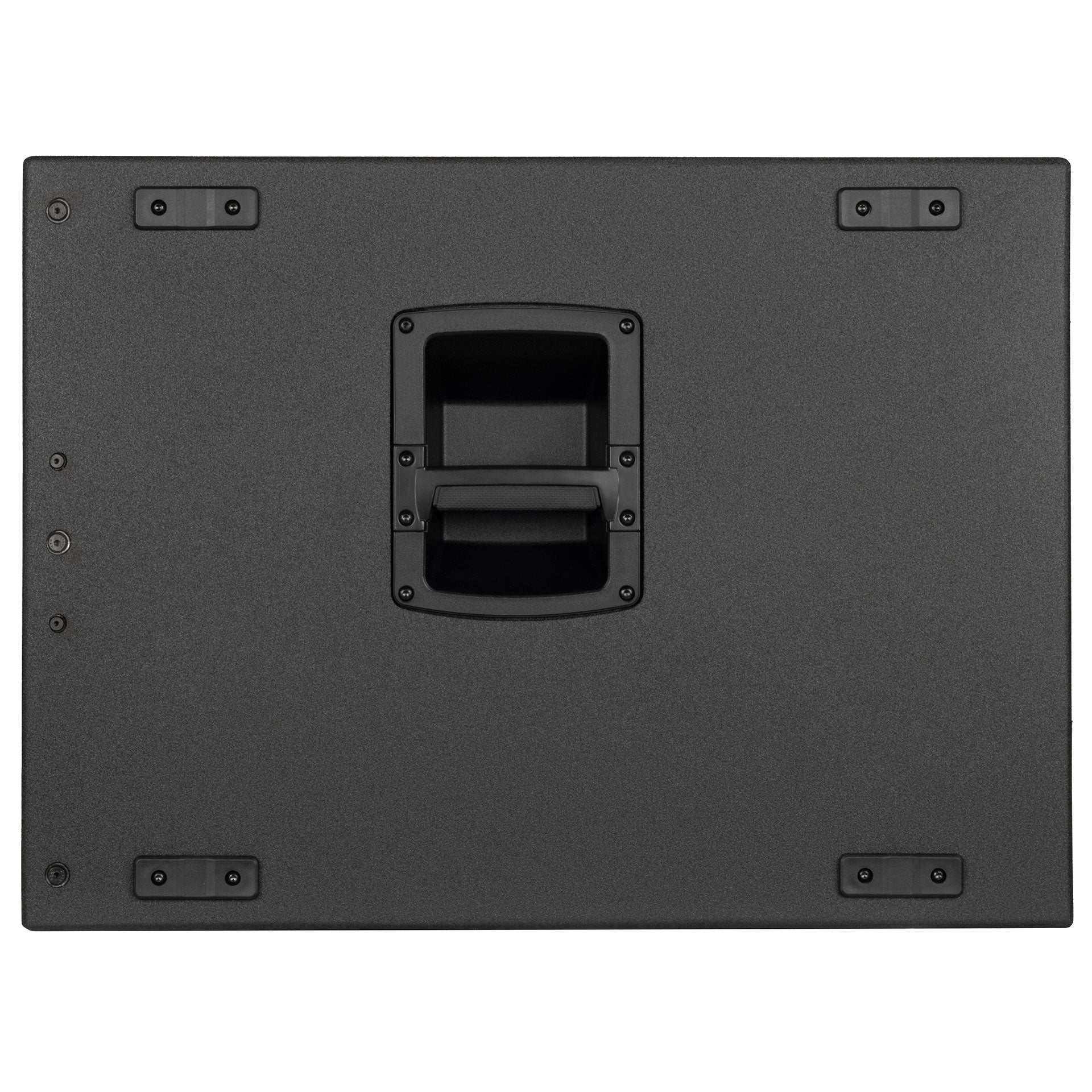

Handles	1 handle per side

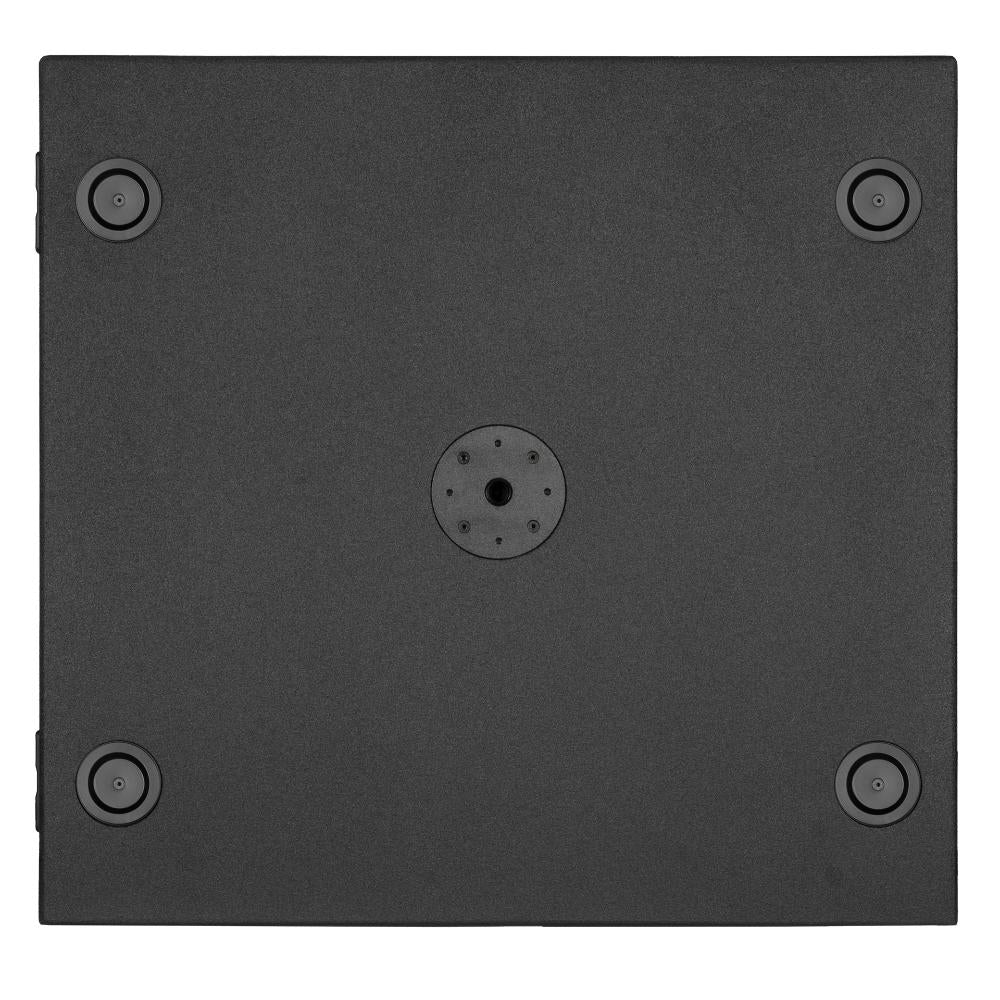

Pole Mount/Cap	M20 thread

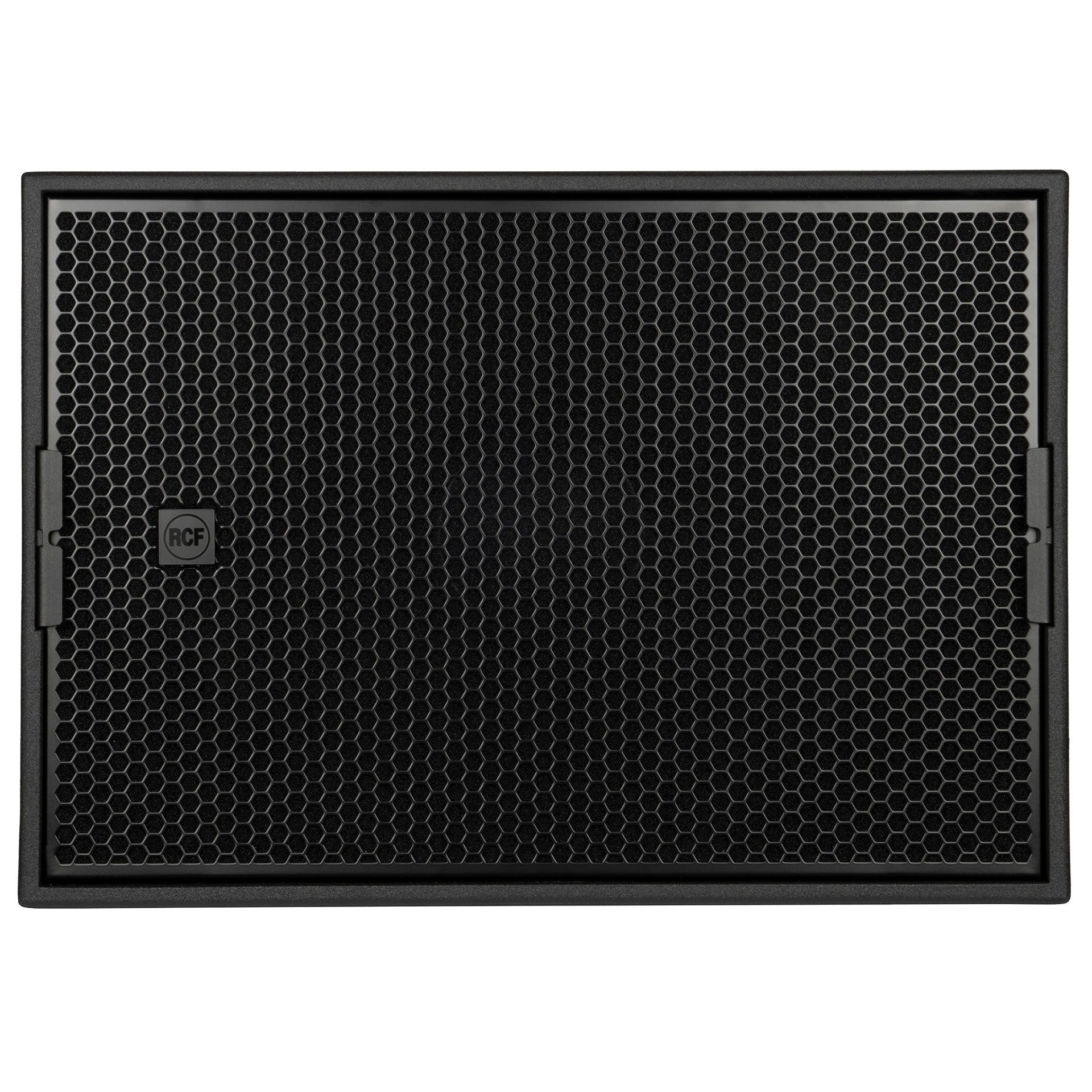

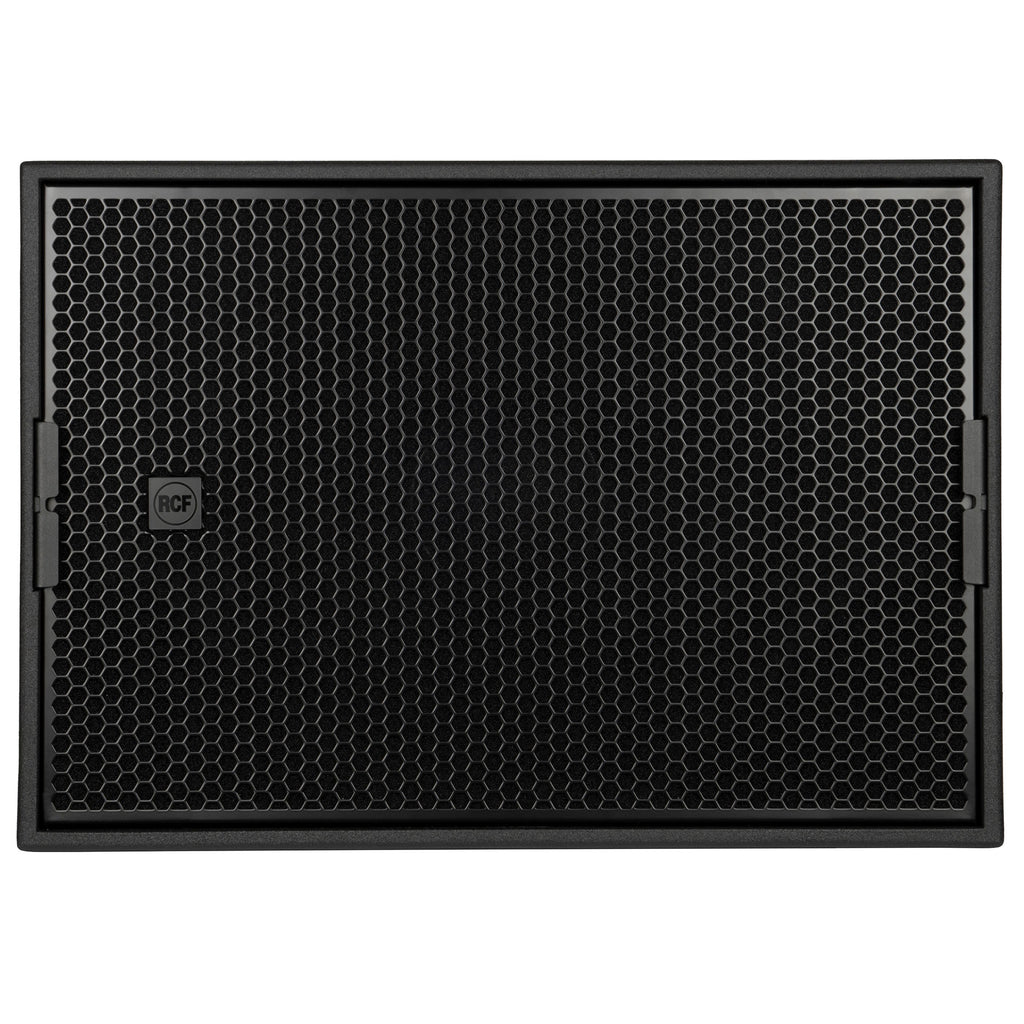

Grille	Steel with clothing
Color	Black
Size / Weight
Height	533 mm / 20.98 inches
Width	755 mm / 29.72 inches
Depth	713 mm / 28.07 inches
Weight	53.4 kg / 117.73 lbs
Shipping Information
Package Height	560 mm / 22.05 inches
Package Width	800 mm / 31.5 inches
Package Depth	750 mm / 29.53 inches
Package Weight	58 kg / 127.87 lbs
