RCF SUB 9006-AS ACTIVE HIGH POWER SUBWOOFER

Features

• 7200 Watt Peak power - 3600 Watt RMS
• 142 dB max SPL
• 30 Hz - 400 Hz frequency response
• 2 x 18" Woofer
• DSP controlled Input section with selectable presets
• RDNet remote control
• Delay control
• Baltic birch cabinet

Specifications

Acoustical Specifications
Frequency Response	30 Hz - 400 Hz
Max SPL @ 1m	142 dB
Woofer	2 x 18" neo, 4.0" v.c

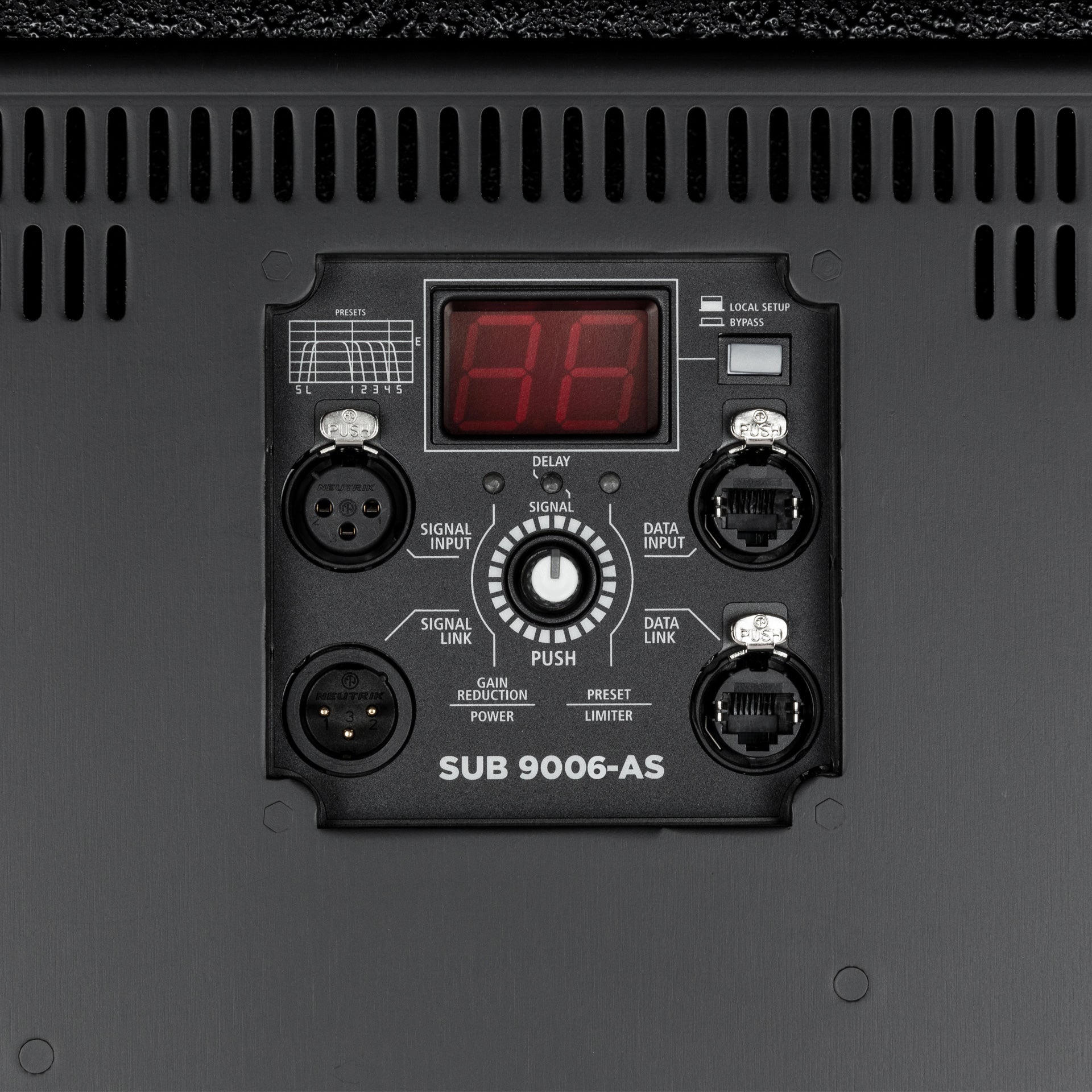

Input/Output Section
Input Signal	Bal/Unbal
Input Connectors	XLR, RDNet EtherCon
Output Connectors	XLR, RDNet EtherCon
Input Sensitivity	+4 dBu
Processor Section
Hi-Pass Frequencies	30 Hz, 40 Hz
Low-Pass Frequencies	Variable from 50 Hz to 400 Hz
Protections	Thermal, RMS
Limiter	Fast Limiter

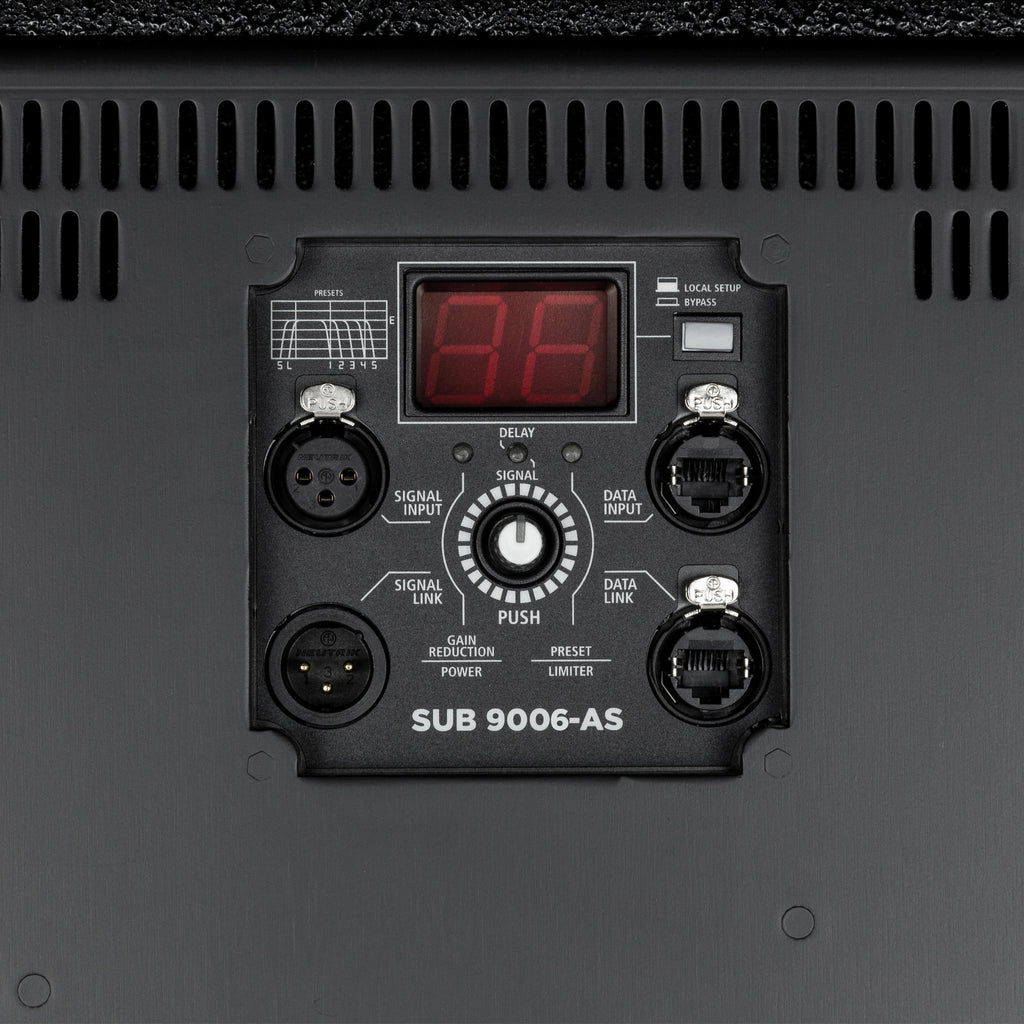

Controls	Gain, EQ, Preset, Phase switch, Output Delay Settings
RDNet	Onboard
Power Section
Total Power	7200 W Peak, 3600 W RMS
Low Frequencies	7200 W Peak, 3600 W RMS
Cooling	Convection/Forced

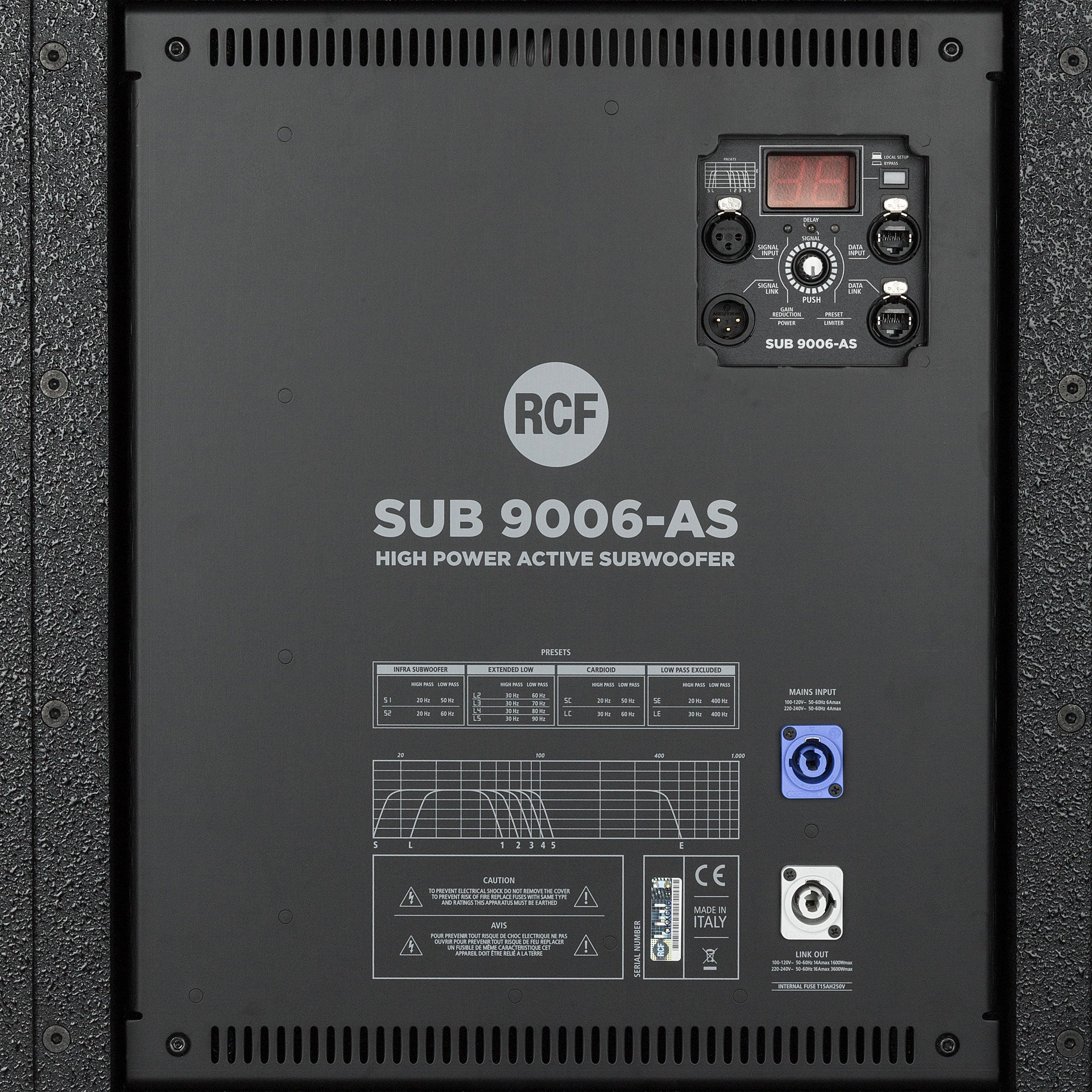

Connections	PowerCon IN/OUT
Standard Compliance
Safety Agency	CE Compliant
Physical Specifications
Cabinet/Case Material	Baltic Birch Plywood
Hardware	2 x M20

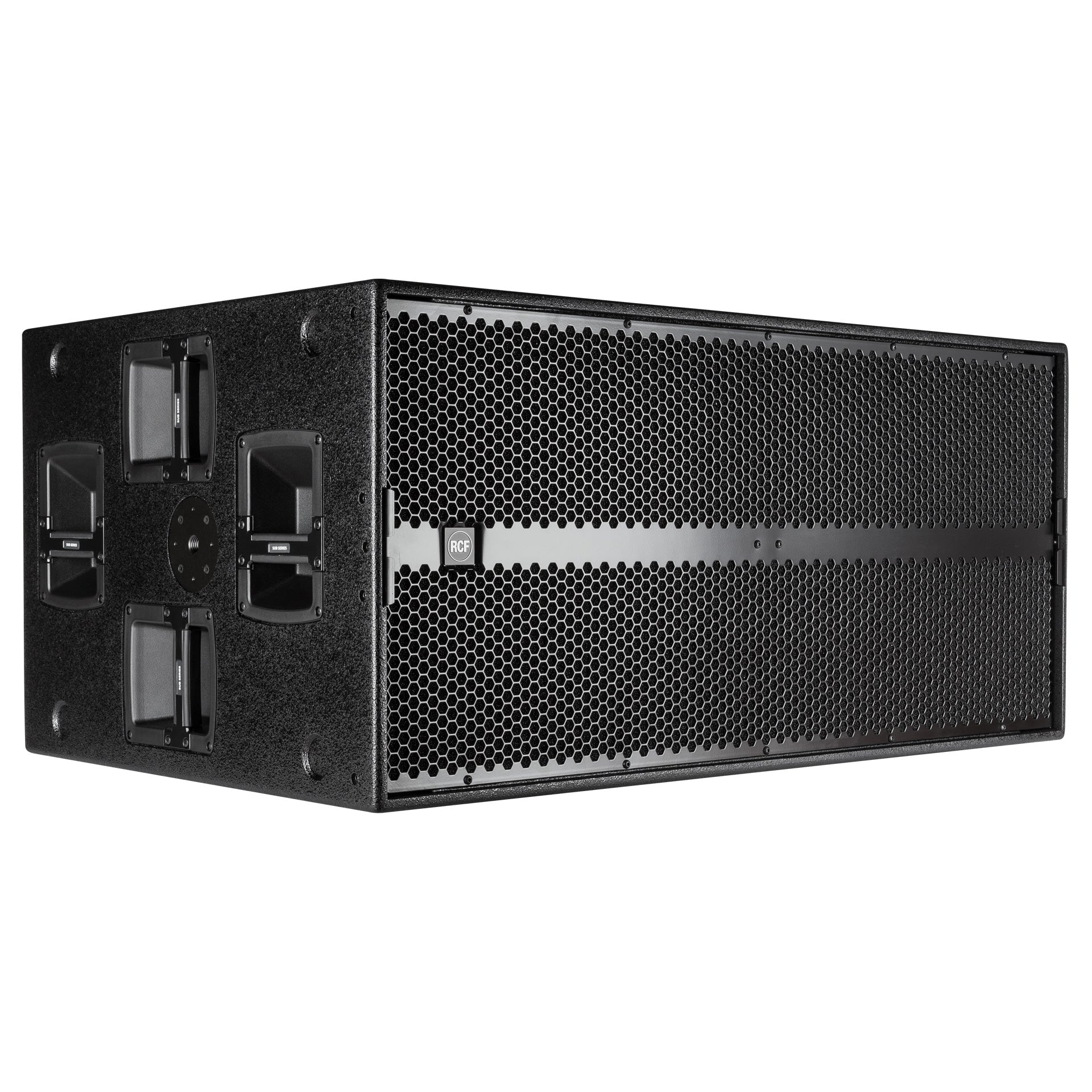

Handles	8 side

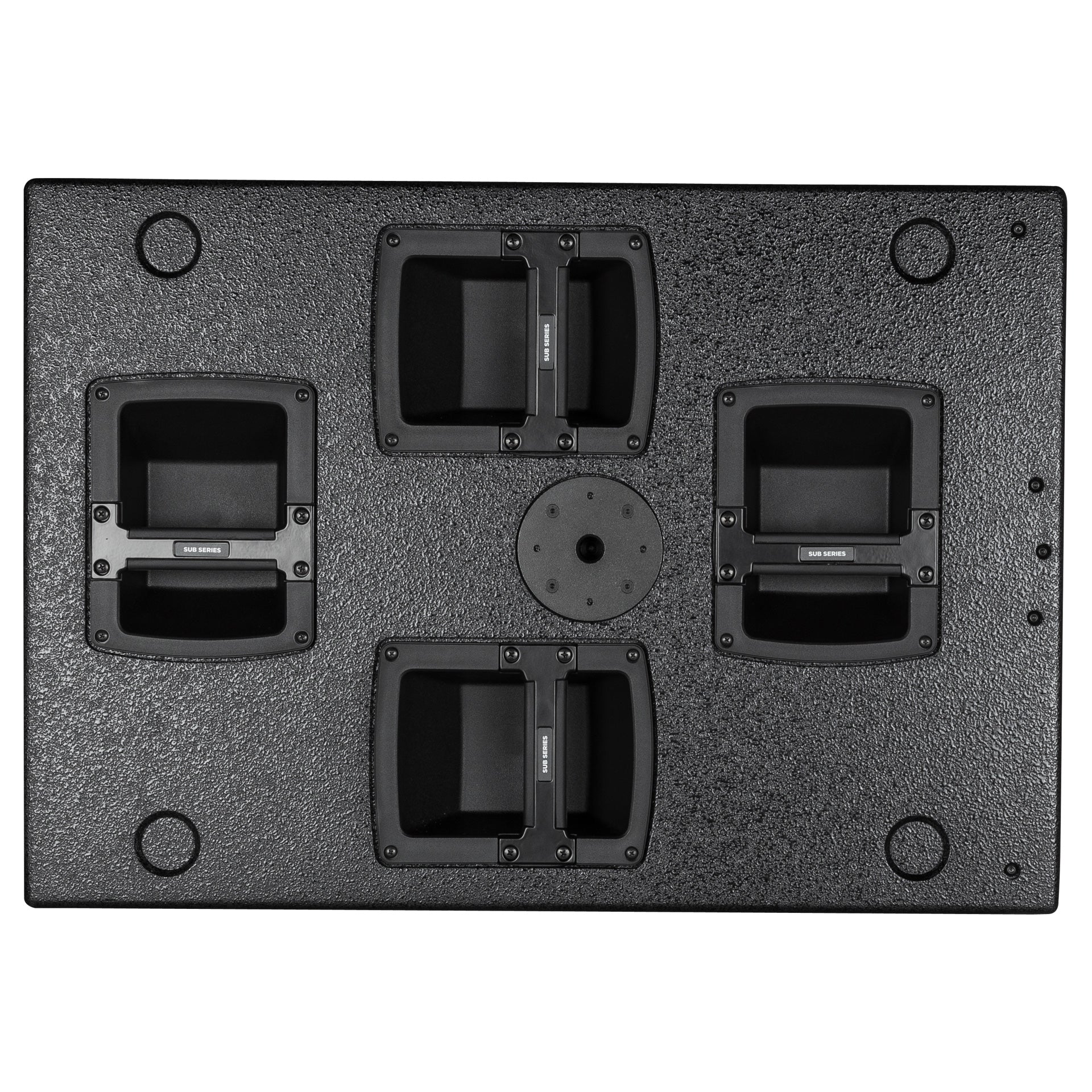

Pole Mount/Cap	M20 thread

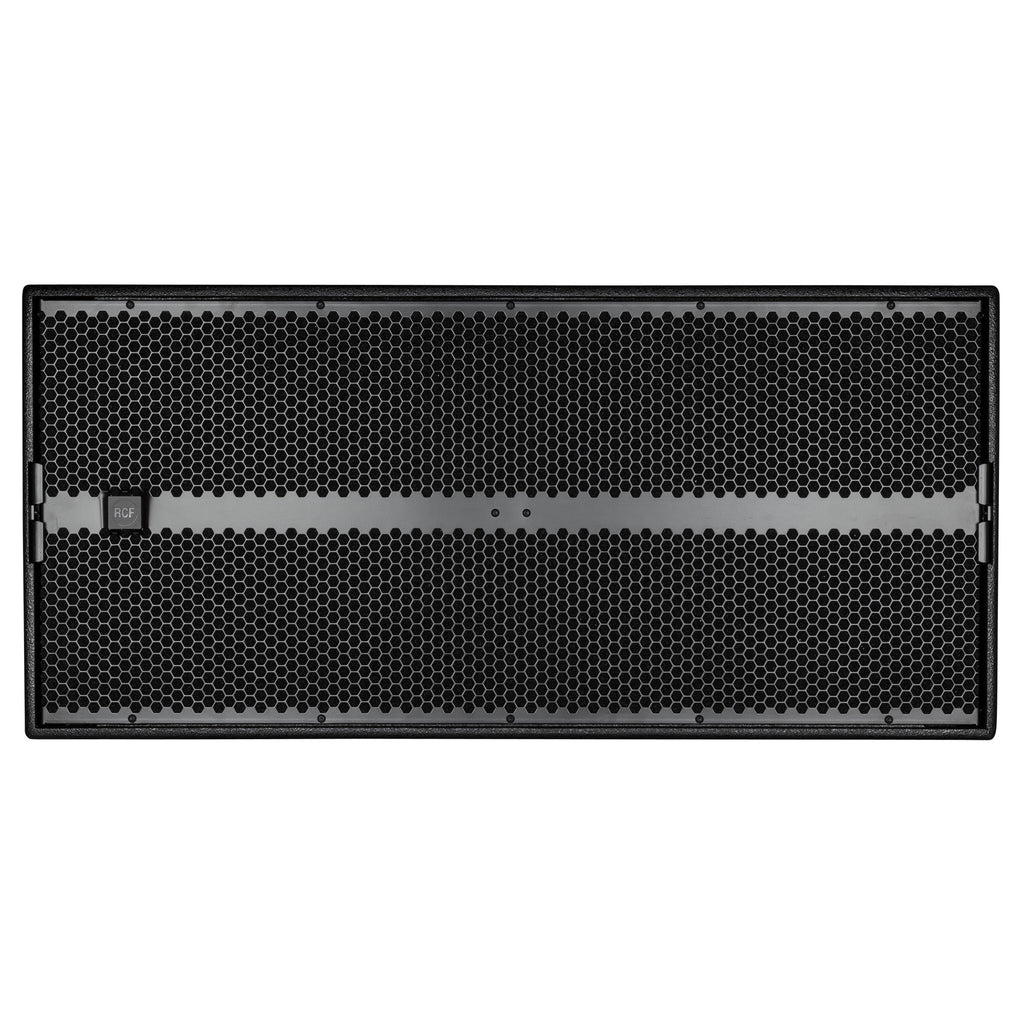

Grille	Steel
Color	Black
Size / Weight
Height	558 mm / 21.97 inches
Width	1188 mm / 46.77 inches
Depth	785 mm / 30.91 inches
Weight	86 kg / 189.6 lbs
Shipping Information
Package Height	600 mm / 23.62 inches
Package Width	835 mm / 32.87 inches
Package Depth	1230 mm / 48.43 inches
Package Weight	92 kg / 202.83 lbs
