Features
- Up to 137 dB Sound Pressure Level
- 4400W Class-D Bi-Amplification
- 30-120 Hz linear frequency response
- 2 x 18" High Power Woofers
- IP Rated Powercon TRUE1 TOP IN/OUT
- 8 Crossover Presets and 4 Cardioid Presets

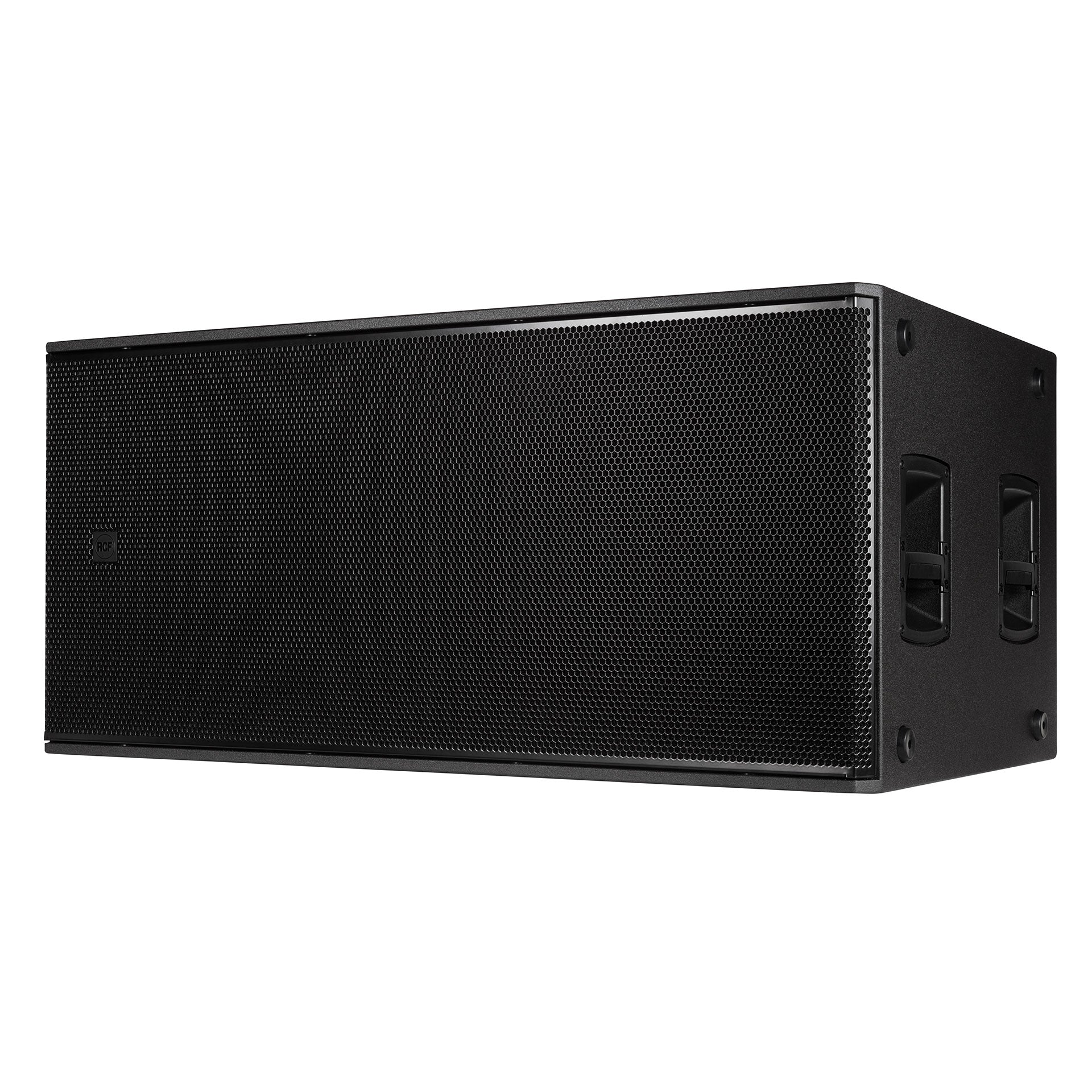

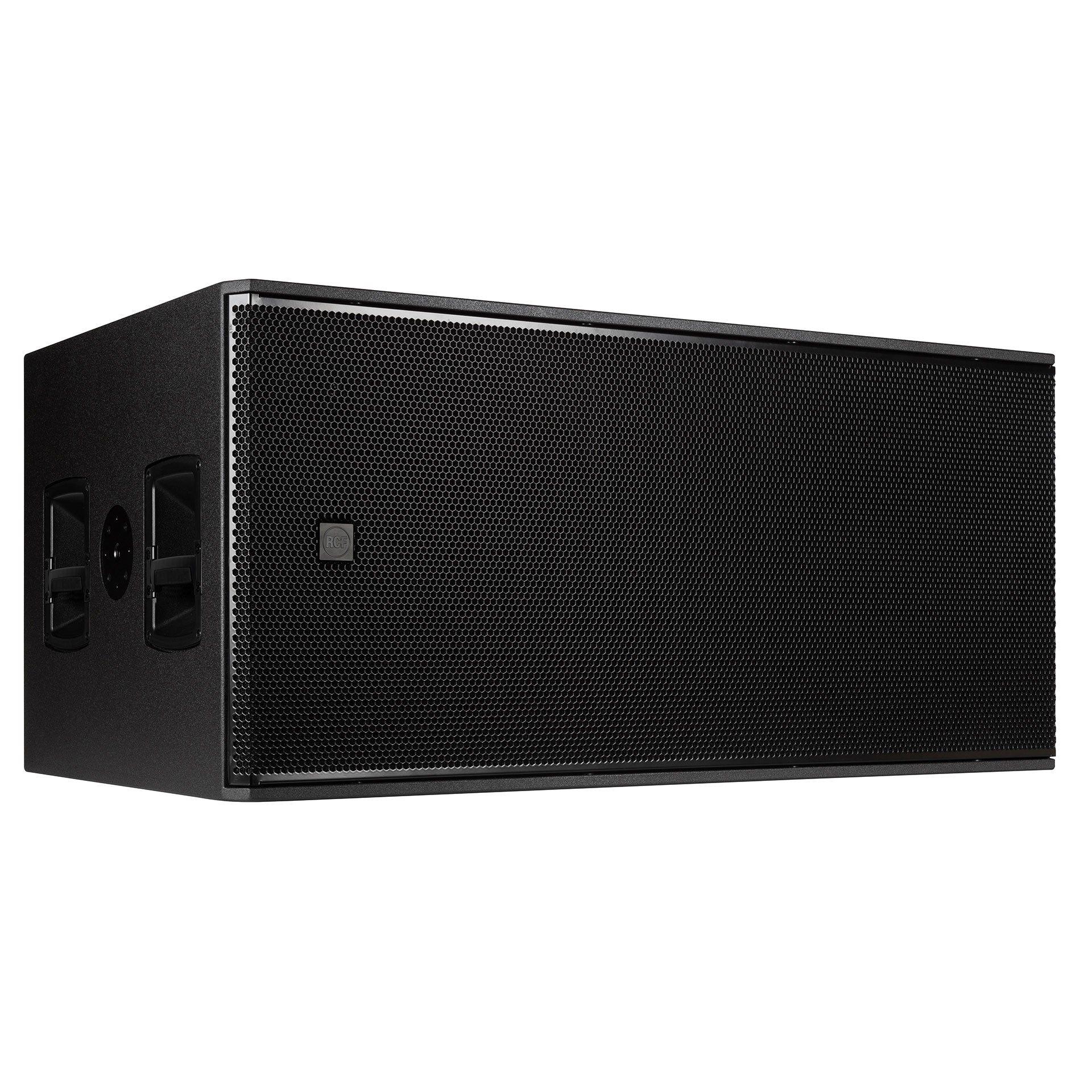

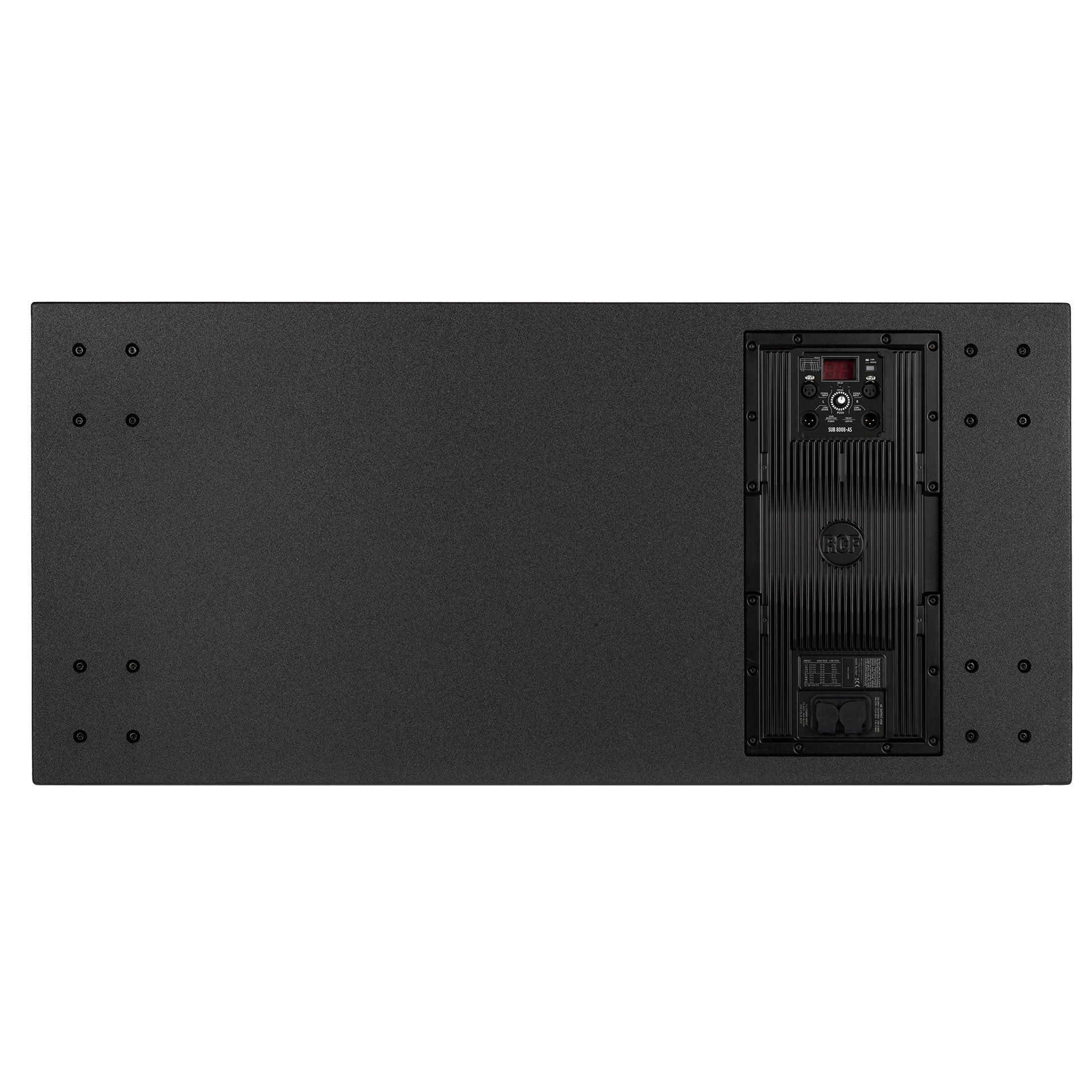

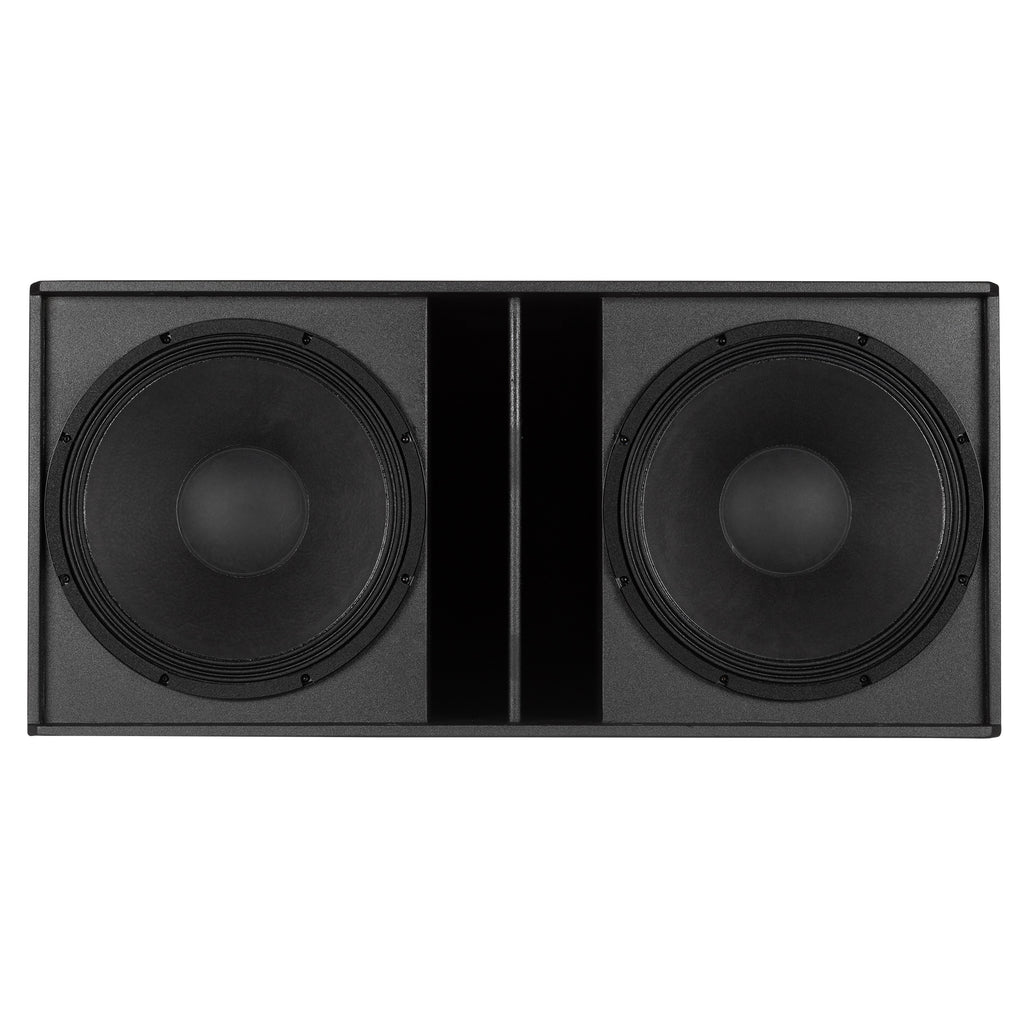

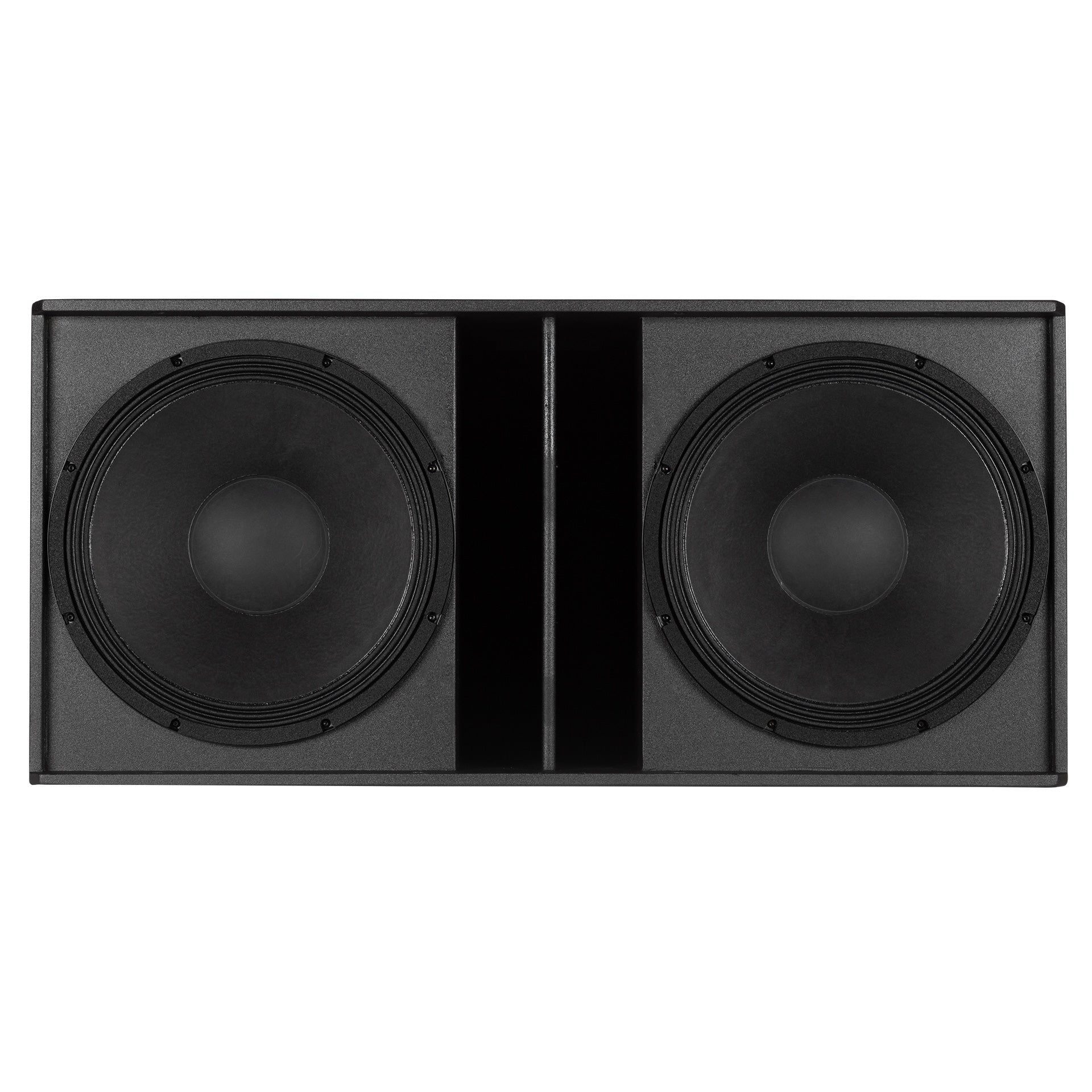

The SUB 8008-AS is a double 18” high power active subwoofer for live bands, DJs, Clubs, and Rental Companies. It employs a state-of-the-art transducer featuring a high-power ceramic magnetic circuit with a 4” voice coil. The power amplifier manages extreme currents up to 4400W delivering sound pressure levels up to 137 dB with exceptional headroom. The ultra-fast attack with accurate power handling is managed with high efficiency, producing a very low heat loss for silent and fan-less cooling. Built specifically for demanding live sound applications with deep, powerful bass response. Rear panel controls include 12 presets, crossover frequency, polarity switch, Deep/Punch selection, cardioid, and output delay settings. The tour-ready, rugged all-wood cabinet with scratch-resistant polyurea coating is easy to carry and secure for installation. With its rugged construction, sound quality, and high power, SUB 8008-AS is perfect in mid to big-sized venues and touring applications.
Specifications
| Acoustical Specifications |
| Frequency Response |
30 Hz - 120 Hz |
| Max SPL @ 1m |
137 dB |
| Transducers |
| Woofer |
2 x 18", 4.0" v.c. |
| Input/Output Section |
| Input Signal |
Bal/Unbal |
| Input Connectors |
XLR |
| Output Connectors |
XLR |
| Input Sensitivity |
-2 dBu/+4 dBu |
| Processor Section |
| Crossover Frequencies |
Selectable |
| Protections |
Thermal, Excurs., RMS |
| Limiter |
Soft Limiter |
| Controls |
Xover, Phase Switch, Deep/Punch, Output Delay Setting |
| Power Section |
| Total Power |
4400 W Peak |
| Low Frequencies |
4400 W Peak |
| Cooling |
Convection/Forced |
| Connections |
Powercon TRUE1 TOP IN/OUT |
| Standard Compliance |
| Safety Agency |
CE Compliant |
| Physical Specifications |
| Cabinet/Case Material |
Plywood |
| Hardware |
2 x M20 |
| Handles |
2 x Side |

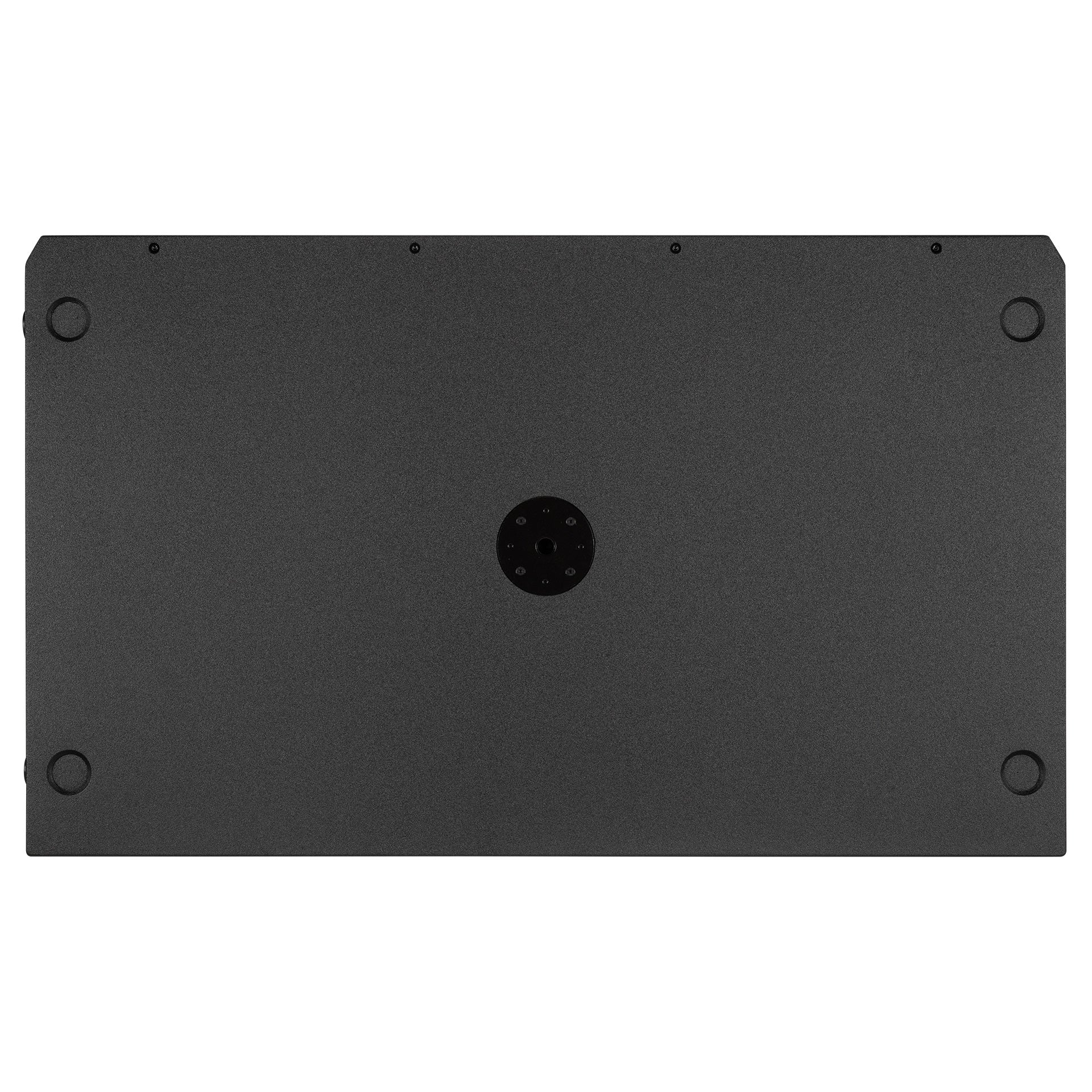

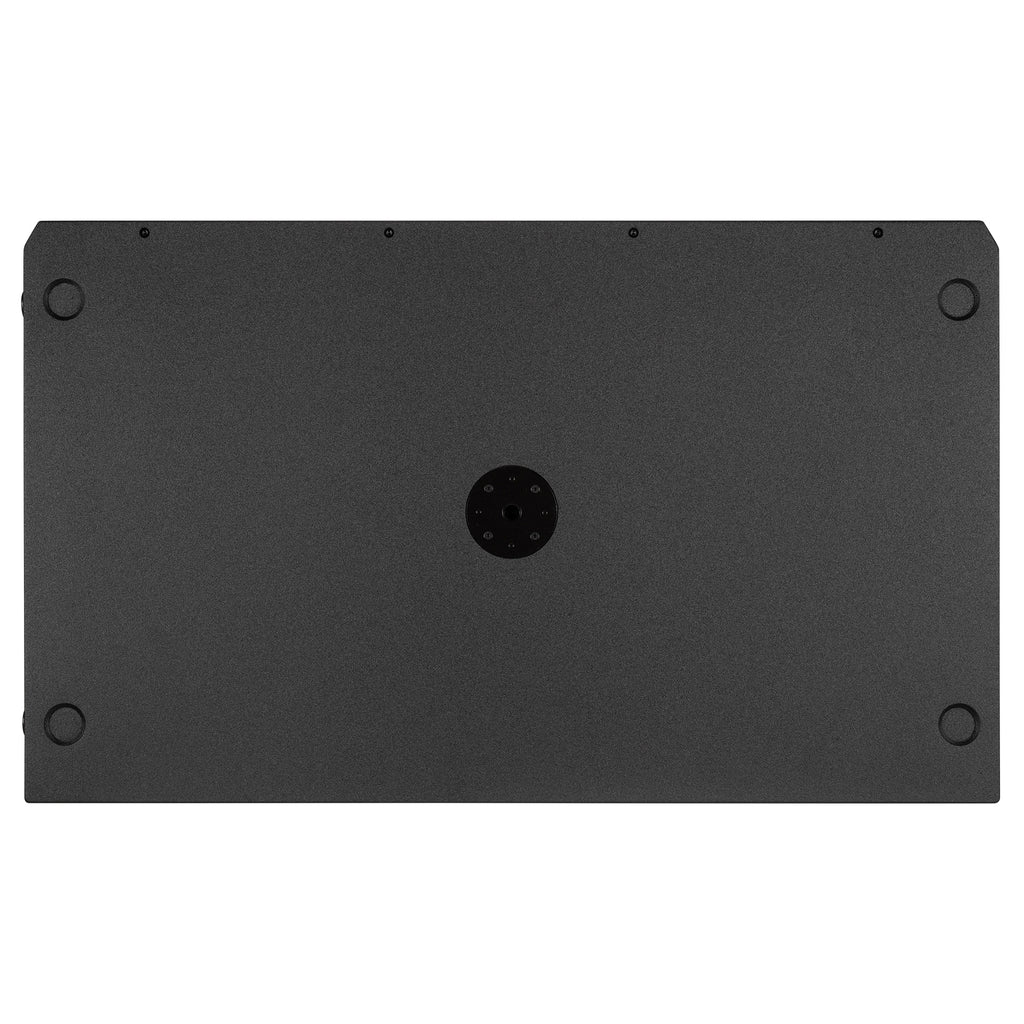

| Pole Mount/Cap |
M20 Thread |
| Grille |
Steel |
| Color |
Black |
| Size / Weight |
| Height |
550 mm / 21.65 inches |
| Width |
1180 mm / 46.46 inches |
| Depth |
700 mm / 27.56 inches |
| Weight |
80 kg / 176.37 lbs |
| Shipping Information |
| Package Height |
600 mm / 23.62 inches |
| Package Width |
1370 mm / 53.94 inches |
| Package Depth |
900 mm / 35.43 inches |
| Package Weight |
86 kg / 189.6 lbs |
