| Acoustical Specifications |
| Frequency Response |
45 Hz - 20000 Hz |
| Max SPL @ 1m |
132 dB |
| Horizontal Coverage Angle |
100° |
| Vertical Coverage Angle |
70° |

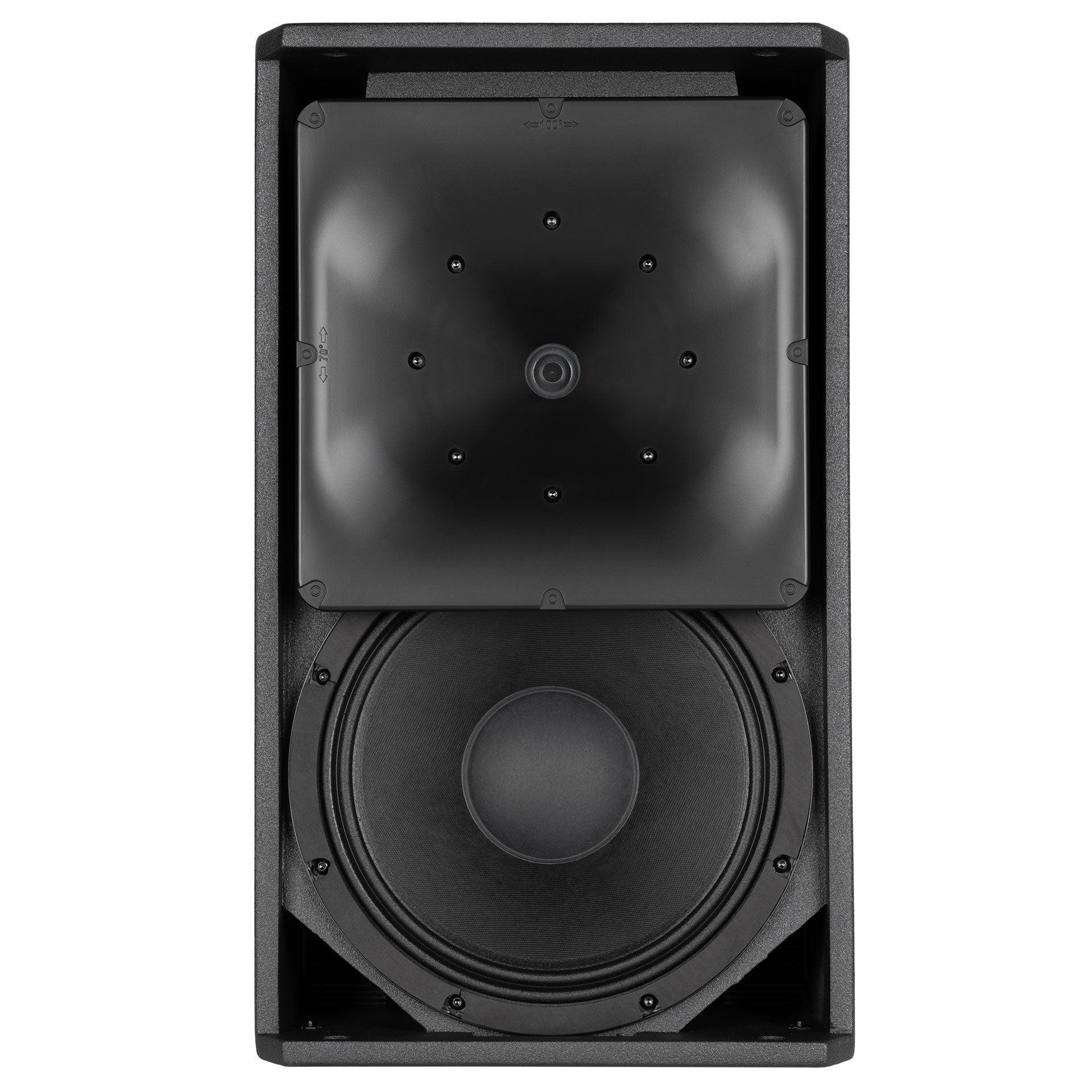

| Transducers |
Compression Driver 1 x 1.4'' neo, 3.0'' v.c |
| Woofer |
1 x 12'', 2.5'' v.c |

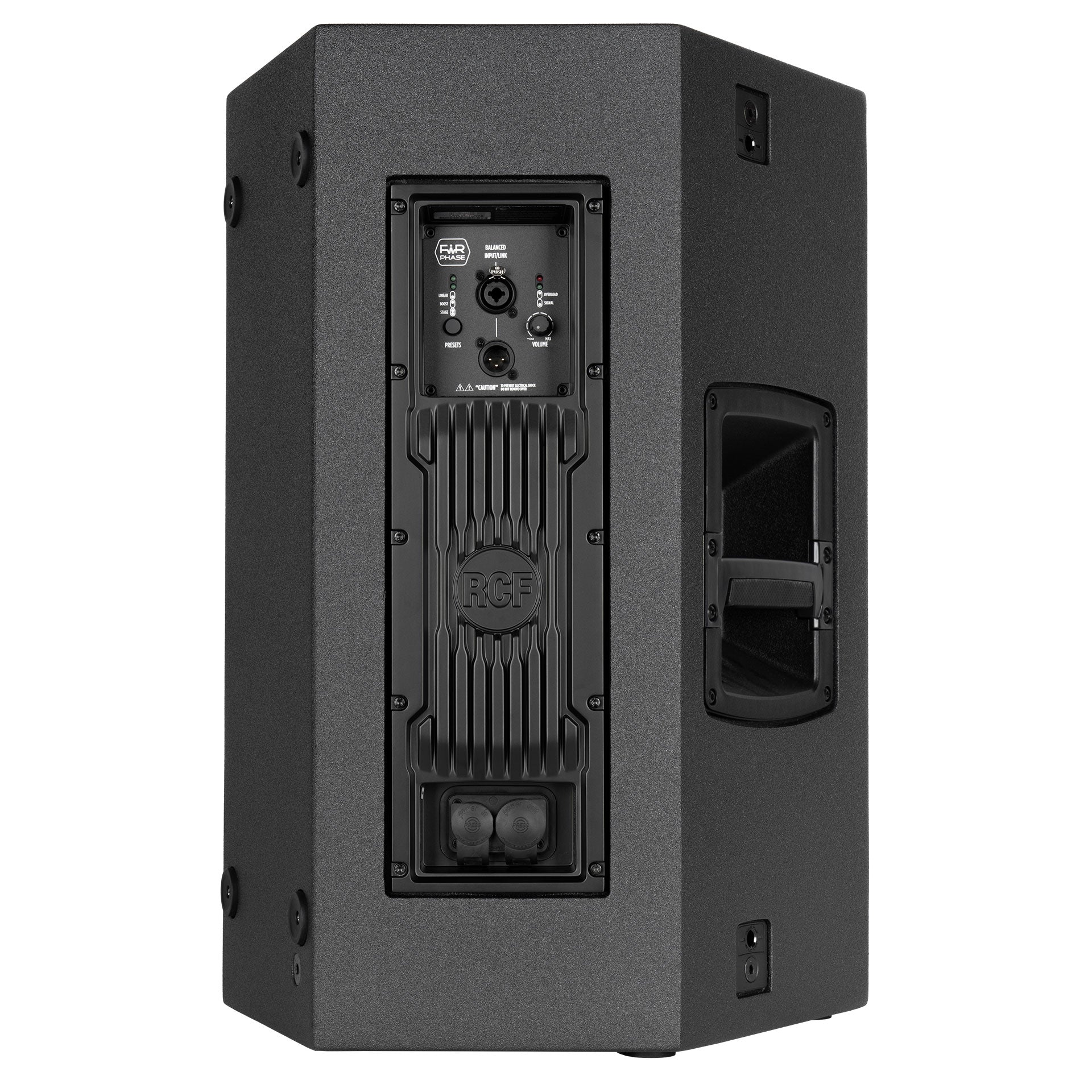

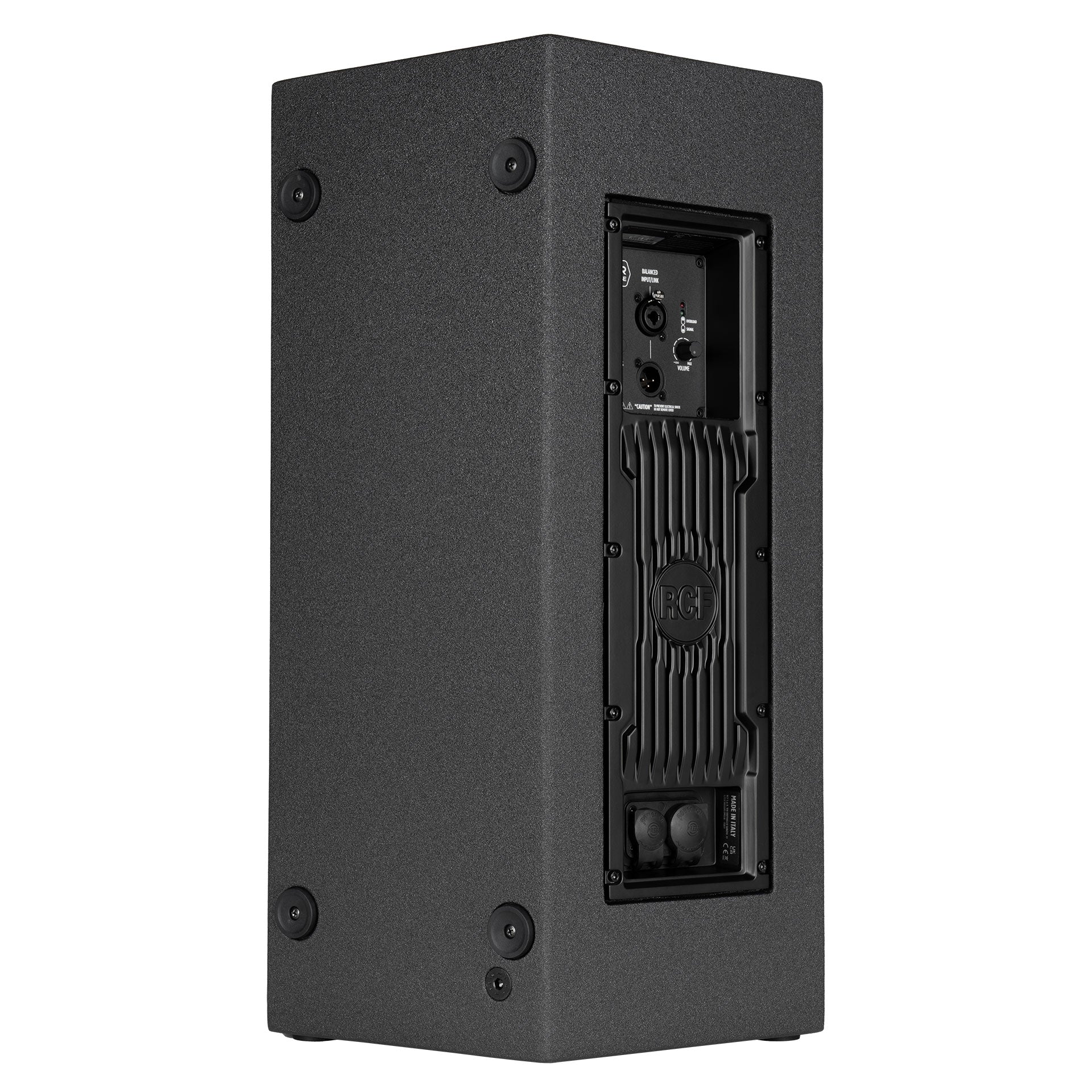

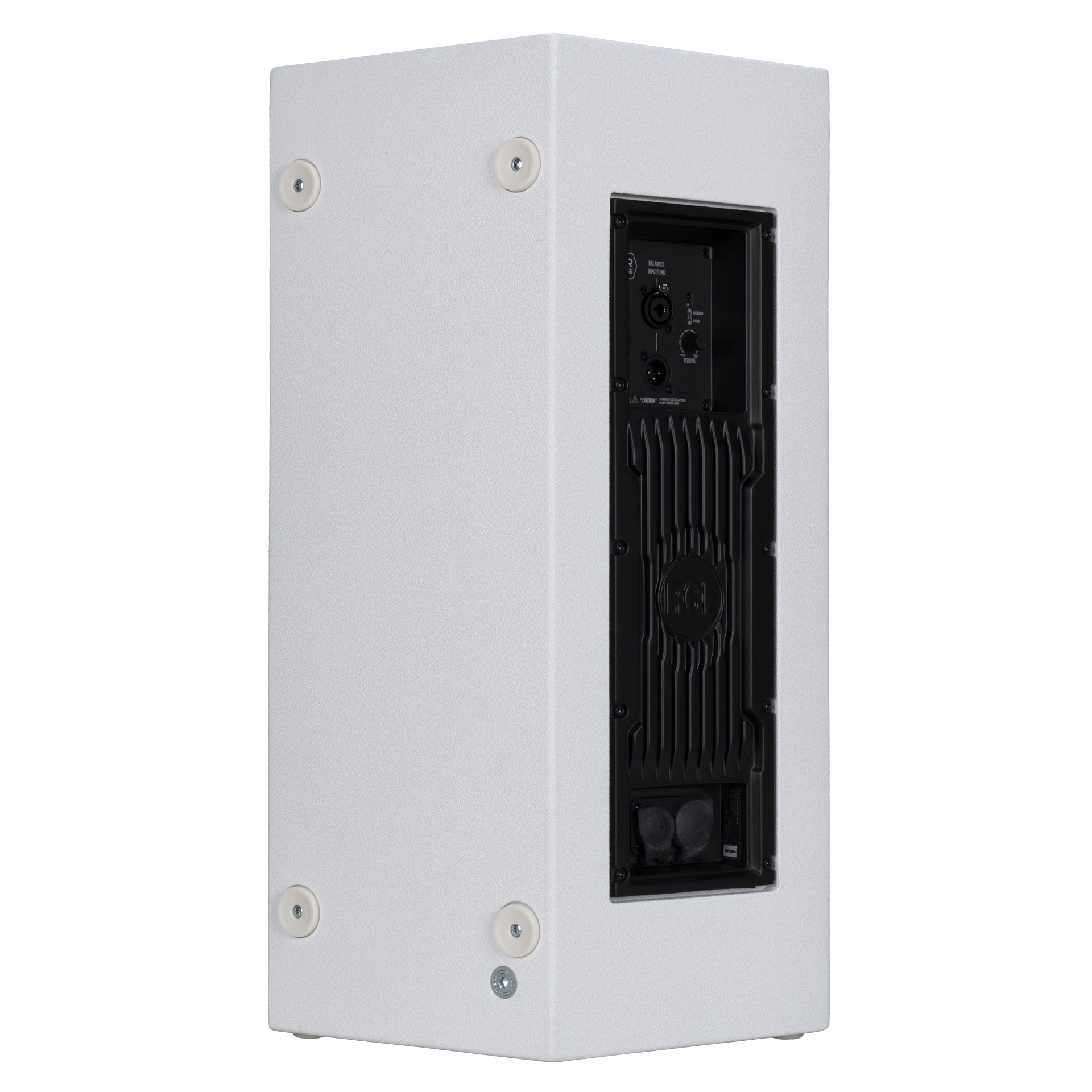

| Input/Output Section |
| Input Signal |
Bal/Unbal |
| Input Connectors |
Combo XLR/Jack |
| Output Connectors |
XLR |
| Input Sensitivity |
-2 dBu/+4 dBu |
| Processor Section |
| Crossover Frequencies |
700 Hz |
| Protections |
Thermal, RMS |
| Limiter |
Soft Limiter |
| Controls |
Linear, Boost, Stage, Volume |
| Power Section |
| Total Power |
2100 W Peak |
| High Frequencies |
700 W Peak |
| Low Frequencies |
1400 W Peak |
| Cooling |
Convection |
| Connections |
Powercon TRUE1 TOP IN/OUT |
| Standard Compliance |
| Safety Agency |
CE Compliant |
| Physical Specifications |
| Cabinet/Case Material |
Plywood |

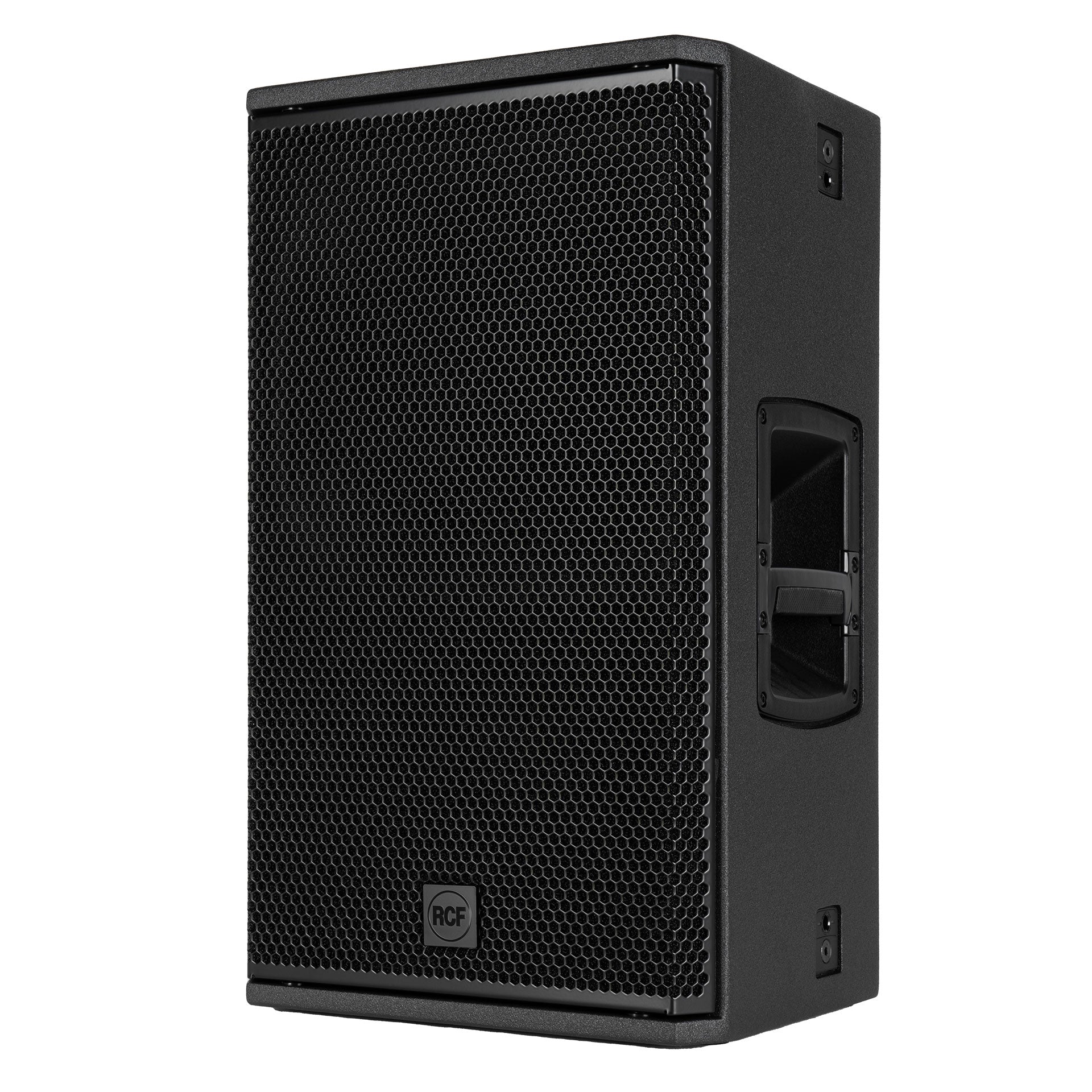

| Hardware |
2 x M10 Top, 1 x M10 each side, 1 x M10 bottom, 1 x M10 rear, 2 each side quick lock pin seat |

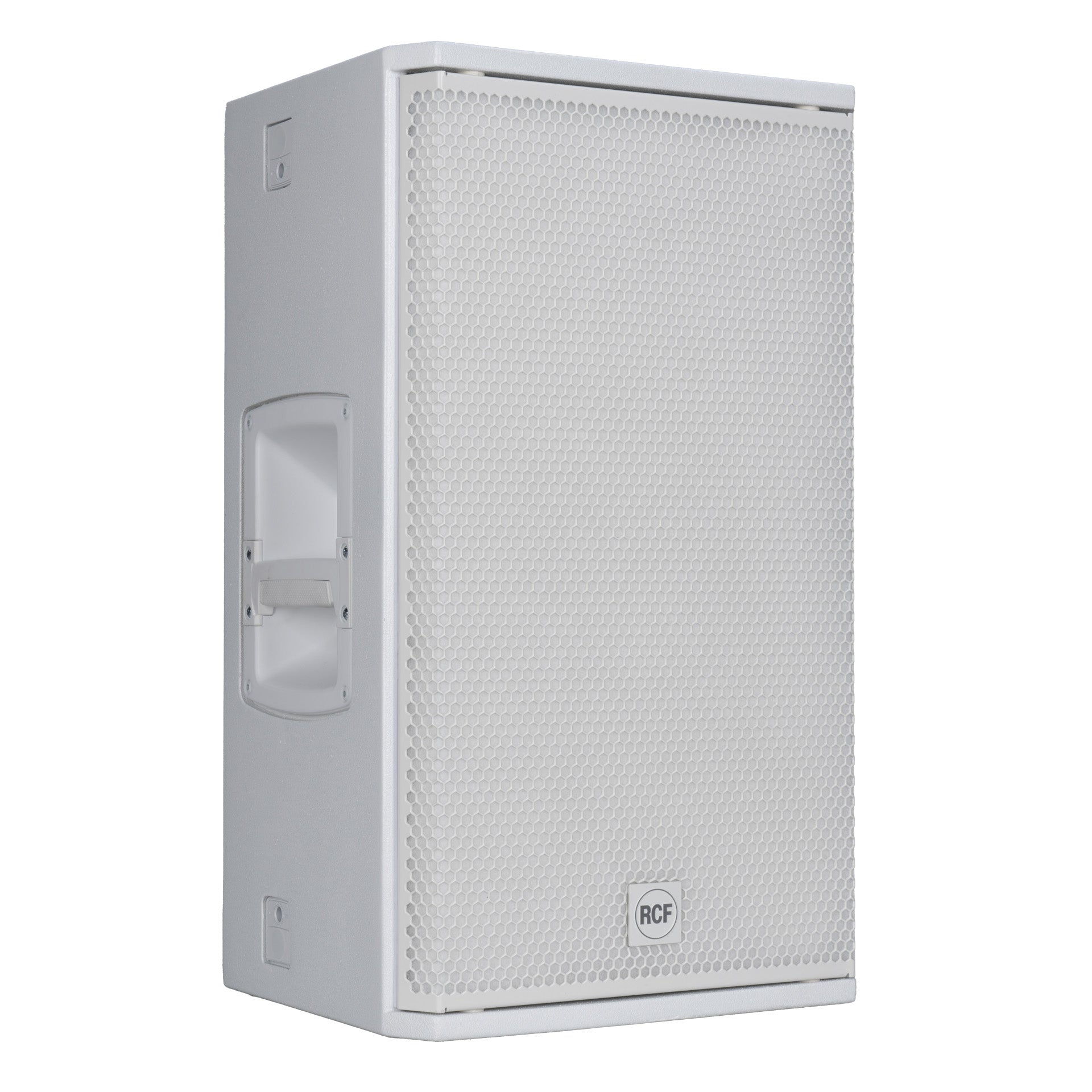

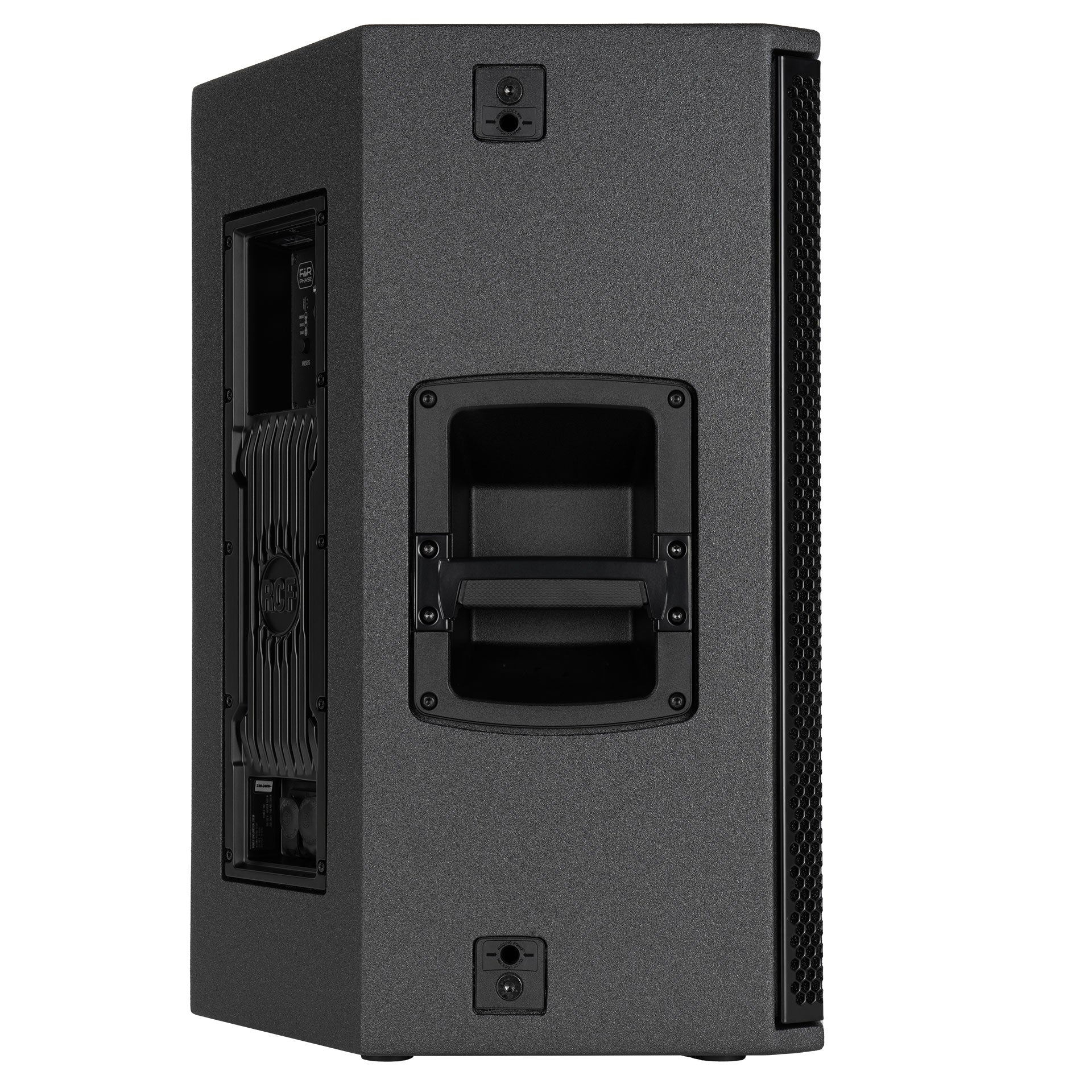

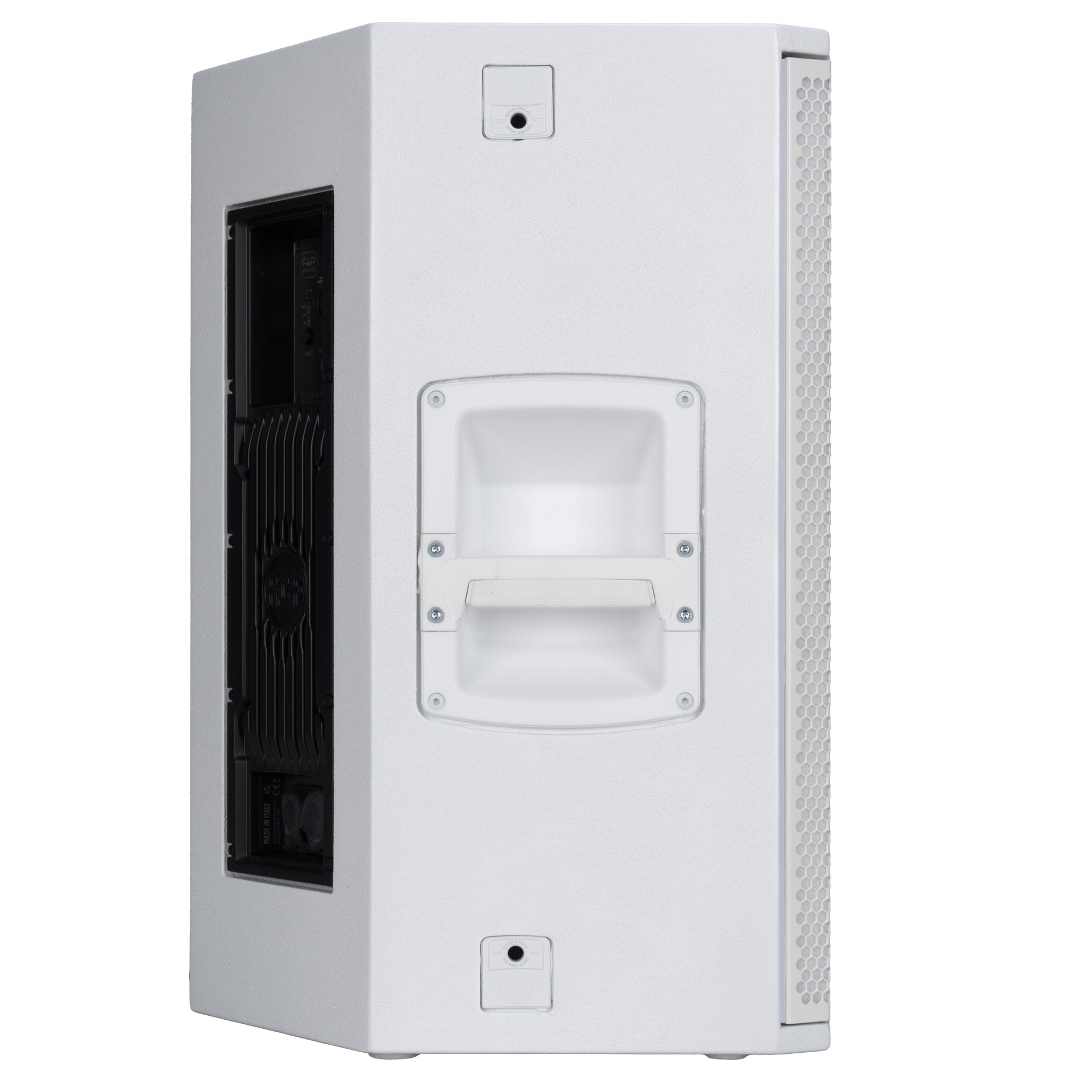

| Handles |
1 x Side |

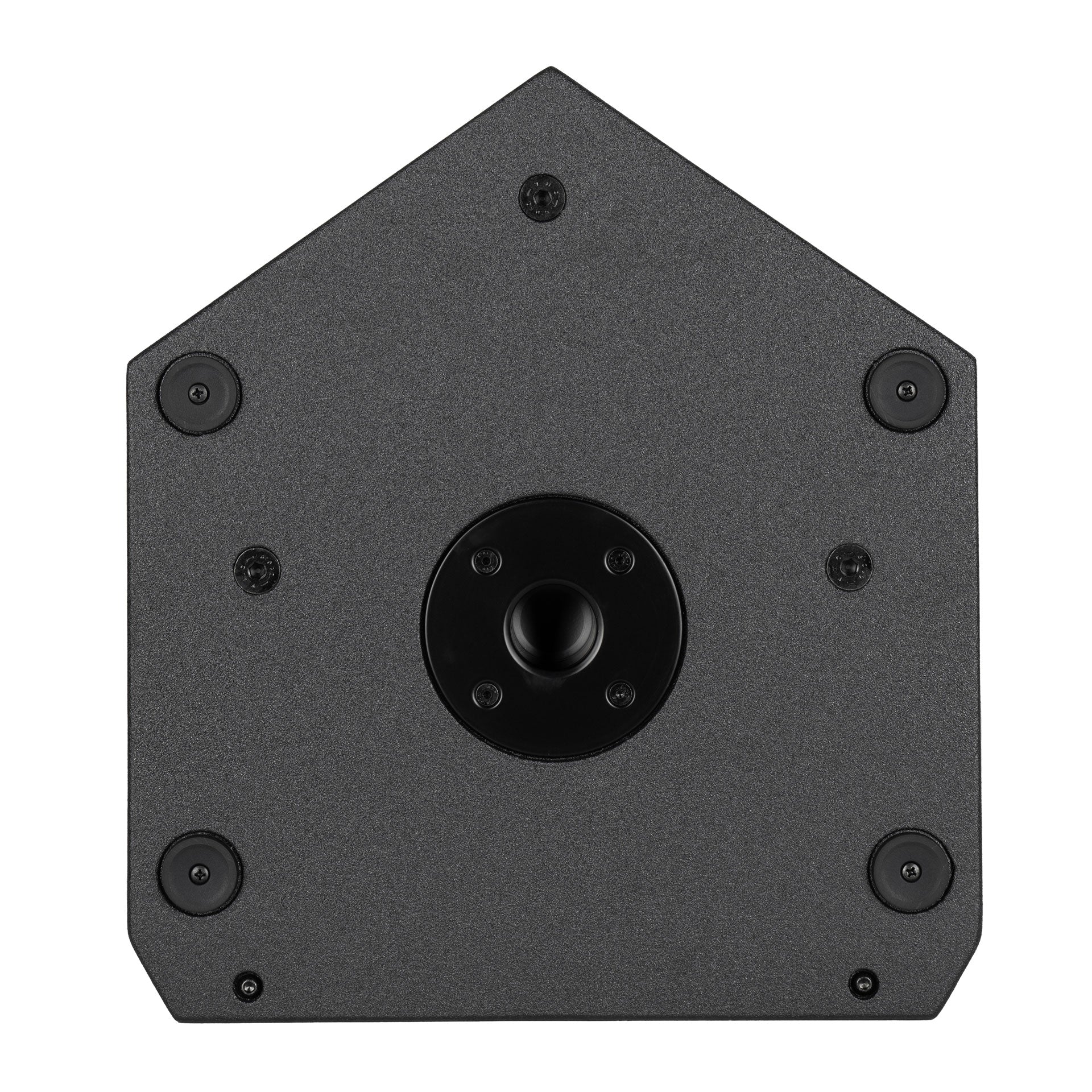

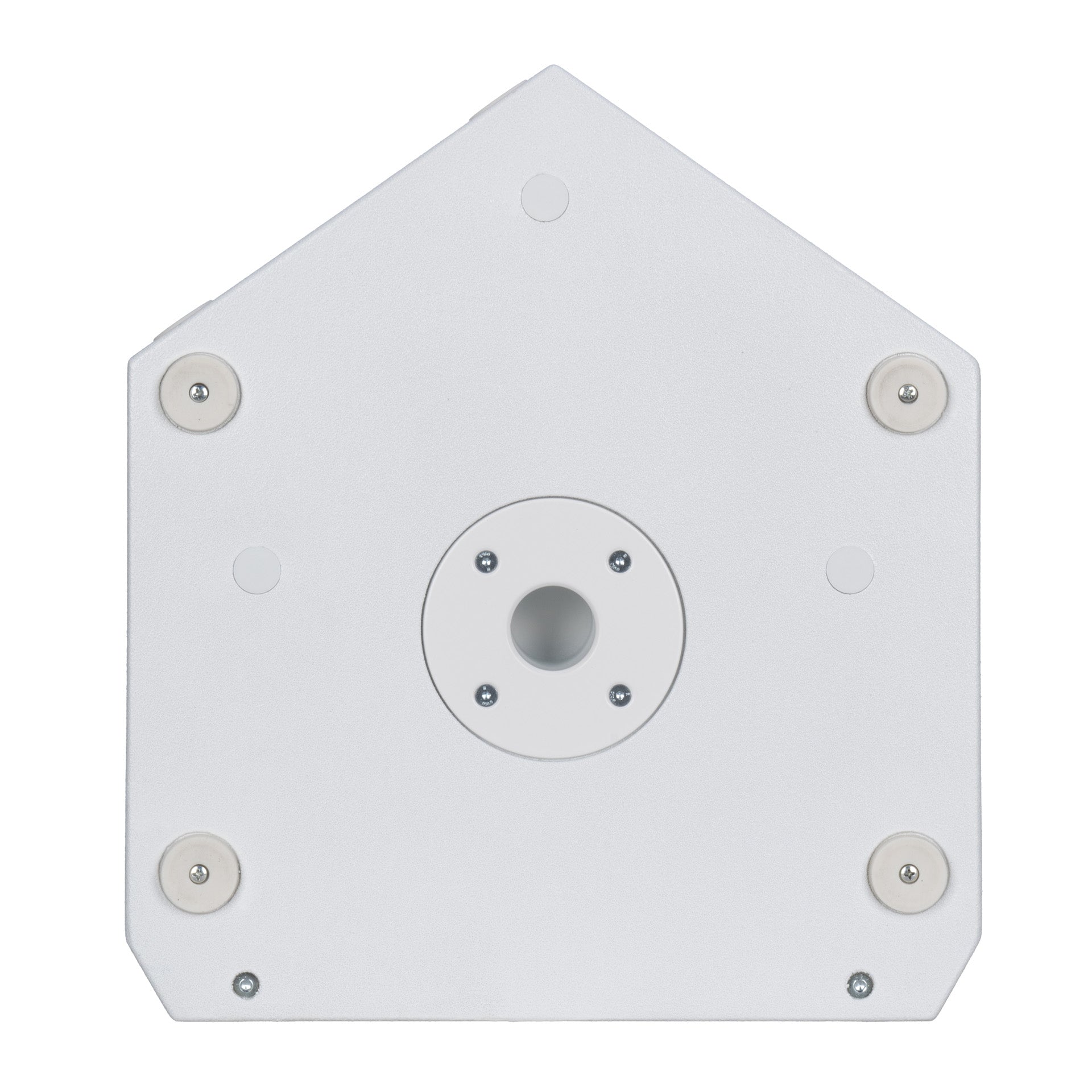

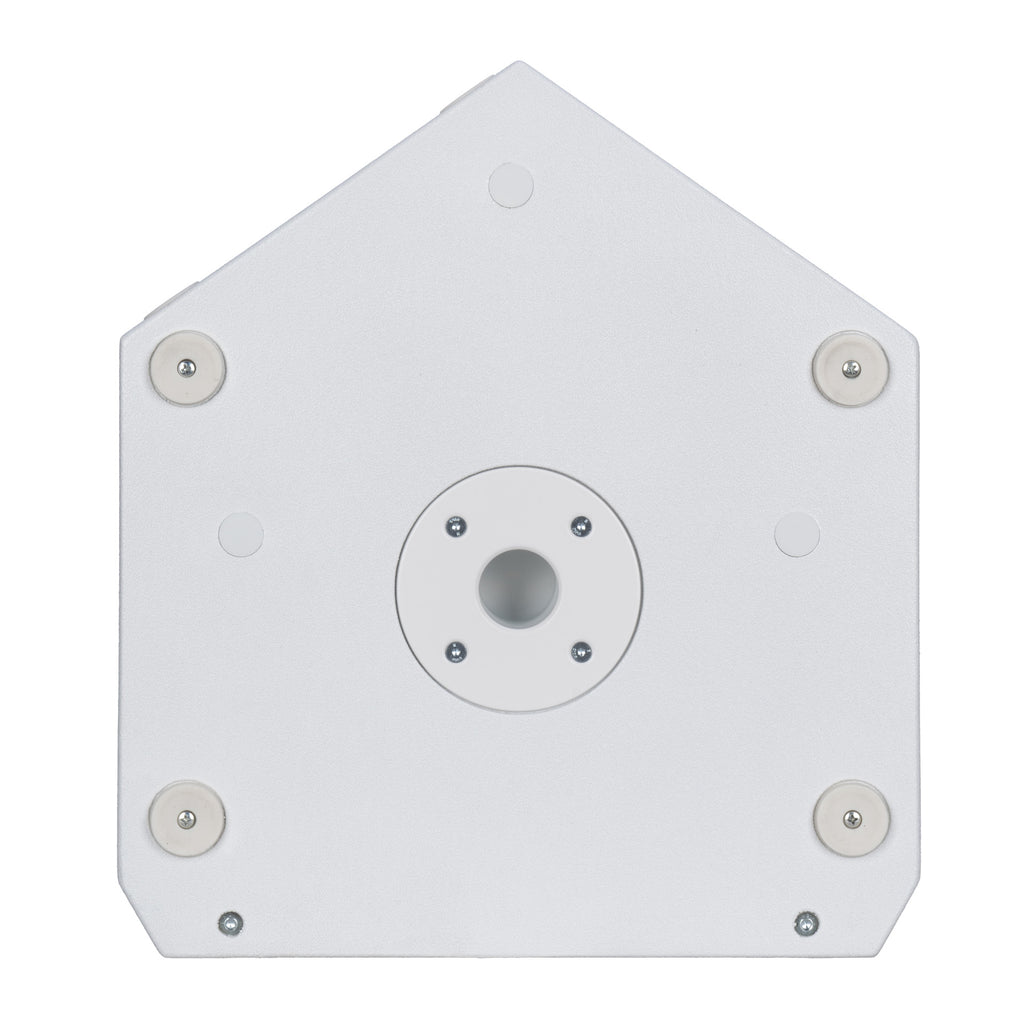

| Pole Mount/Cap |
35 mm insert |

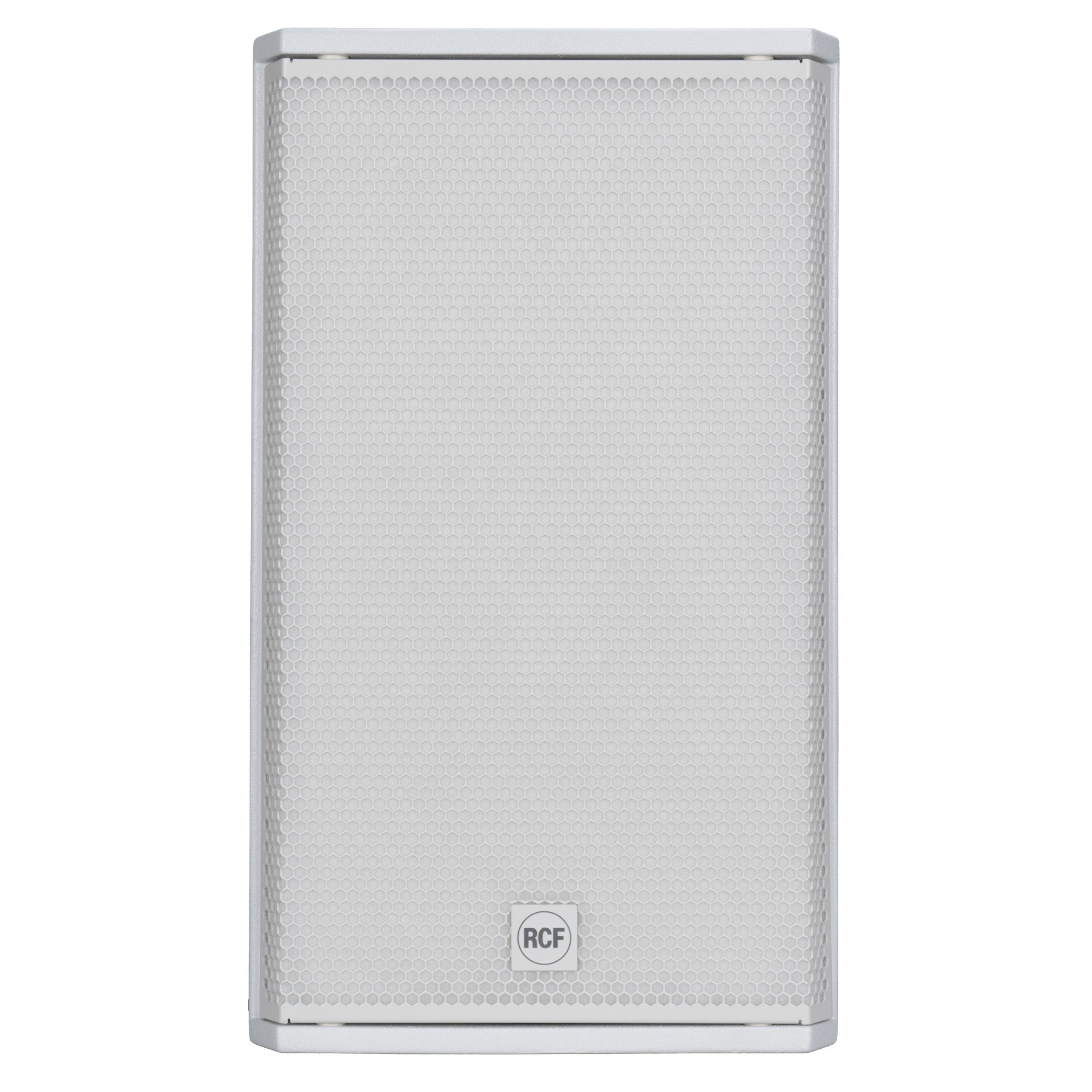

| Grille |
Steel |
| Color |
Black, White |

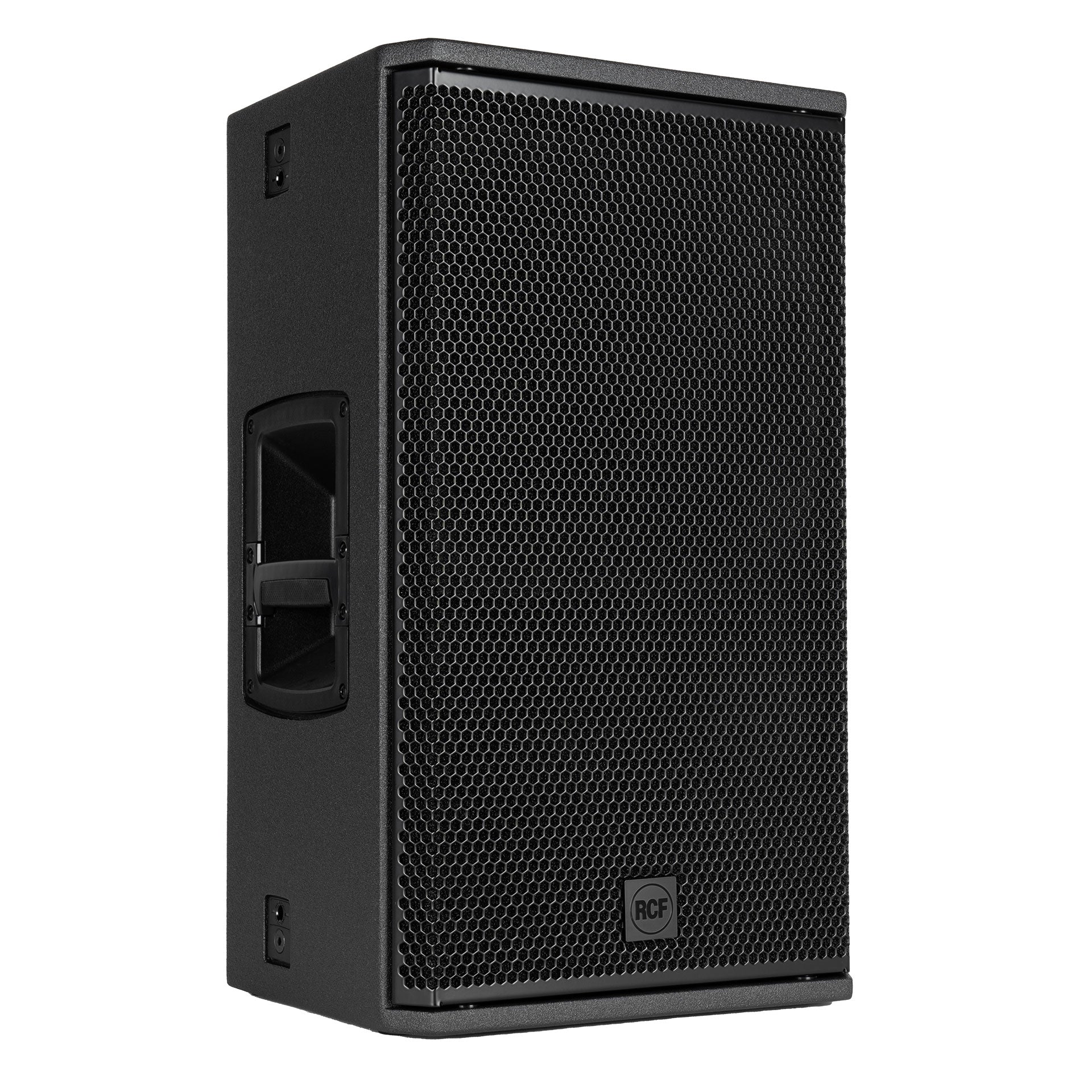

| Size / Weight |
| Height |
620 mm / 24.41 inches |
| Width |
362 mm / 14.25 inches |
| Depth |
405 mm / 15.94 inches |
| Weight |
22.9 kg / 50.49 lbs |
| Shipping Information |
| Package Height |
666 mm / 26.22 inches |
| Package Width |
461 mm / 18.15 inches |
| Package Depth |
416 mm / 16.38 inches |
| Package Weight |
26 kg / 57.32 lbs |
