| Acoustical Specifications |
| Frequency Response |
50 Hz - 20000 Hz |
| Max SPL @ 1m |
130 dB |
| Horizontal Coverage Angle |
100° |
| Vertical Coverage Angle |
60° |
| Transducers |
Compression Driver 1 x 1.0'', 1.75'' v.c |
| Woofer |
1 x 10'', 2.5'' v.c |

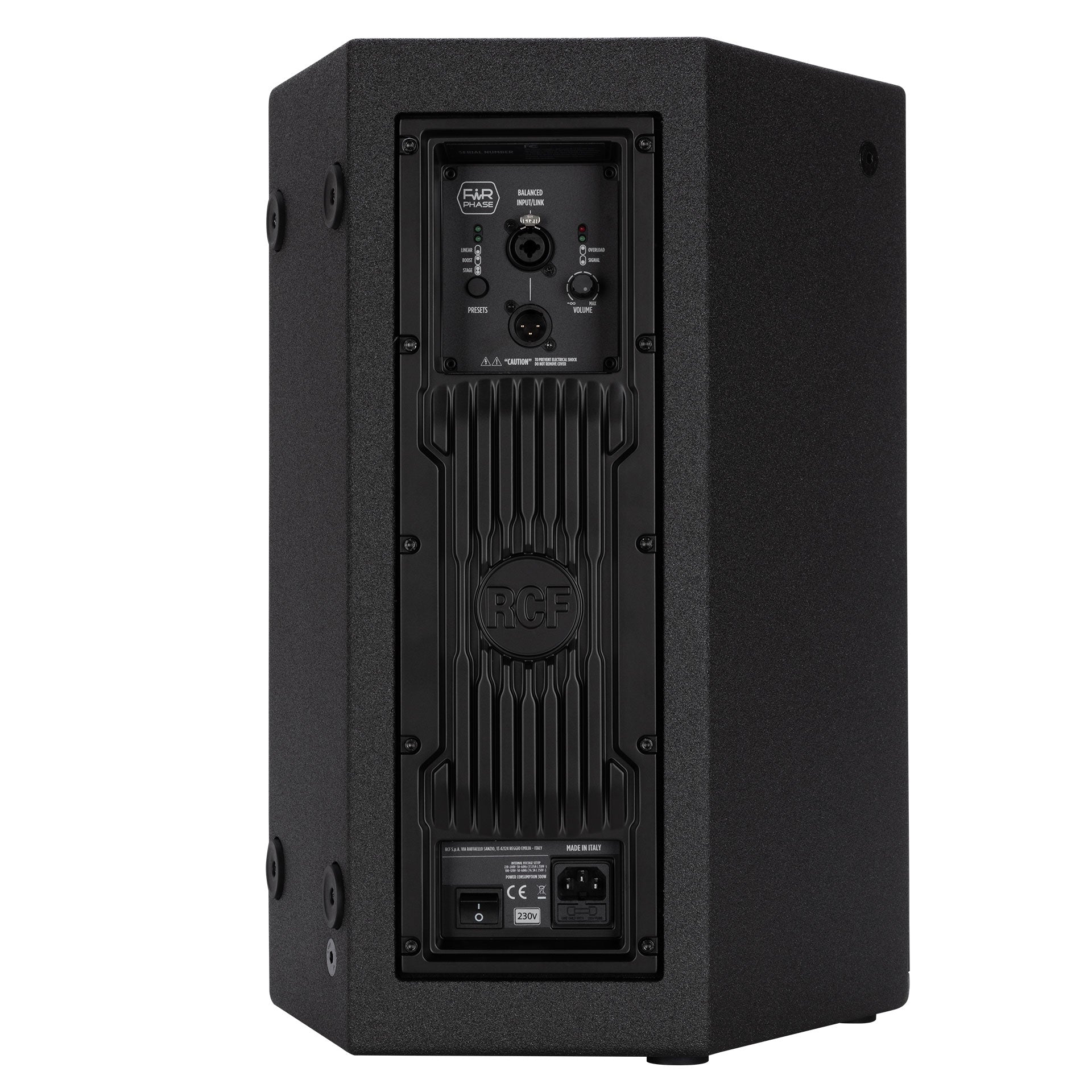

| Input/Output Section |
| Input Signal |
Bal/Unbal |
| Input Connectors |
XLR, Jack |
| Output Connectors |
XLR |
| Input Sensitivity |
-2 dBu/+4 dBu |
| Processor Section |
| Crossover Frequencies |
1600 Hz |
| Protections |
Thermal, RMS |
| Limiter |
Soft Limiter |
| Controls |
Linear, Boost, Stage, Volume |
| Power Section |
| Total Power |
2100 W Peak |
| High Frequencies |
700 W Peak |
| Low Frequencies |
1400 W Peak |
| Cooling |
Convection |
| Connections |
VDE |
| Standard Compliance |
| Safety Agency |
CE Compliant |

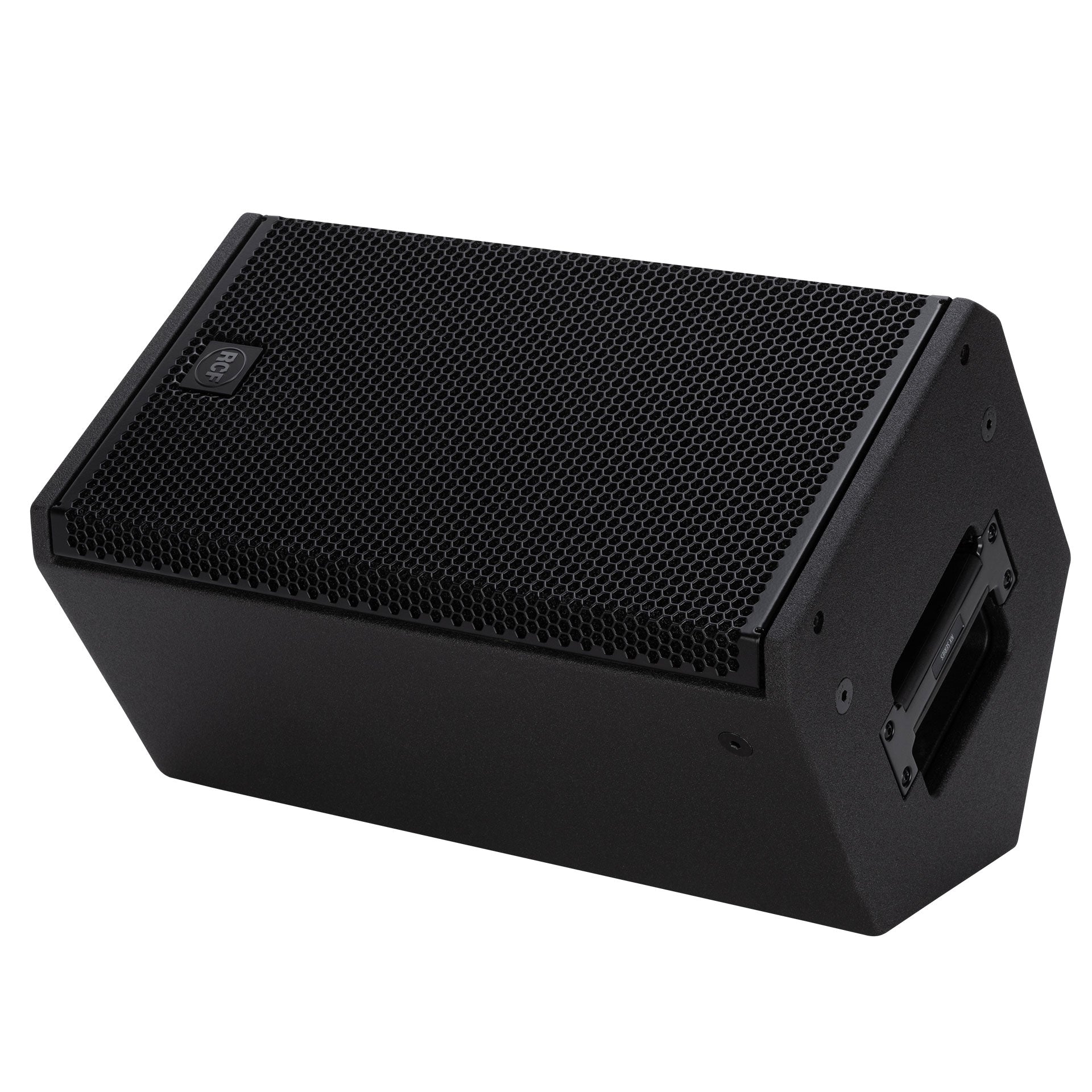

| Physical Specifications |
| Cabinet/Case Material |
Plywood |
| Hardware |
2 x M10 Top, 1 x M10 each side, 1 x M10 bottom, 1 x M10 rear |

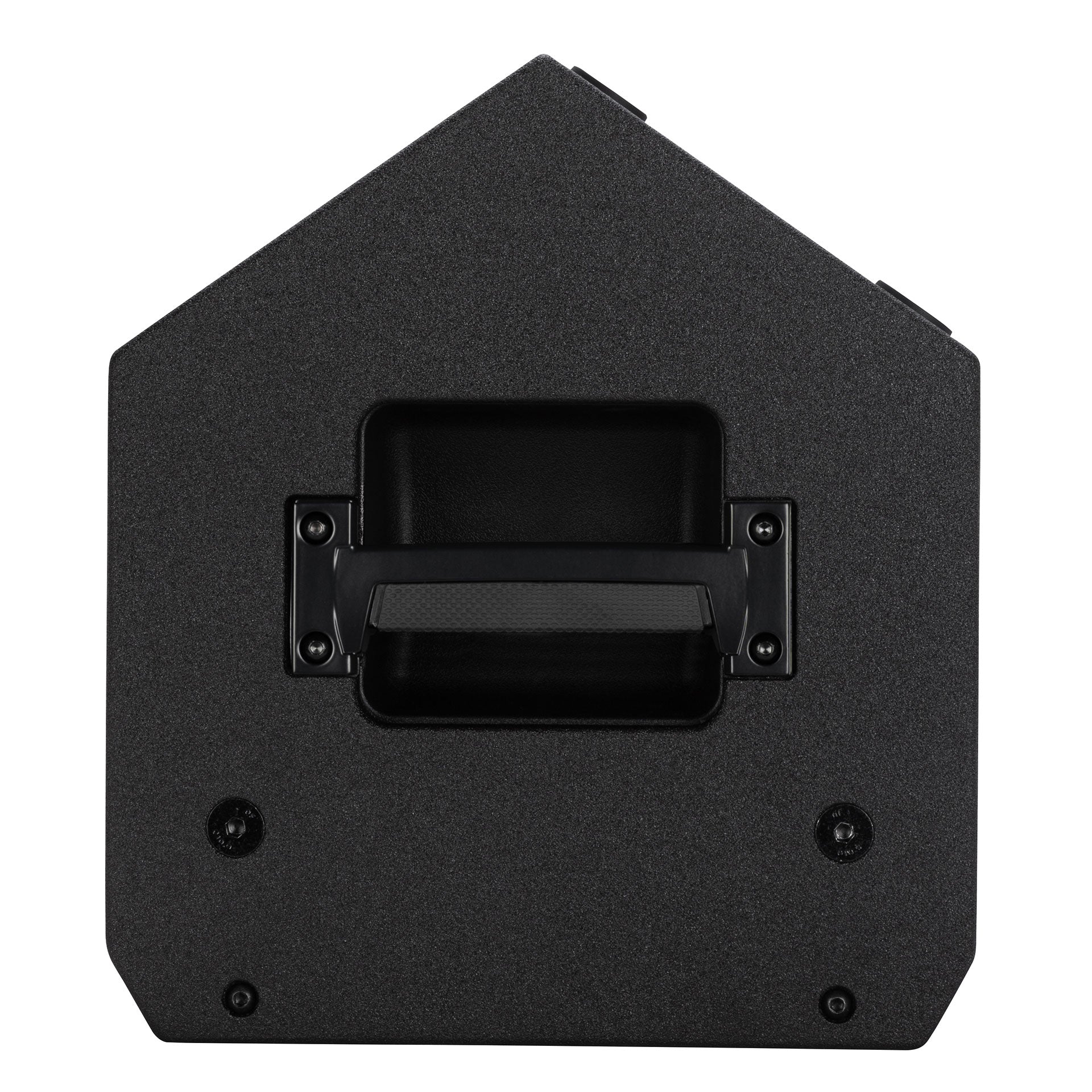

| Handles |
1 Top |

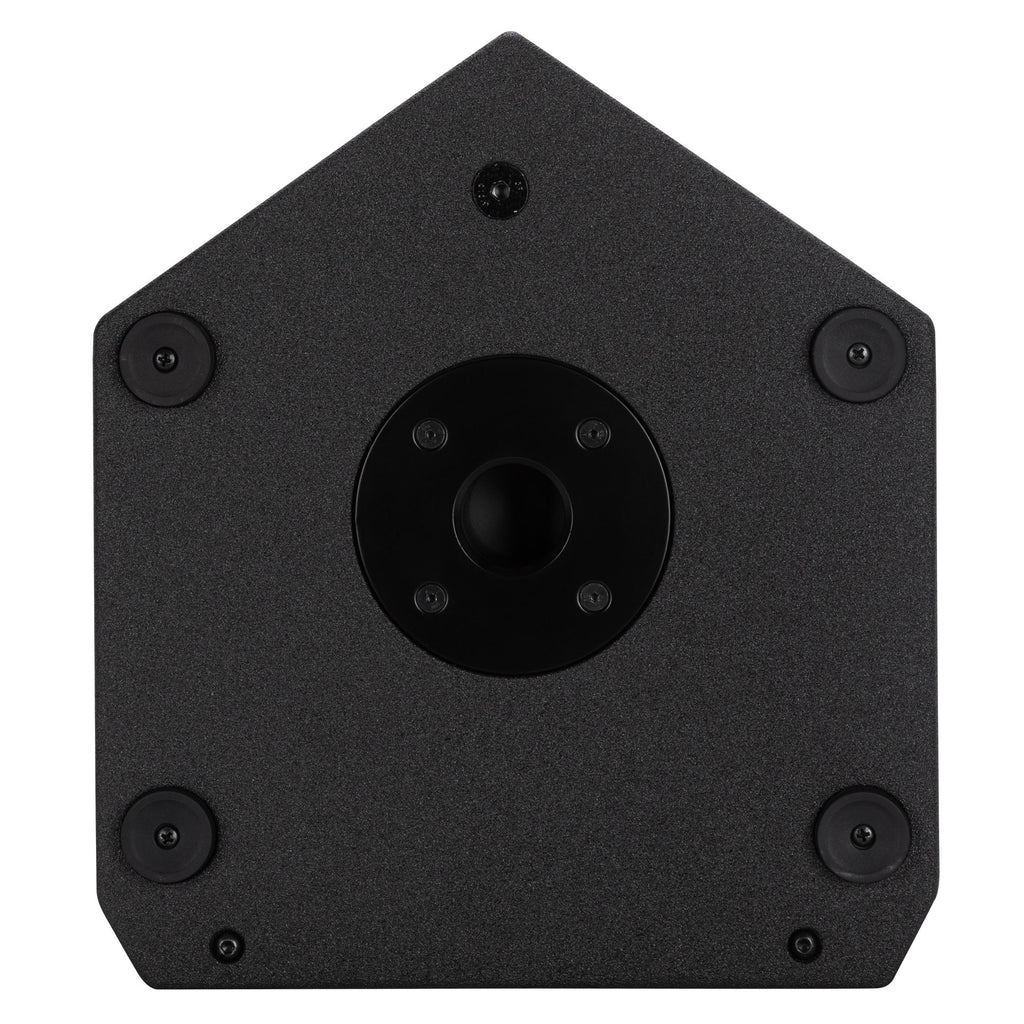

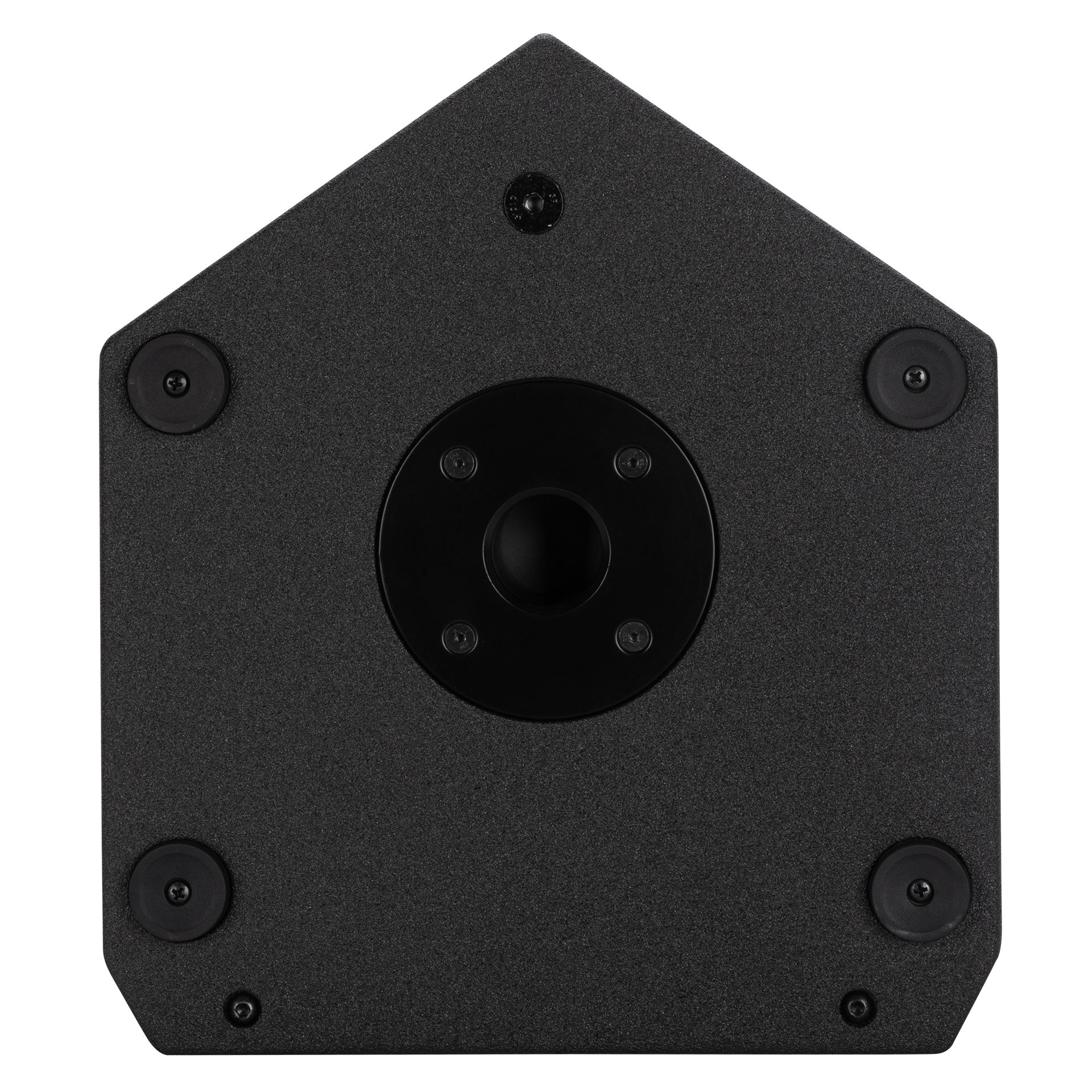

| Pole Mount/Cap |
35 mm insert |
| Grille |
Steel |
| Color |
Black |
| Size / Weight |
| Height |
510 mm / 20.08 inches |
| Width |
295 mm / 11.61 inches |
| Depth |
333 mm / 13.11 inches |
| Weight |
16.4 kg / 36.16 lbs |
| Shipping Information |
| Package Height |
556 mm / 21.89 inches |
| Package Width |
388 mm / 15.28 inches |
| Package Depth |
348 mm / 13.7 inches |
| Package Weight |
18.1 kg / 39.94 lbs |
