| Frequency Response |
45 Hz – 20,000 Hz |
| Max SPL @ 1m |
135 dB |
| Horizontal Coverage Angle |
100° |
| Vertical Coverage Angle |
25° |
| Compression Driver |
1 x 1.4" neo, 4.0" voice coil |
| Woofer |
2 x 10" neo, 3.0" voice coil |
| Input Signal |
Balanced / unbalanced |
| Input Connectors |
XLR, RDNet Ethercon |
| Output Connectors |
XLR, RDNet Ethercon |
| Input Sensitivity |
+4 dBu |
| Crossover Frequencies |
900 Hz |
| Protections |
Thermal, RMS |
| Limiter |
Fast limiter |
| Controls |
Gain reduction, delay, processing, 8 selectable presets |
| RDNet |
Onboard |
| Total Power |
3200 W peak |
| High Frequencies |
1200 W peak |
| Low Frequencies |
2000 W peak |
| Cooling |
Convection |
| Connections |
Powercon TRUE1 TOP IN/OUT |
| Safety Agency |
CE compliant |
| Cabinet / Case Material |
Baltic birch plywood |

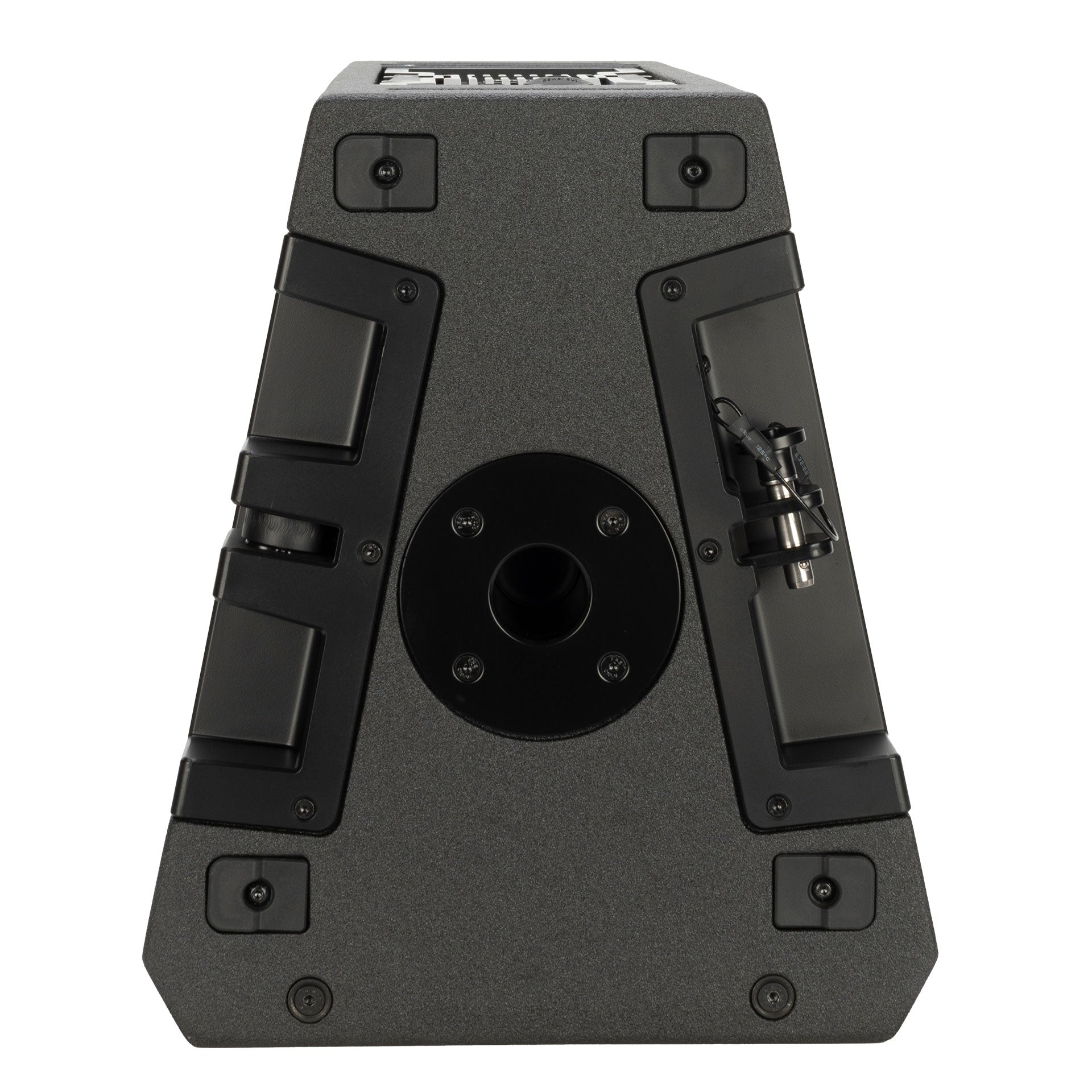

| Hardware |
Array fittings, 2x M10 on the top, 2x M8 |

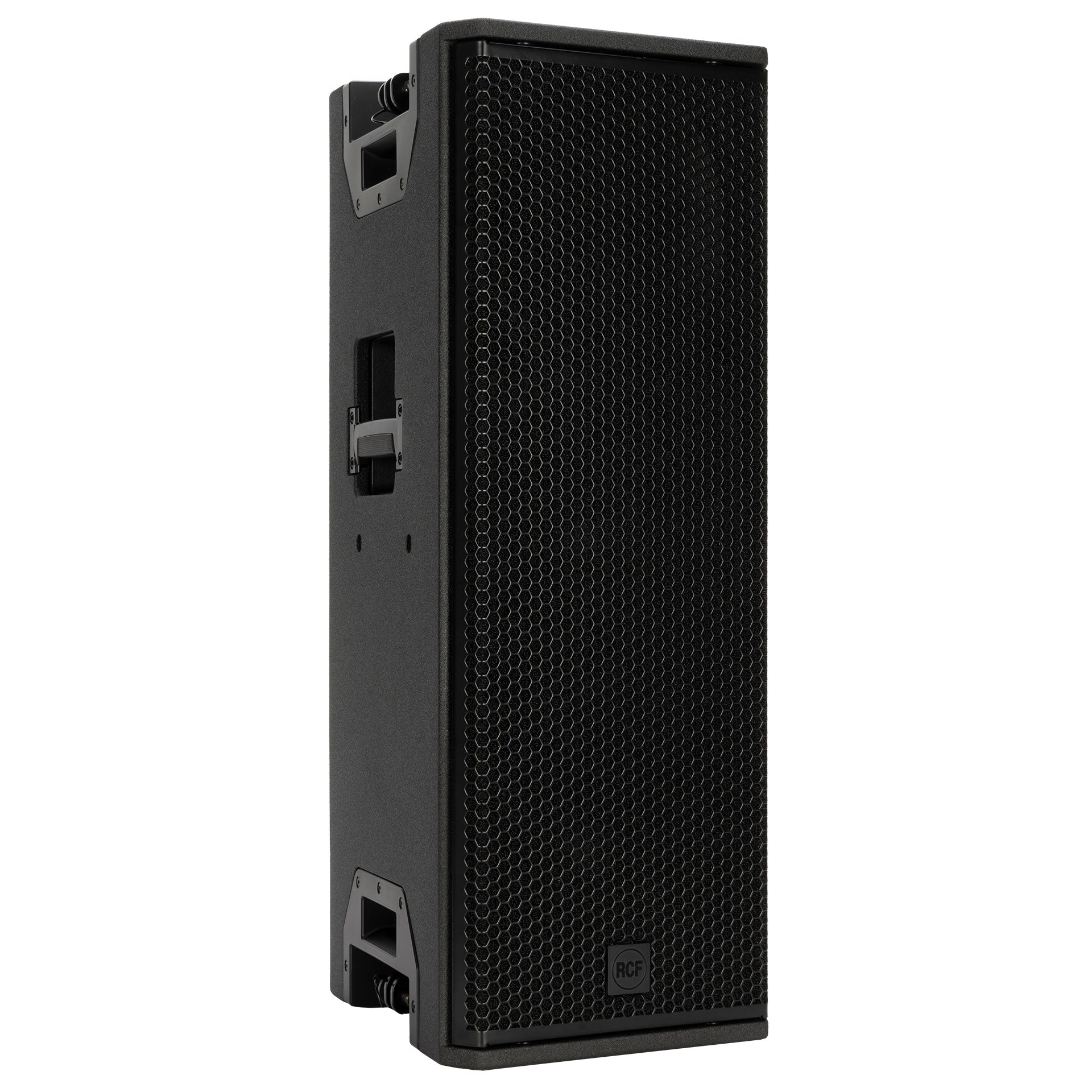

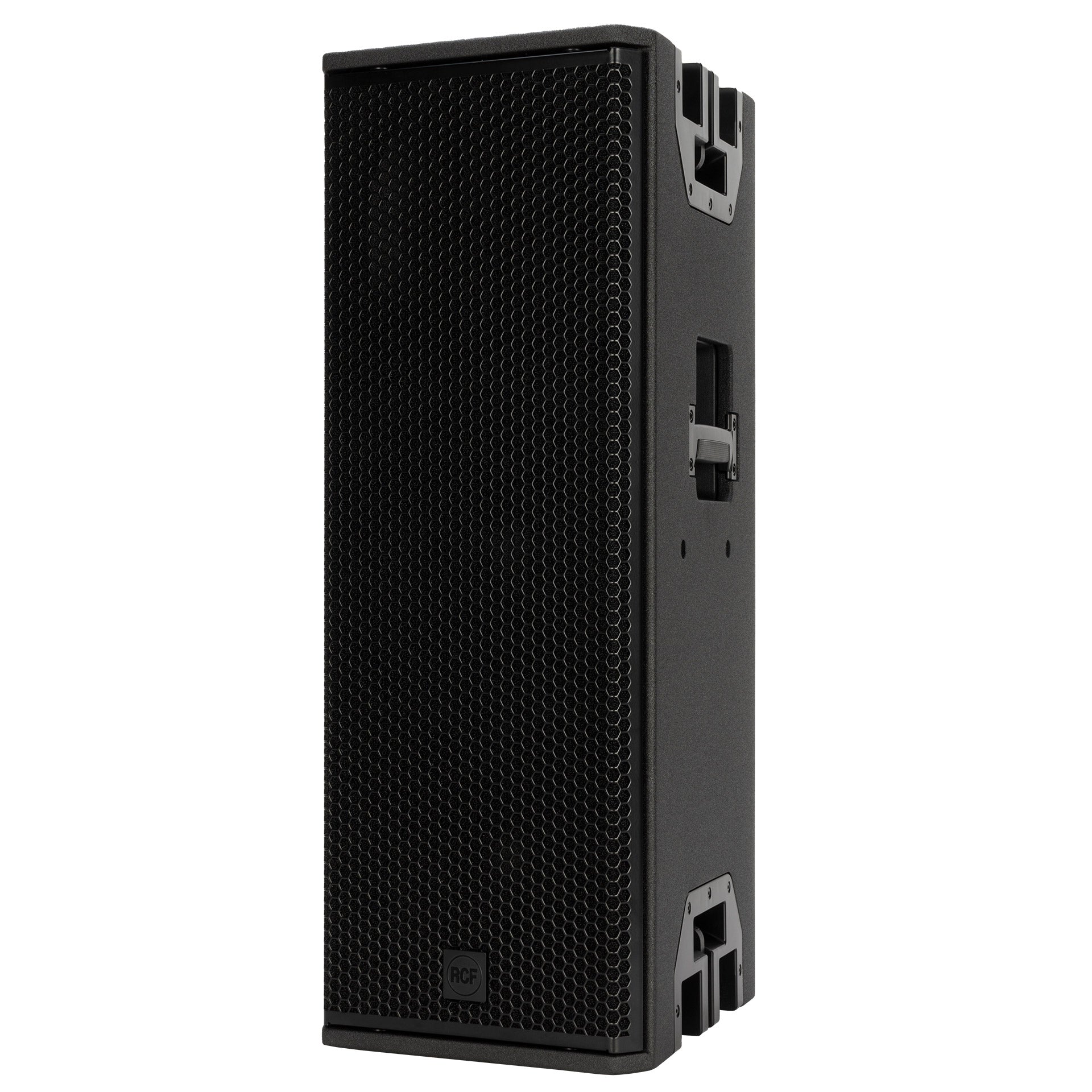

| Handles |
2 side, 2 rear |

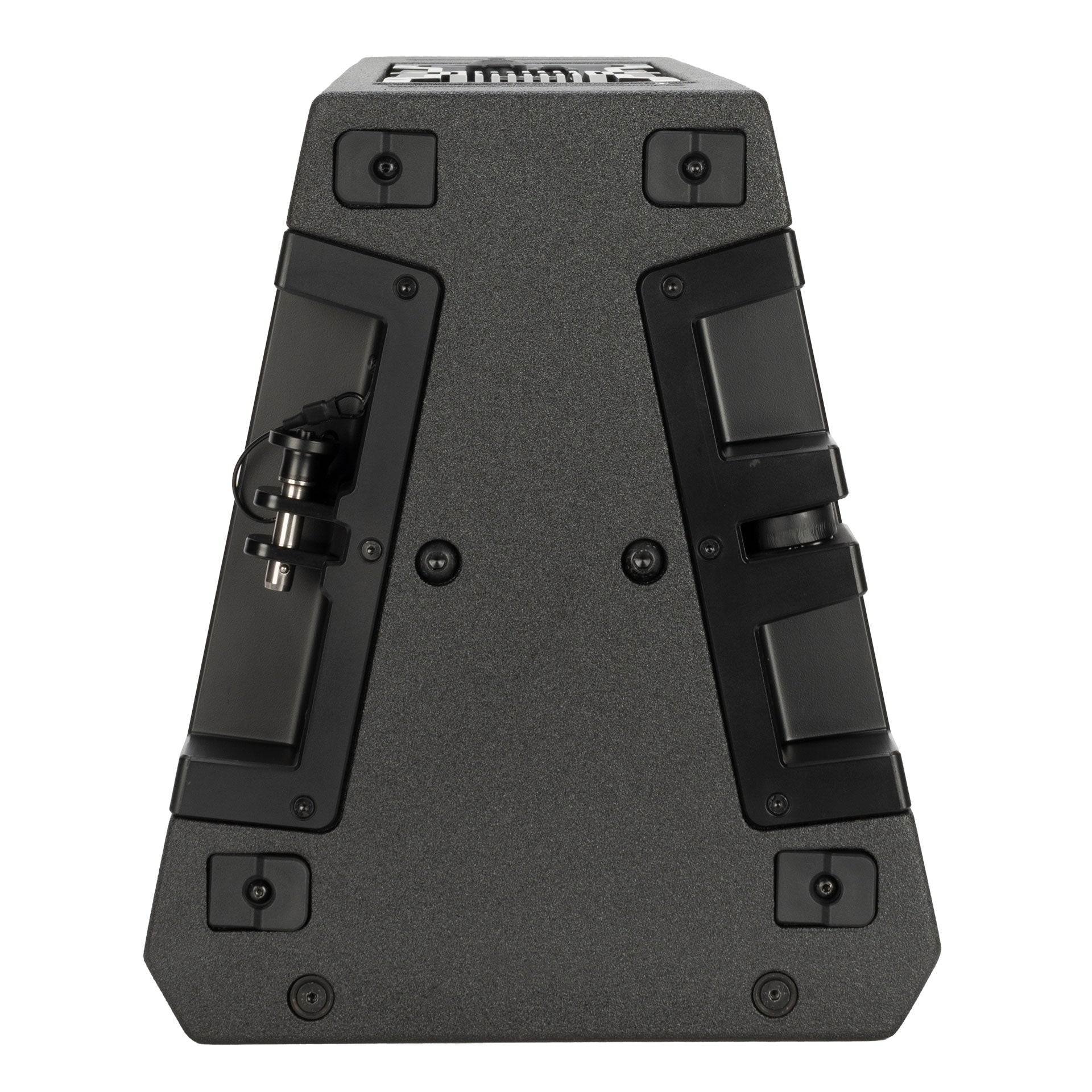

| Pole Mount / Cap |
35 mm insert |
| Grille |
Steel with cloth backing |
| Color |
Black |
| Dimensions (H x W x D) |
825 x 310 x 369 mm (32.48 x 12.2 x 14.53 in) |
| Weight |
30.4 kg (67.02 lb) |
| Package Dimensions (H x W x D) |
410 x 865 x 365 mm (16.14 x 34.06 x 14.37 in) |
| Package Weight |
33.5 kg (73.85 lb) |
