| Frequency Response |
70 Hz – 20,000 Hz |
| Max SPL @ 1m |
127 dB |
| Horizontal Coverage Angle |
100° |
| Vertical Coverage Angle |
70° |

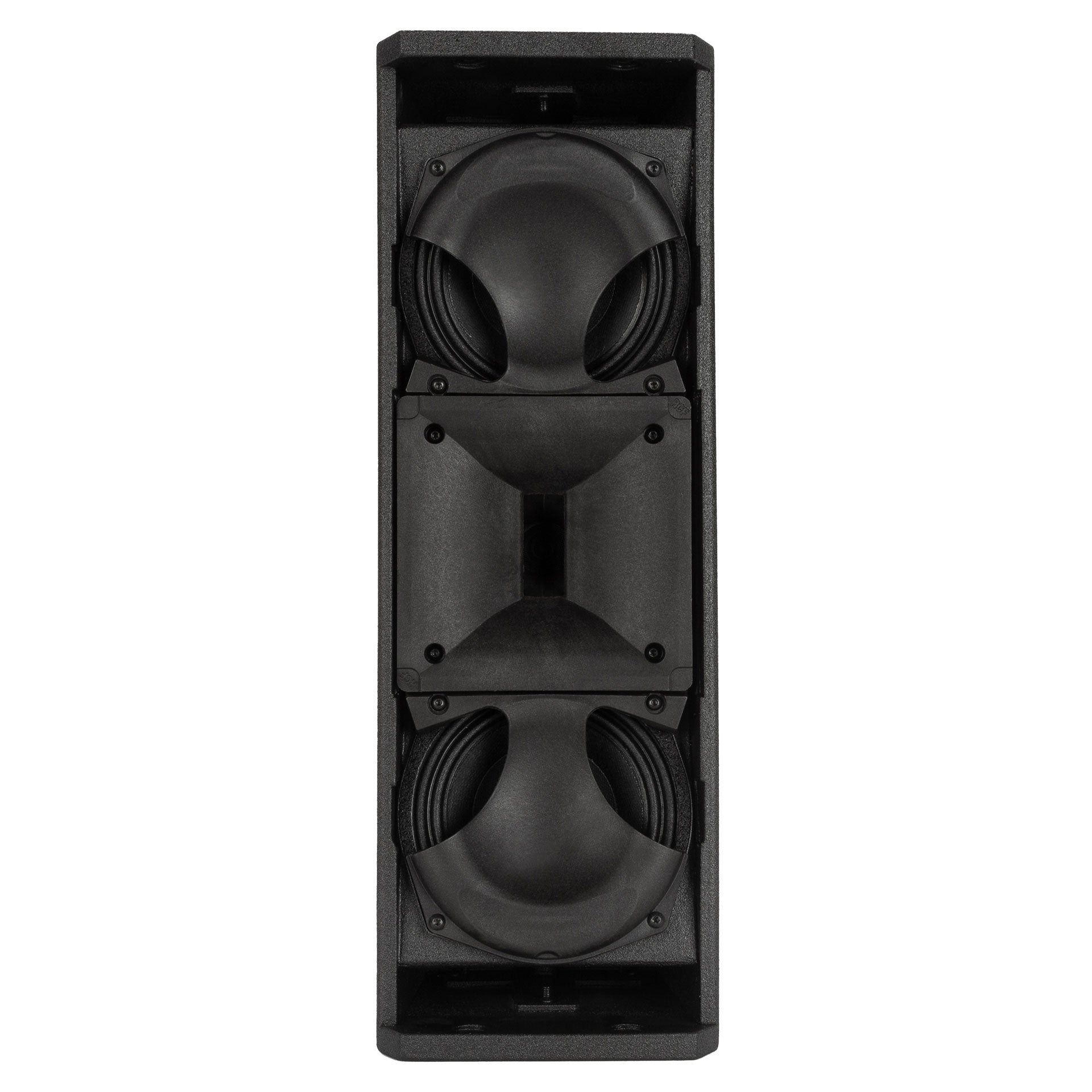

| Compression Driver |
1 x 1.0" neo, 1.75" voice coil |
| Woofer |
2 x 5.0" neo, 2.0" voice coil |
| Input Signal |
Balanced / unbalanced |
| Input Connectors |
XLR, RDNet Ethercon |
| Output Connectors |
XLR, RDNet Ethercon |
| Input Sensitivity |
-2 dBu / +4 dBu |
| Crossover Frequencies |
1200 Hz |
| Protections |
Excursion |
| Limiter |
Fast limiter |

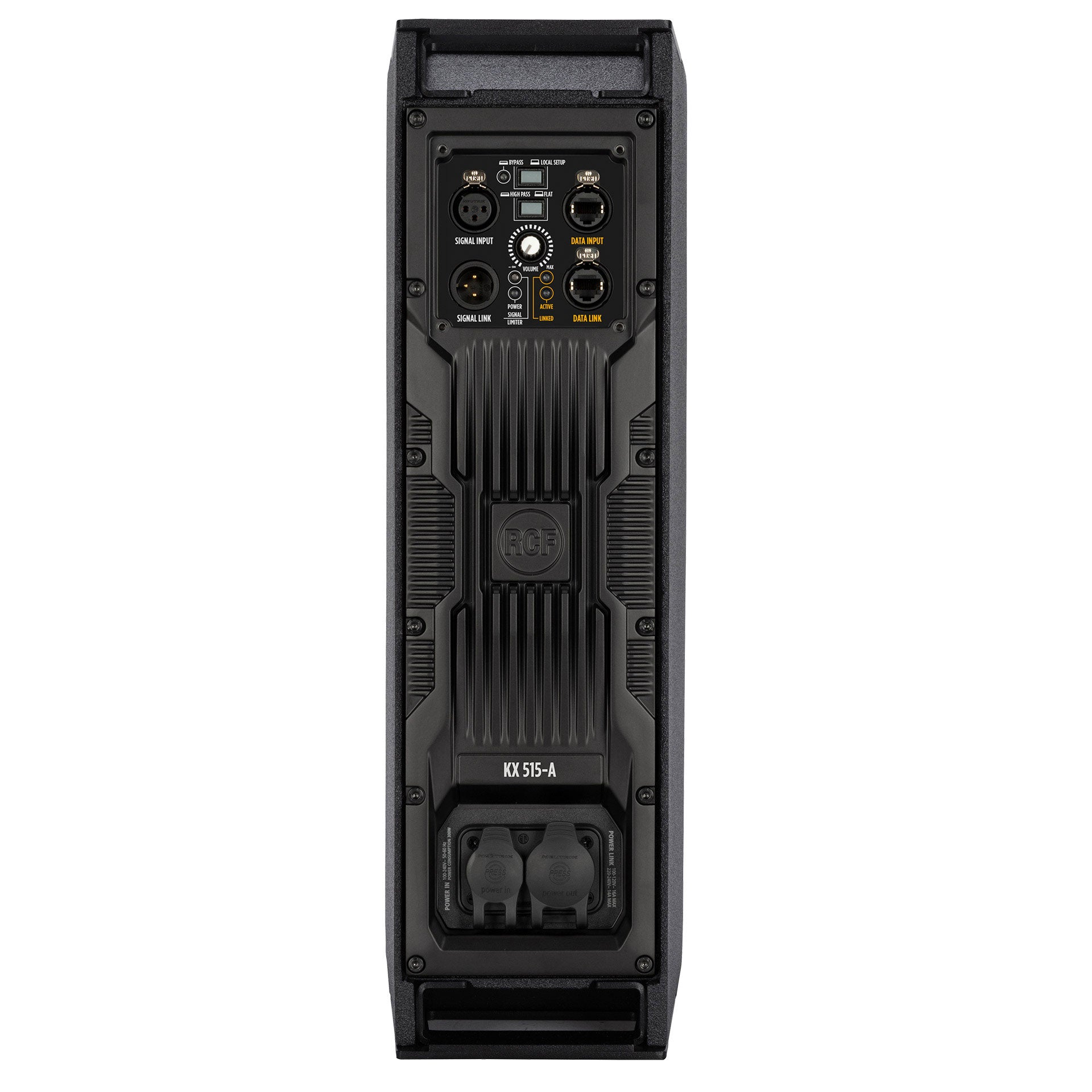

| Controls |
Bypass, Linear/High Pass, volume |
| RDNet |
Onboard |
| Total Power |
2000 W peak |
| High Frequencies |
600 W peak |
| Low Frequencies |
1400 W peak |
| Cooling |
Convection |
| Connections |
Powercon TRUE1 TOP IN/OUT |
| Safety Agency |
CE compliant |
| Cabinet / Case Material |
Baltic birch plywood |

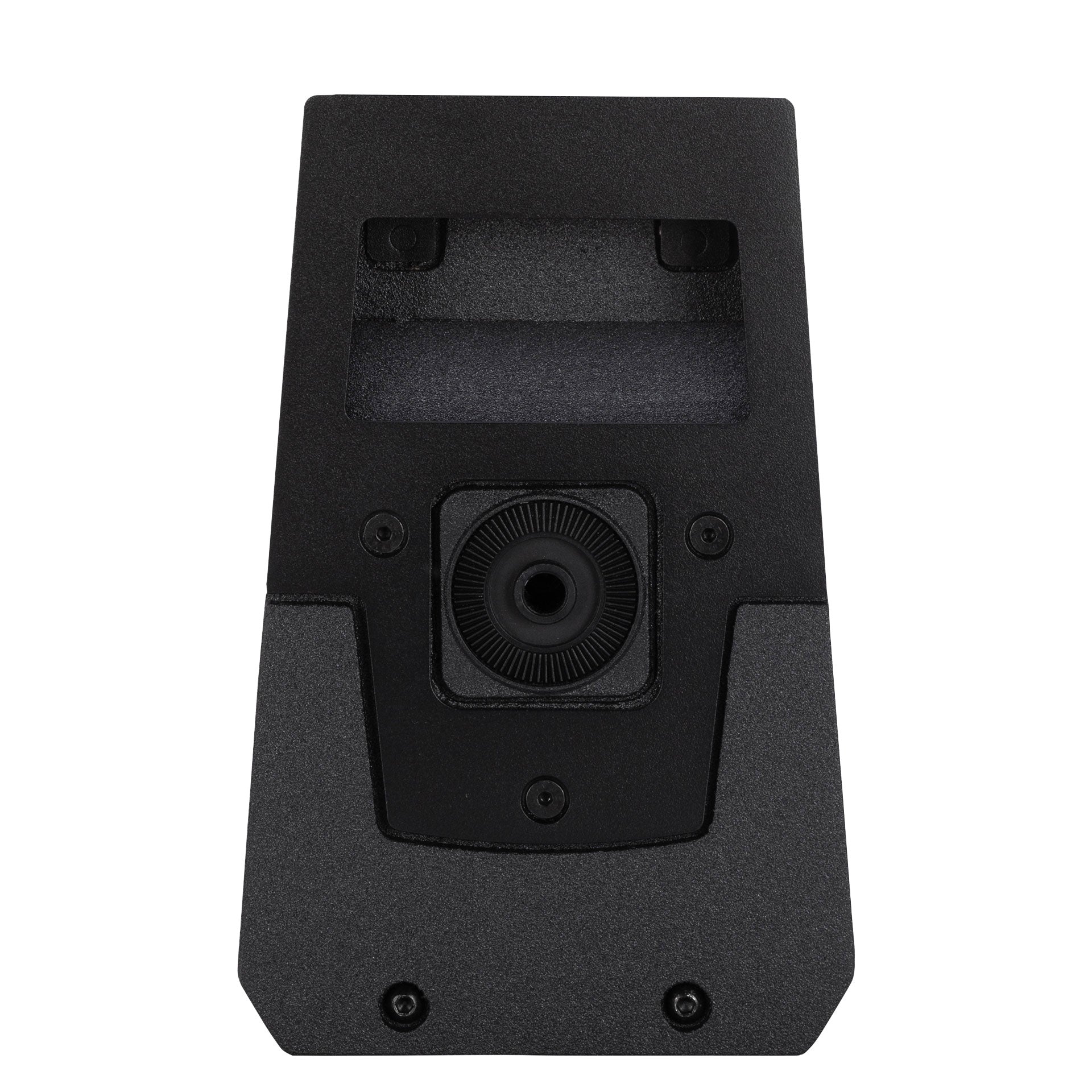

| Hardware |
2x M10 top and bottom, 2x pin D.10 |

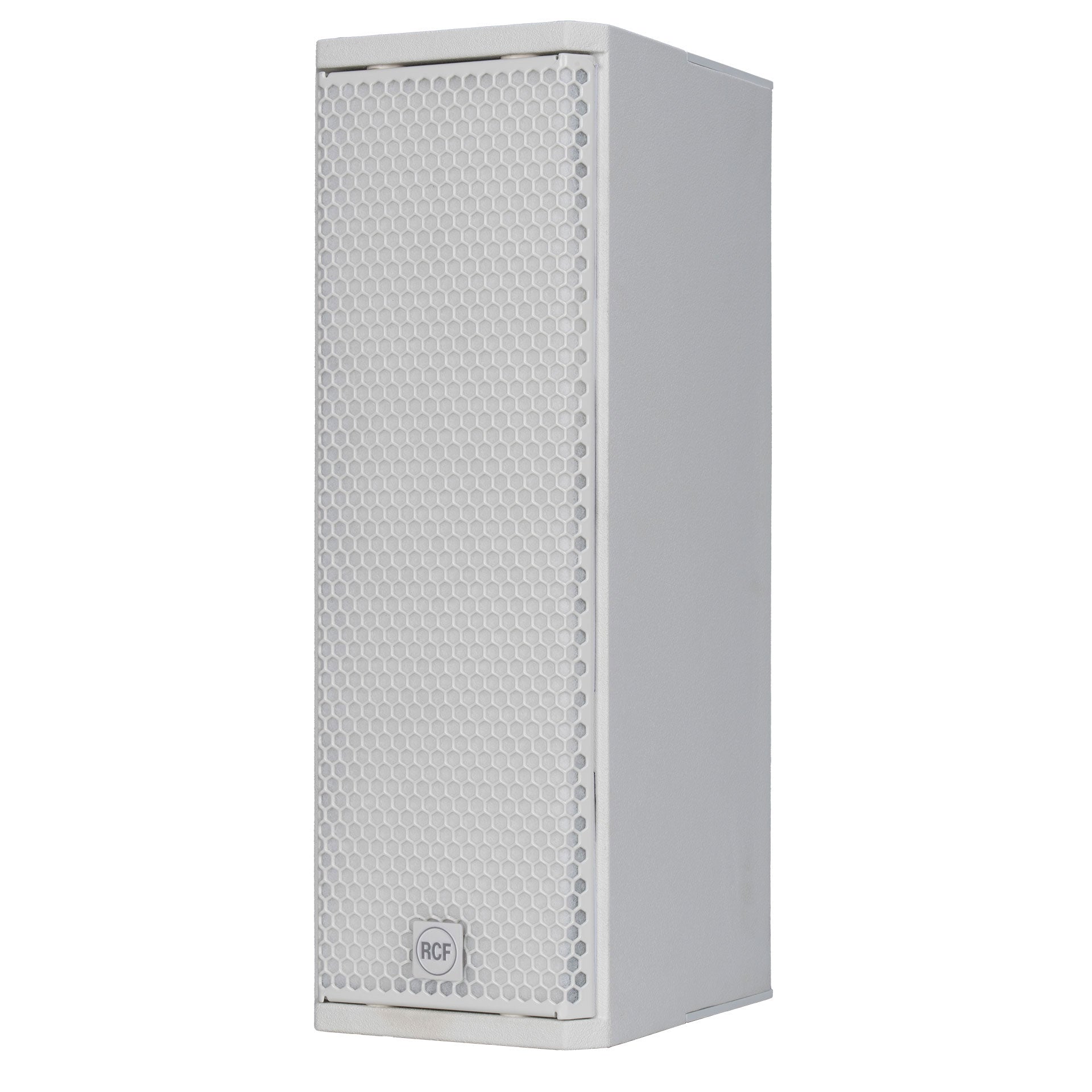

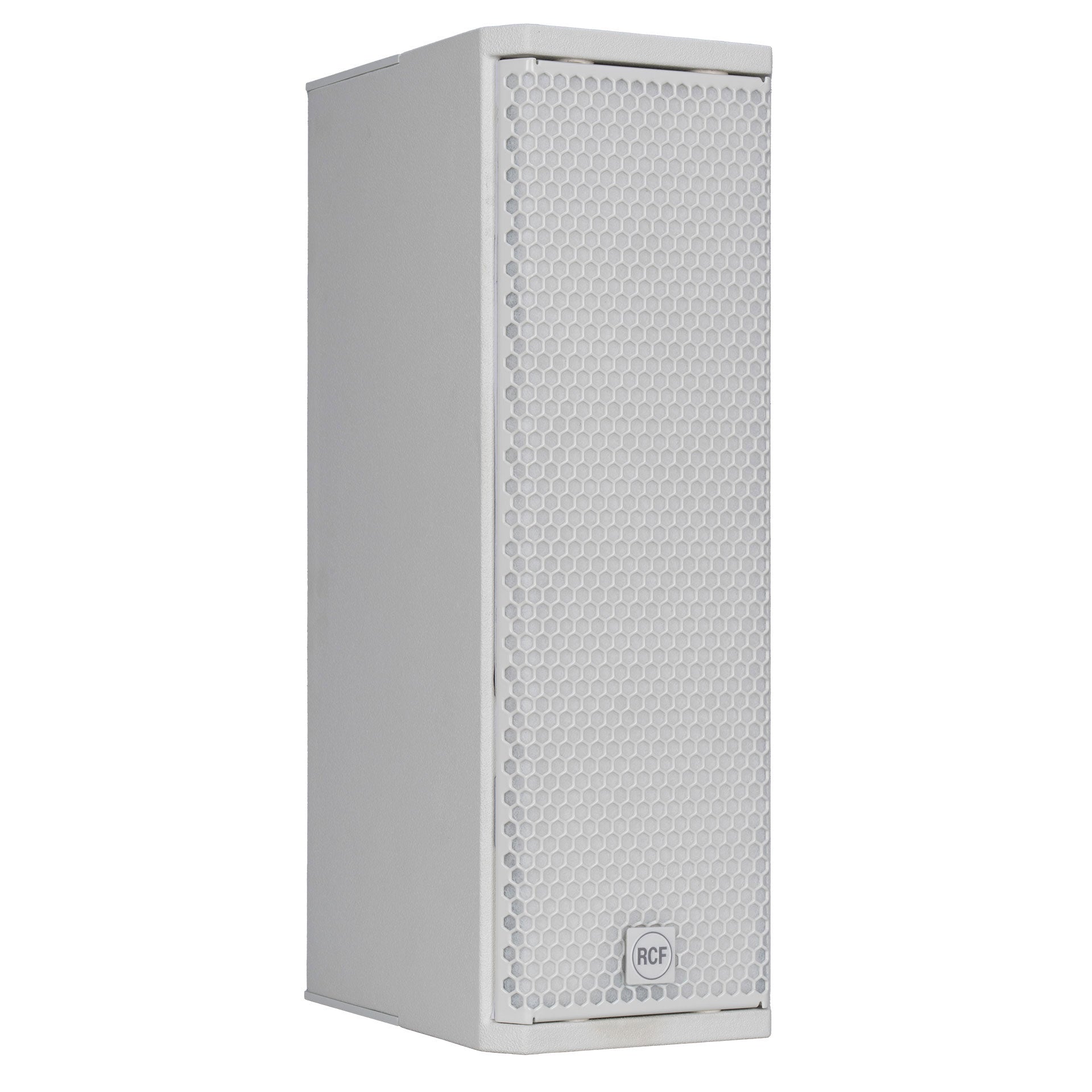

| Handles |
2 top and bottom |

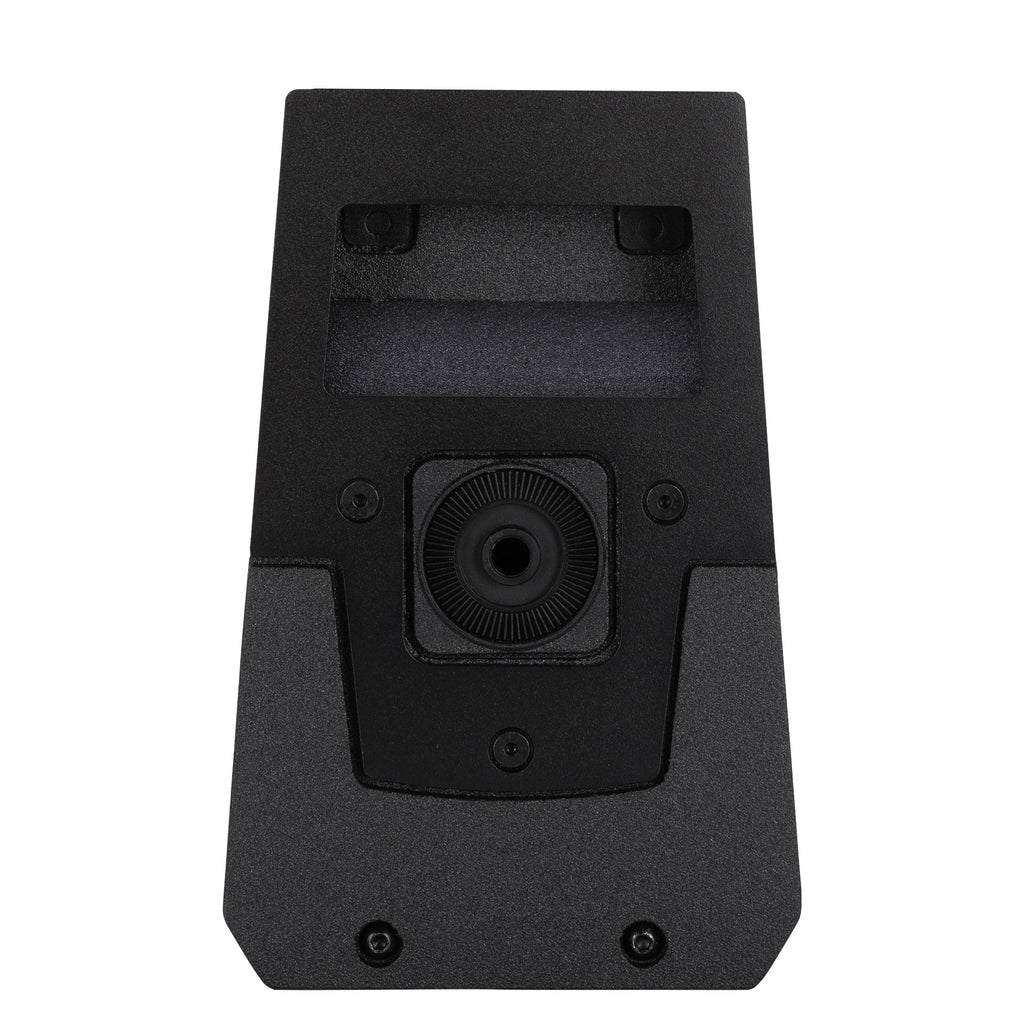

| Pole Mount / Cap |
Quick-fit socket |

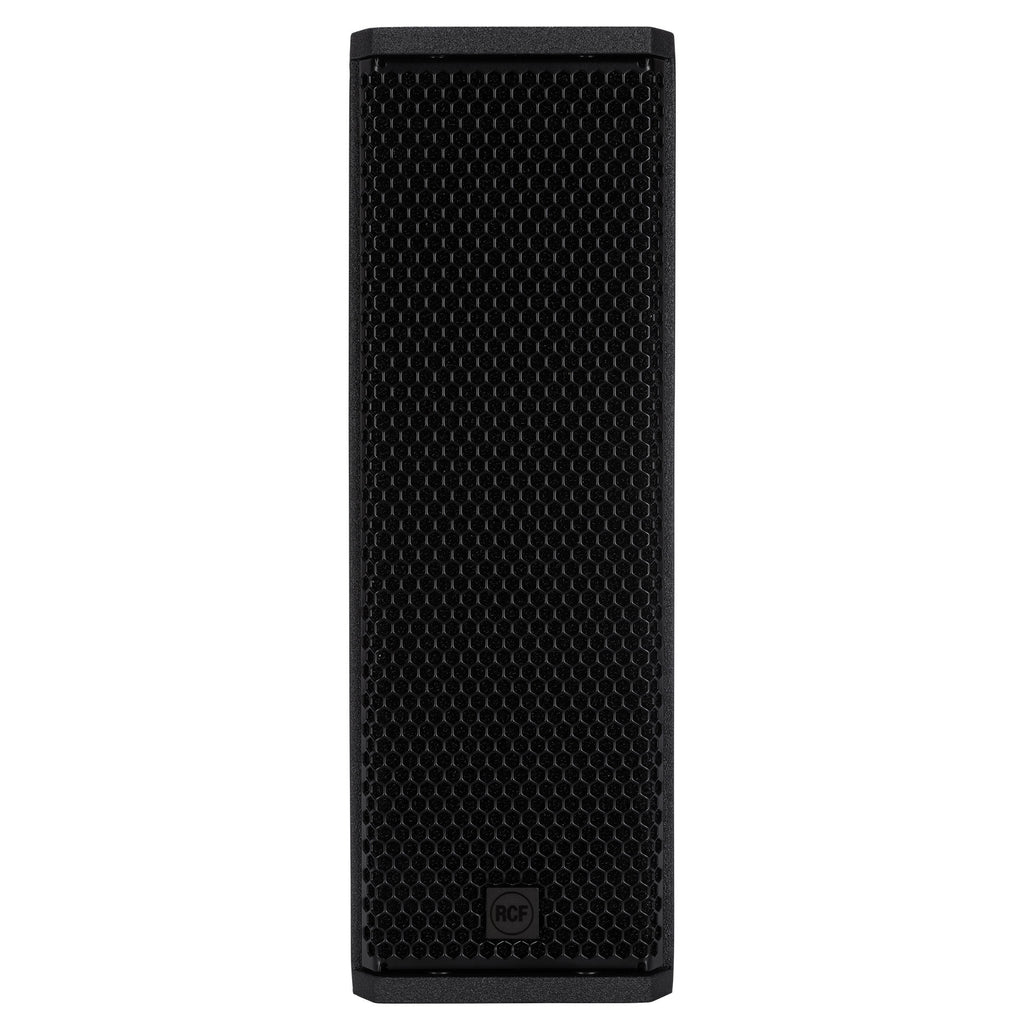

| Grille |
Steel with cloth backing |
| Color |
Black, white |
| Dimensions (H x W x D) |
456 x 154 x 237.5 mm (17.95 x 6.06 x 9.35 in) |
| Weight |
9.8 kg (21.61 lb) |
| Package Dimensions (H x W x D) |
510 x 290 x 200 mm (20.08 x 11.42 x 7.87 in) |
| Package Weight |
11.3 kg (24.91 lb) |
