| Frequency Response |
60 Hz – 20,000 Hz |
| Max SPL @ 1m |
130 dB |
| Horizontal Coverage Angle |
100° |
| Vertical Coverage Angle |
50° |

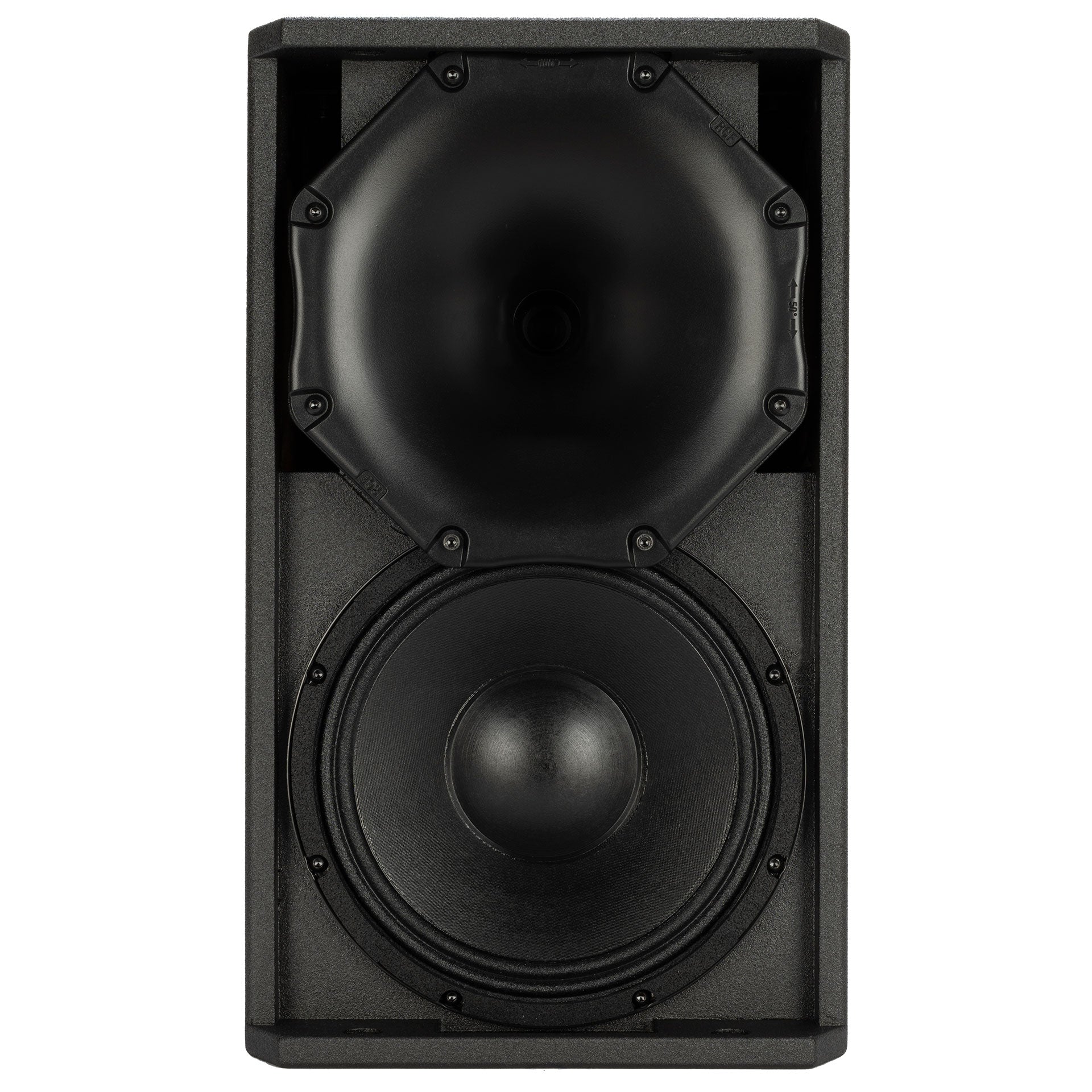

| Compression Driver |
1 x 1.0" neo, 1.75" voice coil |
| Woofer |
10" neo, 2.5" voice coil |
| Input Signal |
Balanced / unbalanced |
| Input Connectors |
XLR, RDNet Ethercon |
| Output Connectors |
XLR, RDNet Ethercon |
| Input Sensitivity |
-2 dBu / +4 dBu |
| Crossover Frequencies |
1600 Hz |
| Protections |
Thermal, HF |
| Limiter |
Fast limiter |

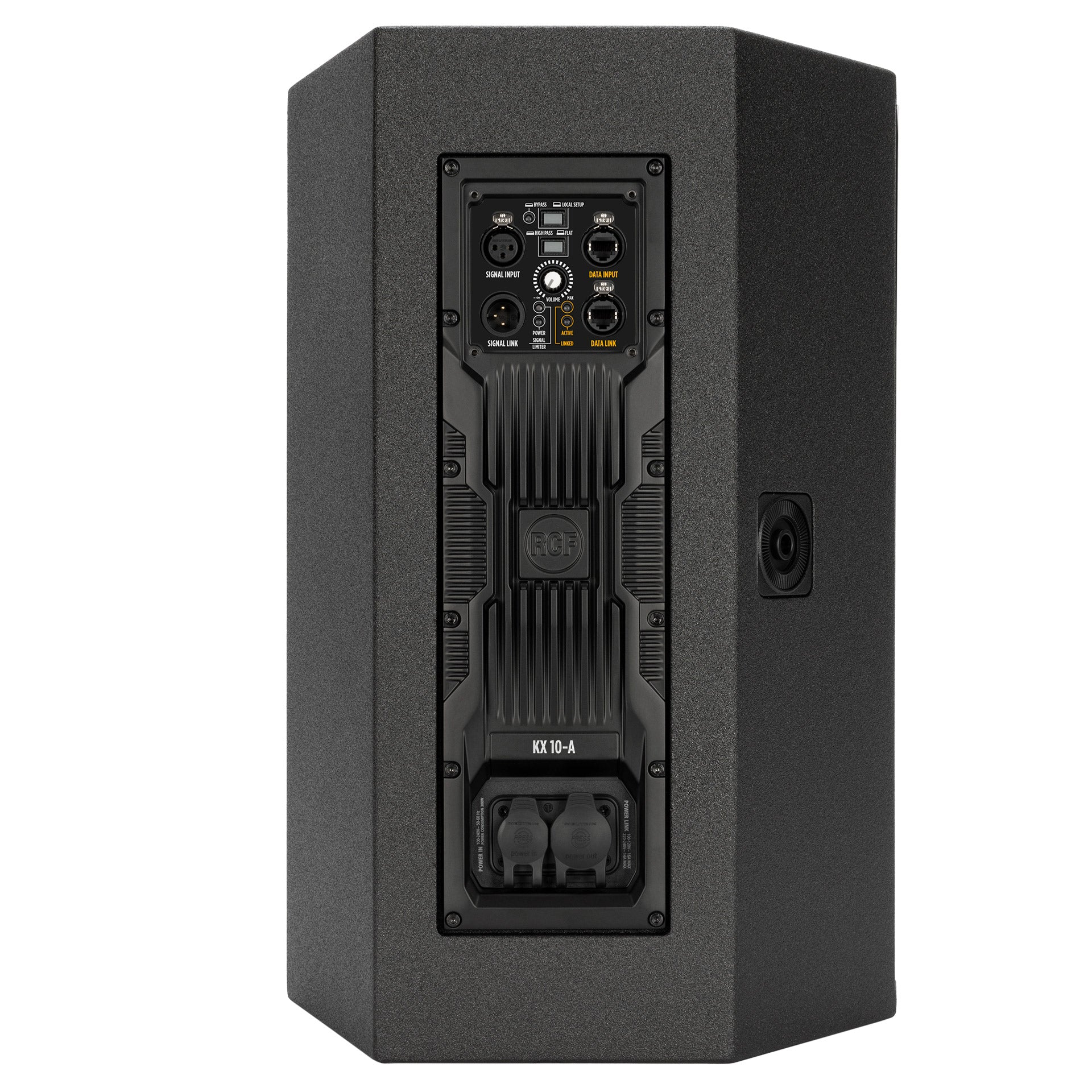

| Controls |
Bypass, Linear/High Pass, volume |
| RDNet |
Onboard |
| Total Power |
2000 W peak |
| High Frequencies |
600 W peak |
| Low Frequencies |
1400 W peak |
| Cooling |
Convection |
| Connections |
Powercon TRUE1 TOP IN/OUT |
| Safety Agency |
CE compliant |
| Cabinet / Case Material |
Baltic birch plywood |
| Hardware |
3x M10 top and bottom, 2x pin D.10 and M10 side |

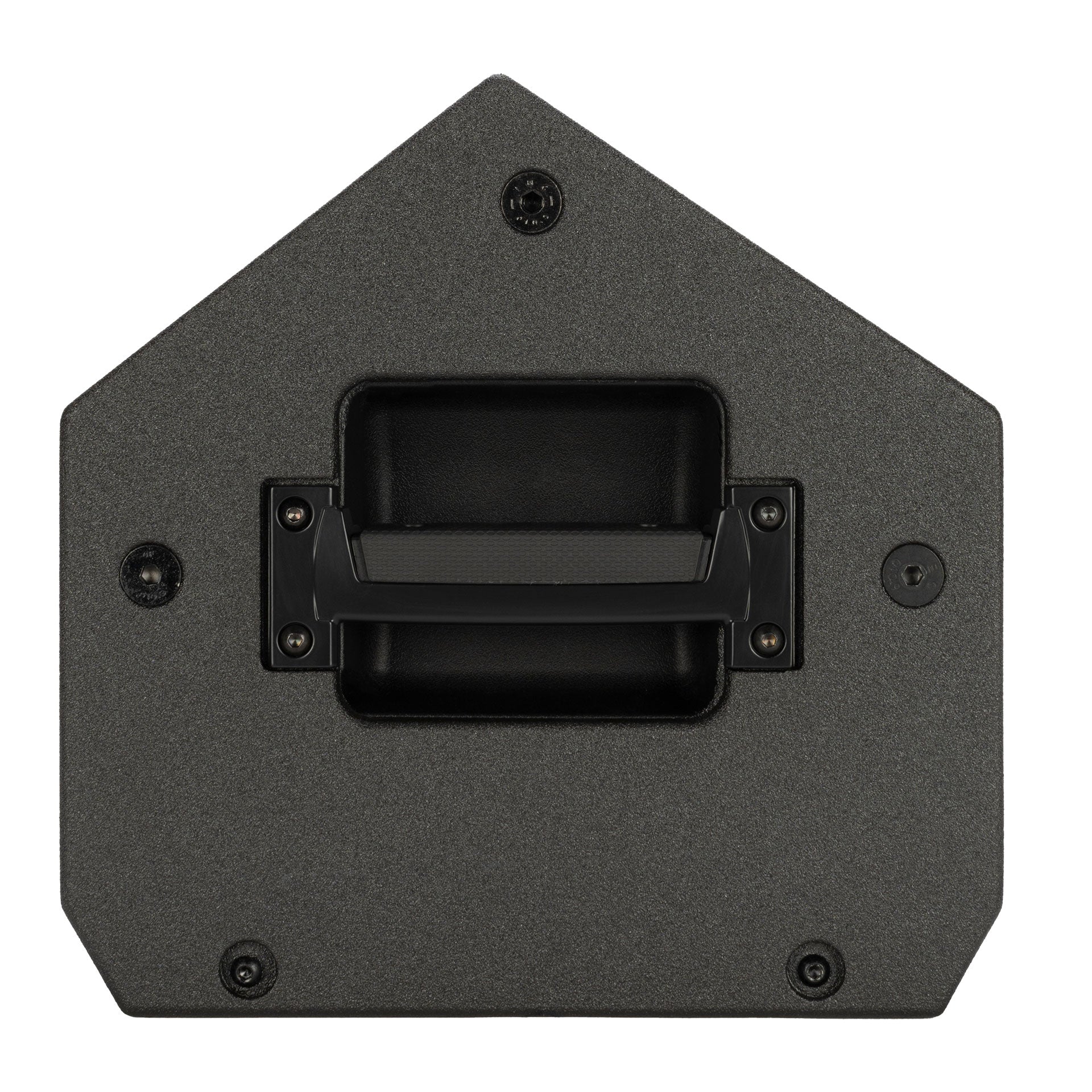

| Handles |
1 top |

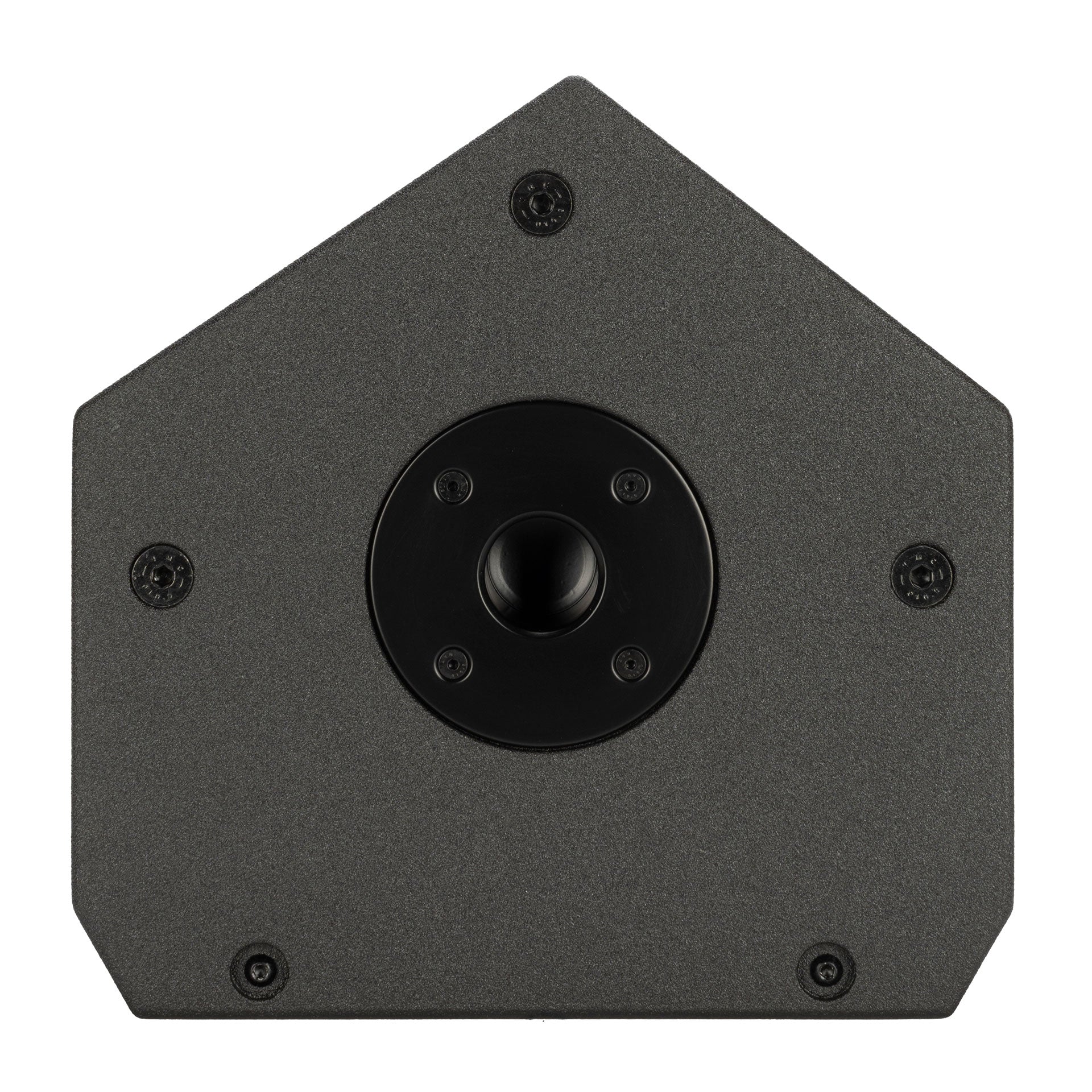

| Pole Mount / Cap |
35 mm insert |

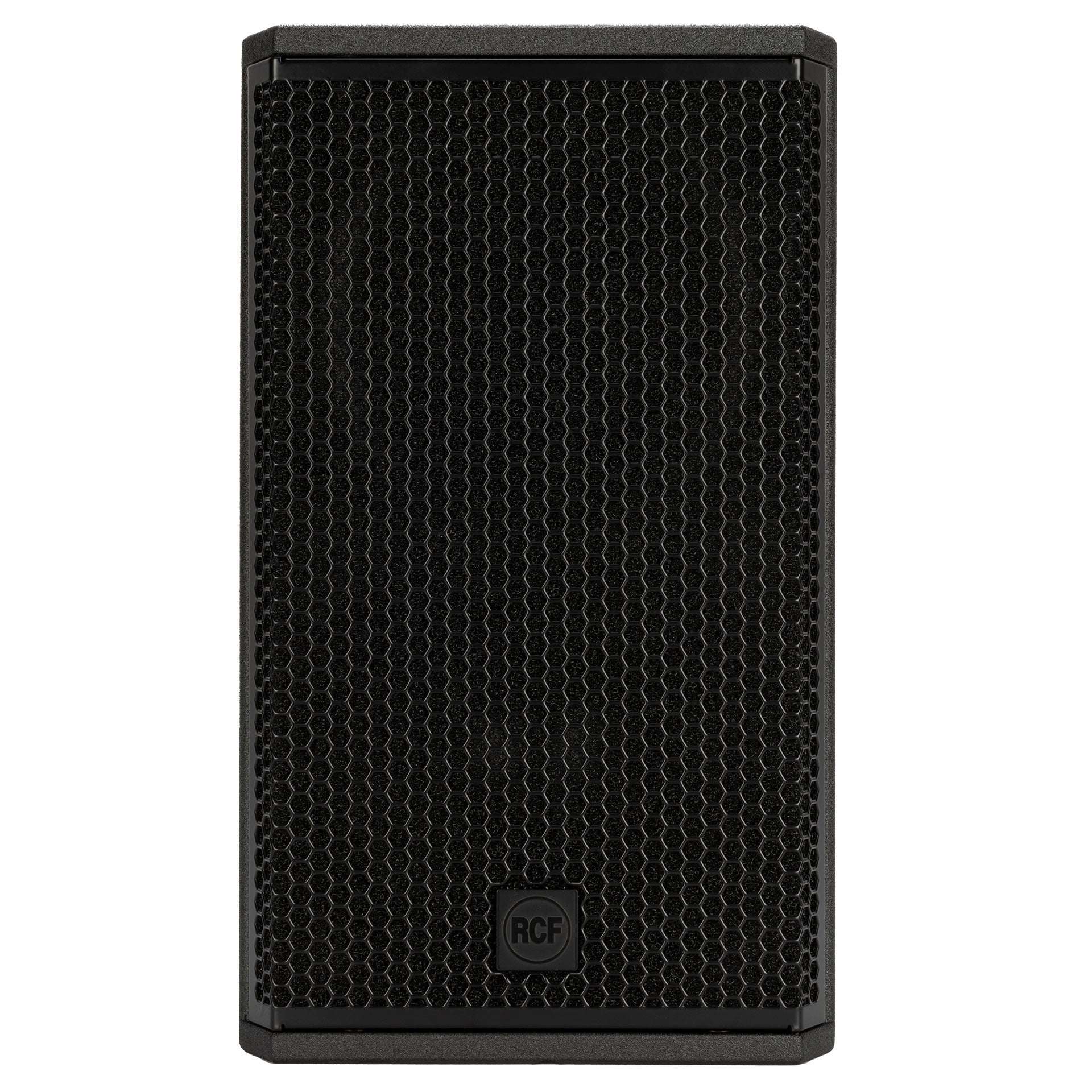

| Grille |
Steel with cloth backing |
| Color |
Black |
| Dimensions (H x W x D) |
510 x 300 x 300 mm (20.08 x 11.81 x 11.81 in) |
| Weight |
14 kg (30.86 lb) |
| Package Dimensions (H x W x D) |
615 x 355 x 355 mm (24.21 x 13.98 x 13.98 in) |
| Package Weight |
15.5 kg (34.17 lb) |
