Features
- 2200W Two Way Amplifier
- 137 dB Max SPL
- 48 kHz, 32 bit DSP processing
- 1.4" Titanium Compression Driver, 4.0" voice coil
- 2 x 10" Neodymium Woofers, 2.5" voice coil
- Exclusive FiRPHASE technology on-board
- RDNet Control and Management
- 680 Hz Crossover Point

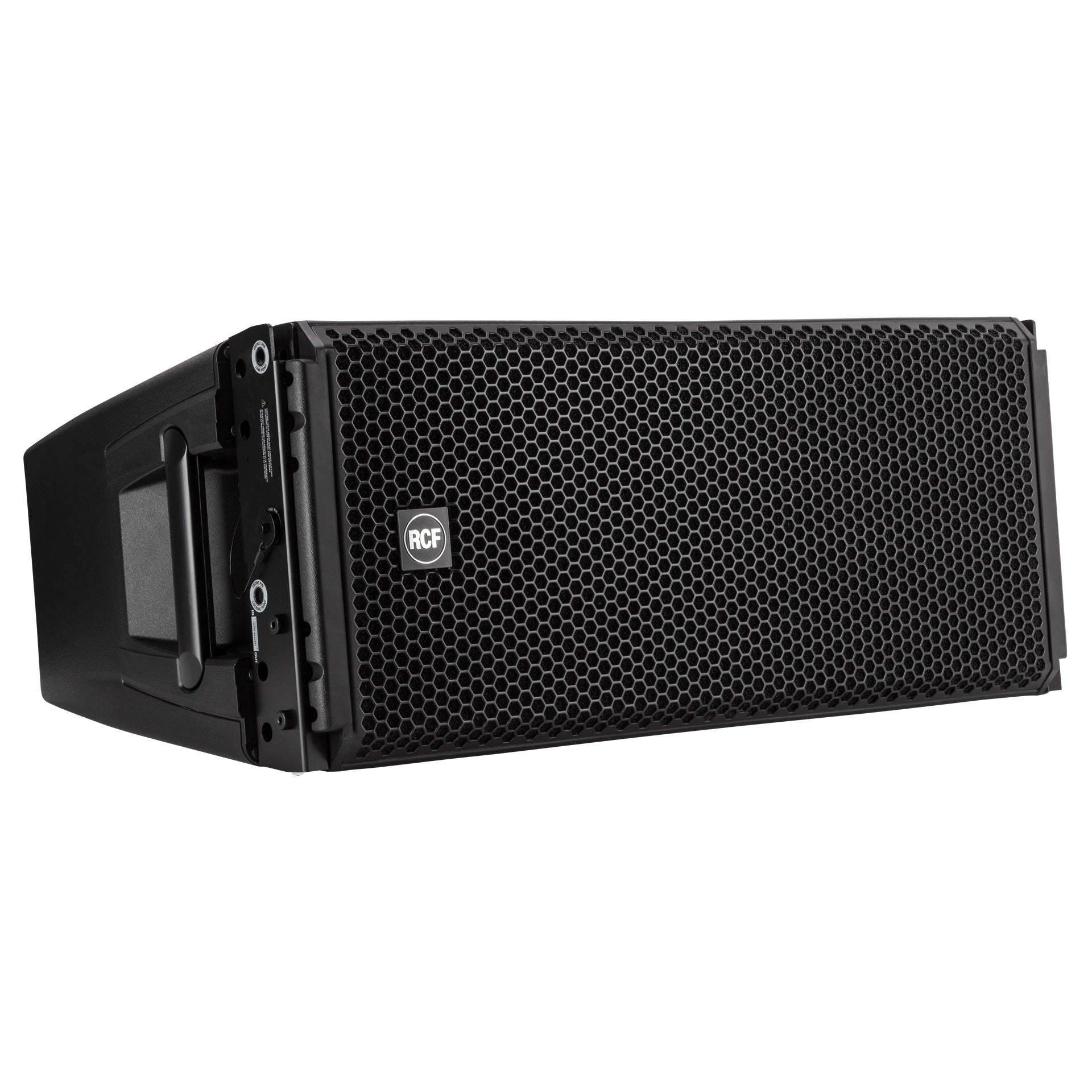

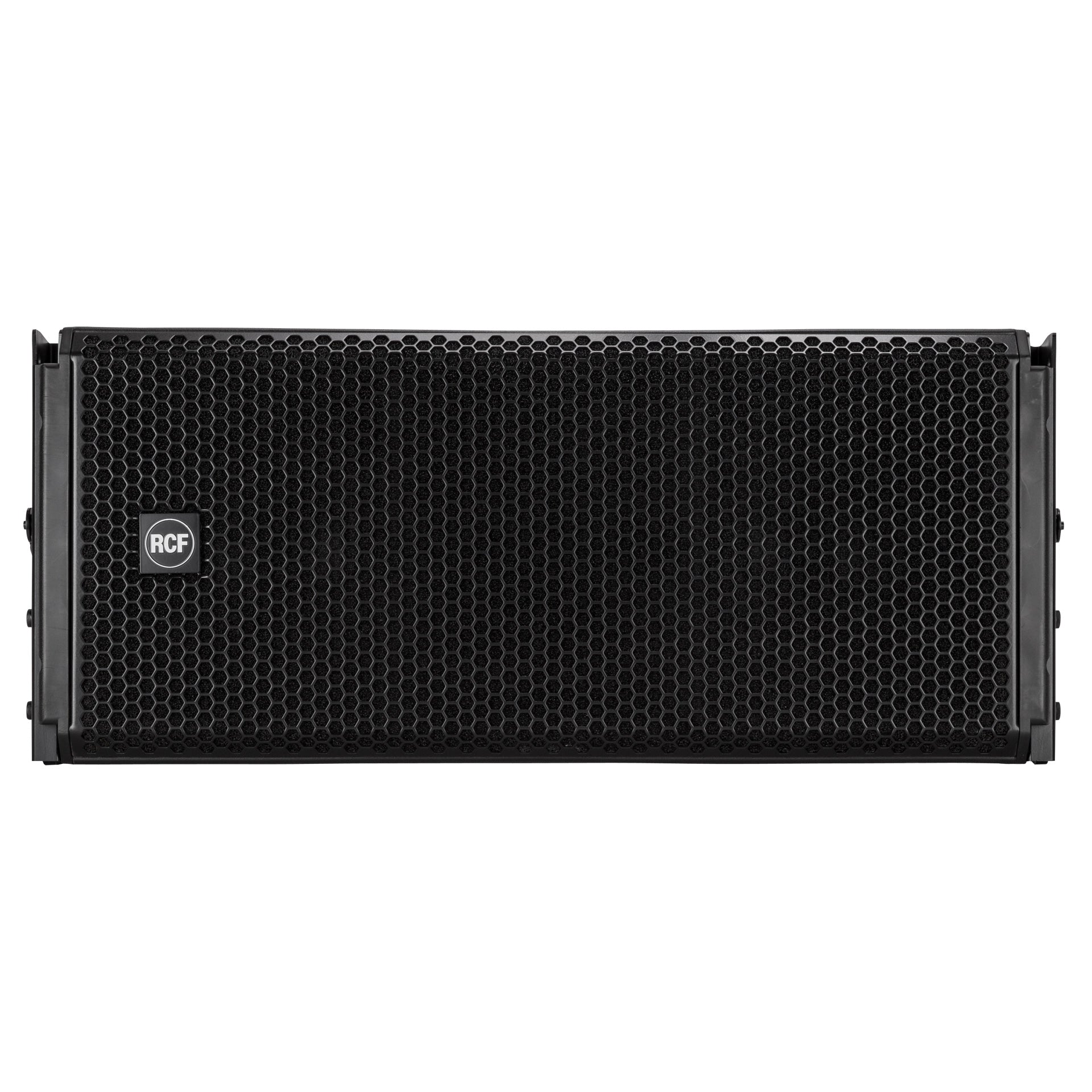

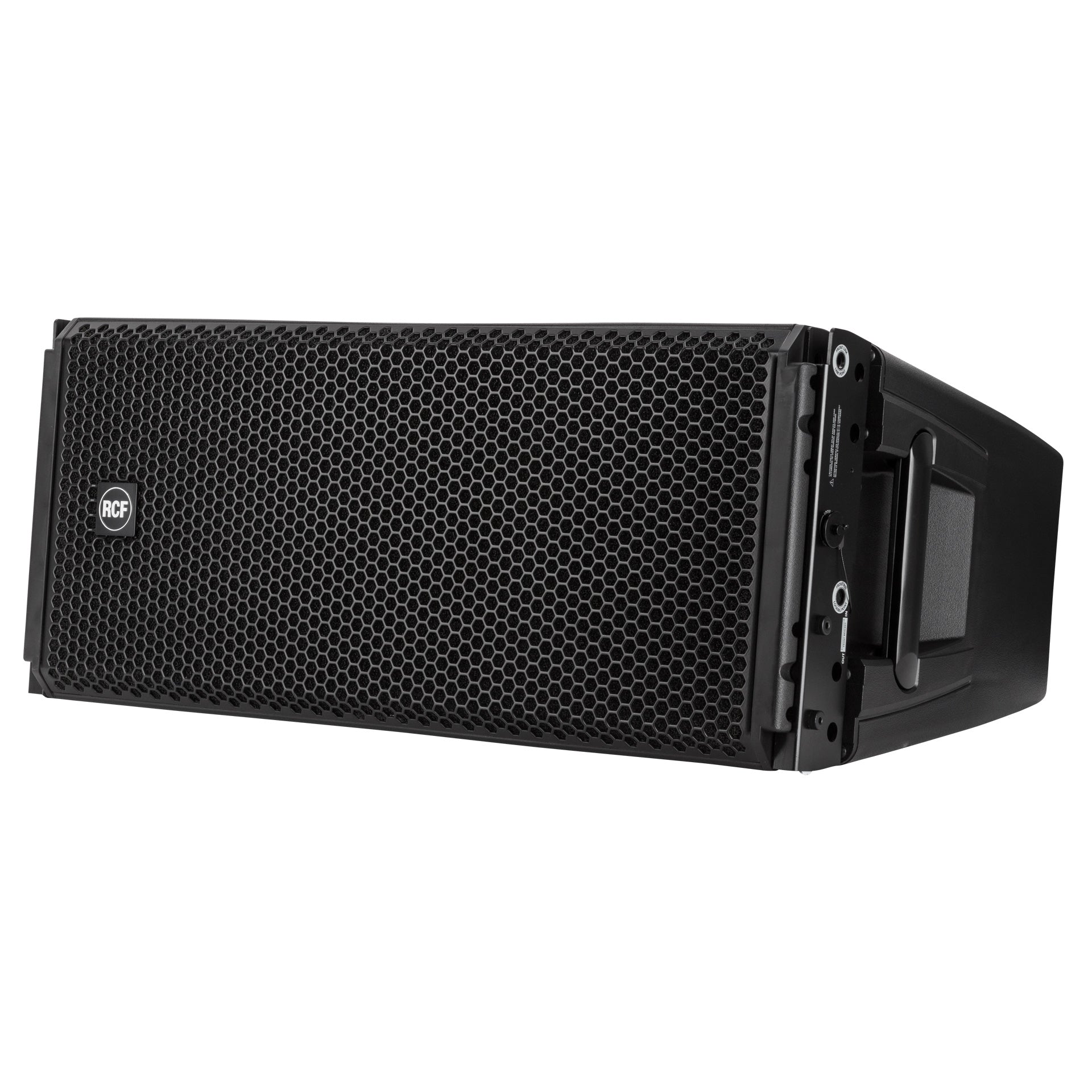

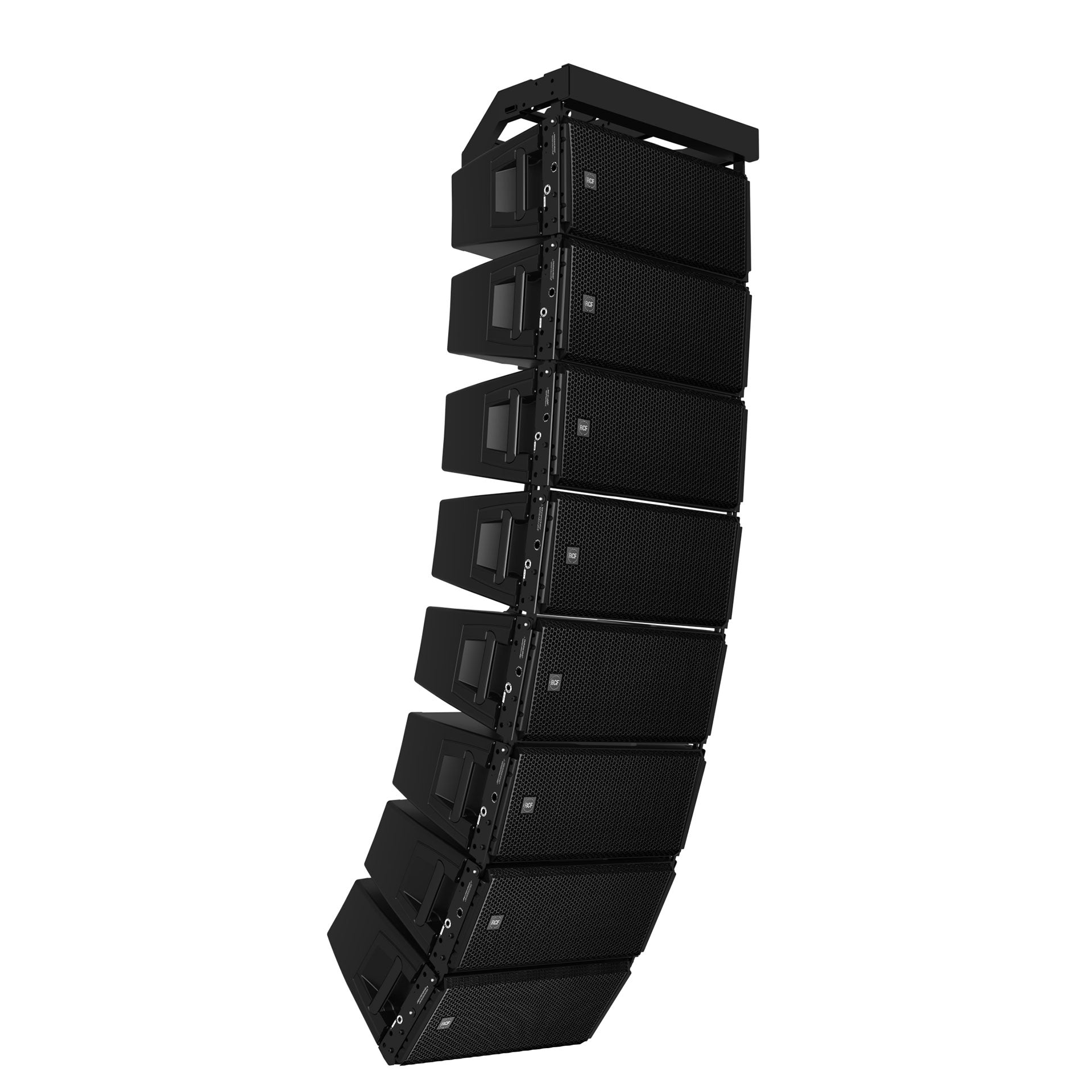

The RCF HDL30-A is a compact bi-amped 2-way active touring system for medium to large events, both indoors and outdoors. It features two 10-inch woofers and an impressive 4-inch titanium compression driver. The time coherent waveguide is the result of in-depth research and design. HDL 30-A is the first line array in a composite cabinet with zero-degree phase and ultra-linear amplitude response. The built-in 2200 watt class-D amplifier delivers excellent playback clarity and up to 137 decibels SPL max. The RCF HDL30 -A features state of the art RCF transducers with neodymium magnets. Considering its acoustical power, it has a remarkably low weight for easy handling and flying. The HDL 38-AS is the ideal flyable bass complement for the HDL 30-A array system
Specifications
| Acoustical Specifications |
| Frequency Response |
50 Hz - 20,000 Hz |
| Max SPL @ 1m |
137 dB |
| Horizontal Coverage Angle |
100° |
| Vertical Coverage Angle |
15° |

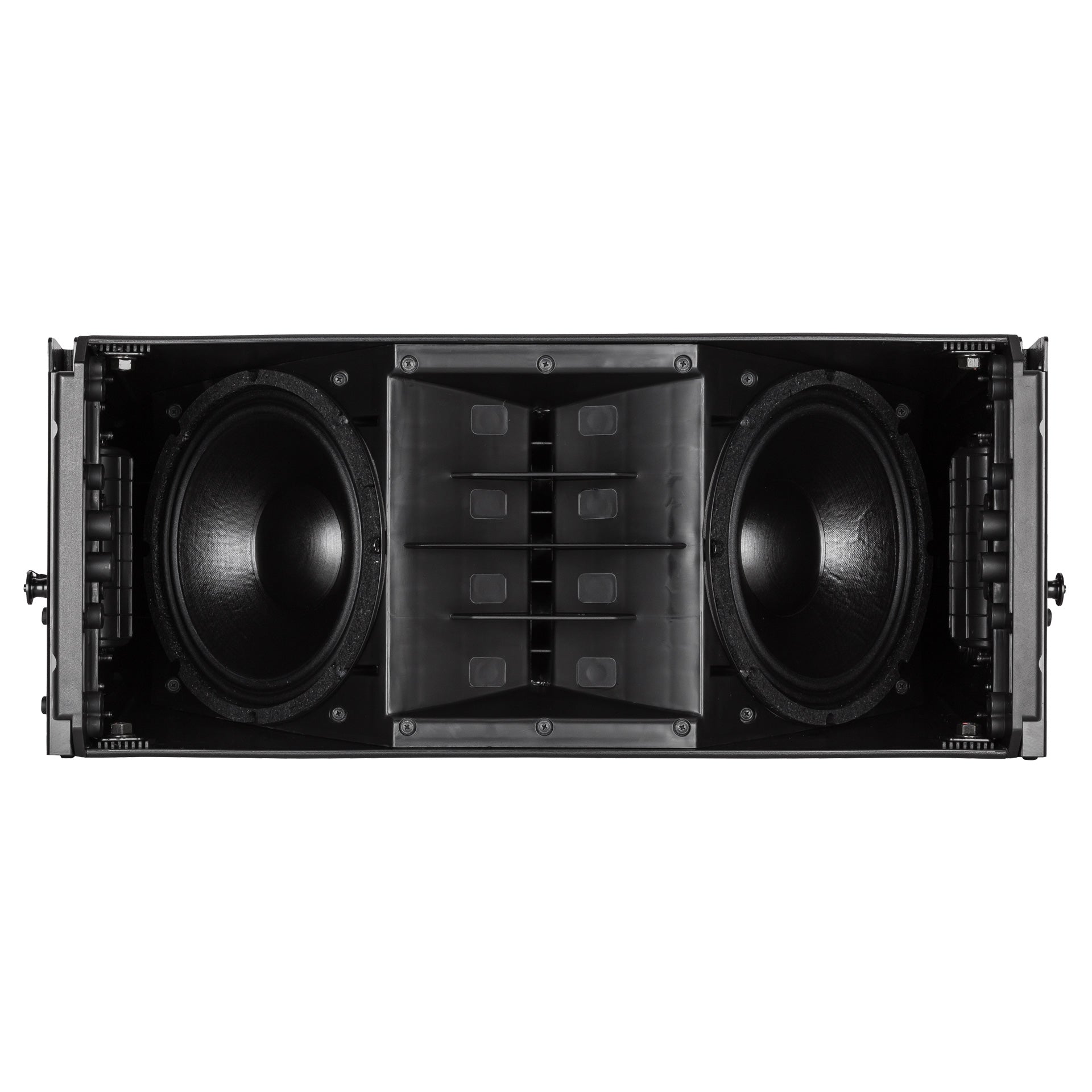

| Transducers |
| Compression Driver |
1 x 1.4" Neo, 4.0" v.c. |
| Woofer |
2 x 10" Neo, 2.5" v.c. |

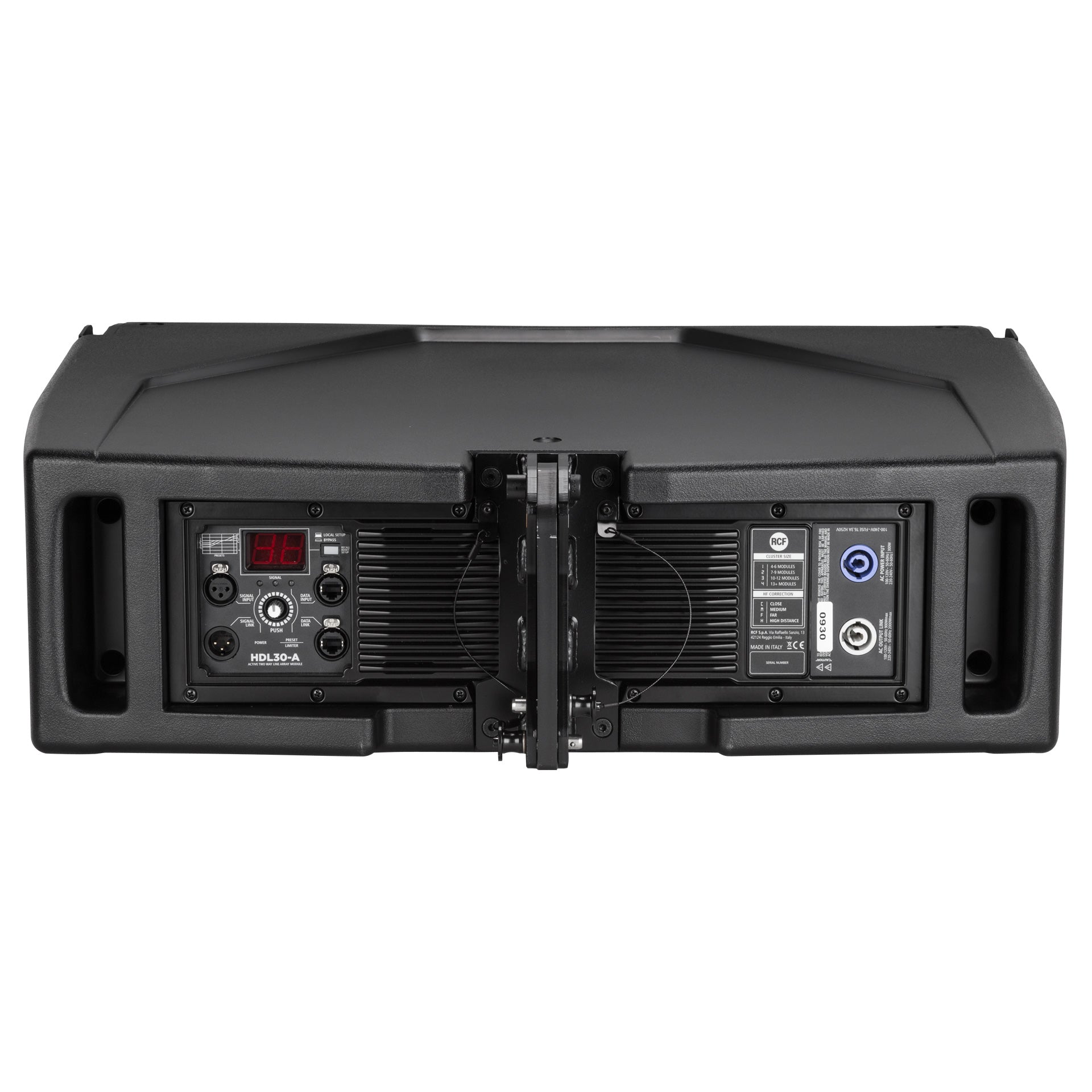

| Input/Output Section |
| Input Signal |
Bal/Unbal |
| Input Connectors |
XLR, RDNet Ethercon |
| Output Connectors |
XLR, RDNet Ethercon |
| Input Sensitivity |
+4 dBu |
| Processor Section |
| Crossover Frequencies |
680 Hz |
| Protections |
Thermal, RMS |
| Limiter |
Soft Limiter |

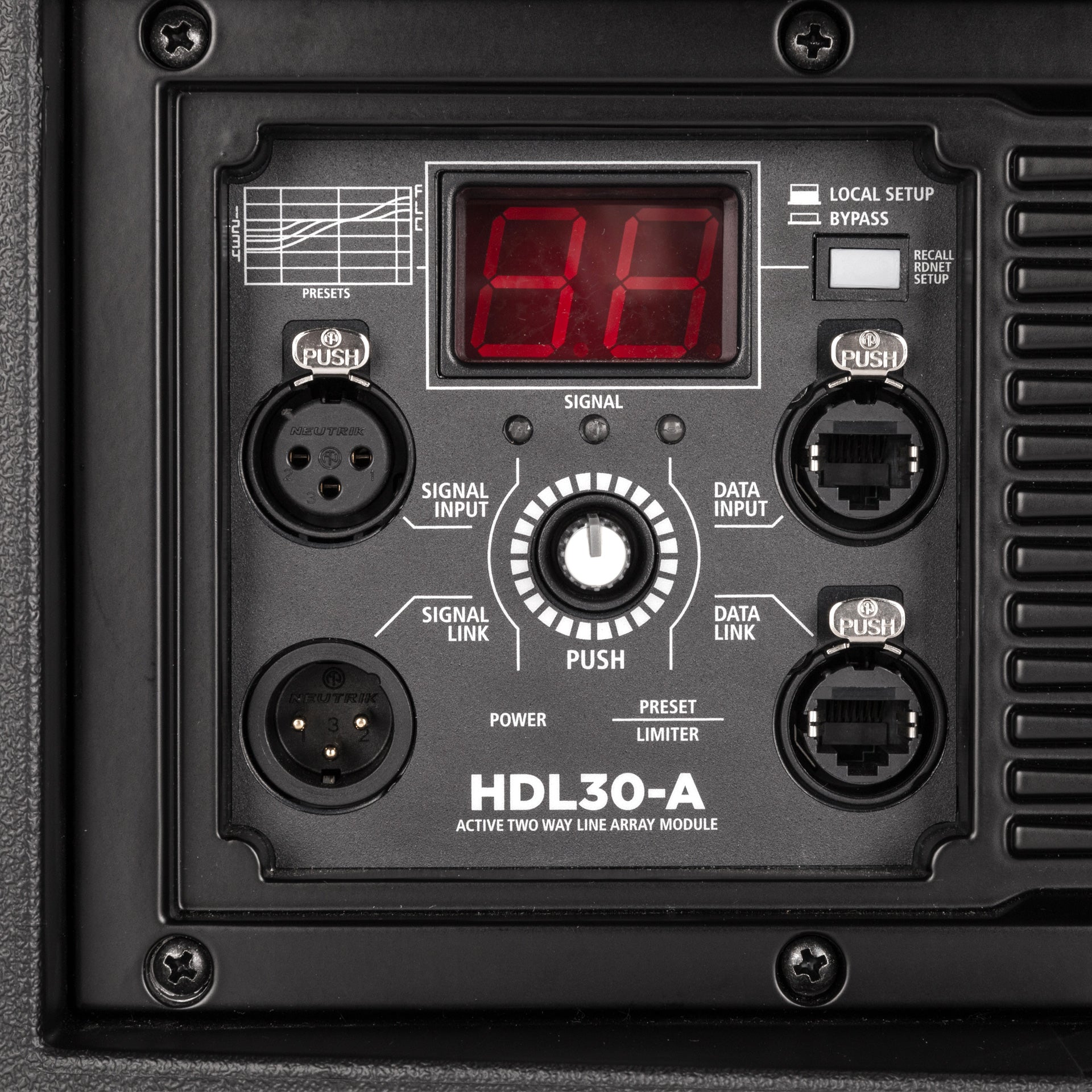

| Controls |
Preset, RDNet Bypass |
| RDNet |
Onboard |
| Power Section |
| Total Power |
2200 W Peak, 1100 W RMS |
| High Frequencies |
600 W Peak, 300 W RMS |
| Low Frequencies |
1600 W Peak, 800 W RMS |
| Cooling |
Forced |

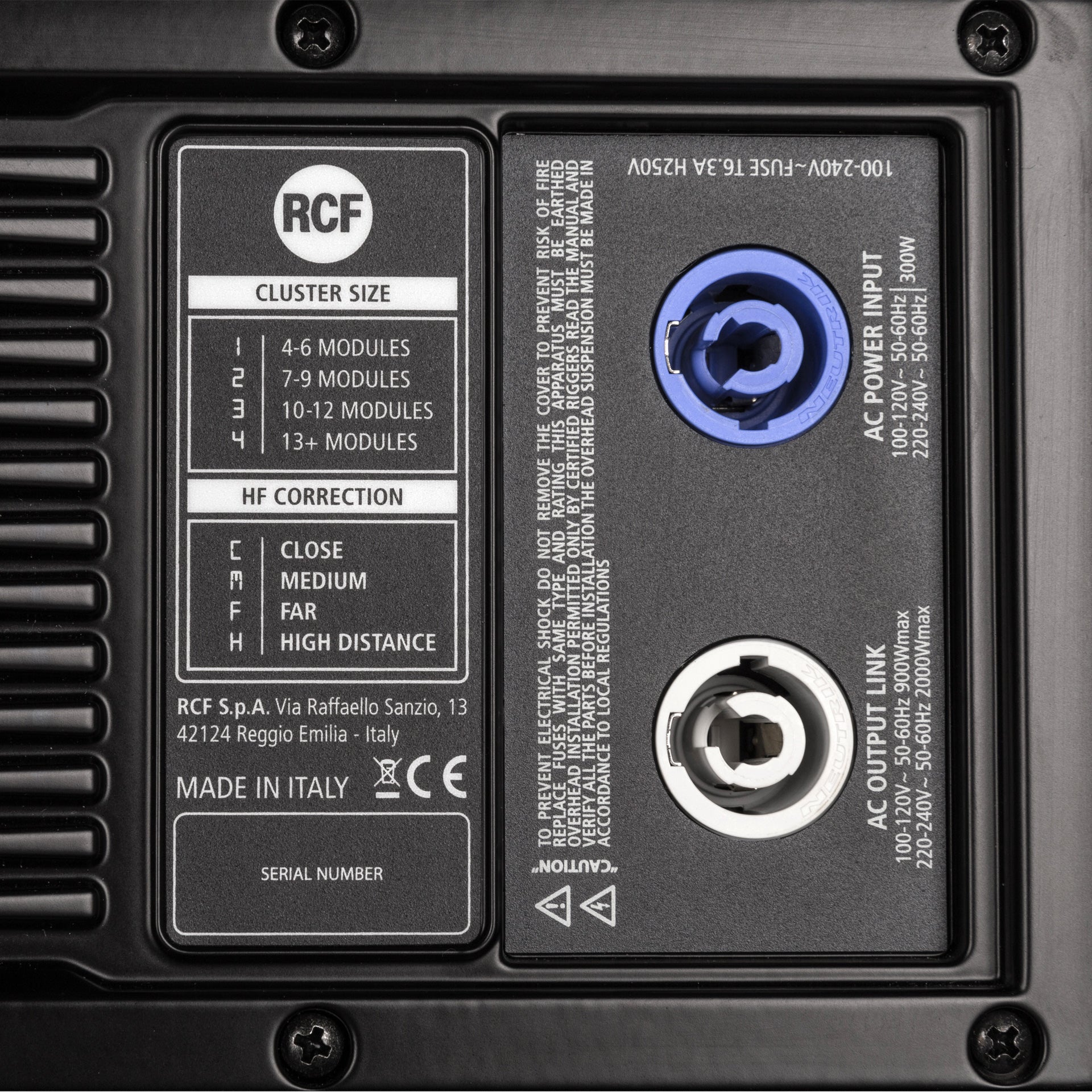

| Connections |
Powercon IN/OUT |
| Standard Compliance |
| Safety Agency |
CE Compliant |
| Physical Specifications |
| Cabinet/Case Material |
PP Composite |

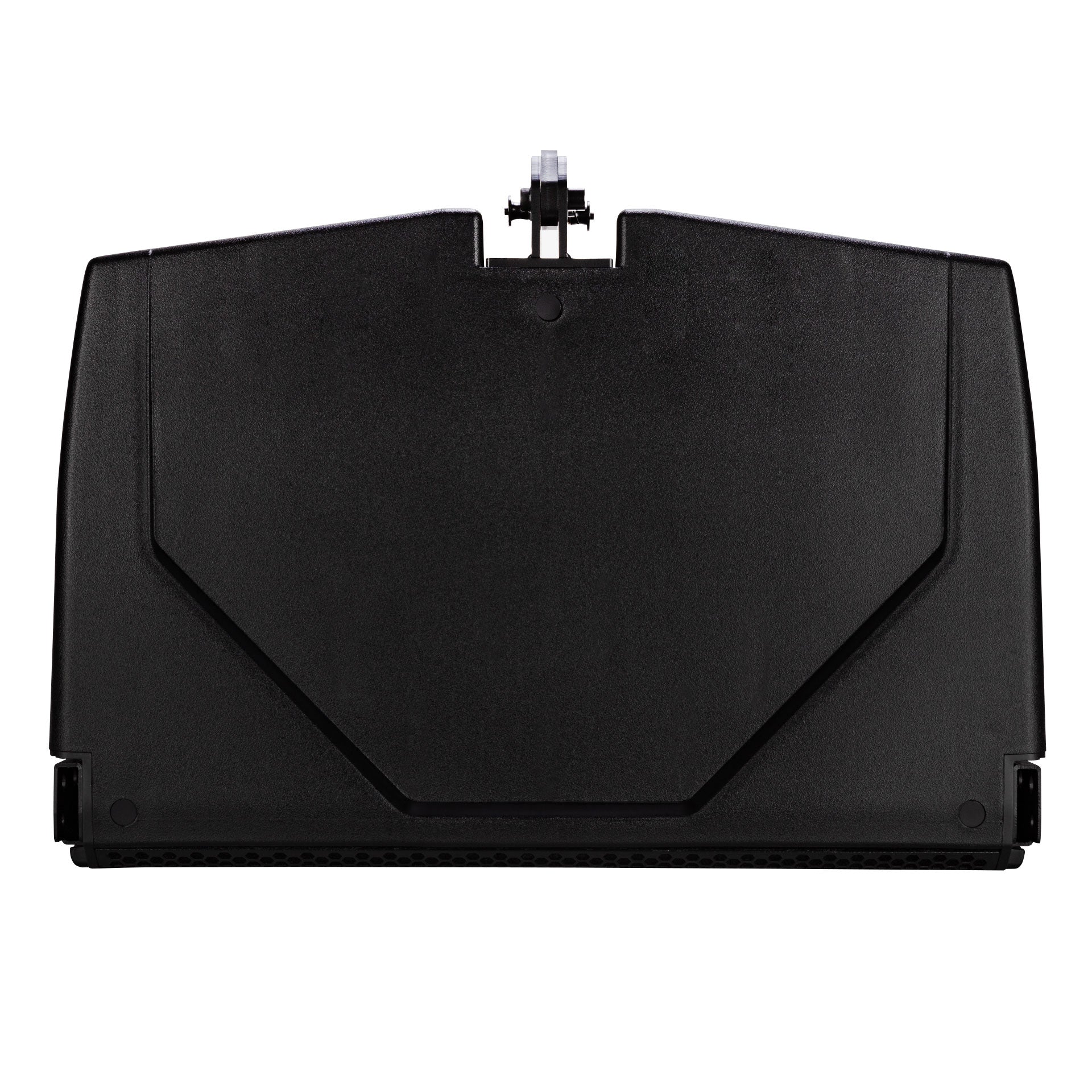

| Hardware |
Array Fittings |

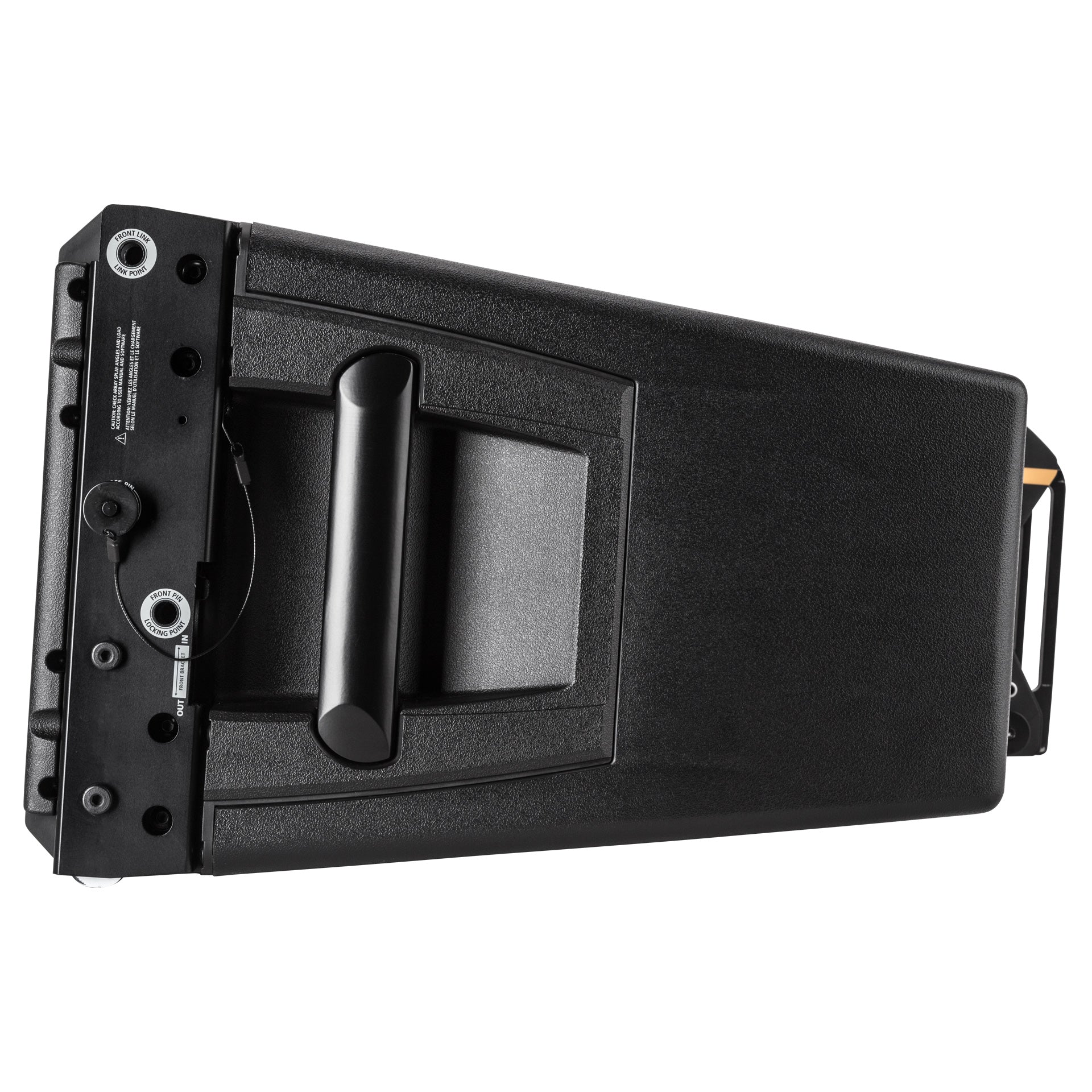

| Handles |
2 Side |
| Grille |
Steel |
| Color |
Black |
| Size / Weight |
| Height |
293 mm / 11.54 inches |
| Width |
705 mm / 27.76 inches |
| Depth |
502 mm / 19.76 inches |
| Weight |
25 kg / 55.12 lbs |
| Shipping Information |
| Package Height |
365 mm / 14.37 inches |
| Package Width |
800 mm / 31.5 inches |
| Package Depth |
550 mm / 21.65 inches |
| Package Weight |
28.2 kg / 62.17 lbs |
