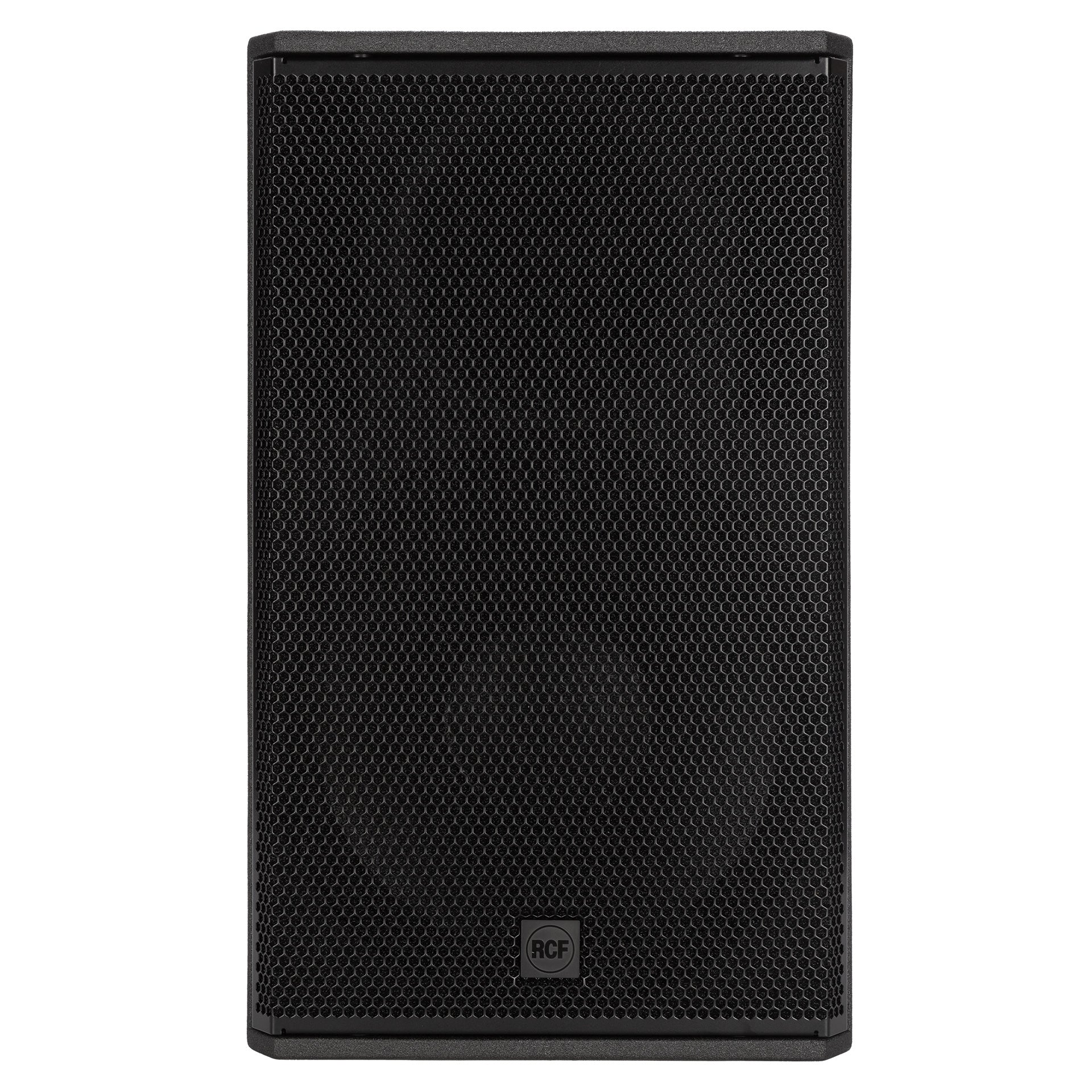

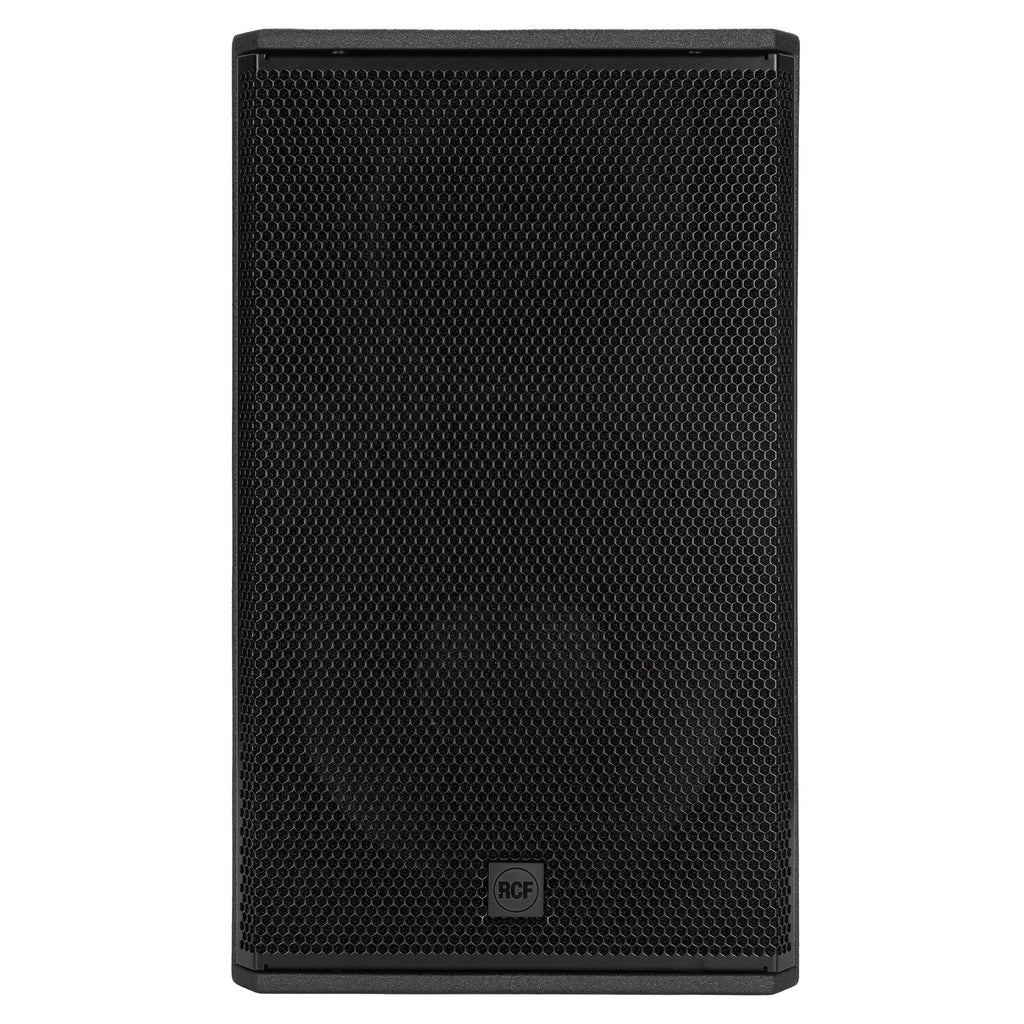

RCF COMPACT C 45 WP TWO-WAY PROFESSIONAL SPEAKER Features
- 700 W power handling (RMS)
- 138 dB max SPL
- 48 ÷ 20000 Hz frequency range
- 100° x 50° constant directivity coverage angle

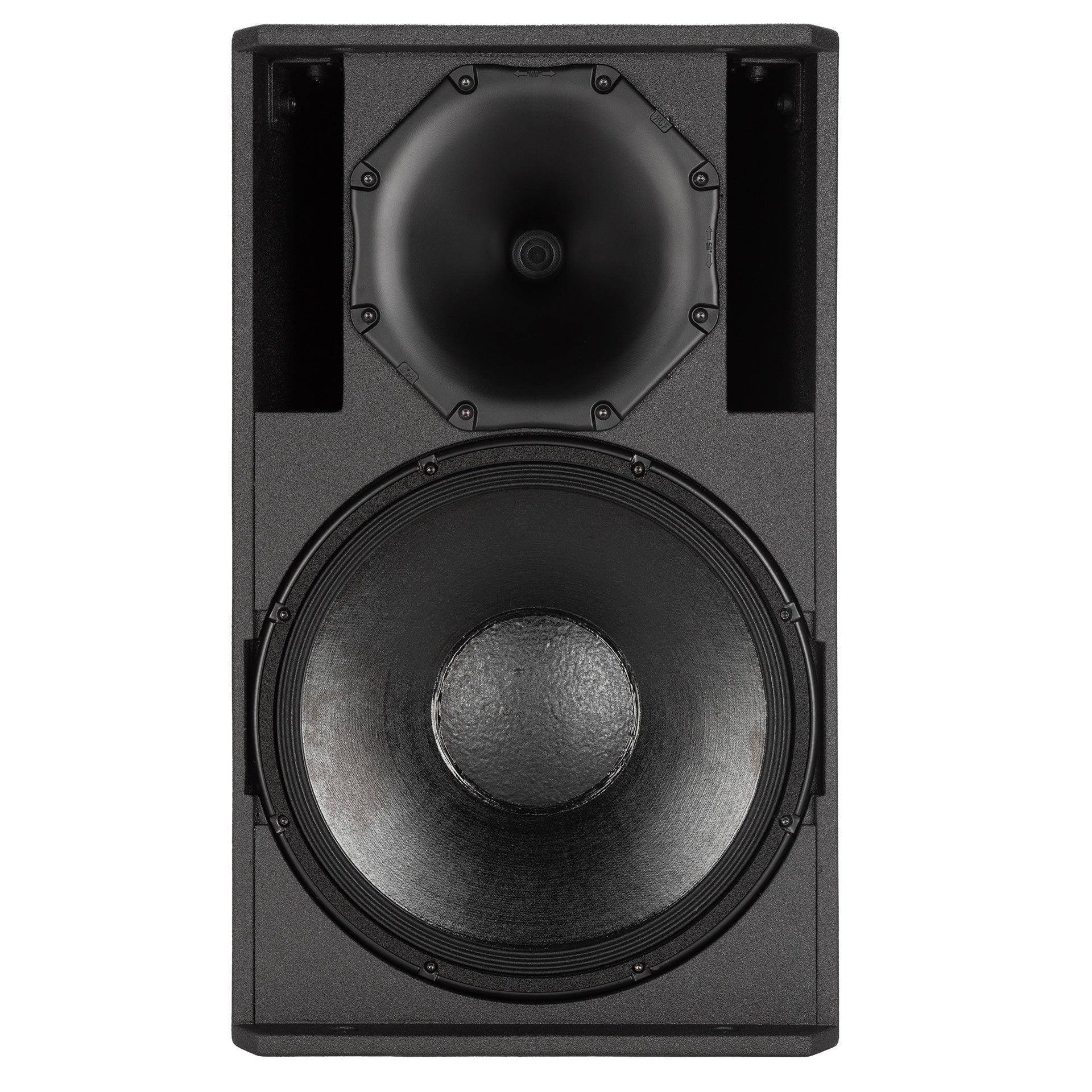

- 1x15" neo LF and 1x4.0" v.c. neo HF
- Rotatable horn
- High quality birch plywood cabinet
- Steel grille with water-repellent protection

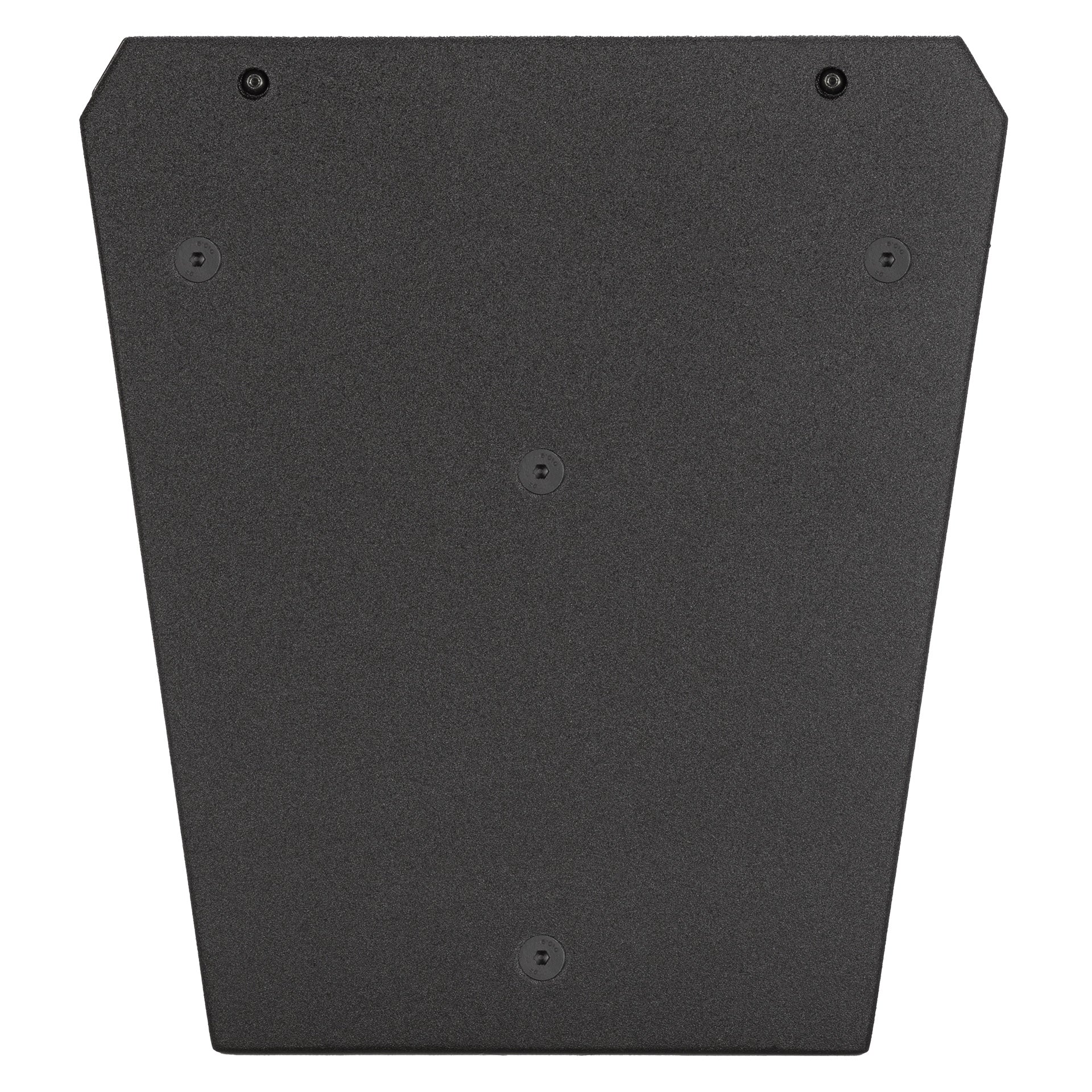

- Installation points available on top, bottom, rear and side panels
- 2 x eco|mate IP 67 connectors
RCF COMPACT C 45 WP TWO-WAY PROFESSIONAL SPEAKER is a weather-resistant loudspeaker designed for outdoor installations, stadiums, sports venues, transportation hubs and commercial audio systems. The RCF COMPACT C 45 WP TWO-WAY PROFESSIONAL SPEAKER delivers 700W RMS power, up to 138 dB SPL, a 15-inch neodymium woofer and a 4-inch compression driver for clear, high-output sound. Its IP55-rated enclosure, rotatable horn and premium birch plywood cabinet ensure reliable performance in demanding environments. Choose the RCF COMPACT C 45 WP TWO-WAY PROFESSIONAL SPEAKER for powerful, consistent and professional audio coverage in indoor and outdoor applications.
RCF COMPACT C 45 WP TWO-WAY PROFESSIONAL SPEAKERSpecifications
| Acoustical Specifications |
|---|
| Frequency Response (-10dB) |
48 Hz - 20000 Hz |
| Max SPL @ 1m |
138 dB |
| Horizontal Coverage Angle |
100° |
| Vertical Coverage Angle |
50° |
| Directivity Index Q |
10 |
| System Sensitivity |
98 dB |
| Power Section |
|---|
| Amplification |
Full Range |
| Nominal Impedance |
8 ohm |
| Power Handling |
700 W RMS |
| Peak Power Handling |
2800 W Peak |
| Protections |
Dynamic Active Mosfet |
| Crossover Frequencies |
1100 Hz |
| Recommended Amplifiers |
XPS Series, KPS Series |
| Transducers |
|---|
| Compression Driver |
1 x 1.4'' neo, 4.0'' v.c |
| Woofer |
1 x 15'' neo, 4.0'' v.c |
| Input/Output Section |
|---|

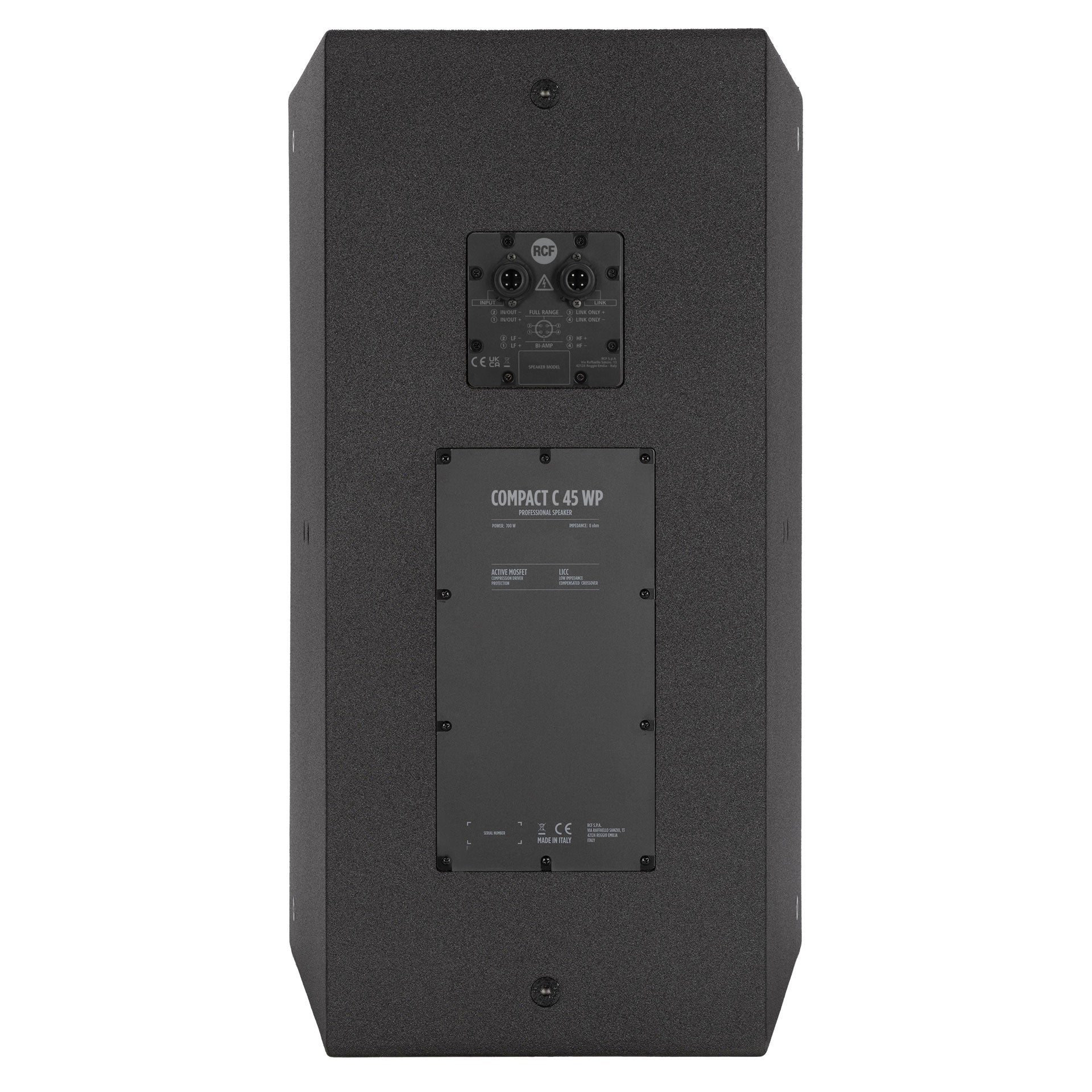

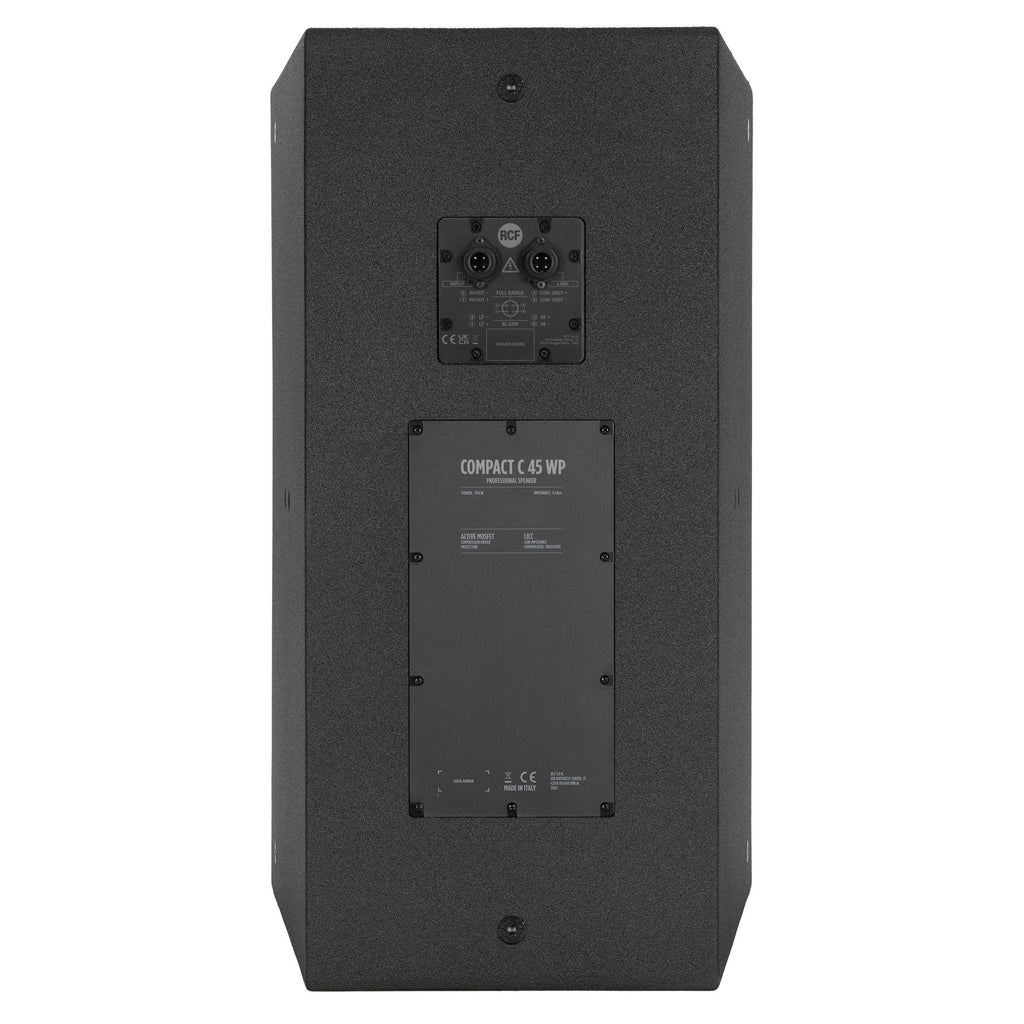

| Input Connectors |
Amphenol Eco/Mat IP67 |
| Output Connectors |
Amphenol Eco/Mat IP67 |
| Standard Compliance |
|---|
| IP Protection Grade |
IP 55 |
| Safety Agency |
CE Compliant |
| EN54-24 Certified |
Yes |
| CPR Number |
0068-CPR-234/2025 |
| Physical Specifications |
|---|
| Cabinet/Case Material |
Birch Plywood |
| Hardware |
4 x M8, 14 x M10 |
| Grille |
Steel grille with water-repellent protection |
| Color |
Black - RAL 9005 |
| Size / Weight |
|---|
| Height |
705 mm / 27.76 inches |
| Width |
418.8 mm / 16.49 inches |
| Depth |
460 mm / 18.11 inches |
| Weight |
32.5 kg / 71.65 lbs |
| Shipping Information |
|---|
| Package Height |
755 mm / 29.72 inches |
| Package Width |
472 mm / 18.58 inches |
| Package Depth |
513 mm / 20.2 inches |
| Package Weight |
35 kg / 77.16 lbs |
