Features
- 400 W power handling
- Up to 129 dB Sound Pressure Level
- 55-20000 Hz linear frequency response
- 1.75" Compression Driver
- 12" High Power Woofer
- Robust composite material cabinet

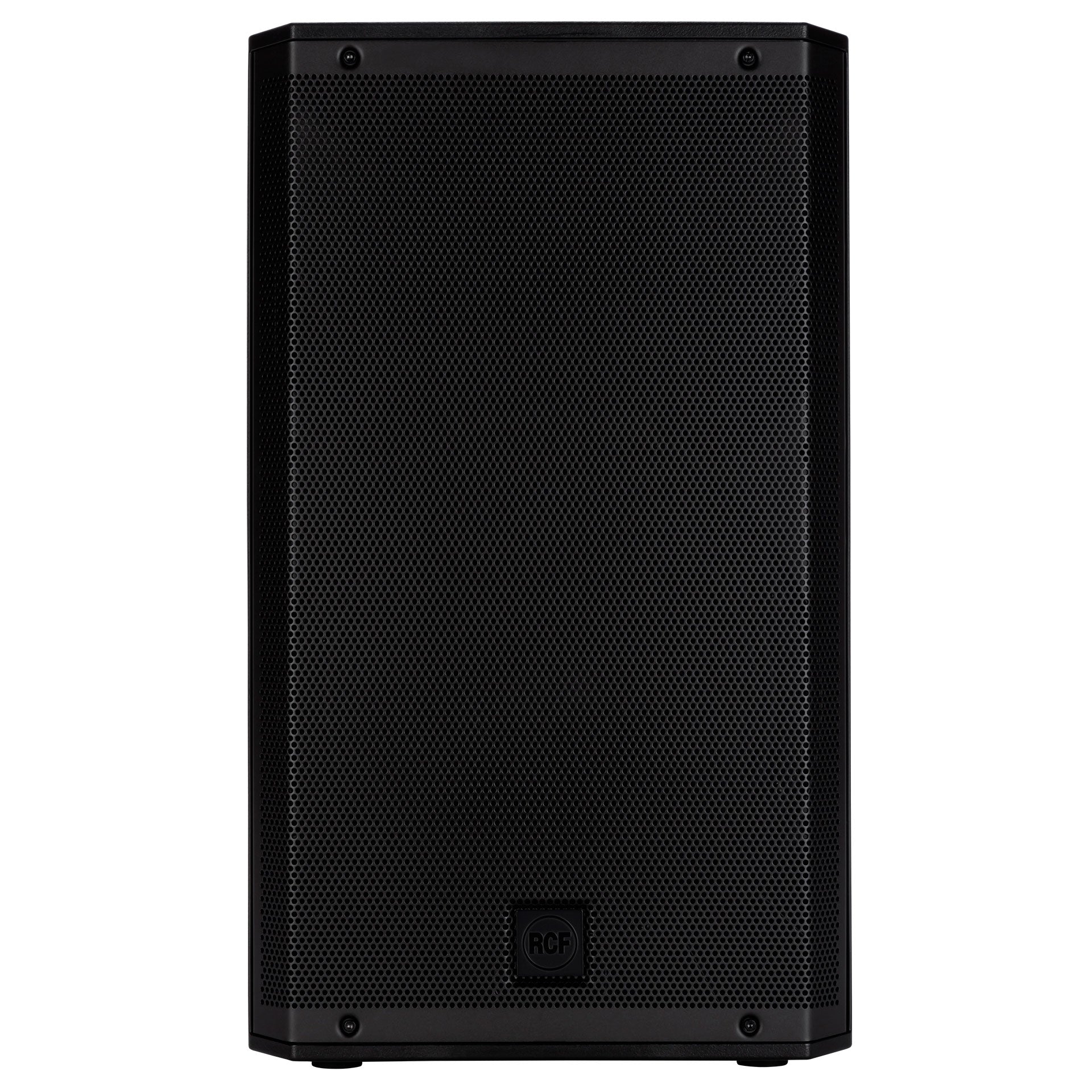

- Steel full front grille
- Optional mounting accessories

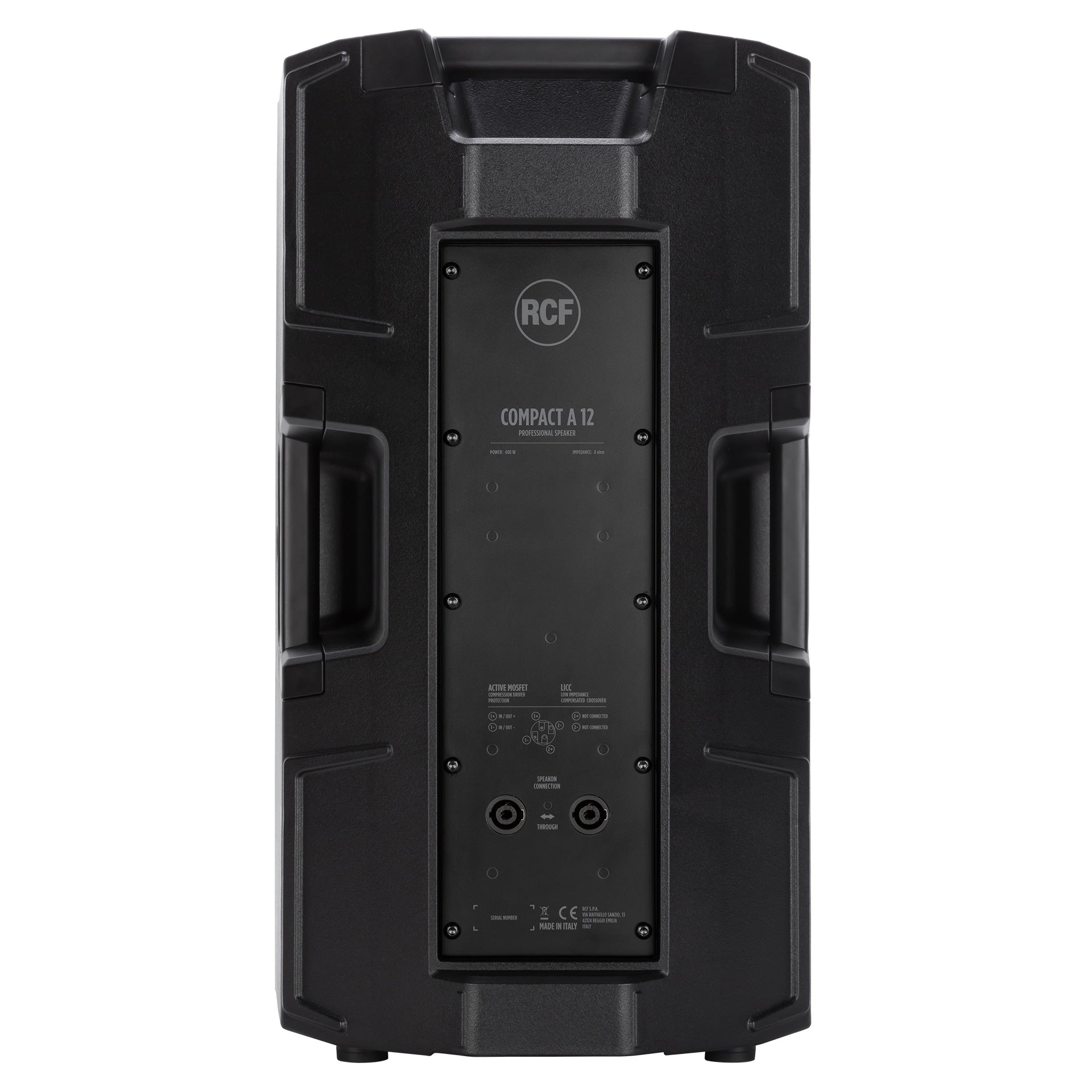

- 2 x SPEAKON connectors

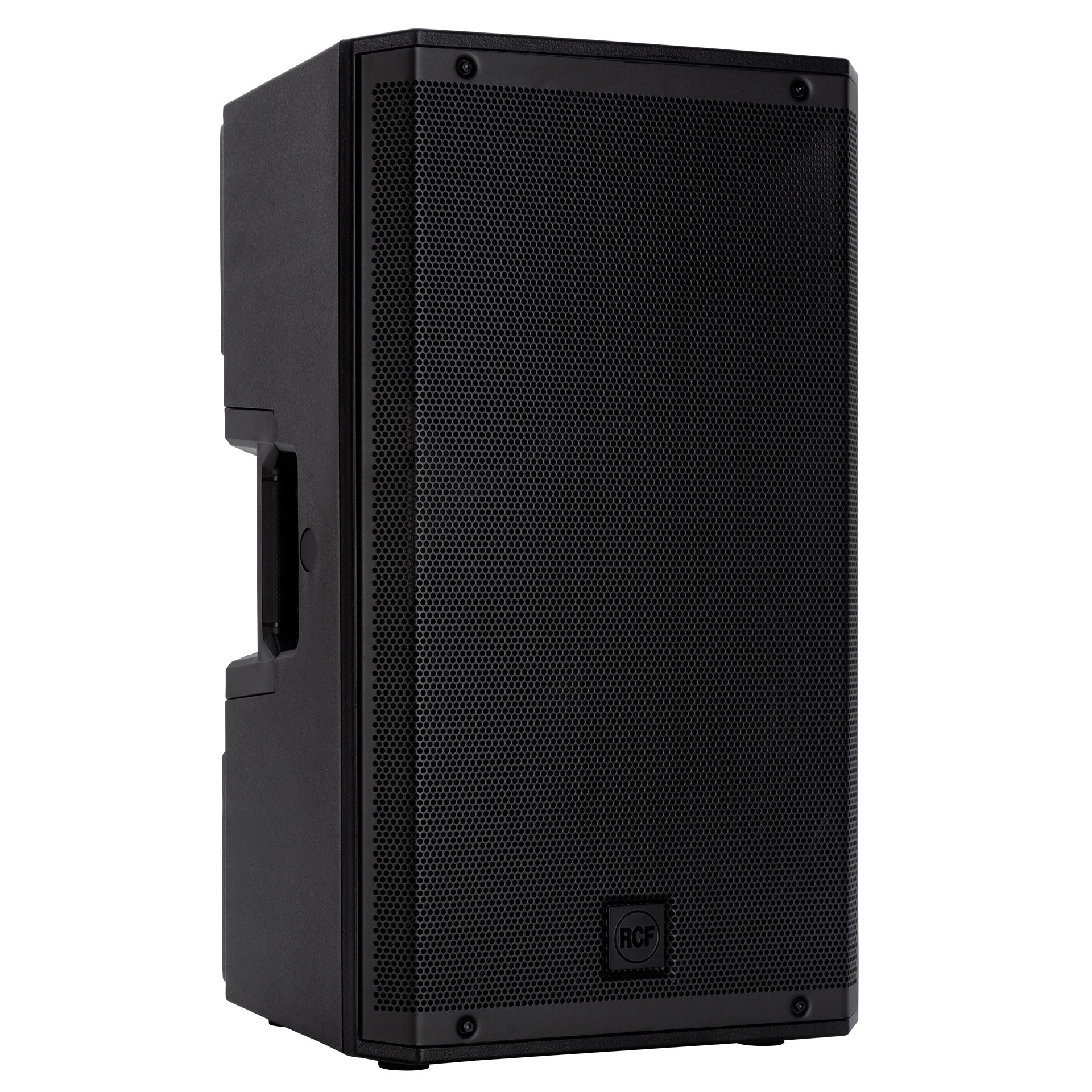

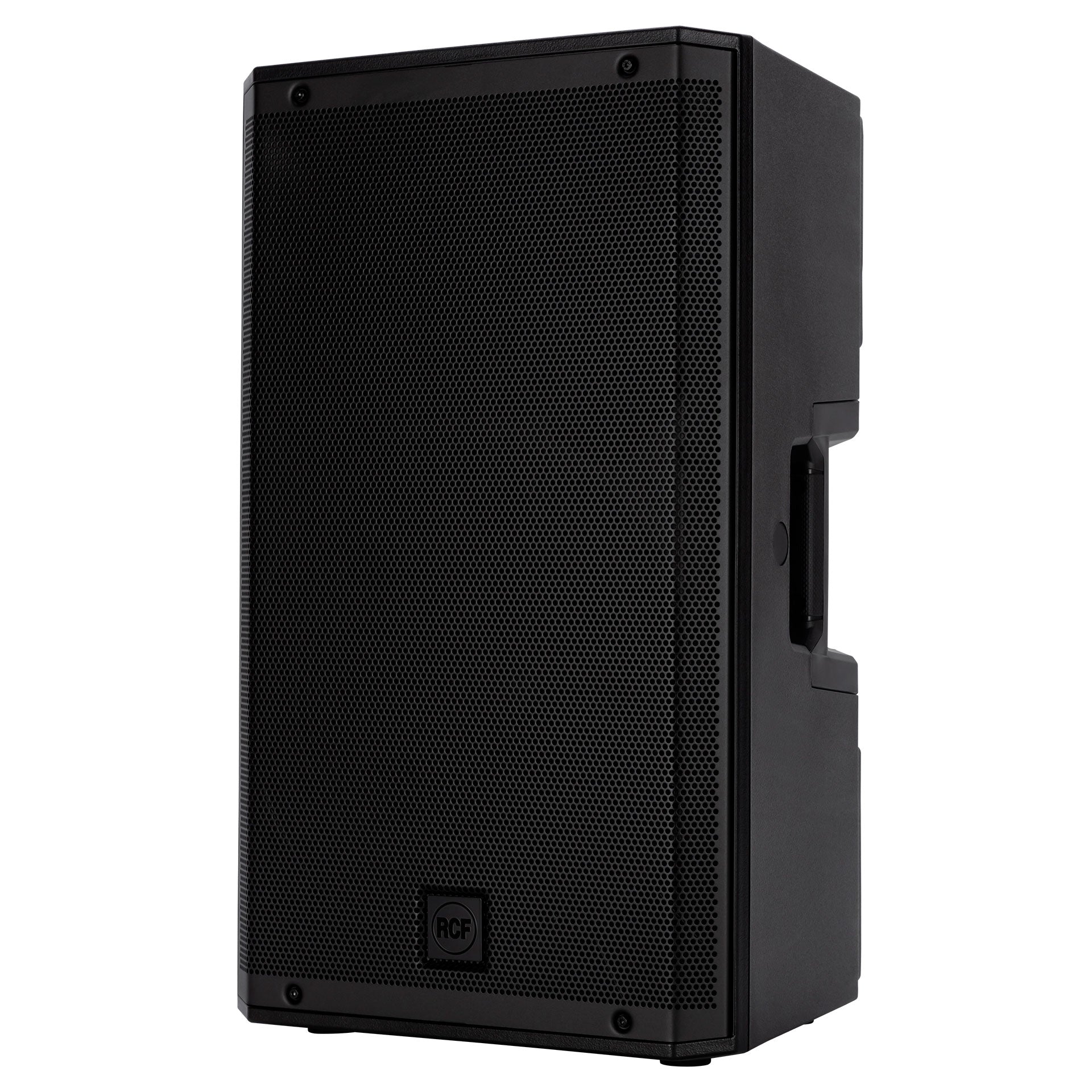

COMPACT A 12 is a multipurpose two-way full-range professional speaker system, suitable for a wide range of applications, such as live sound reinforcement and stage monitoring as well as distributed sound systems for clubs or music venues. The combination of a 1.75" compression driver, 12" woofer, and the constant directivity True Resistive Waveguide produces coherent 100° x 60° coverage for the listening area with high SPL, distortion-free sound. The sleek and lightweight cabinet uses a special polypropylene composite material with an M-brace internal reinforcement, making it easy to carry and secure to install on a pole, flown-, wall-, or truss-mounted using the multiple rigging points and available accessories.
Specifications
| Acoustical Specifications |
| Frequency Response (-10dB) |
55 Hz - 20,000 Hz |
| Max SPL @ 1m |
129 dB |
| Horizontal Coverage Angle |
100° |
| Vertical Coverage Angle |
60° |
| System Sensitivity |
97 dB |
| Power Section |
| Amplification |
Full Range |
| Nominal Impedance |
8 ohm |
| Power Handling |
400 W |
| Peak Power Handling |
1600 W Peak |
| Protections |
Dynamic Active Mosfet |
| Crossover Frequencies |
1200 Hz |
| Recommended Amplifiers |
KPS Series, QPS Series, IPS Series, DMA 504 |
| Transducers |
| Compression Driver |
1 x 1.0" Neo, 1.75" v.c. |
| Woofer |
1 x 12" Neo, 2.5" v.c. |
| Input/Output Section |
| Input Connectors |
Speakon |
| Output Connectors |
Speakon |
| Standard Compliance |
| Safety Agency |
CE Compliant |
| Physical Specifications |
| Cabinet/Case Material |
PP Composite |
| Hardware |
1 x M10 Top, 1 x M10 Each Side |

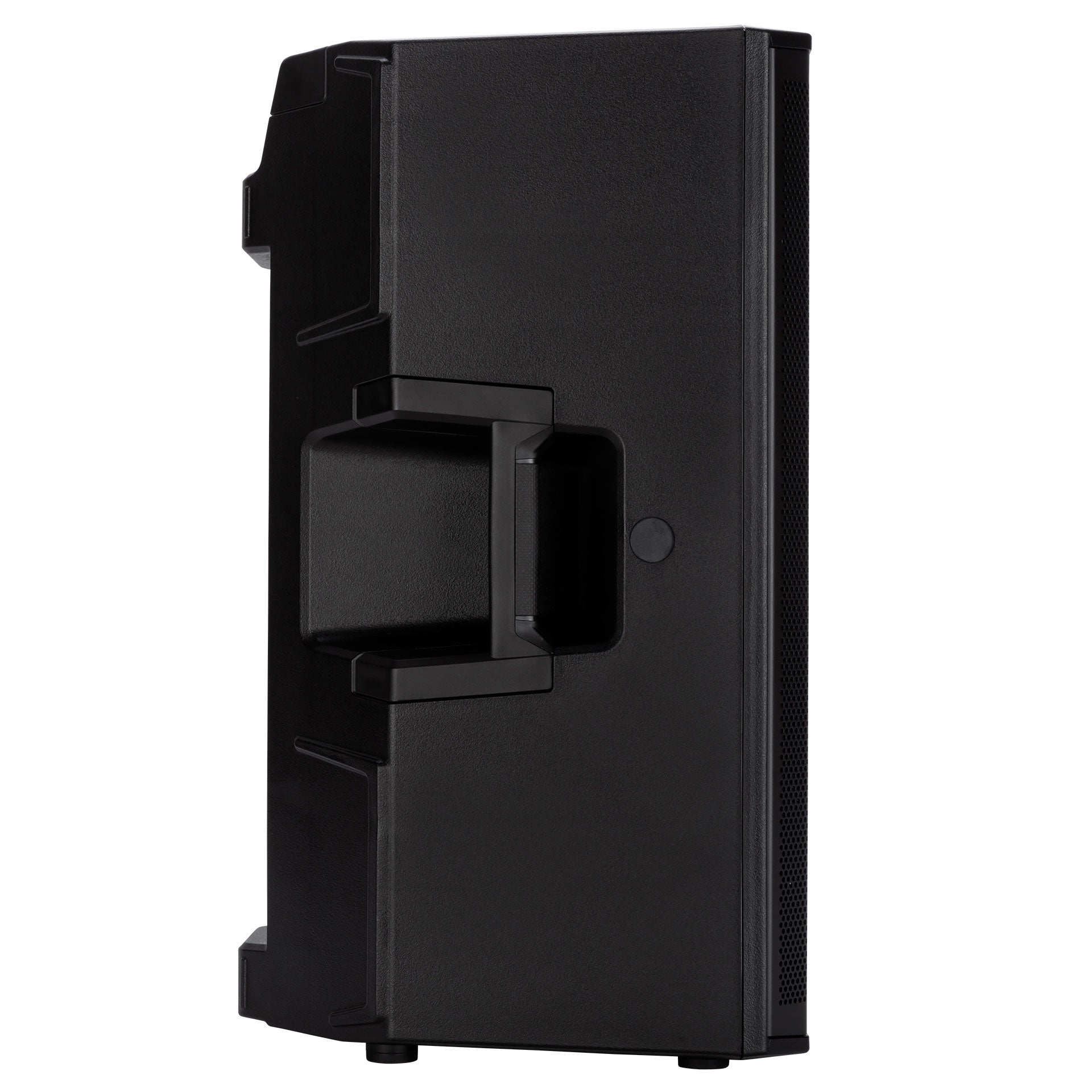

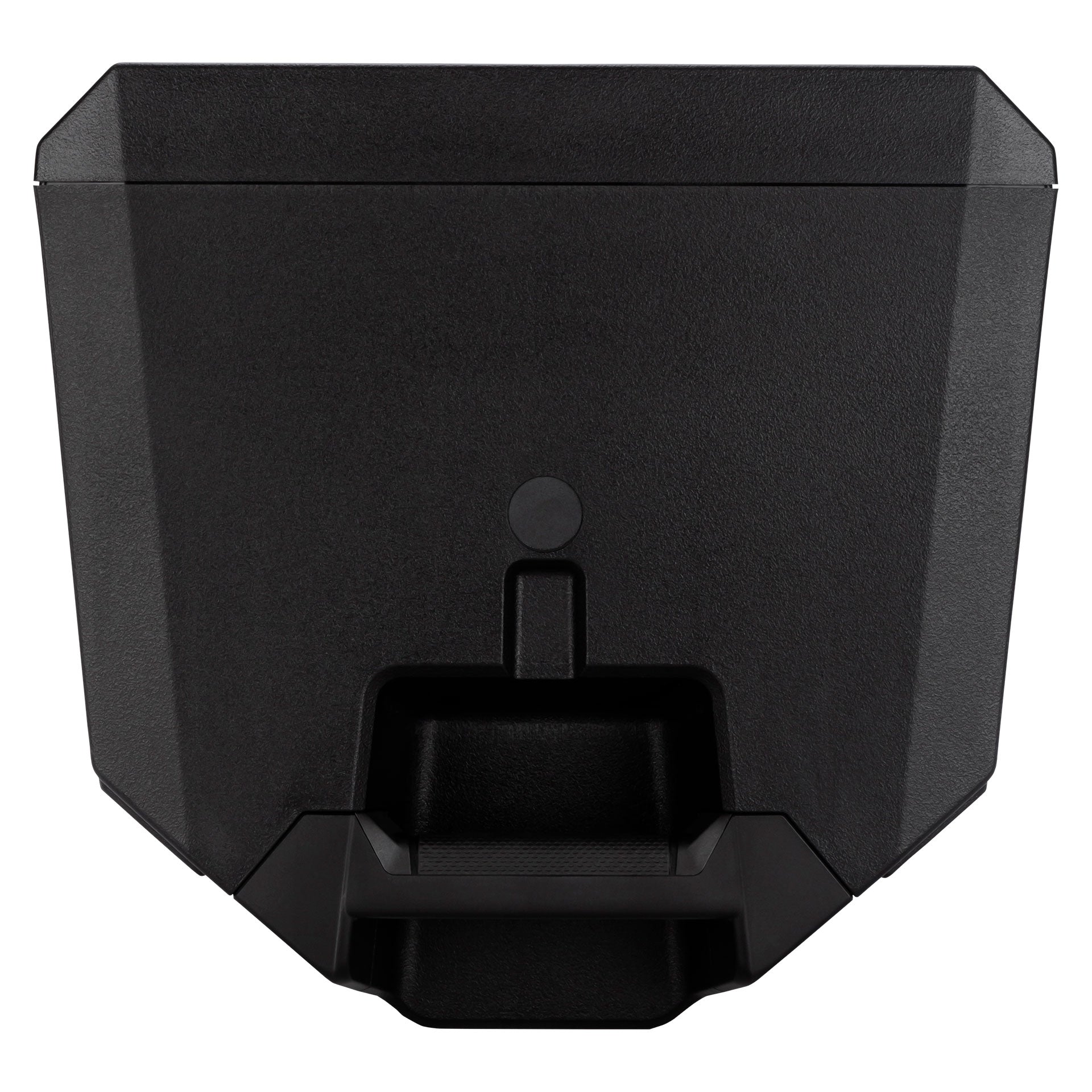

| Handles |
1 Top, 1 Each Side |

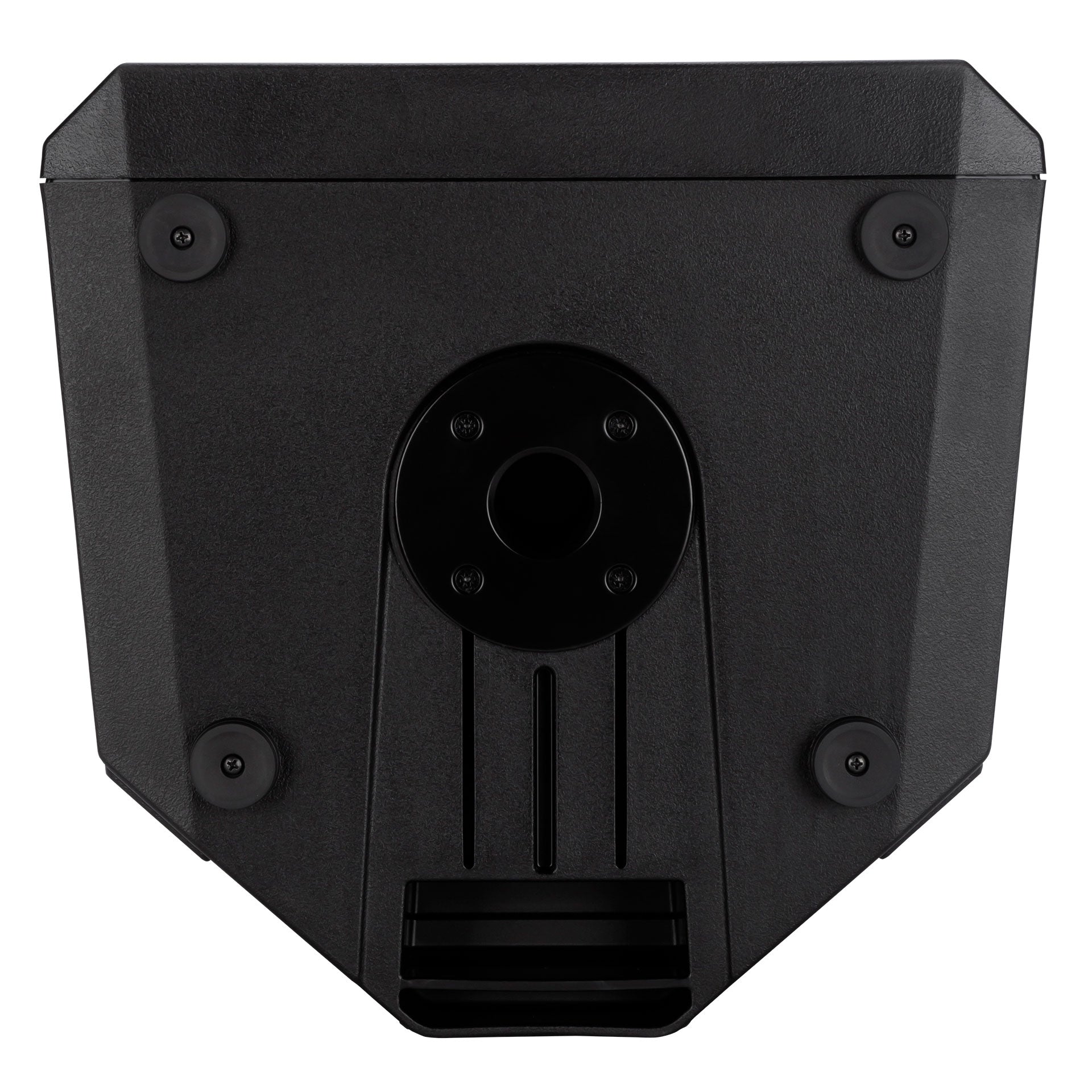

| Pole Mount/Cap |
35 mm Insert |
| Grille |
Steel |
| Color |
Black - RAL 9005 |
| Size / Weight |
| Height |
641.6 mm / 25.26 inches |
| Width |
369.9 mm / 14.56 inches |
| Depth |
363 mm / 14.29 inches |
| Weight |
18.8 kg / 41.45 lbs |
| Shipping Information |
| Package Height |
685 mm / 26.97 inches |
| Package Width |
430 mm / 16.93 inches |
| Package Depth |
423 mm / 16.65 inches |
| Package Weight |
21.4 kg / 47.18 lbs |
