Features
- 40W RMS power handling
- 110 dB max SPL
- 80 ÷ 20000 Hz frequency range
- 130° constant directivity conical coverage angle
- 5" high power woofer
- 1" neodymium dome tweeter

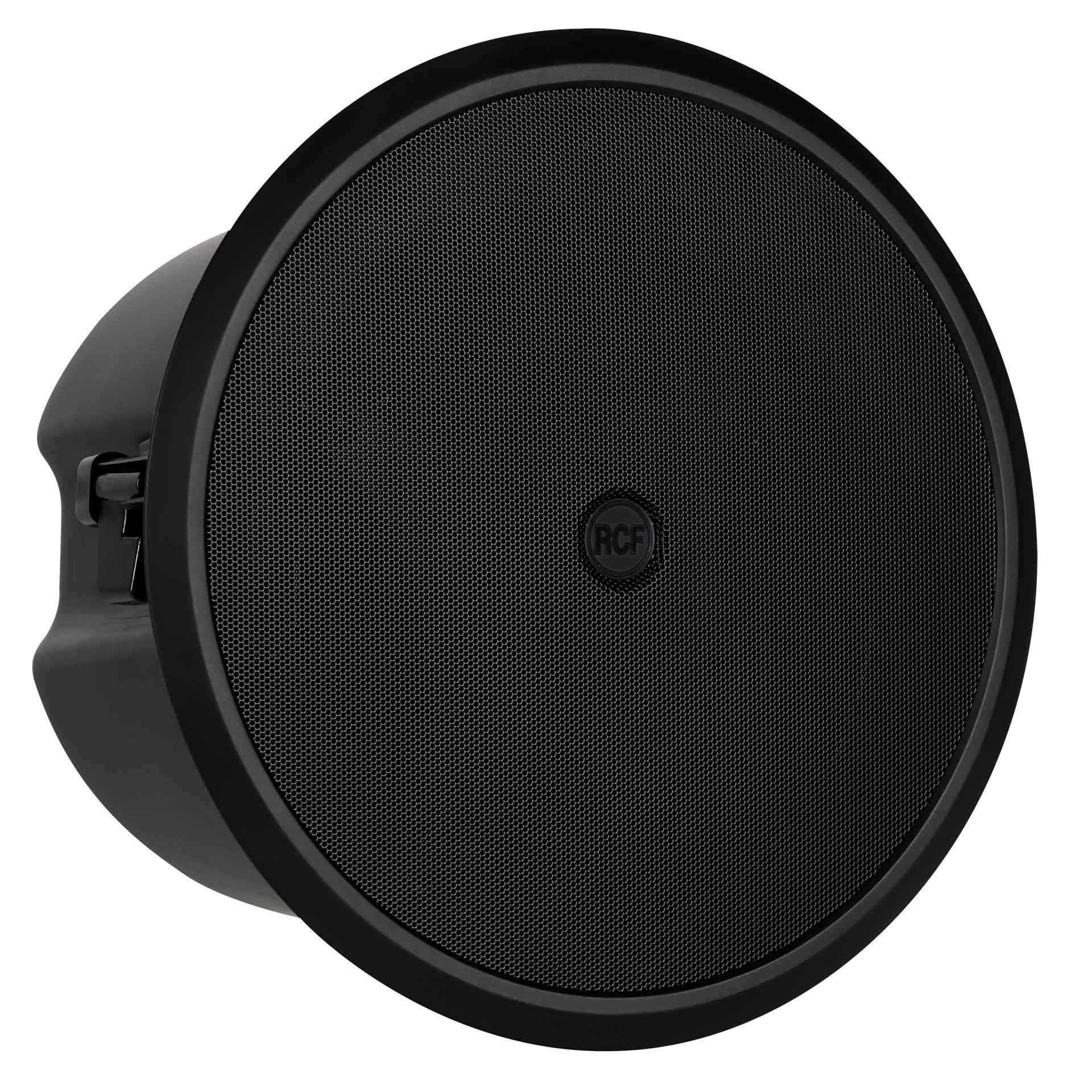

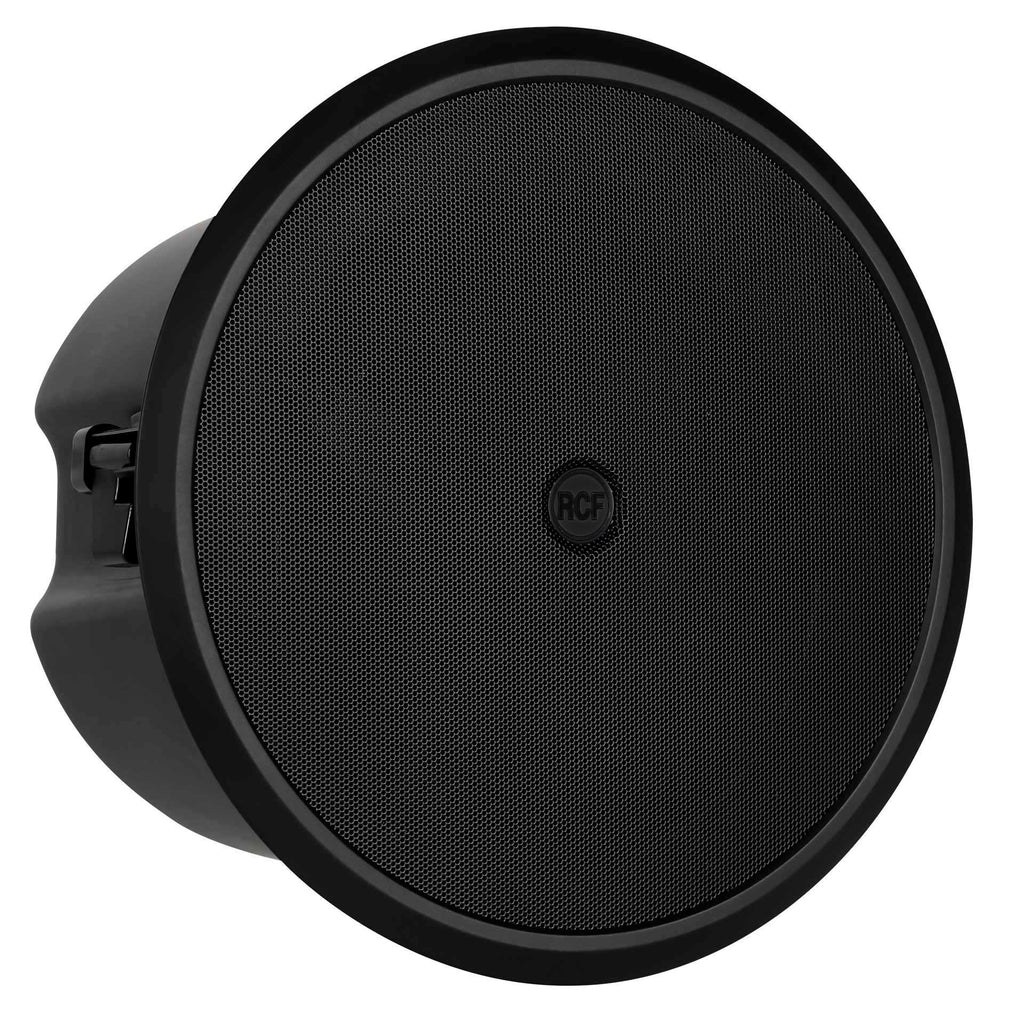

- Self-extinguishing plastic cabinet and metal backcan

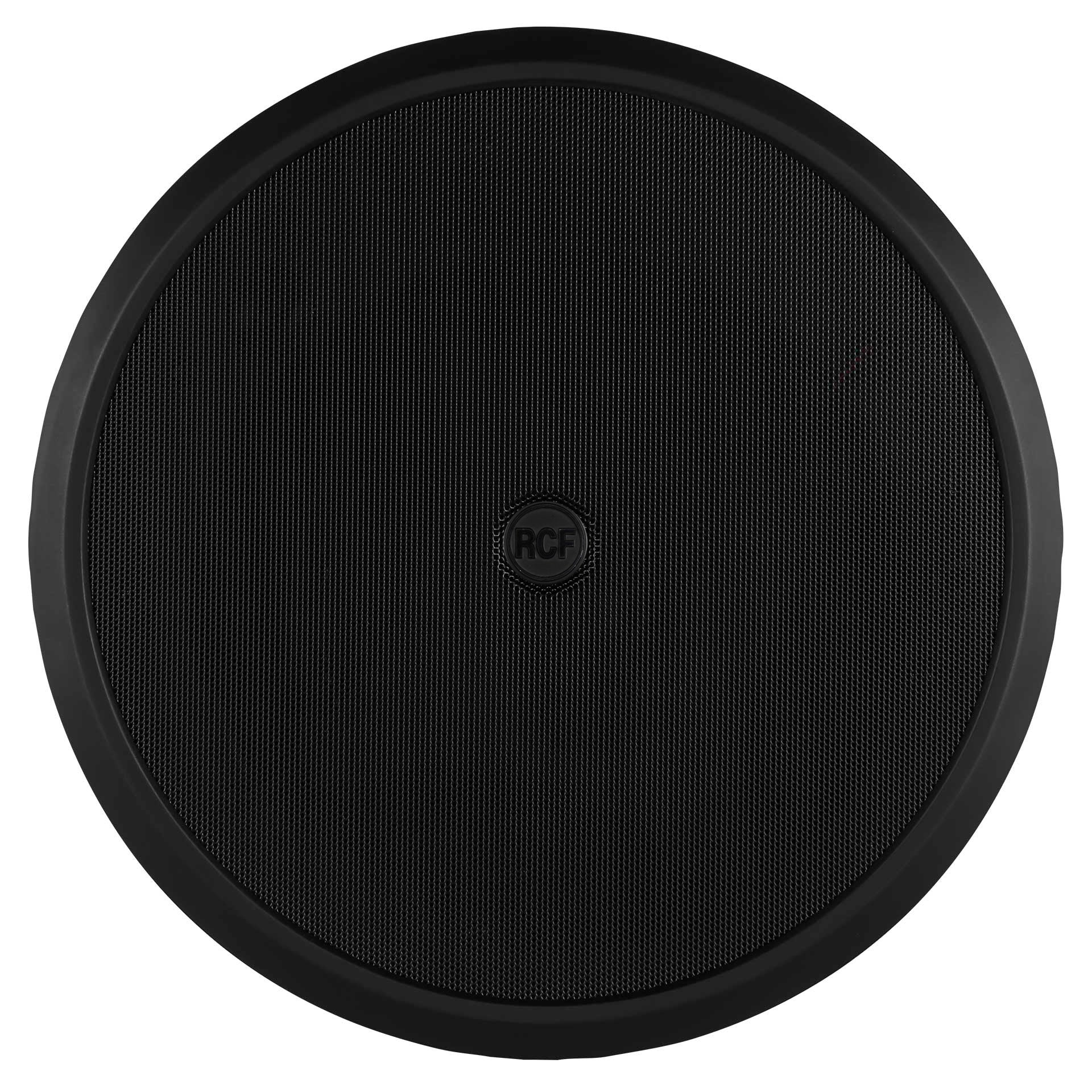

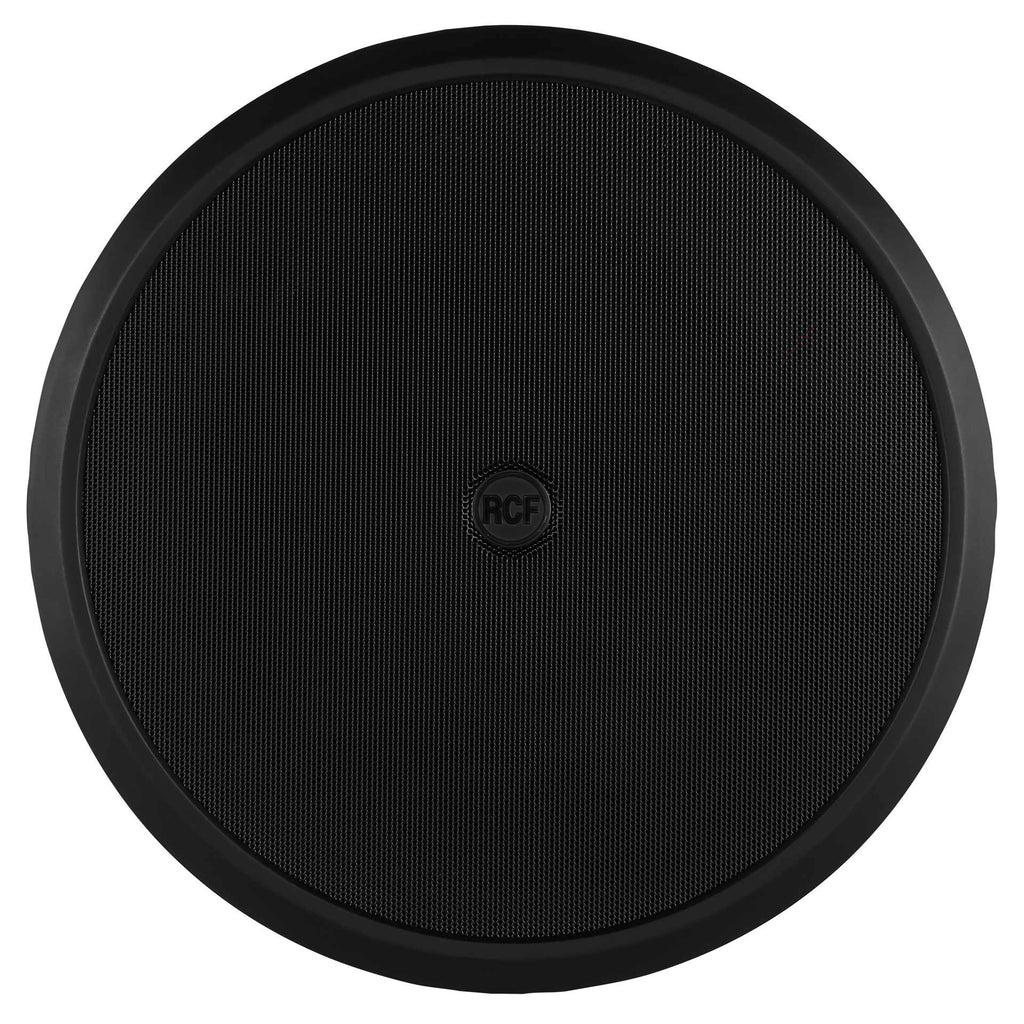

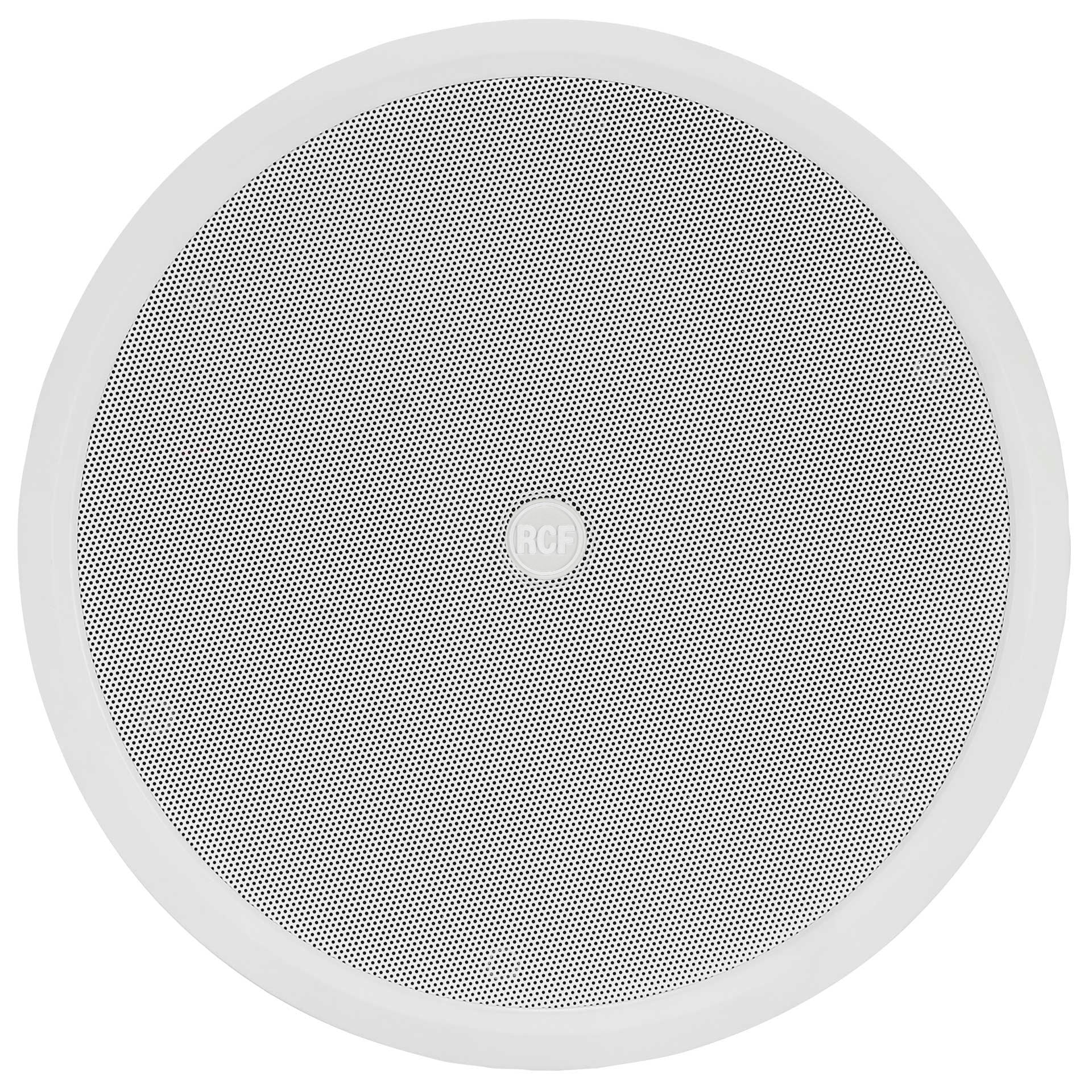

- Steel magnetic front grille

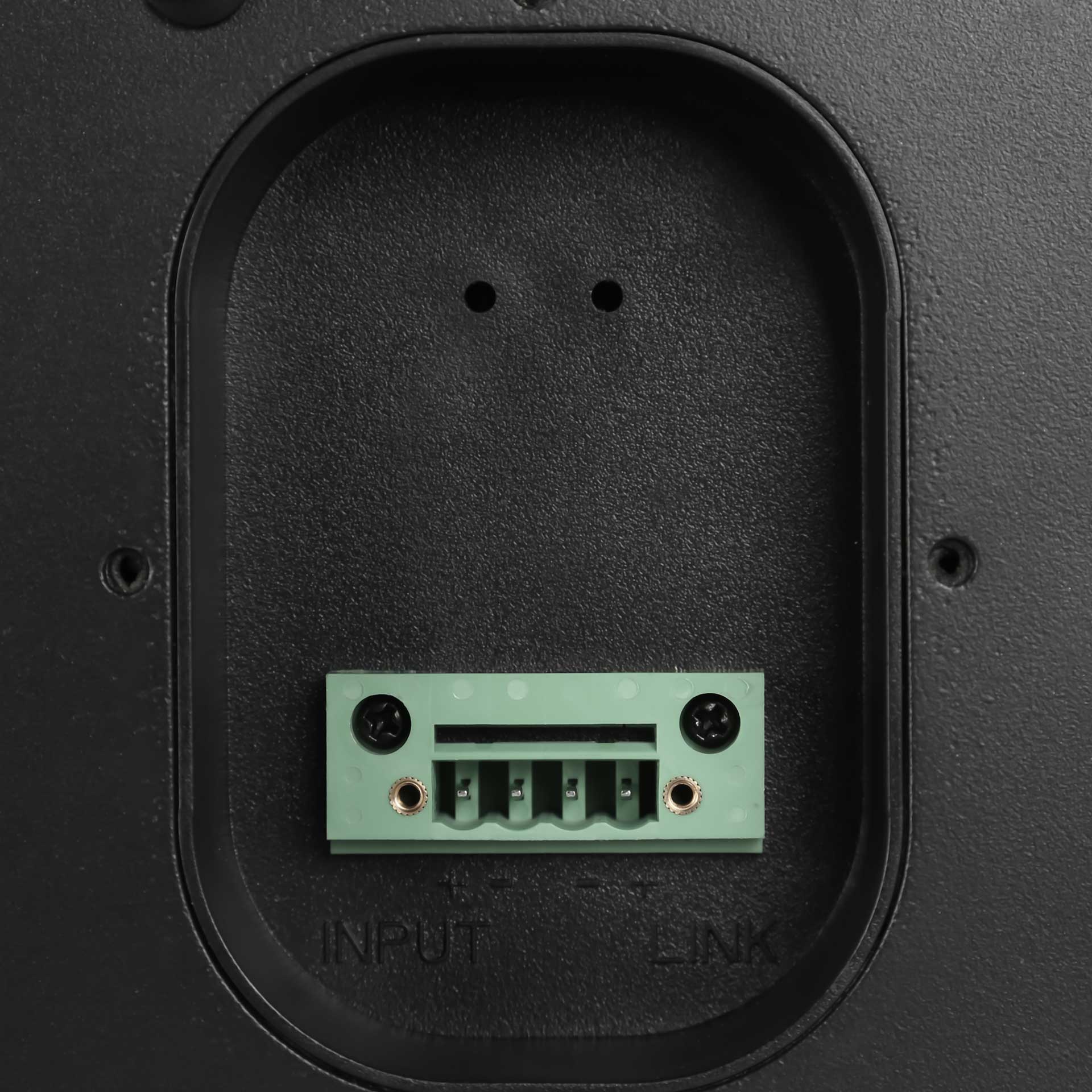

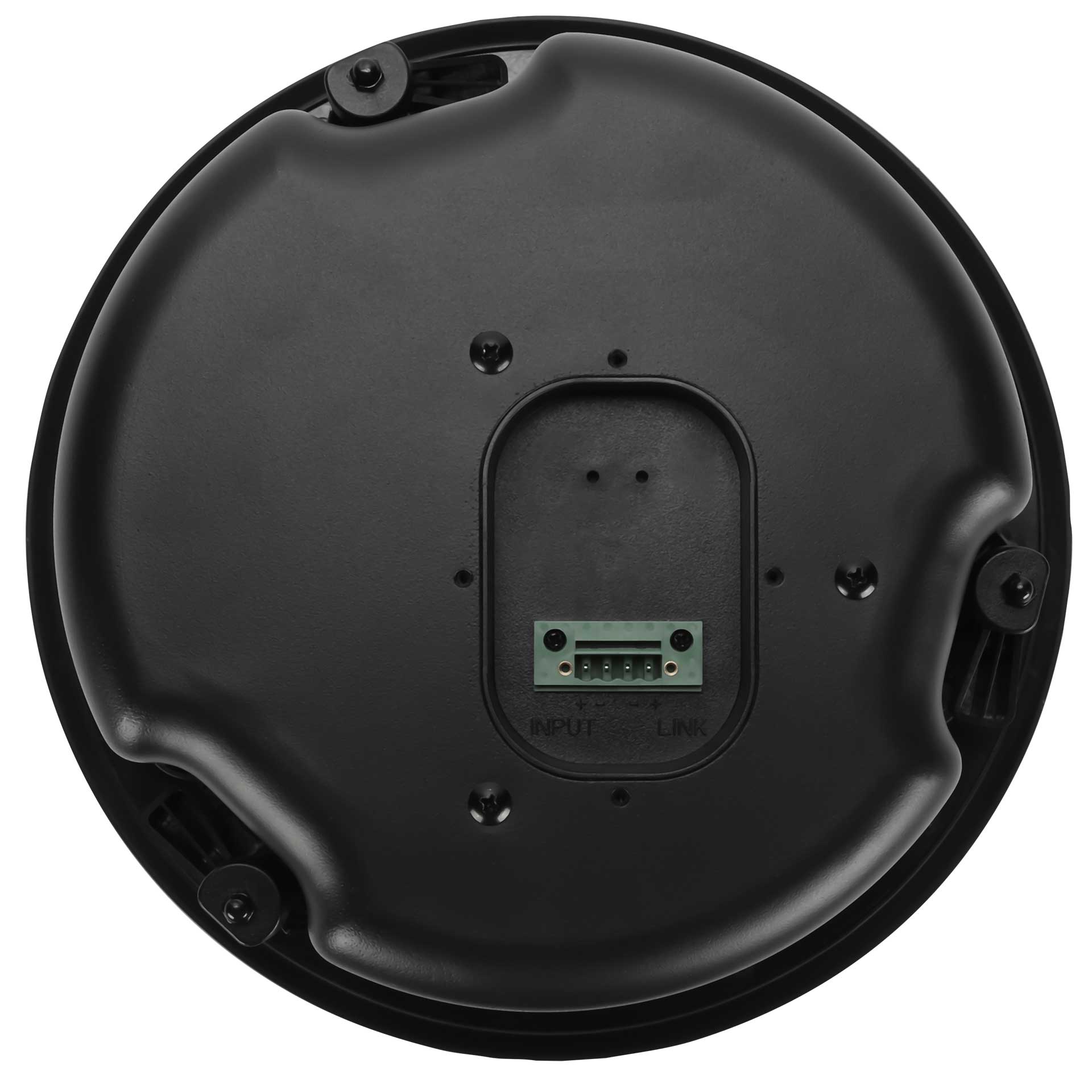

- 4 pole EUROBLOCK connector (audio input and parallel link output)
- 5 different power levels selectable

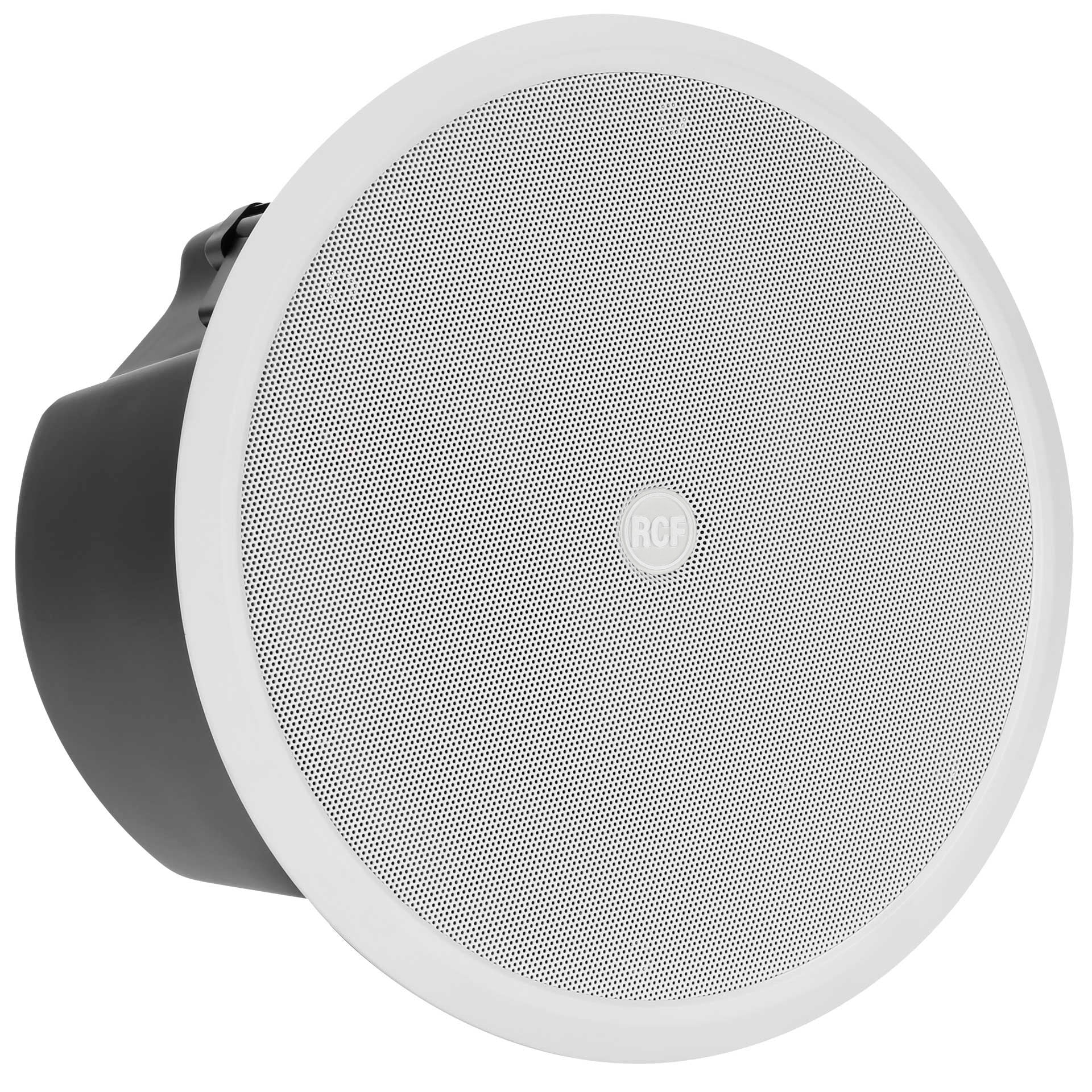

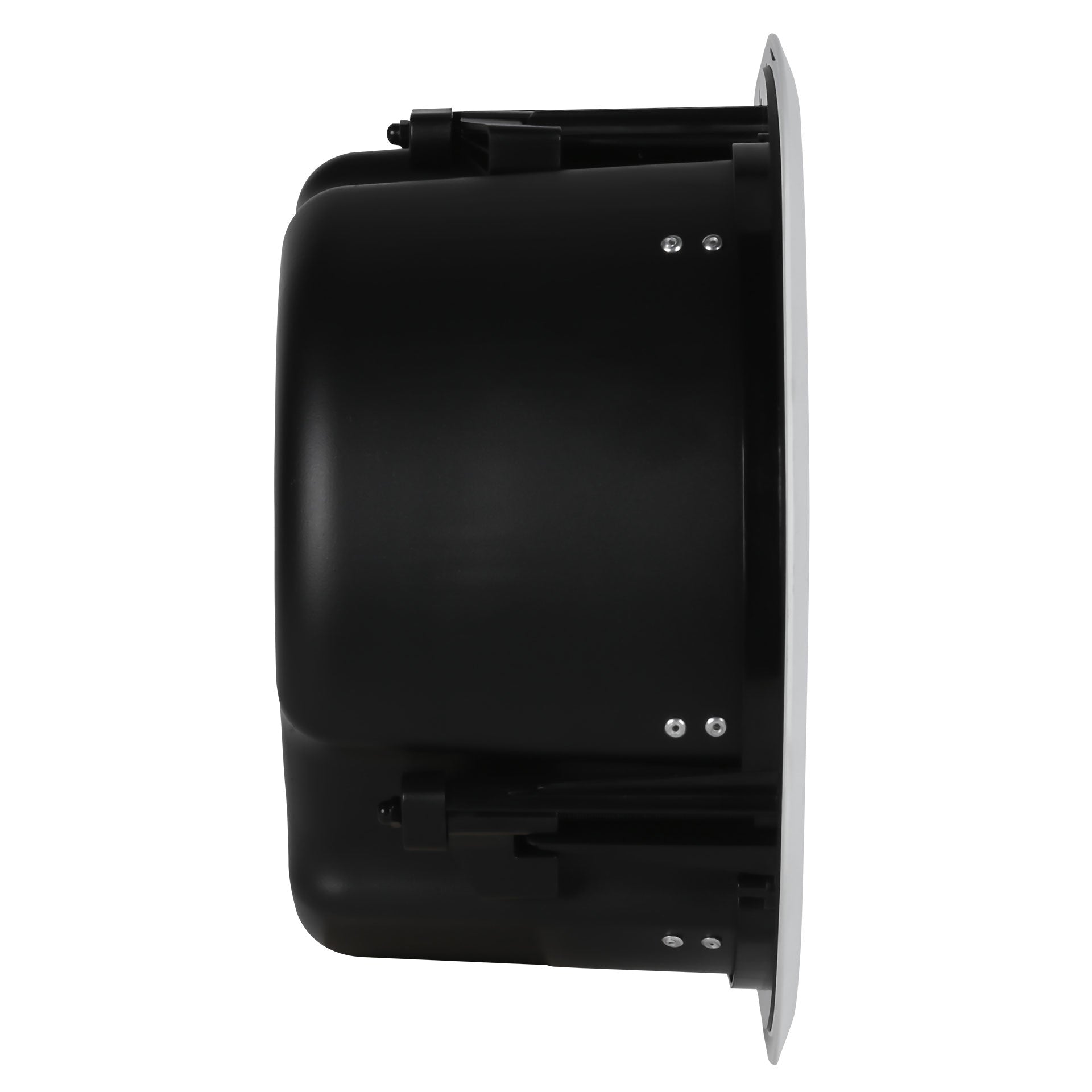

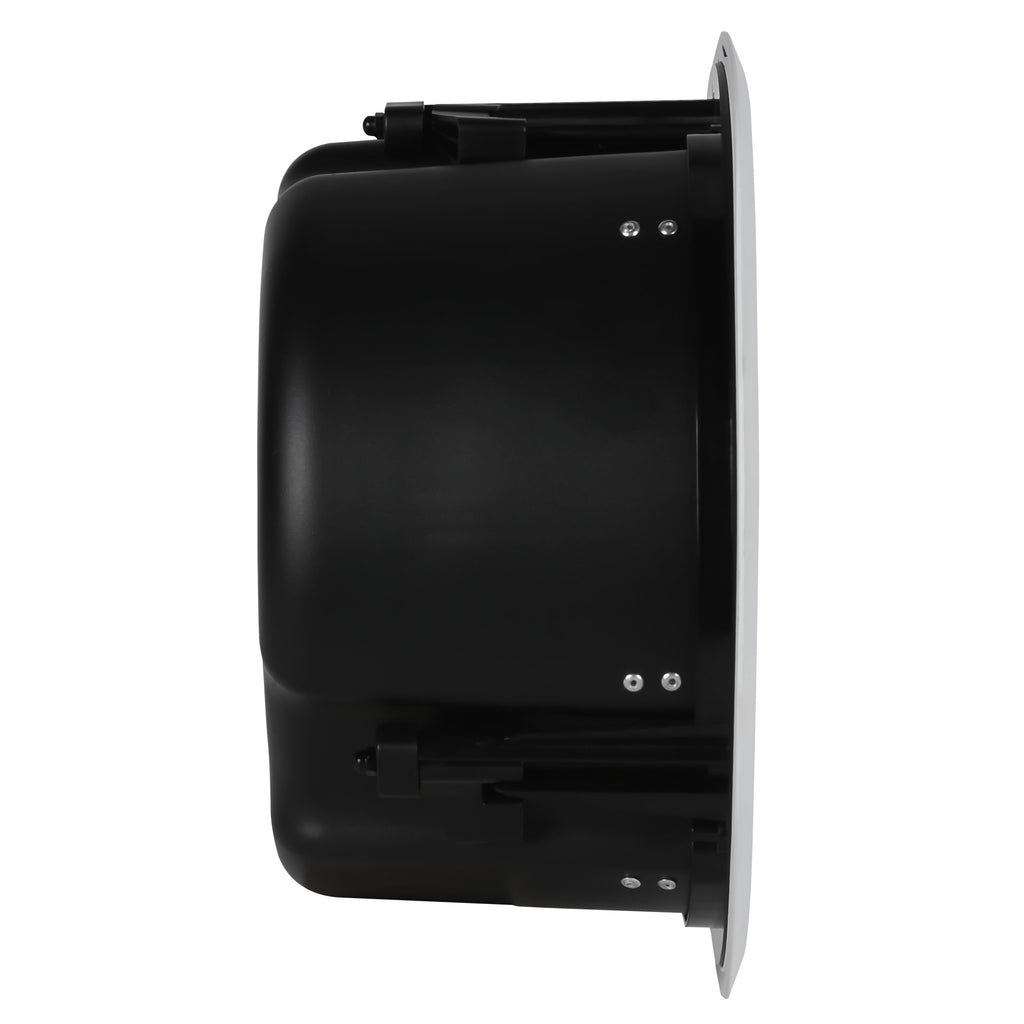

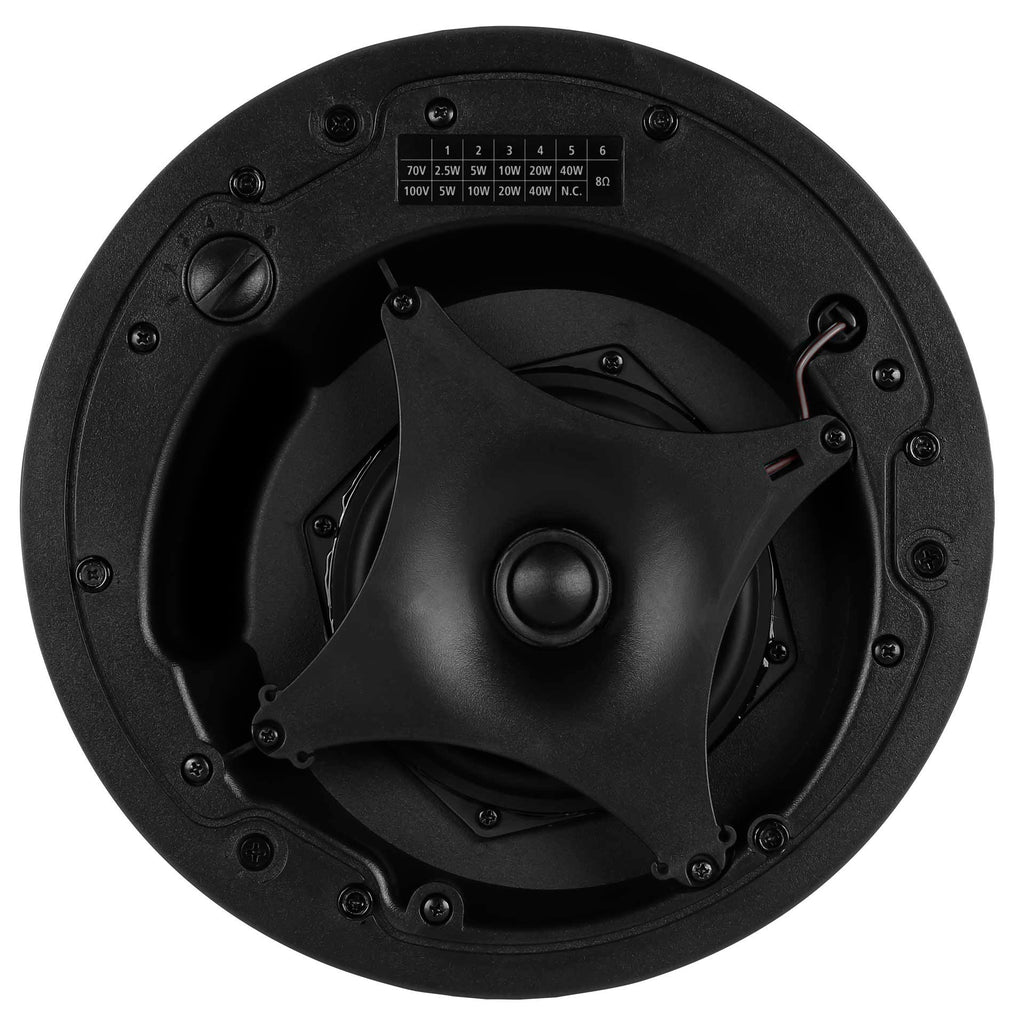

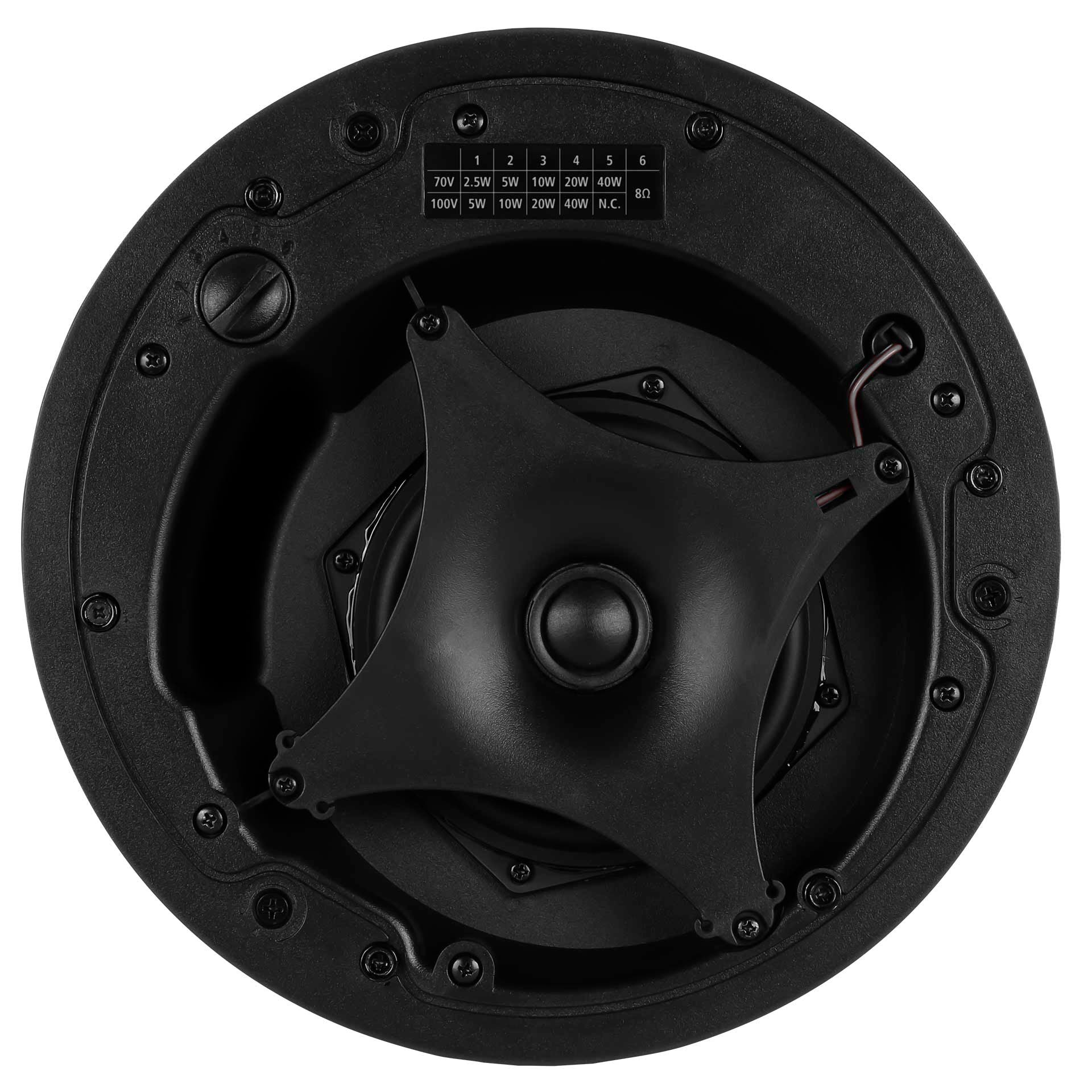

CMR 50T is a multipurpose two-way in-ceiling speaker, suitable for a wide range of applications. Thanks to its elegant and discreet design and accurate details, CMR 50T pairs any building's aesthetic. The high-quality transducers, aligned in a coaxial configuration, guarantees a precise music reproduction of the entire frequency band and provides impressive sound pressure levels for such a compact enclosure. Installation is easy with three long travel clamps. The magnetic grille allows immediate access to the power selector on the front shell: the line transformer provides 40W full power on 70V and 100V constant voltage lines, and five different power levels.
Specifications
| Acoustical Specifications |
| Frequency Response (-10dB) |
80 Hz - 20,000 Hz |
| Max SPL @ 1m |
110 dB |
| Coverage Angle |
130° |
| System Sensitivity |
88 dB |
| Power Section |
| Amplification |
Full Range |
| Nominal Impedance |
8 ohm |
| Power Handling |
40 W RMS |
| Peak Power Handling |
160 W Peak |
| Protections |
Bulb Lamp |
| Crossover Frequencies |
2500 Hz |
| Recommended Amplifiers |
XPS Series, KPS Series, DMA Series |
| Transducers |
| Dome Tweeter |
1 x 1.0" Neo, 1.0" v.c. |
| Woofer |
1 x 5.0", 1.0" v.c. |
| Input/Output Section |
| Input Connectors |
Euroblock |
| Output Connectors |
Euroblock |
| Constant Voltage Transformer |
70/100 V |
| Power Selection 1 |
40 W - 250 ohm |
| Power Selection 2 |
20 W - 500 ohm |
| Power Selection 3 |
10 W - 1000 ohm |
| Power Selection 4 |
5 W - 2000 ohm |
| Power Selection 5 |
2.5 W - 4000 ohm |
| Standard Compliance |
| Safety Agency |
CE Compliant, UL 1480A |
| Physical Specifications |
| Cabinet/Case Material |
ABS |
| Hardware |
Steel Backcan |
| Grille |
Steel |
| Color |
White - RAL 9003 |
| Size / Weight |
| Depth |
151 mm / 5.94 inches |
| Recessed Depth |
142 mm / 5.59 inches |
| Diameter |
300 mm / 11.81 inches |
| Cut Out Diameter |
260 mm / 10.24 inches |
| Weight |
4 kg / 8.82 lbs |
| Shipping Information |
| Package Height |
229 mm / 9.02 inches |
| Package Width |
362 mm / 14.25 inches |
| Package Depth |
362 mm / 14.25 inches |
| Package Weight |
5.5 kg / 12.13 lbs |
