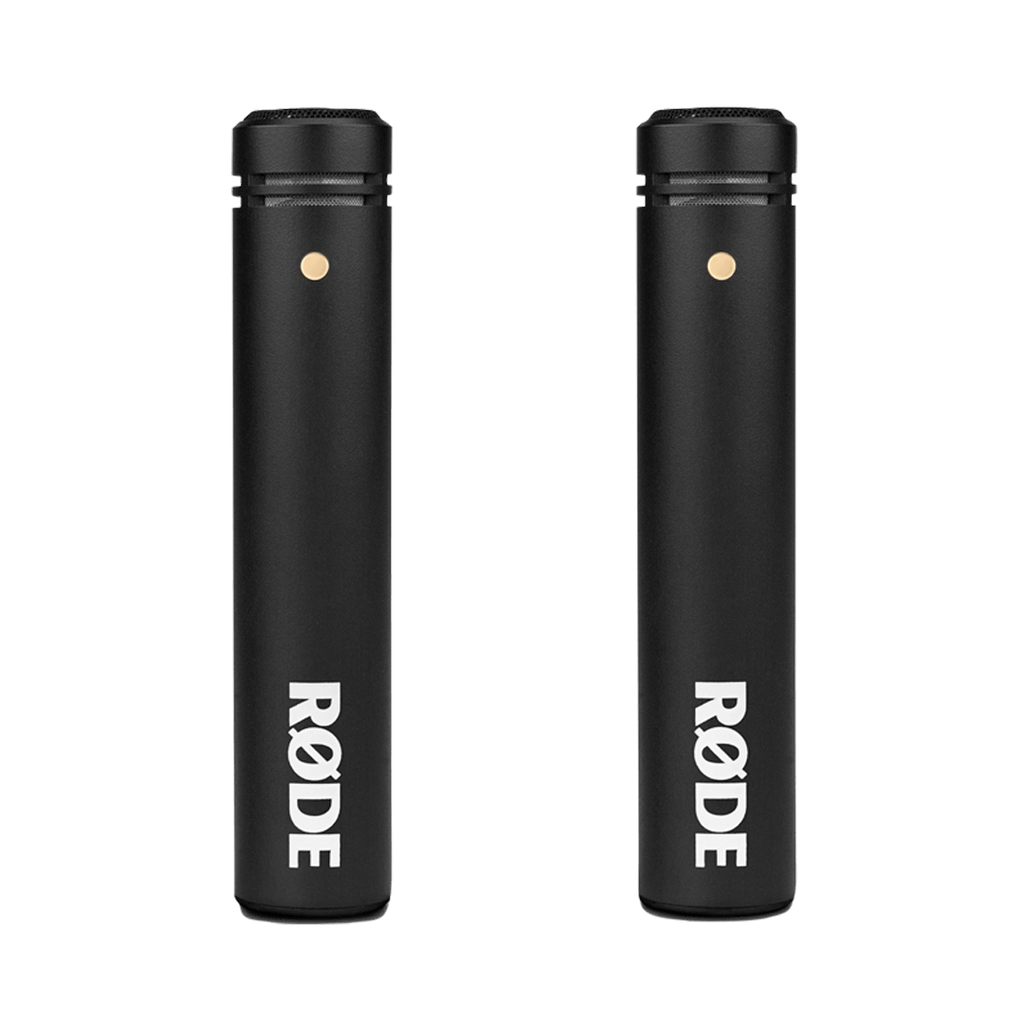

The M5 is a high-quality matched pair of small-diaphragm condenser microphones designed for stunning performance in a wide range of recording applications in the studio or on stage. Featuring a 1/2-inch gold-sputtered cardioid condenser capsule with very low noise and a full frequency response, the M5 is equally at home on a range of acoustic instruments, choirs, or anywhere you would employ a small-diaphragm ('pencil') condenser microphone, either individually or in a stereo array. Each matched pair has been carefully selected to ensure a variation of no more than 1dB sensitivity between the microphones and is supplied with WS5 windshields and RM5 stand mounts.
Features
- Matched of pair small-diaphragm cardioid condenser microphones
- 1/2-inch gold-sputtered capsules
- Carefully selected pair with no more than 1dB sensitivity variation
- Very low noise and full frequency response

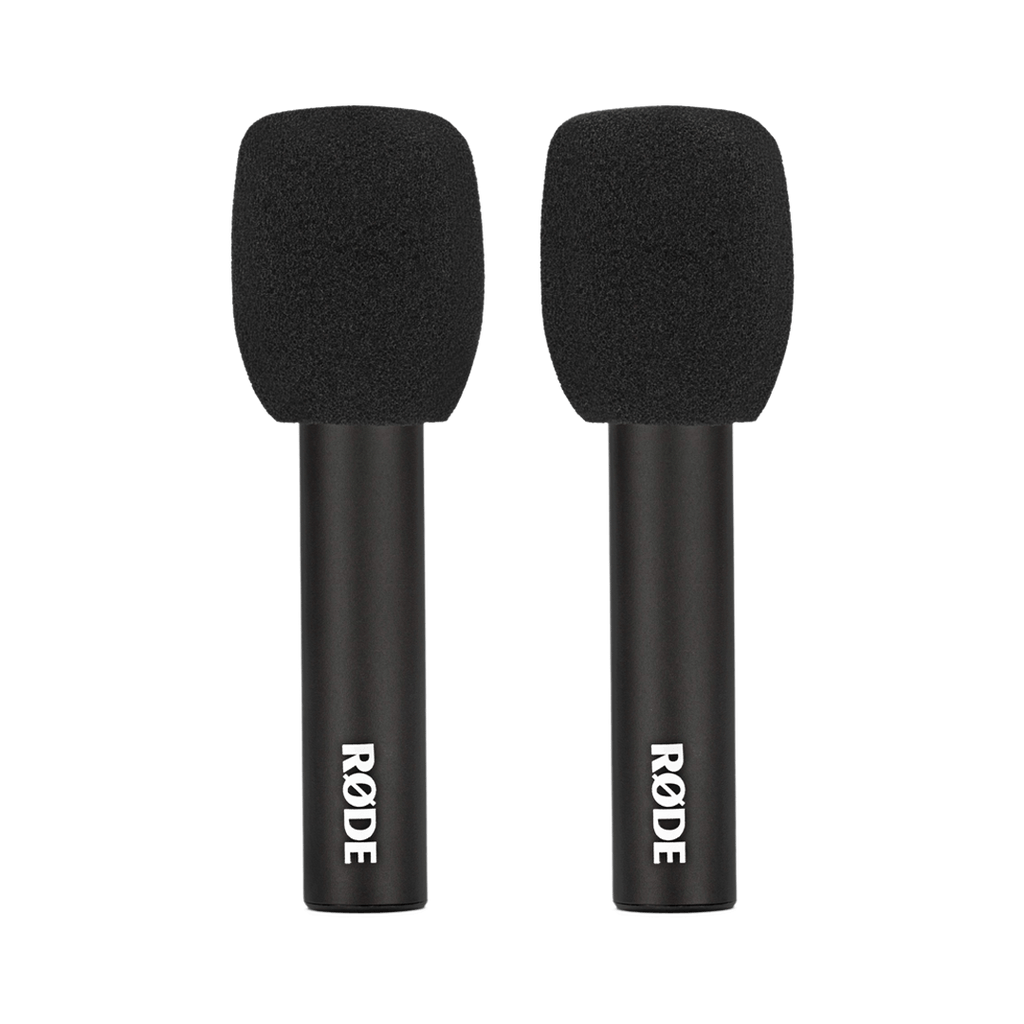

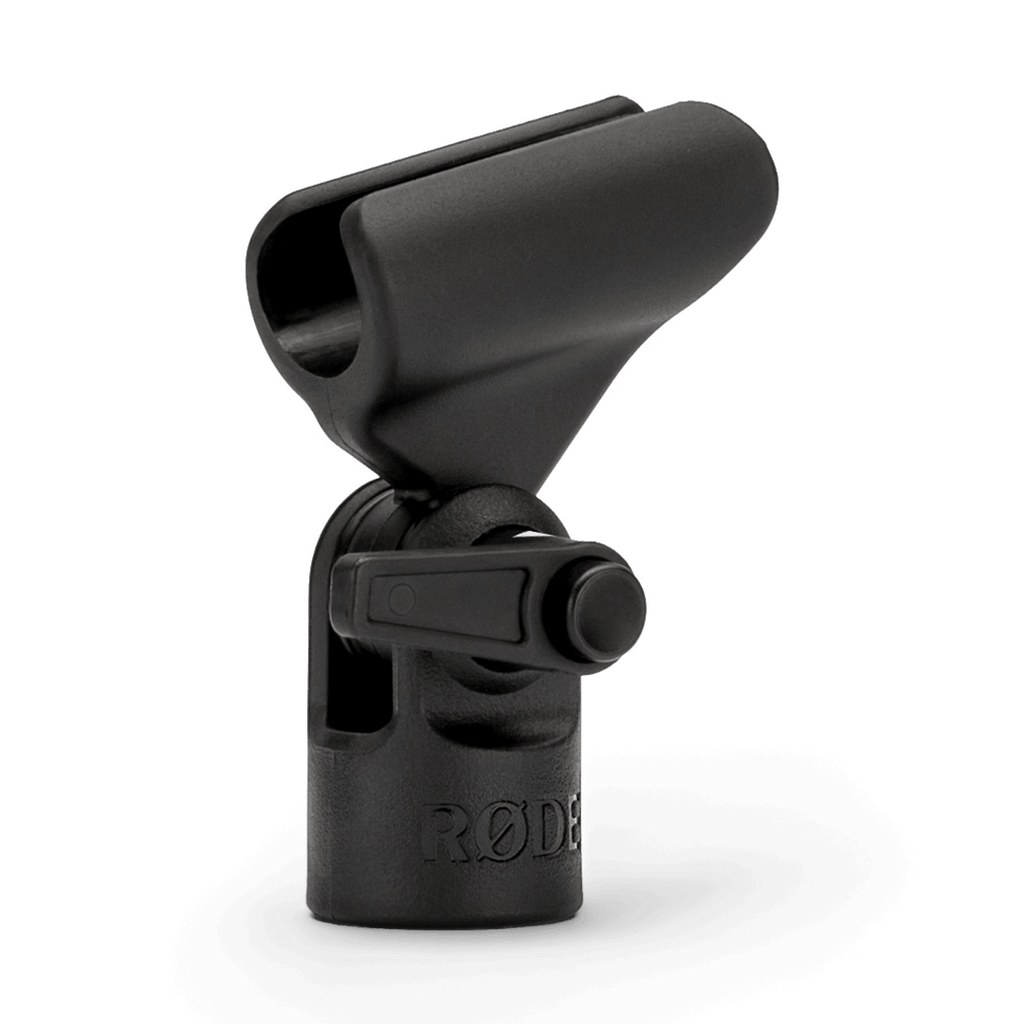

- Includes microphone clips and windshields
- 10-year warranty
Specifications
Acoustic & Electrical
| Acoustic Principle |
Pressure Gradient |
| Active Electronics |
JFET impedance converter with bipolar output buffer |
| Polar Pattern |
Cardioid |
| Frequency Range |
20Hz ~ 20kHz |
|
| Output Impedance |
200Ω |
| Equivalent Noise |
19 dBA SPL (as per IEC651) |
| Maximum Output Level |
+13.5 dBu |
| Sensitivity |
-34 dB re 1V/Pa (20mV @ 94 dB SPL) ± 2dB @ 1kHz |
| Dynamic Range |
121 dB SPL |
| Maximum SPL |
140 dB SPL |
| Signal-to-noise Ratio |
75 dBA SPL (as per IEC651) |
| Power Requirements |
P24 and P48 |
| Output Connection |
XLR Balanced output between pin 2 (+), pin 3 (-) and pin 1 (ground) |
Mechanical
| Weight (g) |
80 |
| Dimensions (mm) |
100 (H) x 20 (W) x 20 (D) |
