| Typical Maximum Throw |
50–70 m / 164–230 ft |
| Maximum SPL (30m) |
Continuous: 96 dB SPL
Peak: 99 dB SPL |
| Frequency Response (±3dB) |
130 Hz – 18 kHz |
| Coverage Angle |
Vertical: beam shaping (via software)
Horizontal: 130° |
| Drivers |

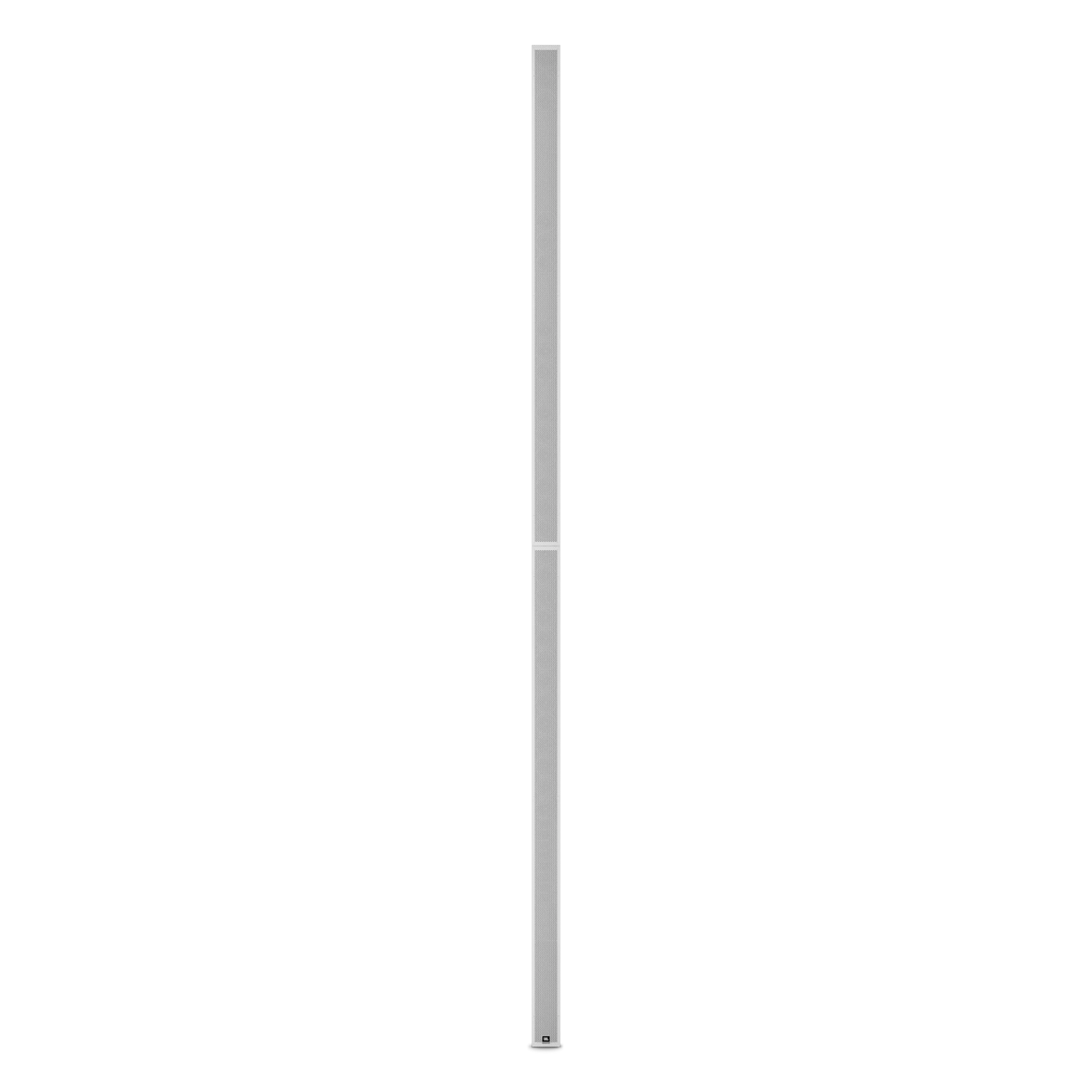

28 x 4" full range
8 x 10 mm tweeter |
| Digital Input |
Dante |
| Analog Input |
Balanced line level |
| Fault Monitoring |
Failure relay SPDT 100mA / 24V |
| AC Power |
115V to 230V |
| Power Draw (Idle) |
84 VA |
| Power Draw (Full Load) |
920 VA |
| Dimensions |

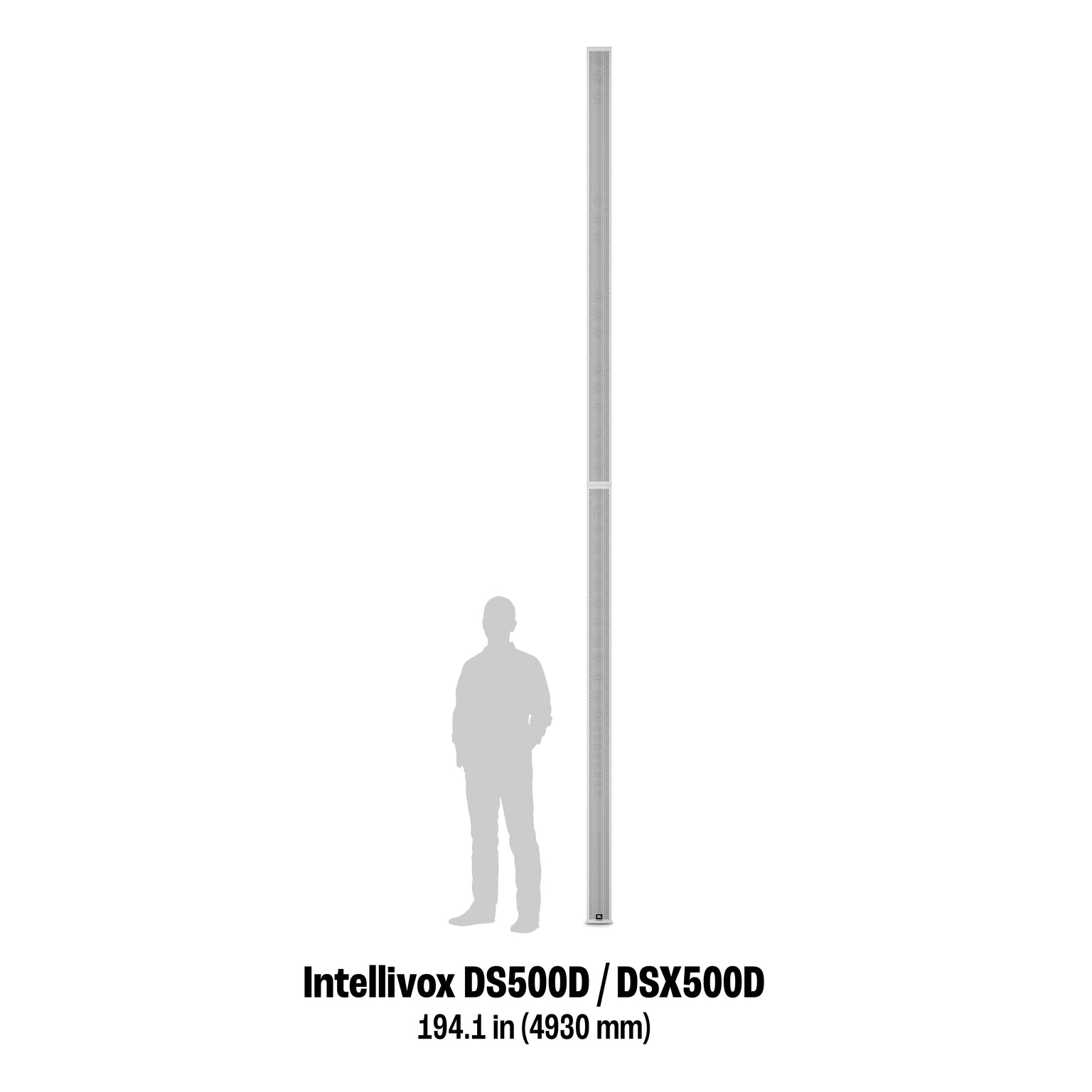

Height: 4930 mm / 194"
Width: 134 mm / 5.3"
Depth: 92 mm / 3.6"
Weight: 44 kg / 97 lb |
| Color |
Enclosure and grille: RAL 9010 (white)
Speaker baffle: RAL 9011 (black) |
