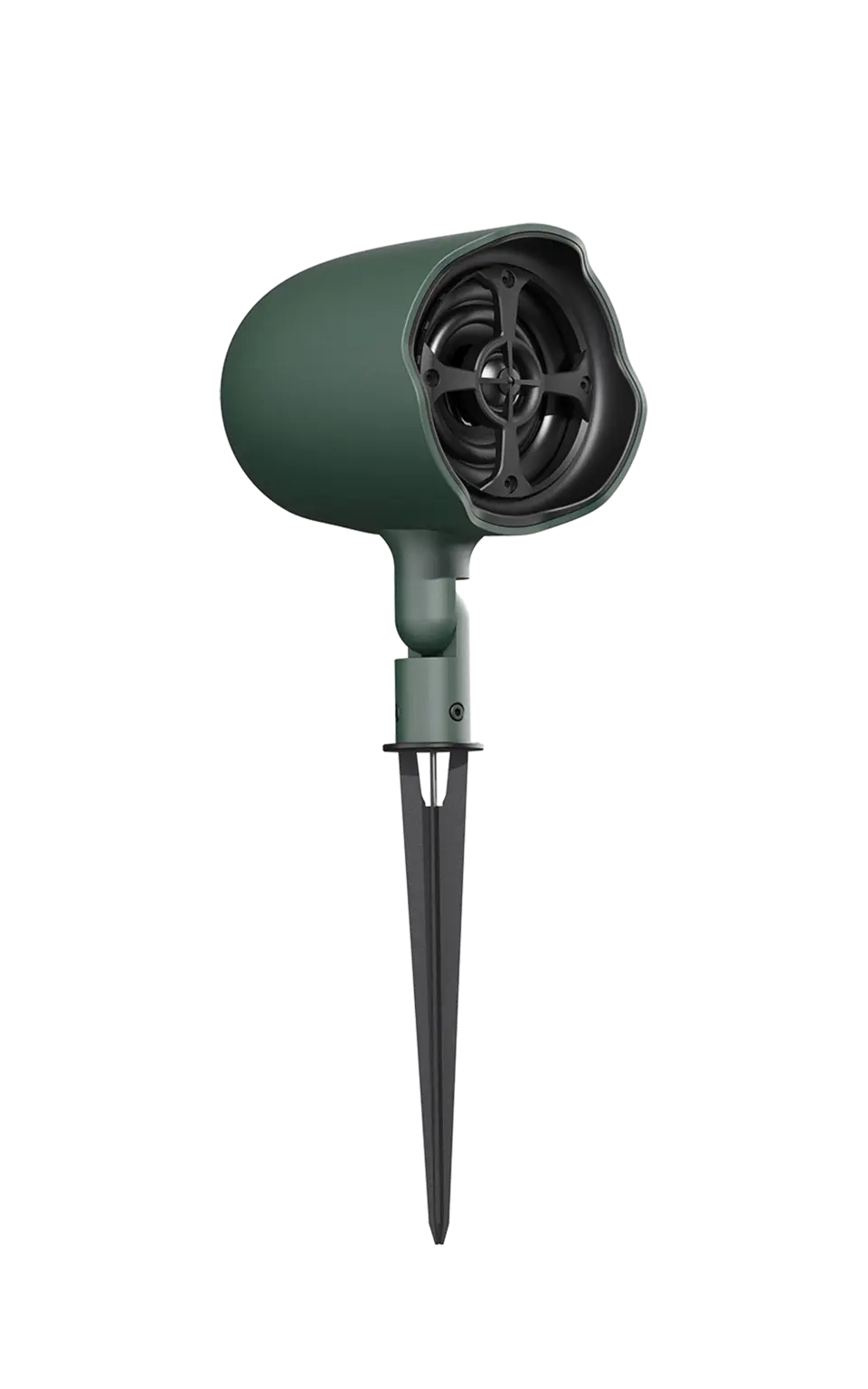

Green JBL GSF3 landscape speaker grille close-up showing UV-resistant weather-proof mesh design

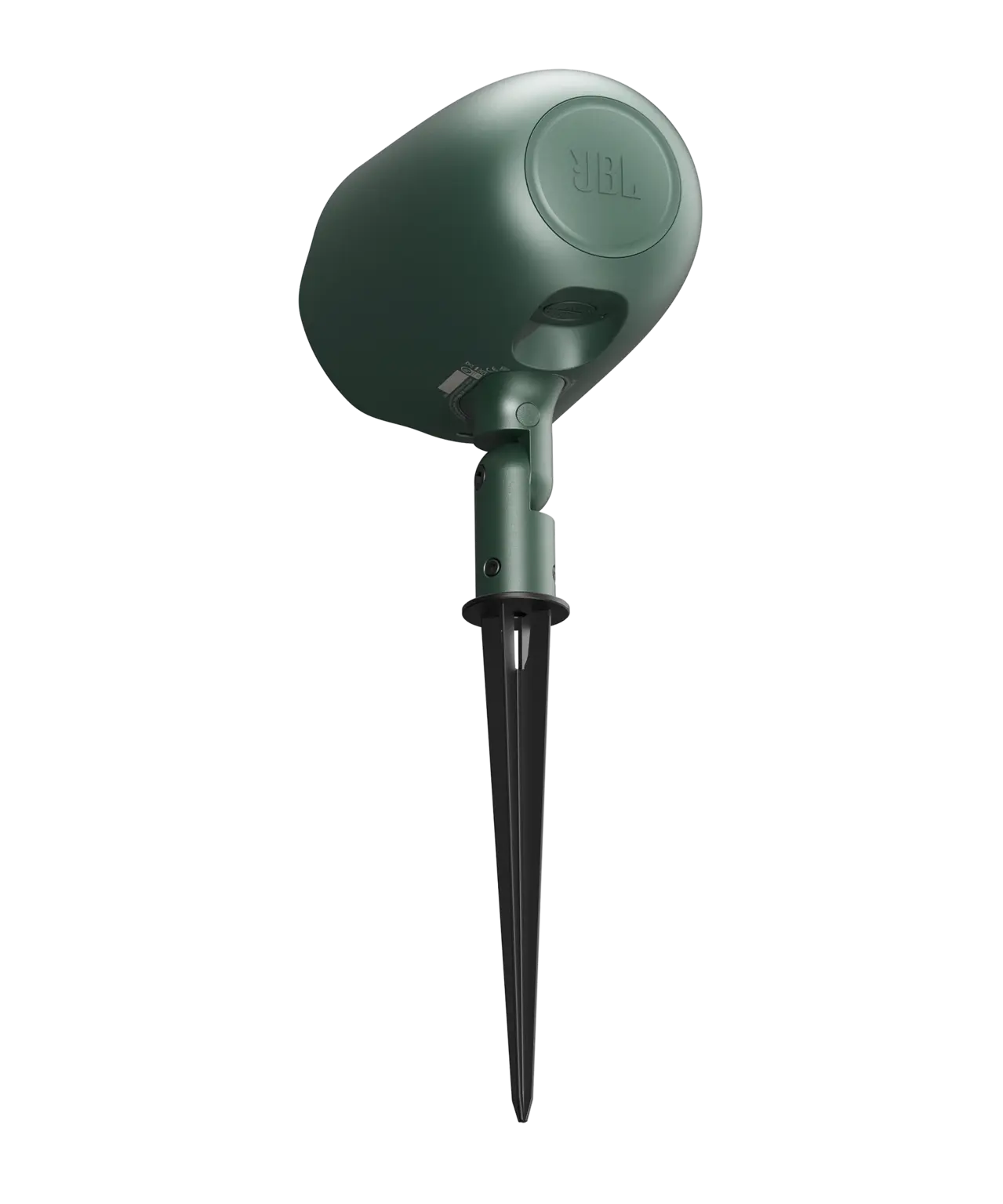

Green JBL GSF3 landscape speaker rear base view showing ground stake mount and cable entry point

Top-down view of Green JBL GSF3 coax landscape loudspeaker showing grille pattern and speaker body

Green JBL GSF3 full-range landscape speaker installed in outdoor garden setting among plants and shrubs

Coaxial 3" Full-Range Landscape Loudspeaker
The compact, weather-resistant JBL GSF3 landscape loudspeaker provides superior fidelity and wide coverage in a range of outdoor commercial applications, with a custom two-way coaxial 3-inch driver system that delivers full-range, crystal-clear sound. (Extend system bass response with JBL GSB8 or GSB12 in-ground landscape subwoofers.) This versatile speaker features a 15-watt multi-tap transformer for use on 70V/100V distributed systems, and is switchable for 8-ohm direct operation.

Versatile mounting options include an included ground stake for in-ground installation and an L-bracket for secure mounting on either horizontal or vertical surfaces. A low-profile, unobtrusive speaker, the GSF3 blends right into its surroundings, and is aimable for precise coverage via an adjustable hinge. Available in hunter green and tan finishes.

The elegant, discreet GSF3—winner of international design awards for industrial design excellence—is the perfect sound solution for diverse outdoor applications including shopping malls, theme parks, sports venues, hospitality venues, and any application calling for a stylish, robust, great-sounding landscape speaker system.

Features

Transducers: 83 mm (3”) woofer with polypropylene cone and 25 mm (1”) voice coil on Kapton voice coil former; 20 mm (0.8 in) titanium dome tweeter with neodymium magnet assembly and Kapton voice coil former.
Frequency range: 74 Hz – 20 kHz
Power handling (at 8Ω setting): 30W continuous pink noise, 60W continuous program
IP66 rated against water and dust ingress
Multi-tap 15W transformer is switchable for 8Ω direct operation or use in 70V/100V distributed systems
Bottom drip hole provides drainage for drivers
Pairs well with JBL GSB8 and GSB12 in-ground landscape subwoofers
Aimable via adjustable hinge

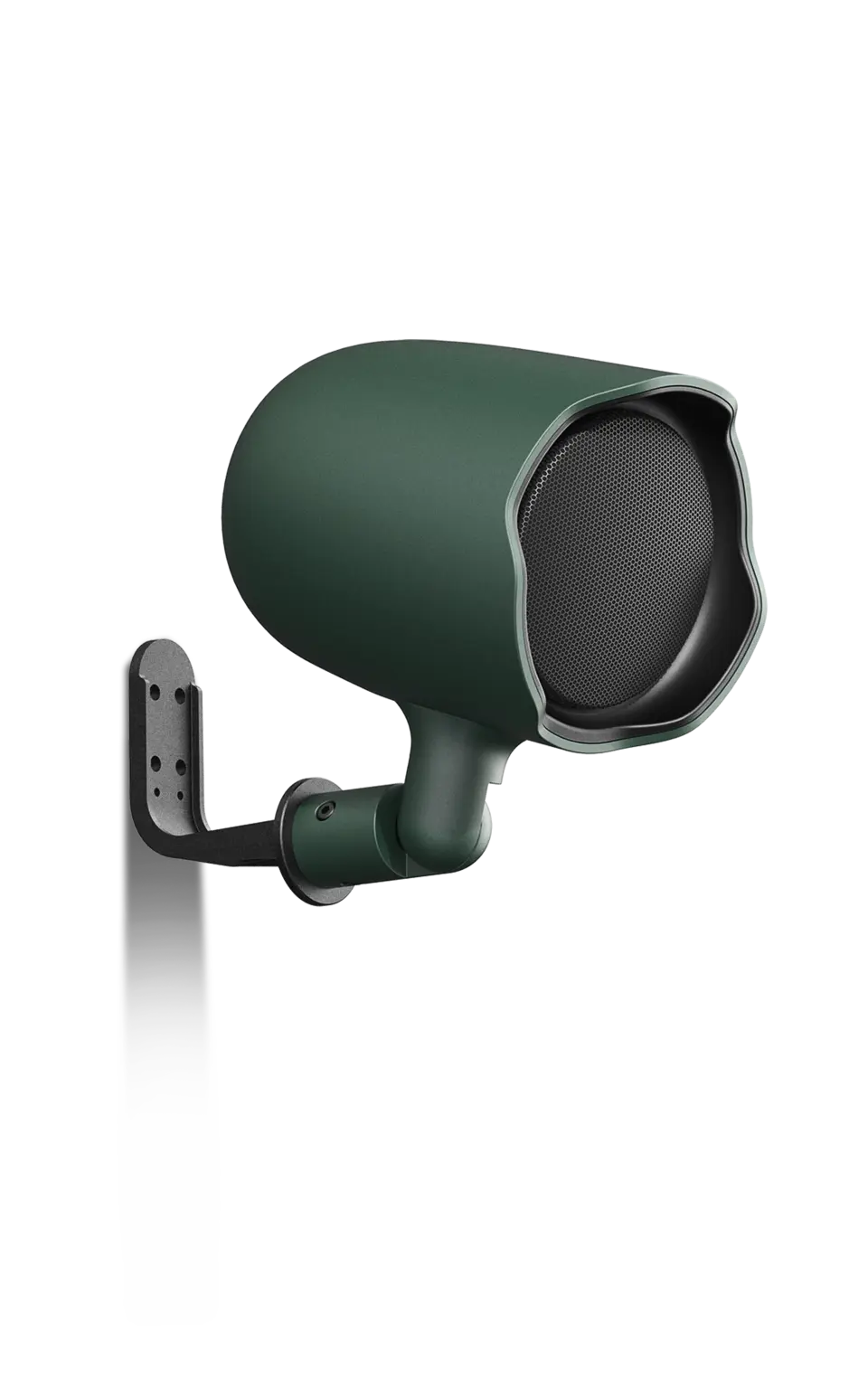

Includes ground stake and L-bracket for surface mounting
Includes tap selector located on bottom of speaker, away from water incursion
Available in hunter green or tan finish

Specifications

Frequency Range (-10dB)	74 Hz – 20 kHz
Frequency Response (+/-3 dB)	120 Hz – 15 kHz
Power Rating	60 W Continuous Program (2 hrs) 30 W (120 W Peak), Continuous Pink Noise (2 hrs) 20 W (80 W Peak), Continuous Pink Noise (100 hrs)
Sensitivity	84 dB (43 Hz - 110 Hz)
Maximum SPL	103 dB peak (95 dB continuous, 2 hr) @ 1m
Coverage Pattern	90° conical
Nominal Impedance	8 Ω (at 8Ω tap)
Transformer Taps	70V: 15 W, 7.5 W, 3.75 W 100V: 15 W, 7.5 W
Drivers	83 mm (3 in) woofer, polypropylene cone 25 mm (1 in) voice coil on Kapton™ voice coil former 20 mm (0.8 in) titanium dome, Neodymium magnet assembly, Kapton™ voice coil former
Terminals	Bare wire with dielectric-gel-filled wire nuts (1 meter single jacked cable 2 wires with 18 AWG)
Enclosure Material	Polycarbonate + ABS, UL94V-0 flammability rated
Color	Pine Green RAL 6028, or Beige Grey RAL 7006
Dimensions	Cabinet 132 mm diameter x 167 mm deep (5.2 x 6.6 in). Assembly height 289 mm (11.4 in) with L-bracket base (at 90°) and 430 (17.0 in) with ground stake base
Net Weight	1.7 kg (3.8 lbs)
Included Accessories	(1) Ground Stake Bracket; (1) L-Bracket
Directivity Factor (Q)	7.9
Directivity Index (dB)	9 dB
