| System Type |
15 in powered loudspeaker |

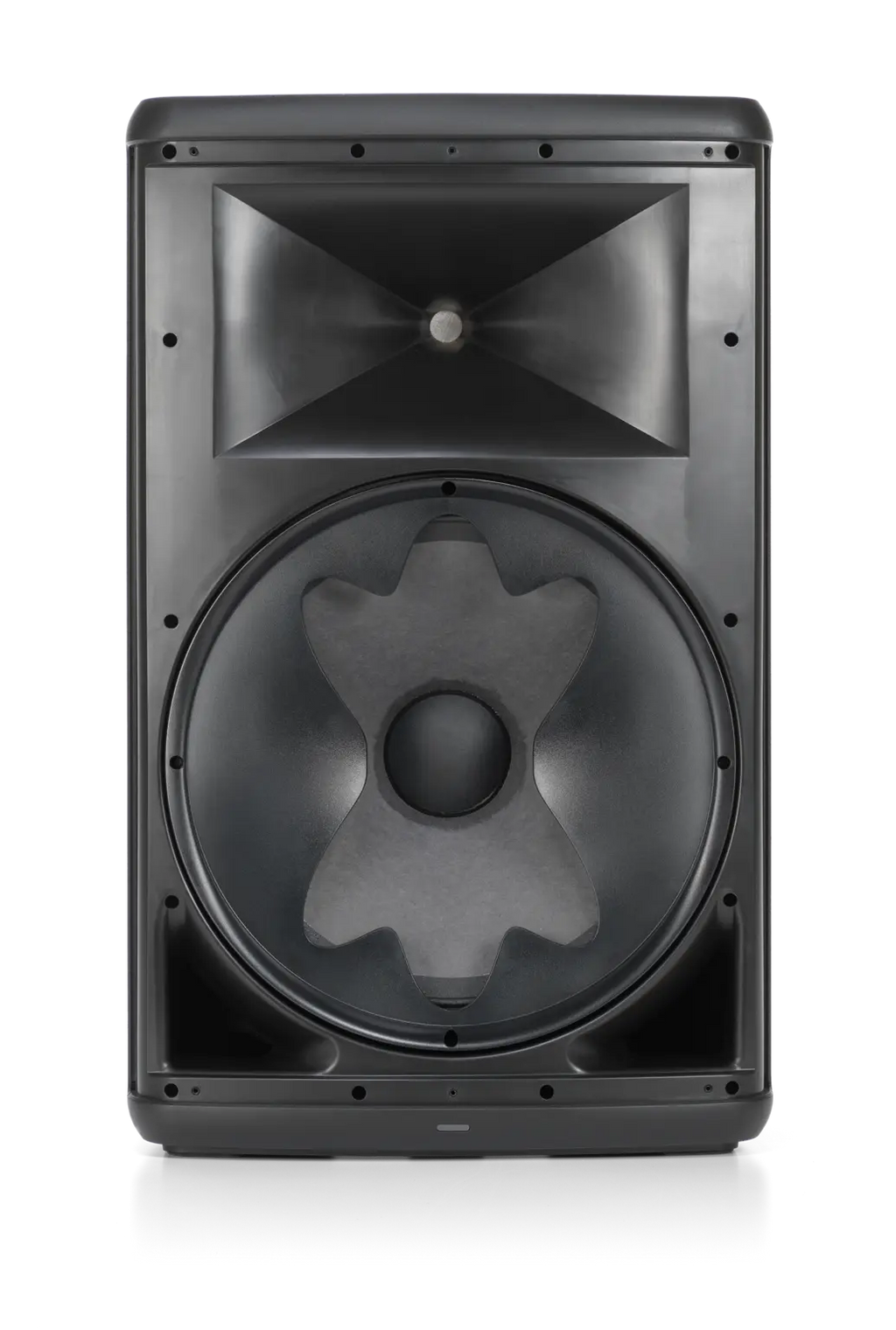

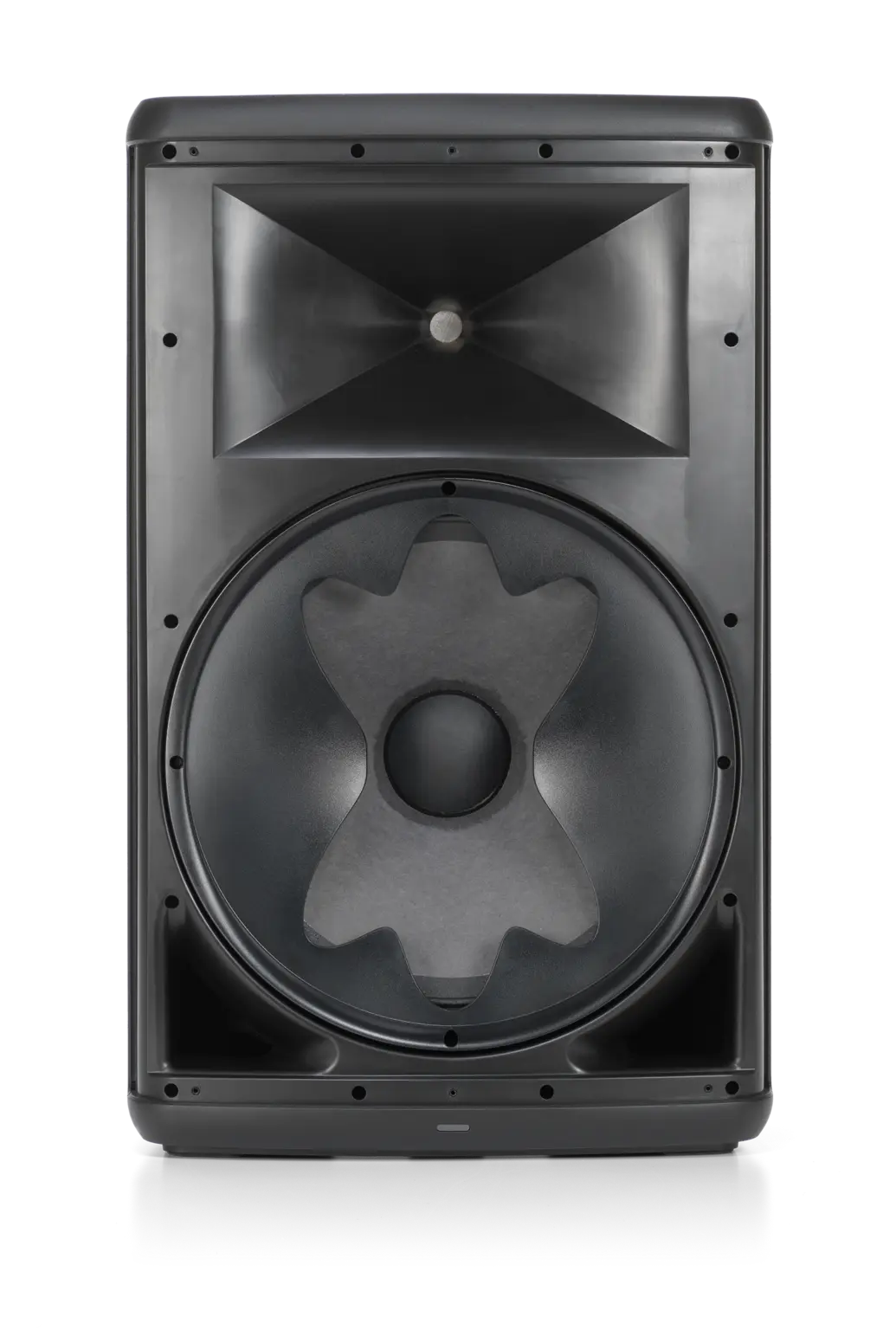

| Woofer Model |
715G |
| Woofer Size |
15" |
| Woofer Magnet |
Ferrite |
| Woofer Voice Coil |
2" |
| Tweeter Model |
2414H compression driver |
| Tweeter Size |
1" |
| Tweeter Magnet |
Neodymium |
| Transducer Impedance |
LF 4 ohm rated, HF 8 ohm rated |
| Max SPL |
128 dB @ 1m/4Pi |
| Frequency Range (-10dB) |
45 Hz – 20 kHz |
| Frequency Range (-3dB) |
55 Hz – 20 kHz |
| Horizontal Dispersion |
90° |
| Vertical Dispersion |
60° |
| Power Rating |
1300 W peak / 650 W RMS |
| AC Power Input |
100V–120V or 220V–240V |
| Cooling |
Passive |
| LED Indicators |
1 Power LED, 1 Limit LED, 1 Front LED, 2 Signal/SSM LEDs |
| Input Impedance |
50k/100k unbalanced/balanced |
| Input Gain |
-∞ to +36 dB |
| Crossover Frequency |
1.9 kHz |

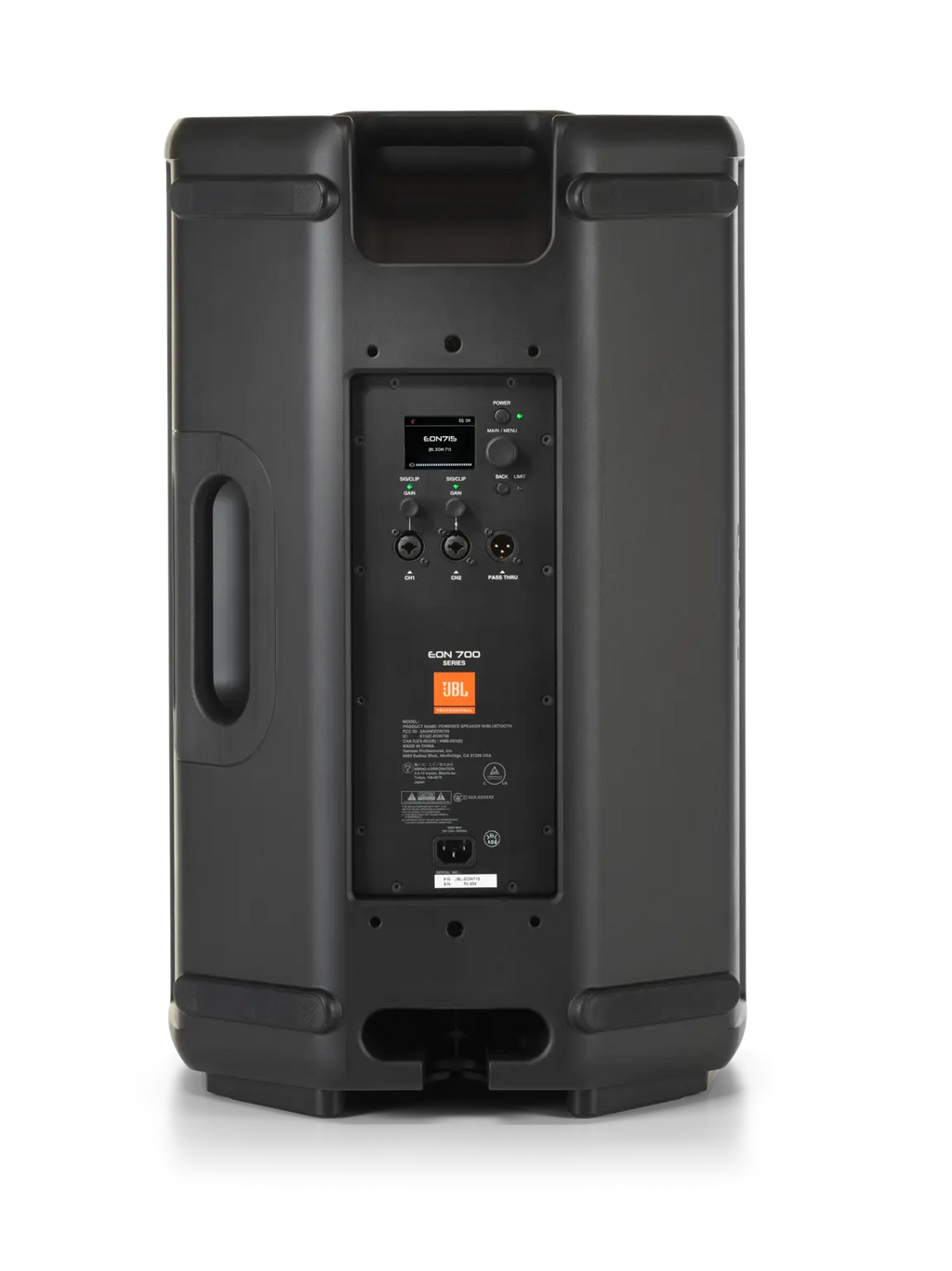

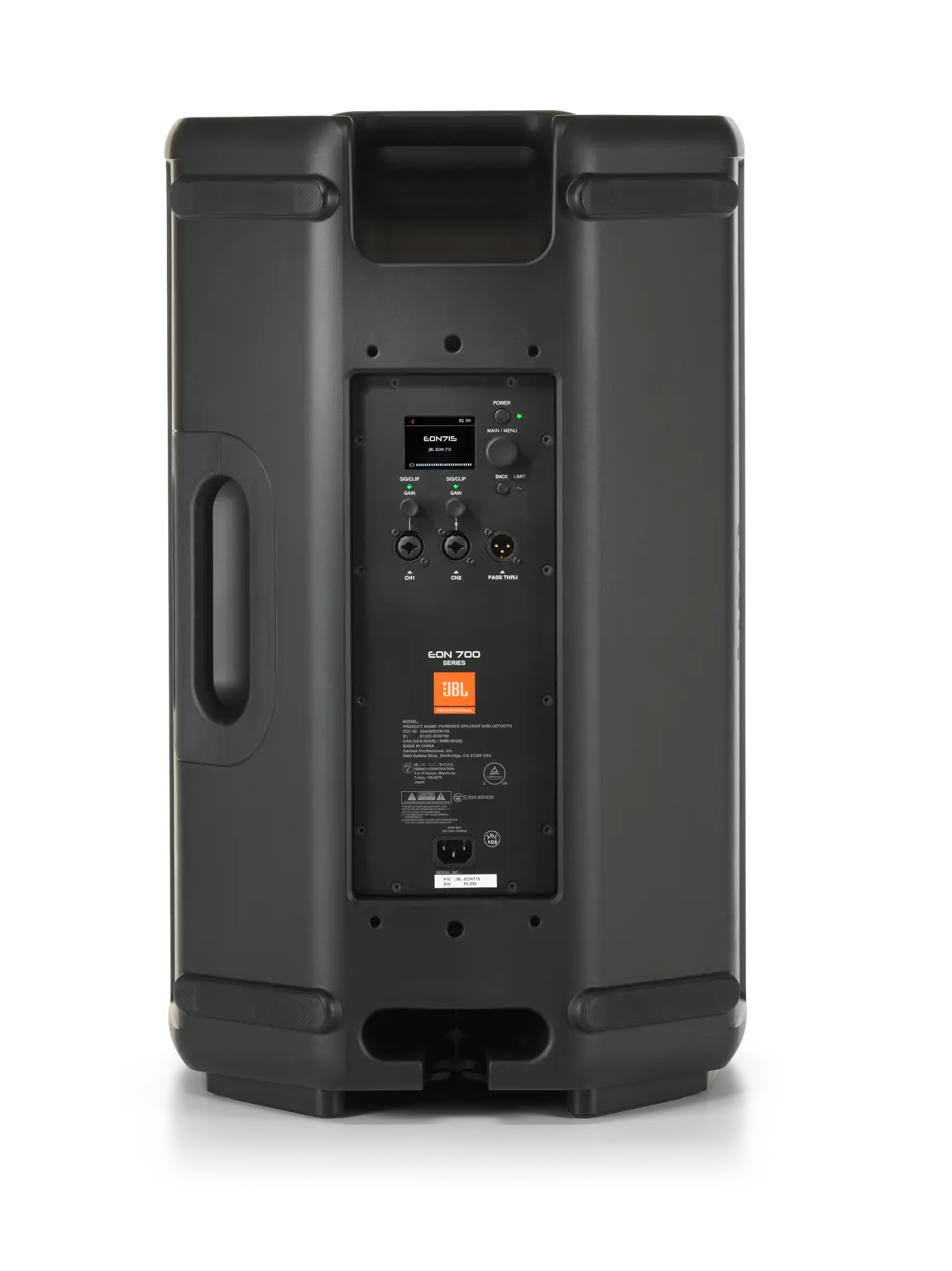

| I/O |
2 XLR combo jacks / BT
1 XLR M thru |
| Cabinet |
PP + 10% talc |

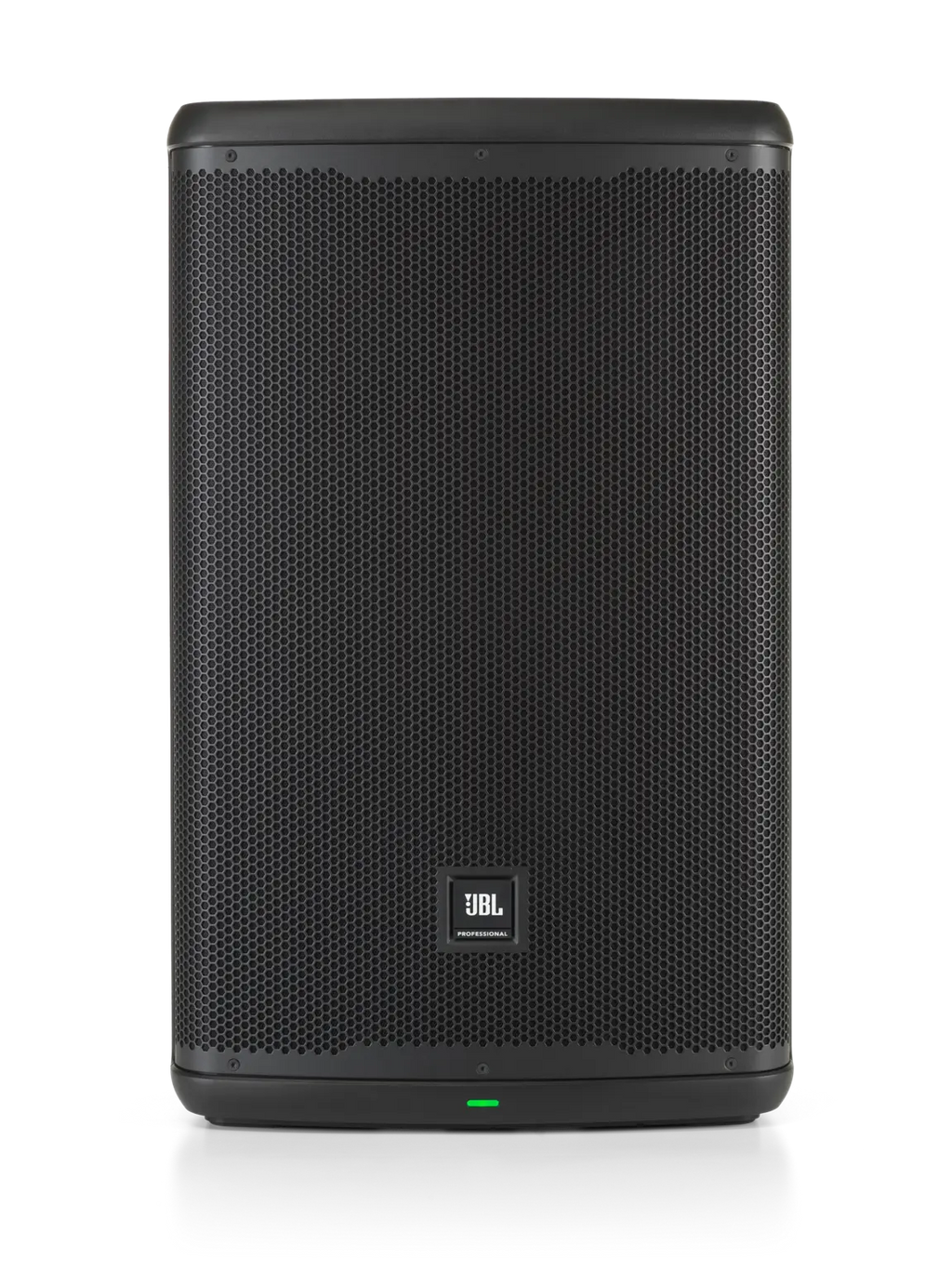

| Grille |
16GA perforated steel with acoustically transparent black cloth backing |
| Suspension / Mounting |

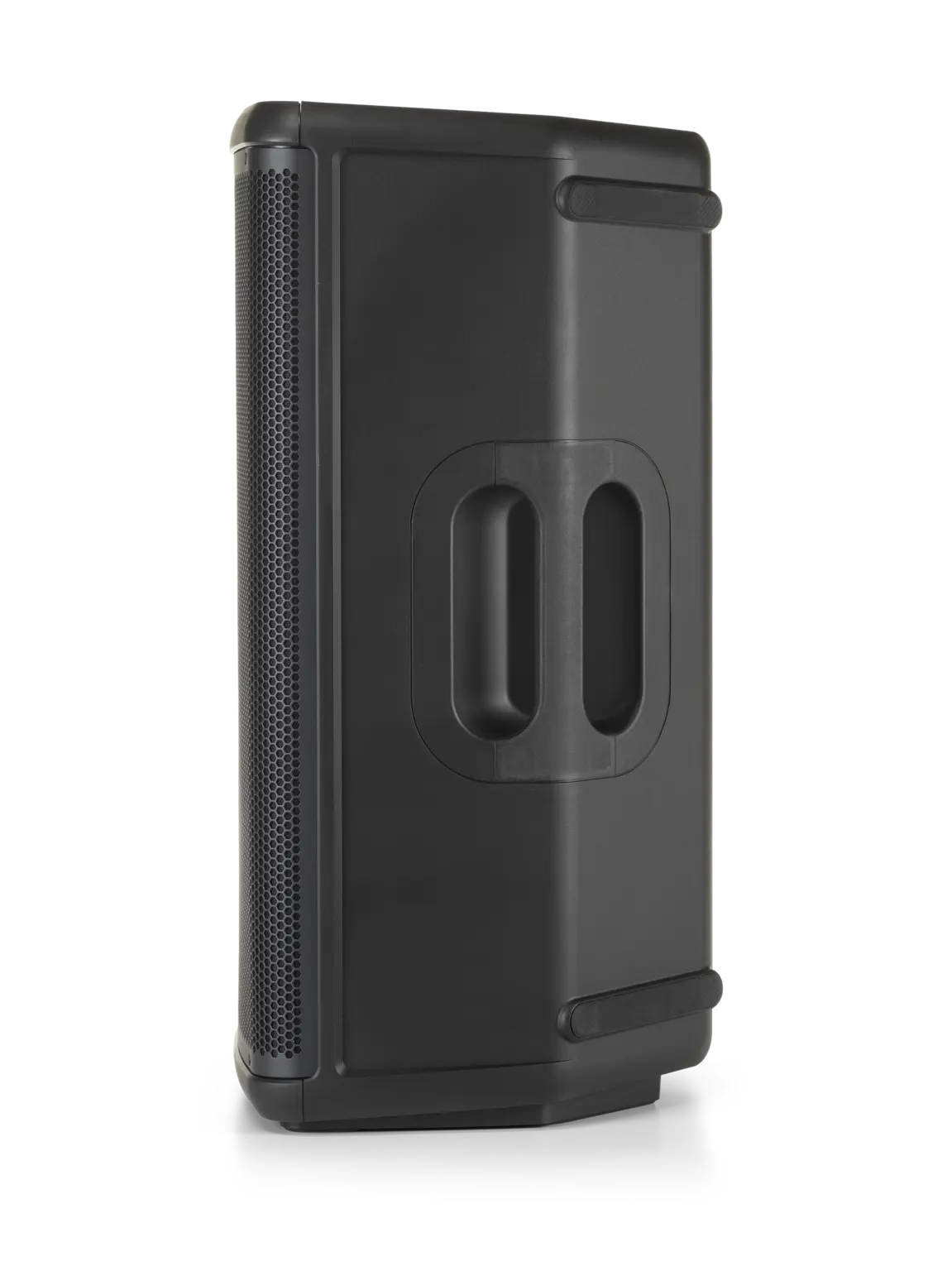

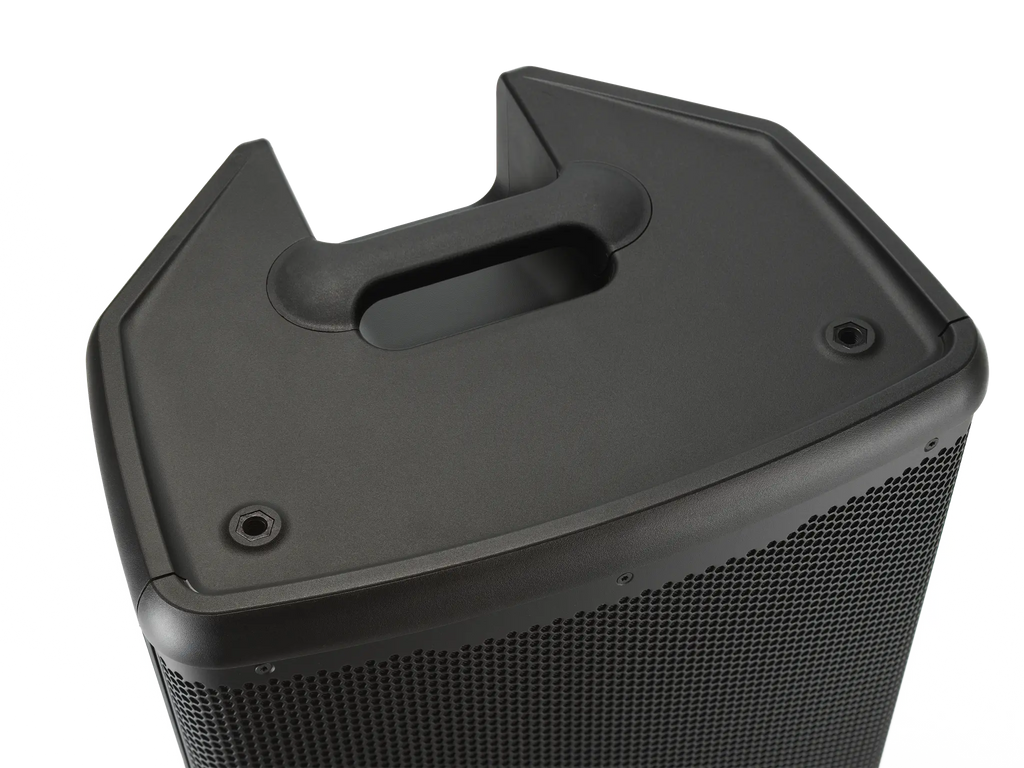

4 M10 suspension points, 36 mm pole socket, universal yoke bracket holes |

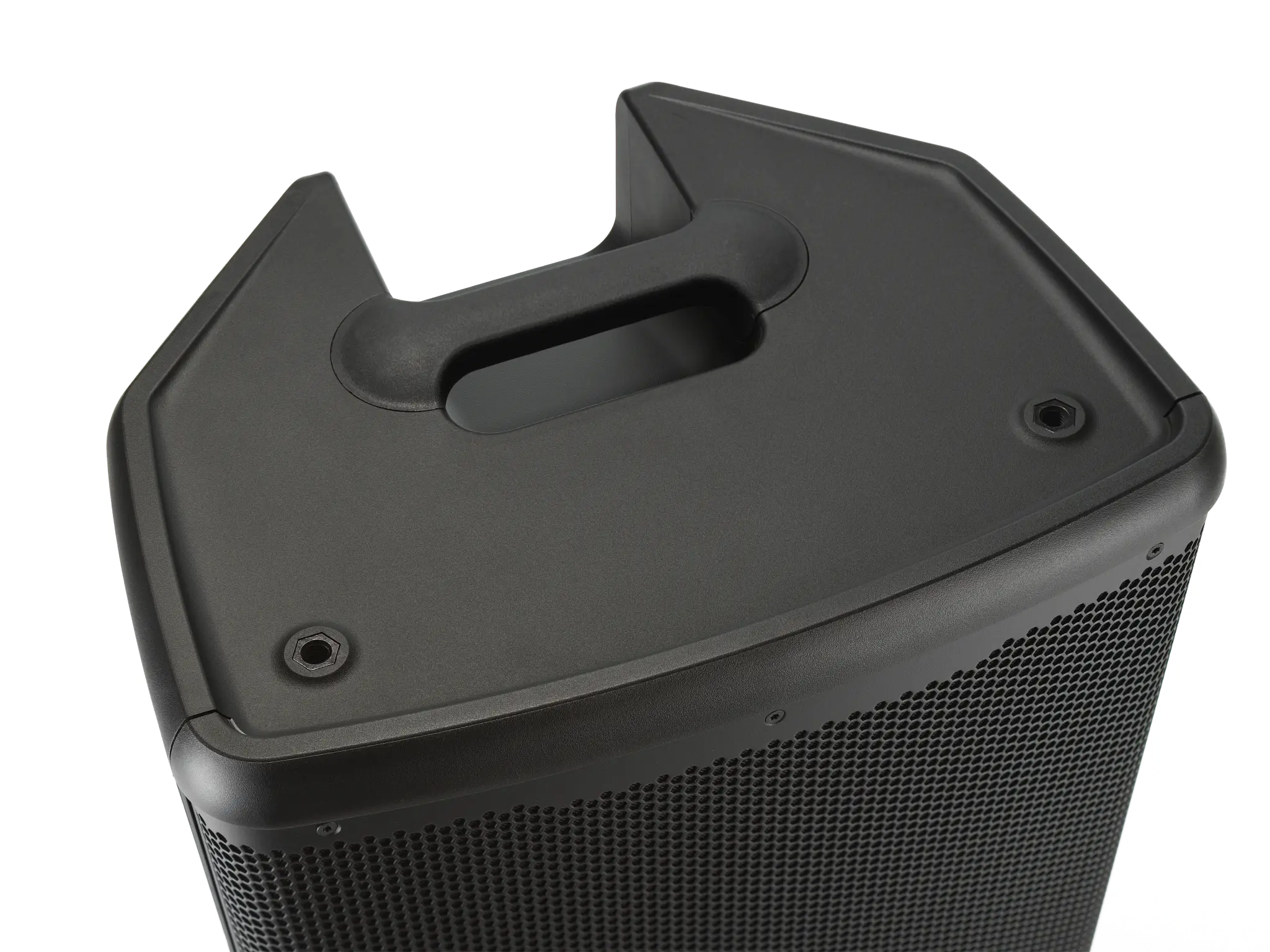

| Handles |
2, cable channel on bottom |
| Net Weight |
17 kg (37.48 lb) |
| Gross Weight |
21.5 kg (47.40 lb) |
| Product Dimensions (H x W x L) |
716 x 438 x 358 mm (28.19 x 17.24 x 11.09 in) |
| Shipping Dimensions (H x W x L) |
738 x 543 x 458 mm (29.06 x 21.38 x 18.03 in) |
