| Frequency Range (-10dB) |
32 Hz – 300 Hz |
| Power Capacity |
150 W (600 W peak) cont. pink noise (2 hrs)
100 W (400 W peak) cont. pink noise power (100 hrs) |
| Sensitivity (1m/1W) |
95 dB in ceiling near corner (π/2 loading) |
| Coverage Angle |
— |
| Maximum SPL (1m) |
117 dB cont. pink noise (123 dB peak, π/2 loading) |
| Nominal Impedance |
8 ohms |

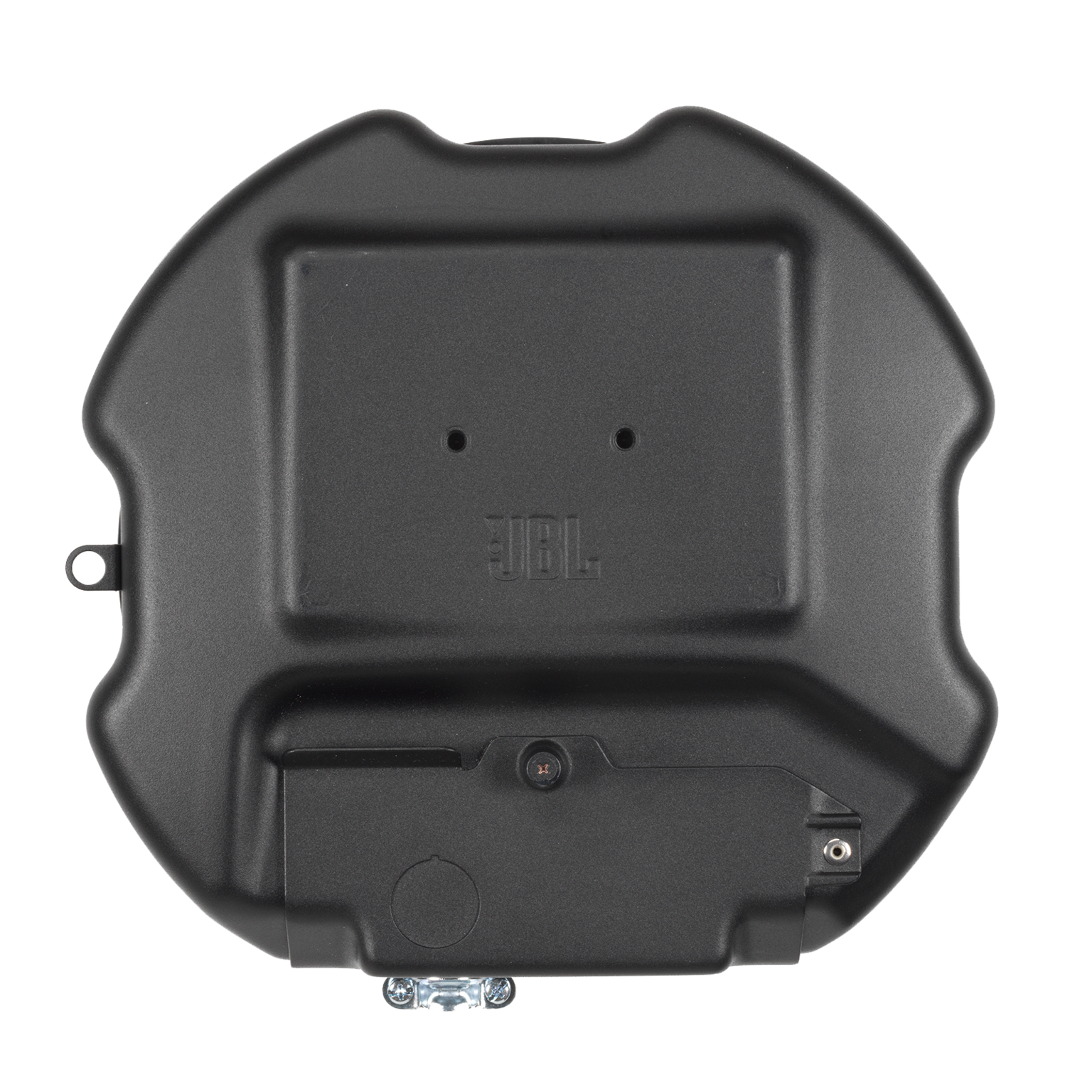

| Transformer Taps |
70V: 80 W, 40 W, 20 W, 10 W
100V: 80 W, 40 W, 20 W |

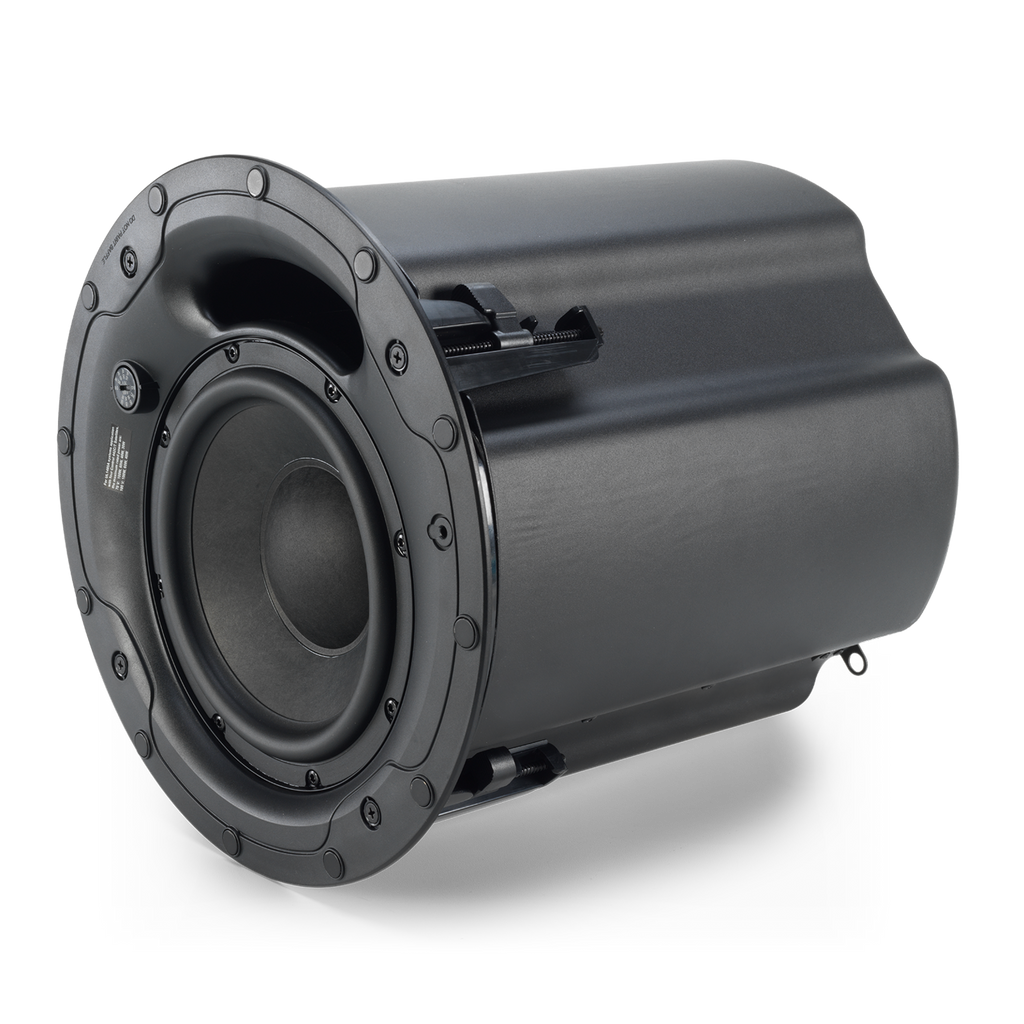

| Drivers |

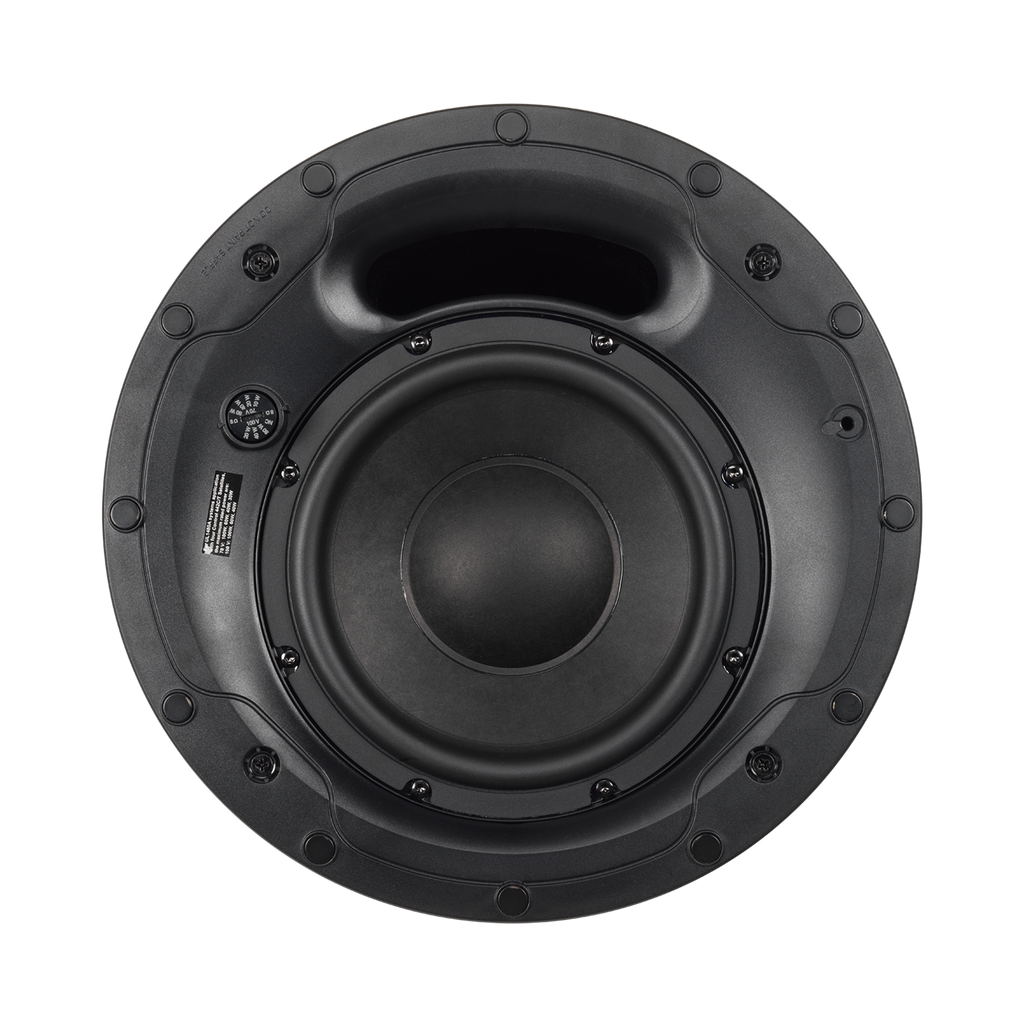

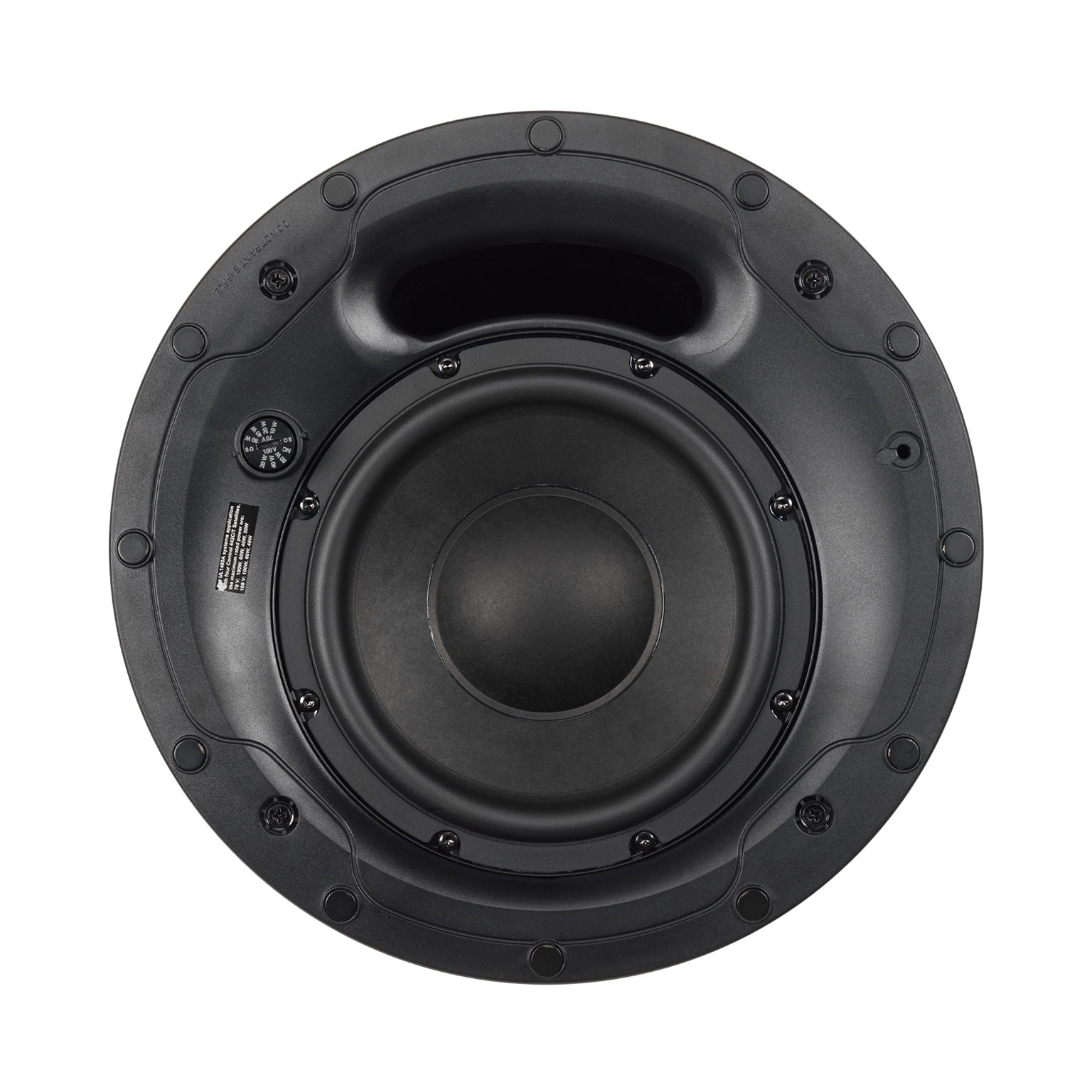

200 mm (8 in) treated paper cone with SBR surround and high-performance magnet |
| Ceiling Cutout Size |
307 mm (12.1 in) |

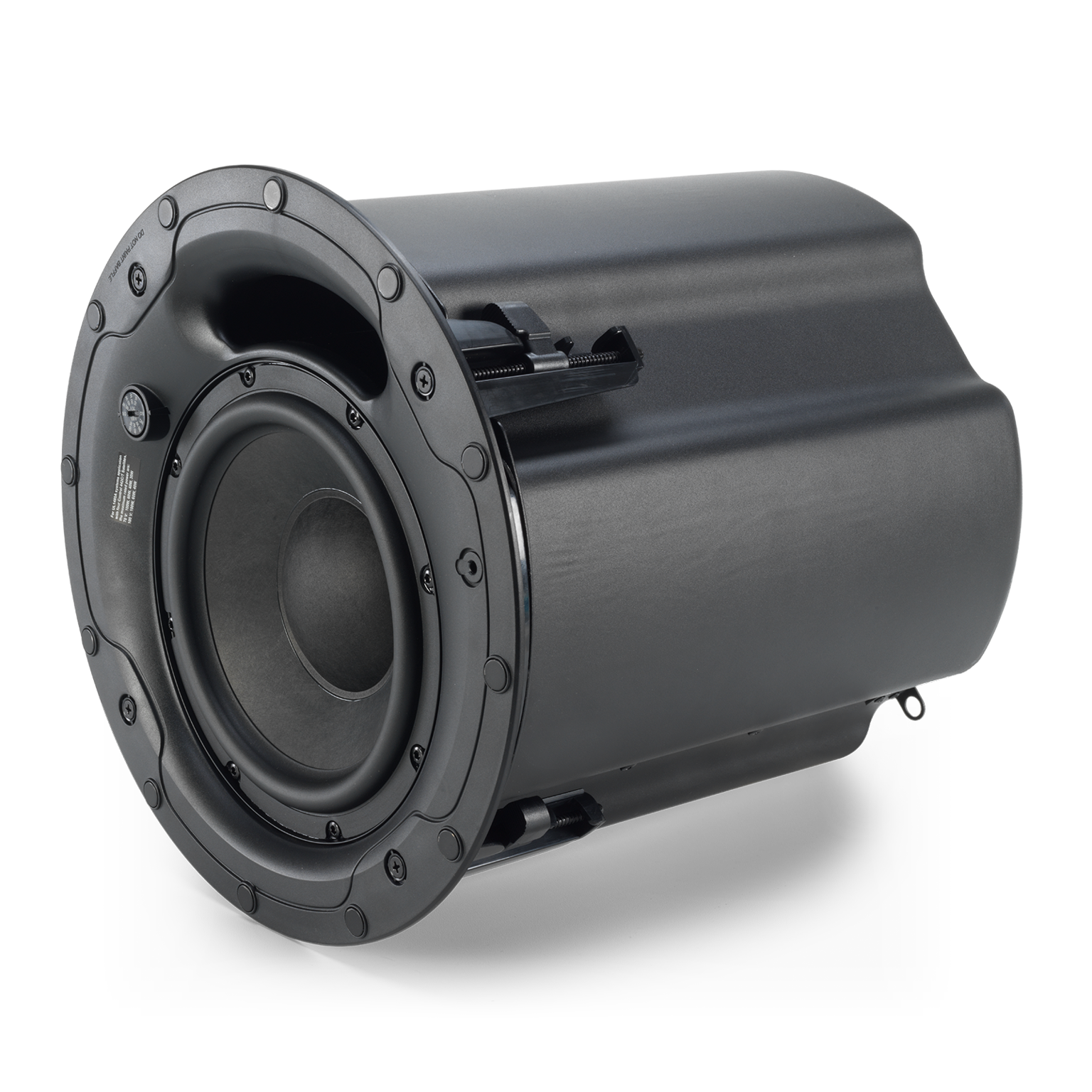

| Dimensions |
351 mm (13.8 in) H x 342 mm (13.5 in) dia.

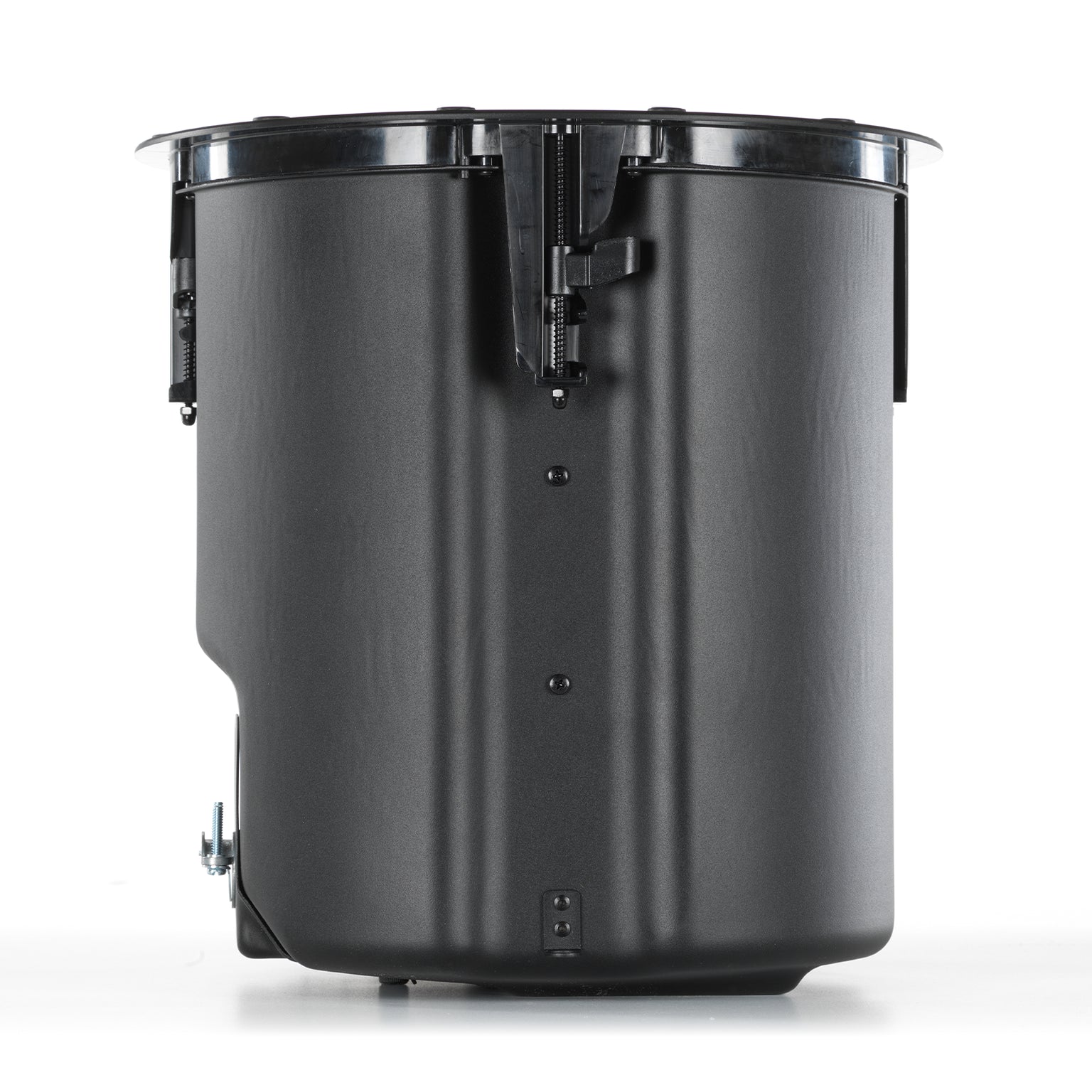

337 mm (13.3 in) from bottom of ceiling tile to top of backcan |
| Safety Agency Rating |
Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered transformer. |
| Environmental |
IP rating: IP33 per EN/IEC 60529
Operating temperature: 0°C to 45°C |
| Color |
Stock grille is white (RAL9003), paintable |
| Net Weight (each) |
8.72 kg (19.22 lb) |
| Shipping Weight (pair) |
25.02 kg (55.16 lb) |
| Optional Accessories |
JBL-MTC-440BG black (RAL9004) round grille
JBL-MTC-440SG white (RAL9003) square grille
JBL-MTC-419NC new construction bracket
JBL-MTC-419MR mud-ring construction bracket
JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles |
| SKU Number |
JBL-C440CS/T |
