| Frequency Range (-10dB) |
47 Hz – 320 Hz |
| Power Capacity |
160 W (640 W peak) continuous IEC pink noise (2 hrs)
80 W (320 W peak) continuous IEC pink noise power (100 hrs) |
| Sensitivity (1m/1W) |
90 dB |
| Coverage Angle |
180° conical |
| Maximum SPL (1m) |
112 dB continuous pink noise (118 dB peak) |
| Nominal Impedance |
8 ohms |

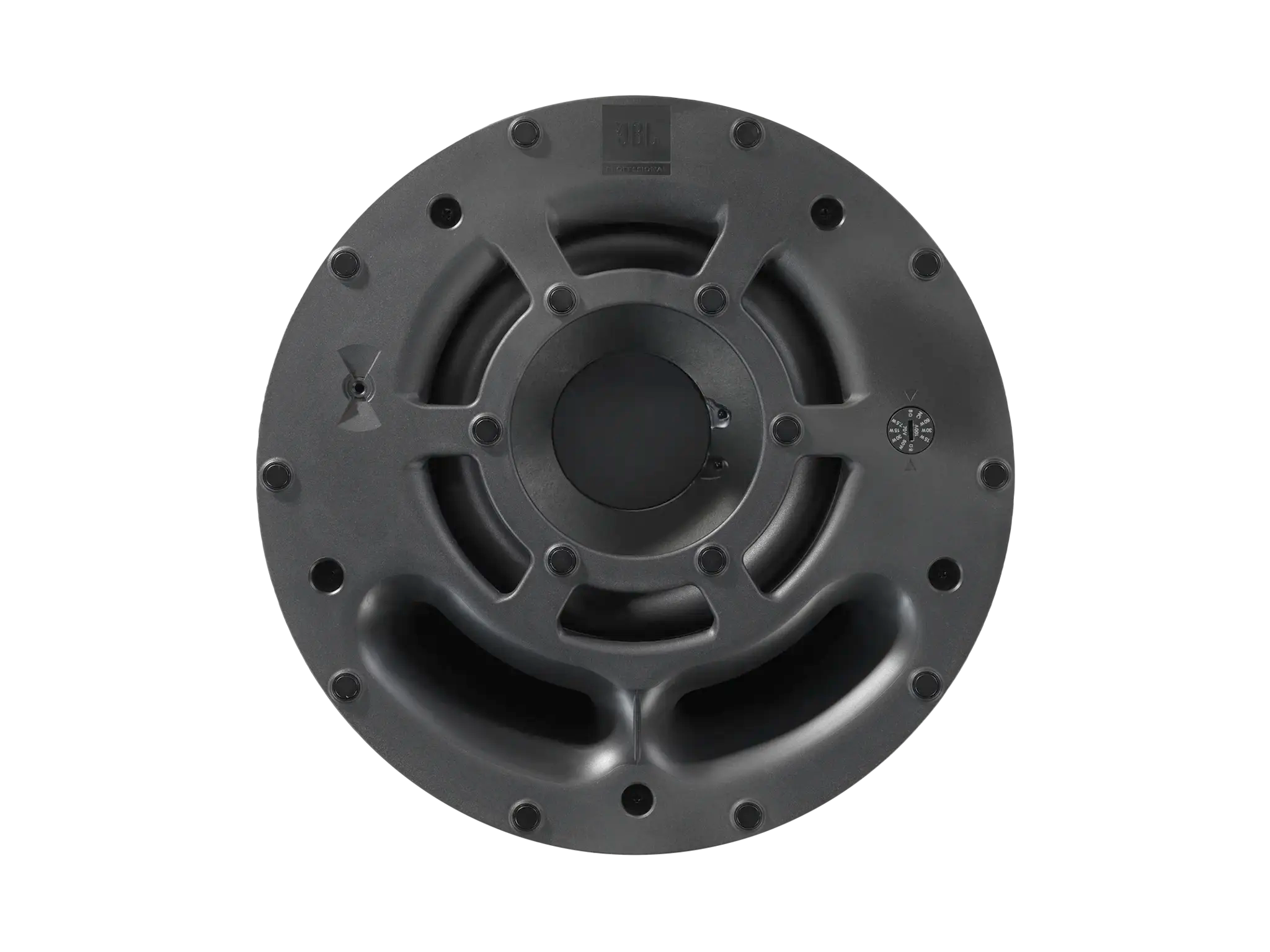

| Transformer Taps |
70V: 60 W, 30 W, 15 W, 7.5 W
100V: 60 W, 30 W, 15 W |
| Drivers |
200 mm (8 in) with treated paper cone and high-performance magnet |
| Ceiling Cutout Size |
308 mm (12.2 in) |
| Dimensions |
289 mm (11.4 in) H x 346 mm (13.6 in) dia.
280 mm (11.0 in) from bottom of ceiling tile to top of backcan |
| Safety Agency Rating |
Suitable for use in air handling spaces per UL2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 and S7232/UL1480A listed |
| Environmental |
IP33 rating per EN/IEC 60529
Operating temperature: 0°C to 45°C |
| Color |
Stock grille is white (RAL9003), paintable |
| Net Weight (each) |
8.8 kg (19.4 lb) |
| Shipping Weight (pair) |
25.27 kg (55.7 lb) |
| Optional Accessories |
JBL-MTC-419BG black (RAL9004) magnetic round grille
JBL-MTC-419SG white (RAL9003) magnetic square grille
JBL-MTC-419NC new construction bracket
JBL-MTC-419MR mud-ring construction bracket
JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles |
| SKU Number |
JBL-C419CS/T |
