| Frequency Range (-10dB) |
61 Hz – 20 kHz |
| Power Capacity |
75 W (300 W peak) cont. pink noise (2 hrs)
50 W (200 W peak) cont. pink noise (100 hrs)
|
| Sensitivity (1m/1W) |
89 dB |
| Coverage Angle |
120° conical |
| Maximum SPL (1m) |
108 dB continuous pink noise (114 dB peak) |
| Nominal Impedance |
8 ohms |

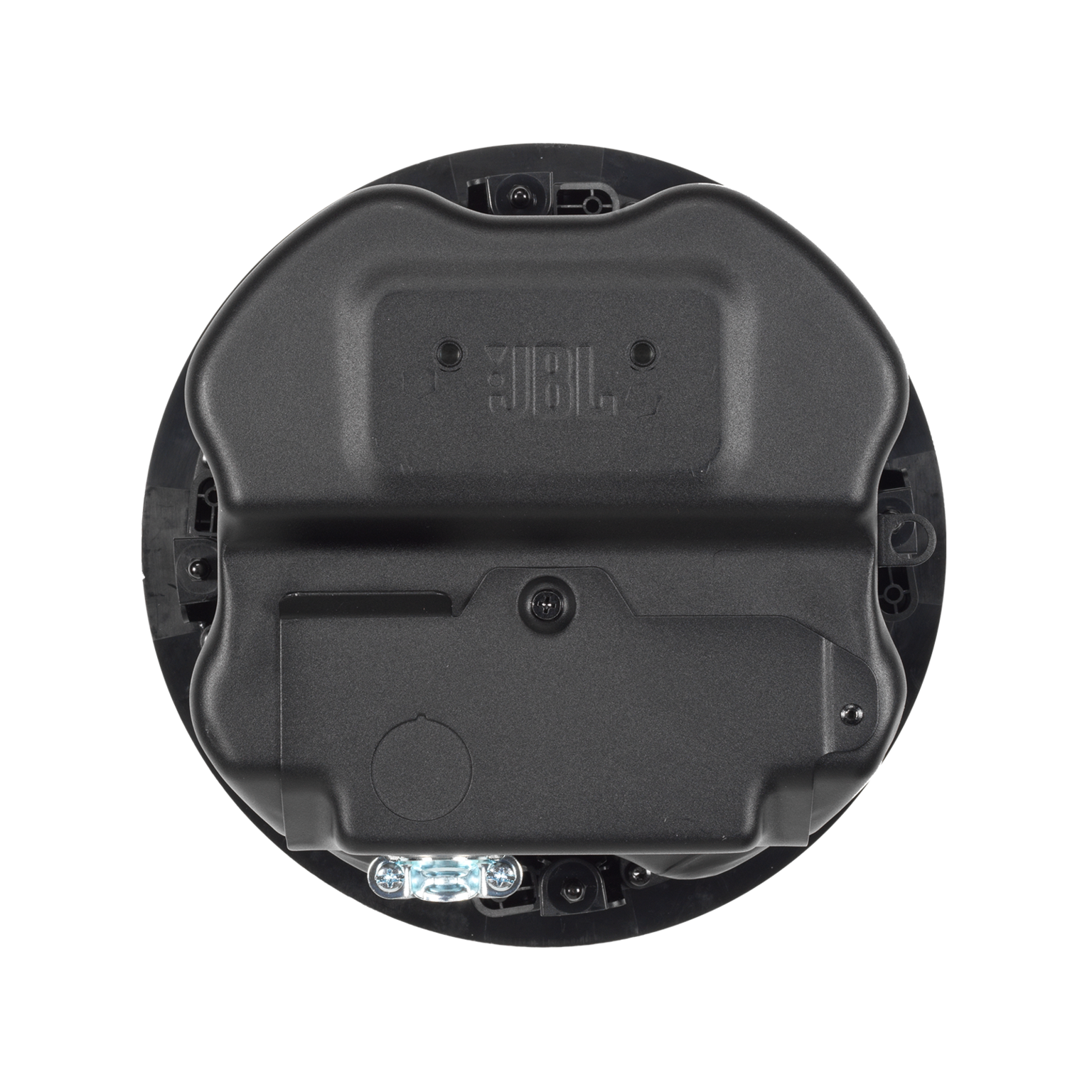

| Transformer Taps |
70V: 30 W, 15 W, 7.5 W, 3.8 W
100V: 30 W, 15 W, 7.5 W
|
| Drivers |

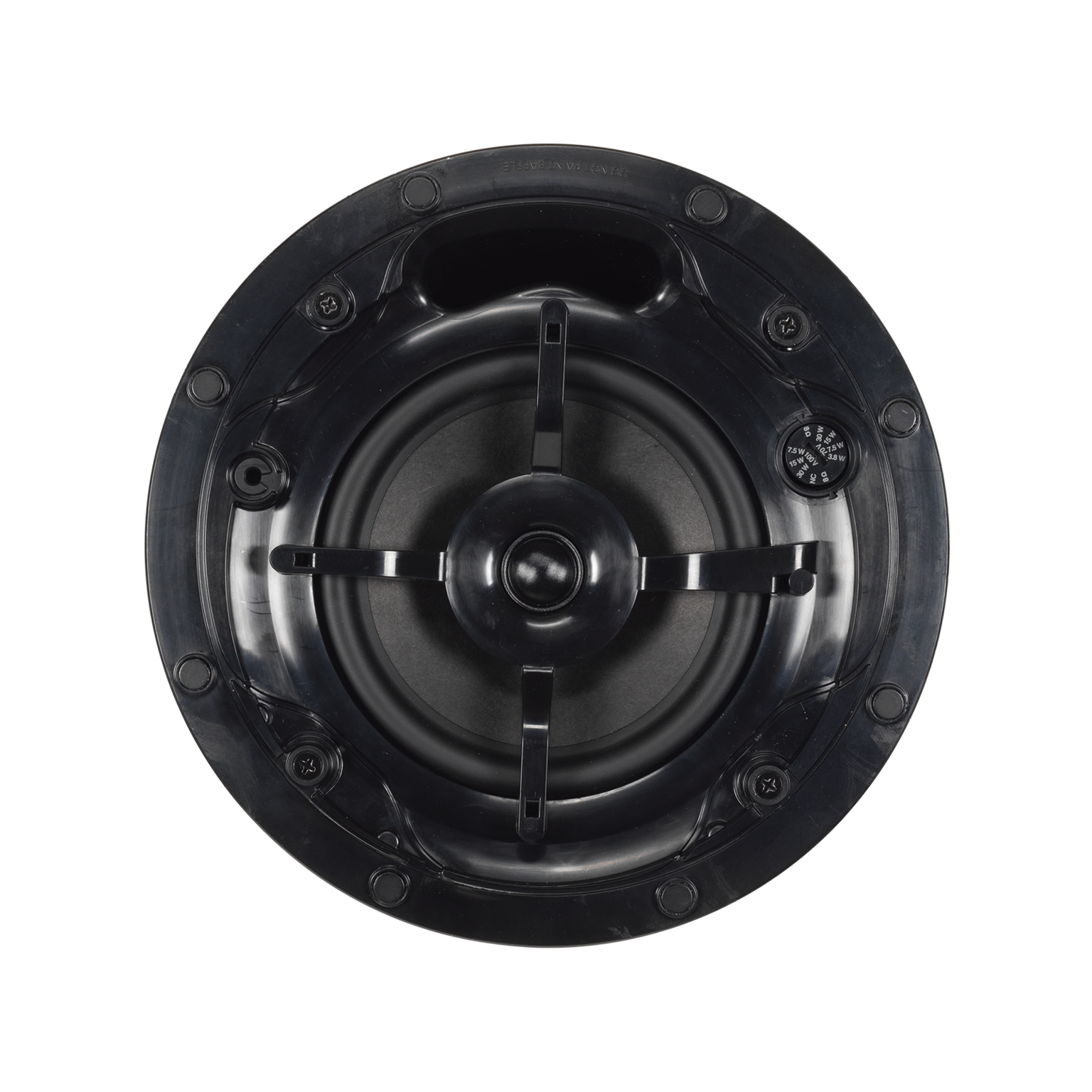

LF: 165 mm (6.5 in) with paper cone, SBR surround
HF: 20 mm (0.75 in) soft dome
|
| Ceiling Cutout Size |
223 mm (8.8 in) |

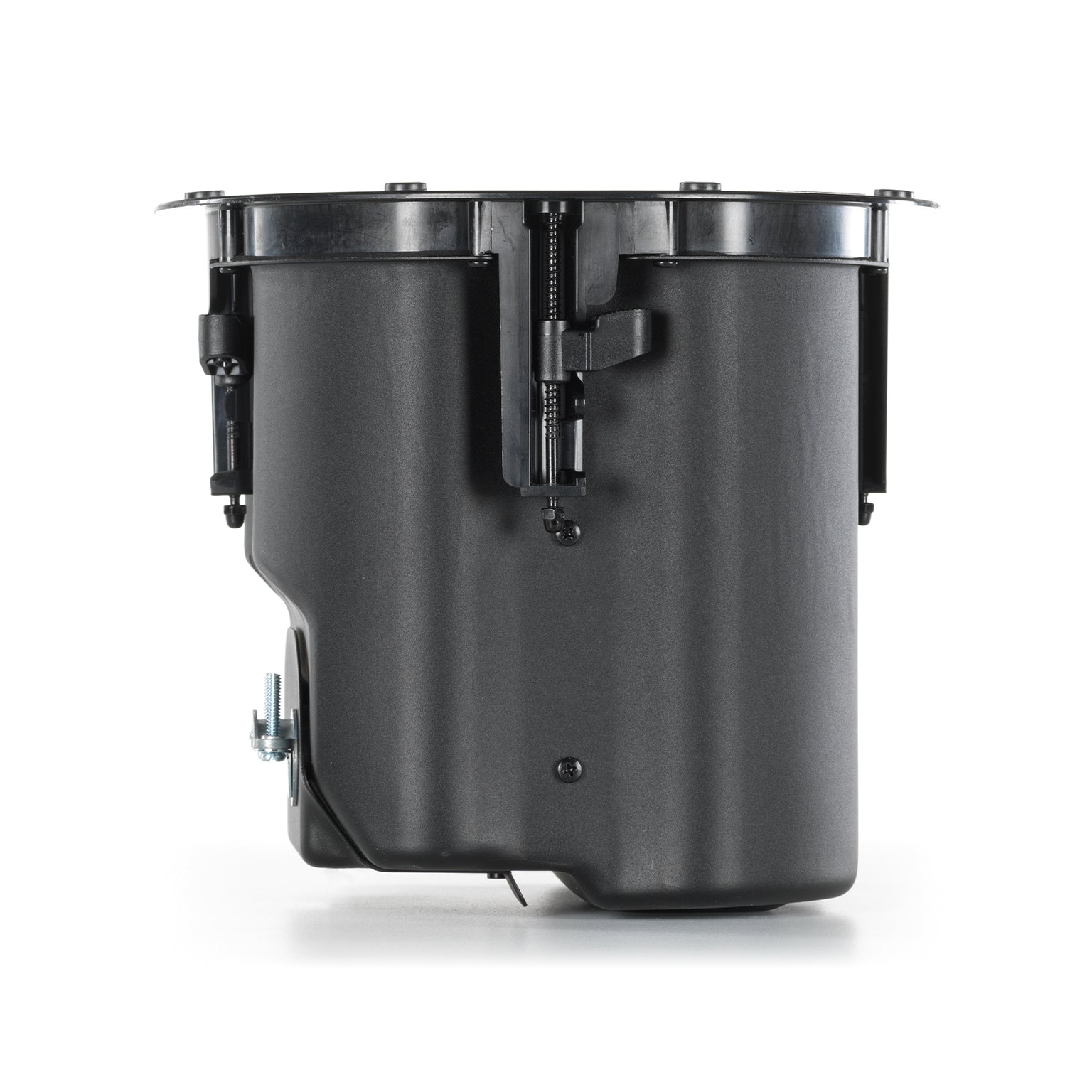

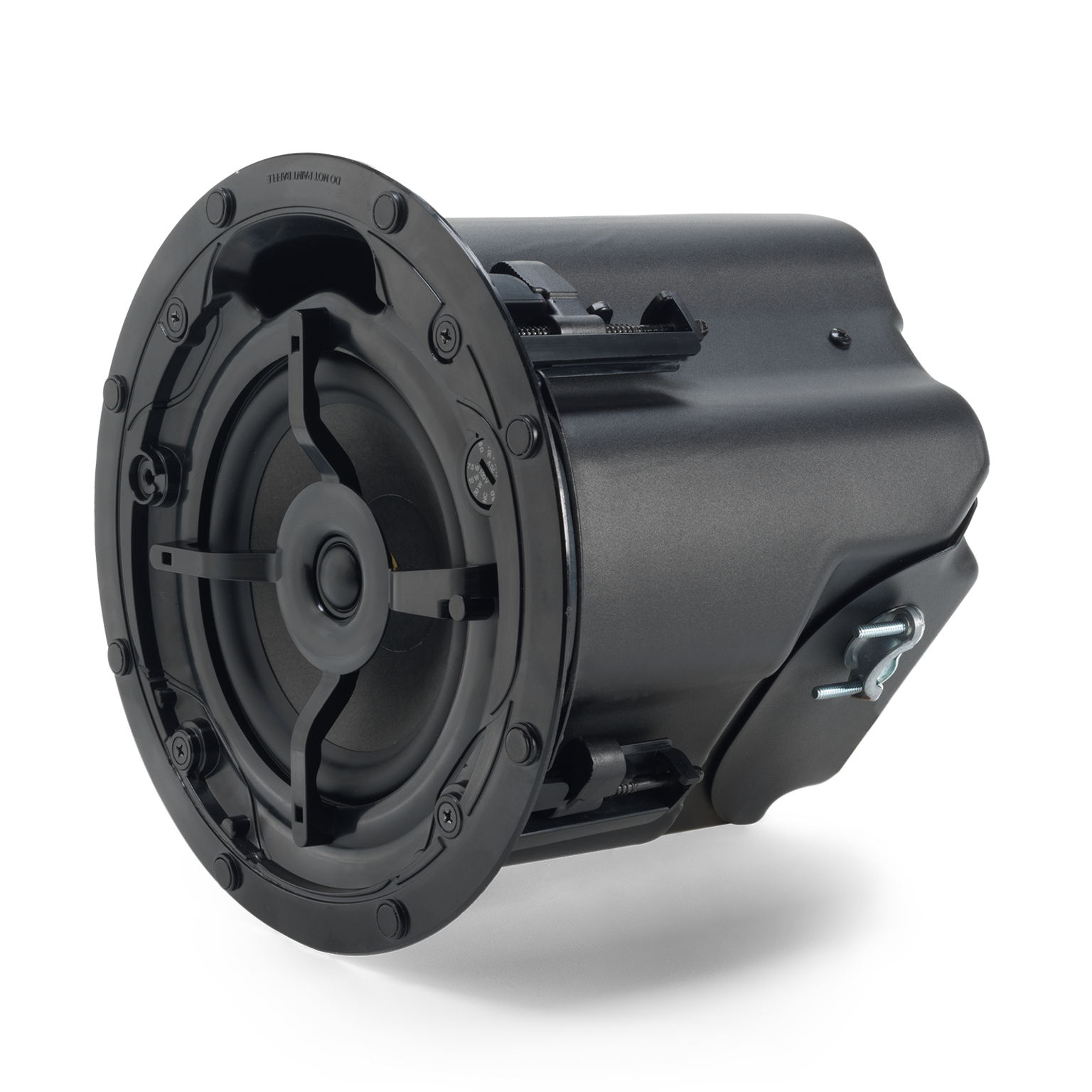

| Dimensions |
249 mm (9.9 in) H x 261 mm (10.4 in) dia.
238 mm (9.5 in) from bottom of ceiling tile to top of gland nut
|
| Safety Agency Rating |
EN 54-24:2008 certified Type A. Designed in accordance with BS 5839-8 and EN 50849. Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered transformer. |
| Environmental |
IP rating: IP33 per EN/IEC 60529
Operating temperature: 0°C to 45°C
|
| Color |
Stock grille is white (RAL9003), paintable (please read the user manual before painting) |
| Net Weight (each) |
3.76 kg (8.29 lb) |
| Shipping Weight (pair) |
12.66 kg (27.91 lb) |
| Optional Accessories |
JBL-MTC-416BG black (RAL9004) round grille
JBL-MTC-416SG white (RAL9003) square grille
JBL-MTC-416WG weather grille
JBL-MTC-426NC new construction bracket
JBL-MTC-426MR mud-ring construction bracket
JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
|
| SKU Number |
JBL-C416C/T-VA |
