| Frequency Range (-10dB) |
65 Hz – 20 kHz |
| Power Capacity |
45 W (180 W peak) cont. pink noise (2 hrs)
30 W (120 W peak) cont. pink noise (100 hrs) |
| Sensitivity (1m/1W) |
86 dB |
| Coverage Angle |
130° conical |
| Maximum SPL (1m) |
103 dB continuous pink noise (109 dB peak) |
| Nominal Impedance |
8 ohms |

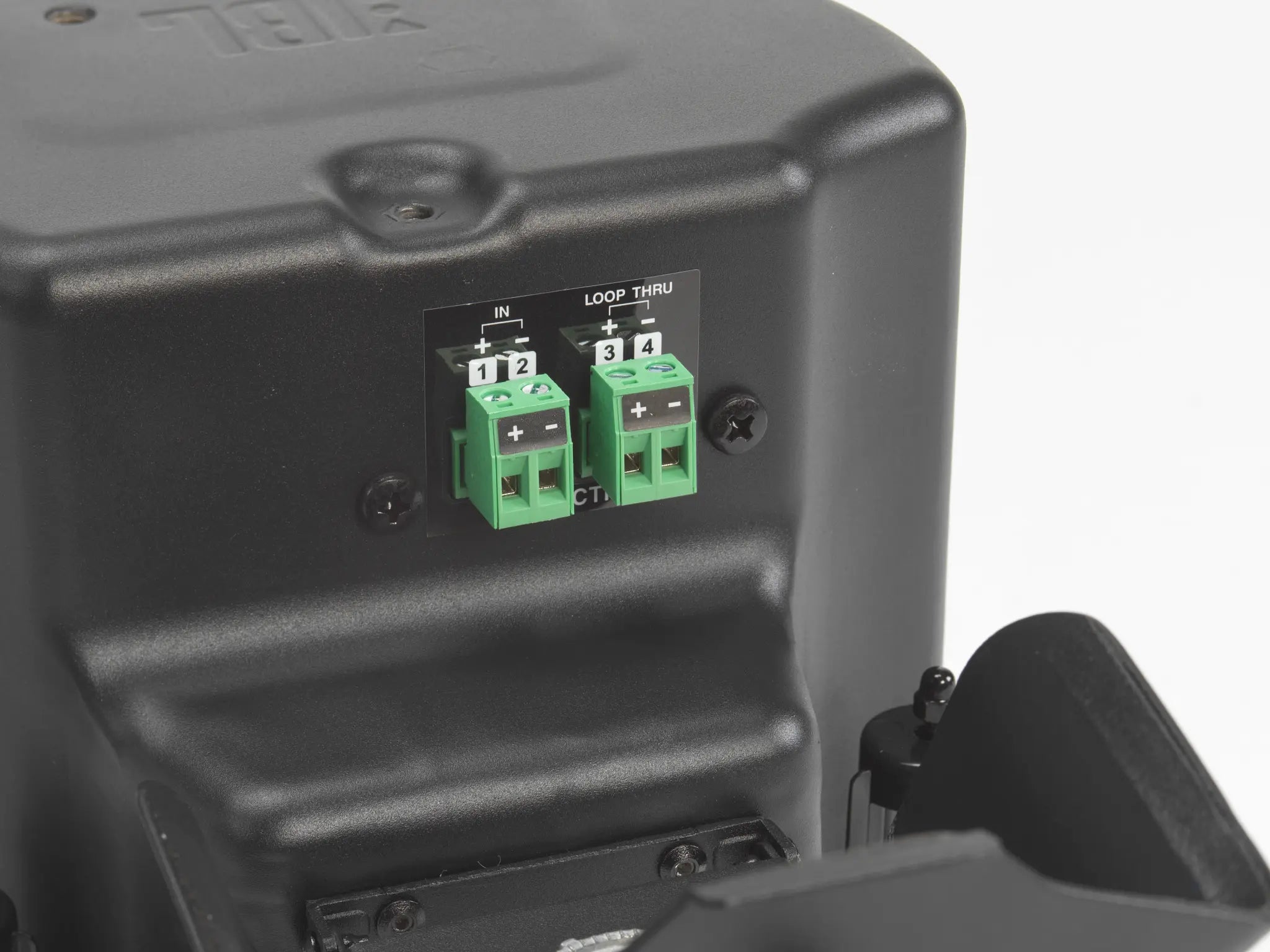

| Transformer Taps |
70V: 25 W, 12.5 W, 6.3 W, 3.2 W
100V: 25 W, 12.5 W, 6.3 W |

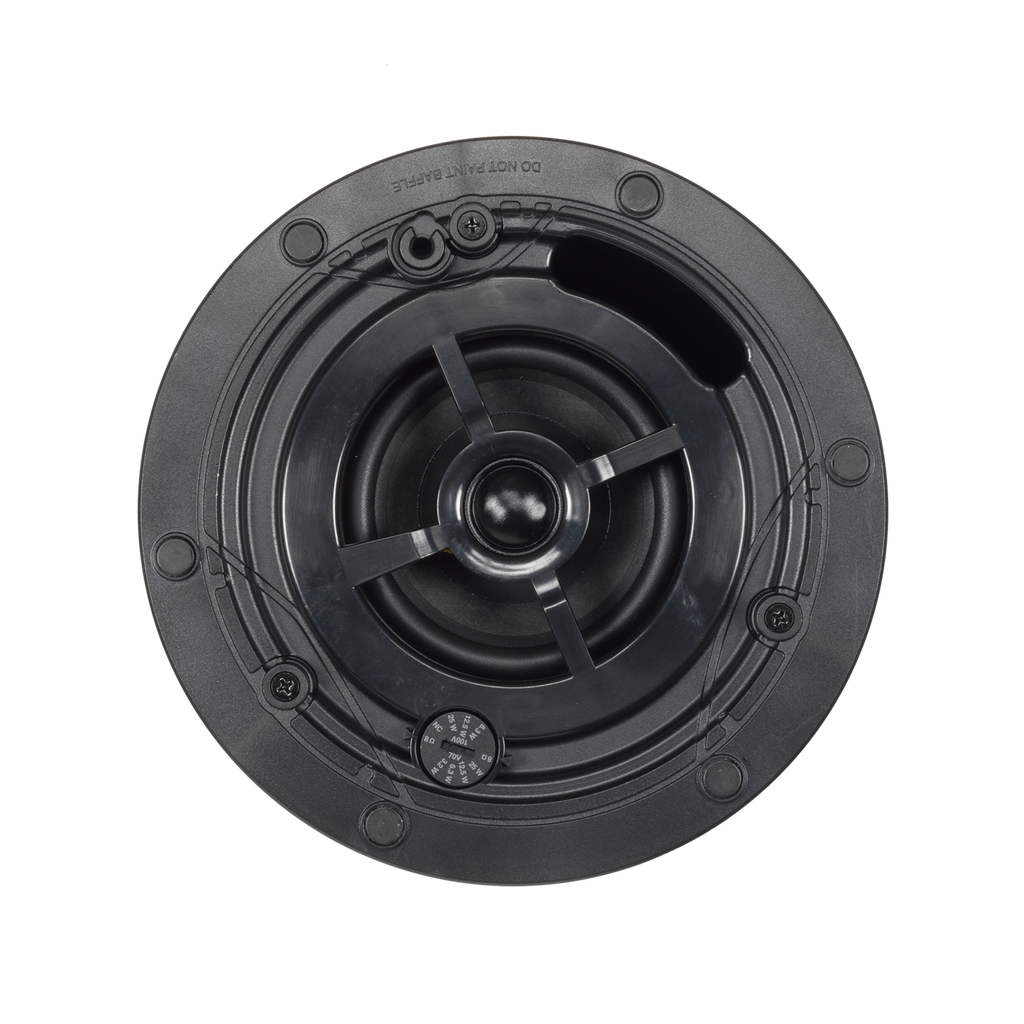

| Drivers |
LF: 100 mm (4.0 in) with paper cone, SBR surround
HF: 20 mm (0.75 in) soft dome |
| Ceiling Cutout Size |
168 mm (6.6 in) |
| Dimensions |
186 mm (7.4 in) H x 203 mm (8.1 in) dia.

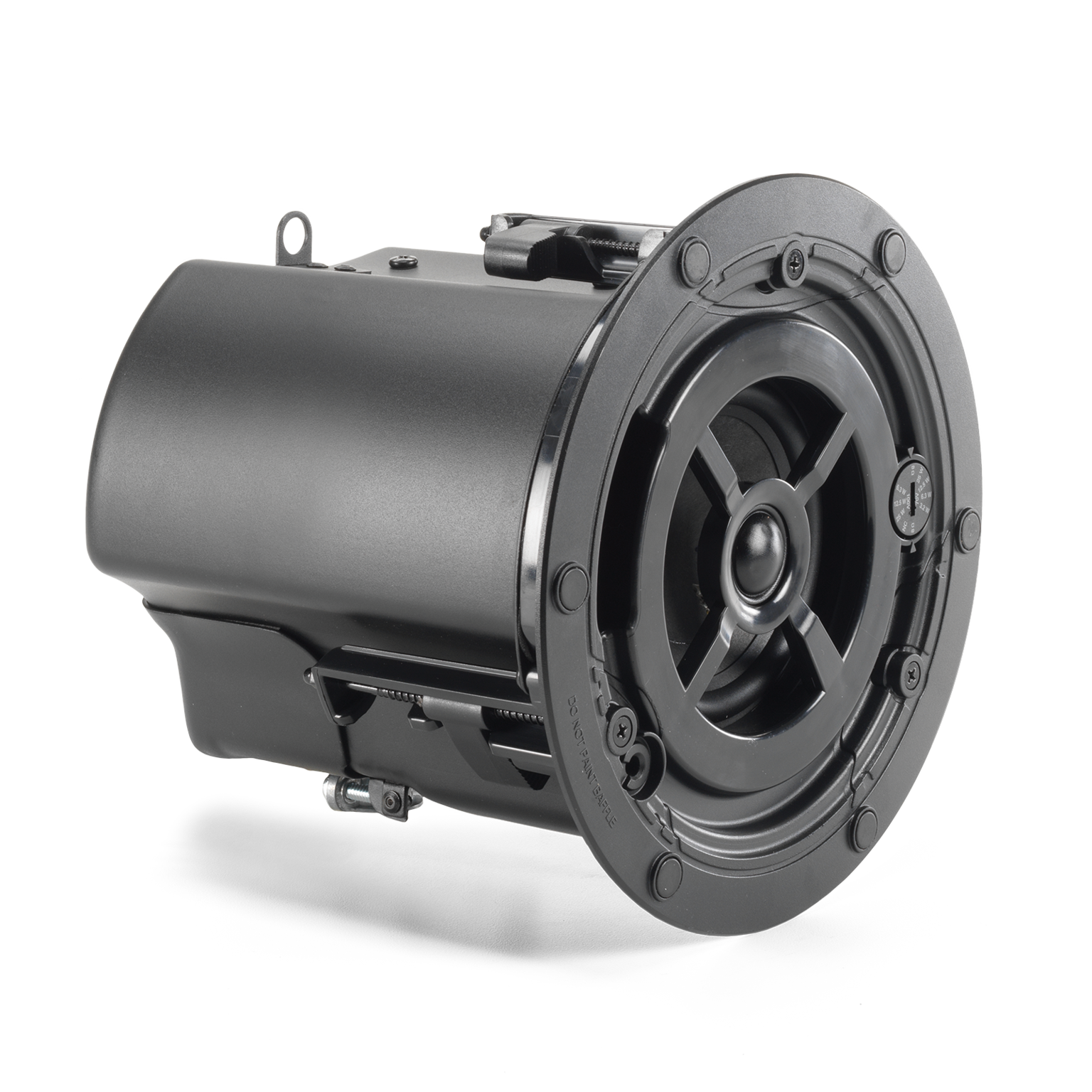

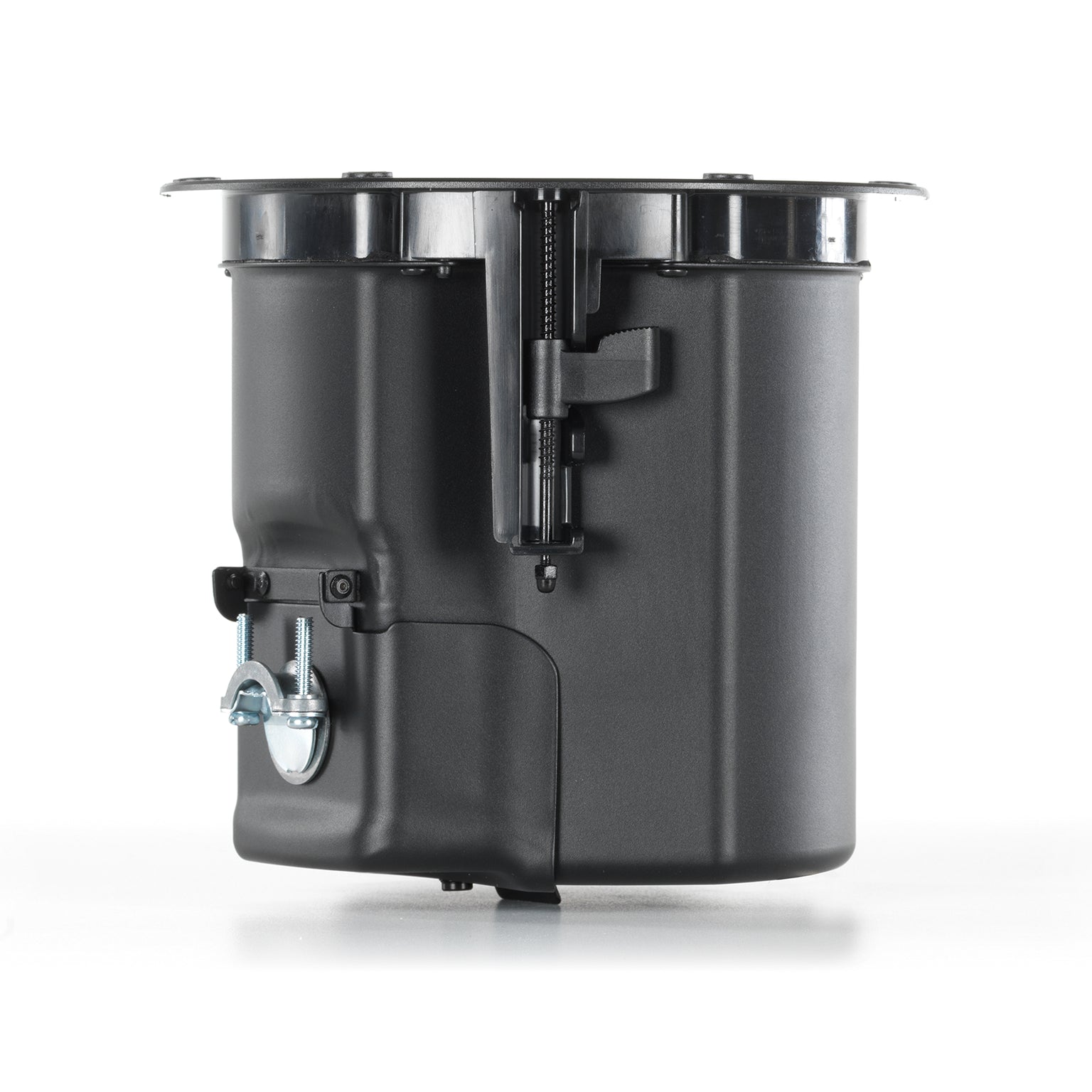

177 mm (7.1 in) from bottom of ceiling tile to top of backcan |
| Safety Agency Rating |
Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered transformer. |
| Environmental |
IP rating: IP33 per EN/IEC 60529
Operating temperature: 0°C to 45°C |
| Color |

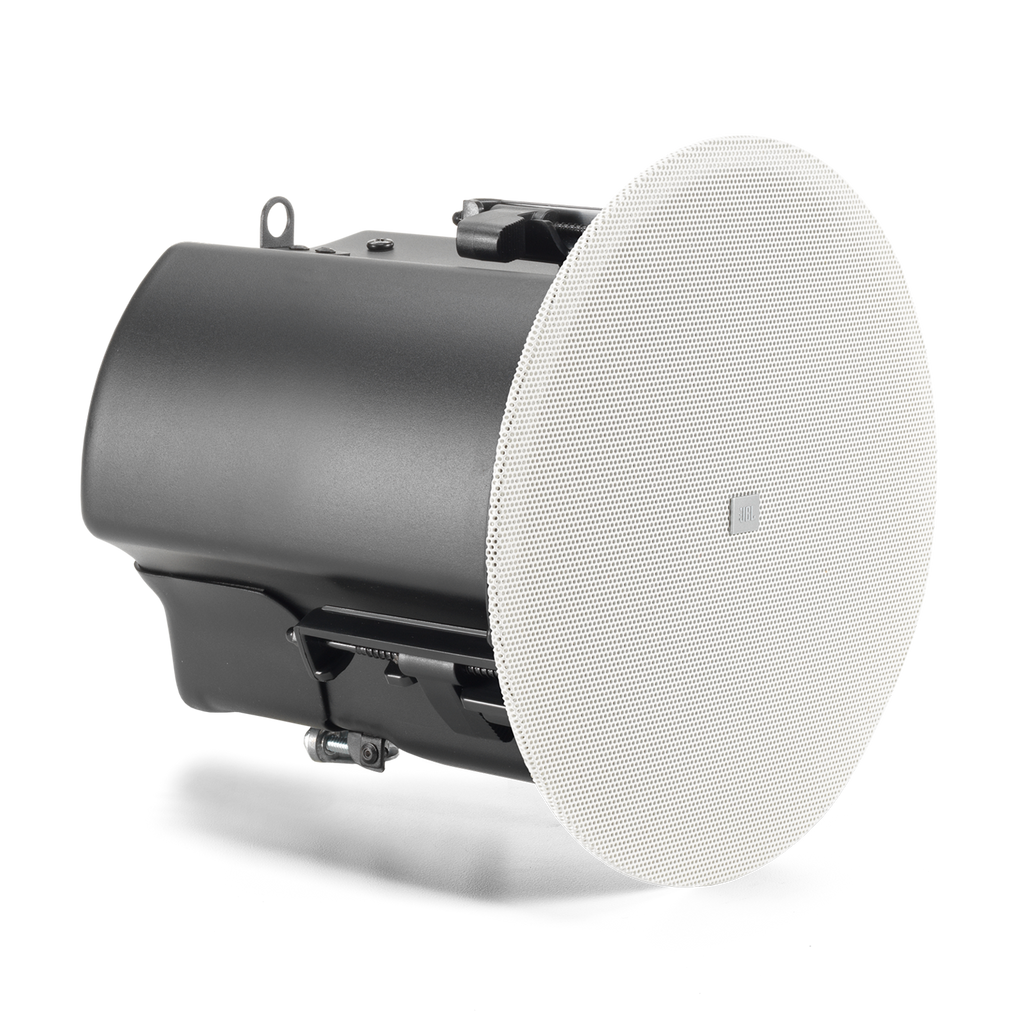

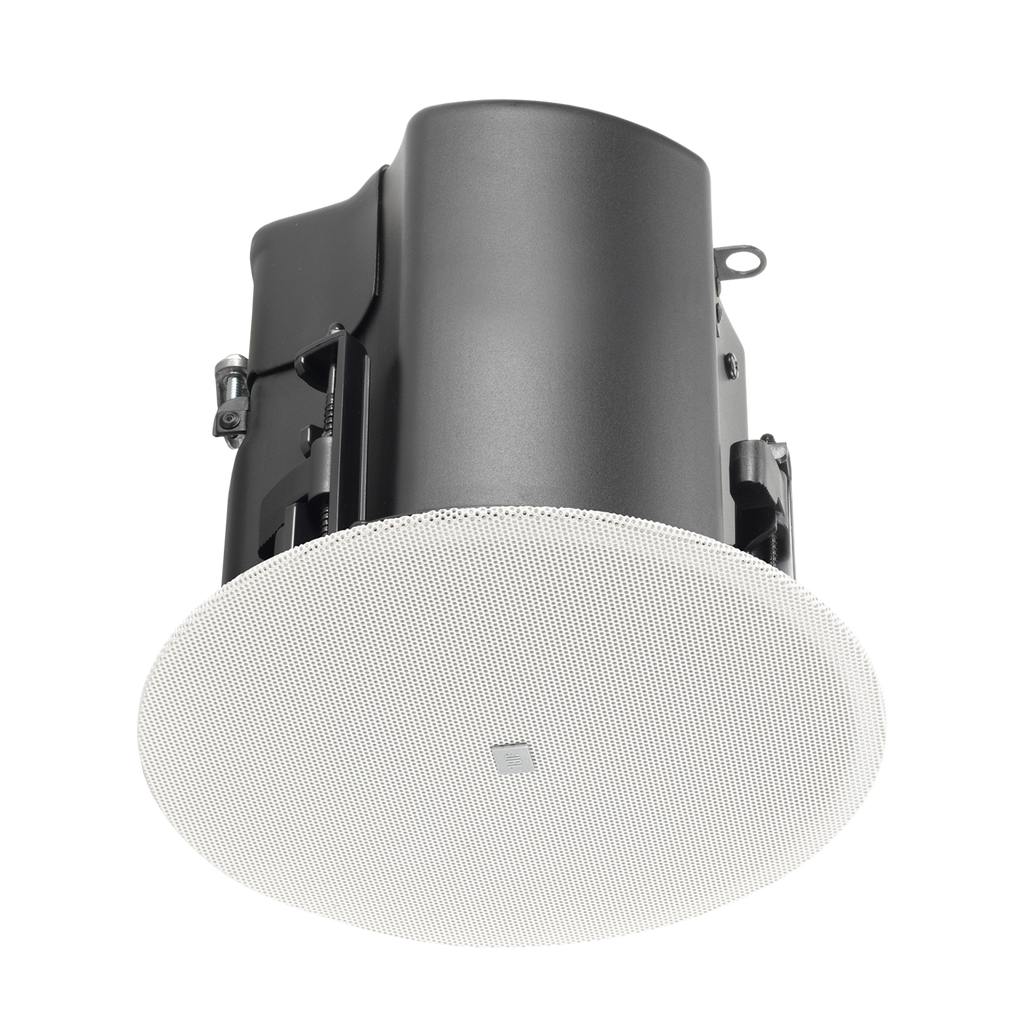

Stock grille is white (RAL9003), paintable |
| Net Weight (each) |
2.50 kg (5.51 lb) |
| Shipping Weight (pair) |
9.52 kg (20.99 lb) |
| Optional Accessories |
JBL-MTC-414BG black (RAL9004) round grille
JBL-MTC-414SG white (RAL9003) square grille
JBL-MTC-414WG white (RAL9003) weather grille
JBL-MTC-424NC new construction bracket
JBL-MTC-424MR mud-ring construction bracket
JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles |
| SKU Number |
JBL-C414C/T |
